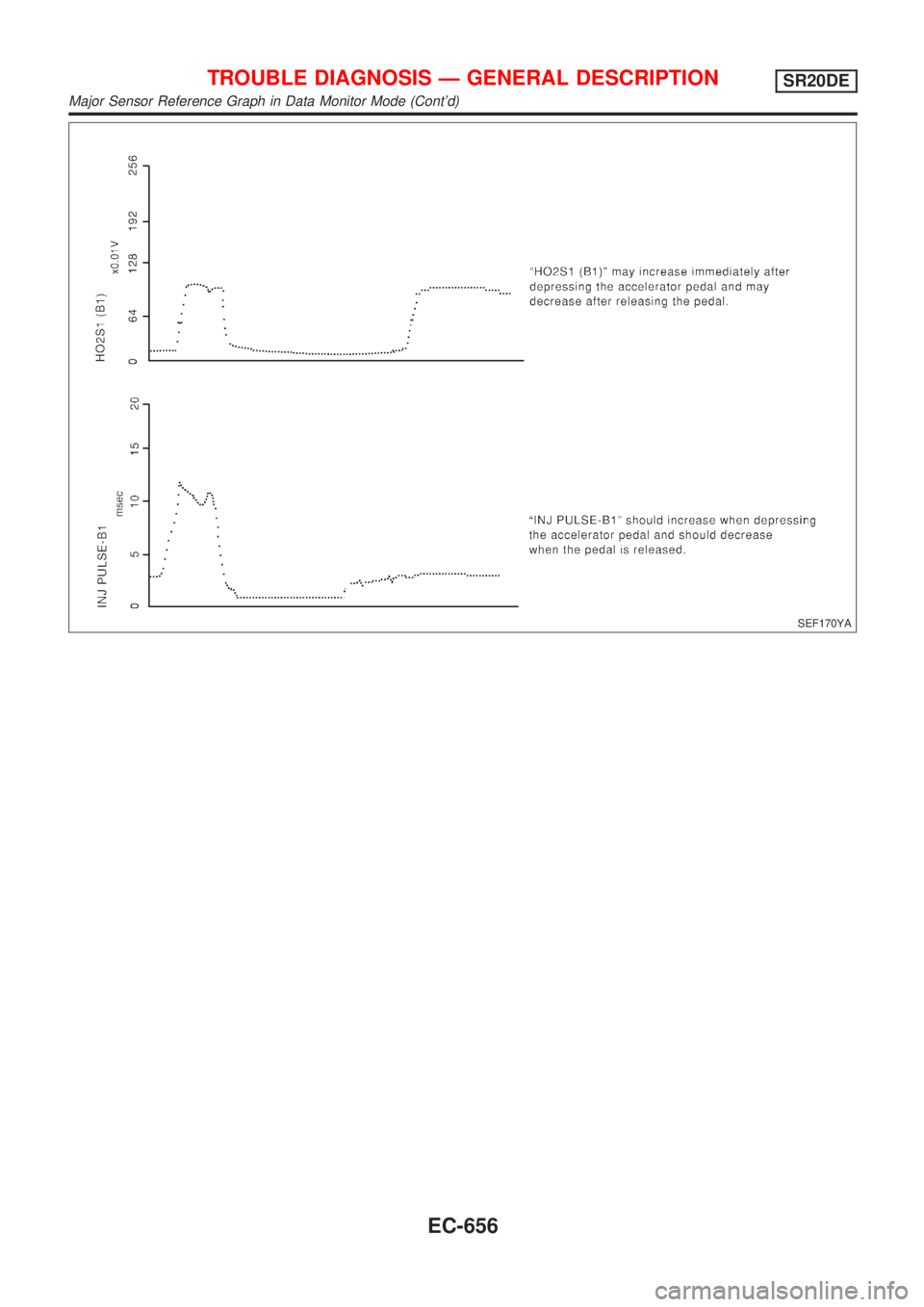

Page 1081 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF170YA TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONSR20DE Major Sensor Reference Graph in Data Monitor Mode (Contd) EC-656

Page 1082 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF553Y JEF096Y SEF097Y ECM Terminals and Reference ValueNLEC1375PREPARATIONNLEC1375S01Models with ECM in Engine CompartmentNLEC1375S01011. The ECM is located under the cowl panel on the passenger sid

Page 1083 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF367I 3. Perform all voltage measurements with the connector con- nected. Extend tester probe as shown to perform tests easily. +Open harness securing clip to make testing easier. +Use extreme care

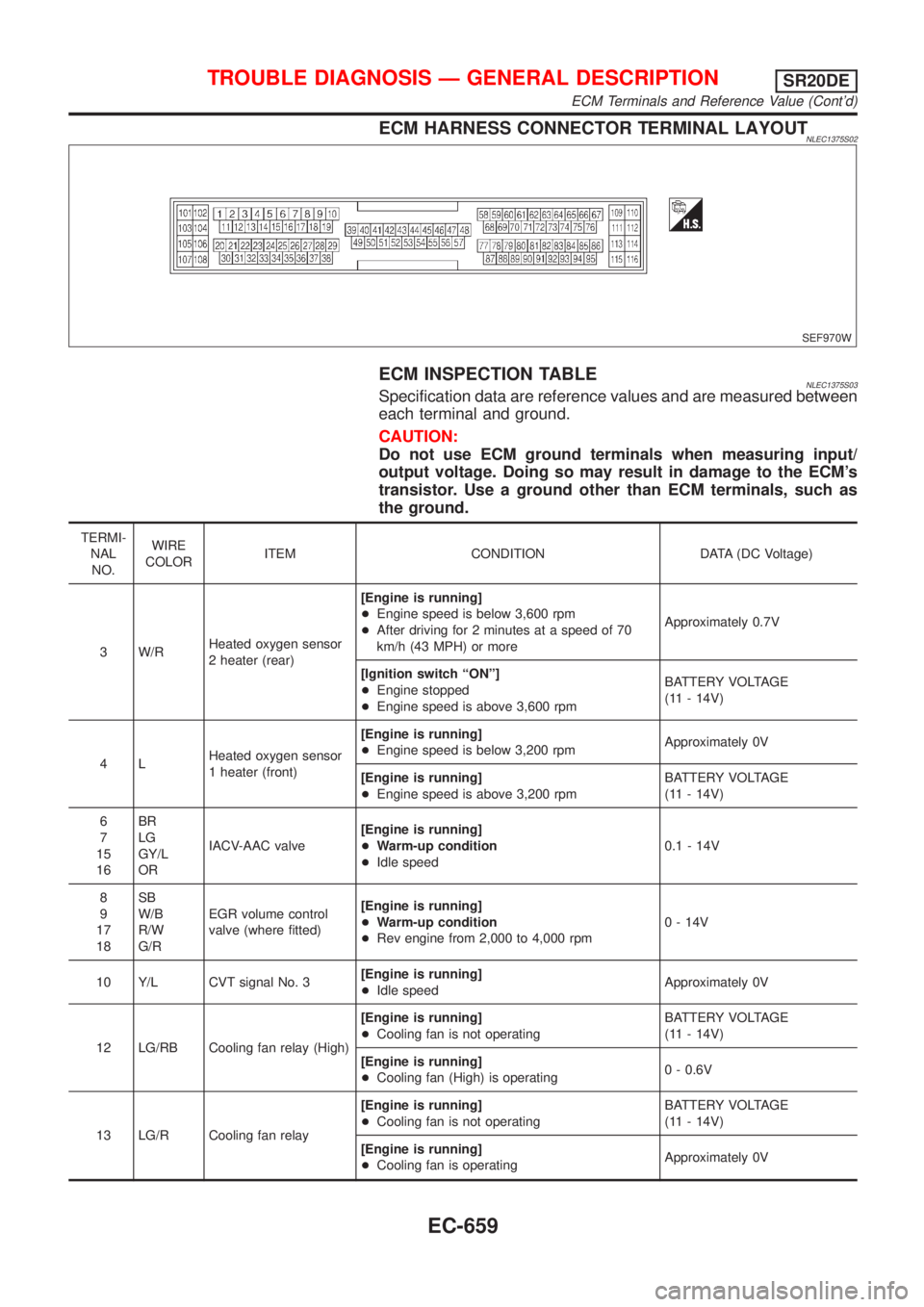

Page 1084 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual ECM HARNESS CONNECTOR TERMINAL LAYOUTNLEC1375S02 SEF970W ECM INSPECTION TABLENLEC1375S03Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use E

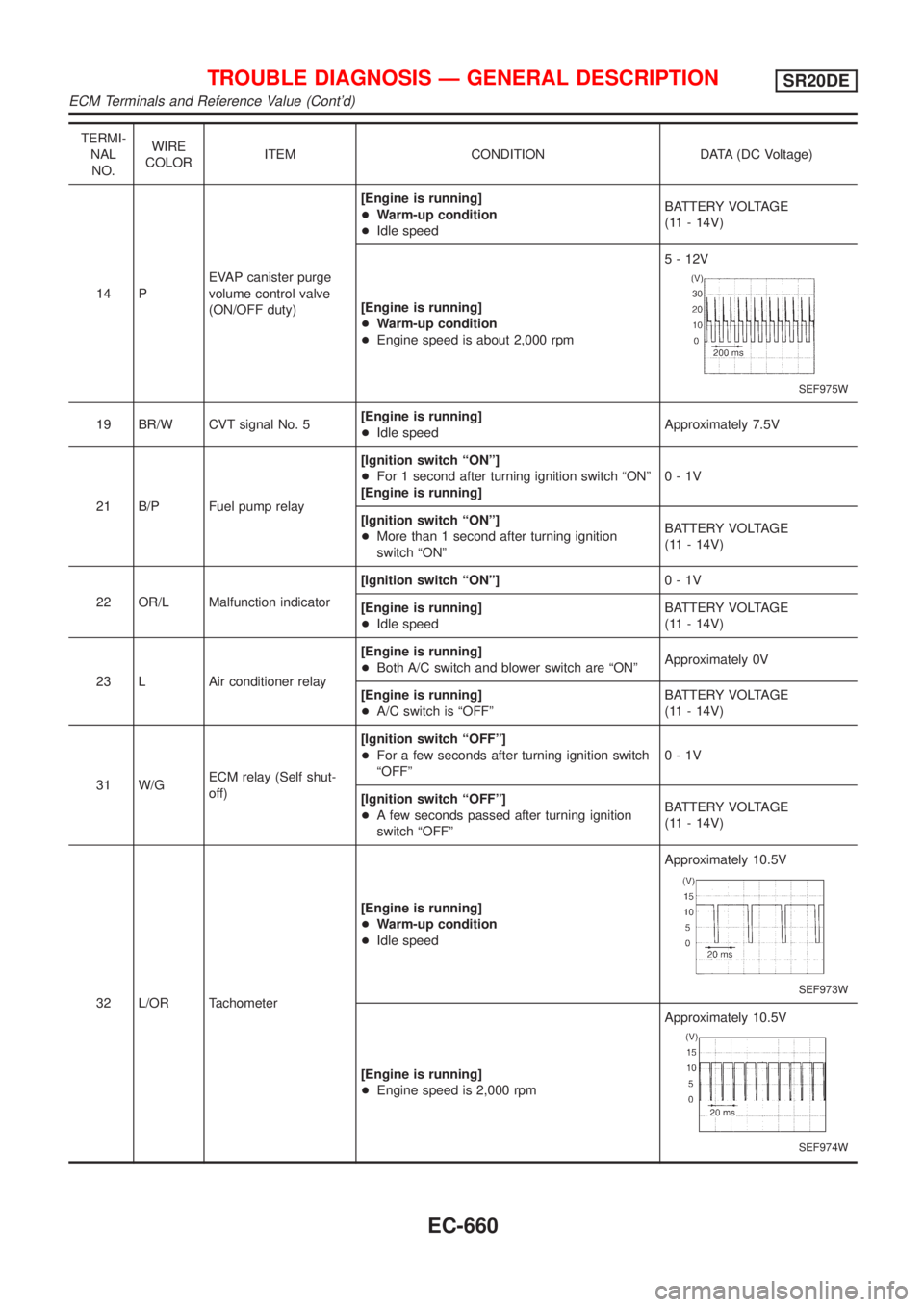

Page 1085 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 14 PEVAP canister purge volume control valve (ON/OFF duty)[Engine is running] +Warm-up condition +Idle speedBATTERY VOLTAGE (11 - 14V) [Engine

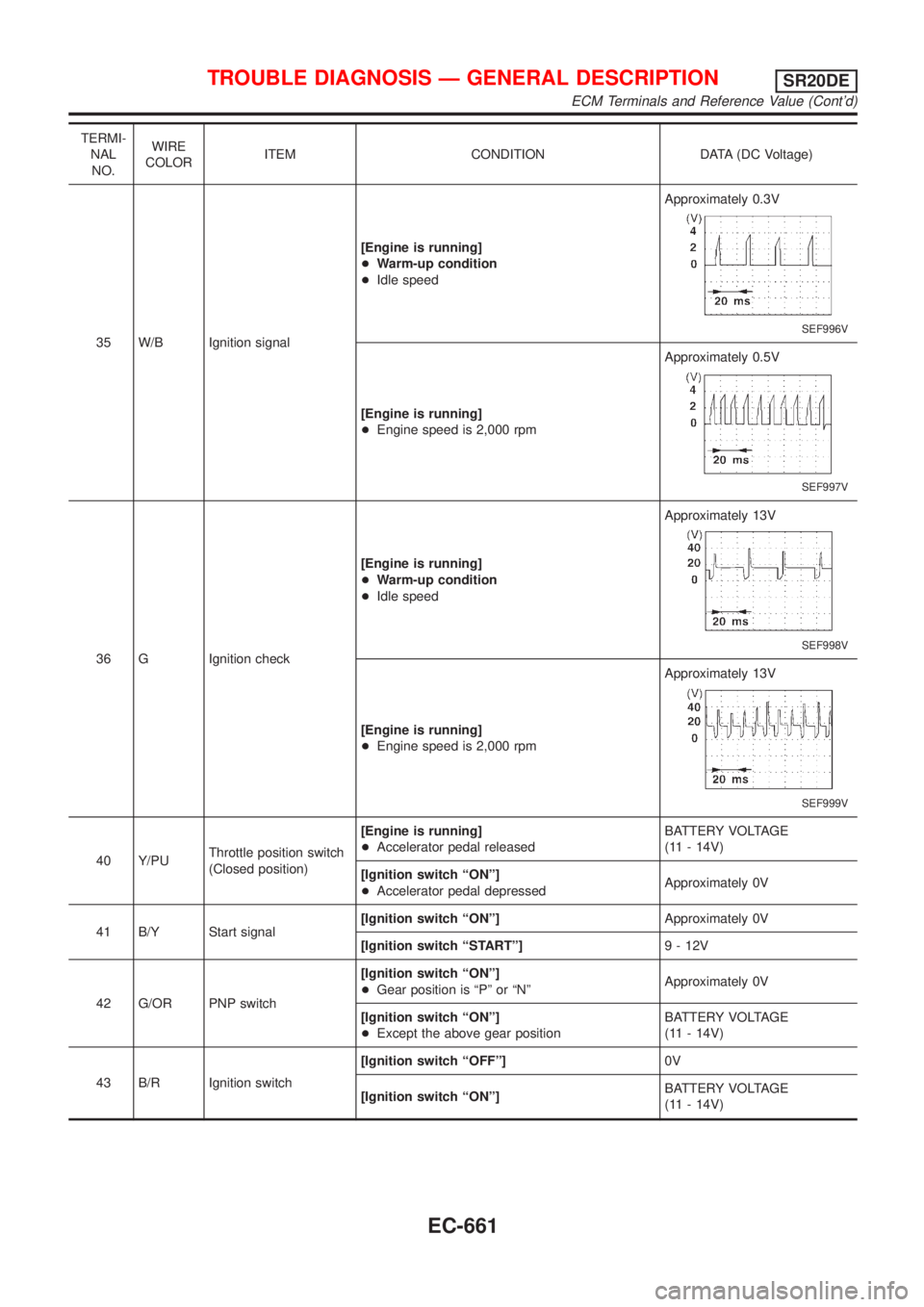

Page 1086 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 35 W/B Ignition signal[Engine is running] +Warm-up condition +Idle speedApproximately 0.3V SEF996V [Engine is running] +Engine speed is 2,000 r

Page 1087 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 44 L/R Air conditioner switch[Engine is running] +Both air conditioner switch and blower switch are ªONº (Compressor operates)Approximately 0

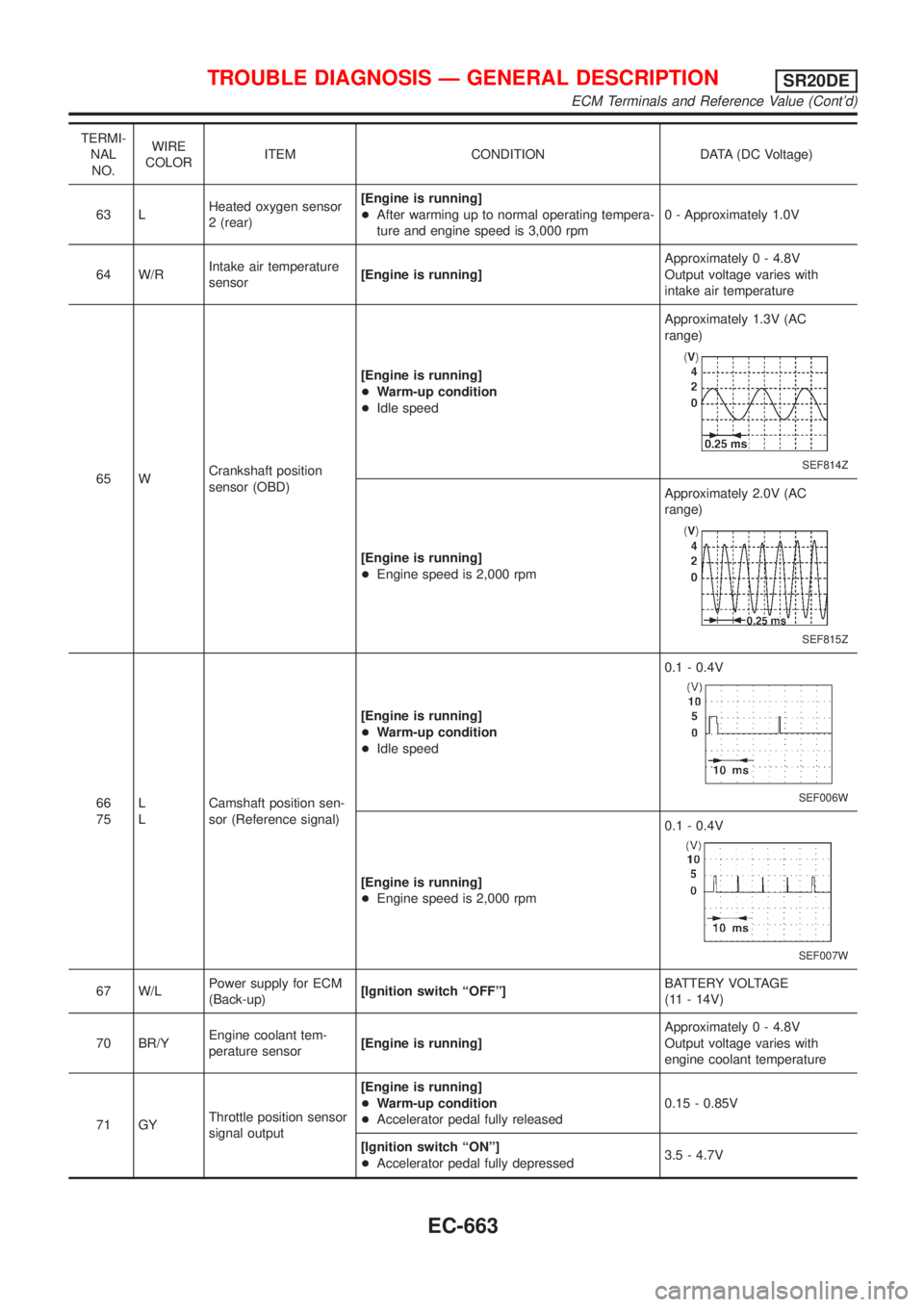

Page 1088 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 63 LHeated oxygen sensor 2 (rear)[Engine is running] +After warming up to normal operating tempera- ture and engine speed is 3,000 rpm0 - Appro
