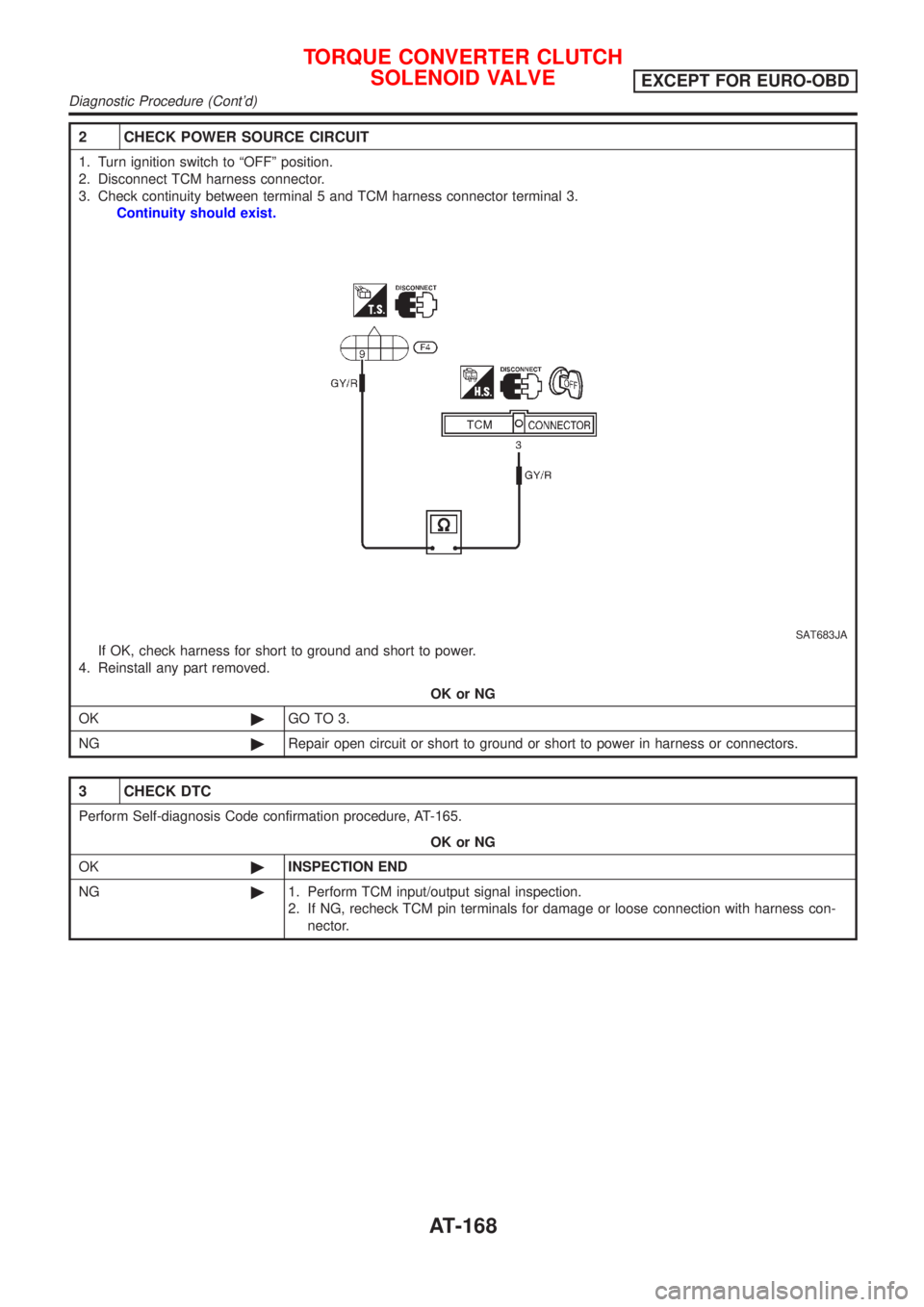

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 5 and TCM harness connector terminal 3.
Continuity should exist.
SAT683JA
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-165.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-168
Page 170 of 3051
SAT684JA

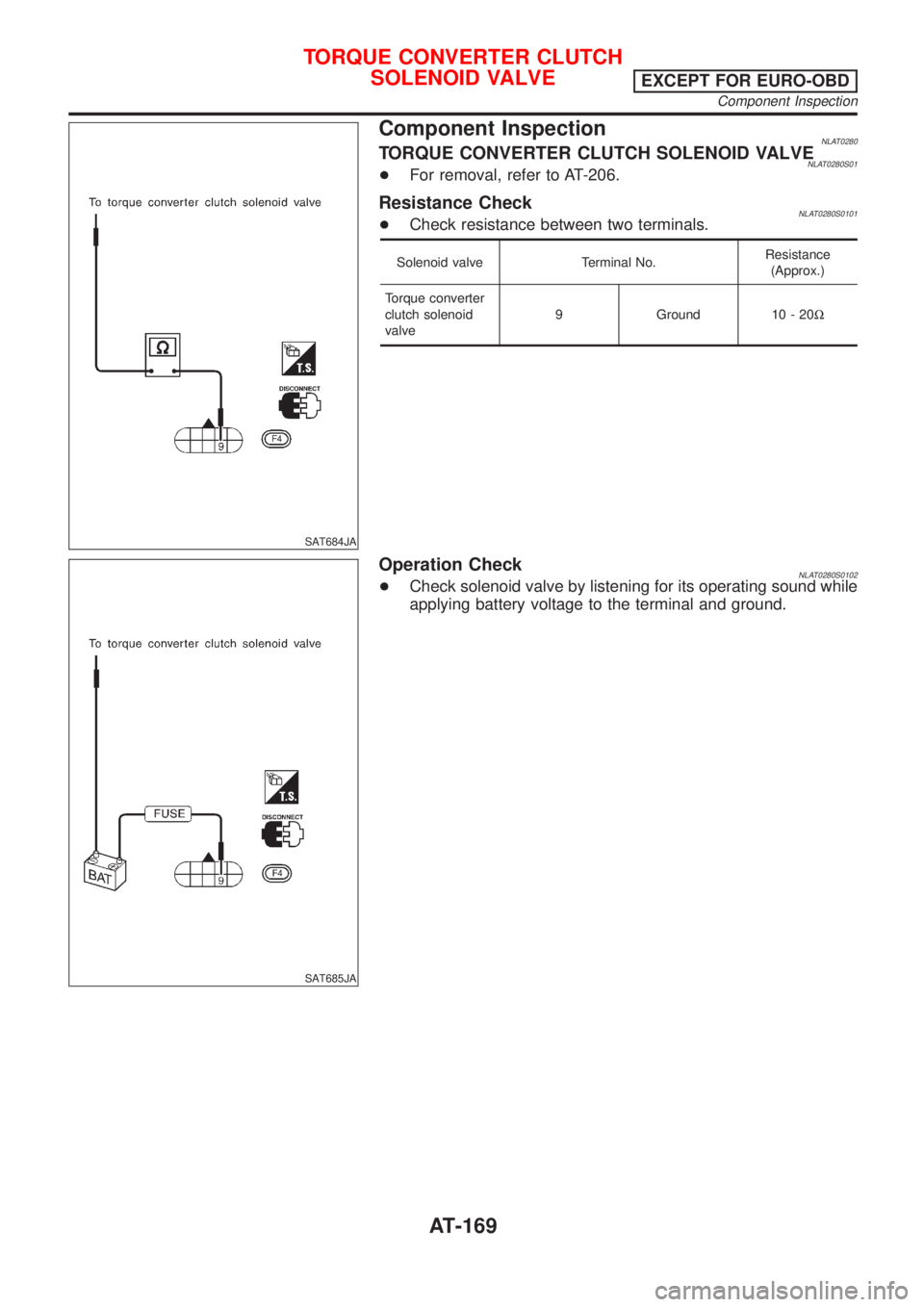

Component InspectionNLAT0280TORQUE CONVERTER CLUTCH SOLENOID VALVENLAT0280S01+For removal, refer to AT-206.
Resistance CheckNLAT0280S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Torque converter
clutch solenoid
valve9 Ground 10 - 20W
SAT685JA
Operation CheckNLAT0280S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Component Inspection
AT-169
Page 171 of 3051

SAT021J

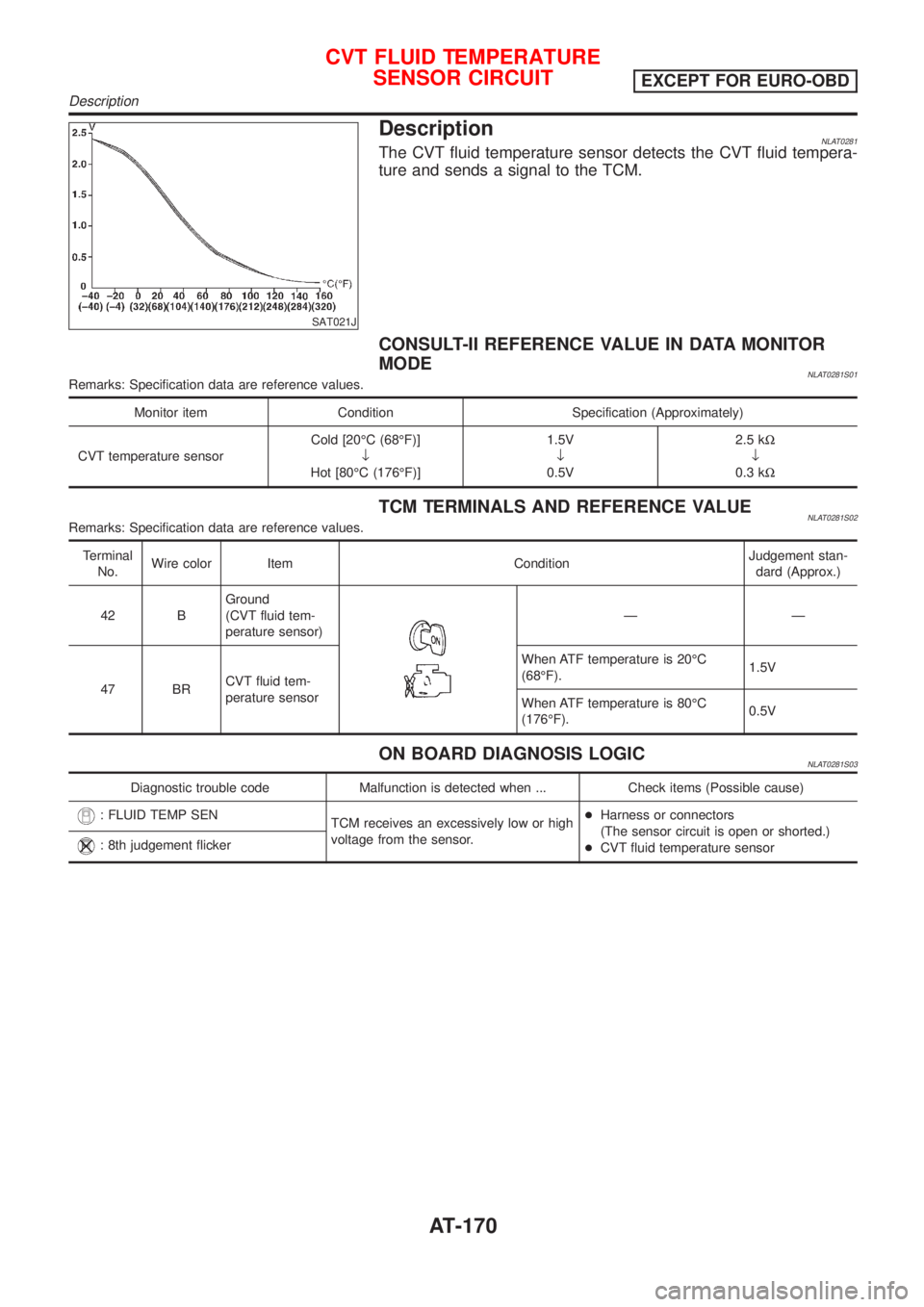

DescriptionNLAT0281The CVT fluid temperature sensor detects the CVT fluid tempera-
ture and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NLAT0281S01Remarks: Specification data are reference values.
Monitor item Condition Specification (Approximately)
CVT temperature sensorCold [20ÉC (68ÉF)]
¯
Hot [80ÉC (176ÉF)]1.5V
¯
0.5V2.5 kW
¯
0.3 kW
TCM TERMINALS AND REFERENCE VALUENLAT0281S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
42 BGround
(CVT fluid tem-
perature sensor)
ÐÐ
47 BRCVT fluid tem-
perature sensorWhen ATF temperature is 20ÉC
(68ÉF).1.5V
When ATF temperature is 80ÉC
(176ÉF).0.5V
ON BOARD DIAGNOSIS LOGICNLAT0281S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: FLUID TEMP SEN
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+CVT fluid temperature sensor
: 8th judgement flicker
CVT FLUID TEMPERATURE
SENSOR CIRCUIT
EXCEPT FOR EURO-OBD
Description
AT-170
Page 172 of 3051

SAT250K
SAT821HB

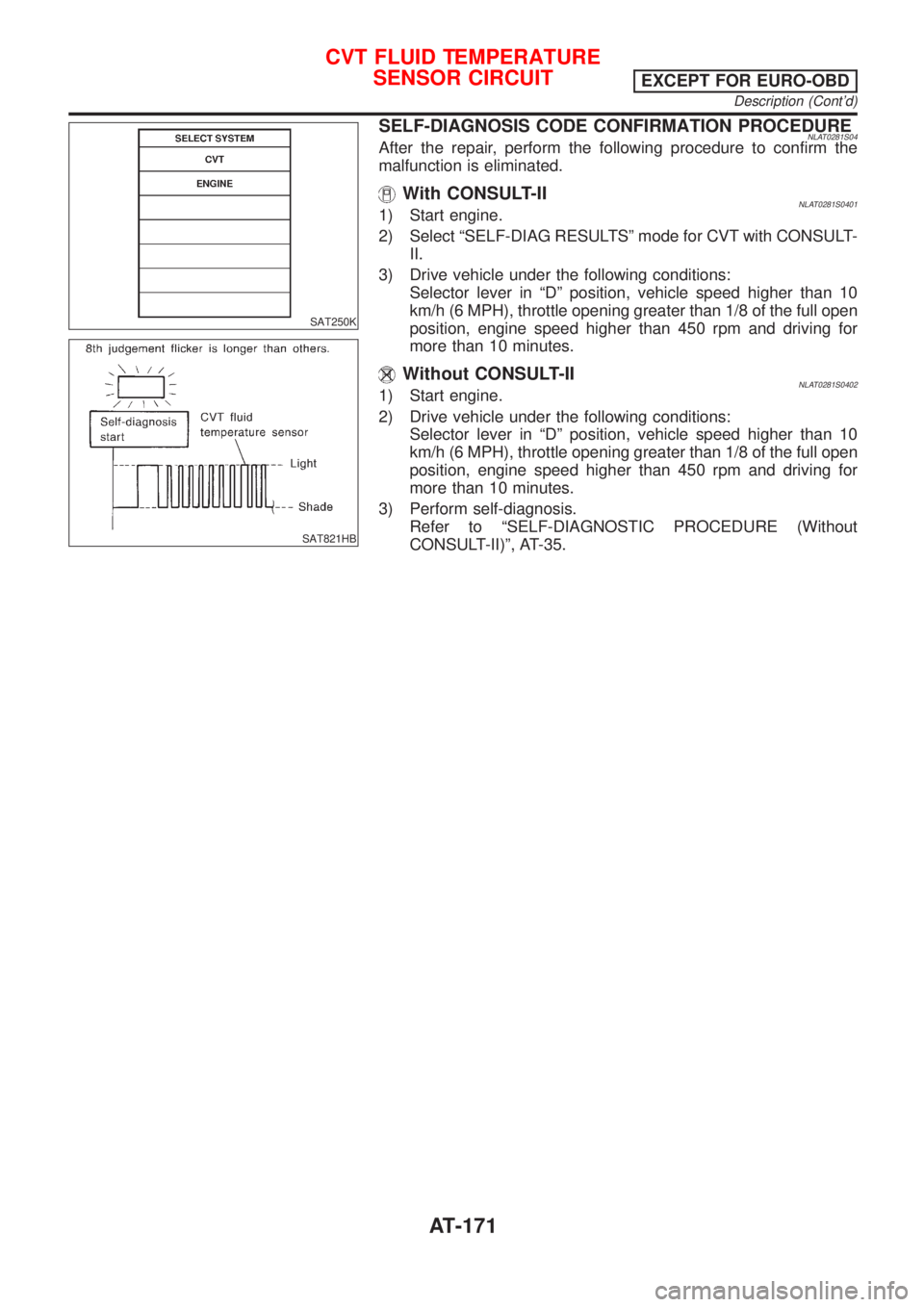

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0281S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0281S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-
II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than 10
km/h (6 MPH), throttle opening greater than 1/8 of the full open
position, engine speed higher than 450 rpm and driving for
more than 10 minutes.
Without CONSULT-IINLAT0281S04021) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than 10
km/h (6 MPH), throttle opening greater than 1/8 of the full open
position, engine speed higher than 450 rpm and driving for
more than 10 minutes.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.
CVT FLUID TEMPERATURE
SENSOR CIRCUIT
EXCEPT FOR EURO-OBD
Description (Cont'd)
AT-171
Page 173 of 3051
Wiring Diagram Ð AT Ð FTSNLAT0282MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0282S01
YAT175
CVT FLUID TEMPERATURE
SENSOR CIRCUIT
EXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð FTS
AT-172
Page 174 of 3051
MODELS WITH ECM IN CABINNLAT0282S02
YAT214
CVT FLUID TEMPERATURE
SENSOR CIRCUIT
EXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð FTS (Cont'd)
AT-173
Page 175 of 3051

Diagnostic ProcedureNLAT0283

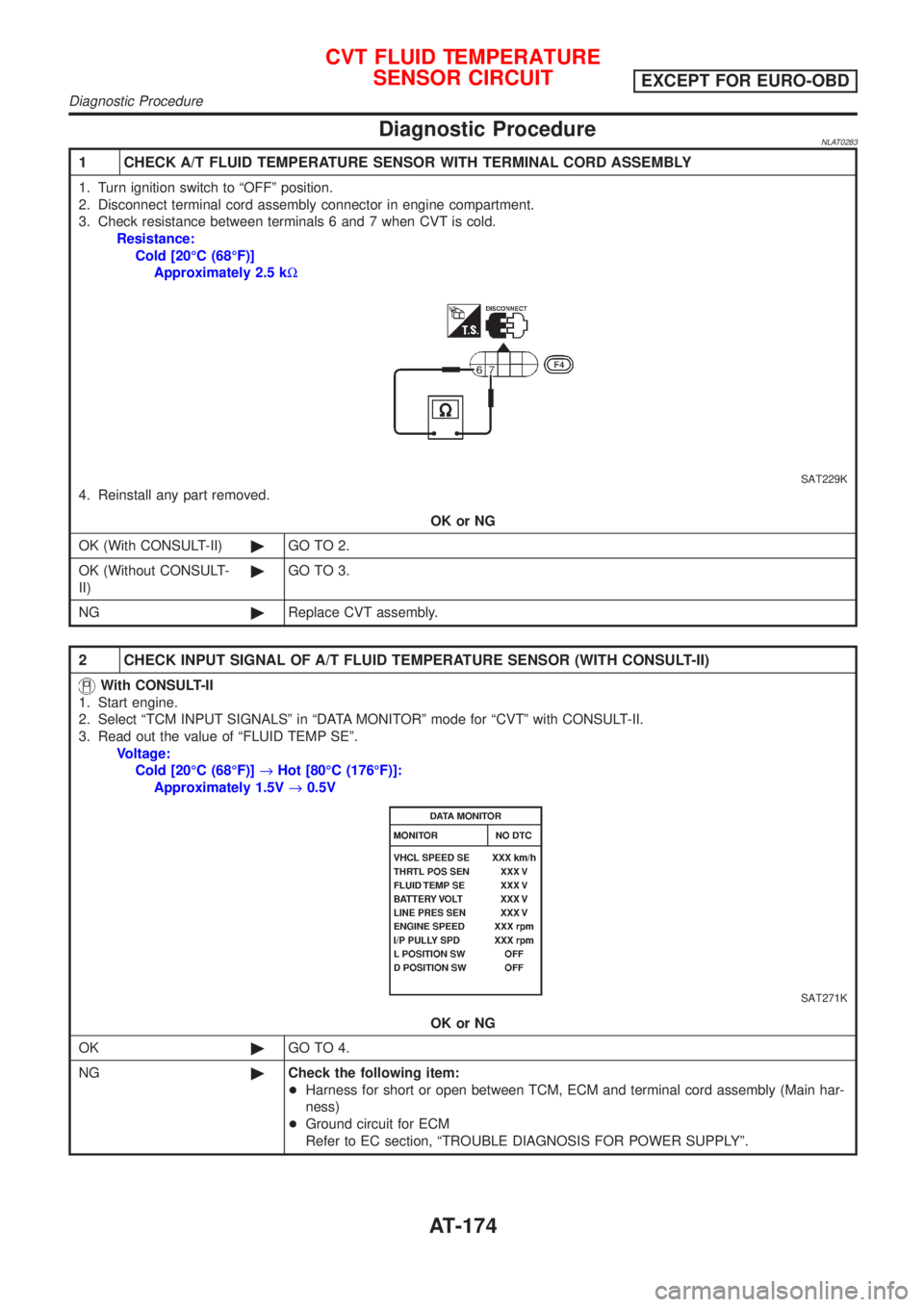

1 CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when CVT is cold.
Resistance:
Cold [20ÉC (68ÉF)]
Approximately 2.5 kW
SAT229K
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)©GO TO 2.
OK (Without CONSULT-
II)©GO TO 3.
NG©Replace CVT assembly.
2 CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select ªTCM INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº with CONSULT-II.
3. Read out the value of ªFLUID TEMP SEº.
Voltage:
Cold [20ÉC (68ÉF)]®Hot [80ÉC (176ÉF)]:
Approximately 1.5V®0.5V
SAT271K
OK or NG
OK©GO TO 4.
NG©Check the following item:
+Harness for short or open between TCM, ECM and terminal cord assembly (Main har-
ness)
+Ground circuit for ECM
Refer to EC section, ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº.
CVT FLUID TEMPERATURE
SENSOR CIRCUIT
EXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-174
Page 176 of 3051

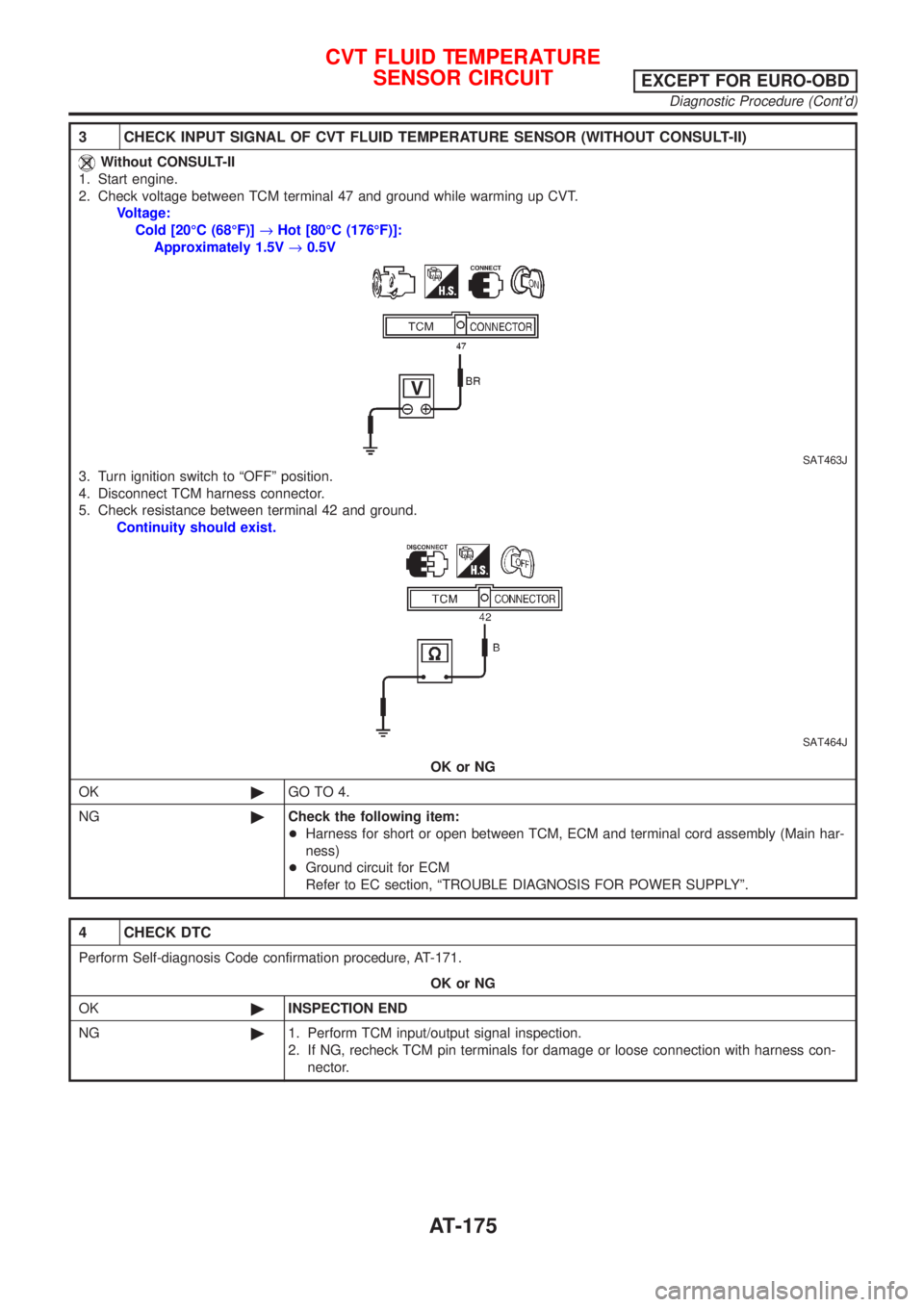

3 CHECK INPUT SIGNAL OF CVT FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up CVT.
Voltage:
Cold [20ÉC (68ÉF)]®Hot [80ÉC (176ÉF)]:
Approximately 1.5V®0.5V
SAT463J
3. Turn ignition switch to ªOFFº position.
4. Disconnect TCM harness connector.
5. Check resistance between terminal 42 and ground.
Continuity should exist.
SAT464J
OK or NG
OK©GO TO 4.
NG©Check the following item:
+Harness for short or open between TCM, ECM and terminal cord assembly (Main har-
ness)
+Ground circuit for ECM
Refer to EC section, ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº.
4 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-171.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
CVT FLUID TEMPERATURE
SENSOR CIRCUIT
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
