Page 1921 of 3051

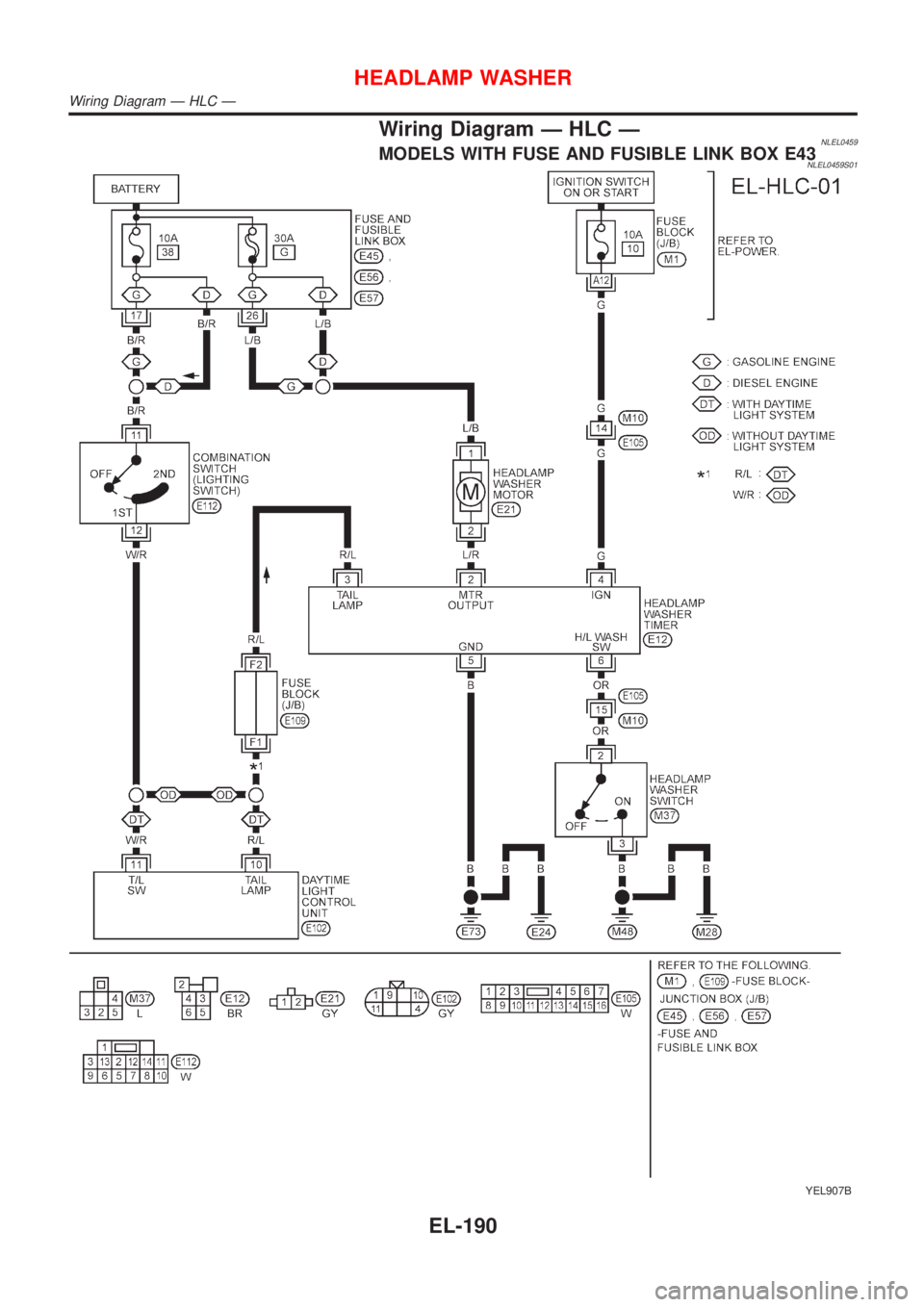

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð HLC ÐNLEL0459MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0459S01 YEL907B HEADLAMP WASHER Wiring Diagram Ð HLC Ð EL-190

Page 1922 of 3051

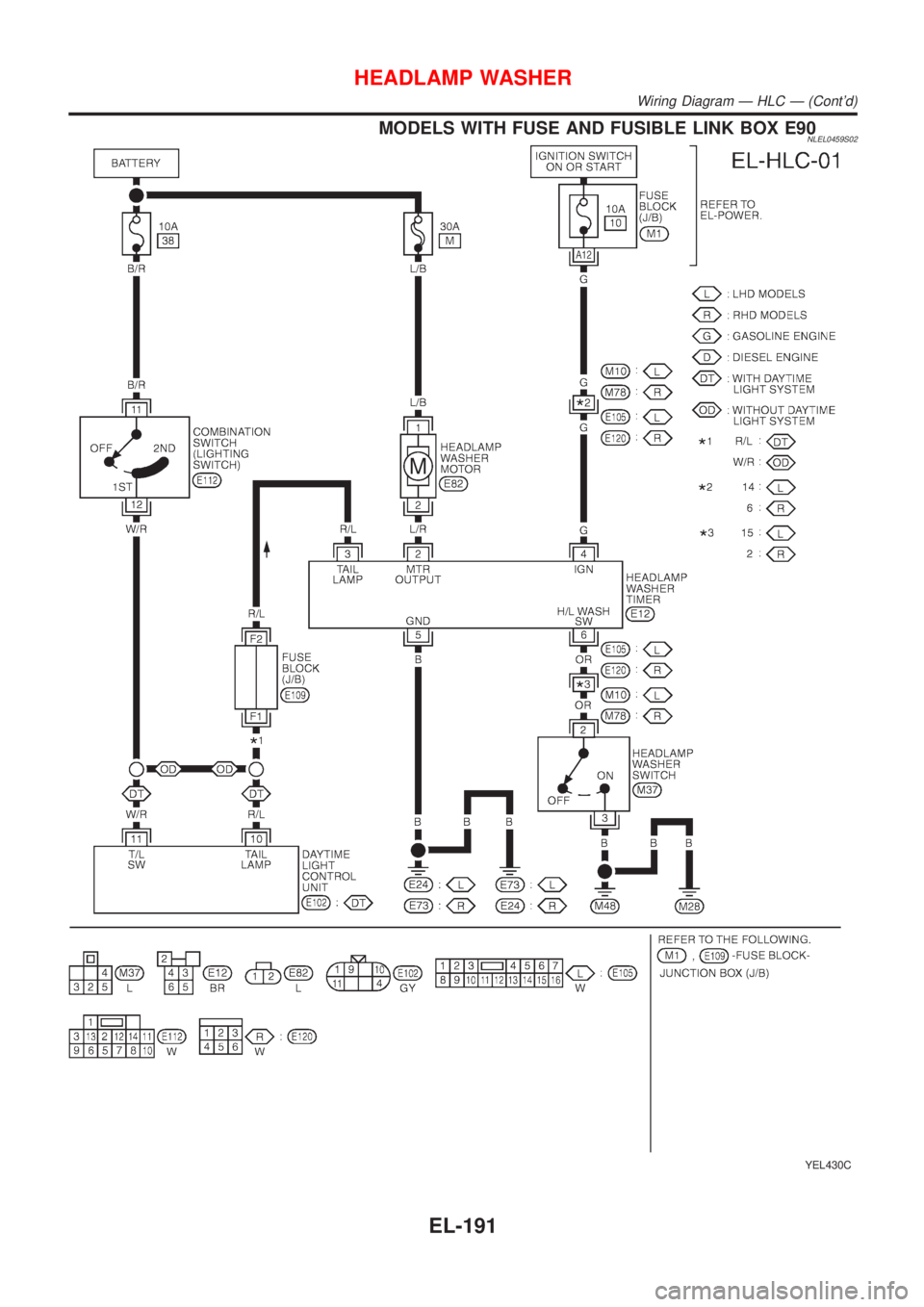

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0459S02 YEL430C HEADLAMP WASHER Wiring Diagram Ð HLC Ð (Contd) EL-191

Page 1923 of 3051

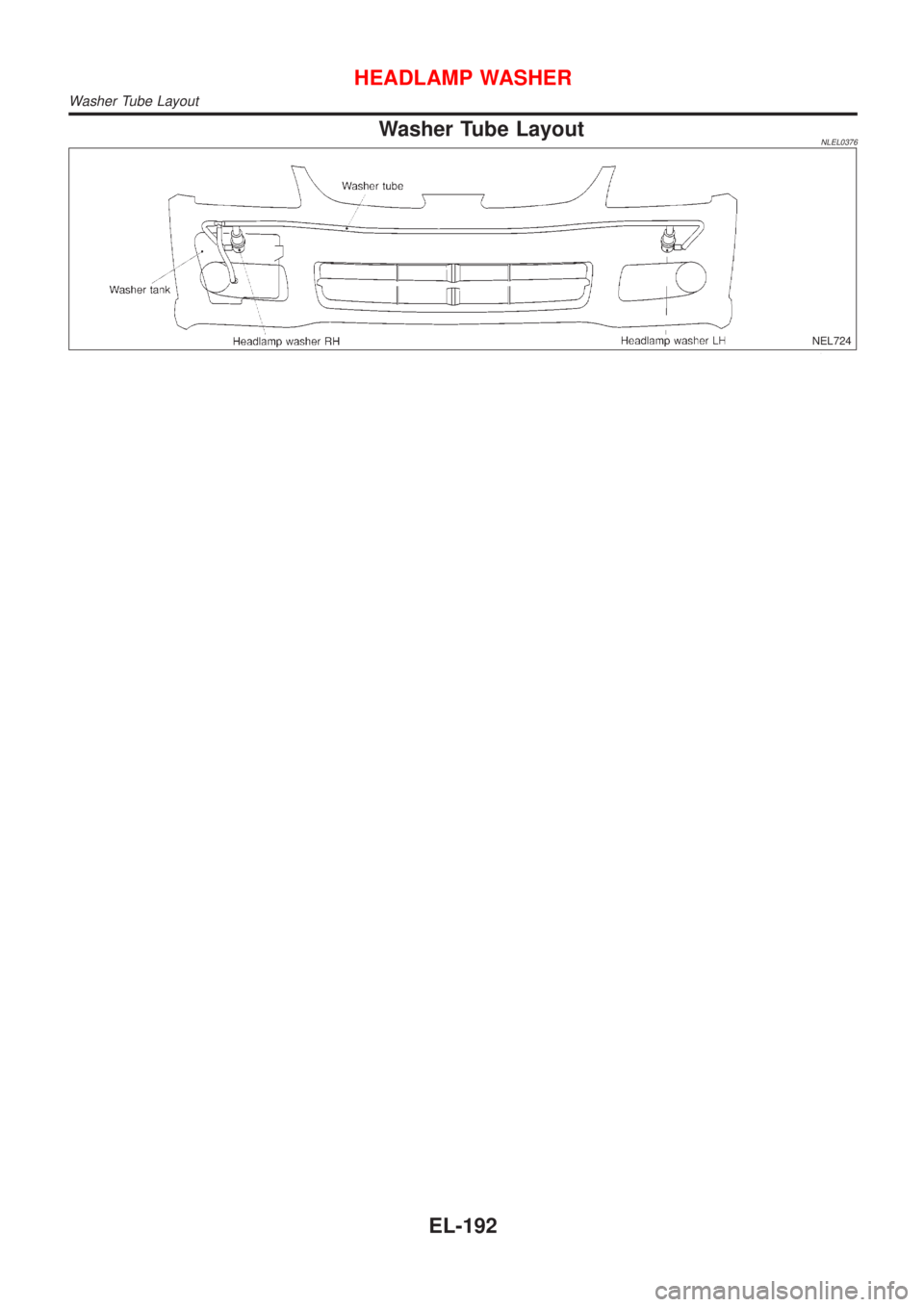

NISSAN ALMERA TINO 2001 Service Repair Manual Washer Tube LayoutNLEL0376 NEL724 HEADLAMP WASHER Washer Tube Layout EL-192

Page 1924 of 3051

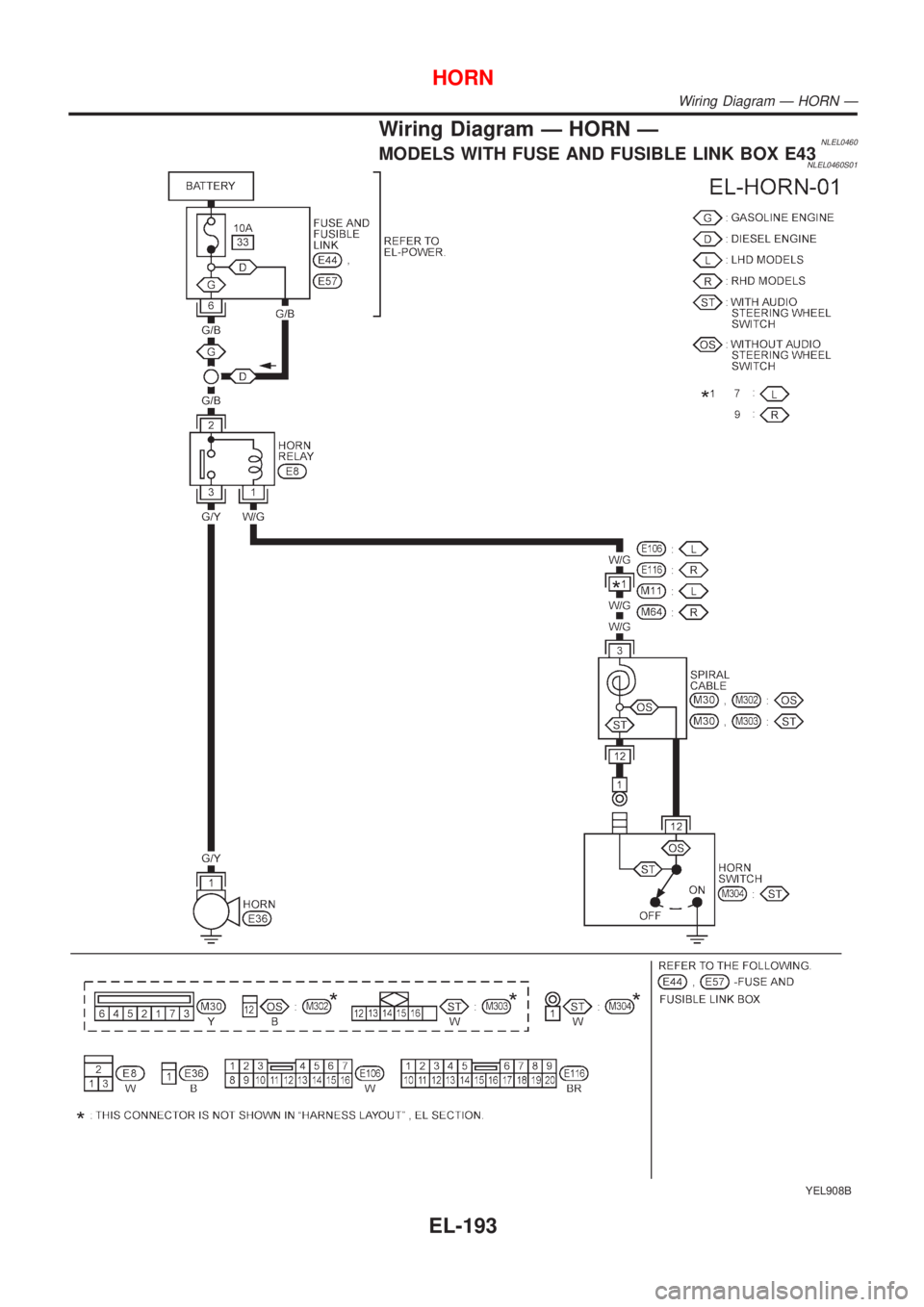

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð HORN ÐNLEL0460MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0460S01 YEL908B HORN Wiring Diagram Ð HORN Ð EL-193

Page 1925 of 3051

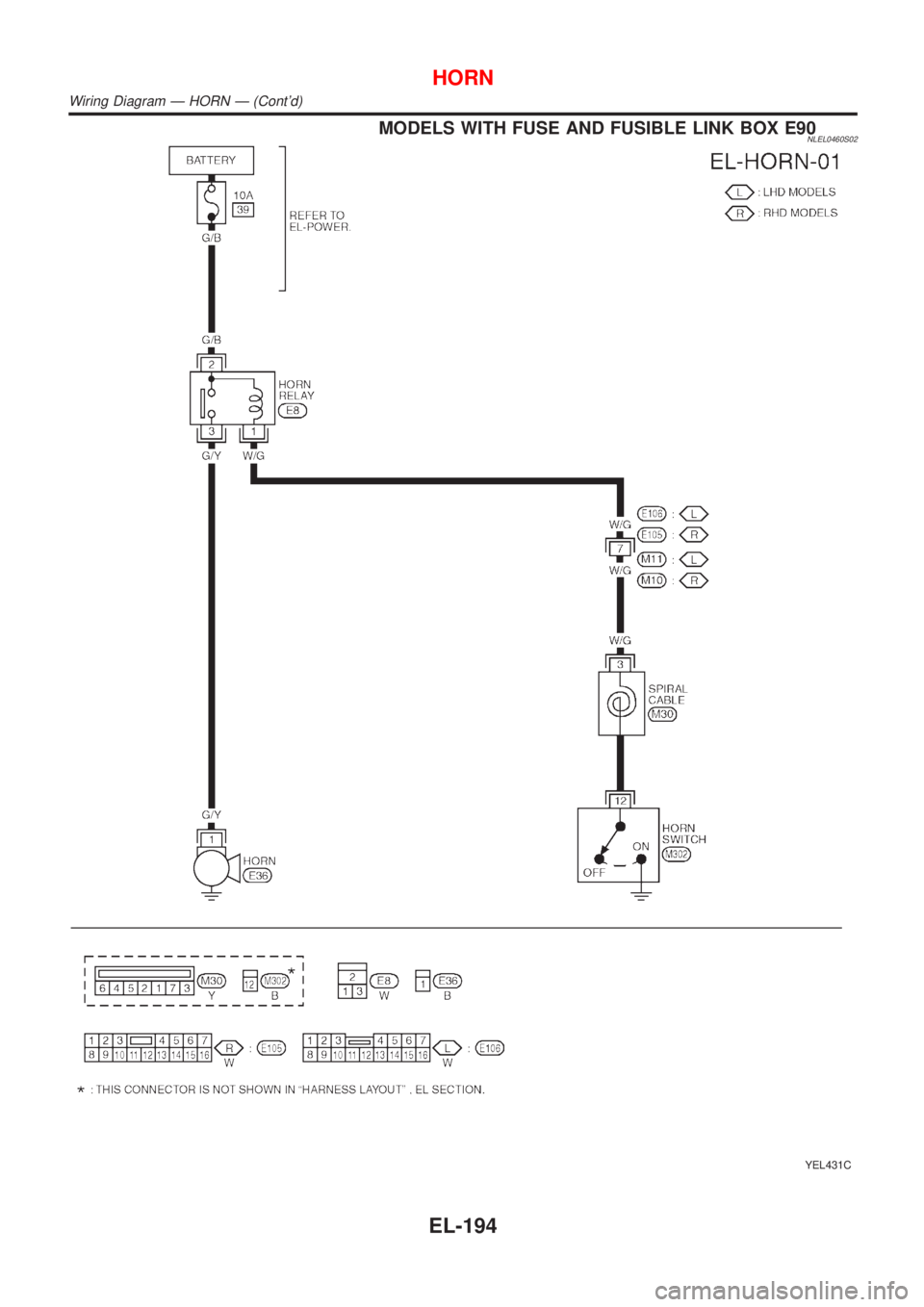

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0460S02 YEL431C HORN Wiring Diagram Ð HORN Ð (Contd) EL-194

Page 1926 of 3051

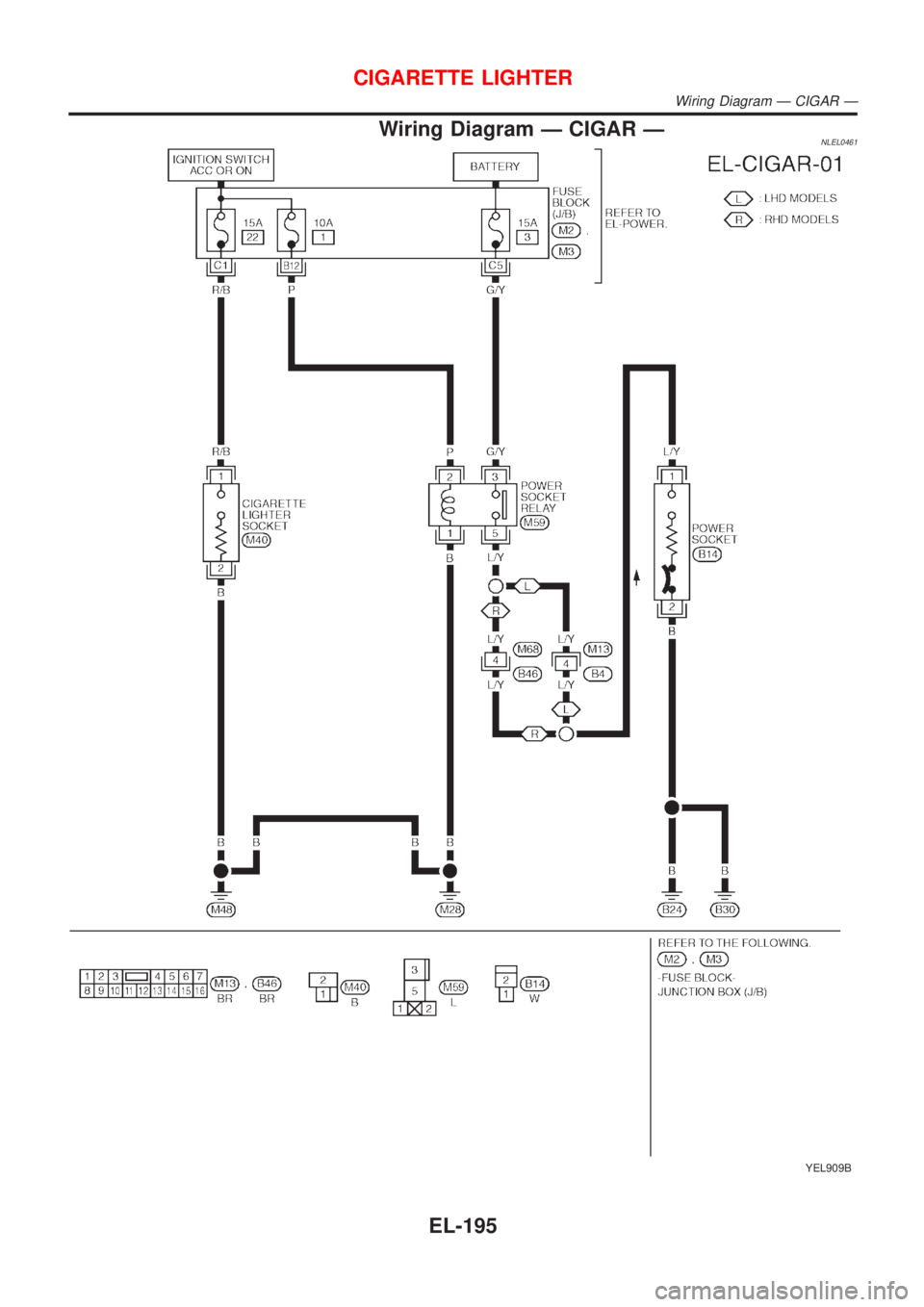

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð CIGAR ÐNLEL0461 YEL909B CIGARETTE LIGHTER Wiring Diagram Ð CIGAR Ð EL-195

Page 1927 of 3051

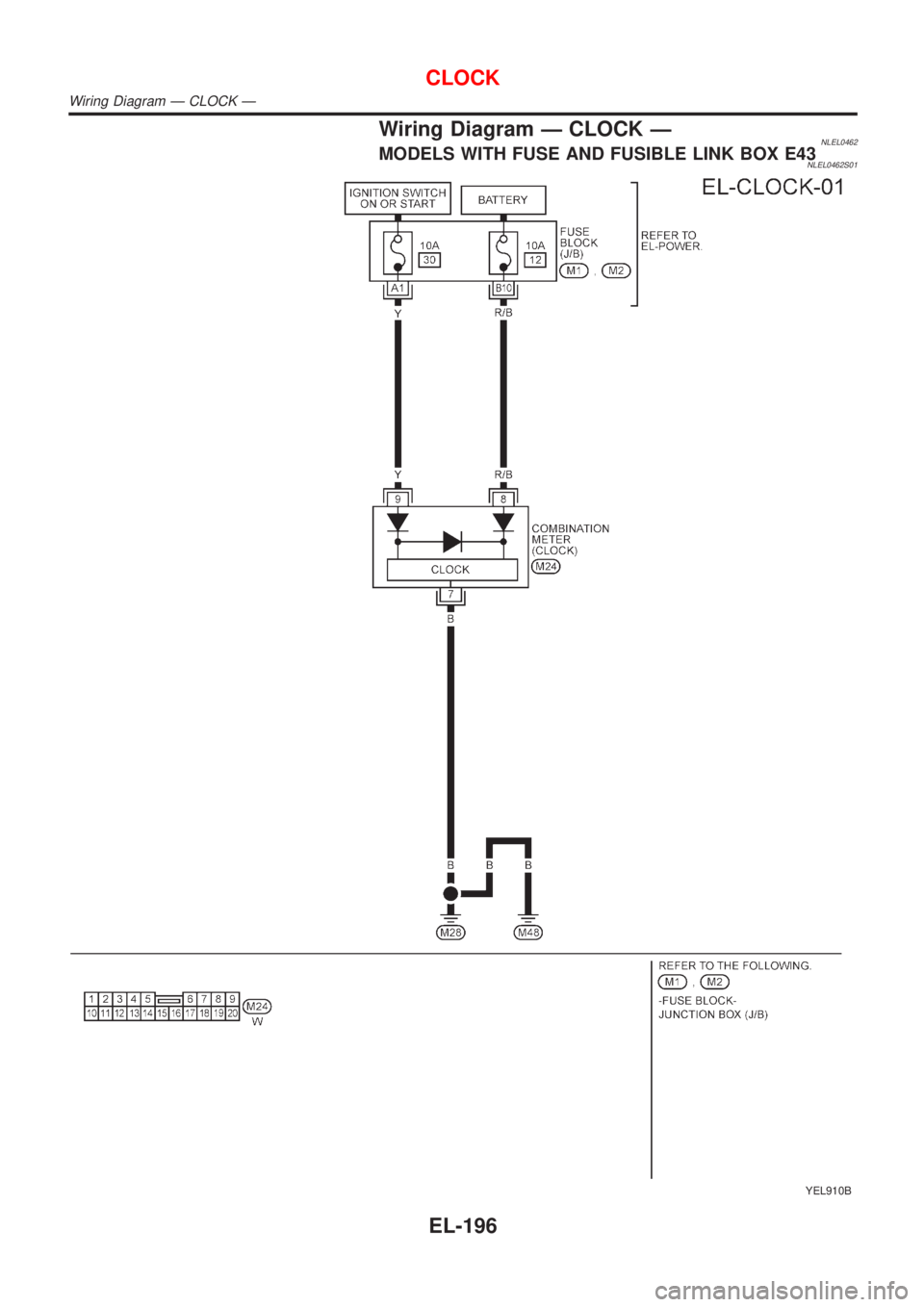

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð CLOCK ÐNLEL0462MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0462S01 YEL910B CLOCK Wiring Diagram Ð CLOCK Ð EL-196

Page 1928 of 3051

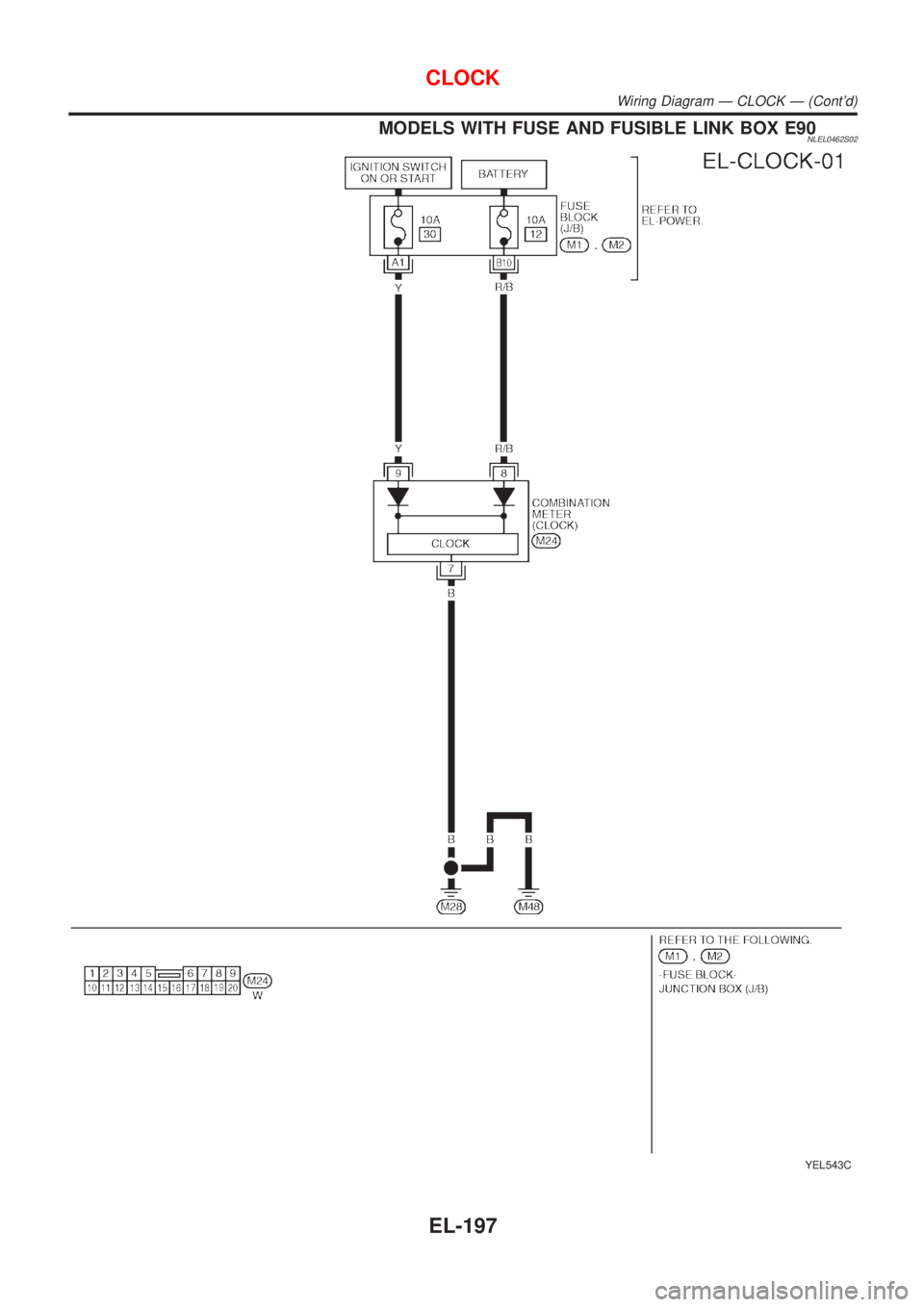

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0462S02 YEL543C CLOCK Wiring Diagram Ð CLOCK Ð (Contd) EL-197
