9 CHECK KEY SWITCH (INSERT)
Check continuity between terminals 1 and 2.
NEL787
OK or NG
OK©Check the following.
+10A fuse [No. 12, located in fuse block (J/B)]
+Harness for open or short between key switch and fuse
+Harness for open or short between time control unit and key switch
NG©Replace key switch.
DIAGNOSTIC PROCEDURE 2NLEL0437S02SYMPTOM: Interior lamp timer does not cancel properly.
1 CHECK IGNITION ON SIGNAL
Check voltage between time control unit harness connector terminal 1 and ground.
NEL646
OK or NG
OK©GO TO 2.
NG©Check the following.
+10A fuse [No. 10, located in fuse block (J/B)]
+Harness for open or short between time control unit and fuse
INTERIOR ROOM LAMP
Trouble Diagnoses (Cont'd)
EL-126
Page 1858 of 3051

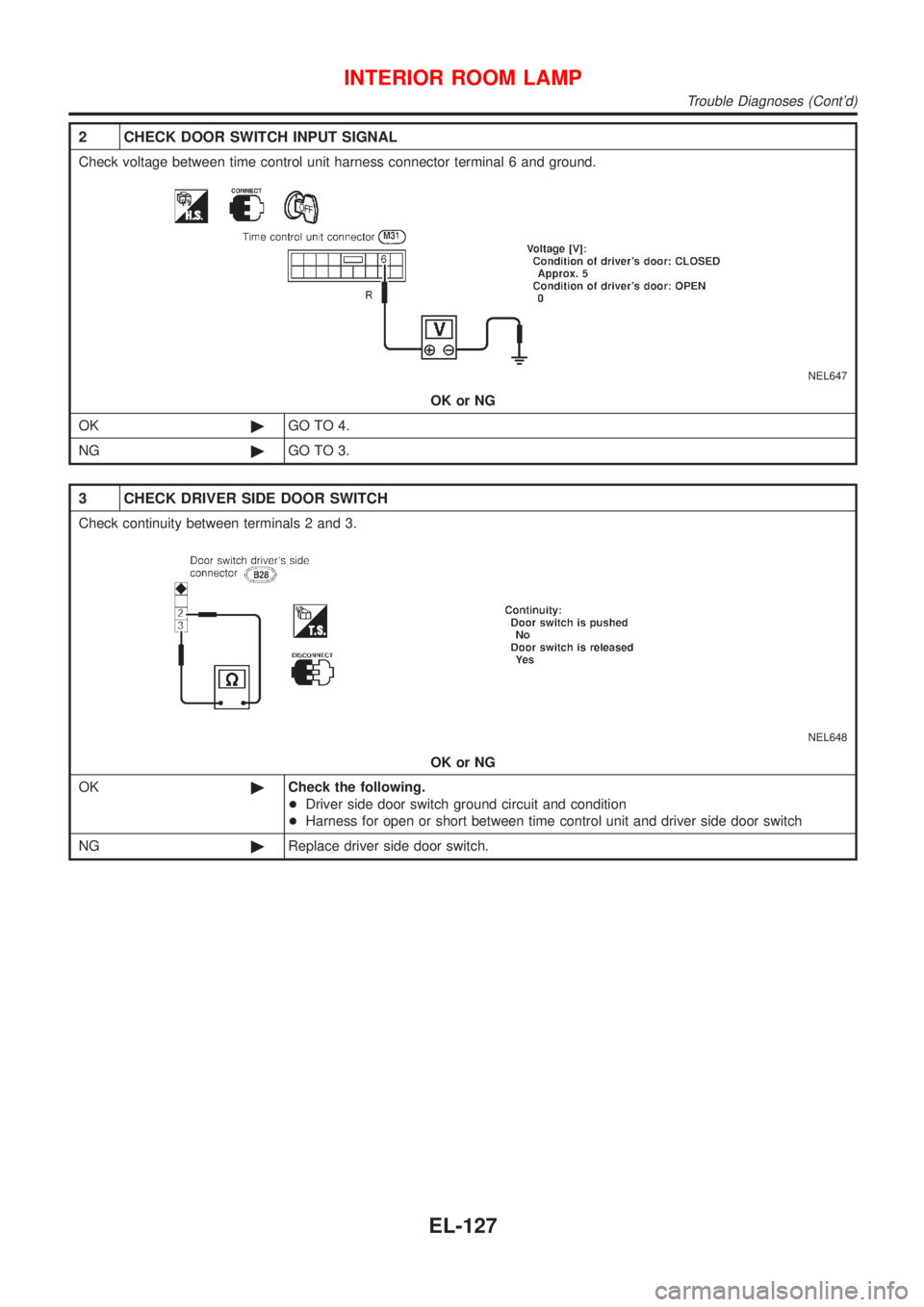

2 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminal 6 and ground.
NEL647
OK or NG
OK©GO TO 4.
NG©GO TO 3.
3 CHECK DRIVER SIDE DOOR SWITCH
Check continuity between terminals 2 and 3.
NEL648
OK or NG
OK©Check the following.
+Driver side door switch ground circuit and condition
+Harness for open or short between time control unit and driver side door switch
NG©Replace driver side door switch.
INTERIOR ROOM LAMP
Trouble Diagnoses (Cont'd)
EL-127
Page 1859 of 3051

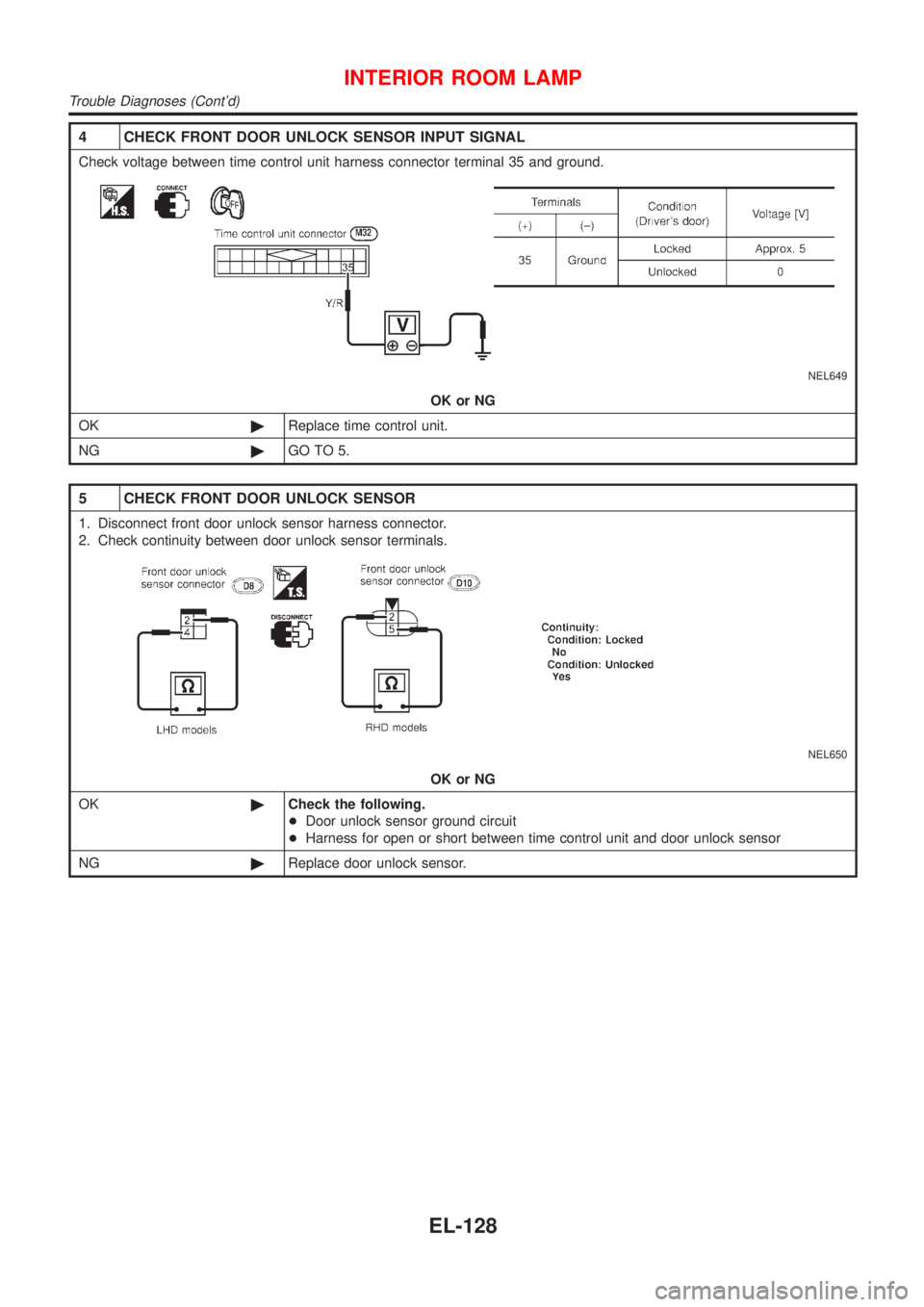

4 CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit harness connector terminal 35 and ground.
NEL649
OK or NG
OK©Replace time control unit.
NG©GO TO 5.
5 CHECK FRONT DOOR UNLOCK SENSOR
1. Disconnect front door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals.
NEL650
OK or NG
OK©Check the following.
+Door unlock sensor ground circuit
+Harness for open or short between time control unit and door unlock sensor
NG©Replace door unlock sensor.
INTERIOR ROOM LAMP
Trouble Diagnoses (Cont'd)
EL-128
Page 1860 of 3051

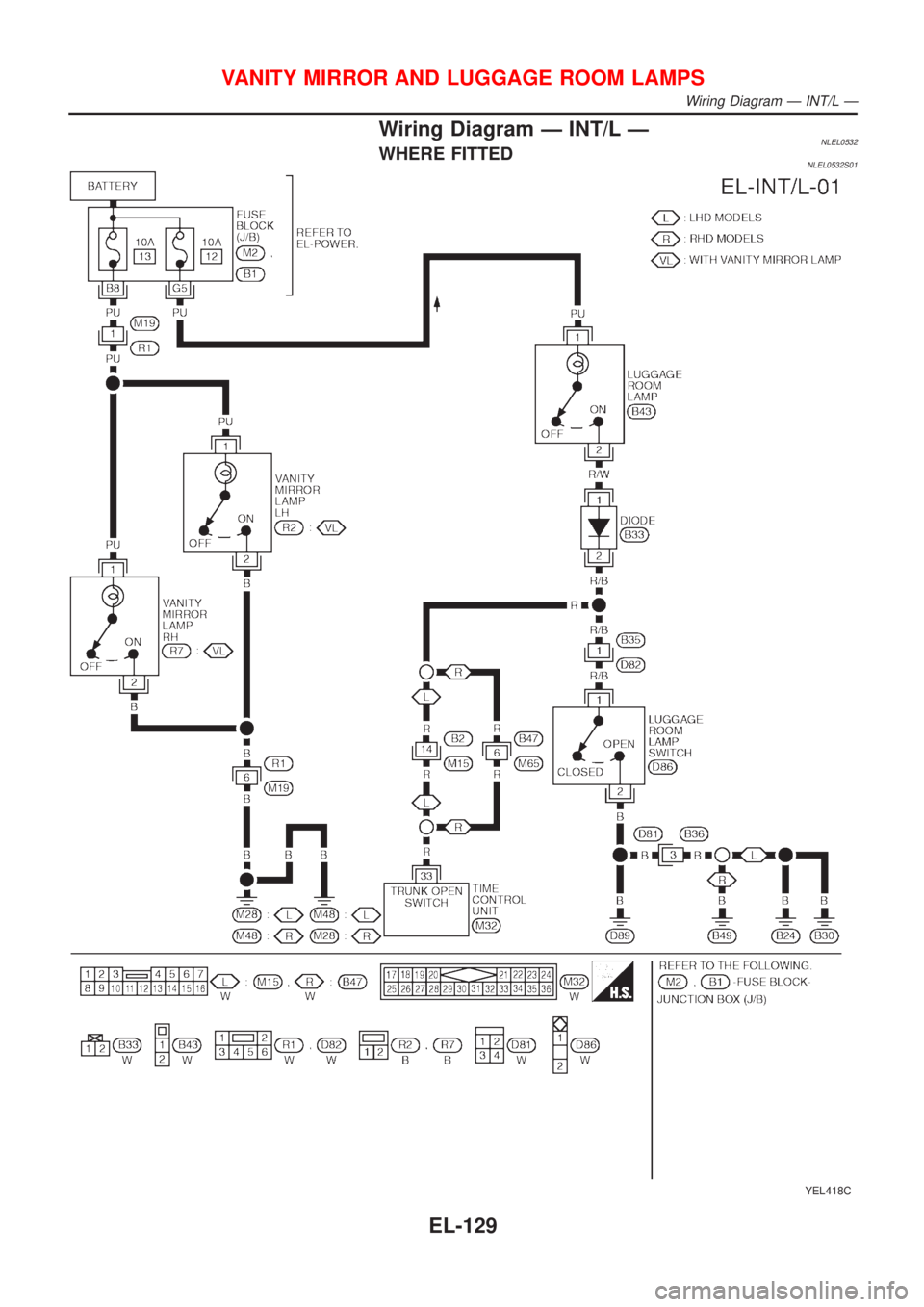

Wiring Diagram Ð INT/L ÐNLEL0532WHERE FITTEDNLEL0532S01
YEL418C
VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram Ð INT/L Ð
EL-129
Page 1861 of 3051
Component Parts and Harness Connector
Location
NLEL0441
NEL781
System DescriptionNLEL0442UNIFIED CONTROL METERNLEL0442S01+Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled totally
by control unit built-in combination meter.
+Digital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.
+Odo/trip meter segment can be checked in diagnosis mode.
+Meter/gauge can be checked in diagnosis mode.
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METERNLEL0442S02
SEL394X
NOTE:
Turn ignition switch to the ªONº position to operate odo/trip meter.
METERS AND GAUGES
Component Parts and Harness Connector Location
EL-130
Page 1862 of 3051
![NISSAN ALMERA TINO 2001 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITNLEL0442S03Power is supplied at all times
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to combination meter terminal 8.
With the ignition switch in the O NISSAN ALMERA TINO 2001 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITNLEL0442S03Power is supplied at all times
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to combination meter terminal 8.
With the ignition switch in the O](/manual-img/5/57352/w960_57352-1861.png)
POWER SUPPLY AND GROUND CIRCUITNLEL0442S03Power is supplied at all times
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to combination meter terminal 8.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 30, located in the fuse block (J/B)]
+to combination meter terminal 9.
Ground is supplied
+through body grounds M28 and M48
+to combination meter terminal 7.
WATER TEMPERATURE GAUGENLEL0442S04The water temperature gauge indicates the engine coolant temperature. The reading on the gauge is based
on the resistance of the thermal transmitter.
As the temperature of the coolant increases, the resistance of the thermal transmitter decreases. A variable
ground is supplied to terminal 5 of the combination meter for the water temperature gauge. The needle on the
gauge moves from ªCº to ªHº.
TACHOMETERNLEL0442S05The tachometer indicates engine speed in revolutions per minute (rpm).
The tachometer is regulated by a signal
+from terminal 32 (Gasoline engine models) or 439 (Diesel engine models) of the ECM
+to combination meter terminal 19 for the tachometer.
FUEL GAUGENLEL0442S06The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied
+from body grounds M28 and M48
+through terminals 4 and 7 of combination meter,
+through terminal 1 of the fuel level sensor unit and
+through terminal 4 of the fuel level sensor unit
+to combination meter terminal 3 for the fuel gauge.
SPEEDOMETERNLEL0442S07The combination meter provides a voltage signal to the vehicle speed sensor for the speedometer.
The voltage is supplied
+from combination meter terminal 18 for the speedometer
+to terminal 1 of the vehicle speed sensor.
Ground is supplied
+from body grounds M28 and M48
+through terminals 6 and 7 of combination meter
+to terminal 2 of the vehicle speed sensor.
The speedometer converts the voltage into the vehicle speed displayed.
METERS AND GAUGES
System Description (Cont'd)
EL-131
Page 1863 of 3051
Combination MeterNLEL0443CHECKNLEL0443S01Models with NATS security indicator on dash boardNLEL0443S0105
YEL990B
METERS AND GAUGES
Combination Meter
EL-132
Page 1864 of 3051
Models with NATS security indicator in combination meterNLEL0443S0106
YEL488C
METERS AND GAUGES
Combination Meter (Cont'd)
