Page 1553 of 3051

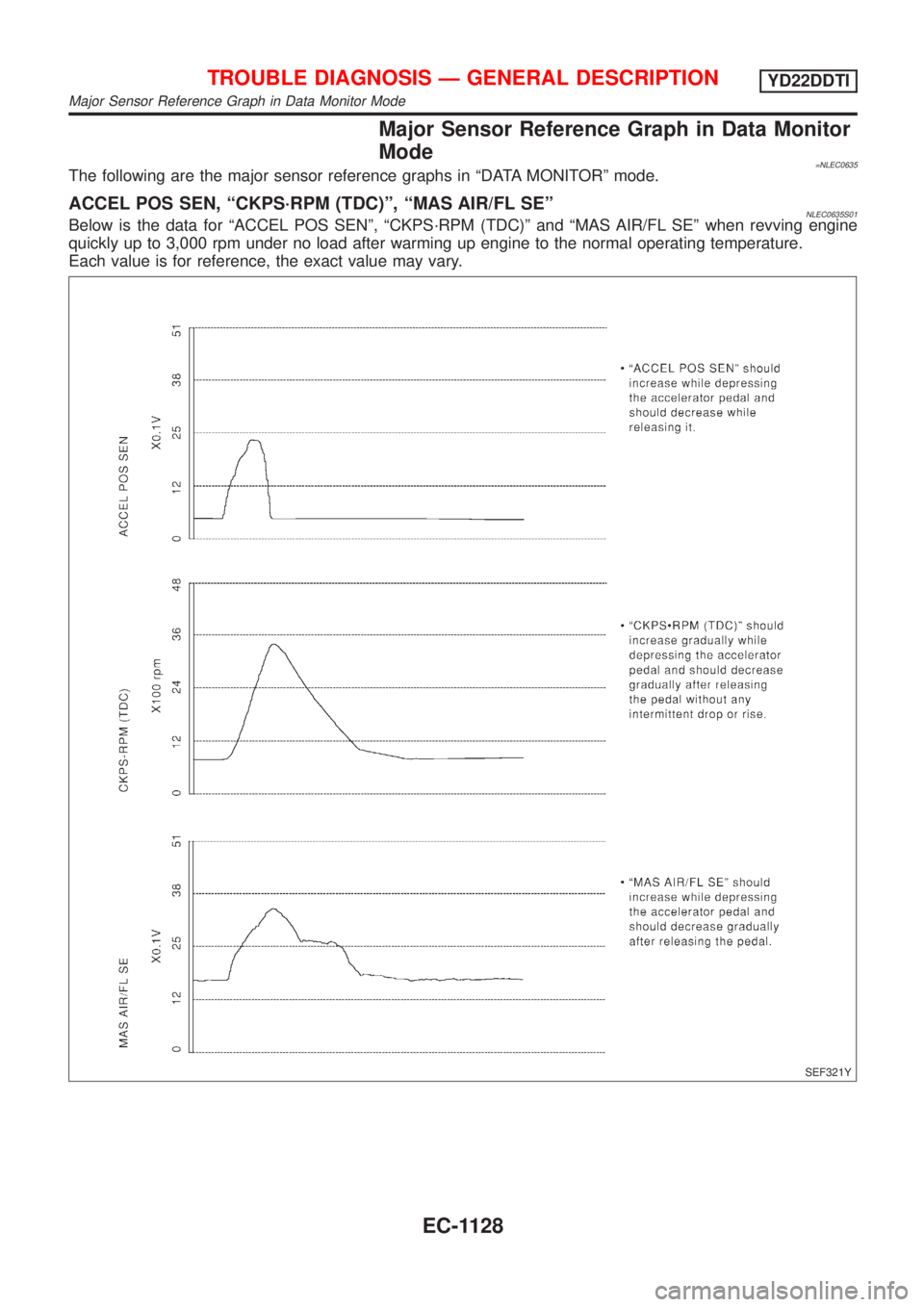

NISSAN ALMERA TINO 2001 Service Repair Manual Major Sensor Reference Graph in Data Monitor
Mode
=NLEC0635The following are the major sensor reference graphs in ªDATA MONITORº mode.
ACCEL POS SEN, ªCKPS´RPM (TDC)º, ªMAS AIR/FL SEºNLEC0635S0

Page 1554 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF396Y
ECM Terminals and Reference ValueNLEC0636PREPARATIONNLEC0636S01Models with ECM in engine compartmentNLEC0636S01011. ECM is located under the cowl panel (behind the strut tower).
For the inspec

Page 1555 of 3051

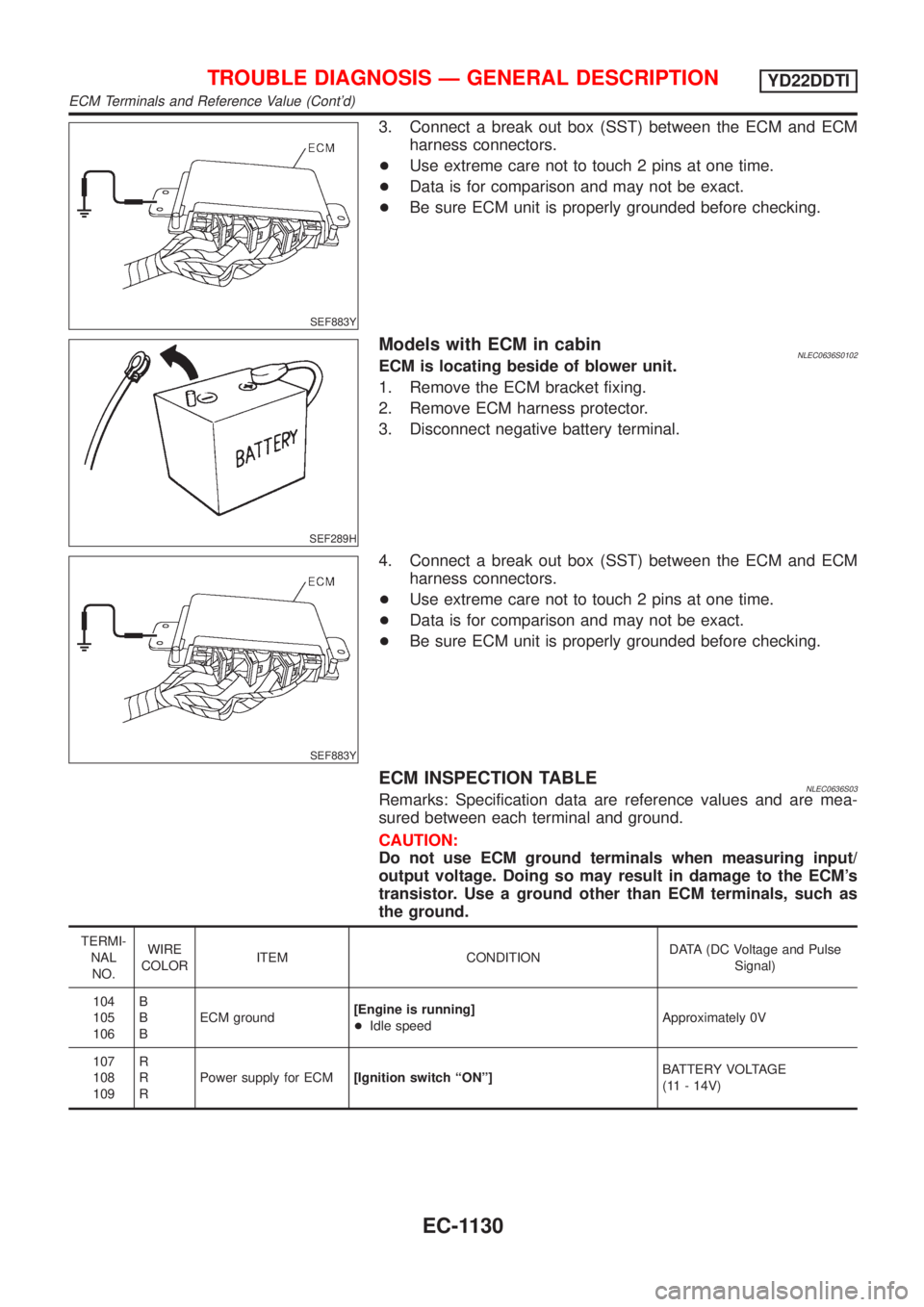

NISSAN ALMERA TINO 2001 Service Repair Manual SEF883Y
3. Connect a break out box (SST) between the ECM and ECM
harness connectors.
+Use extreme care not to touch 2 pins at one time.
+Data is for comparison and may not be exact.
+Be sure ECM unit

Page 1556 of 3051

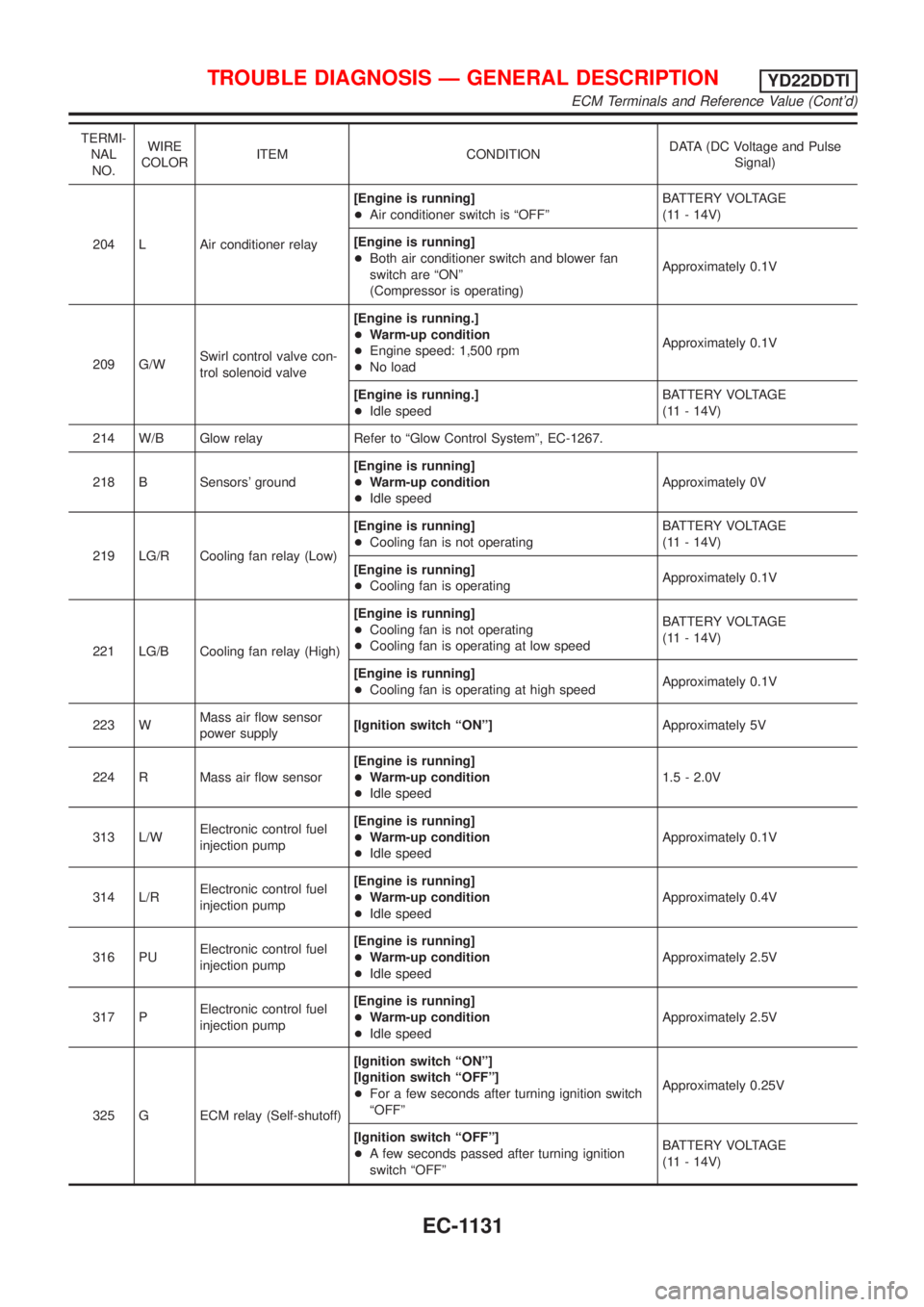

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA (DC Voltage and Pulse
Signal)
204 L Air conditioner relay[Engine is running]
+Air conditioner switch is ªOFFºBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA (DC Voltage and Pulse
Signal)
204 L Air conditioner relay[Engine is running]
+Air conditioner switch is ªOFFºBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
+Both air conditioner switch and blower fan
switch are ªONº
(Compressor is operating)Approximately 0.1V
209 G/WSwirl control valve con-
trol solenoid valve[Engine is running.]
+Warm-up condition
+Engine speed: 1,500 rpm
+No loadApproximately 0.1V
[Engine is running.]
+Idle speedBATTERY VOLTAGE
(11 - 14V)
214 W/B Glow relay Refer to ªGlow Control Systemº, EC-1267.
218 B Sensors' ground[Engine is running]
+Warm-up condition
+Idle speedApproximately 0V
219 LG/R Cooling fan relay (Low)[Engine is running]
+Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
+Cooling fan is operatingApproximately 0.1V
221 LG/B Cooling fan relay (High)[Engine is running]
+Cooling fan is not operating
+Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
+Cooling fan is operating at high speedApproximately 0.1V
223 WMass air flow sensor
power supply[Ignition switch ªONº]Approximately 5V
224 R Mass air flow sensor[Engine is running]
+Warm-up condition
+Idle speed1.5 - 2.0V
313 L/WElectronic control fuel
injection pump[Engine is running]
+Warm-up condition
+Idle speedApproximately 0.1V
314 L/RElectronic control fuel
injection pump[Engine is running]
+Warm-up condition
+Idle speedApproximately 0.4V
316 PUElectronic control fuel
injection pump[Engine is running]
+Warm-up condition
+Idle speedApproximately 2.5V
317 PElectronic control fuel
injection pump[Engine is running]
+Warm-up condition
+Idle speedApproximately 2.5V
325 G ECM relay (Self-shutoff)[Ignition switch ªONº]
[Ignition switch ªOFFº]
+For a few seconds after turning ignition switch
ªOFFºApproximately 0.25V
[Ignition switch ªOFFº]
+A few seconds passed after turning ignition
switch ªOFFºBATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONYD22DDTI
ECM Terminals and Reference Value (Cont'd)
EC-1131

Page 1557 of 3051

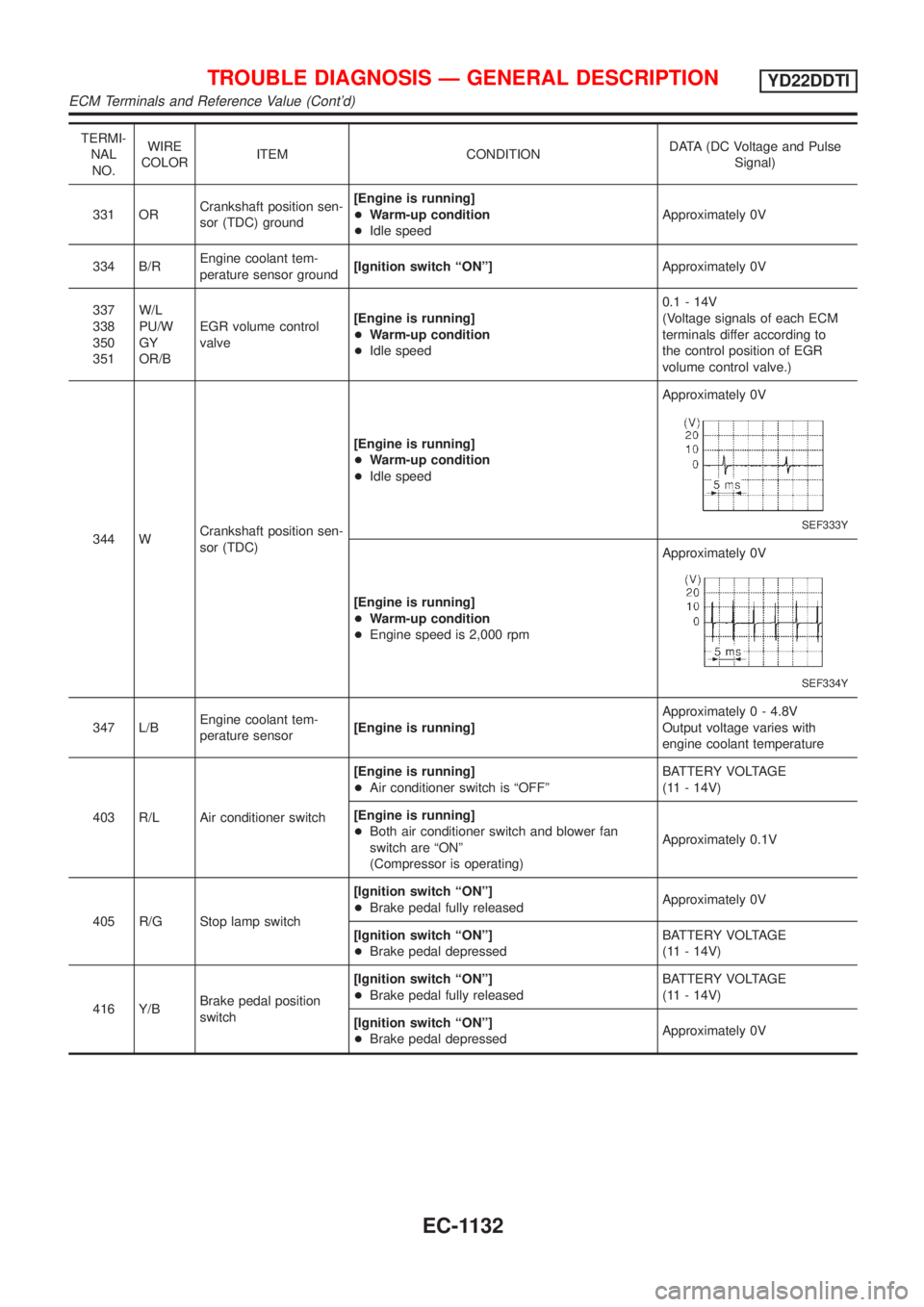

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA (DC Voltage and Pulse
Signal)
331 ORCrankshaft position sen-
sor (TDC) ground[Engine is running]
+Warm-up condition
+Idle speedApproximately 0V
334 B/REngine

Page 1558 of 3051

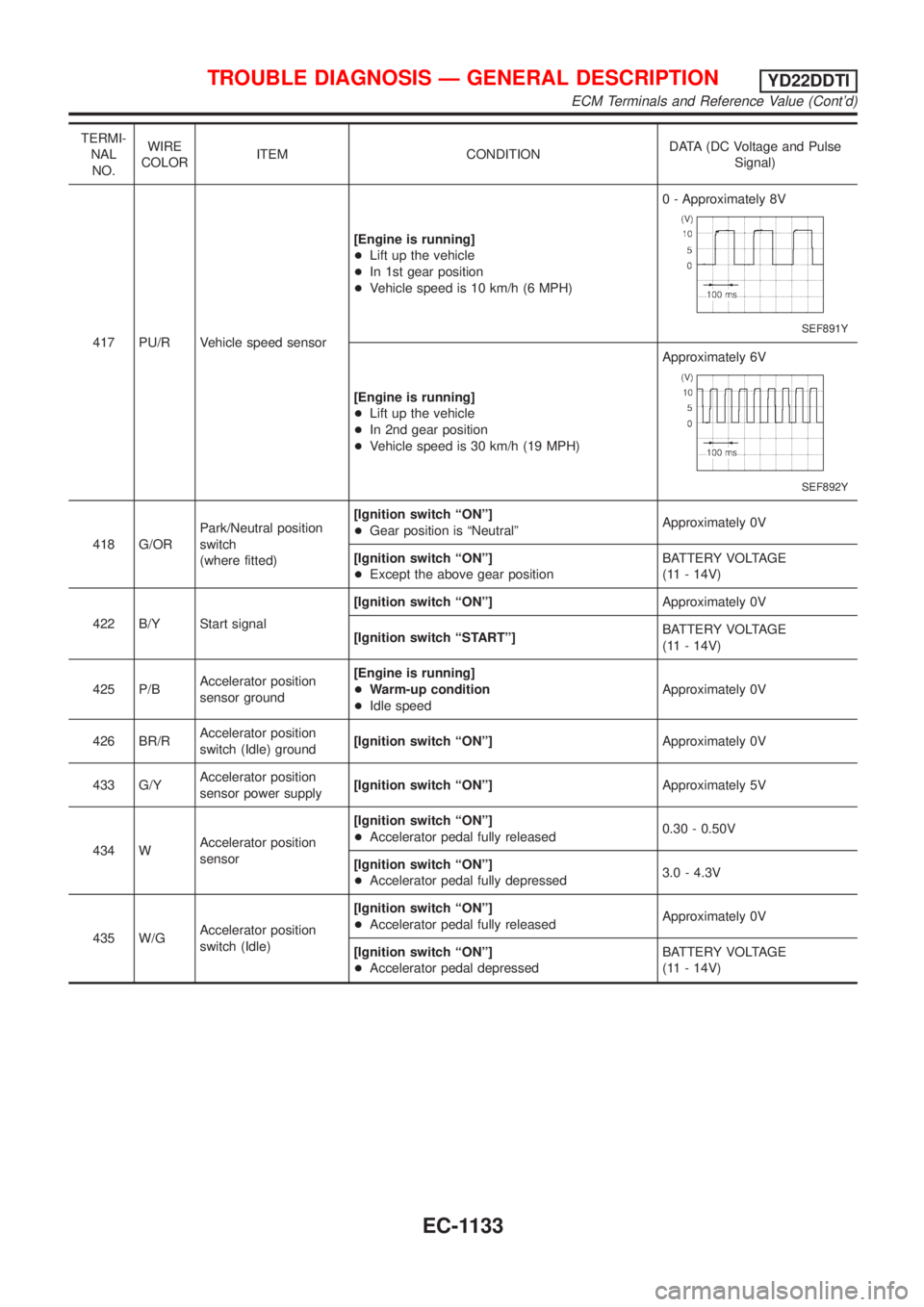

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA (DC Voltage and Pulse
Signal)
417 PU/R Vehicle speed sensor[Engine is running]
+Lift up the vehicle
+In 1st gear position
+Vehicle speed is 10 km/h (6 MPH)0

Page 1559 of 3051

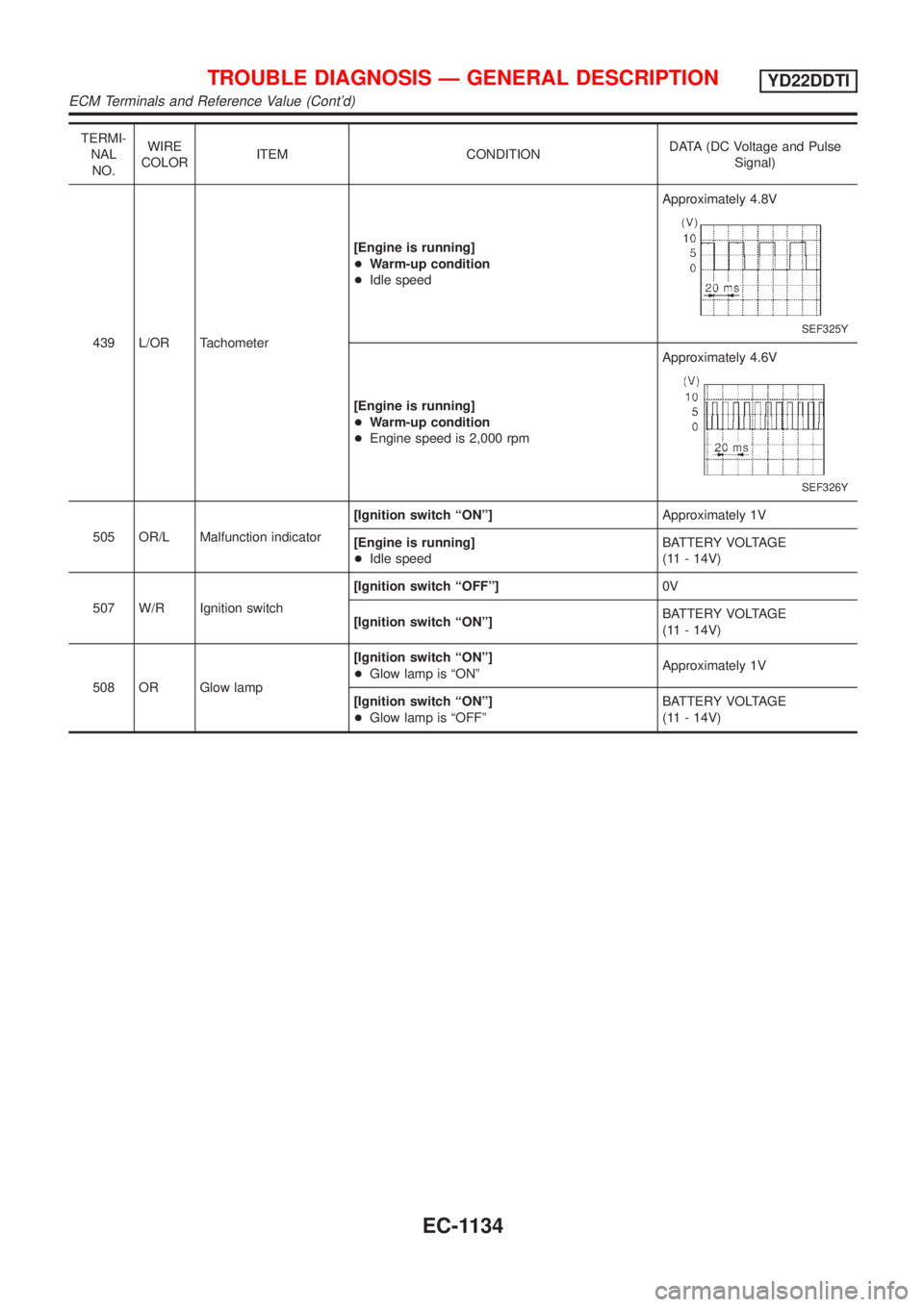

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA (DC Voltage and Pulse
Signal)
439 L/OR Tachometer[Engine is running]
+Warm-up condition
+Idle speedApproximately 4.8V
SEF325Y
[Engine is running]
+Warm-up co

Page 1560 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC0637Intermittent incidents (I/I) may occur. In many cases, the problem resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize

Load next 8 pages
