Page 2425 of 3051

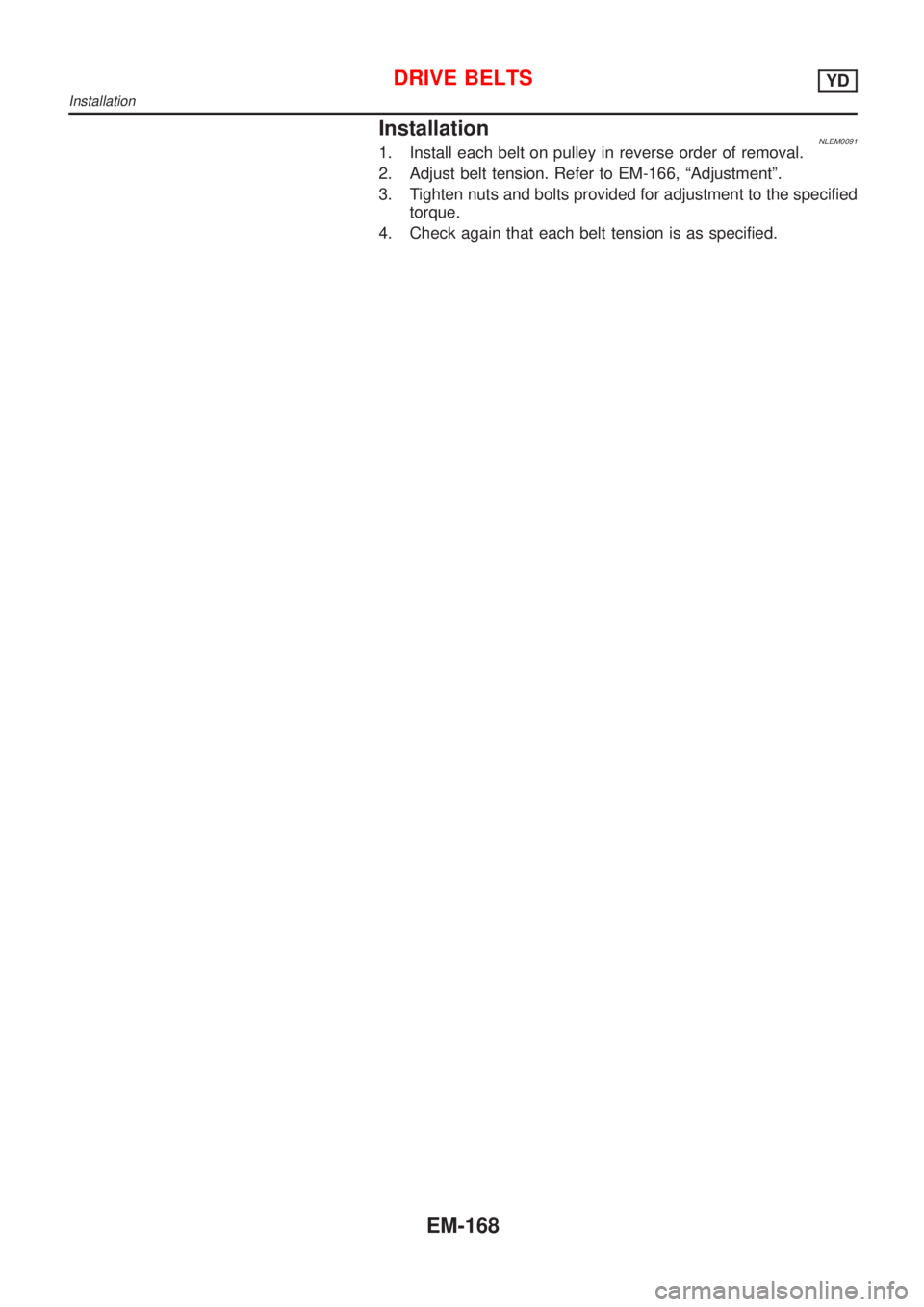

NISSAN ALMERA TINO 2001 Service Repair Manual InstallationNLEM00911. Install each belt on pulley in reverse order of removal. 2. Adjust belt tension. Refer to EM-166, ªAdjustmentº. 3. Tighten nuts and bolts provided for adjustment to the specif

Page 2426 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Changing Air Cleaner FilterNLEM0092VISCOUS PAPER TYPENLEM0092S01The viscous paper type filter does not need cleaning. AIR CLEANERYD Changing Air Cleaner Filter EM-169

Page 2427 of 3051

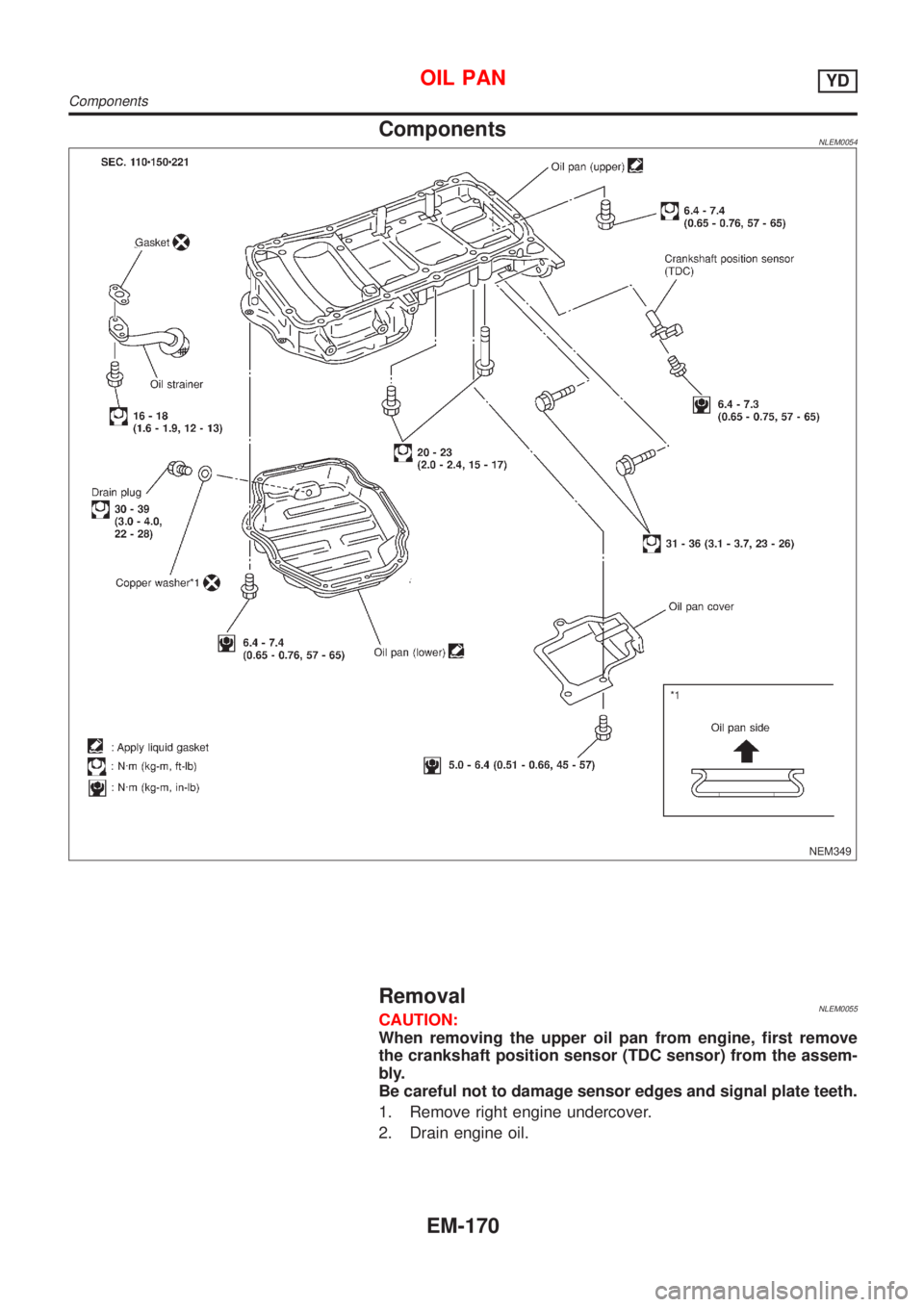

NISSAN ALMERA TINO 2001 Service Repair Manual ComponentsNLEM0054 NEM349 RemovalNLEM0055CAUTION: When removing the upper oil pan from engine, first remove the crankshaft position sensor (TDC sensor) from the assem- bly. Be careful not to damage se

Page 2428 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual JEM114G 3. Remove air compressor bracket. 4. Remove lower oil pan bolts. +Loosen bolts in the reverse order of that shown in the figure. SEM544G 5. Remove lower oil pan. a. Insert Tool between upper o

Page 2429 of 3051

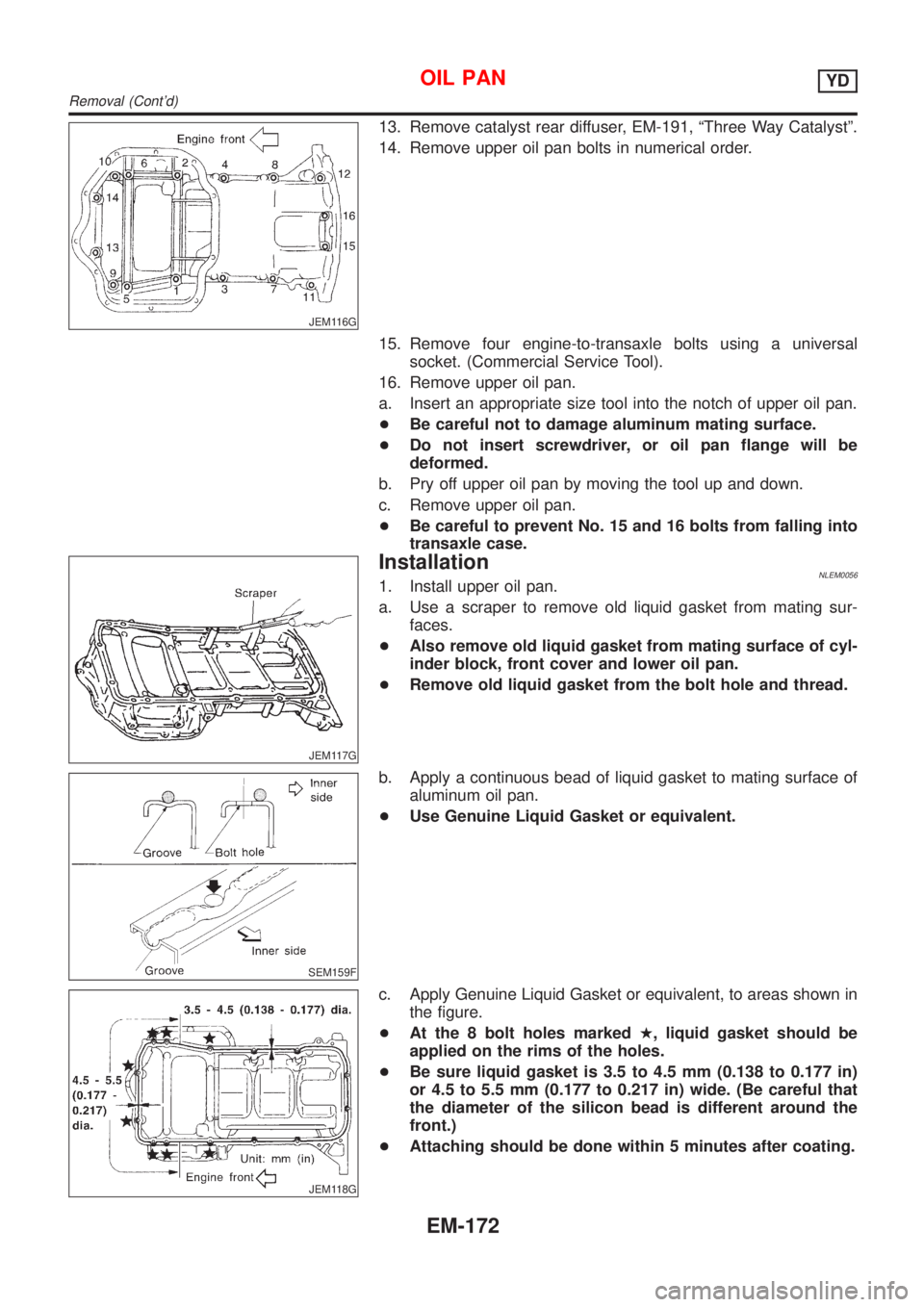

NISSAN ALMERA TINO 2001 Service Repair Manual JEM116G 13. Remove catalyst rear diffuser, EM-191, ªThree Way Catalystº. 14. Remove upper oil pan bolts in numerical order. 15. Remove four engine-to-transaxle bolts using a universal socket. (Comme

Page 2430 of 3051

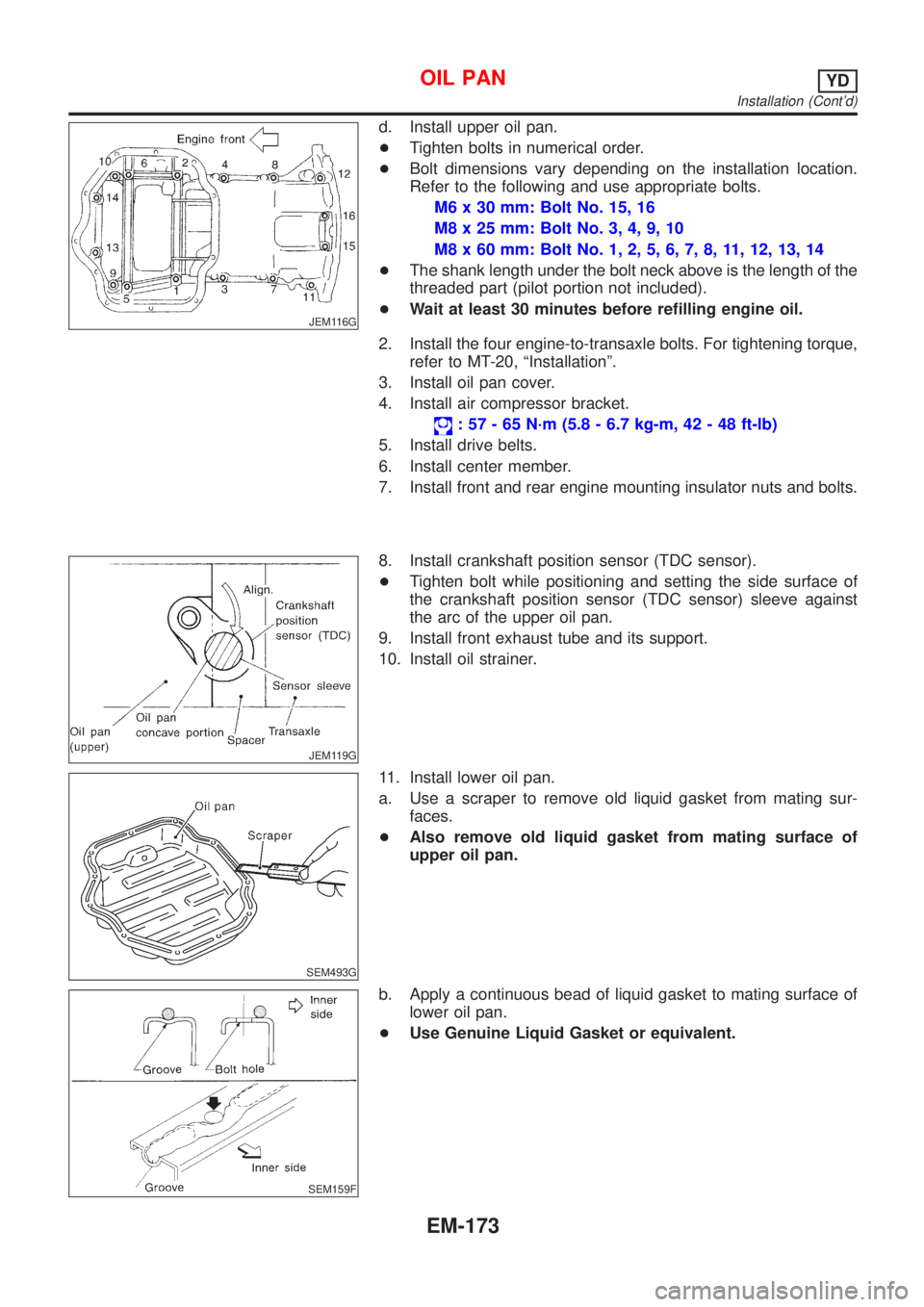

NISSAN ALMERA TINO 2001 Service Repair Manual JEM116G d. Install upper oil pan. +Tighten bolts in numerical order. +Bolt dimensions vary depending on the installation location. Refer to the following and use appropriate bolts. M6 x 30 mm: Bolt No

Page 2431 of 3051

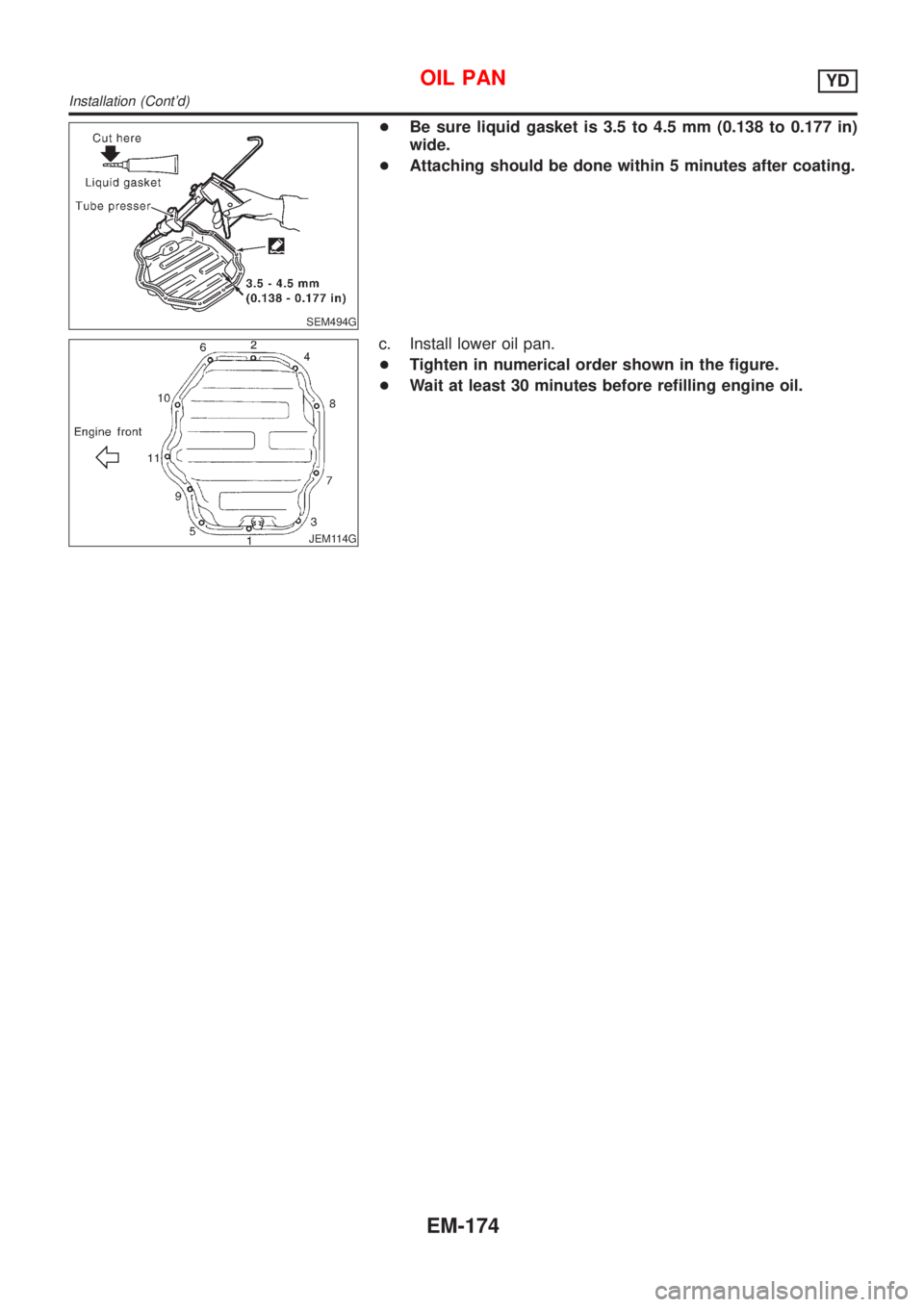

NISSAN ALMERA TINO 2001 Service Repair Manual SEM494G +Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in) wide. +Attaching should be done within 5 minutes after coating. JEM114G c. Install lower oil pan. +Tighten in numerical order shown

Page 2432 of 3051

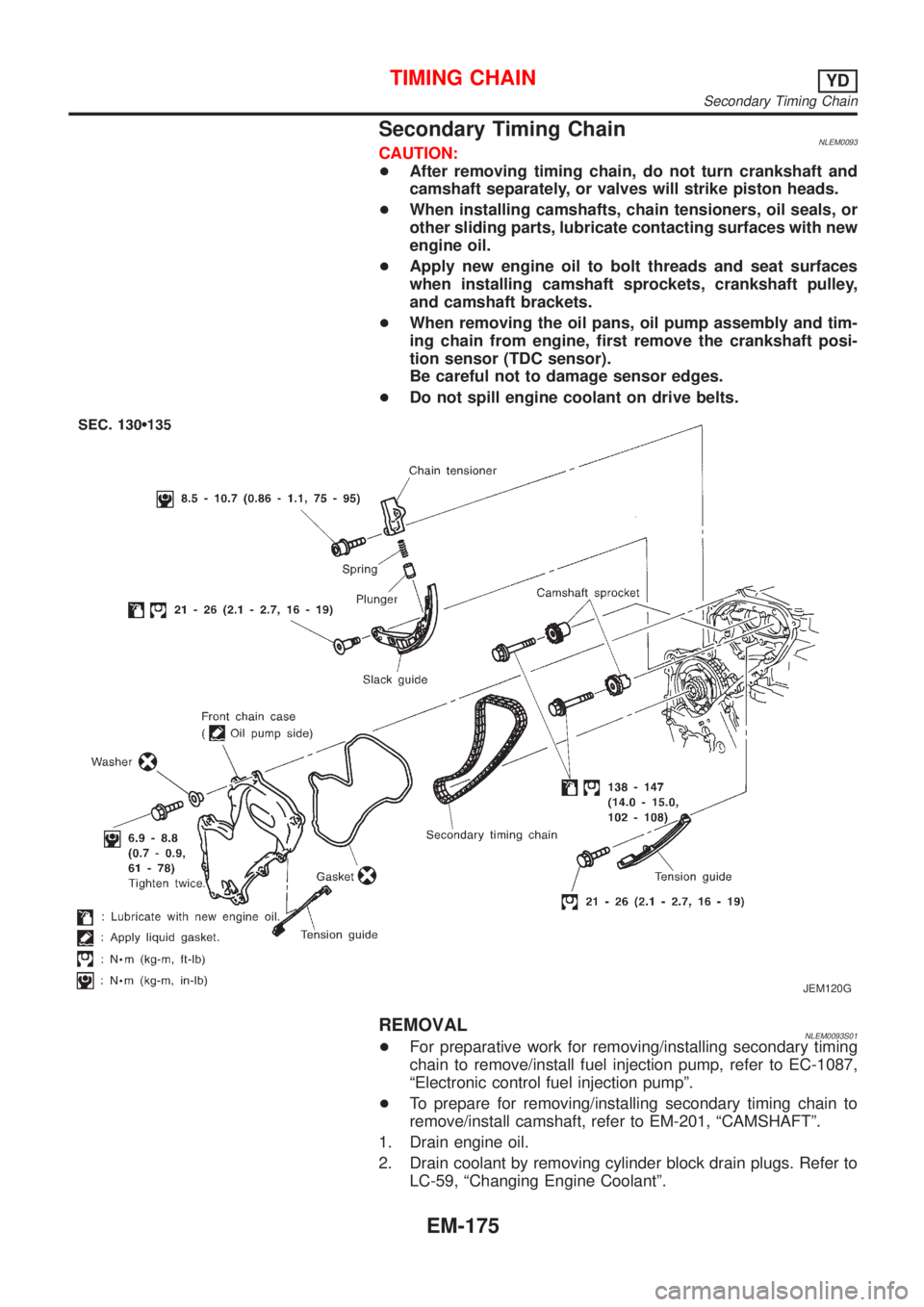

NISSAN ALMERA TINO 2001 Service Repair Manual SecondaryTimin gChain JEM120G Secondary Timing Chain
