Page 1713 of 3051

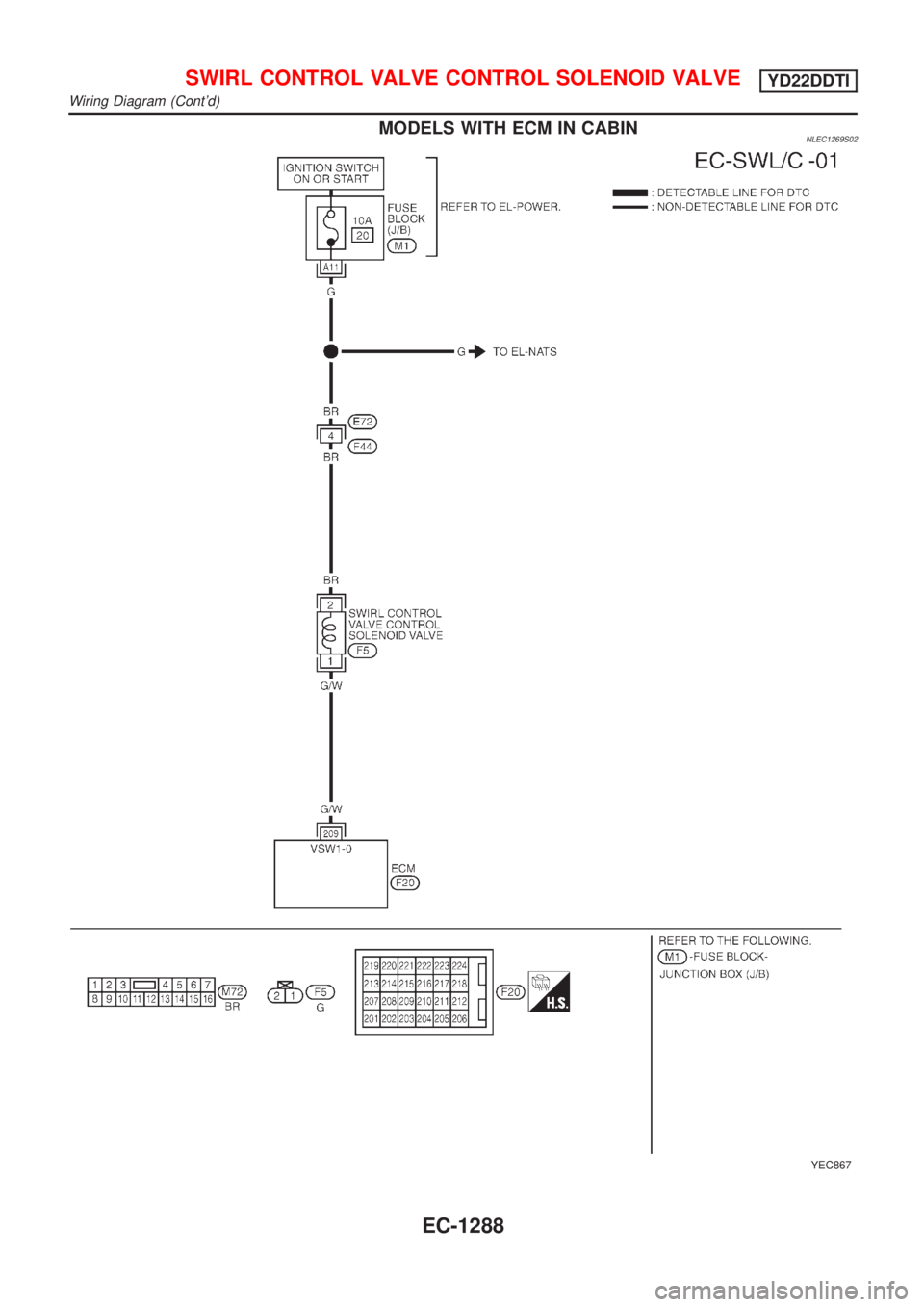

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1269S02 YEC867 SWIRL CONTROL VALVE CONTROL SOLENOID VALVEYD22DDTI Wiring Diagram (Contd) EC-1288

Page 1714 of 3051

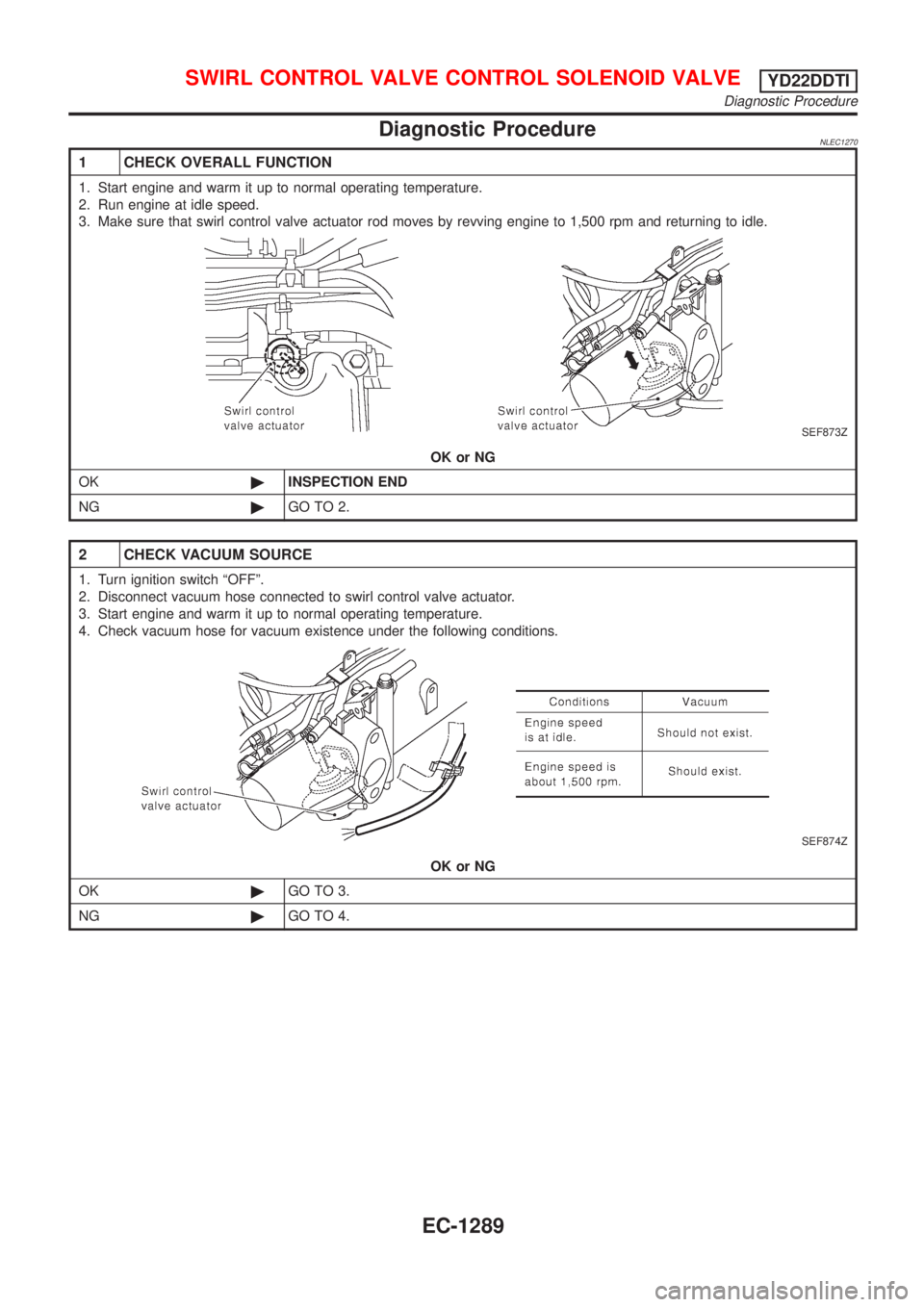

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1270 1 CHECK OVERALL FUNCTION 1. Start engine and warm it up to normal operating temperature. 2. Run engine at idle speed. 3. Make sure that swirl control valve actuator rod mo

Page 1715 of 3051

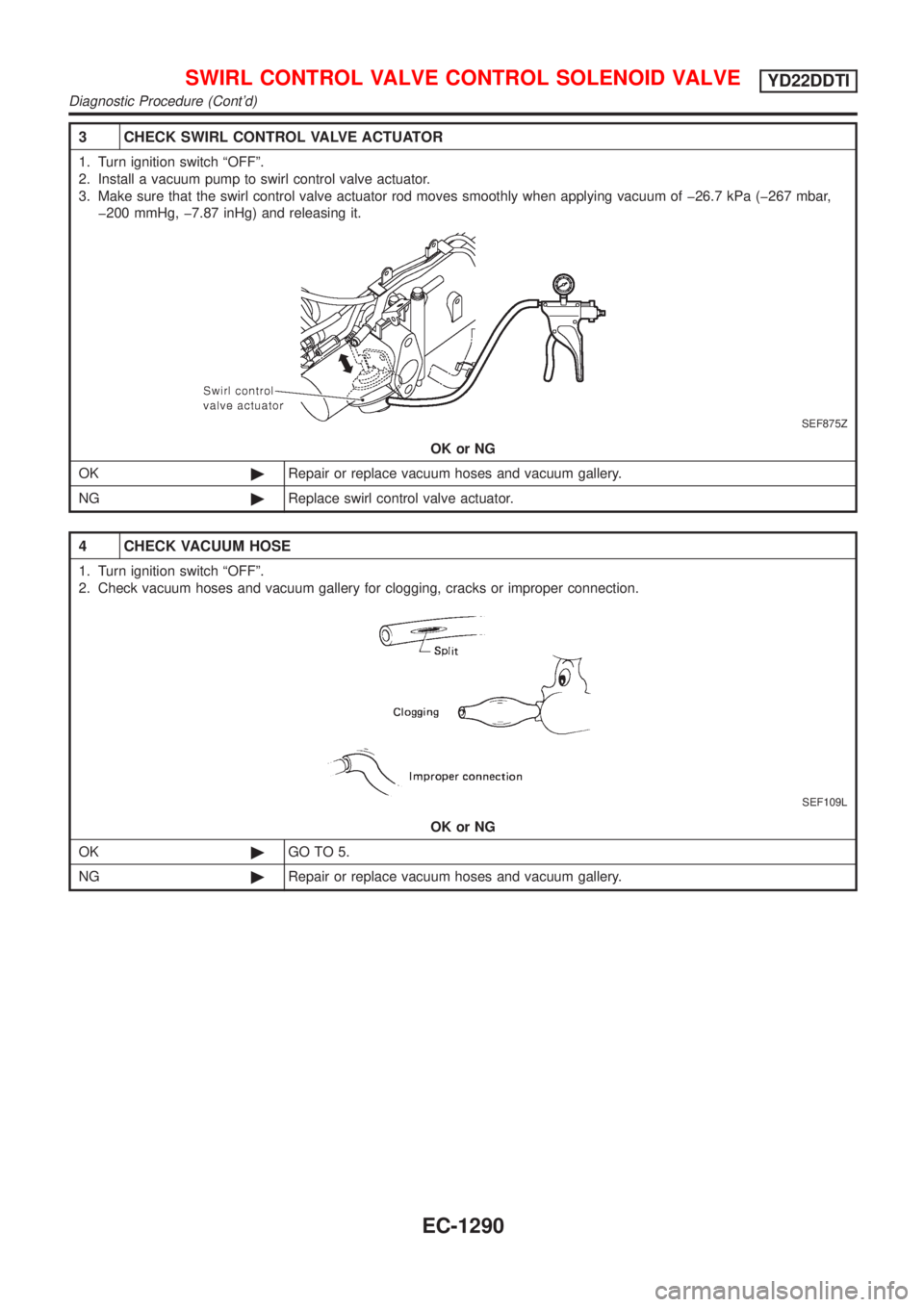

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK SWIRL CONTROL VALVE ACTUATOR 1. Turn ignition switch ªOFFº. 2. Install a vacuum pump to swirl control valve actuator. 3. Make sure that the swirl control valve actuator rod moves smoothly wh

Page 1716 of 3051

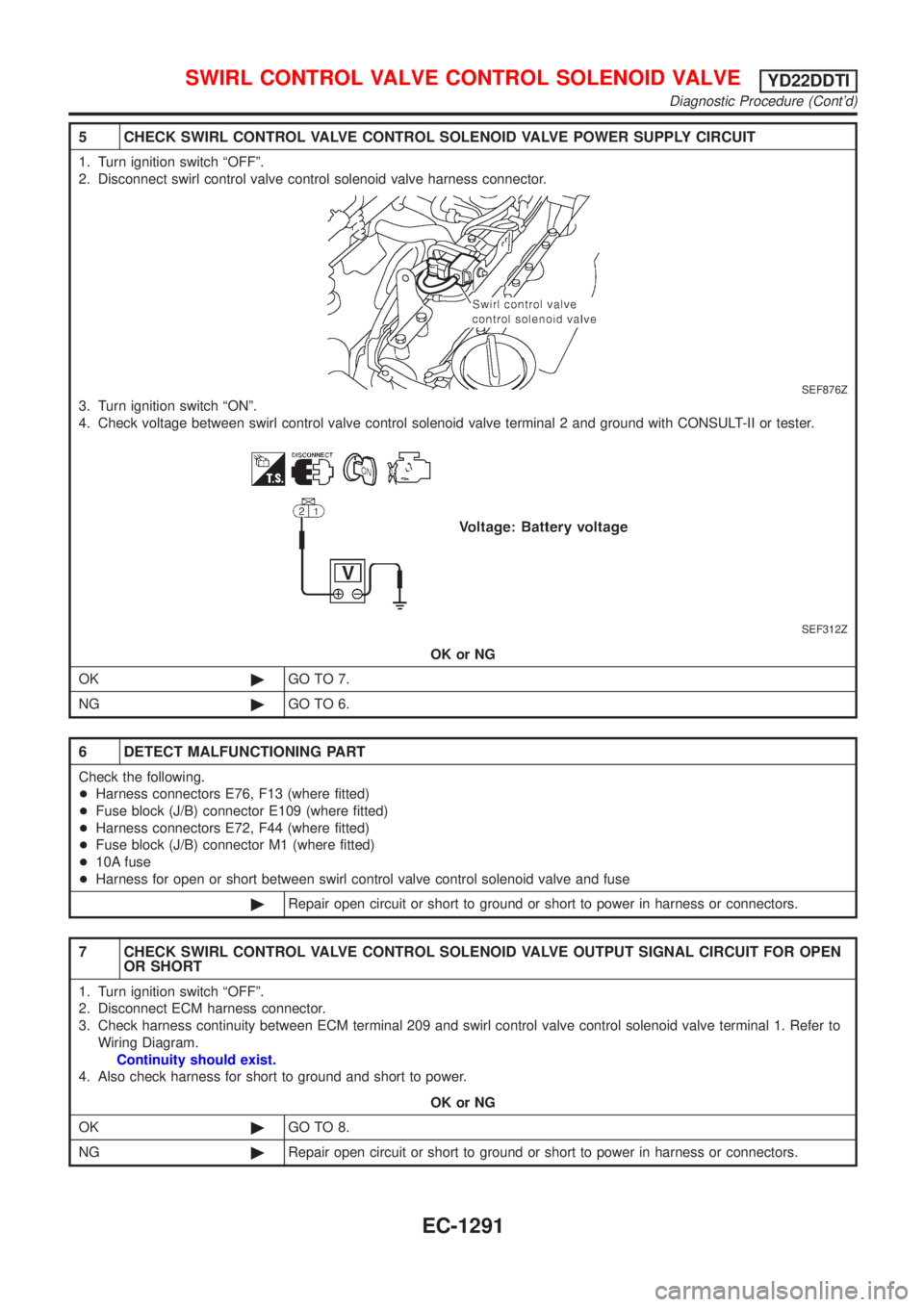

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect swirl control valve control solenoid valve harness connector. SEF876Z 3. Turn ign

Page 1717 of 3051

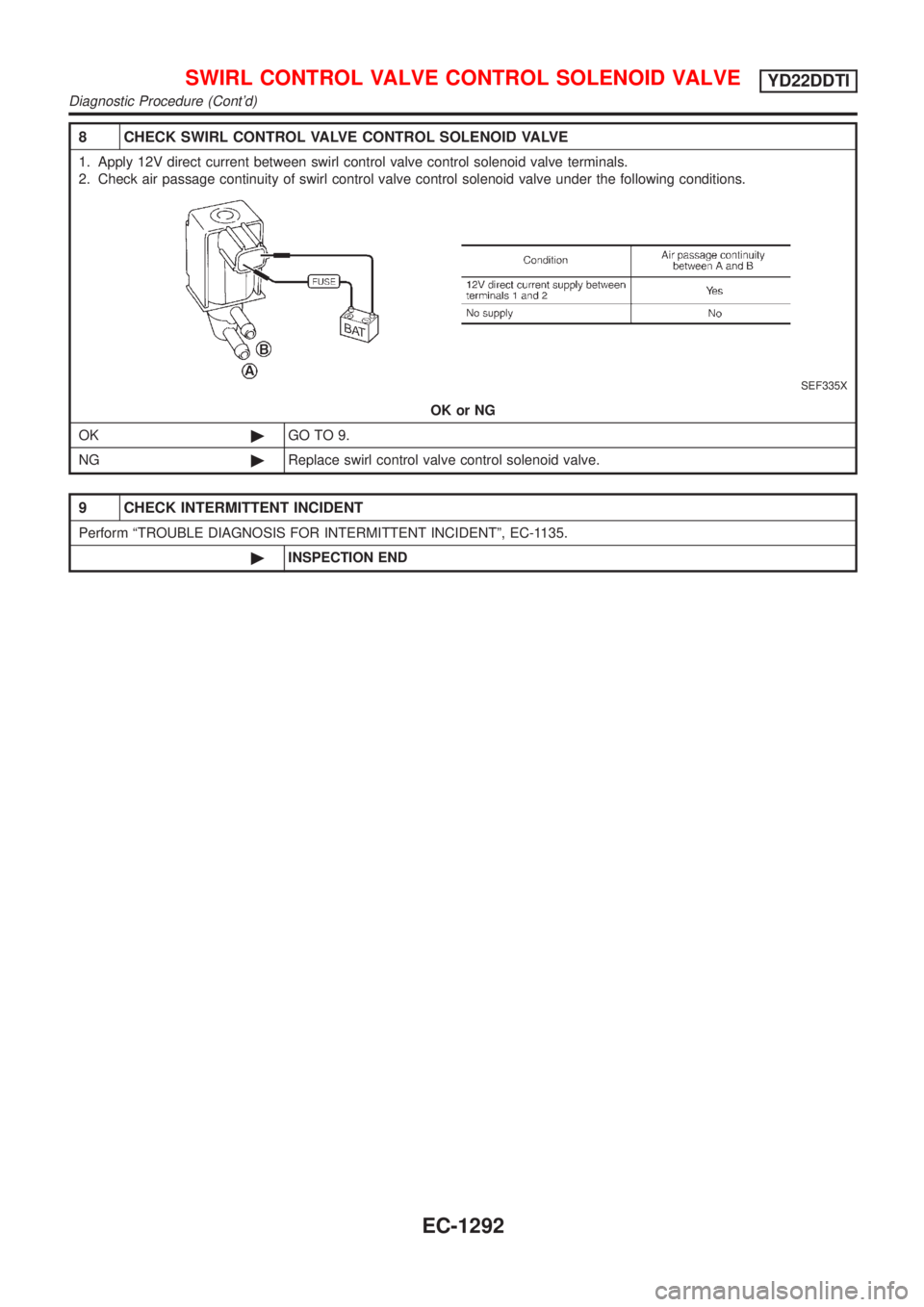

NISSAN ALMERA TINO 2001 Service Repair Manual 8 CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE 1. Apply 12V direct current between swirl control valve control solenoid valve terminals. 2. Check air passage continuity of swirl control valve cont

Page 1718 of 3051

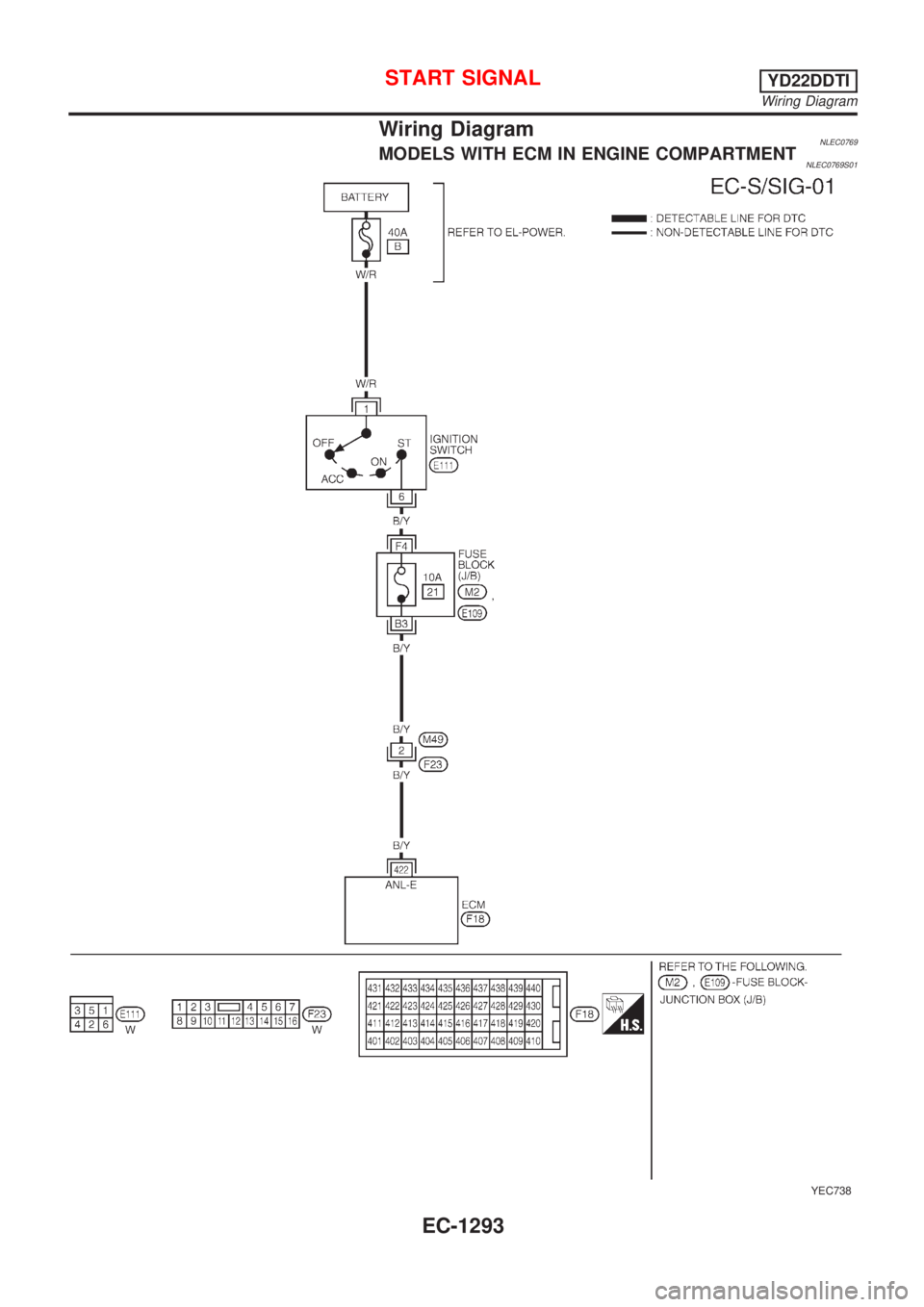

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0769MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0769S01 YEC738 START SIGNALYD22DDTI Wiring Diagram EC-1293

Page 1719 of 3051

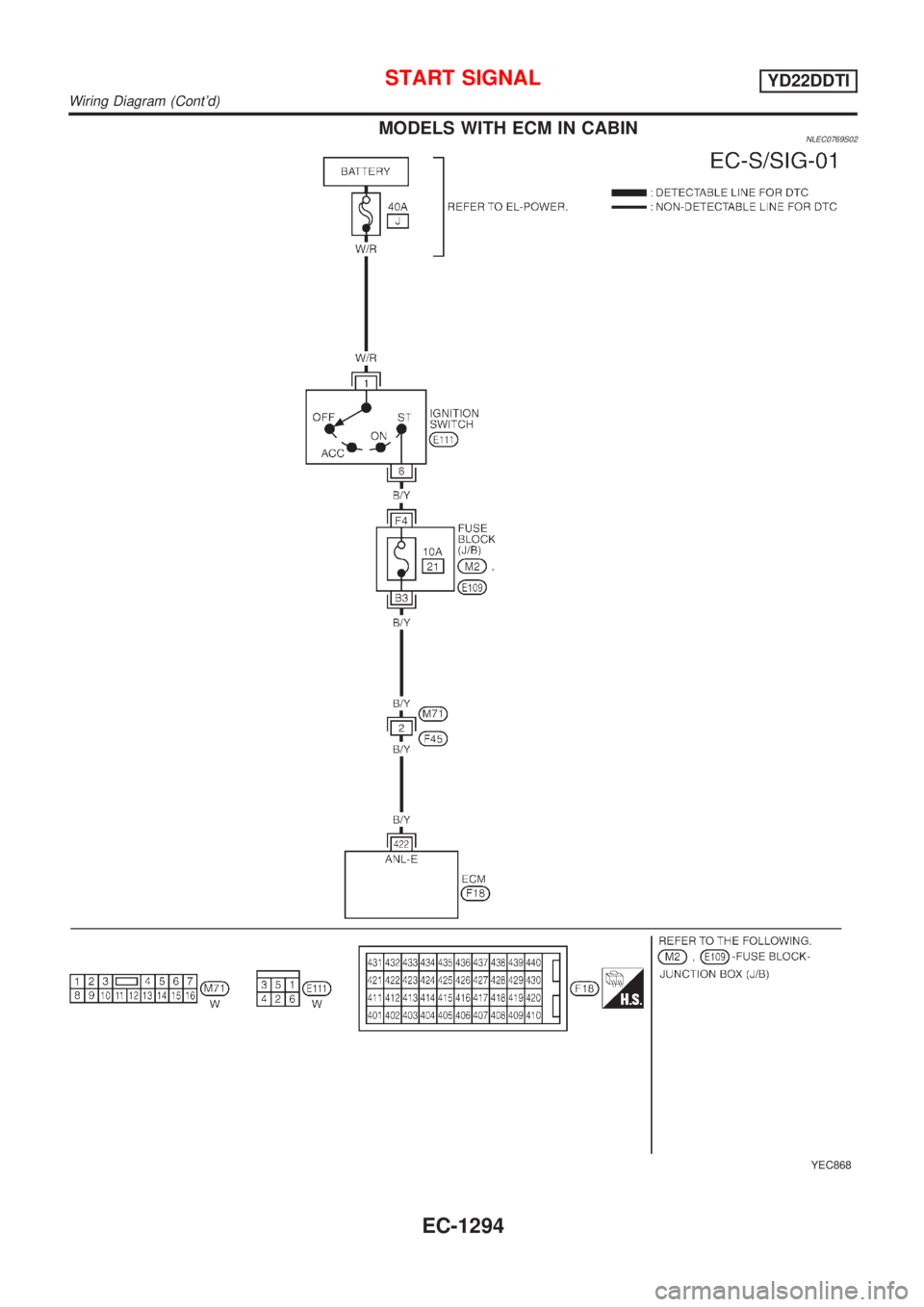

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0769S02 YEC868 START SIGNALYD22DDTI Wiring Diagram (Contd) EC-1294

Page 1720 of 3051

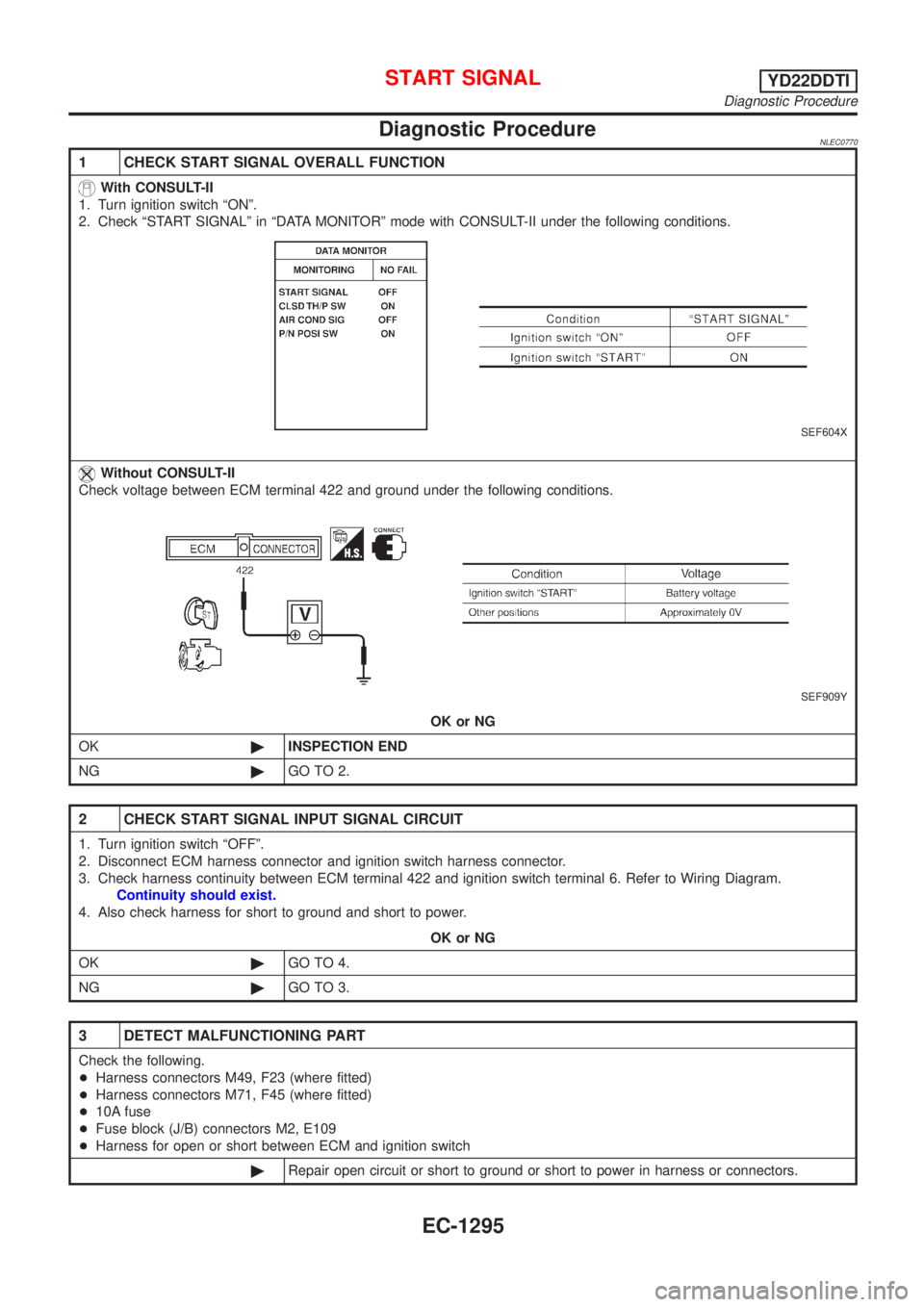

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0770 1 CHECK START SIGNAL OVERALL FUNCTION With CONSULT-II 1. Turn ignition switch ªONº. 2. Check ªSTART SIGNALº in ªDATA MONITORº mode with CONSULT-II under the followin
