Page 2353 of 3051

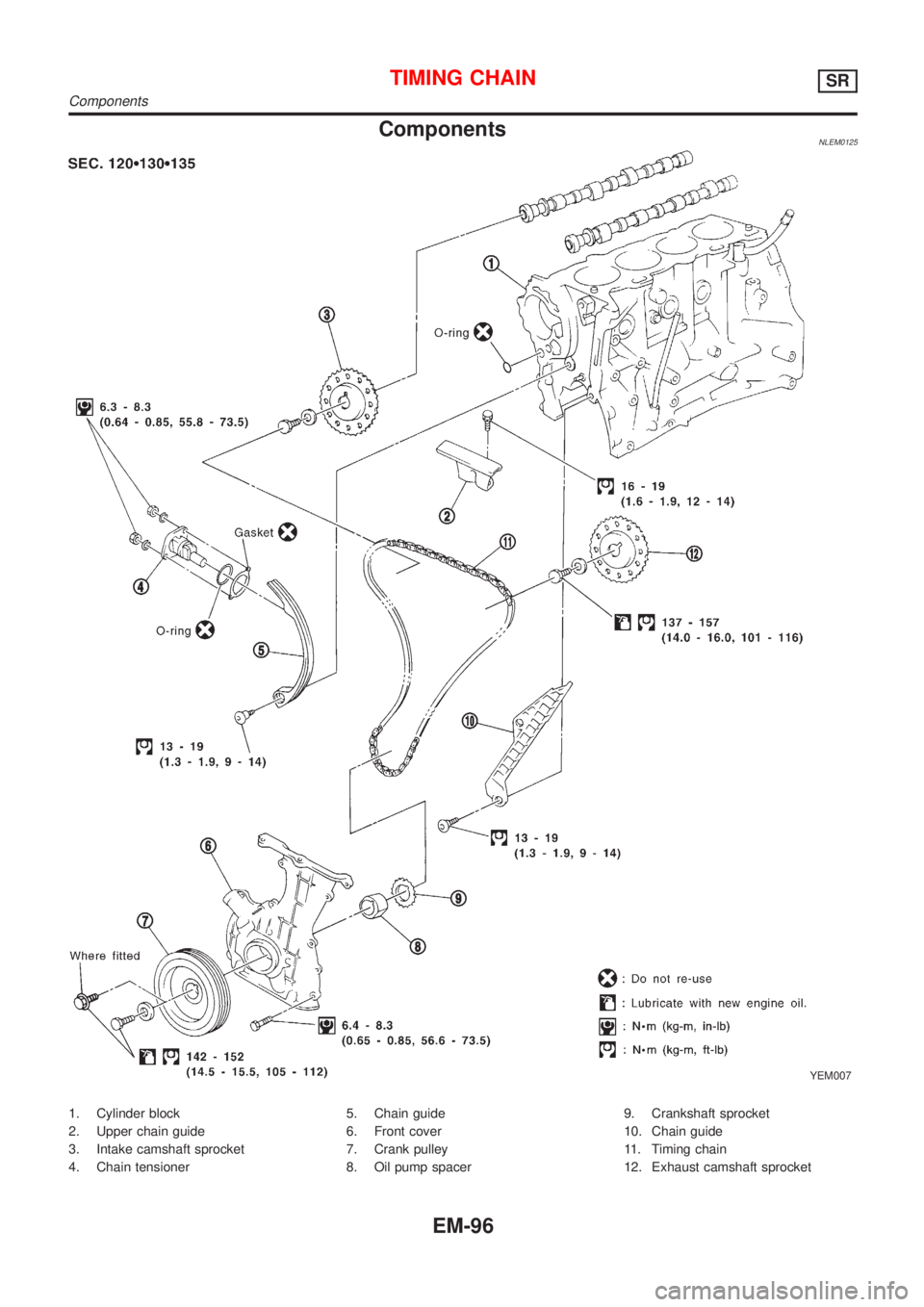

NISSAN ALMERA TINO 2001 Service Repair Manual ComponentsNLEM0125 YEM007 1. Cylinder block 2. Upper chain guide 3. Intake camshaft sprocket 4. Chain tensioner5. Chain guide 6. Front cover 7. Crank pulley 8. Oil pump spacer9. Crankshaft sprocket 10

Page 2354 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CAUTION: +After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads. +When installing chain tensioner, oil seals, or other sliding parts, lubricat

Page 2355 of 3051

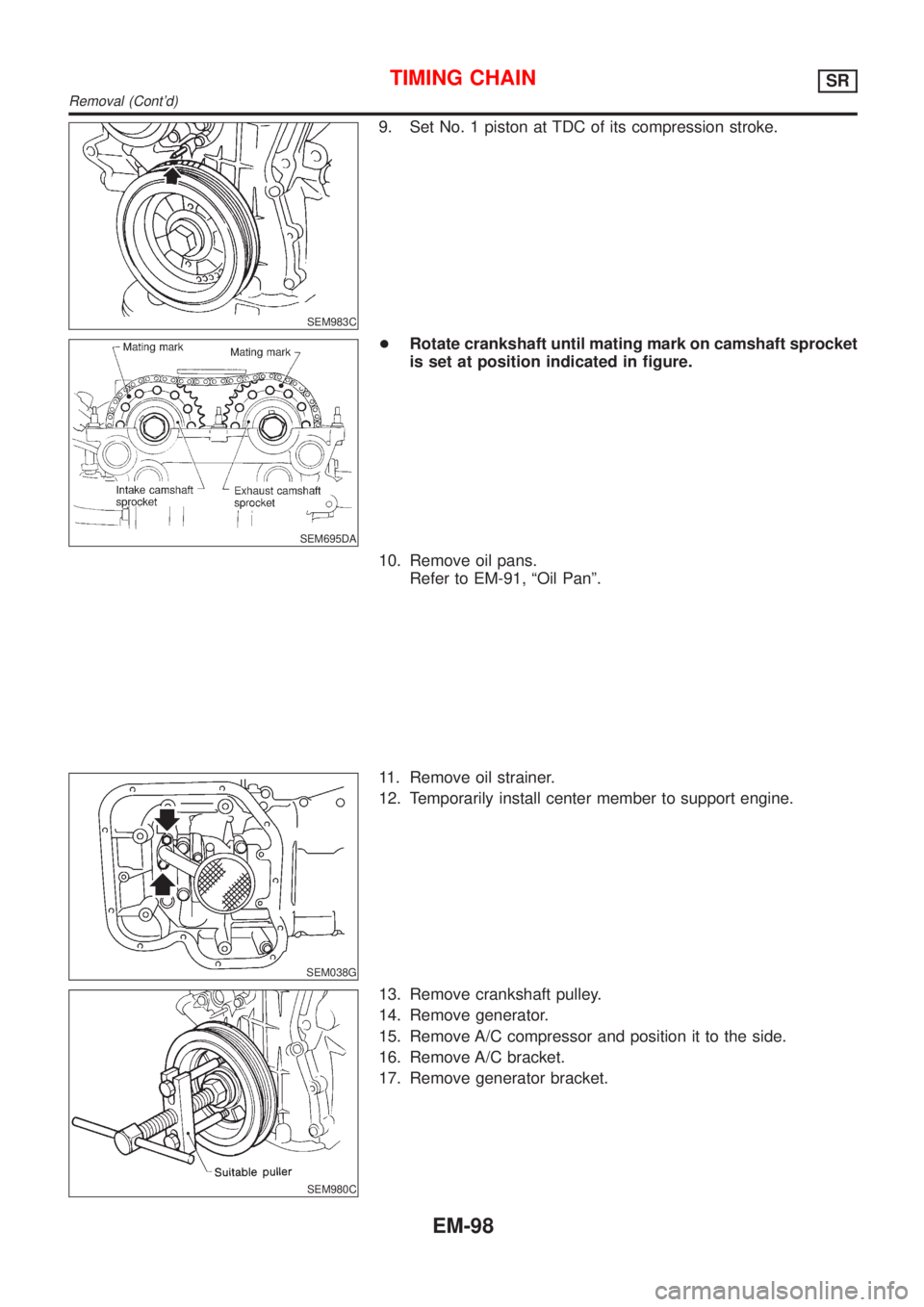

NISSAN ALMERA TINO 2001 Service Repair Manual SEM983C 9. Set No. 1 piston at TDC of its compression stroke. SEM695DA +Rotate crankshaft until mating mark on camshaft sprocket is set at position indicated in figure. 10. Remove oil pans. Refer to E

Page 2356 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM039G 18. Set a suitable transmission jack under main bearing beam. SEM040G 19. Remove RH engine mounting. SEM041G 20. Remove RH engine mounting bracket. SEM721E 21. Remove oil pump drive spacer. CA

Page 2357 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM982CA 24. Remove timing chain guides. SEM034G 25. Remove camshaft sprockets. +For retiming, apply paint mark to timing chain matched with mating marks of camshaft sprockets. 26. Remove timing chain

Page 2358 of 3051

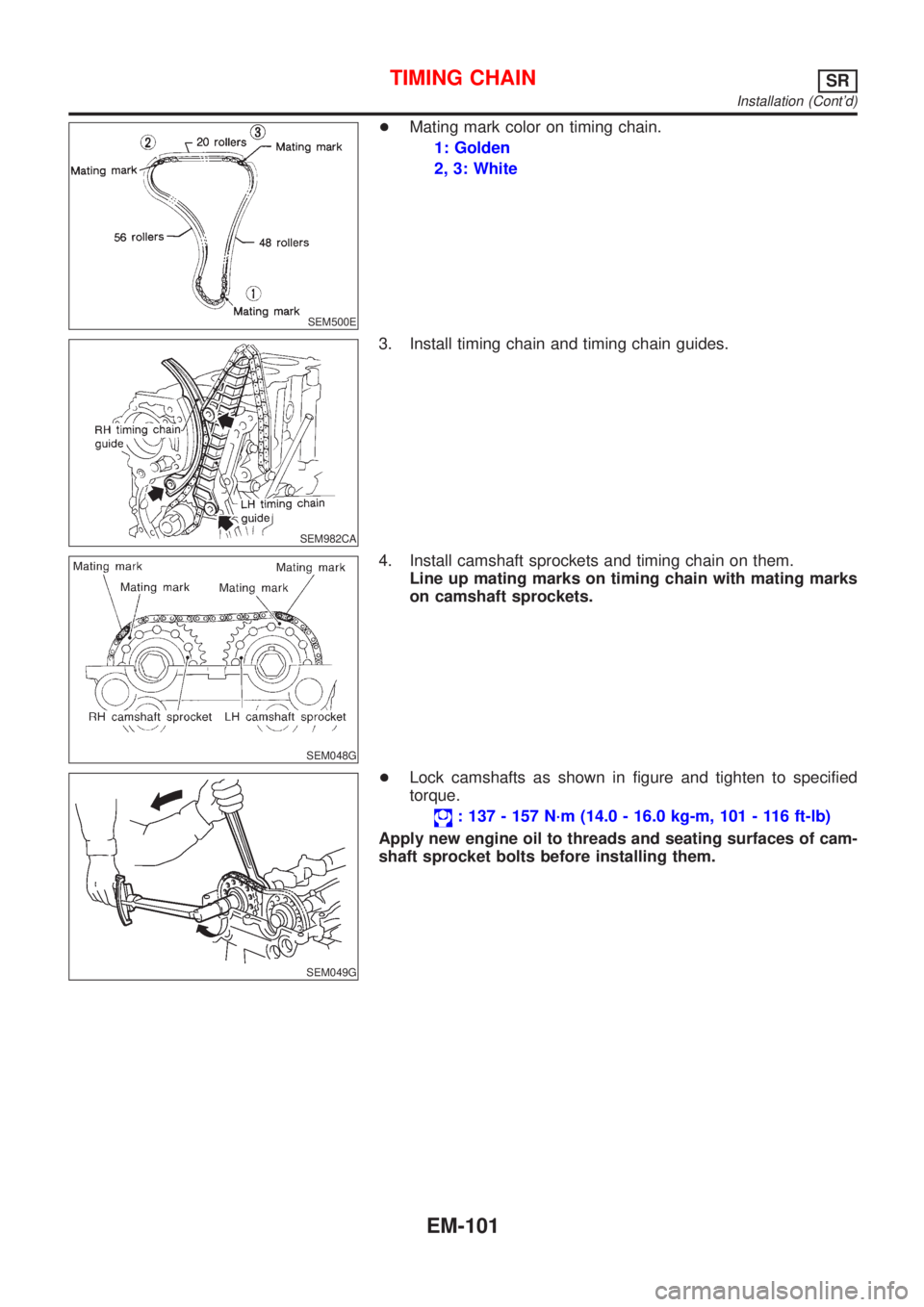

NISSAN ALMERA TINO 2001 Service Repair Manual SEM500E +Mating mark color on timing chain. 1: Golden 2, 3: White SEM982CA 3. Install timing chain and timing chain guides. SEM048G 4. Install camshaft sprockets and timing chain on them. Line up mati

Page 2359 of 3051

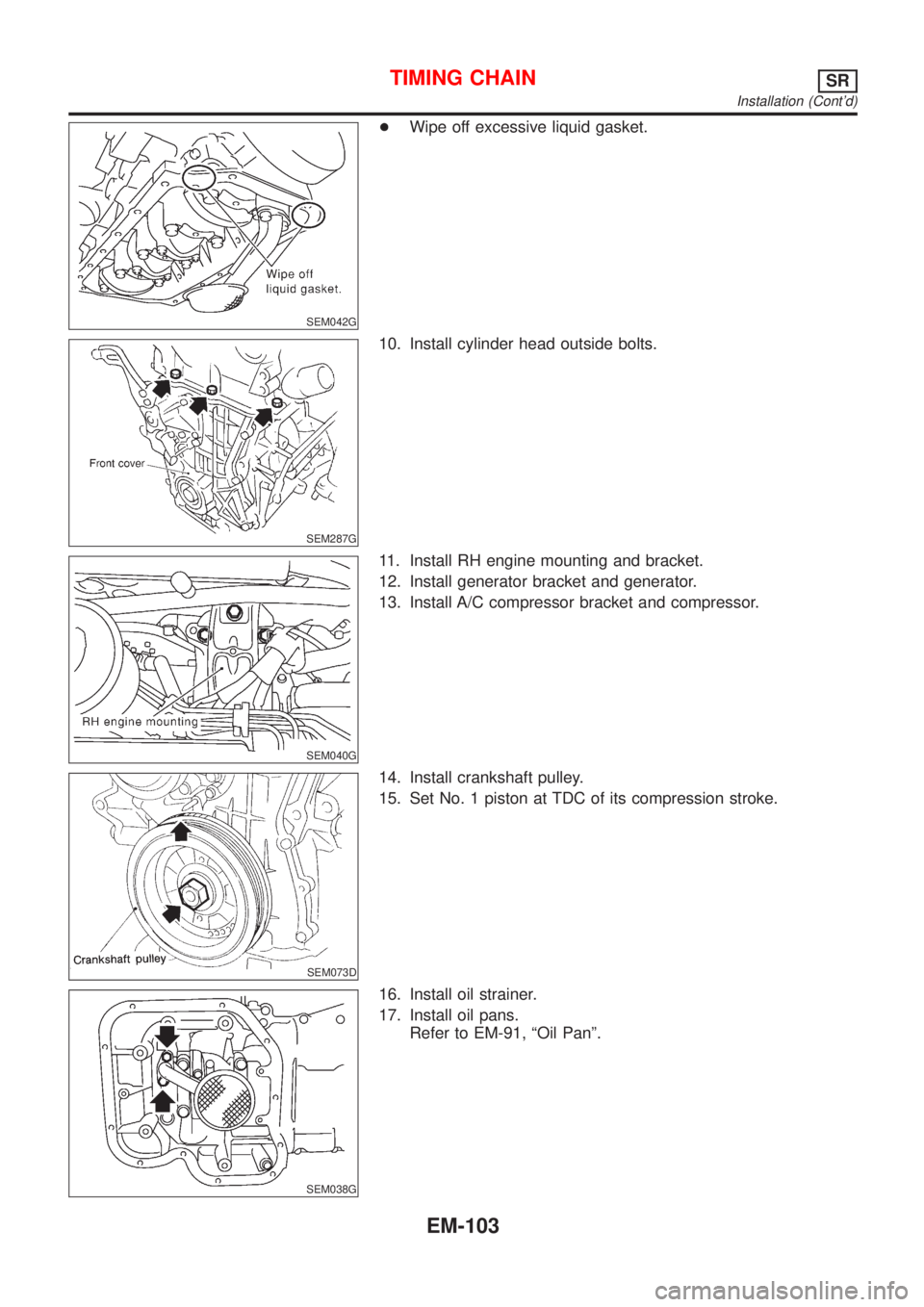

NISSAN ALMERA TINO 2001 Service Repair Manual SEM990C SEM991C 5. Install chain tensioner. Make sure the camshaft sprockets are tightened completely. Press cam stopper down and press-in sleeve until hook can be engaged on pin. When tensioner is bo

Page 2360 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM042G +Wipe off excessive liquid gasket. SEM287G 10. Install cylinder head outside bolts. SEM040G 11. Install RH engine mounting and bracket. 12. Install generator bracket and generator. 13. Install
