Page 2745 of 3051

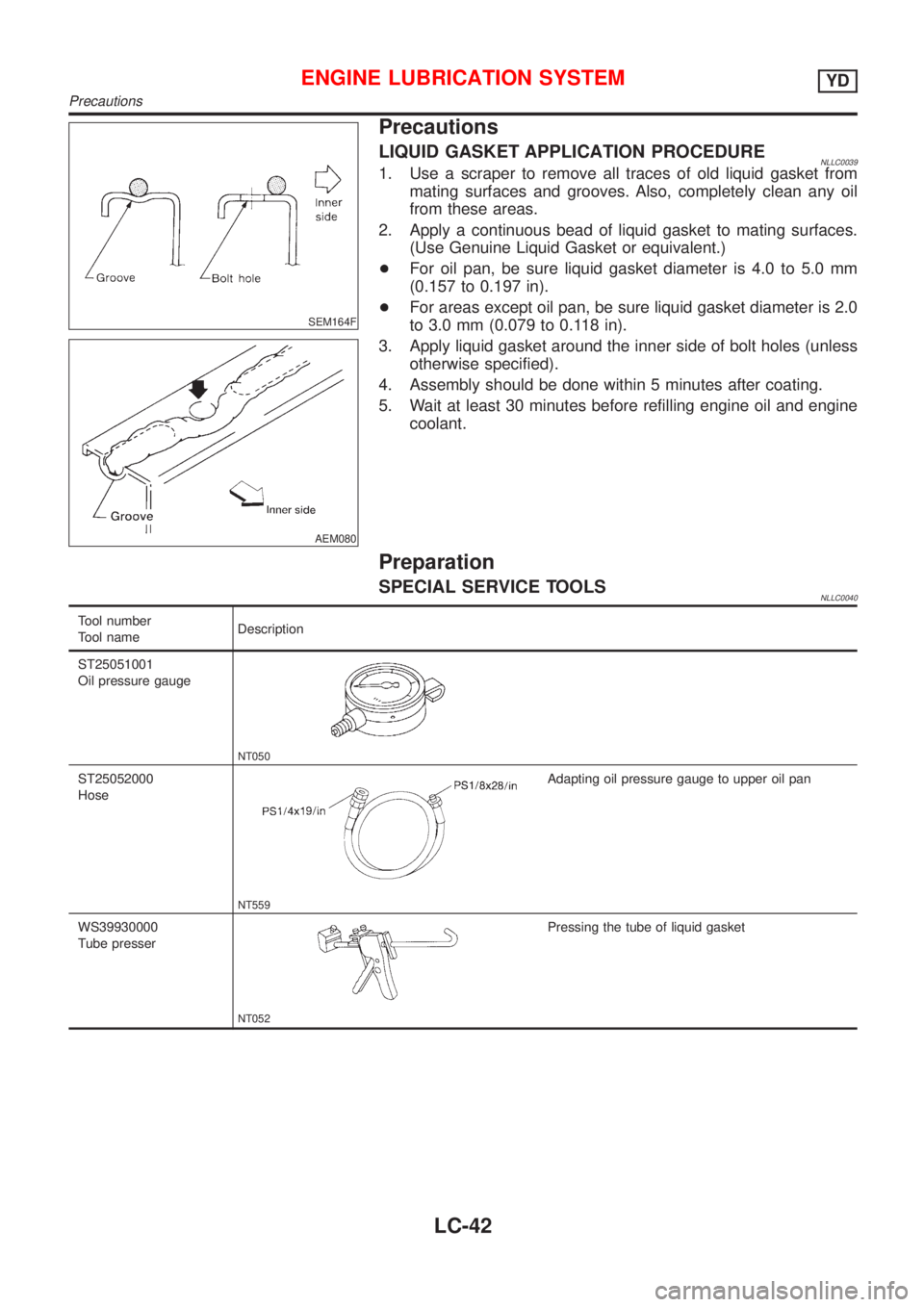

NISSAN ALMERA TINO 2001 Service Repair Manual SEM164F AEM080 Precautions LIQUID GASKET APPLICATION PROCEDURENLLC00391. Use a scraper to remove all traces of old liquid gasket from mating surfaces and grooves. Also, completely clean any oil from t

Page 2746 of 3051

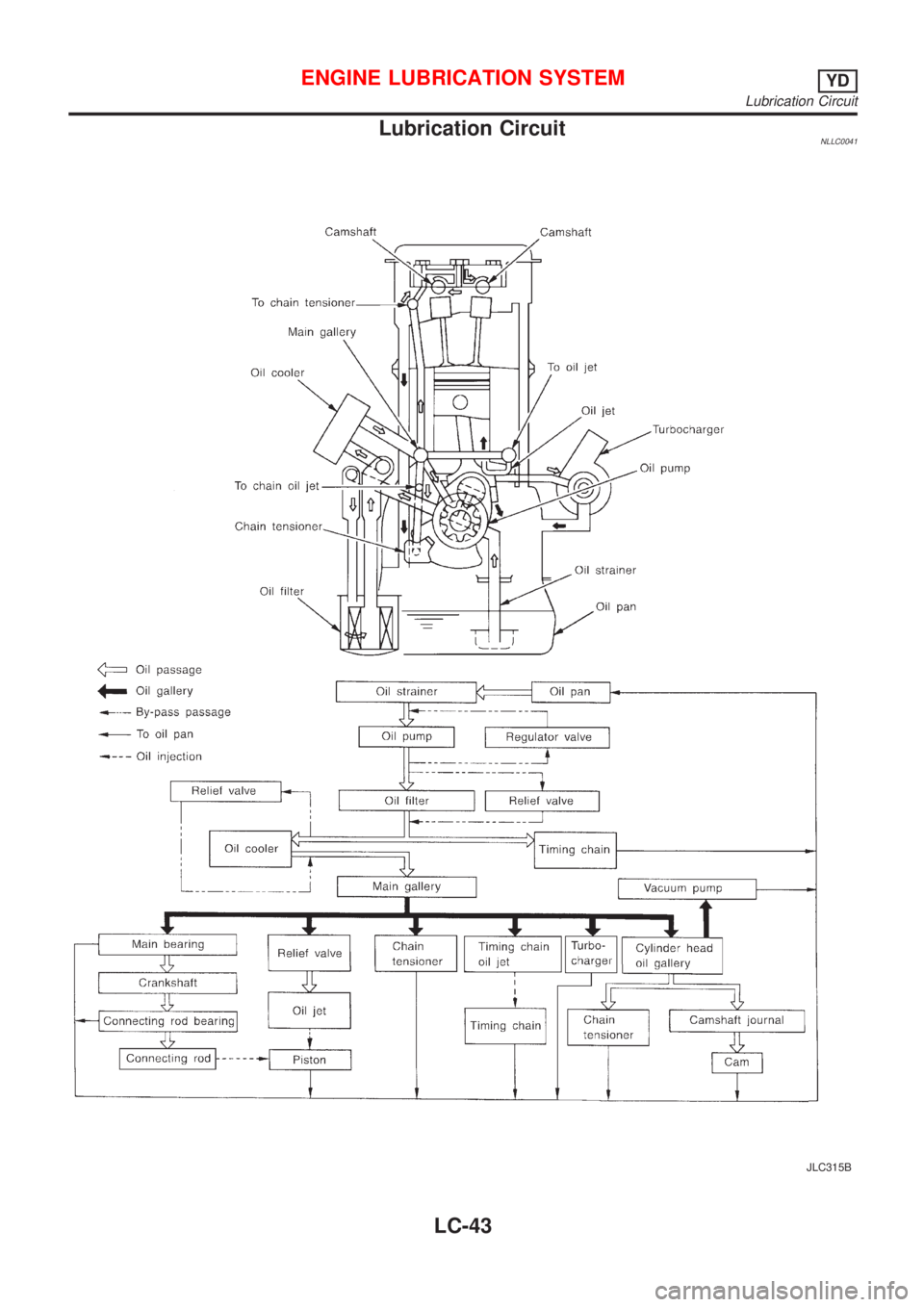

NISSAN ALMERA TINO 2001 Service Repair Manual Lubrication CircuitNLLC0041 JLC315B ENGINE LUBRICATION SYSTEMYD Lubrication Circuit LC-43

Page 2747 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SLC283B JLC284B SLC926-A Oil Pressure CheckNLLC0042WARNING: +Be careful not to burn yourself, as the engine and oil may be hot. +Oil pressure check should be done in ªNeutral positionº. 1. Check oil

Page 2748 of 3051

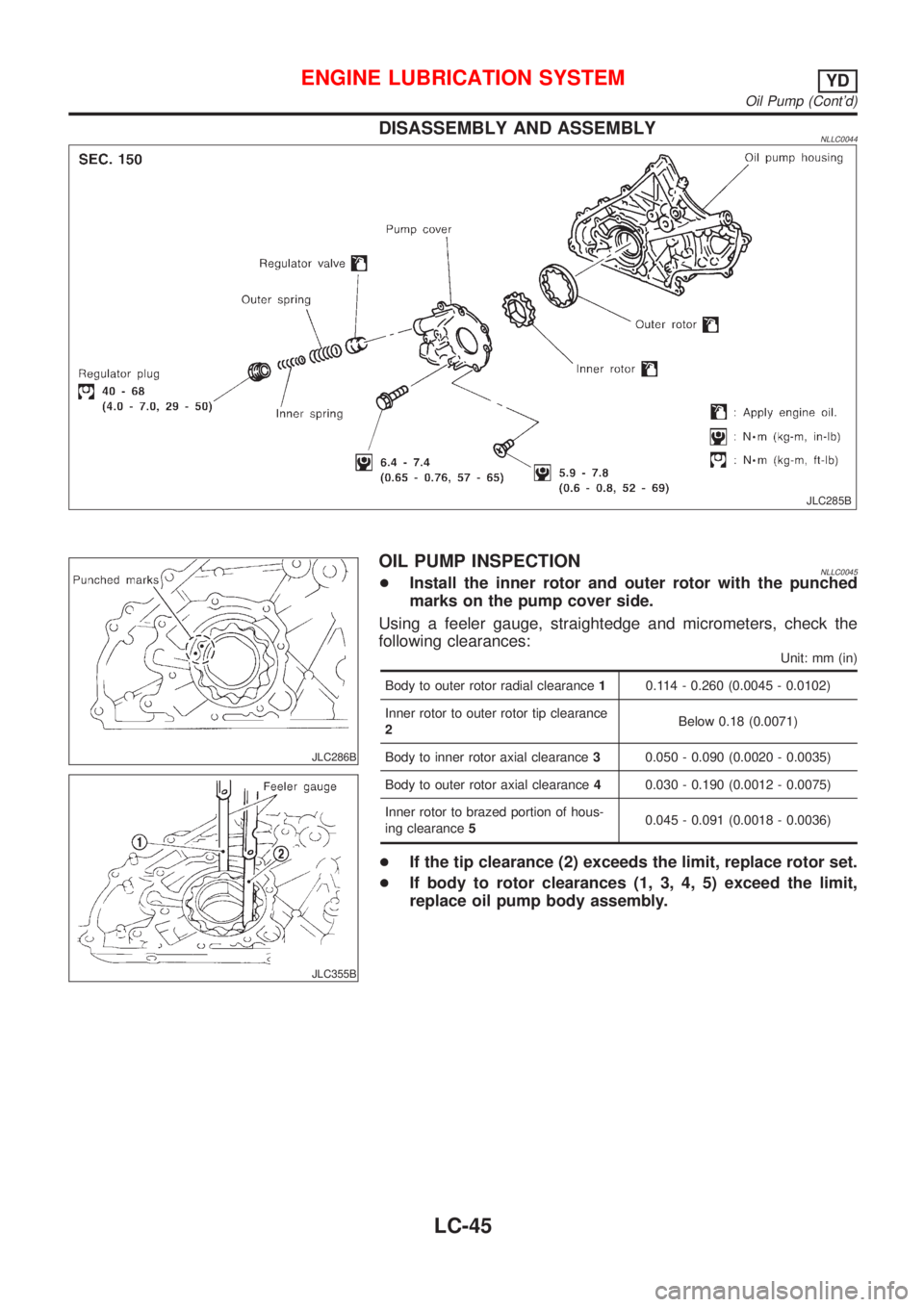

NISSAN ALMERA TINO 2001 Service Repair Manual DISASSEMBLY AND ASSEMBLYNLLC0044 JLC285B JLC286B JLC355B OIL PUMP INSPECTIONNLLC0045+Install the inner rotor and outer rotor with the punched marks on the pump cover side. Using a feeler gauge, straig

Page 2749 of 3051

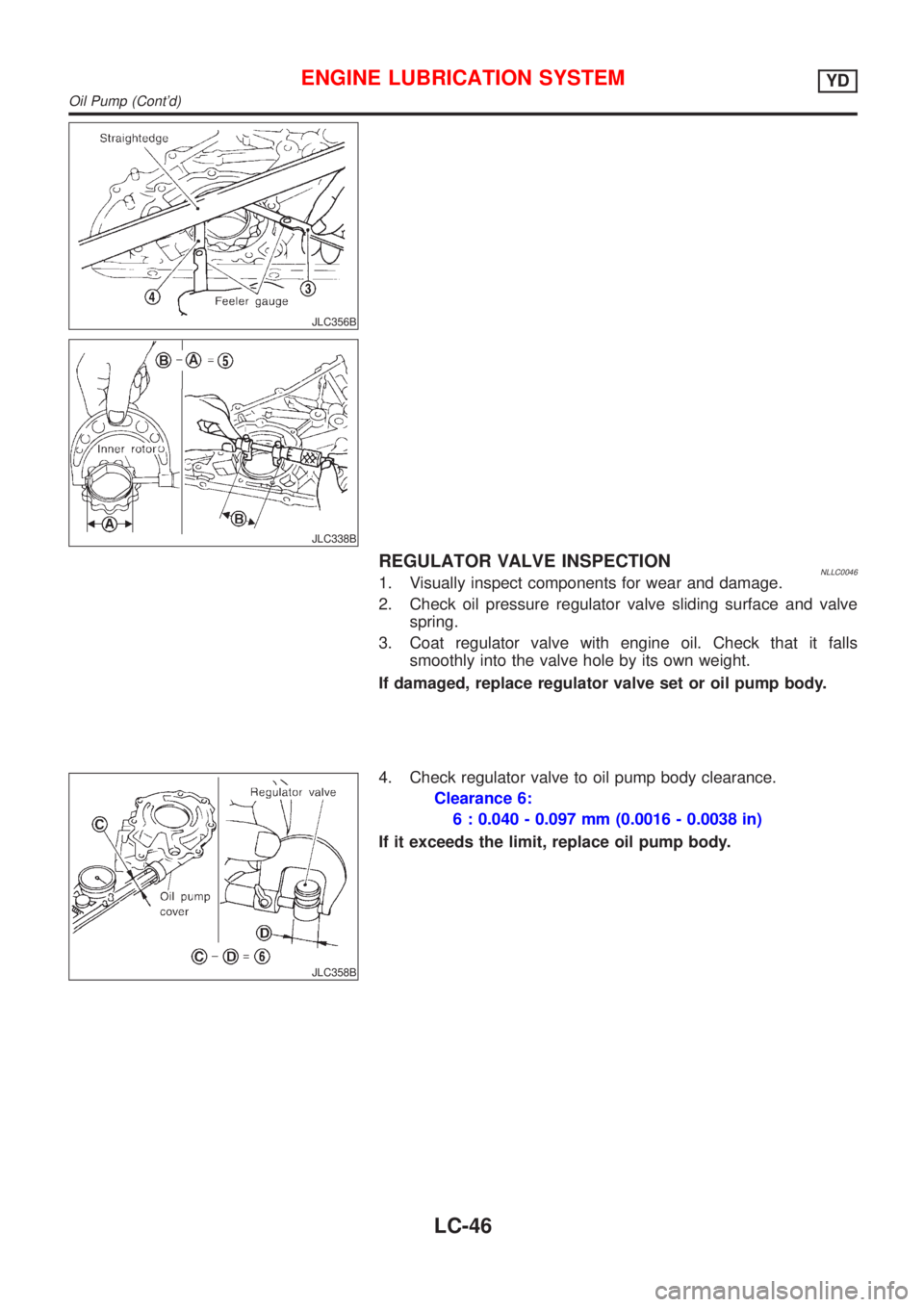

NISSAN ALMERA TINO 2001 Service Repair Manual JLC356B JLC338B REGULATOR VALVE INSPECTIONNLLC00461. Visually inspect components for wear and damage. 2. Check oil pressure regulator valve sliding surface and valve spring. 3. Coat regulator valve wi

Page 2750 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SLC287B JLC288B Changing Engine OilNLLC0074WARNING: +Be careful not to burn yourself, as the engine oil is hot. +Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid

Page 2751 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Oil Filter BracketNLLC0075 JLC301B REMOVAL AND INSTALLATIONNLLC0075S011. Remove the undercover. 2. Steer the front wheel to the right. 3. Remove the right splash cover. 4. Remove the oil filter bracke

Page 2752 of 3051

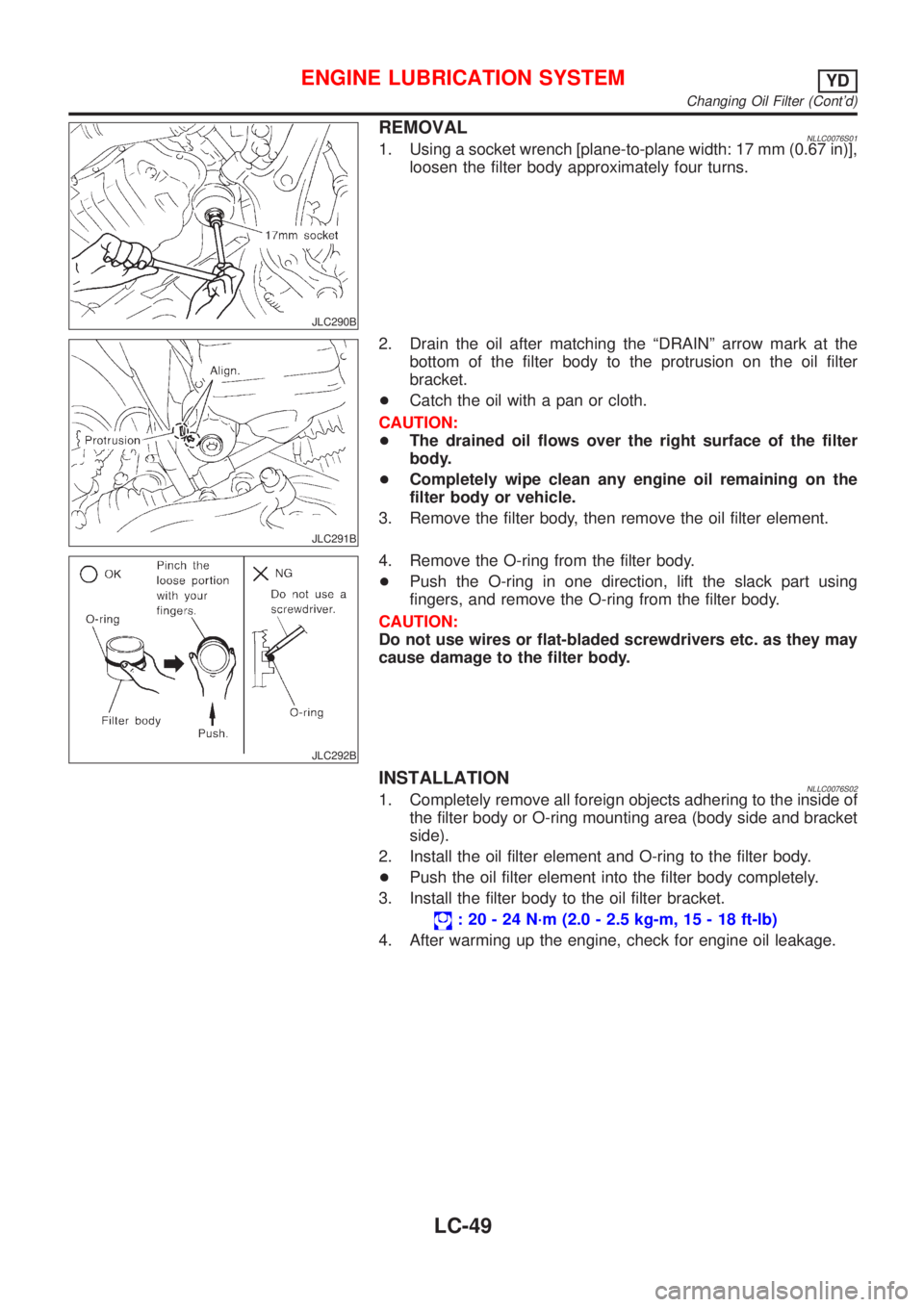

NISSAN ALMERA TINO 2001 Service Repair Manual JLC290B REMOVALNLLC0076S011. Using a socket wrench [plane-to-plane width: 17 mm (0.67 in)], loosen the filter body approximately four turns. JLC291B 2. Drain the oil after matching the ªDRAINº arrow
