NISSAN ALMERA TINO 2001  Service Repair Manual JEM158G
SEM301G
3. Heat cylinder head to 110 to 120ÉC (230 to 248ÉF) by soaking
in heated oil.
4. Sufficiently cool valve seat with dry ice. Force fit valve seat into
cylinder head.
WARNING:
Do not

Page 2466 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual SEM188A

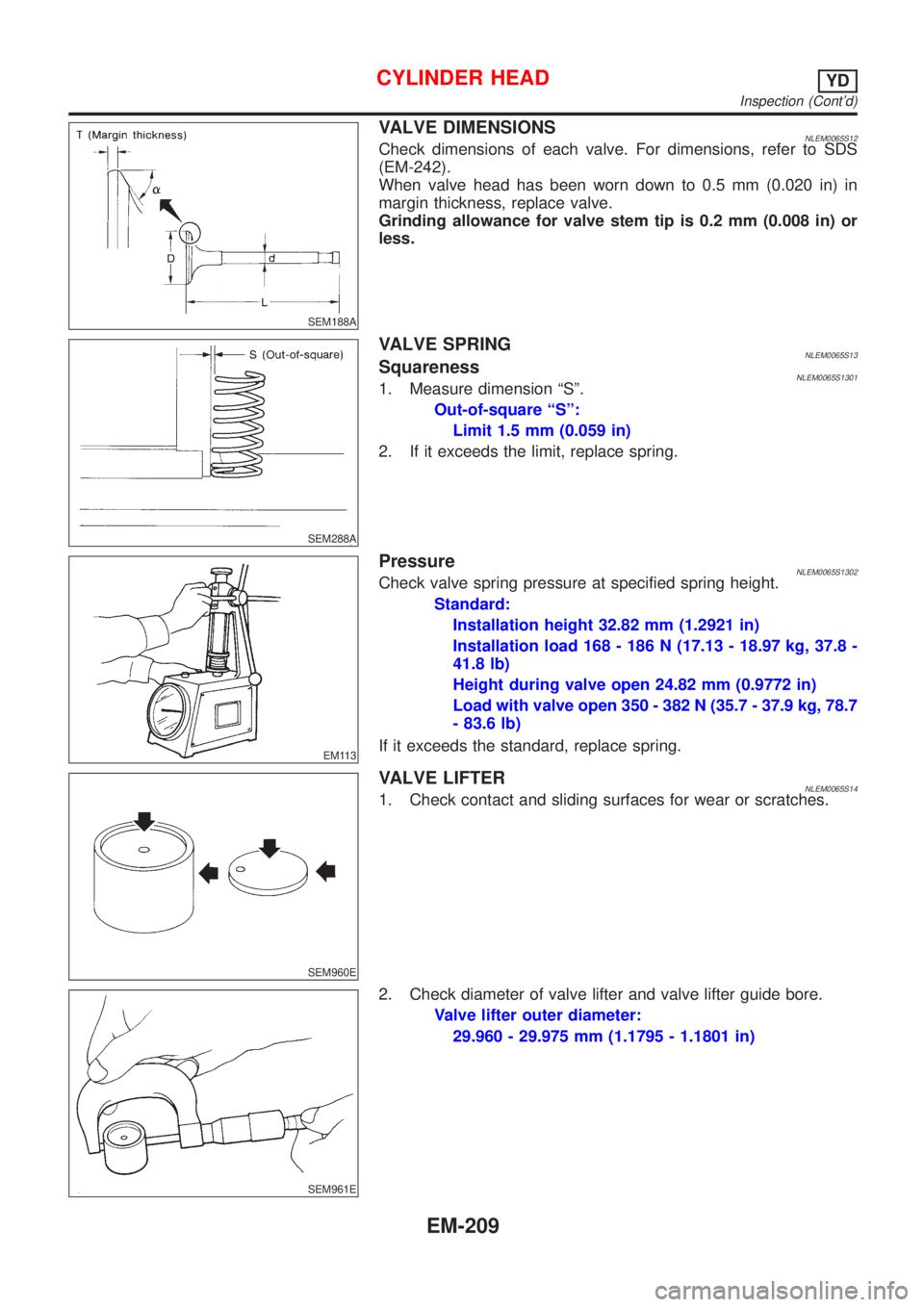

VALVE DIMENSIONSNLEM0065S12Check dimensions of each valve. For dimensions, refer to SDS
(EM-242).
When valve head has been worn down to 0.5 mm (0.020 in) in
margin thickness, replace valve.
Gr

Page 2467 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual SEM867E

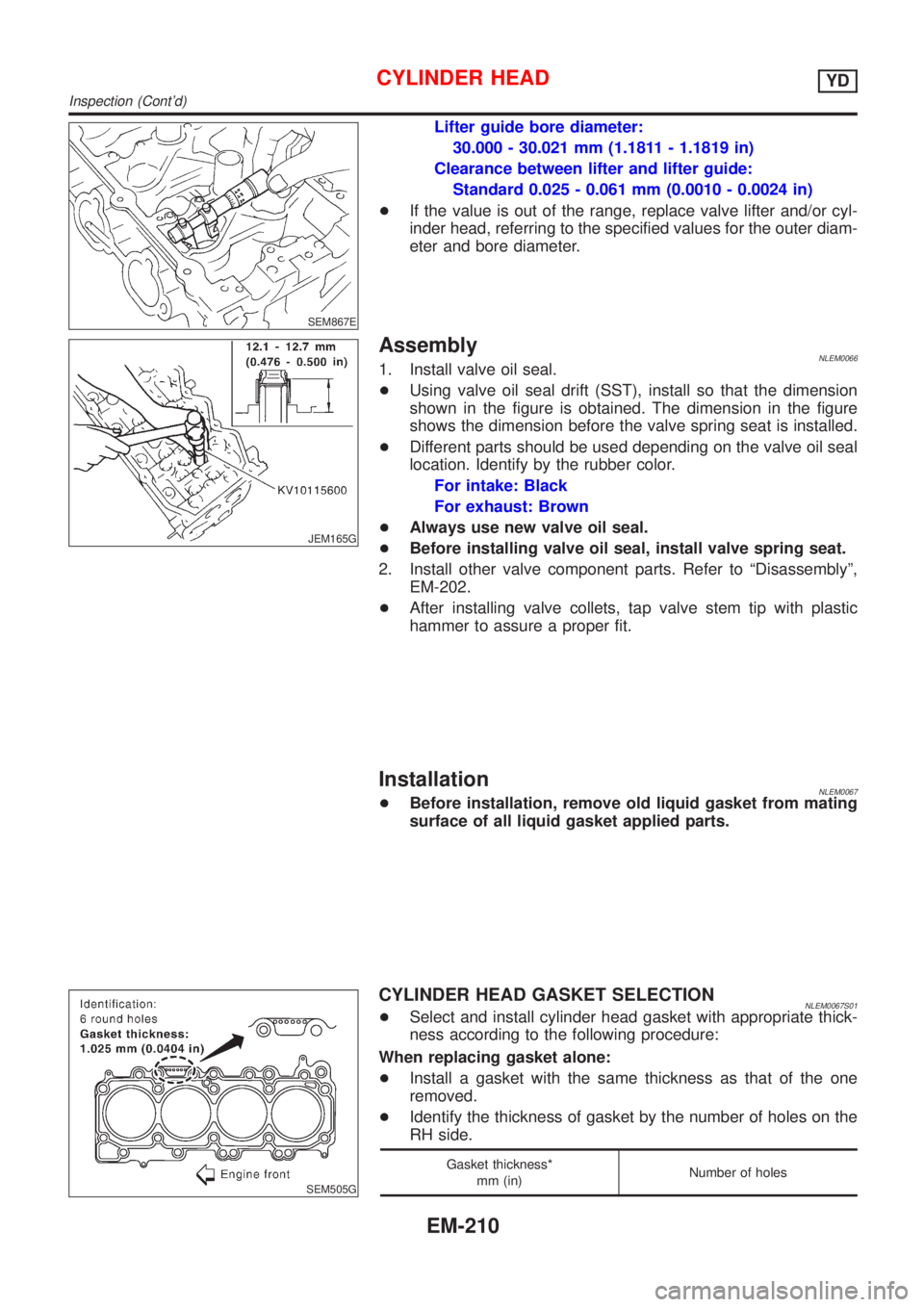

Lifter guide bore diameter:
30.000 - 30.021 mm (1.1811 - 1.1819 in)
Clearance between lifter and lifter guide:
Standard 0.025 - 0.061 mm (0.0010 - 0.0024 in)
+If the value is out of the range,

Page 2468 of 3051

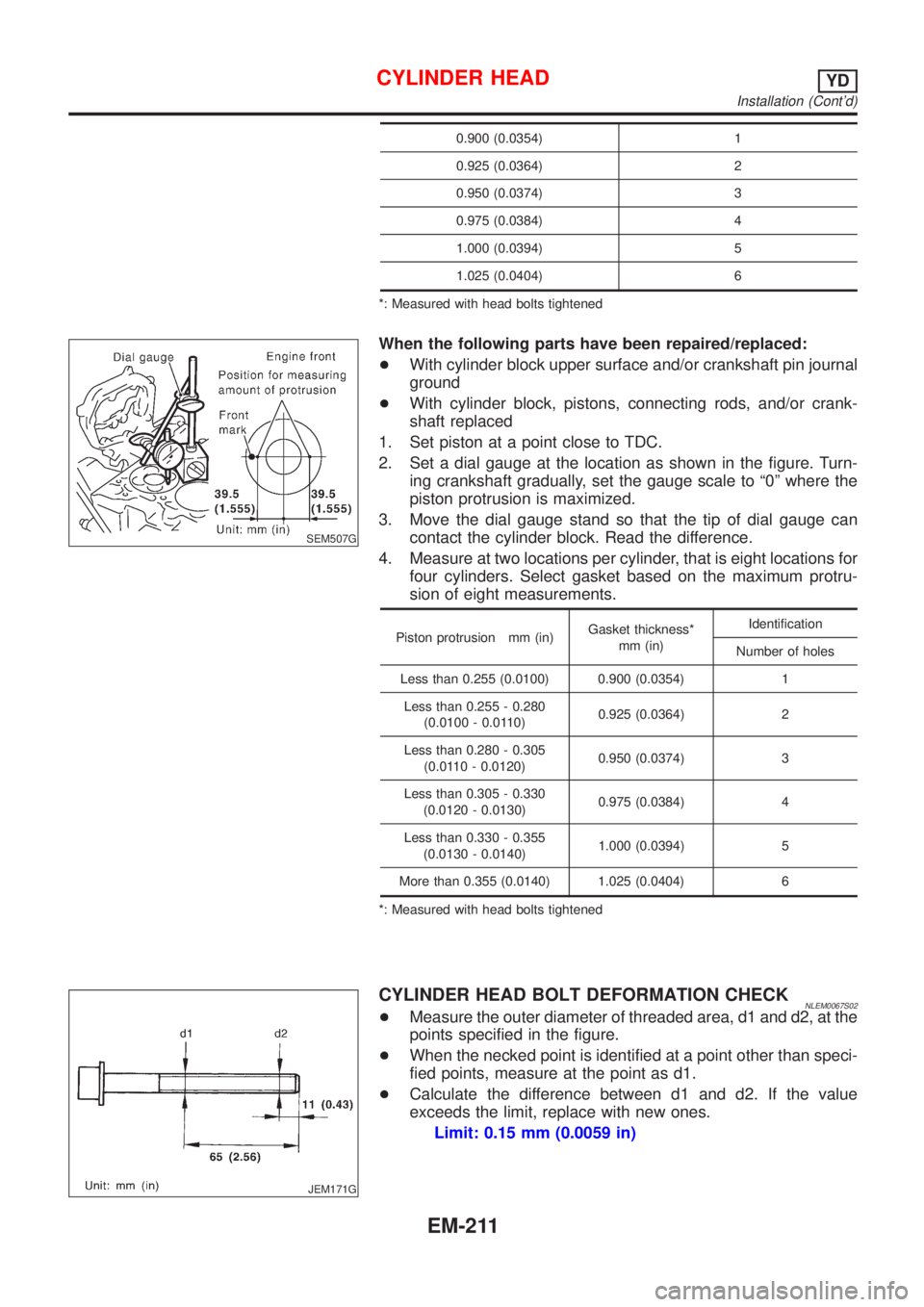

NISSAN ALMERA TINO 2001  Service Repair Manual 0.900 (0.0354) 1
0.925 (0.0364) 2
0.950 (0.0374) 3
0.975 (0.0384) 4
1.000 (0.0394) 5
1.025 (0.0404) 6
*: Measured with head bolts tightened
SEM507G
When the following parts have been repaired/replaced

Page 2469 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual JEM172G

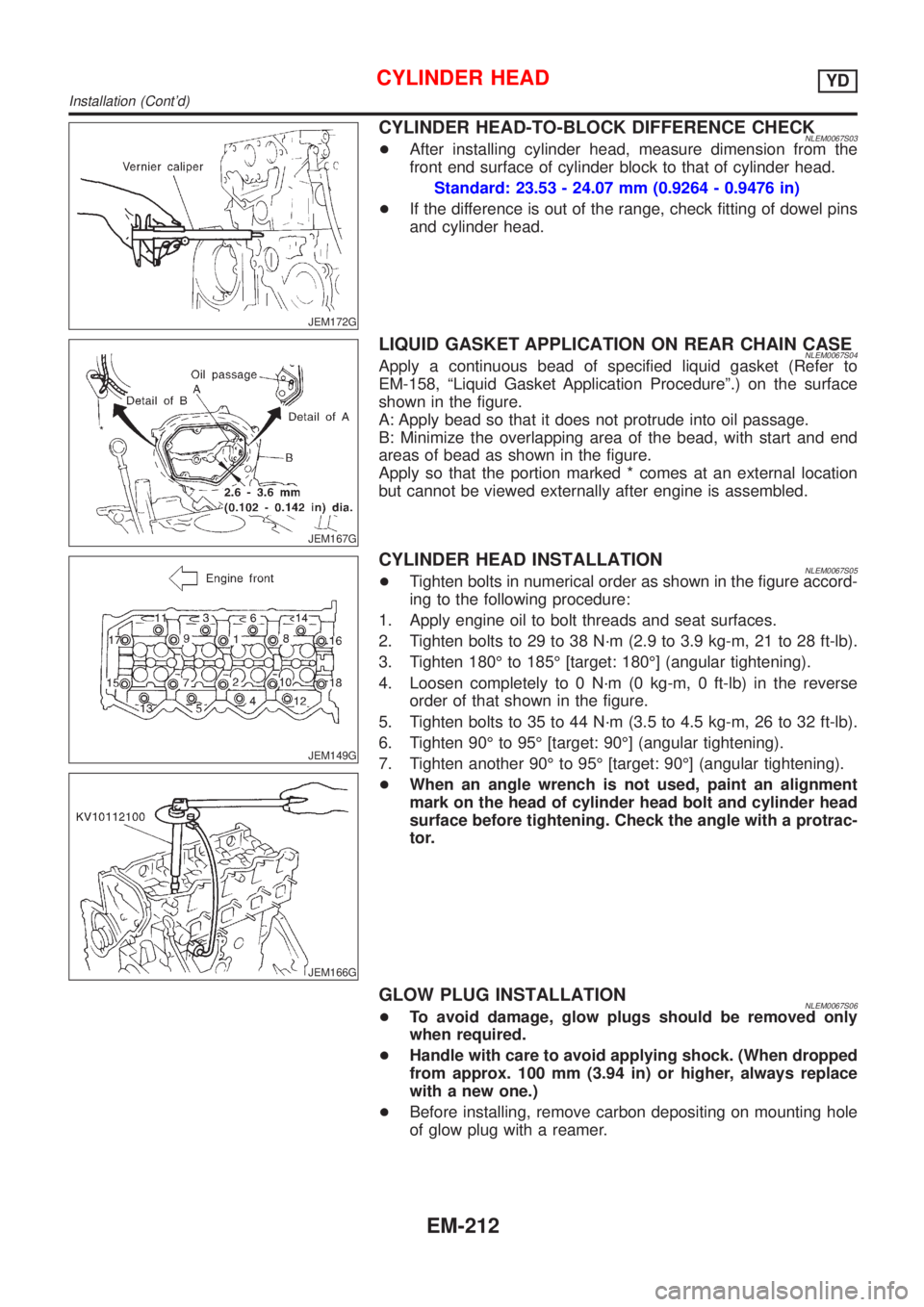

CYLINDER HEAD-TO-BLOCK DIFFERENCE CHECKNLEM0067S03+After installing cylinder head, measure dimension from the
front end surface of cylinder block to that of cylinder head.
Standard: 23.53 - 24

Page 2470 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual JEM173G
CAMSHAFT INSTALLATIONNLEM0067S071. Install valve lifters and adjusting shims.
+Install in the correct locations (the same places as before
removal).
2. Install camshafts.
+Identify camshafts b

Page 2471 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual JEM176G

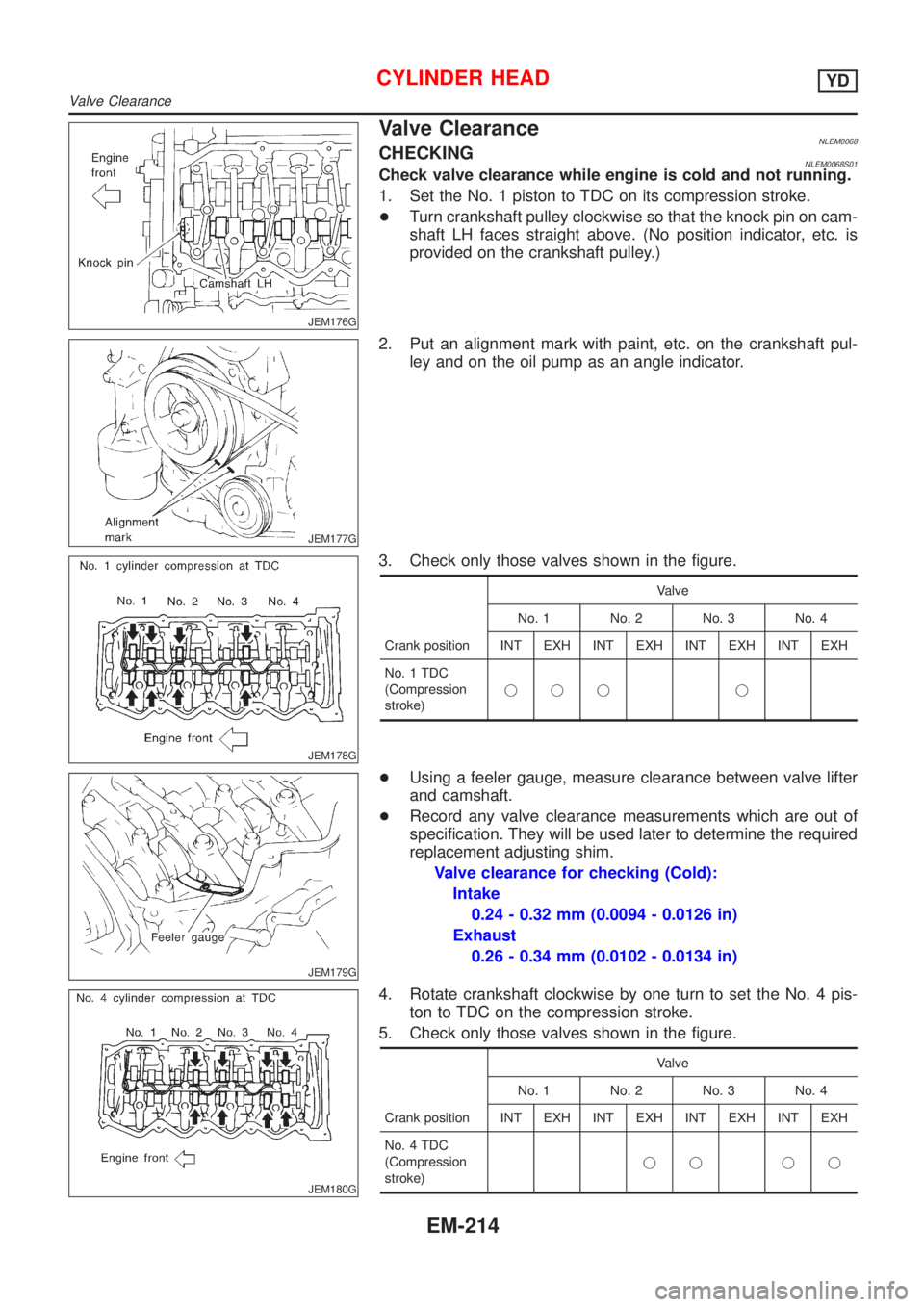

Valve ClearanceNLEM0068CHECKINGNLEM0068S01Check valve clearance while engine is cold and not running.
1. Set the No. 1 piston to TDC on its compression stroke.
+Turn crankshaft pulley clockwis

Page 2472 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual JEM181G
ADJUSTINGNLEM0068S02Adjust valve clearance while engine is cold.
1. Turn crankshaft, to position cam lobe on camshaft of valve that
must be adjusted upward.
2. Place Tool (A) around camshaft a
