Page 1129 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1410S02 YEC915 DTC P0120 THROTTLE POSITION SENSORSR20DE Wiring Diagram (Contd) EC-704

Page 1130 of 3051

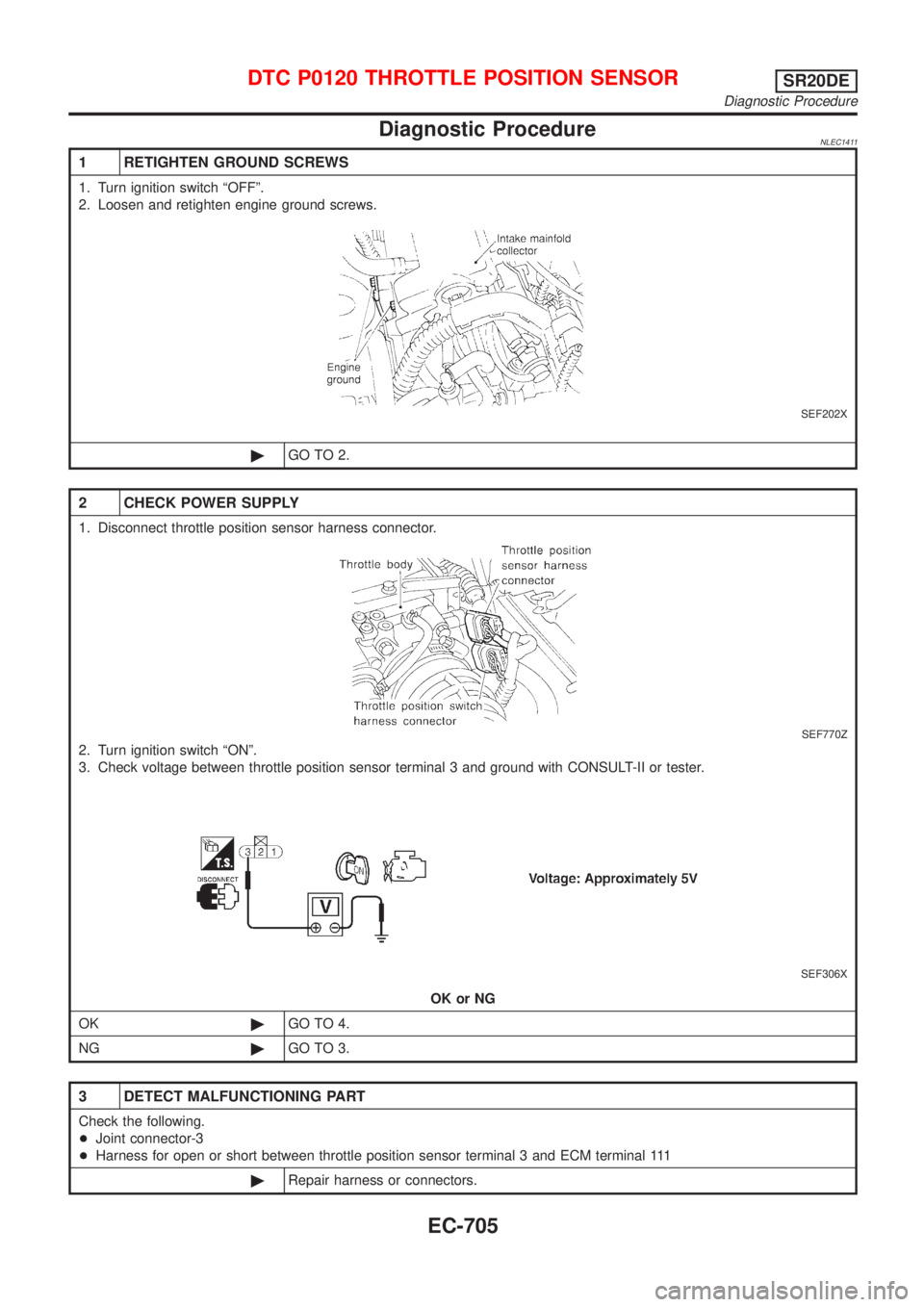

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1411 1 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF202X ©GO TO 2. 2 CHECK POWER SUPPLY 1. Disconnect throttle pos

Page 1131 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK GROUND CIRCUIT 1. Turn ignition switch ªOFFº. 2. Check harness continuity between throttle position sensor terminal 1 and engine ground. Refer to wiring diagram. Continuity should exist. 3.

Page 1132 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF793W SEF179Y Component InspectionNLEC1412THROTTLE POSITION SENSORNLEC1412S01Models with Throttle OpenerNLEC1412S0101With CONSULT-II 1) Start engine and warm it up to normal operating temperature. 2

Page 1133 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual If NG, adjust closed throttle position switch. Refer to ªBasic Inspectionº, EC-623. 8) If it is impossible to adjust closed throttle position switch in ªBasic Inspectionº, replace throttle positio

Page 1134 of 3051

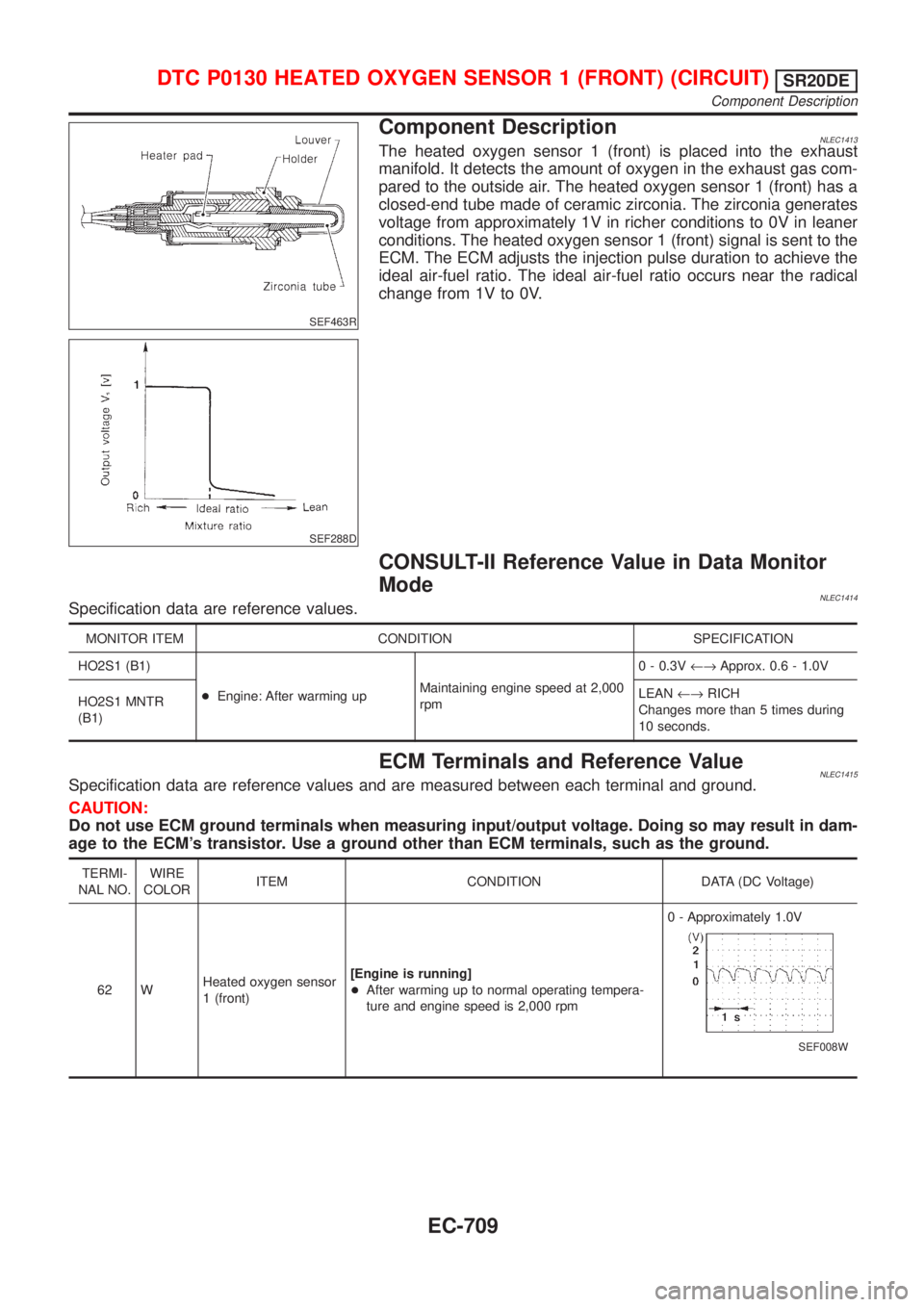

NISSAN ALMERA TINO 2001 Service Repair Manual SEF463R SEF288D Component DescriptionNLEC1413The heated oxygen sensor 1 (front) is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas com- pared to the outside air. T

Page 1135 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF237U On Board Diagnosis LogicNLEC1416Under the condition in which the heated oxygen sensor 1 (front) signal is not input, the ECM circuits will read a continuous approxi- mately 0.3V. Therefore, fo

Page 1136 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual RESULTSº. If ªNGº is displayed, refer to ªDiagnostic Procedureº, EC-714. SEF011X Overall Function CheckNLEC1418Use this procedure to check the overall function of the heated oxy- gen sensor 1 (fr
