Page 2177 of 3051

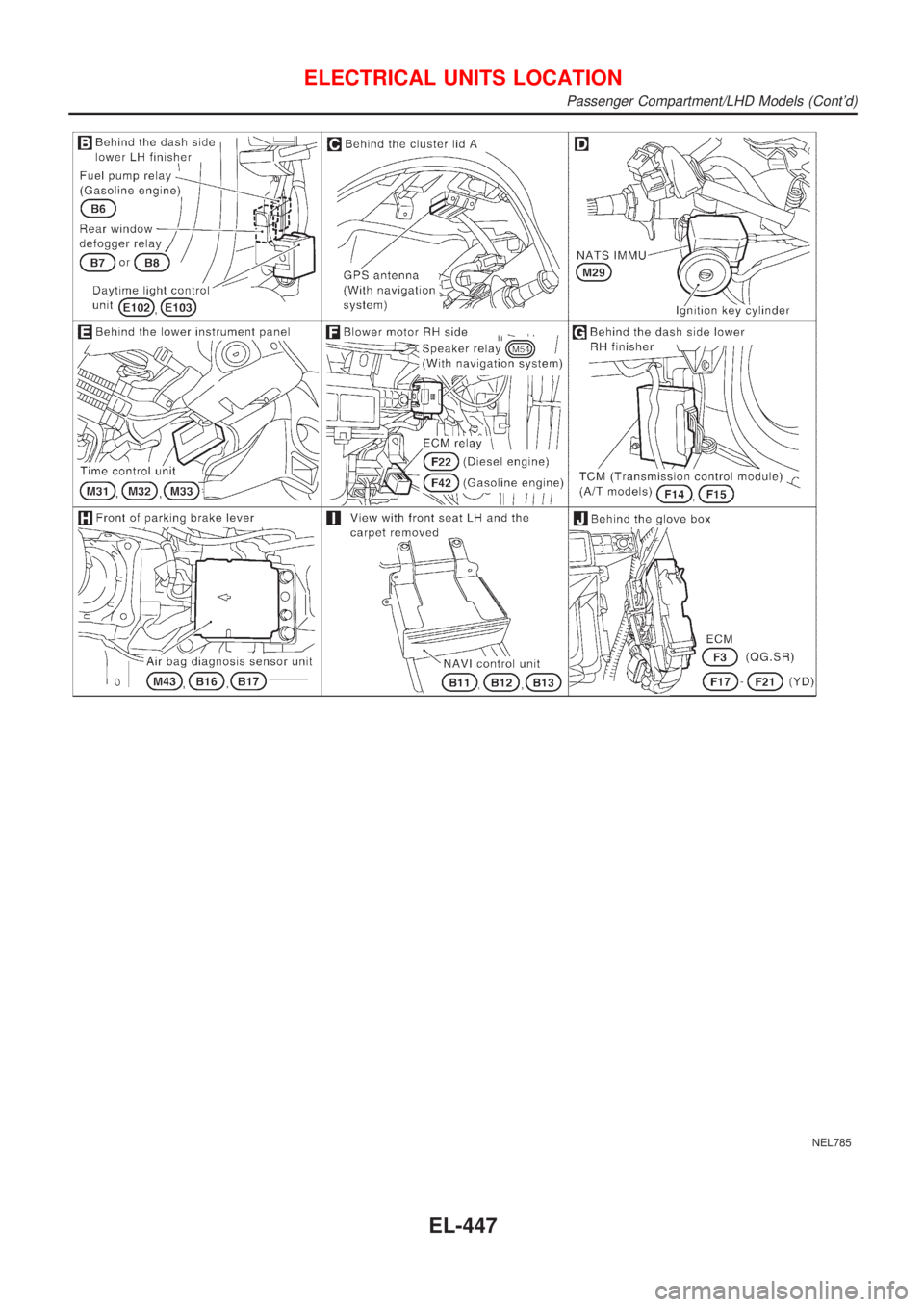

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEL0130S06 YEL493C ELECTRICAL UNITS LOCATION Passenger Compartment/LHD Models (Contd) EL-446

Page 2178 of 3051

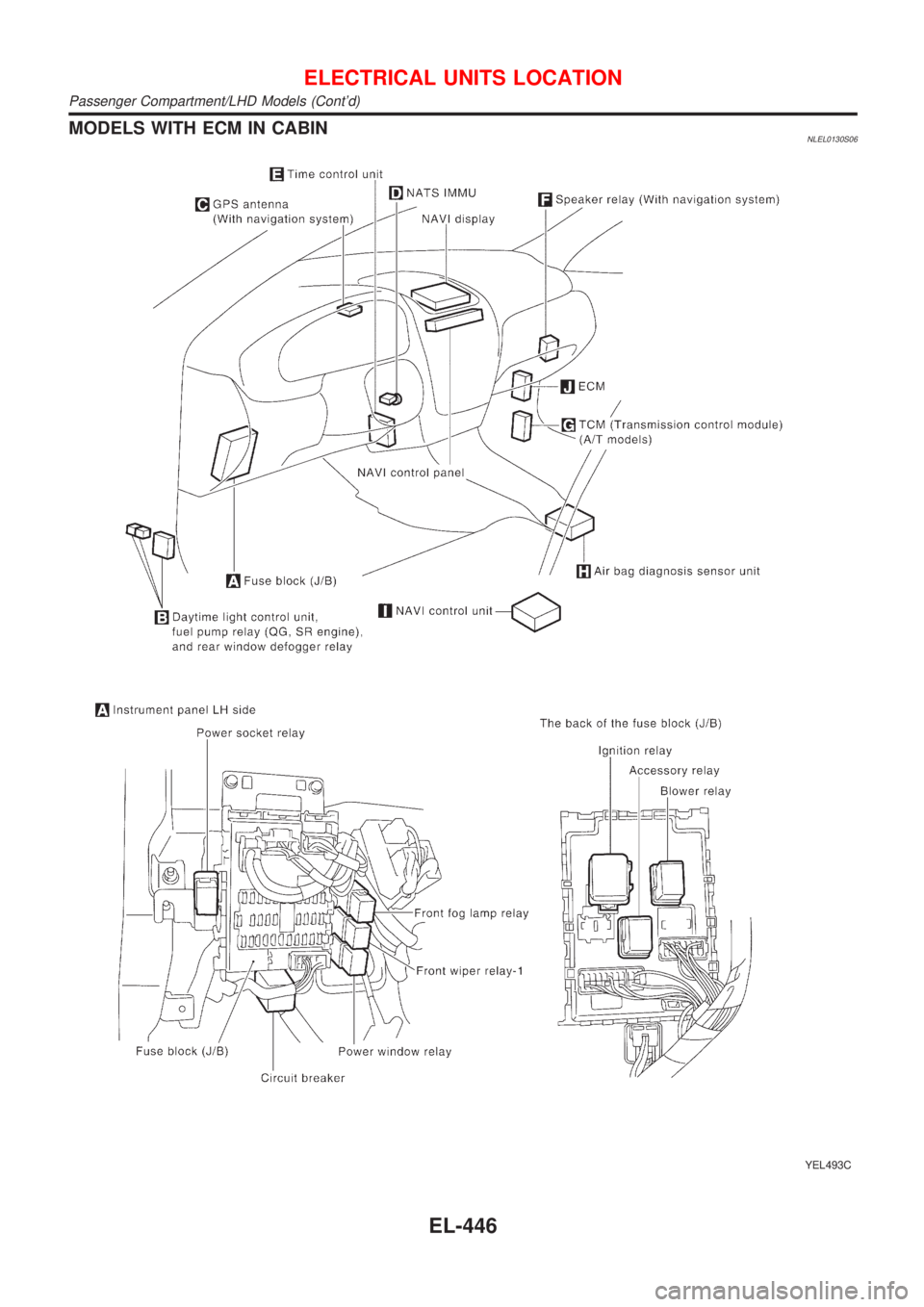

NISSAN ALMERA TINO 2001 Service Repair Manual NEL785 ELECTRICAL UNITS LOCATION Passenger Compartment/LHD Models (Contd) EL-447

Page 2179 of 3051

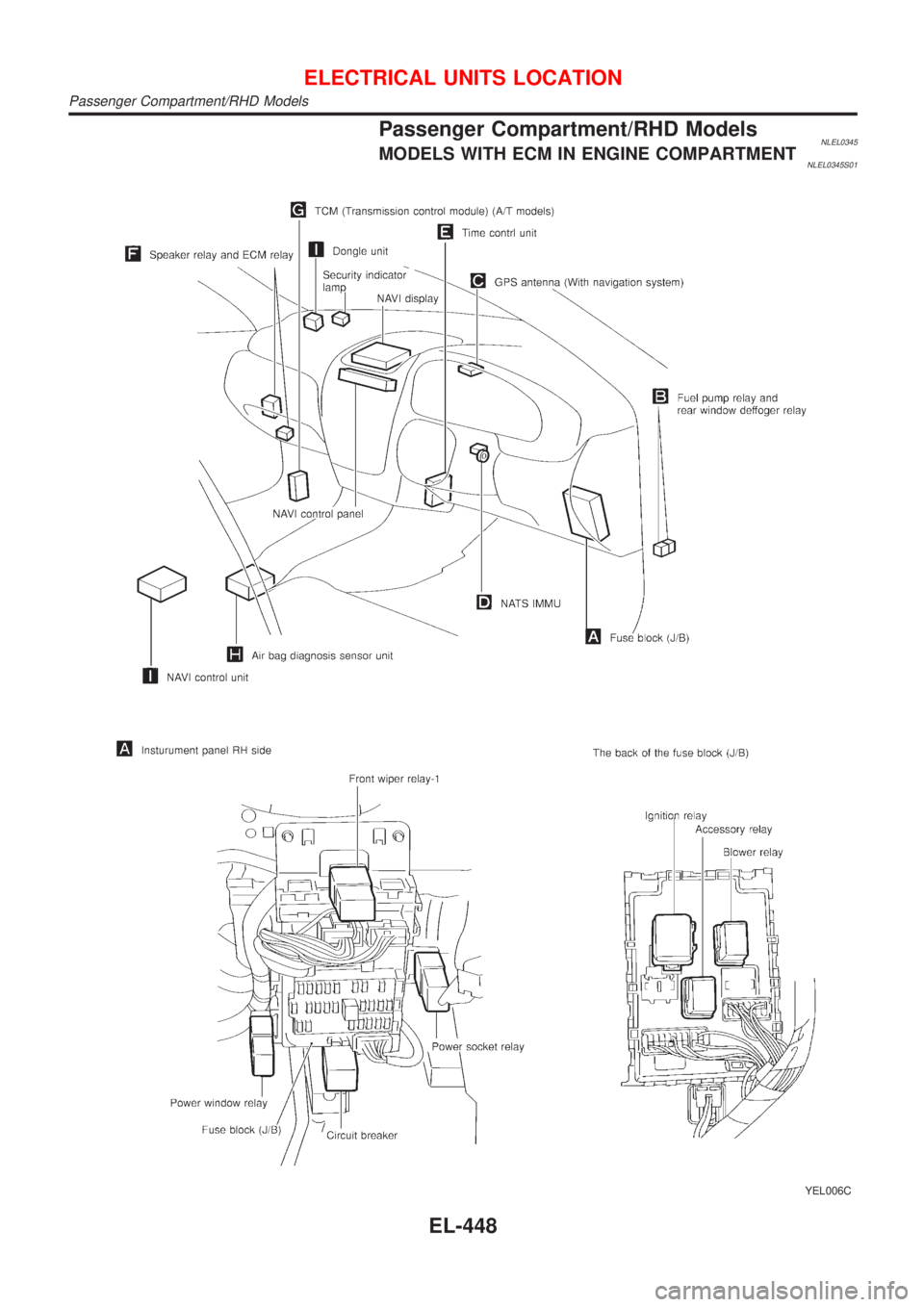

NISSAN ALMERA TINO 2001 Service Repair Manual Passenger Compartment/RHD ModelsNLEL0345MODELS WITH ECM IN ENGINE COMPARTMENTNLEL0345S01 YEL006C ELECTRICAL UNITS LOCATION Passenger Compartment/RHD Models EL-448

Page 2180 of 3051

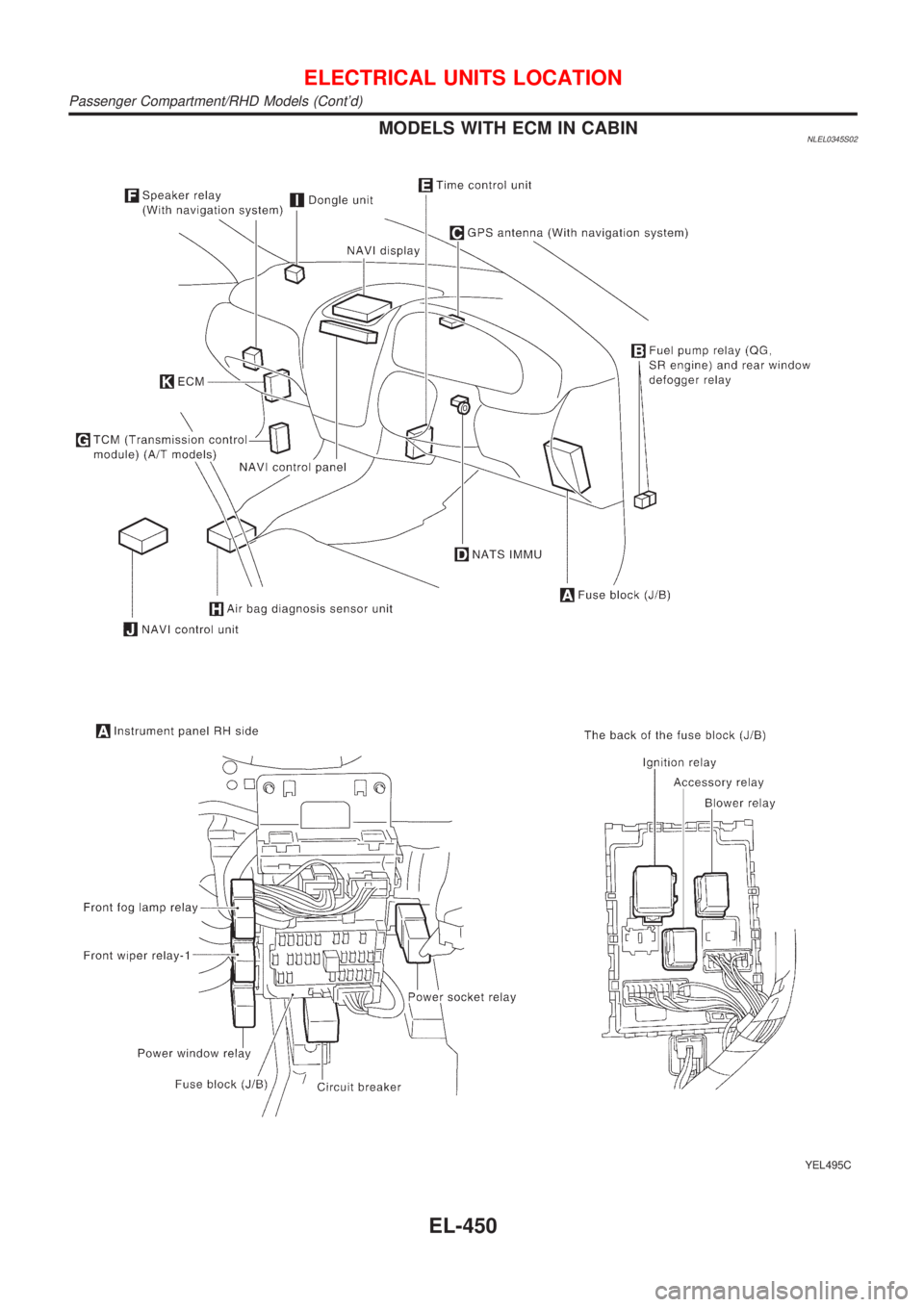

NISSAN ALMERA TINO 2001 Service Repair Manual YEL007C ELECTRICAL UNITS LOCATION Passenger Compartment/RHD Models (Contd) EL-449

Page 2181 of 3051

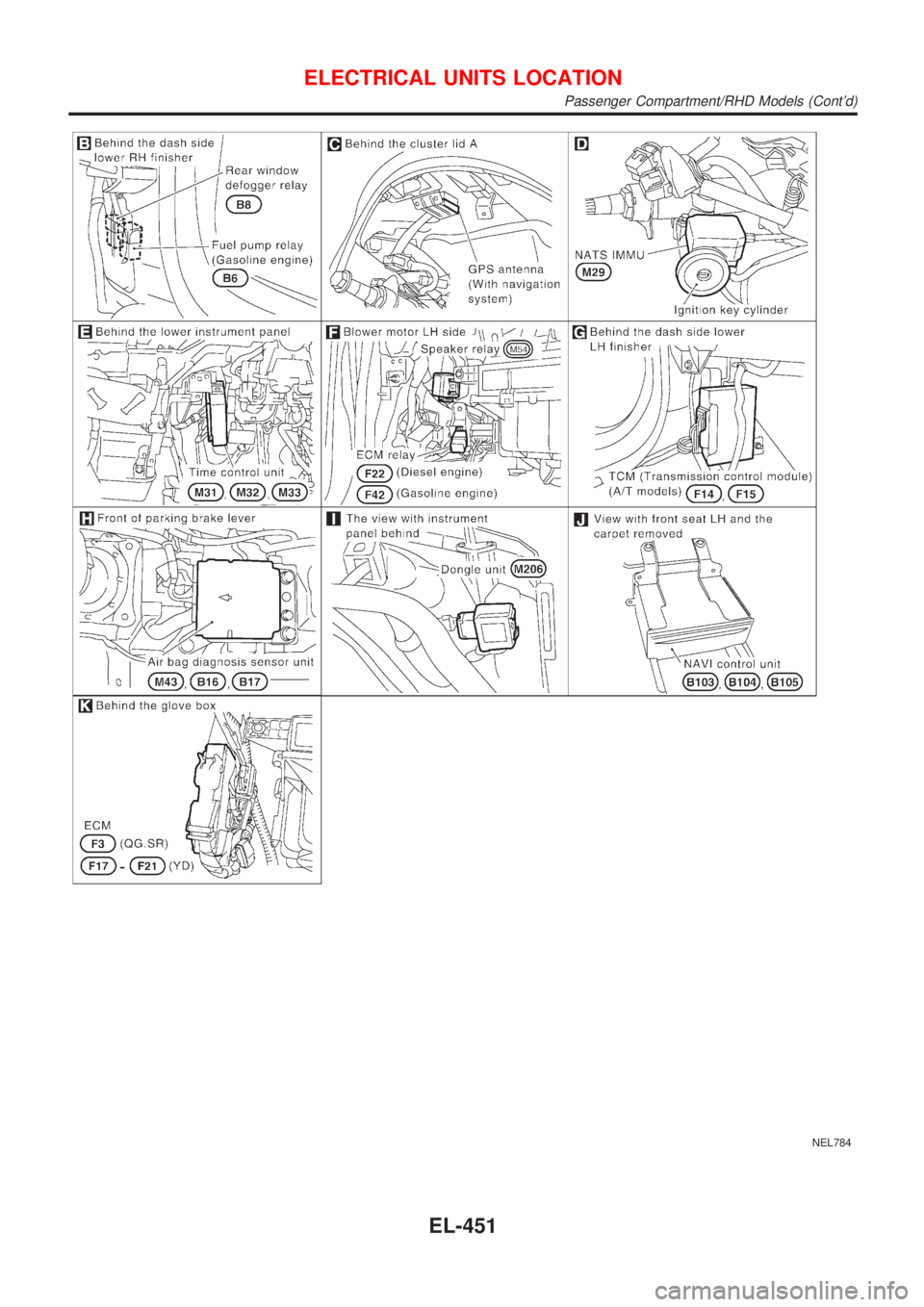

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEL0345S02 YEL495C ELECTRICAL UNITS LOCATION Passenger Compartment/RHD Models (Contd) EL-450

Page 2182 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NEL784 ELECTRICAL UNITS LOCATION Passenger Compartment/RHD Models (Contd) EL-451

Page 2183 of 3051

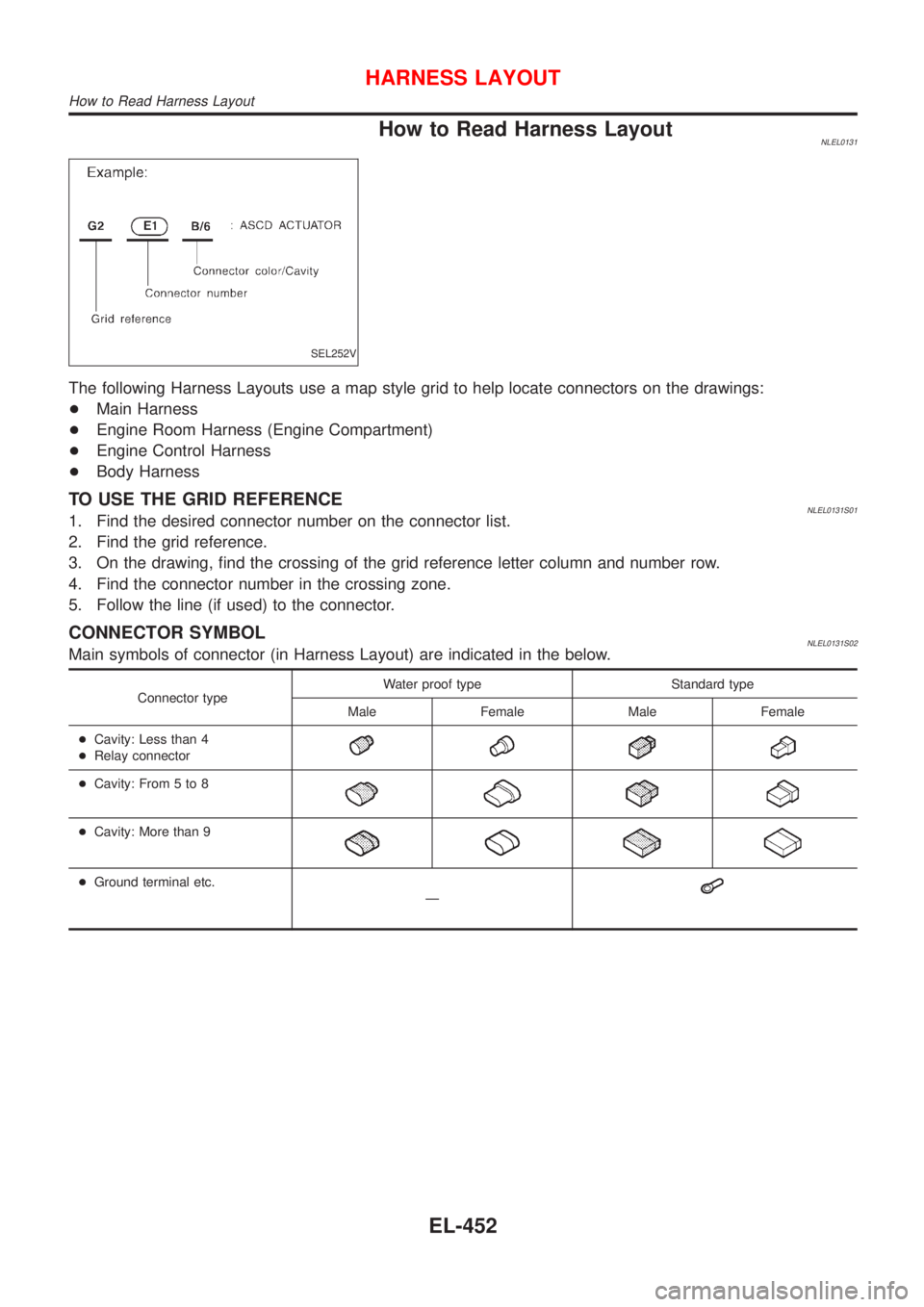

NISSAN ALMERA TINO 2001 Service Repair Manual How to Read Harness LayoutNLEL0131 SEL252V The following Harness Layouts use a map style grid to help locate connectors on the drawings: +Main Harness +Engine Room Harness (Engine Compartment) +Engine

Page 2184 of 3051

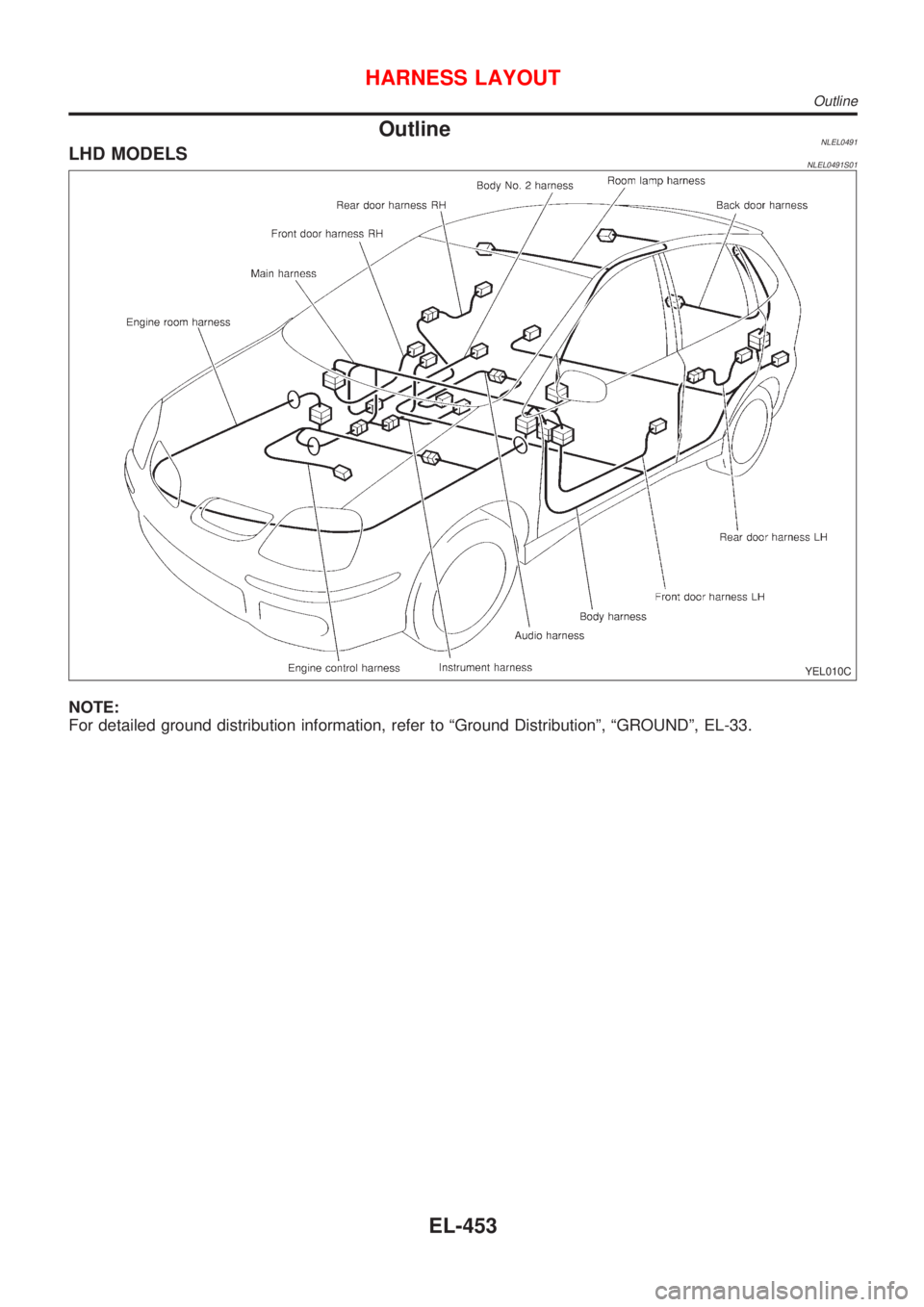

NISSAN ALMERA TINO 2001 Service Repair Manual OutlineNLEL0491LHD MODELSNLEL0491S01 YEL010C NOTE: For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-33. HARNESS LAYOUT Outline EL-453
