NISSAN ALMERA TINO 2001 Service Repair Manual PNP Switch, Stop Lamp Switch and Throttle Position Switch NLAT0290SYMPTOM: SPORT indicator lamp does not come on in TCM self-diagnos- tic procedure even the lamp circuit is good. DESCRIPTIONNLAT0290S0

Page 186 of 3051

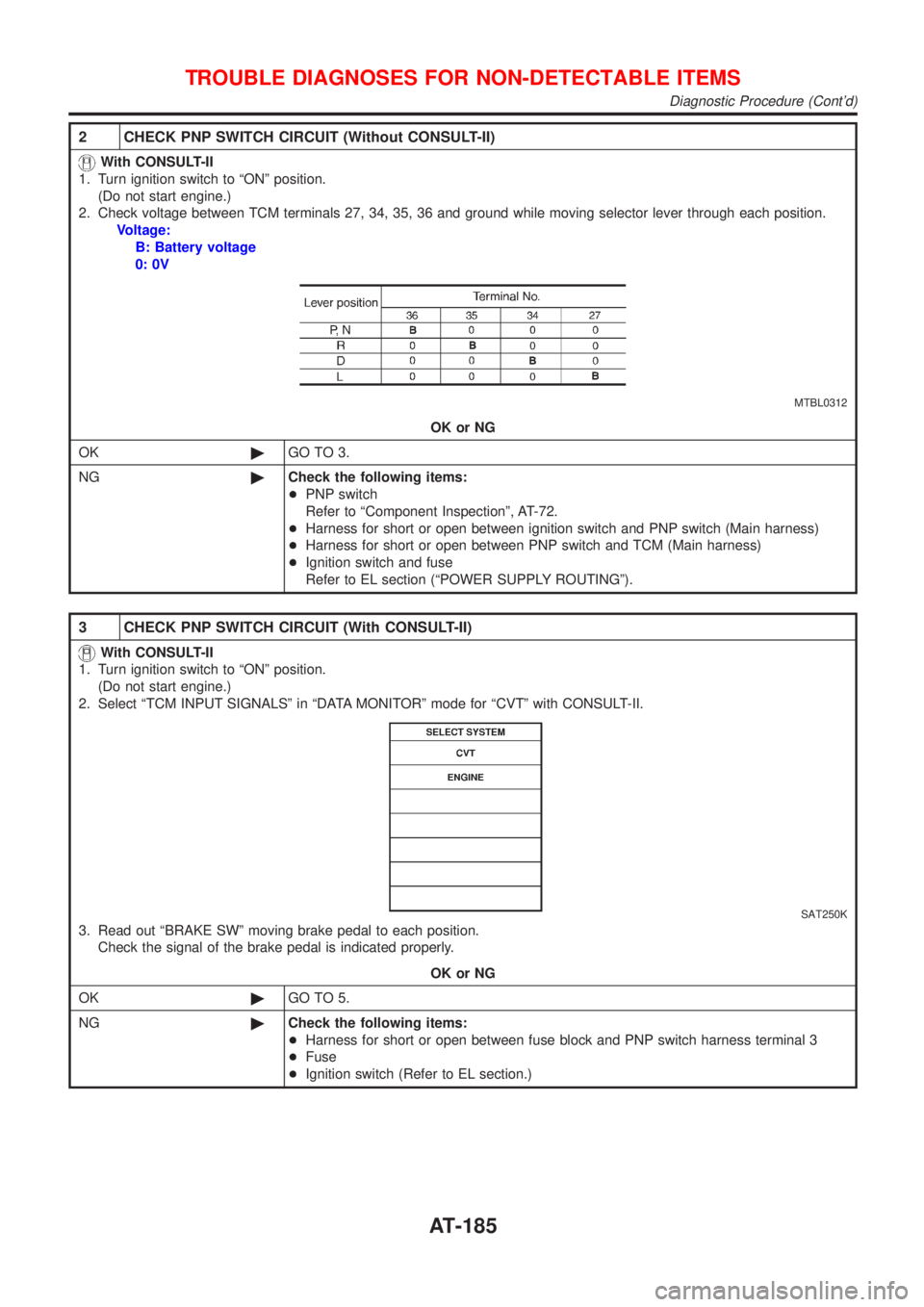

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK PNP SWITCH CIRCUIT (Without CONSULT-II) With CONSULT-II 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Check voltage between TCM terminals 27, 34, 35, 36 and ground whil

Page 187 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK STOP LAMP SWITCH CIRCUIT (Without CONSULT-II) 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Check voltage between stop lamp switch harness terminal 1 and ground. Refer

Page 188 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 6 CHECK THROTTLE POSITION SWITCH CIRCUIT (Without CONSULT-II) Without CONSULT-II 1. Refer to steps 1 to 7 of ªPreparationº, ªTCM Self-diagnostic Procedure (No Tools)º, AT-28. 2. Turn ignition swit

Page 189 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð NONDTCNLAT0292MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0292S01 YAT184 TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS Wiring Diagram Ð AT Ð NONDTC AT-188

Page 190 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YAT185 TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS Wiring Diagram Ð AT Ð NONDTC (Contd) AT-189

Page 191 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLAT0292S02 YAT219 TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS Wiring Diagram Ð AT Ð NONDTC (Contd) AT-190

Page 192 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YAT220 TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS Wiring Diagram Ð AT Ð NONDTC (Contd) AT-191
