Page 25 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DATA MONITOR MODE (CVT)NLAT0022S04 Item DisplayMonitor item Description Remarks TCM input signalsMain sig- nals Vehicle speed sensor (Secondary speed sensor)VHCL SPEED SE [km/h] or [mph] X Ð+Vehicle

Page 26 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Item DisplayMonitor item Description Remarks TCM input signalsMain sig- nals Selector lever position SLCT LVR POSI ÐX+Selector lever position data, used for computa- tion by TCM, is dis- played.+A sp

Page 27 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT228K WORK SUPPORT MODE WITH CONSULT-IINLAT0022S081. Turn ignition switch ªOFFº. 2. Connect CONSULT-II to data link connector which is located in the left side lower dash panel. 3. Turn ignition s

Page 28 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT934J 9. Set ªENGINE BRAKE LEVELº by touching ªUPº or ªDOWNº. ENGINE BRAKE LEVEL 0: Initial set value (Engine brake level control is acti- vated) OFF: Engine brake level control is disactivate

Page 29 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT491J SAT234K TCM Self-diagnostic Procedure (No Tools)=NLAT0022S0703Preparation 1. Turn ignition switch to ªOFFº position. 2. If throttle opener is equipped, connect the handy type vacuum pump to

Page 30 of 3051

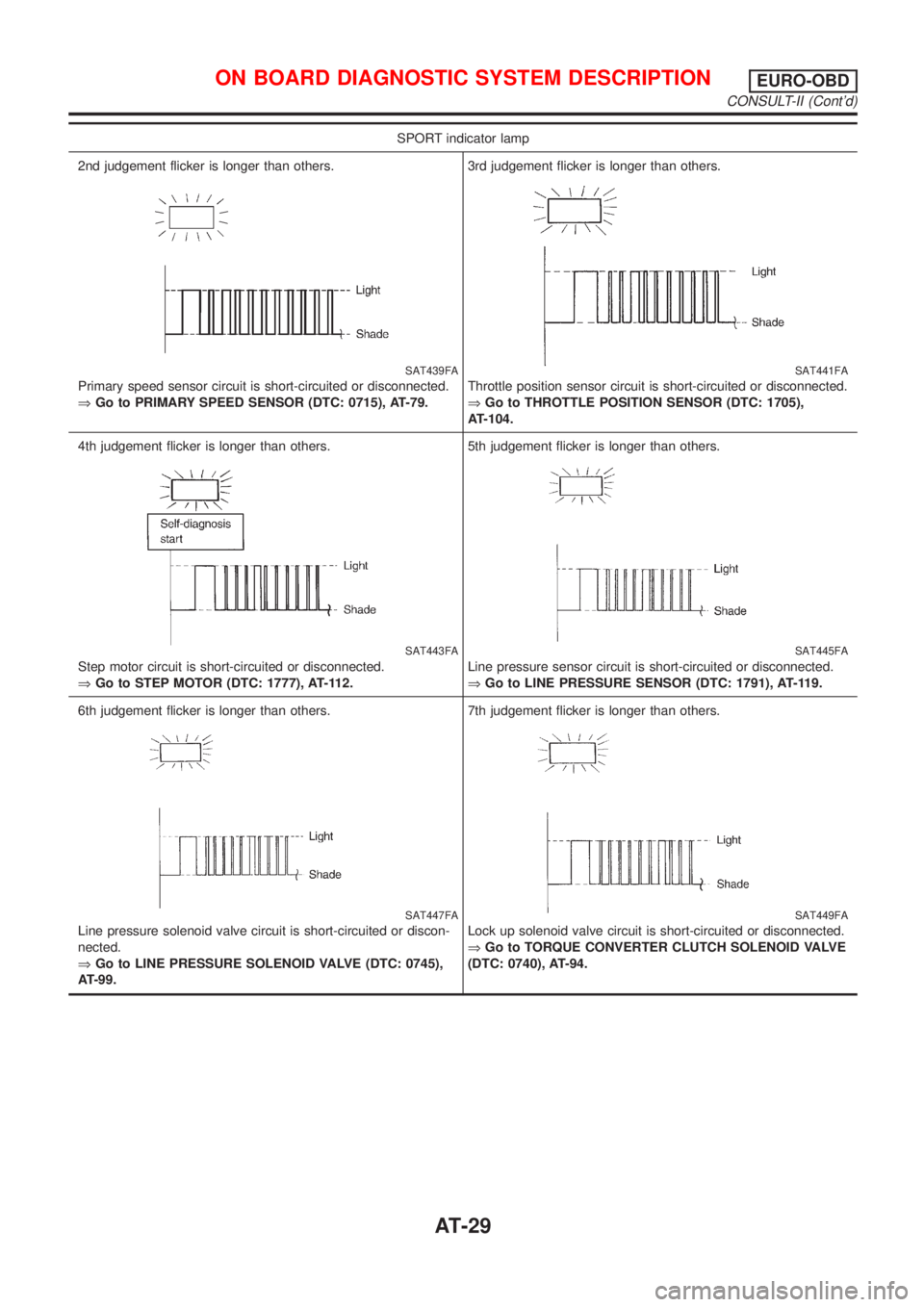

NISSAN ALMERA TINO 2001 Service Repair Manual SPORT indicator lamp 2nd judgement flicker is longer than others. SAT439FA Primary speed sensor circuit is short-circuited or disconnected. ÞGo to PRIMARY SPEED SENSOR (DTC: 0715), AT-79.3rd judgemen

Page 31 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SPORT indicator lamp 8th judgement flicker is longer than others. SAT451FA CVT fluid temperature sensor is disconnected or TCM power source circuit is damaged. ÞGo to CVT FLUID TEMPERATURE SENSOR (DT

Page 32 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CONSULT-IINLAT0245After performing ªSELF-DIAGNOSTIC PROCEDURE (WITH CON- SULT-II)º (AT-31), place check marks for results on the ªDIAGNOS- TIC WORKSHEETº, AT-42. Reference pages are provided follo
