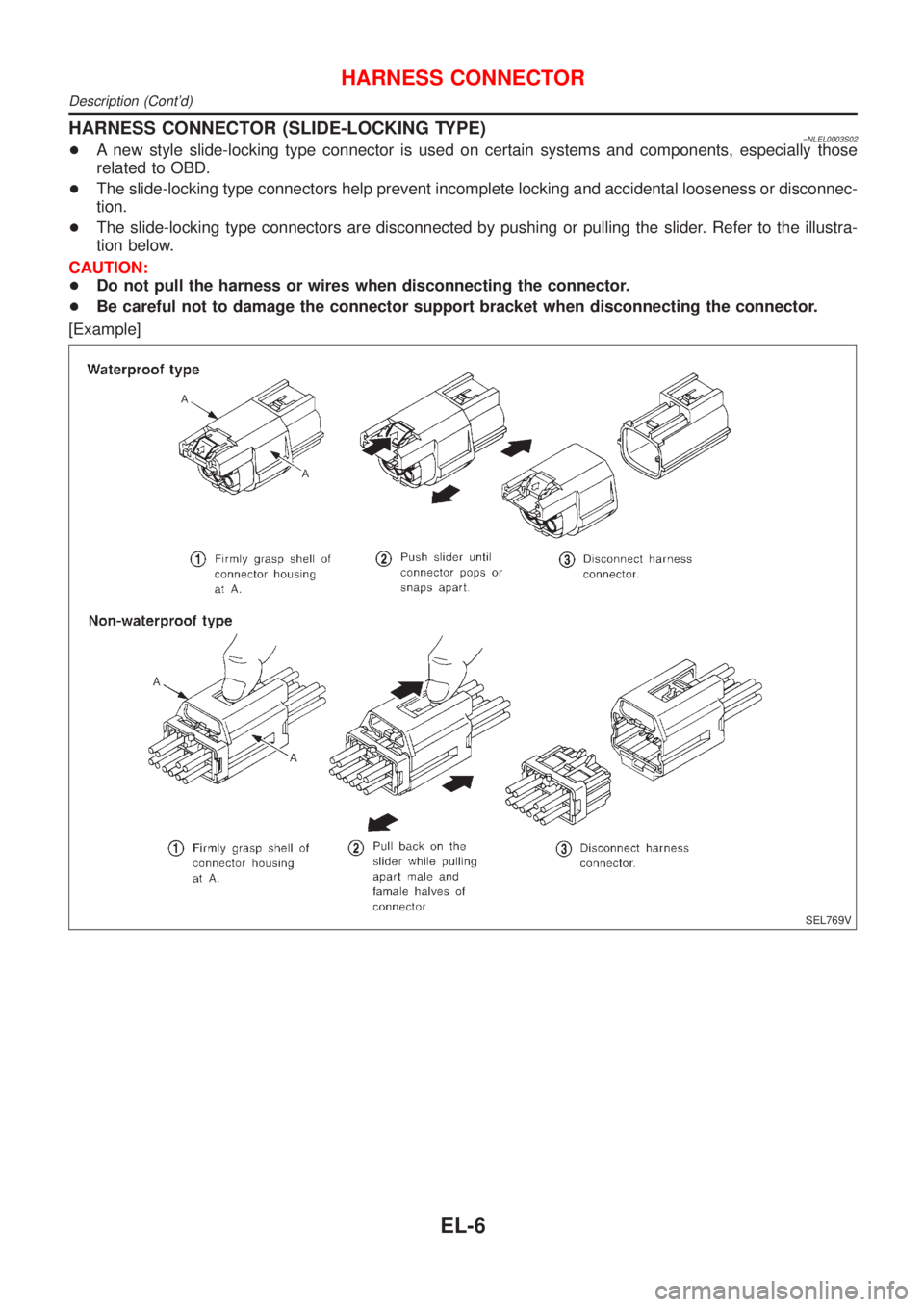

NISSAN ALMERA TINO 2001 Service Repair Manual HARNESS CONNECTOR (SLIDE-LOCKING TYPE)=NLEL0003S02+A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
+The slide-locking type connecto

Page 1738 of 3051

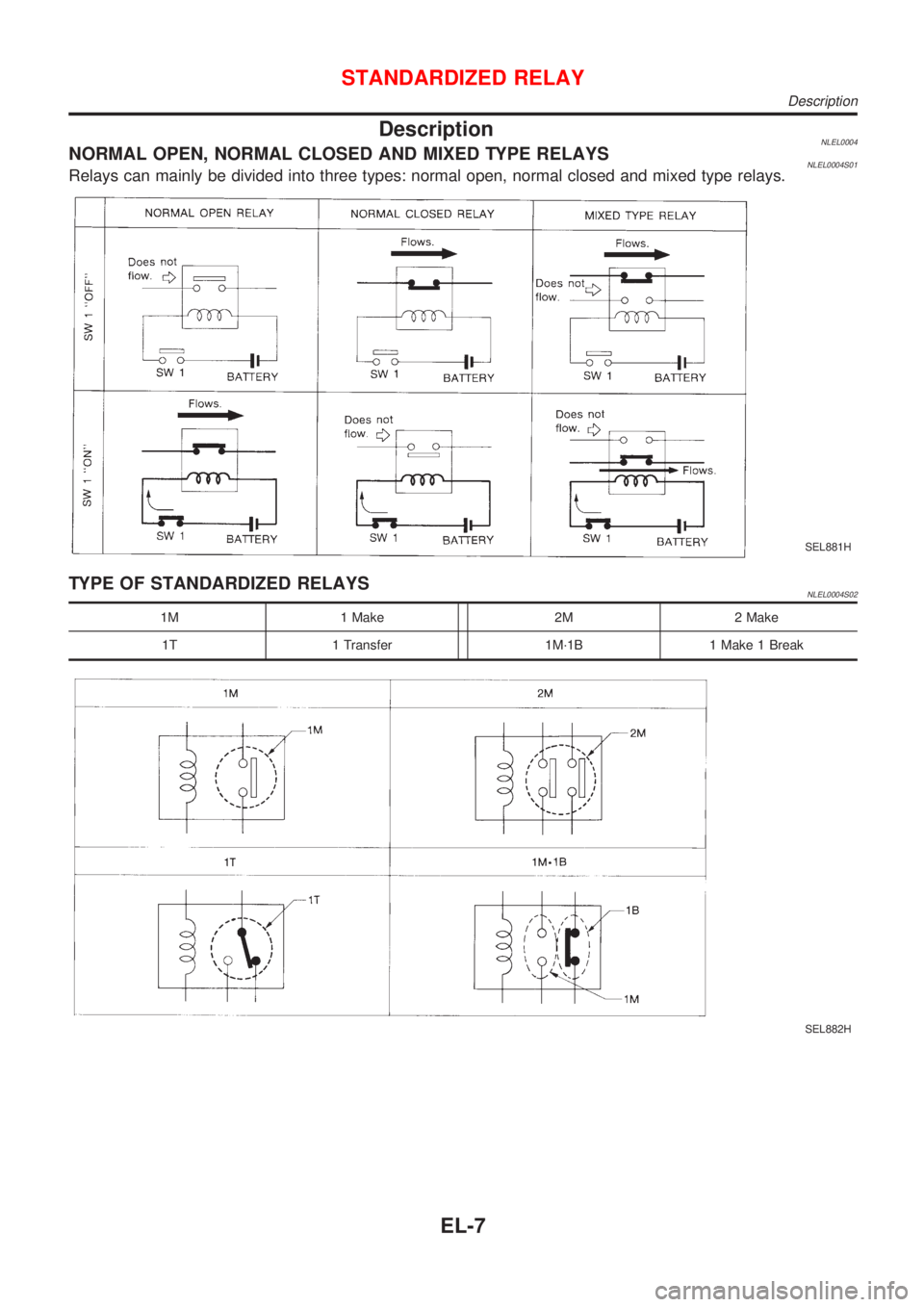

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEL0004NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYSNLEL0004S01Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
SEL881H
TYPE OF STANDARDI

Page 1739 of 3051

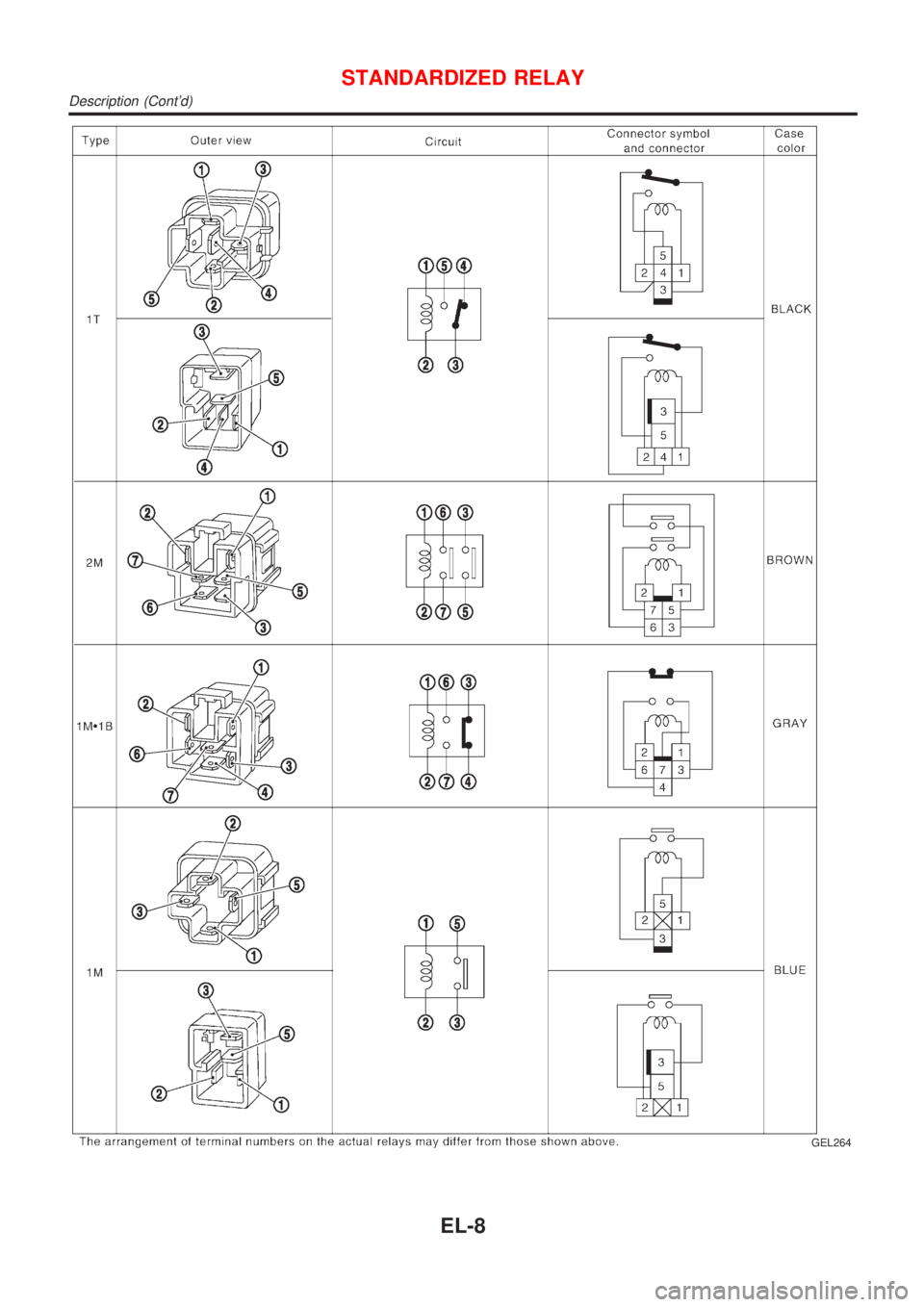

NISSAN ALMERA TINO 2001 Service Repair Manual GEL264
STANDARDIZED RELAY
Description (Contd)
EL-8

Page 1740 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NOTE:
POWER SUPPLY ROUTING
EL-9

Page 1741 of 3051

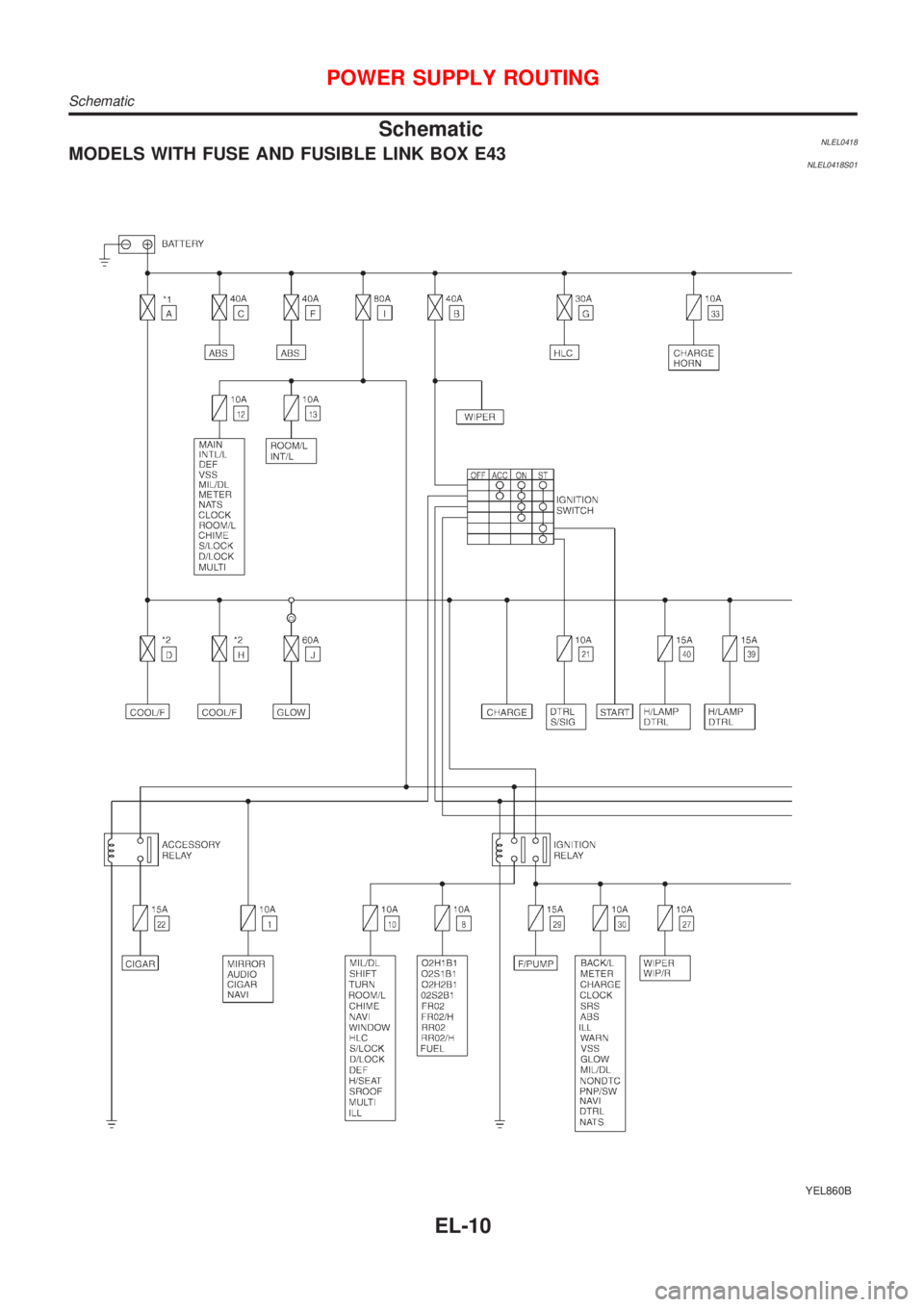

NISSAN ALMERA TINO 2001 Service Repair Manual SchematicNLEL0418MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0418S01
YEL860B
POWER SUPPLY ROUTING
Schematic
EL-10

Page 1742 of 3051

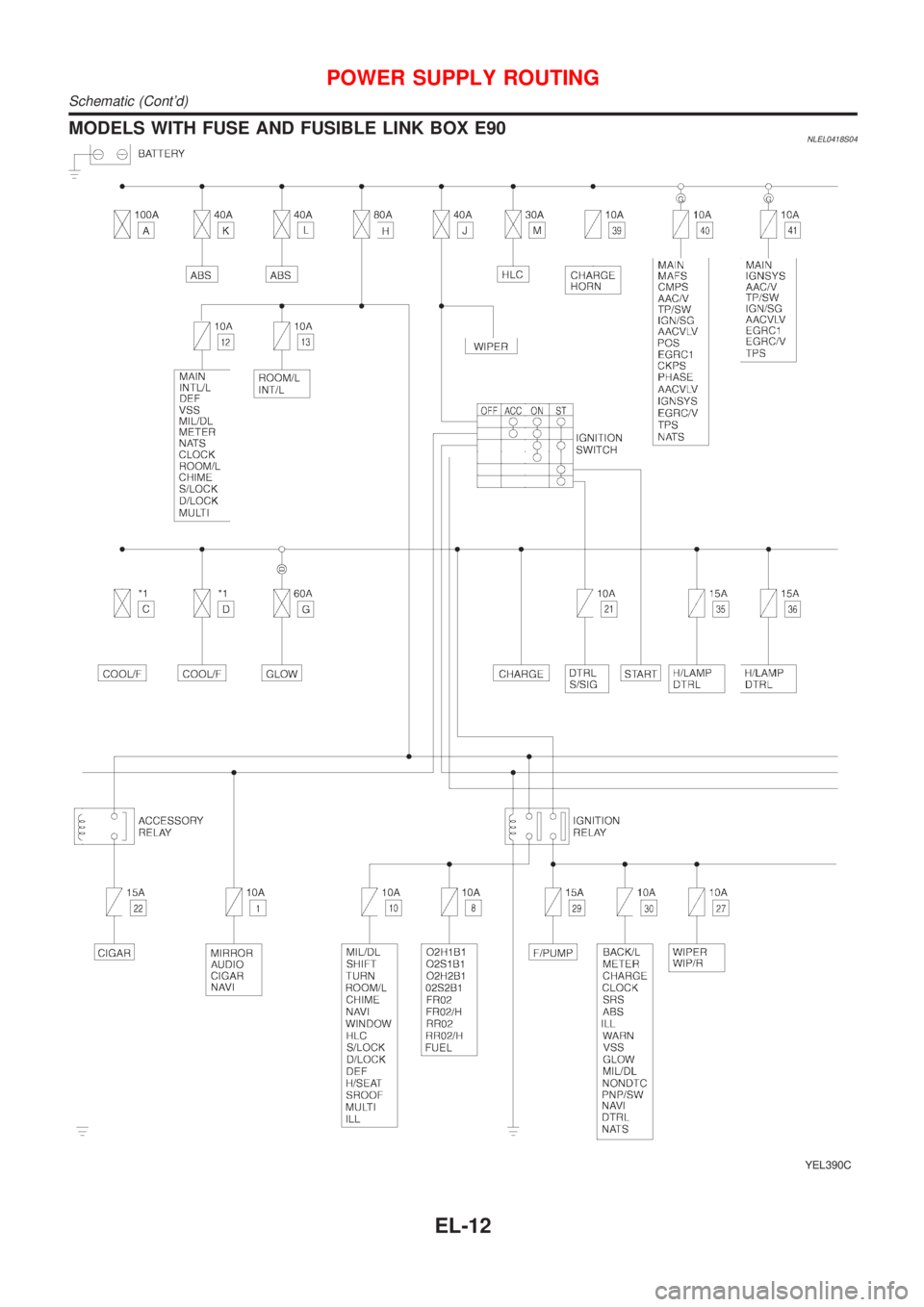

NISSAN ALMERA TINO 2001 Service Repair Manual YEL861B
POWER SUPPLY ROUTING
Schematic (Contd)
EL-11

Page 1743 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0418S04
YEL390C
POWER SUPPLY ROUTING
Schematic (Contd)
EL-12

Page 1744 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL391C
POWER SUPPLY ROUTING
Schematic (Contd)
EL-13
