Page 385 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NBT145 Record the number of shims placed between glass lid assem- bly and link and wire assembly. Remove securing screws and glass lid assembly. NBT146 Remove shade stoppers (2 points) from rear end o

Page 386 of 3051

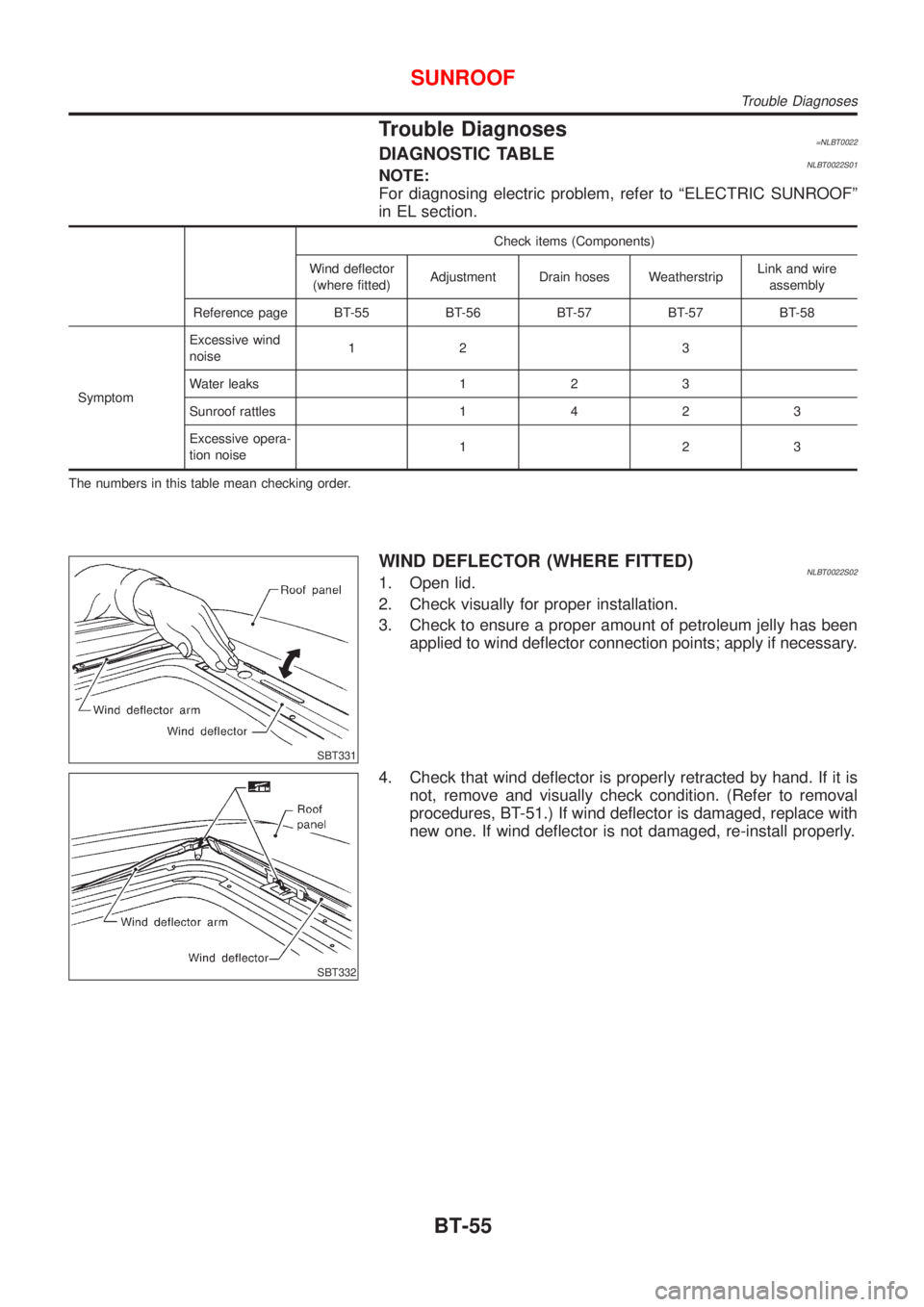

NISSAN ALMERA TINO 2001 Service Repair Manual Trouble Diagnoses=NLBT0022DIAGNOSTIC TABLENLBT0022S01NOTE: For diagnosing electric problem, refer to ªELECTRIC SUNROOFº in EL section. Check items (Components) Wind deflector (where fitted)Adjustmen

Page 387 of 3051

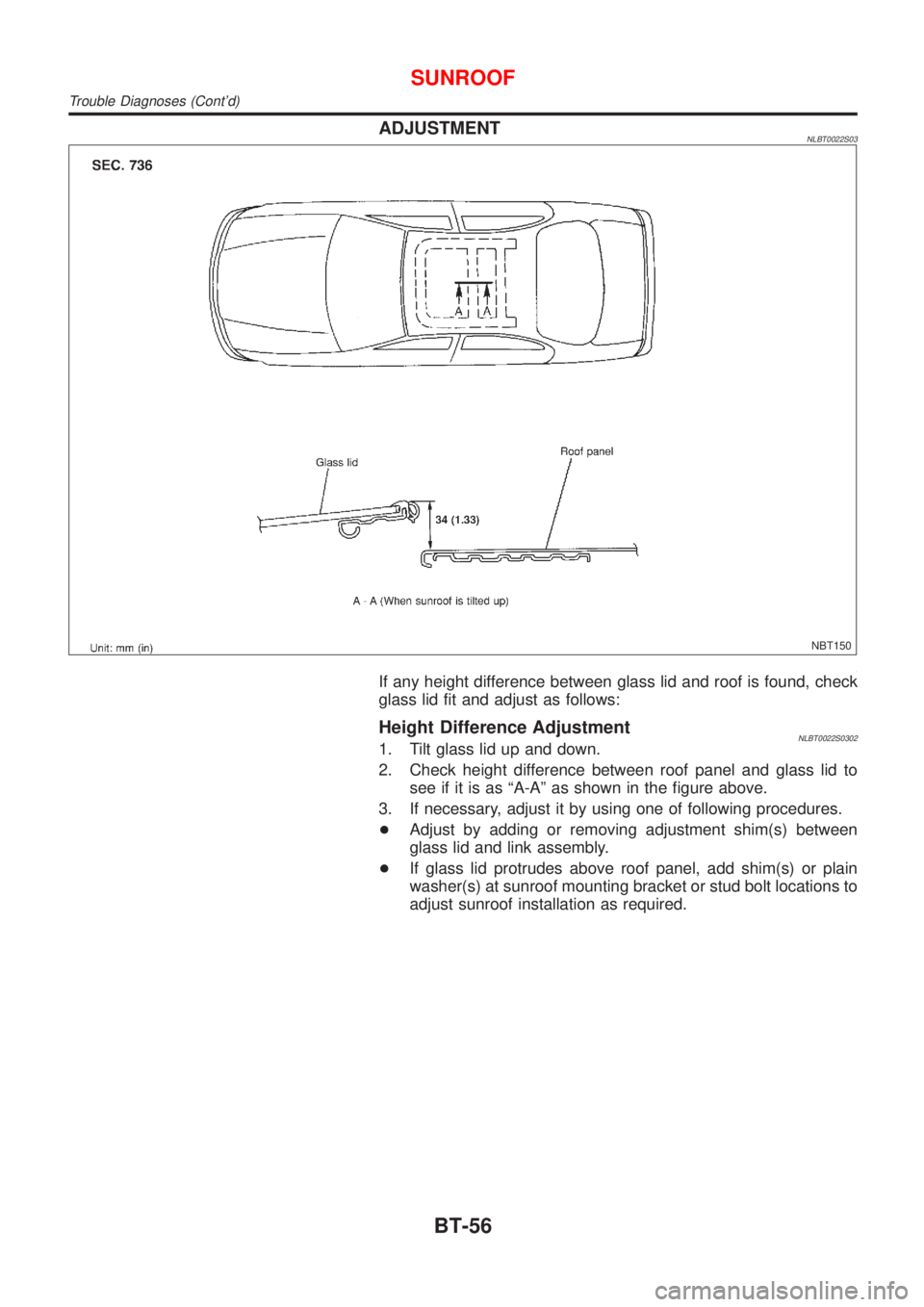

NISSAN ALMERA TINO 2001 Service Repair Manual ADJUSTMENTNLBT0022S03 NBT150 If any height difference between glass lid and roof is found, check glass lid fit and adjust as follows: Height Difference AdjustmentNLBT0022S03021. Tilt glass lid up and

Page 388 of 3051

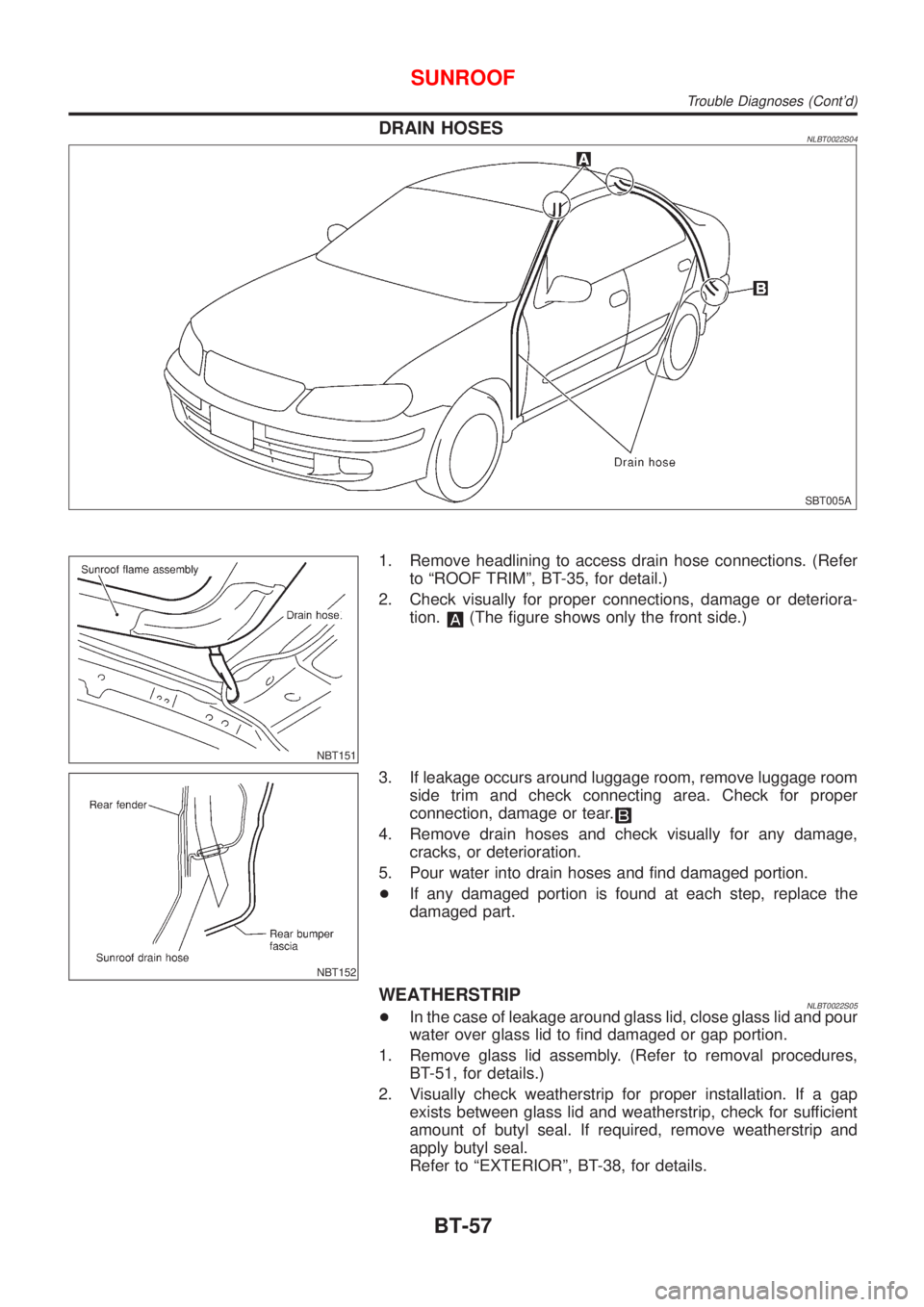

NISSAN ALMERA TINO 2001 Service Repair Manual DRAIN HOSESNLBT0022S04 SBT005A NBT151 1. Remove headlining to access drain hose connections. (Refer to ªROOF TRIMº, BT-35, for detail.) 2. Check visually for proper connections, damage or deteriora-

Page 389 of 3051

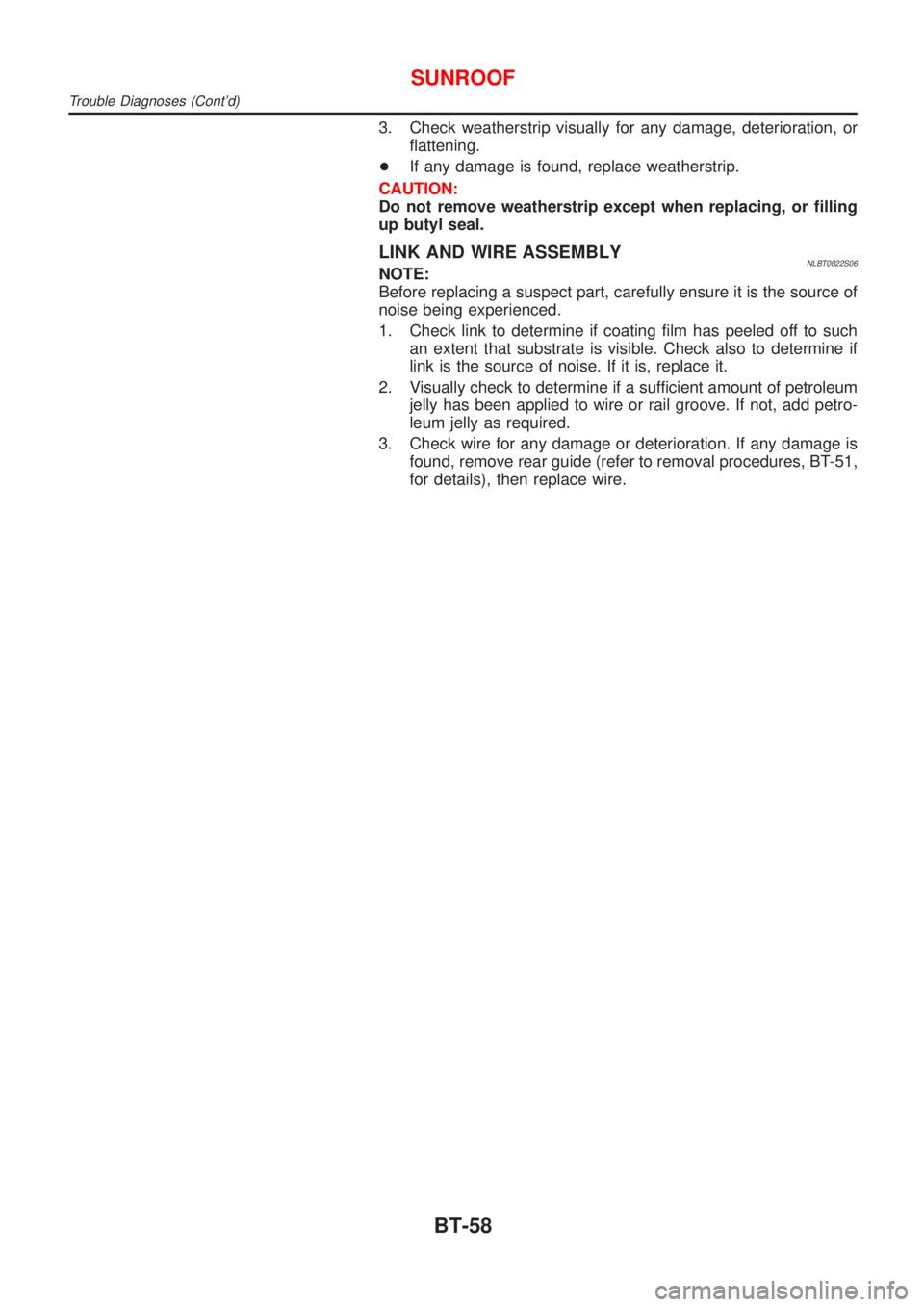

NISSAN ALMERA TINO 2001 Service Repair Manual 3. Check weatherstrip visually for any damage, deterioration, or flattening. +If any damage is found, replace weatherstrip. CAUTION: Do not remove weatherstrip except when replacing, or filling up but

Page 390 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SBF034BA Removal and InstallationNLBT0023REMOVALNLBT0023S01After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag. WARNING: When cutting the glass from

Page 391 of 3051

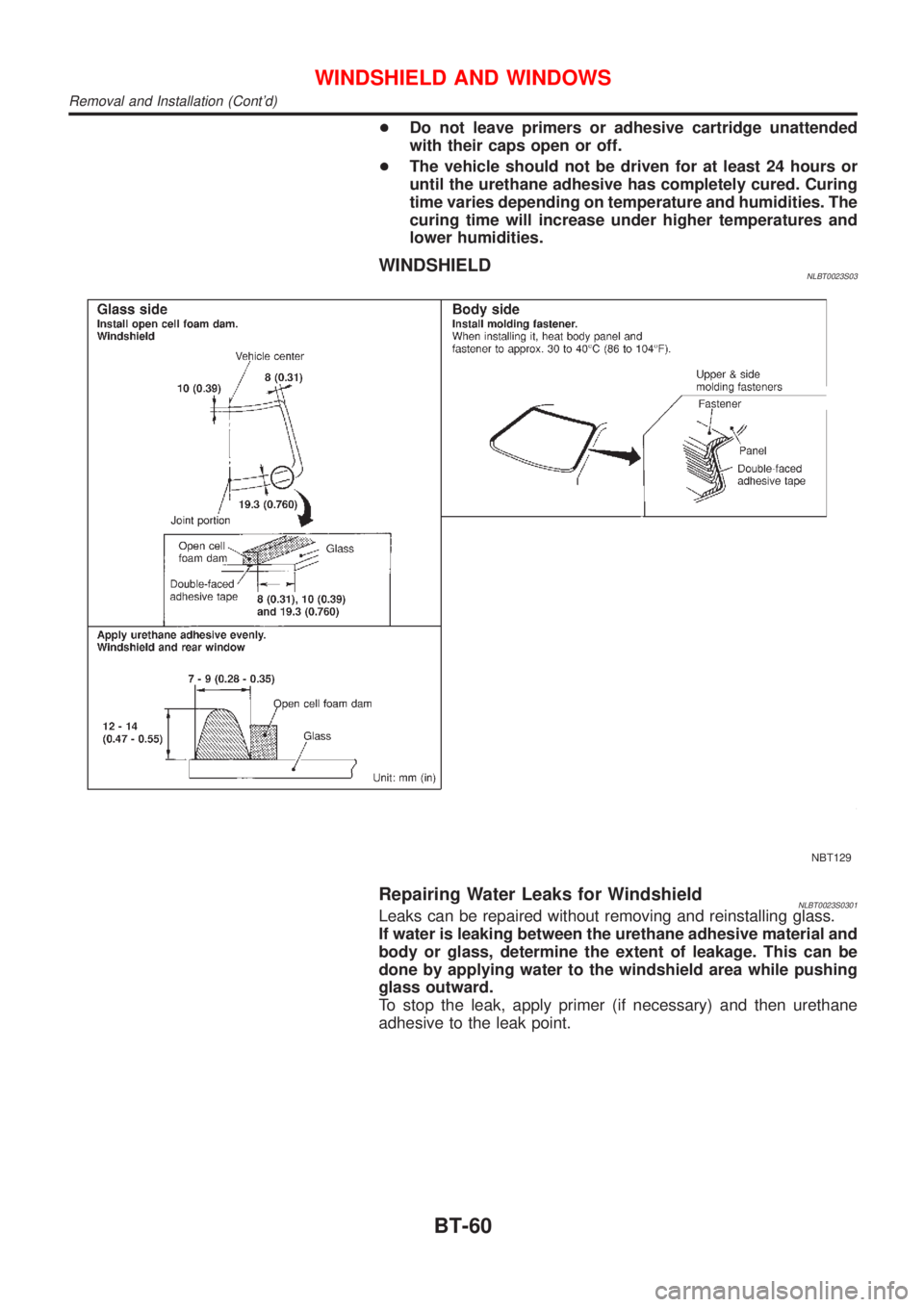

NISSAN ALMERA TINO 2001 Service Repair Manual +Do not leave primers or adhesive cartridge unattended with their caps open or off. +The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely cured. Curing

Page 392 of 3051

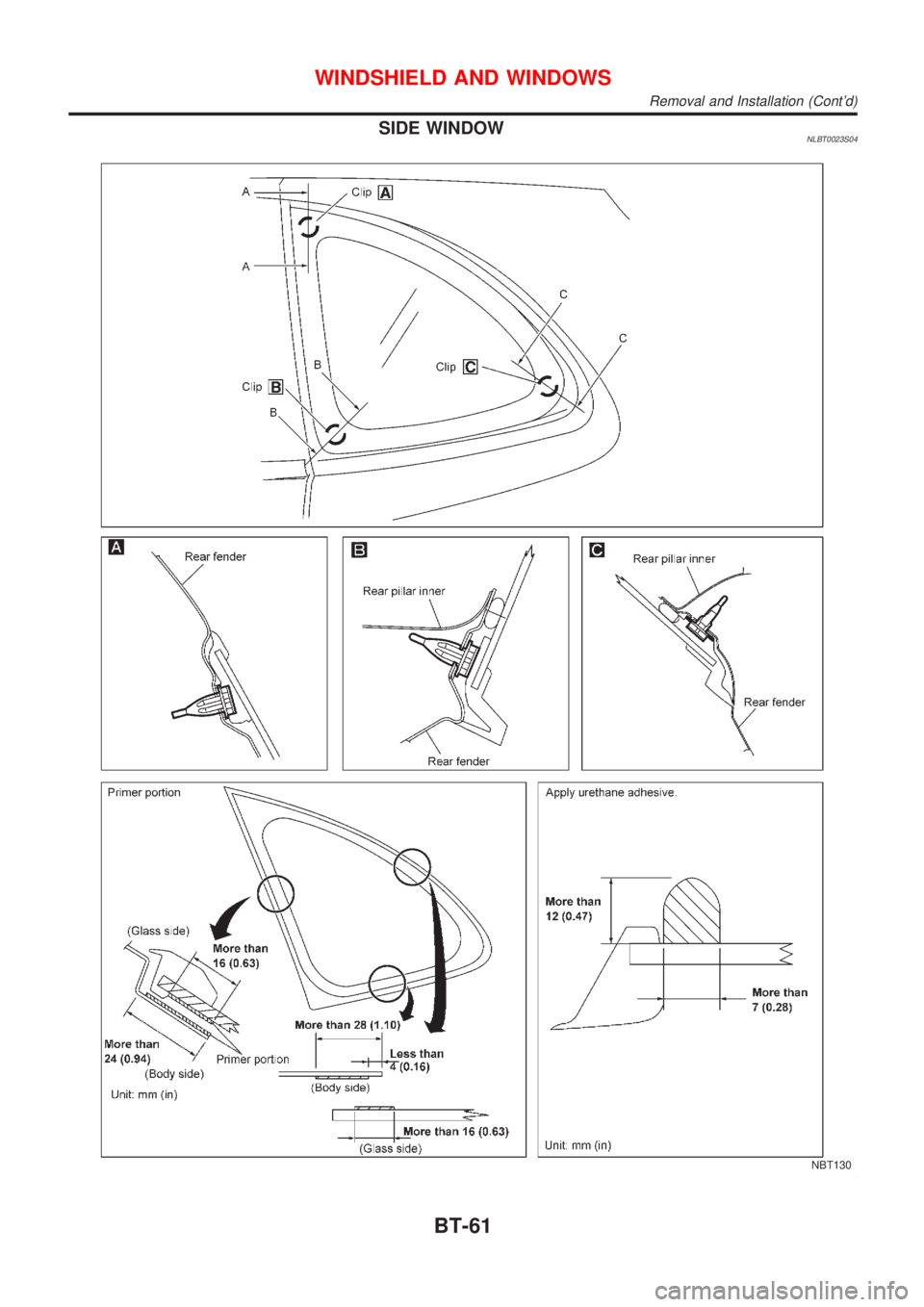

NISSAN ALMERA TINO 2001 Service Repair Manual SIDE WINDOWNLBT0023S04 NBT130 WINDSHIELD AND WINDOWS Removal and Installation (Contd) BT-61
