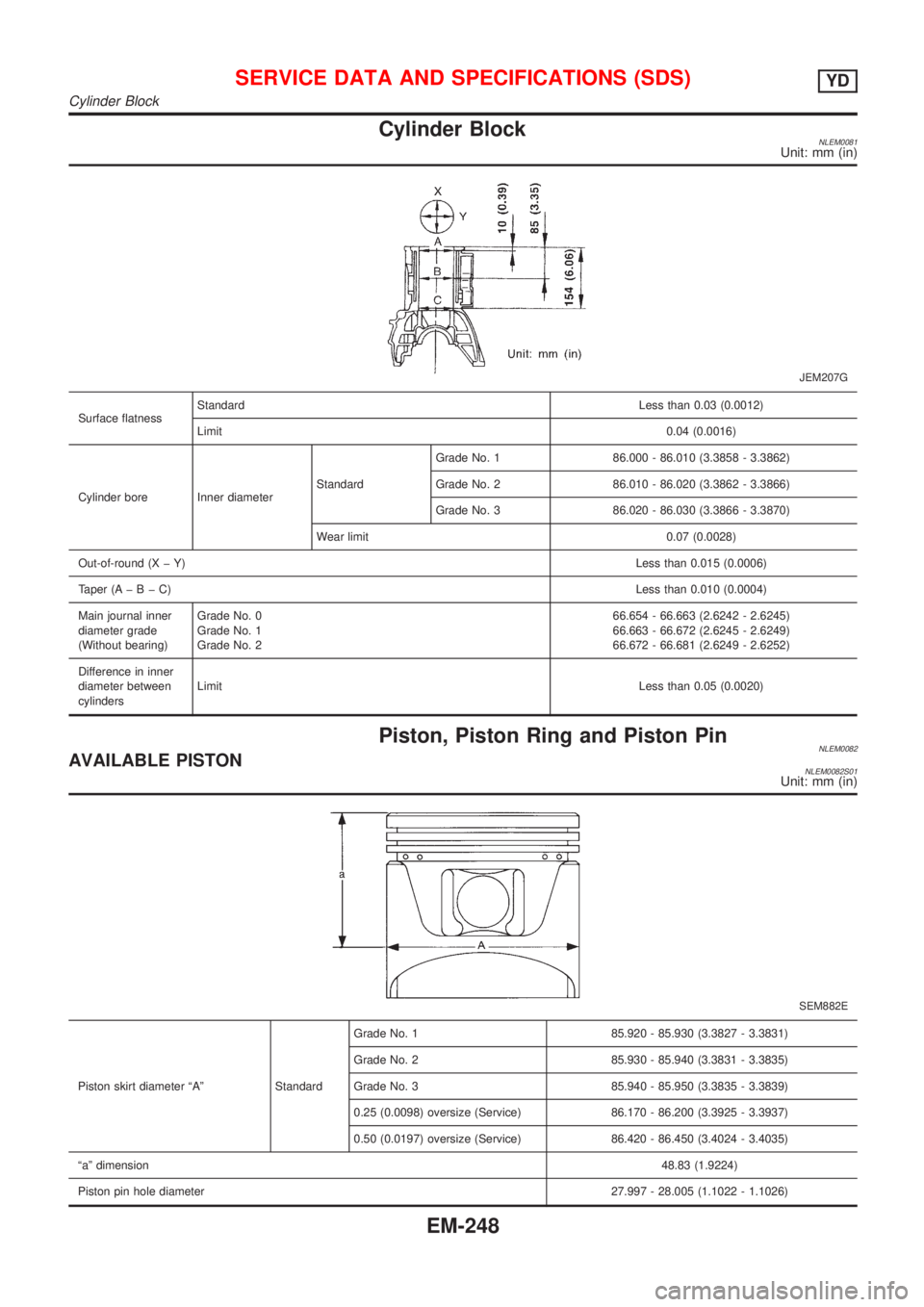

Cylinder BlockNLEM0081Unit: mm (in)
JEM207G
Surface flatnessStandardLess than 0.03 (0.0012)
Limit0.04 (0.0016)
Cylinder bore Inner diameterStandardGrade No. 1 86.000 - 86.010 (3.3858 - 3.3862)
Grade No. 2 86.010 - 86.020 (3.3862 - 3.3866)
Grade No. 3 86.020 - 86.030 (3.3866 - 3.3870)
Wear limit 0.07 (0.0028)
Out-of-round (X þ Y)Less than 0.015 (0.0006)
Taper (AþBþC)Less than 0.010 (0.0004)
Main journal inner
diameter grade
(Without bearing)Grade No. 0
Grade No. 1
Grade No. 266.654 - 66.663 (2.6242 - 2.6245)
66.663 - 66.672 (2.6245 - 2.6249)
66.672 - 66.681 (2.6249 - 2.6252)
Difference in inner
diameter between
cylindersLimitLess than 0.05 (0.0020)
Piston, Piston Ring and Piston PinNLEM0082AVAILABLE PISTONNLEM0082S01Unit: mm (in)
SEM882E
Piston skirt diameter ªAº StandardGrade No. 1 85.920 - 85.930 (3.3827 - 3.3831)
Grade No. 2 85.930 - 85.940 (3.3831 - 3.3835)
Grade No. 3 85.940 - 85.950 (3.3835 - 3.3839)
0.25 (0.0098) oversize (Service) 86.170 - 86.200 (3.3925 - 3.3937)
0.50 (0.0197) oversize (Service) 86.420 - 86.450 (3.4024 - 3.4035)
ªaº dimension48.83 (1.9224)
Piston pin hole diameter27.997 - 28.005 (1.1022 - 1.1026)
SERVICE DATA AND SPECIFICATIONS (SDS)YD
Cylinder Block
EM-248
Page 2506 of 3051

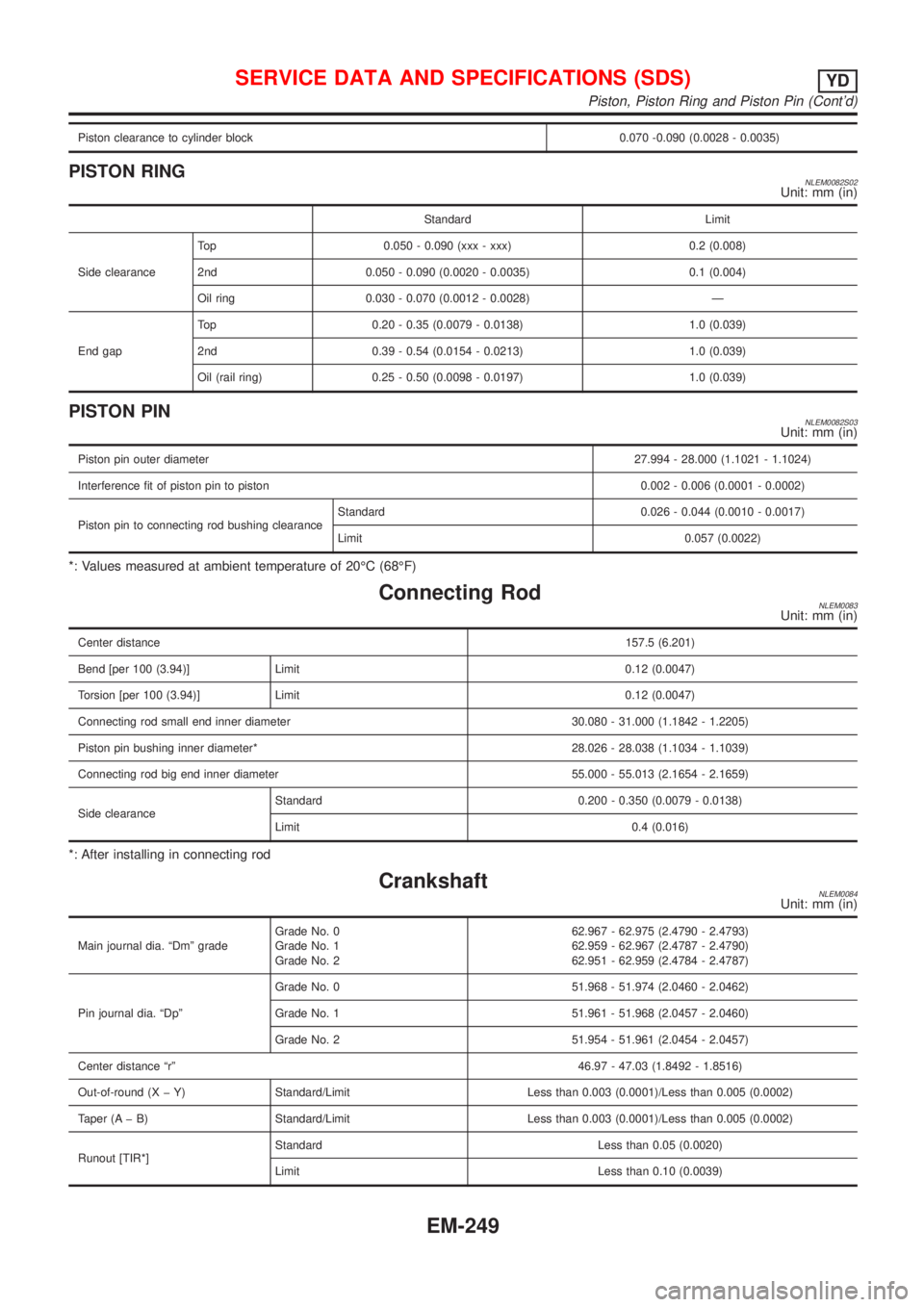

Piston clearance to cylinder block 0.070 -0.090 (0.0028 - 0.0035)
PISTON RINGNLEM0082S02Unit: mm (in)
Standard Limit
Side clearanceTop 0.050 - 0.090 (xxx - xxx) 0.2 (0.008)
2nd 0.050 - 0.090 (0.0020 - 0.0035) 0.1 (0.004)
Oil ring 0.030 - 0.070 (0.0012 - 0.0028) Ð
End gapTop 0.20 - 0.35 (0.0079 - 0.0138) 1.0 (0.039)
2nd 0.39 - 0.54 (0.0154 - 0.0213) 1.0 (0.039)
Oil (rail ring) 0.25 - 0.50 (0.0098 - 0.0197) 1.0 (0.039)
PISTON PINNLEM0082S03Unit: mm (in)
Piston pin outer diameter27.994 - 28.000 (1.1021 - 1.1024)
Interference fit of piston pin to piston 0.002 - 0.006 (0.0001 - 0.0002)
Piston pin to connecting rod bushing clearanceStandard 0.026 - 0.044 (0.0010 - 0.0017)
Limit 0.057 (0.0022)
*: Values measured at ambient temperature of 20ÉC (68ÉF)
Connecting RodNLEM0083Unit: mm (in)
Center distance157.5 (6.201)
Bend [per 100 (3.94)] Limit 0.12 (0.0047)
Torsion [per 100 (3.94)] Limit 0.12 (0.0047)
Connecting rod small end inner diameter 30.080 - 31.000 (1.1842 - 1.2205)
Piston pin bushing inner diameter* 28.026 - 28.038 (1.1034 - 1.1039)
Connecting rod big end inner diameter 55.000 - 55.013 (2.1654 - 2.1659)
Side clearanceStandard 0.200 - 0.350 (0.0079 - 0.0138)
Limit 0.4 (0.016)
*: After installing in connecting rod
CrankshaftNLEM0084Unit: mm (in)
Main journal dia. ªDmº gradeGrade No. 0
Grade No. 1
Grade No. 262.967 - 62.975 (2.4790 - 2.4793)
62.959 - 62.967 (2.4787 - 2.4790)
62.951 - 62.959 (2.4784 - 2.4787)
Pin journal dia. ªDpºGrade No. 0 51.968 - 51.974 (2.0460 - 2.0462)
Grade No. 1 51.961 - 51.968 (2.0457 - 2.0460)
Grade No. 2 51.954 - 51.961 (2.0454 - 2.0457)
Center distance ªrº46.97 - 47.03 (1.8492 - 1.8516)
Out-of-round (X þ Y) Standard/Limit Less than 0.003 (0.0001)/Less than 0.005 (0.0002)
Taper (A þ B) Standard/Limit Less than 0.003 (0.0001)/Less than 0.005 (0.0002)
Runout [TIR*]Standard Less than 0.05 (0.0020)
Limit Less than 0.10 (0.0039)
SERVICE DATA AND SPECIFICATIONS (SDS)YD
Piston, Piston Ring and Piston Pin (Cont'd)
EM-249
Page 2507 of 3051

Free end playStandard 0.10 - 0.25 (0.0039 - 0.0098)
Limit 0.30 (0.0118)
SEM645EM715
*: Total indicator reading

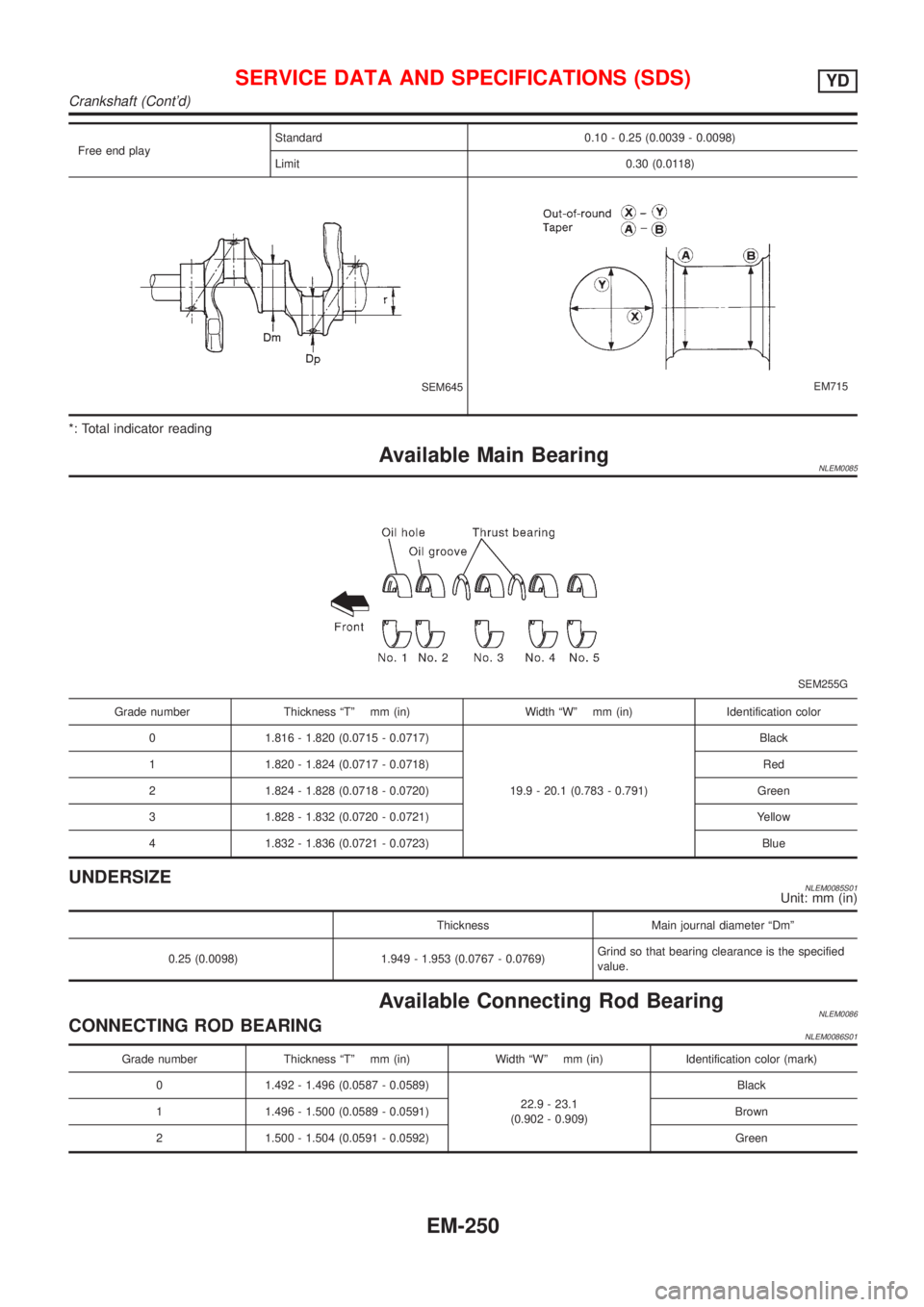

Available Main BearingNLEM0085
SEM255G
Grade number Thickness ªTº mm (in) Width ªWº mm (in) Identification color
0 1.816 - 1.820 (0.0715 - 0.0717)
19.9 - 20.1 (0.783 - 0.791)Black
1 1.820 - 1.824 (0.0717 - 0.0718) Red
2 1.824 - 1.828 (0.0718 - 0.0720) Green
3 1.828 - 1.832 (0.0720 - 0.0721) Yellow
4 1.832 - 1.836 (0.0721 - 0.0723) Blue
UNDERSIZENLEM0085S01Unit: mm (in)
Thickness Main journal diameter ªDmº
0.25 (0.0098) 1.949 - 1.953 (0.0767 - 0.0769)Grind so that bearing clearance is the specified
value.
Available Connecting Rod BearingNLEM0086CONNECTING ROD BEARINGNLEM0086S01
Grade number Thickness ªTº mm (in) Width ªWº mm (in) Identification color (mark)
0 1.492 - 1.496 (0.0587 - 0.0589)
22.9 - 23.1
(0.902 - 0.909)Black
1 1.496 - 1.500 (0.0589 - 0.0591) Brown
2 1.500 - 1.504 (0.0591 - 0.0592) Green
SERVICE DATA AND SPECIFICATIONS (SDS)YD
Crankshaft (Cont'd)
EM-250
Page 2508 of 3051
UNDERSIZENLEM0086S02Unit: mm (in)
Thickness Crank pin journal diameter ªDpº
0.08 (0.0031) 1.536 - 1.540 (0.0605 - 0.0606)
Grind so that bearing clearance is the specified
value. 0.12 (0.0047) 1.556 - 1.560 (0.0613 - 0.0614)
0.25 (0.0098) 1.621 - 1.625 (0.0638 - 0.0640)
Miscellaneous ComponentsNLEM0087Unit: mm (in)
Flywheel runout [TIR]*Less than 0.15 (0.0059)
*: Total indicator reading
BEARING CLEARANCENLEM0087S01Unit: mm (in)
Main bearing clearanceStandard 0.039 - 0.066 (0.0015 - 0.0026)
Limit 0.10 (0.0039)
Connecting rod bearing clearanceStandard 0.031 - 0.061 (0.0012 - 0.0024)
Limit 0.09 (0.0035)
SERVICE DATA AND SPECIFICATIONS (SDS)YD
Available Connecting Rod Bearing (Cont'd)
EM-251
Page 2509 of 3051
SERVICE DATA AND SPECIFICATIONS (SDS)
Miscellaneous Components (Cont'd)
EM-252
Page 2510 of 3051

ACCELERATOR CONTROL, FUEL &
EXHAUST SYSTEMS
SECTION
FE
CONTENTS
QG/SR
PREPARATION...............................................................2
Special Service Tools ..................................................2
Commercial Service Tools ...........................................2
ACCELERATOR CONTROL SYSTEM...........................3
Removal and Installation .............................................3
Adjusting Accelerator Wire ..........................................3
MODELS WITH THROTTLE OPENER.........................3
MODELS WITHOUT THROTTLE OPENER..................4
FUEL SYSTEM................................................................5
Checking Fuel Lines ....................................................5
Removal and Installation .............................................5
Fuel Tank .....................................................................6
REMOVAL.................................................................6
INSTALLATION..........................................................8
Fuel Pump, Fuel Level Sensor Unit and Fuel
Filter .............................................................................9
REMOVAL.................................................................9
INSTALLATION........................................................10
EXHAUST SYSTEM...................................................... 11
Checking Exhaust System......................................... 11
Removal and Installation ........................................... 11
YD
PREPARATION.............................................................13
Special Service Tool ..................................................13Commercial Service Tool ...........................................13
ACCELERATOR CONTROL SYSTEM.........................14
Removal and Installation ...........................................14
Inspection...................................................................14
FUEL SYSTEM..............................................................15
Checking Fuel Lines ..................................................15
Water Draining from Fuel Filter .................................15
DRAINING WATER..................................................15
FUEL FILTER CHECK..............................................15
Changing Fuel Filter ..................................................15
REMOVAL...............................................................15
INSTALLATION........................................................16
Bleeding Fuel Filter....................................................16
Checking Priming Pump ............................................16
Checking Water in Fuel Filter Sensor (where
fitted) ..........................................................................17
Removal and Installation ...........................................17
Fuel Tank ...................................................................18
REMOVAL...............................................................19
INSTALLATION........................................................20
Fuel Level Sensor Unit ..............................................21
REMOVAL...............................................................21
INSTALLATION........................................................22
EXHAUST SYSTEM......................................................23
Checking Exhaust System.........................................23
Removal and Installation ...........................................23
