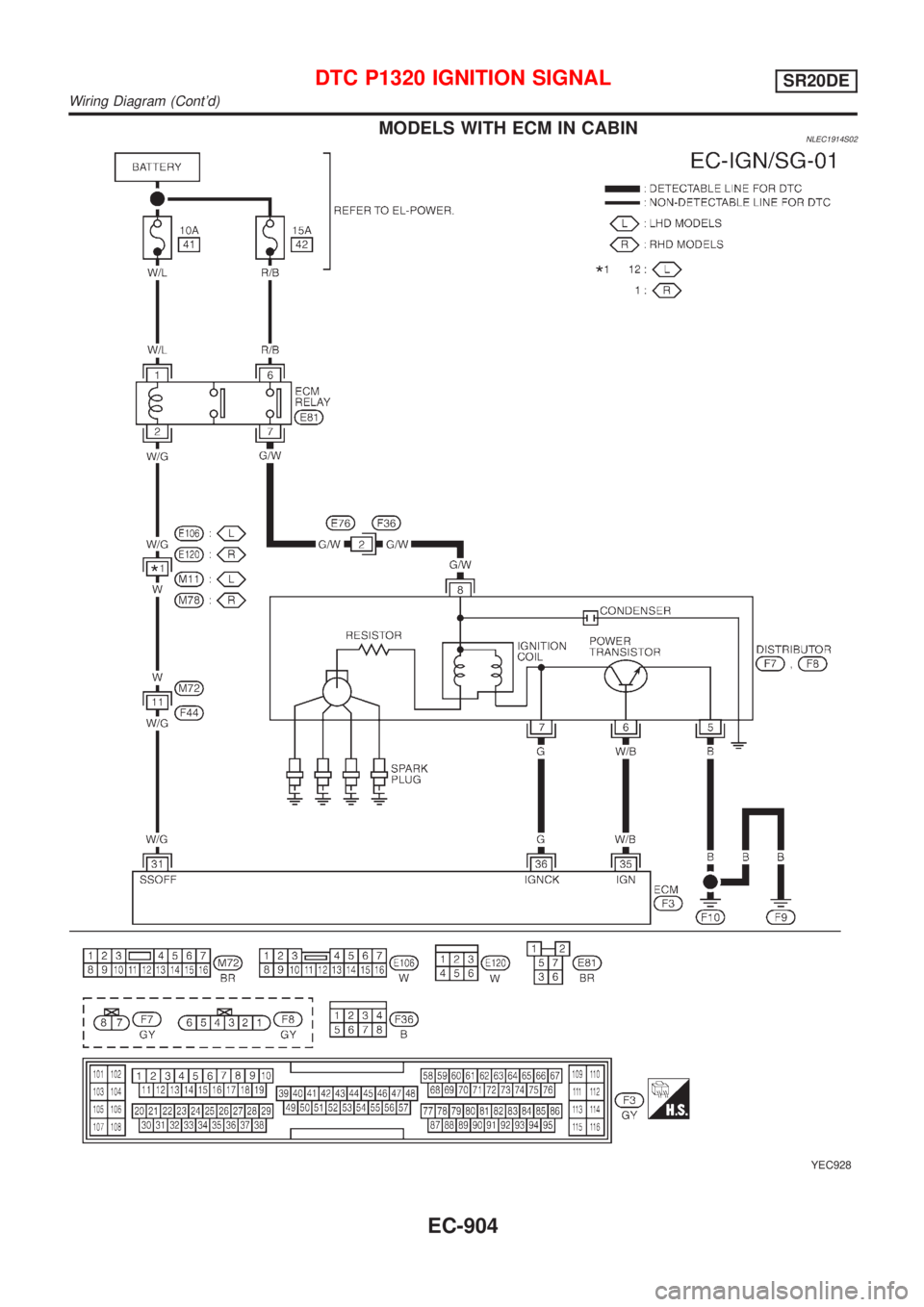

MODELS WITH ECM IN CABINNLEC1914S02
YEC928
DTC P1320 IGNITION SIGNALSR20DE
Wiring Diagram (Cont'd)
EC-904
Page 1330 of 3051

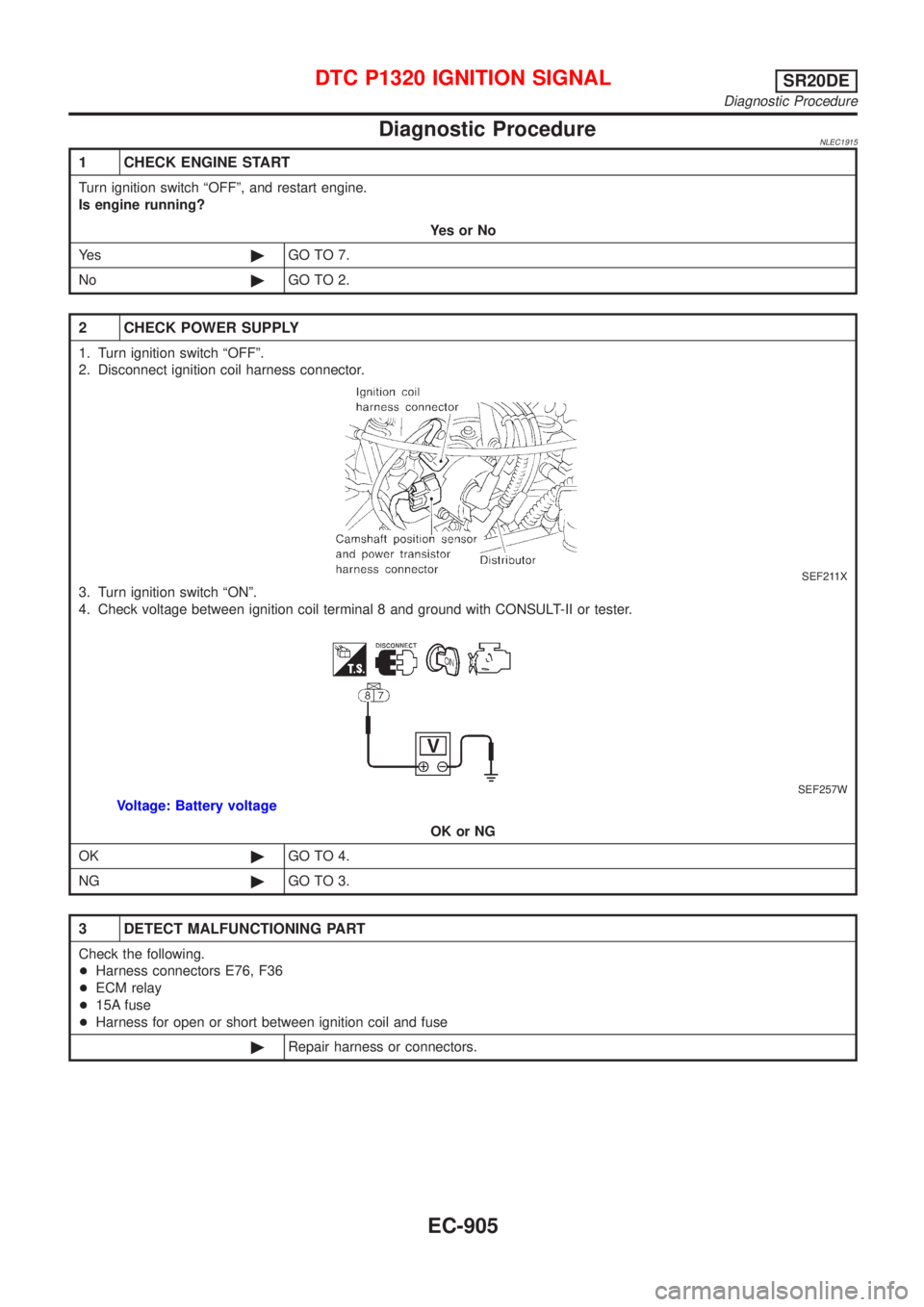

Diagnostic ProcedureNLEC1915
1 CHECK ENGINE START
Turn ignition switch ªOFFº, and restart engine.
Is engine running?
YesorNo
Ye s©GO TO 7.
No©GO TO 2.
2 CHECK POWER SUPPLY
1. Turn ignition switch ªOFFº.
2. Disconnect ignition coil harness connector.
SEF211X
3. Turn ignition switch ªONº.
4. Check voltage between ignition coil terminal 8 and ground with CONSULT-II or tester.
SEF257W
Voltage: Battery voltage
OK or NG
OK©GO TO 4.
NG©GO TO 3.
3 DETECT MALFUNCTIONING PART
Check the following.
+Harness connectors E76, F36
+ECM relay
+15A fuse
+Harness for open or short between ignition coil and fuse
©Repair harness or connectors.
DTC P1320 IGNITION SIGNALSR20DE
Diagnostic Procedure
EC-905
Page 1331 of 3051

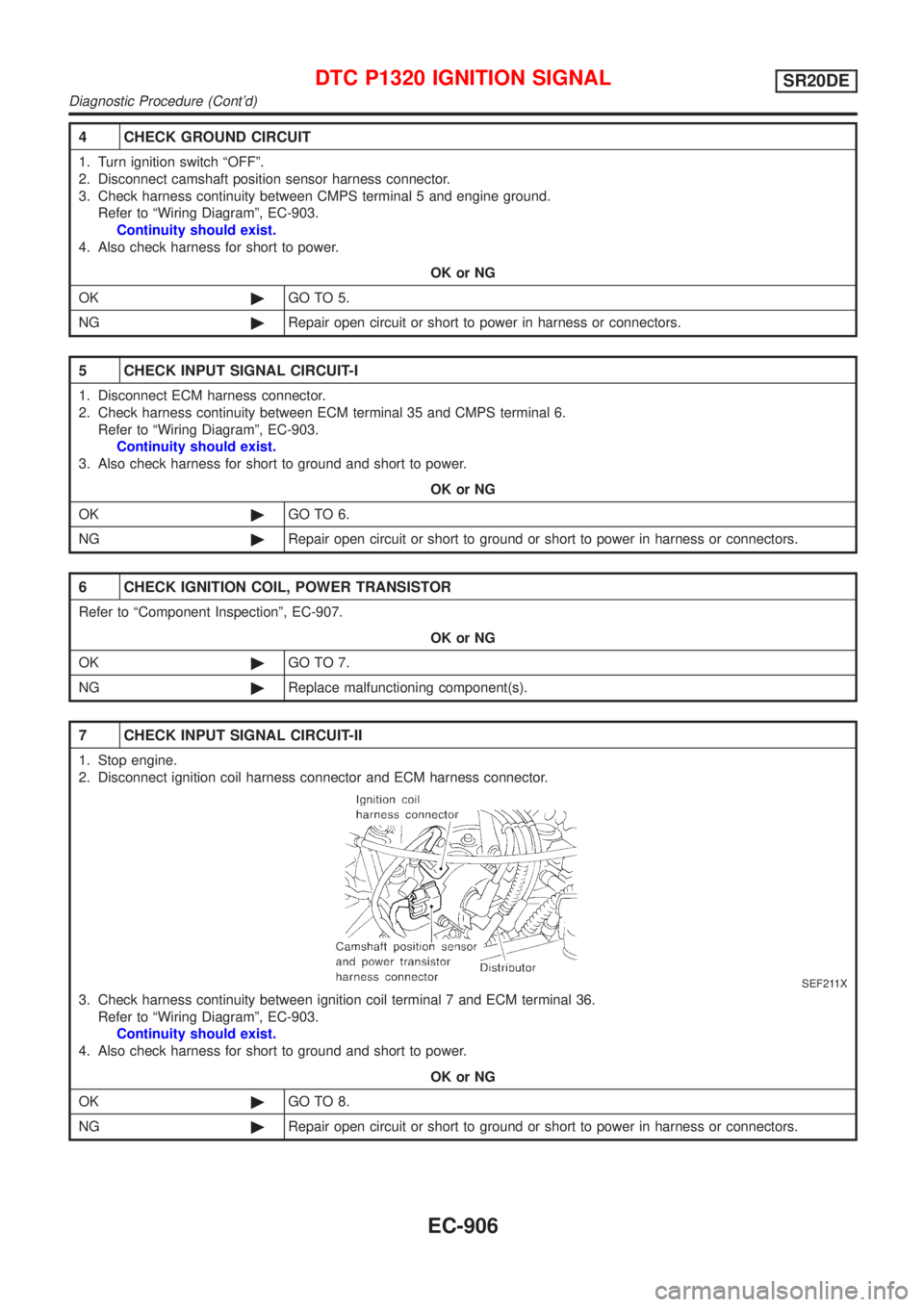

4 CHECK GROUND CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect camshaft position sensor harness connector.
3. Check harness continuity between CMPS terminal 5 and engine ground.
Refer to ªWiring Diagramº, EC-903.
Continuity should exist.
4. Also check harness for short to power.
OK or NG
OK©GO TO 5.
NG©Repair open circuit or short to power in harness or connectors.
5 CHECK INPUT SIGNAL CIRCUIT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 35 and CMPS terminal 6.
Refer to ªWiring Diagramº, EC-903.
Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 6.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
6 CHECK IGNITION COIL, POWER TRANSISTOR
Refer to ªComponent Inspectionº, EC-907.
OK or NG
OK©GO TO 7.
NG©Replace malfunctioning component(s).
7 CHECK INPUT SIGNAL CIRCUIT-II
1. Stop engine.
2. Disconnect ignition coil harness connector and ECM harness connector.
SEF211X
3. Check harness continuity between ignition coil terminal 7 and ECM terminal 36.
Refer to ªWiring Diagramº, EC-903.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 8.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
DTC P1320 IGNITION SIGNALSR20DE
Diagnostic Procedure (Cont'd)
EC-906
Page 1332 of 3051

8 CHECK RESISTOR
Refer to ªComponent Inspectionº EC-908.
OK or NG
OK©GO TO 9.
NG©Replace distributor cap.
9 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-670.
©INSPECTION END
SEF237X
SEF238X
Component InspectionNLEC1916IGNITION COILNLEC1916S011. Disconnect ignition coil harness connector.
2. Check resistance as shown in the figure.
3. For checking secondary coil, remove distributor cap.
4. Check resistance between ignition coil harness connector ter-
minal 8 and coil tower metal tip 9 (secondary terminal) on the
distributor head.
Terminal Resistance [at 25ÉC (77ÉF)]
7 - 8 (Primary coil) Approximately 2.2W
8 - secondary terminal on distributor
head (Secondary coil)Approximately 17 kW
If NG, replace distributor.
SEF943XA
POWER TRANSISTORNLEC1916S021. Disconnect power transistor harness connector and ignition
coil harness connector.
2. Check power transistor resistance between terminals 5 and 7.
Terminals Resistance Result
5 and 7Except 0WOK
0WNG
If NG, replace distributor.
DTC P1320 IGNITION SIGNALSR20DE
Diagnostic Procedure (Cont'd)
EC-907
Page 1333 of 3051
SEF944X

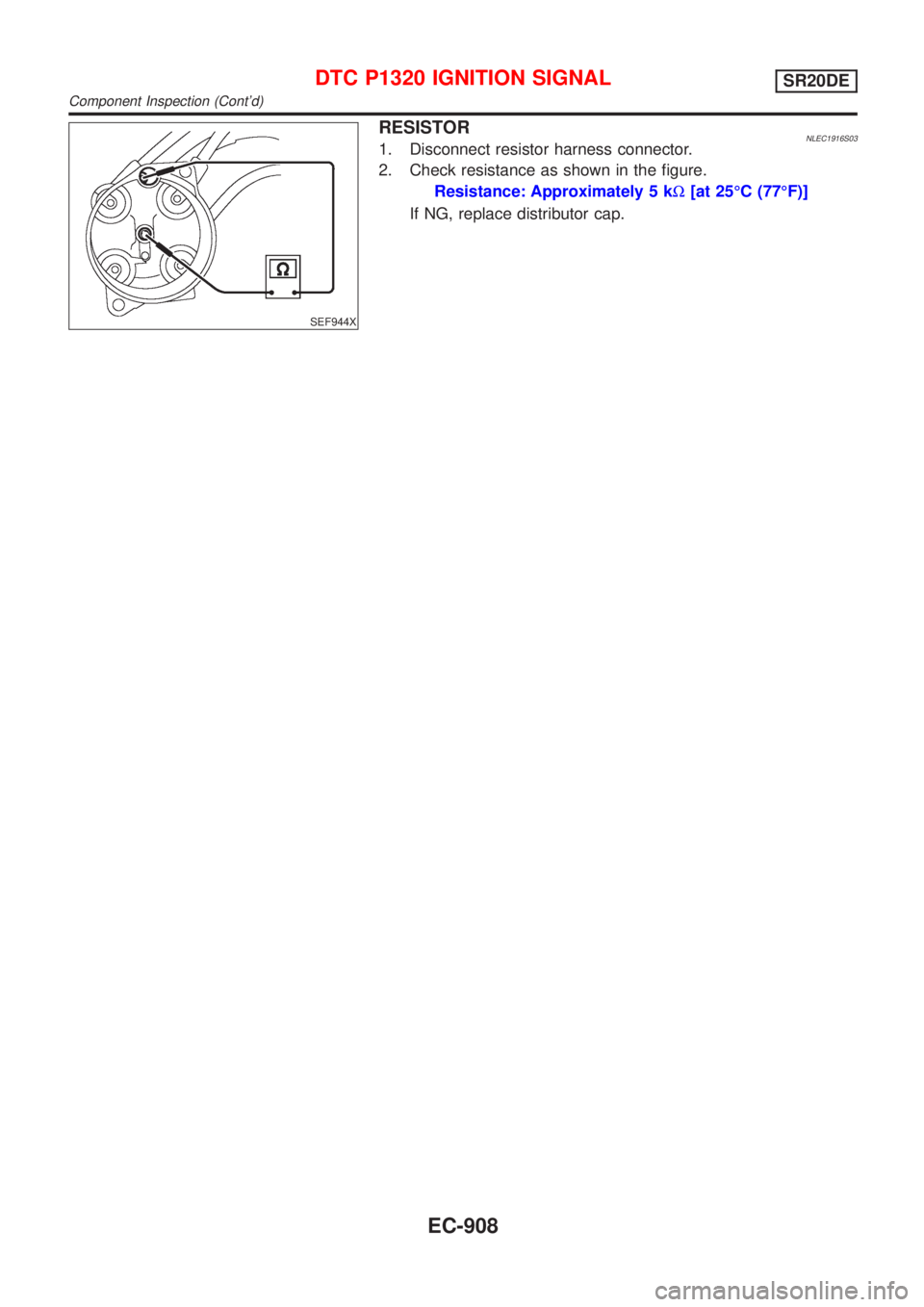

RESISTORNLEC1916S031. Disconnect resistor harness connector.
2. Check resistance as shown in the figure.
Resistance: Approximately 5 kW[at 25ÉC (77ÉF)]
If NG, replace distributor cap.
DTC P1320 IGNITION SIGNALSR20DE
Component Inspection (Cont'd)
EC-908
Page 1334 of 3051

SEF956N
SEF777Z
Component DescriptionNLEC1917The crankshaft position sensor (OBD) is located on the transmis-
sion housing facing the gear teeth (cogs) of the flywheel or drive
plate. It detects the fluctuation of the engine revolution.
The sensor consists of a permanent magnet, core and coil.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
This sensor is not used to control the engine system.
It is used only for the on board diagnosis.
ECM Terminals and Reference ValueNLEC1918Specification data are reference values and are measured between
each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (AC Voltage)
65 WCrankshaft position
sensor (OBD)[Engine is running]
+Warm-up condition
+Idle speedApproximately 1.3V
SEF814Z
[Engine is running]
+Engine speed is 2,000 rpmApproximately 2.0V
SEF815Z
DTC P1336 CRANKSHAFT POSITION SENSOR (CKPS) (OBD)
(COG)
SR20DE
Component Description
EC-909
Page 1335 of 3051
On Board Diagnosis LogicNLEC1919
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P1336+A chipping of the flywheel or drive plate gear tooth (cog)
is detected by the ECM.+Harness or connectors
+Crankshaft position sensor (OBD)
+Drive plate
SEF058Y
DTC Confirmation ProcedureNLEC1920NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch ªOFFº and wait at least 10 seconds
before conducting the next test.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
with CONSULT-II.
2) Start engine and run it for at least 4 minutes at idle speed.
3) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-913.
With GST
Follow the procedure ªWith CONSULT-IIº above.
DTC P1336 CRANKSHAFT POSITION SENSOR (CKPS) (OBD)
(COG)
SR20DE
On Board Diagnosis Logic
EC-910
Page 1336 of 3051

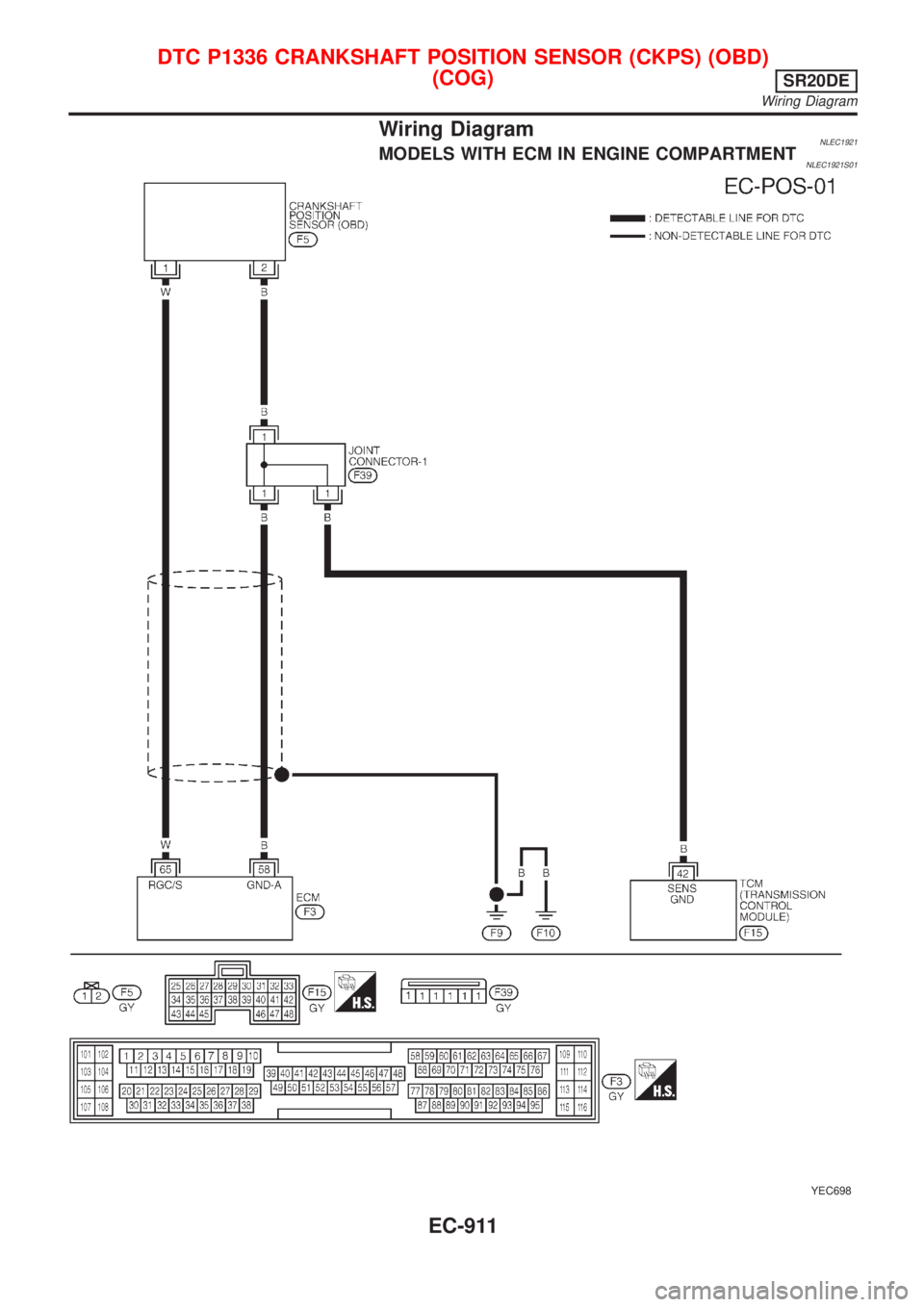

Wiring DiagramNLEC1921MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1921S01
YEC698
DTC P1336 CRANKSHAFT POSITION SENSOR (CKPS) (OBD)
(COG)
SR20DE
Wiring Diagram
