Page 1985 of 3051

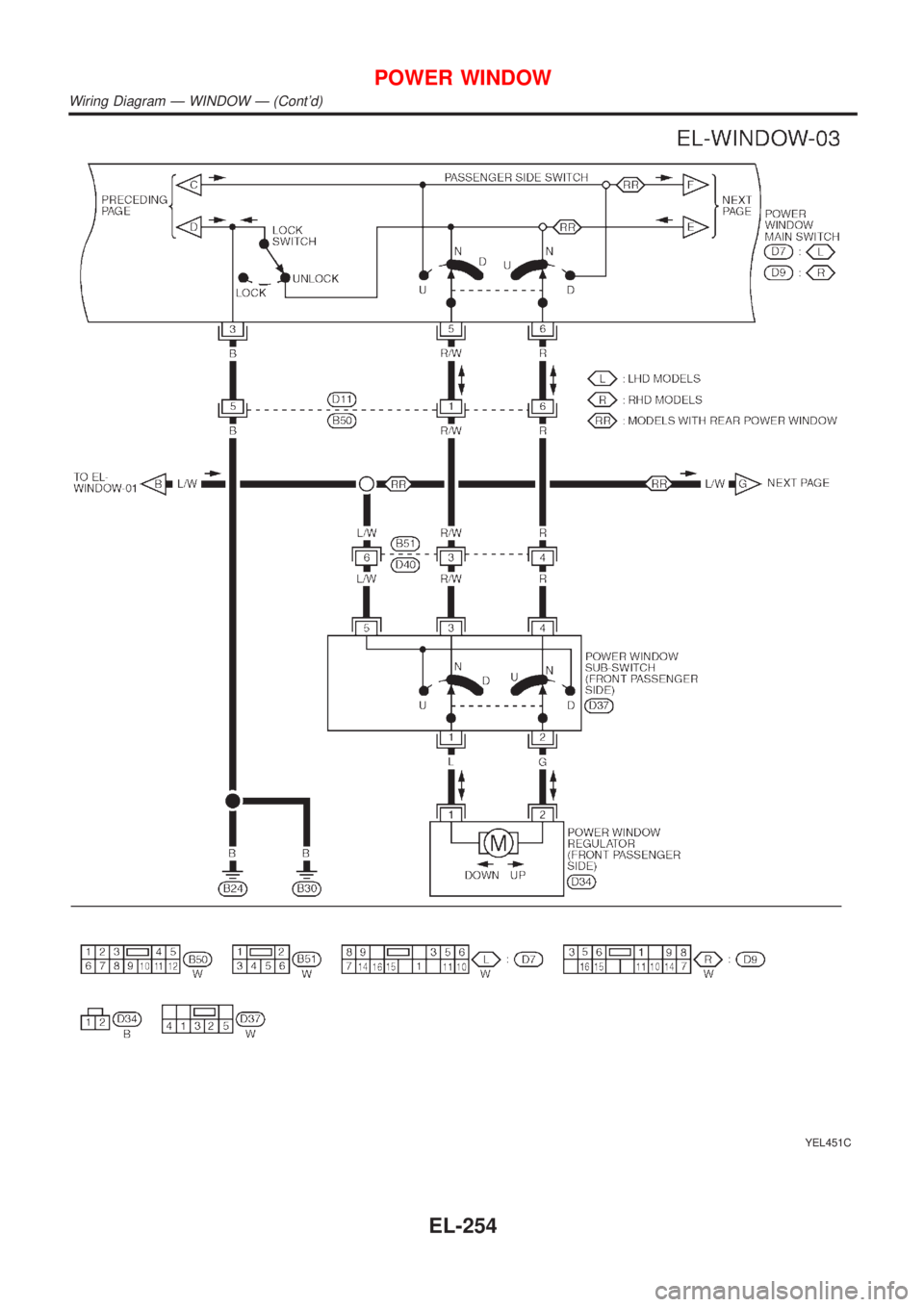

NISSAN ALMERA TINO 2001 Service Repair Manual YEL451C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Contd)
EL-254

Page 1986 of 3051

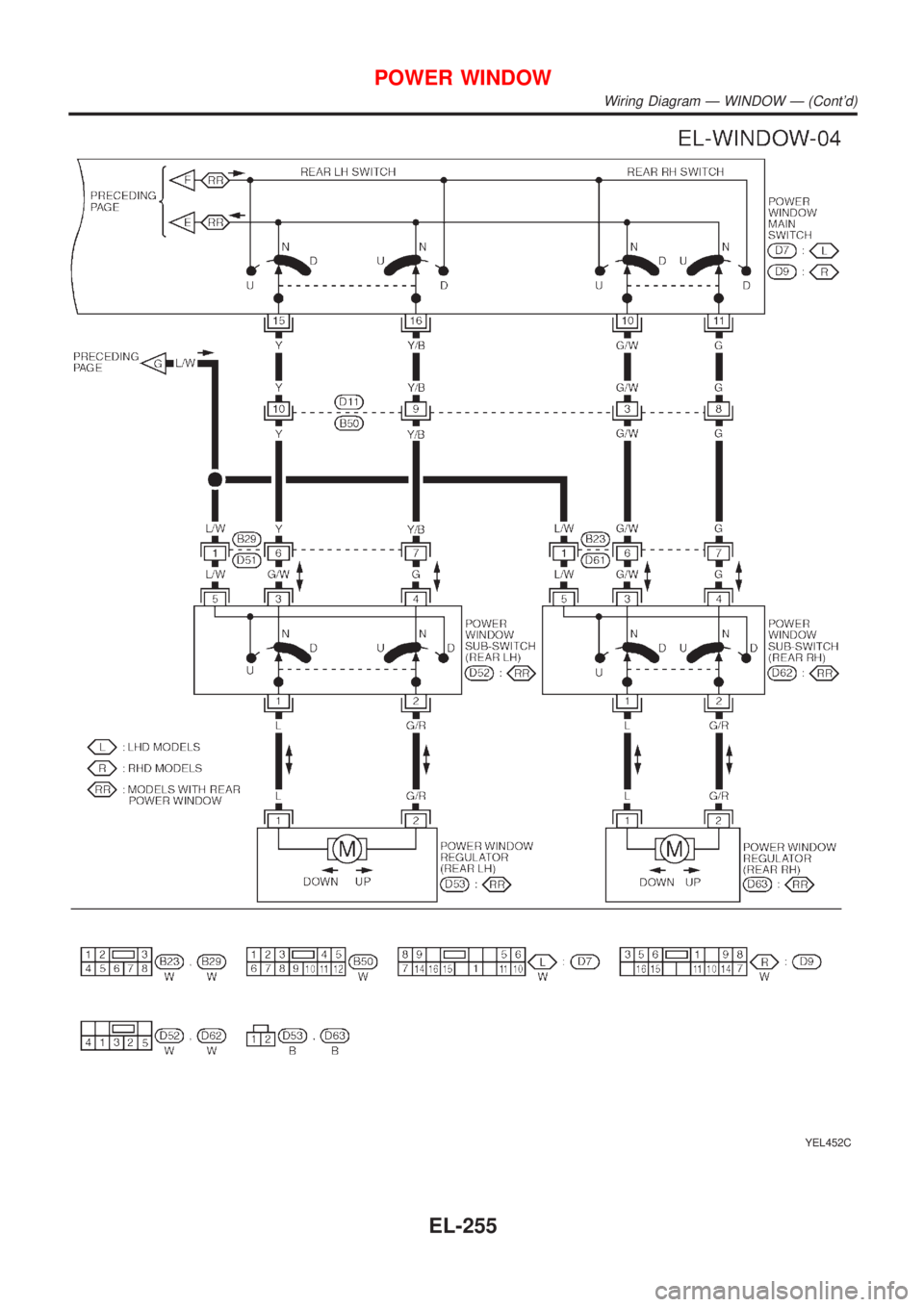

NISSAN ALMERA TINO 2001 Service Repair Manual YEL452C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Contd)
EL-255

Page 1987 of 3051

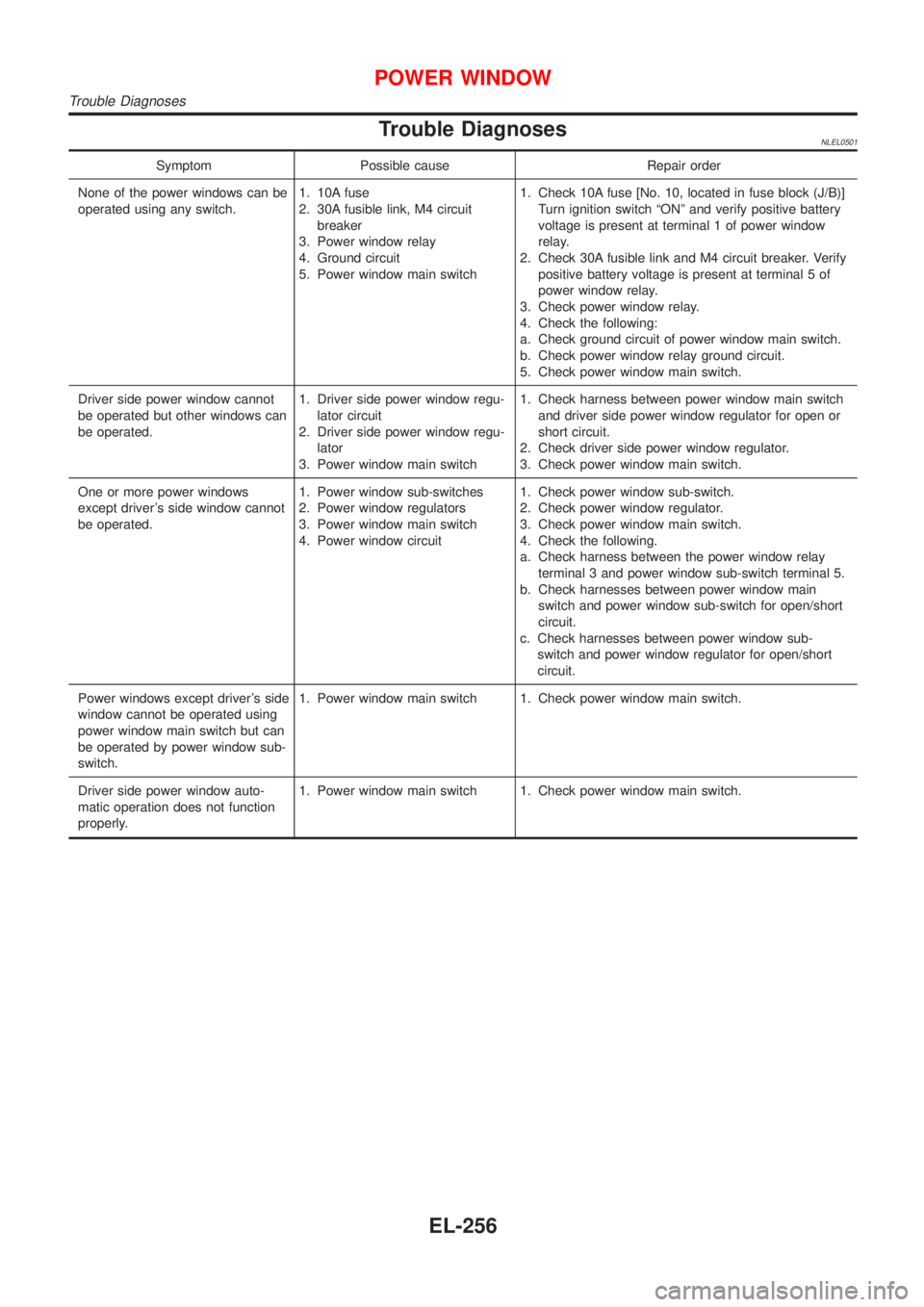

NISSAN ALMERA TINO 2001 Service Repair Manual Trouble DiagnosesNLEL0501
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse
2. 30A fusible link, M4 circuit
breaker
3. Power window relay
4. Gr

Trouble DiagnosesNLEL0501
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse
2. 30A fusible link, M4 circuit
breaker
3. Power window relay
4. Ground circuit
5. Power window main switch1. Check 10A fuse [No. 10, located in fuse block (J/B)]
Turn ignition switch ªONº and verify positive battery
voltage is present at terminal 1 of power window
relay.
2. Check 30A fusible link and M4 circuit breaker. Verify
positive battery voltage is present at terminal 5 of
power window relay.
3. Check power window relay.
4. Check the following:
a. Check ground circuit of power window main switch.
b. Check power window relay ground circuit.
5. Check power window main switch.
Driver side power window cannot
be operated but other windows can
be operated.1. Driver side power window regu-
lator circuit
2. Driver side power window regu-
lator
3. Power window main switch1. Check harness between power window main switch
and driver side power window regulator for open or
short circuit.
2. Check driver side power window regulator.
3. Check power window main switch.
One or more power windows
except driver's side window cannot
be operated.1. Power window sub-switches
2. Power window regulators
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window regulator.
3. Check power window main switch.
4. Check the following.
a. Check harness between the power window relay
terminal 3 and power window sub-switch terminal 5.
b. Check harnesses between power window main
switch and power window sub-switch for open/short
circuit.
c. Check harnesses between power window sub-
switch and power window regulator for open/short
circuit.
Power windows except driver's side
window cannot be operated using
power window main switch but can
be operated by power window sub-
switch.1. Power window main switch 1. Check power window main switch.
Driver side power window auto-
matic operation does not function
properly.1. Power window main switch 1. Check power window main switch.
POWER WINDOW
Trouble Diagnoses
EL-256

Page 1988 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Component Parts and Harness Connector
Location/LHD Models
NLEL0526For details, refer to ªELECTRICAL UNIT LOCATIONº (EL-442) and ªHARNESS LAYOUTº (EL-452).
System Description/LHD ModelsNLEL0502OPER

Page 1989 of 3051

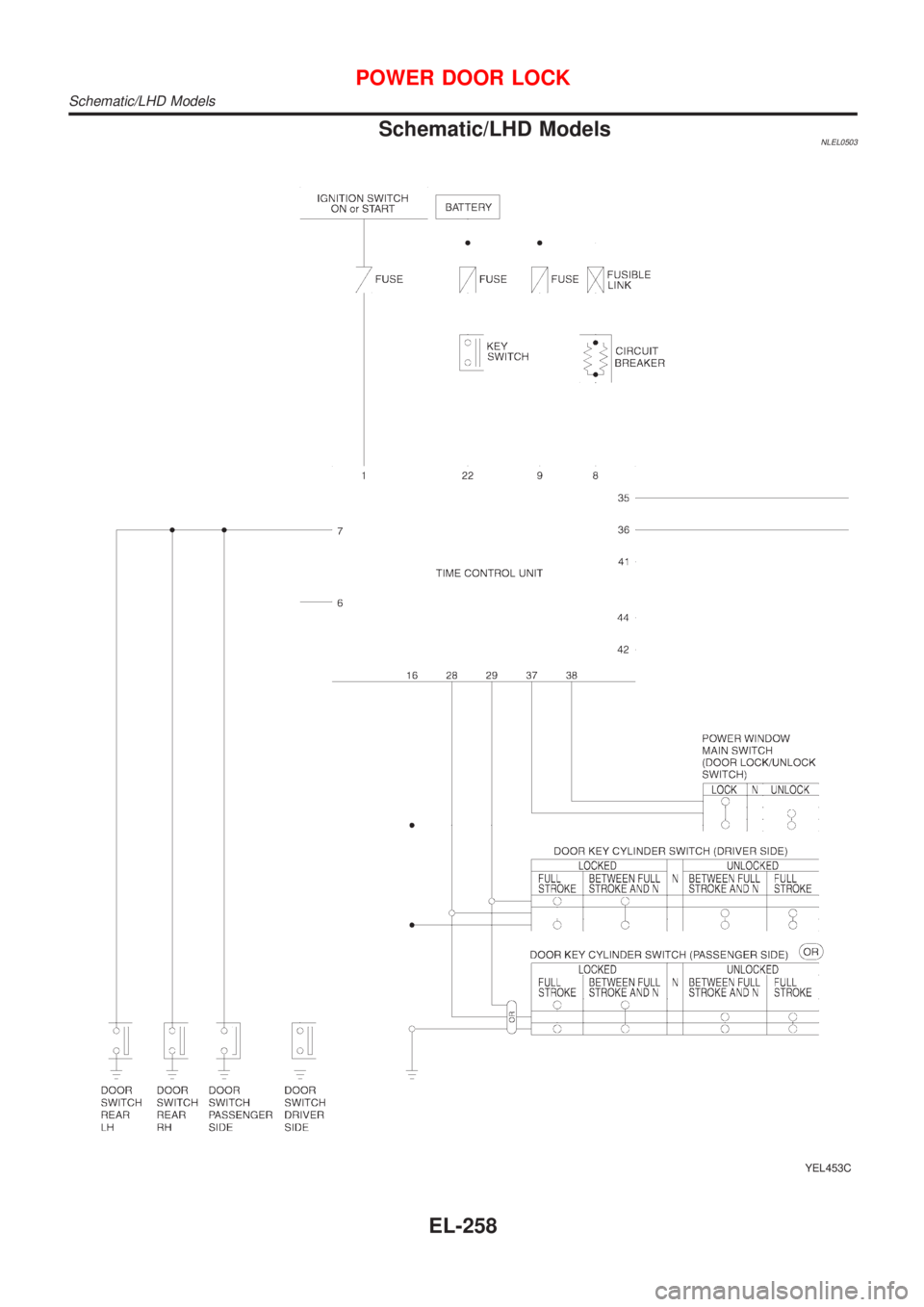

NISSAN ALMERA TINO 2001 Service Repair Manual Schematic/LHD ModelsNLEL0503
YEL453C
POWER DOOR LOCK
Schematic/LHD Models
EL-258

Page 1990 of 3051

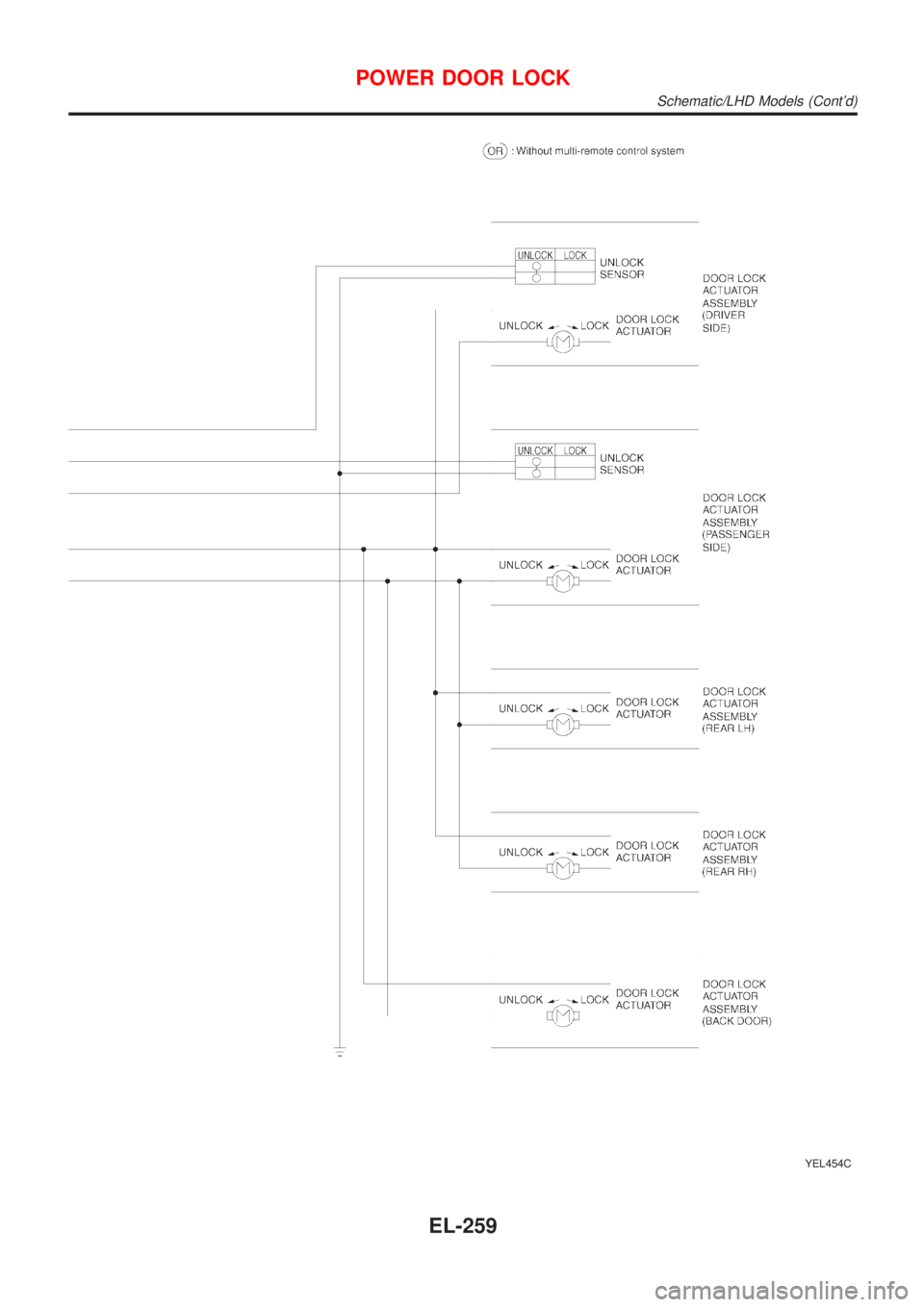

NISSAN ALMERA TINO 2001 Service Repair Manual YEL454C
POWER DOOR LOCK
Schematic/LHD Models (Contd)
EL-259

Page 1991 of 3051

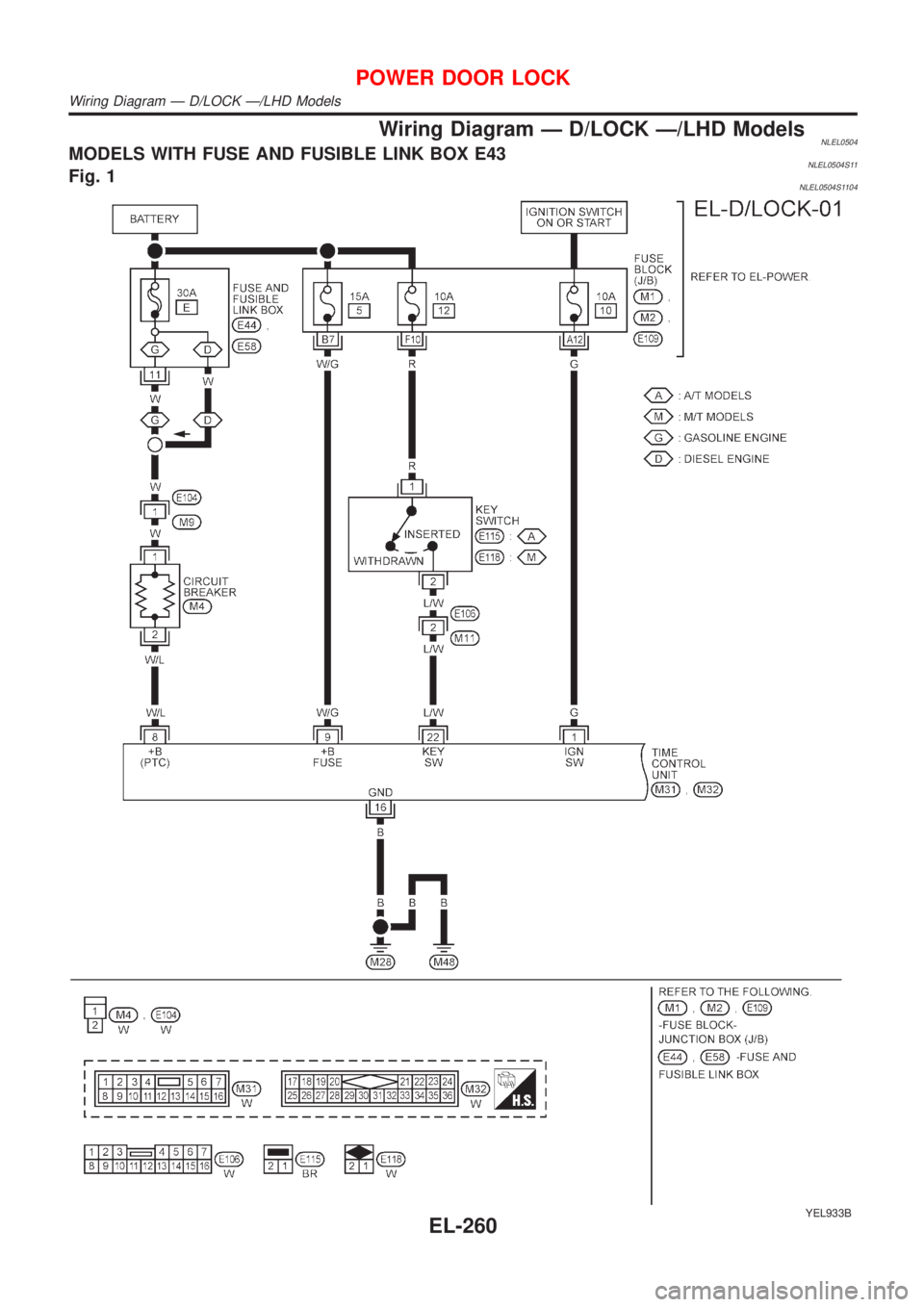

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð D/LOCK Ð/LHD ModelsNLEL0504MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0504S11Fig. 1NLEL0504S1104
YEL933B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models
EL-260

Page 1992 of 3051

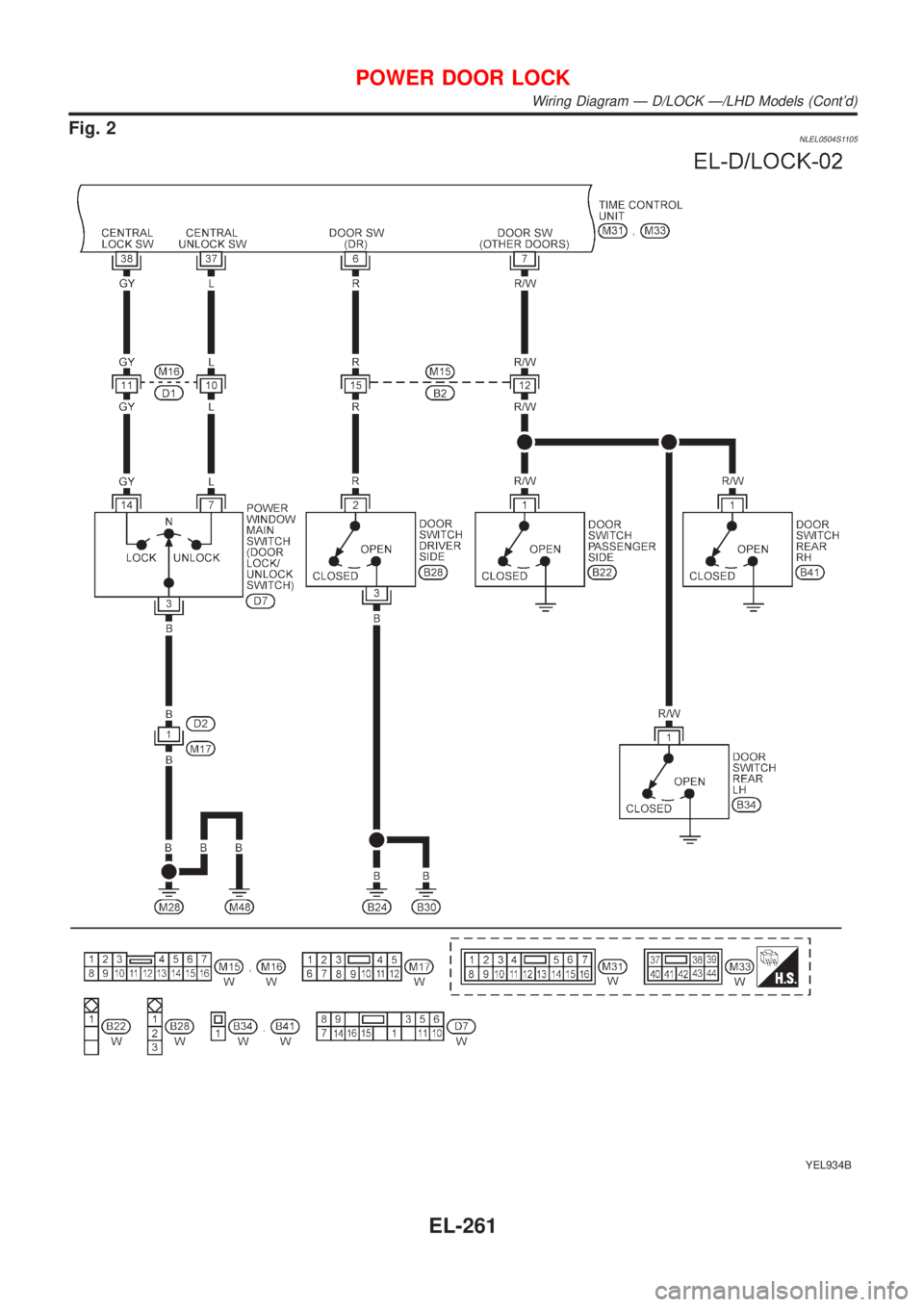

NISSAN ALMERA TINO 2001 Service Repair Manual Fig. 2NLEL0504S1105
YEL934B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Contd)
EL-261
