Page 465 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual rate of vapor controlled by EVAP canister purge volume control solenoid valve is proportionally regulated as the air flow increases. EVAP canister purge volume control solenoid valve also shuts off th

Page 466 of 3051

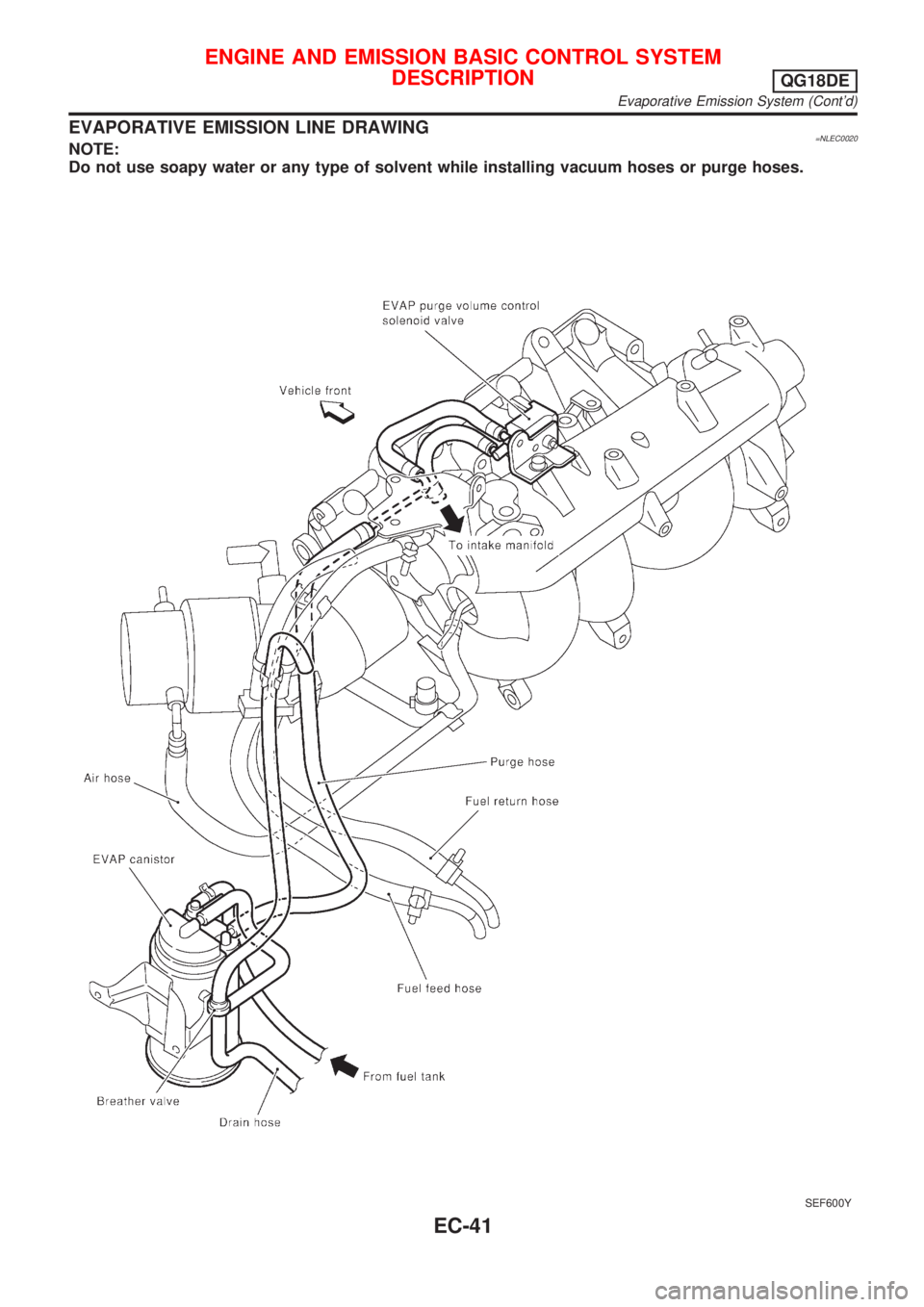

NISSAN ALMERA TINO 2001 Service Repair Manual EVAPORATIVE EMISSION LINE DRAWING=NLEC0020NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses. SEF600Y ENGINE AND EMISSION BASIC CONTROL SYSTEM DESCRIPTION

Page 467 of 3051

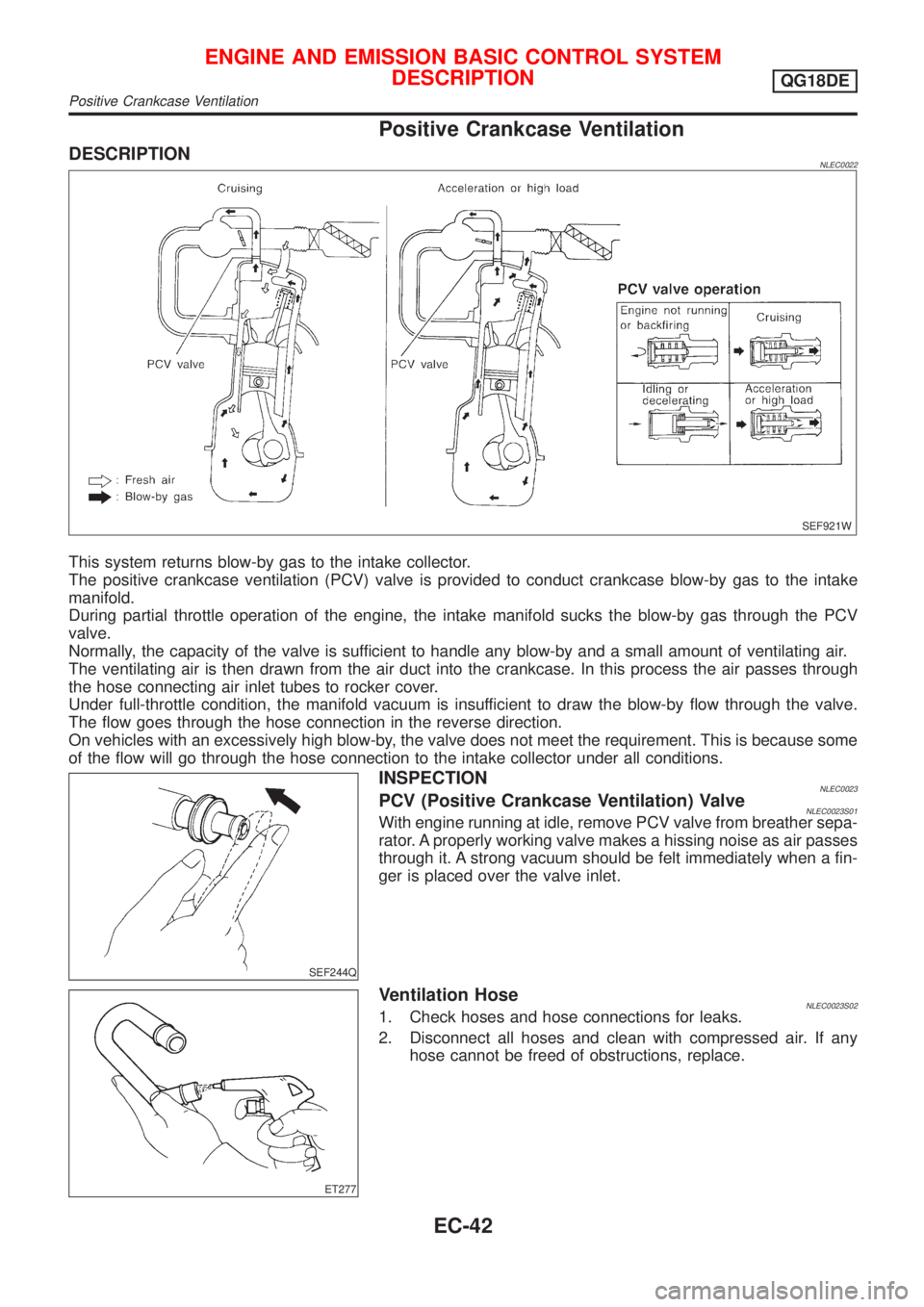

NISSAN ALMERA TINO 2001 Service Repair Manual Positive Crankcase Ventilation DESCRIPTIONNLEC0022 SEF921W This system returns blow-by gas to the intake collector. The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow

Page 468 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF094Y SEF214Y Fuel Pressure ReleaseNLEC0024Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger. WITH CONSULT-IINLEC0024S011. Start engine. 2. Perform ªFUEL PRES

Page 469 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual If results are unsatisfactory, perform Fuel Pressure Regulator Check, EC-44. SEF718B Fuel Pressure Regulator CheckNLEC00261. Stop engine and disconnect fuel pressure regulator vacuum hose from intake

Page 470 of 3051

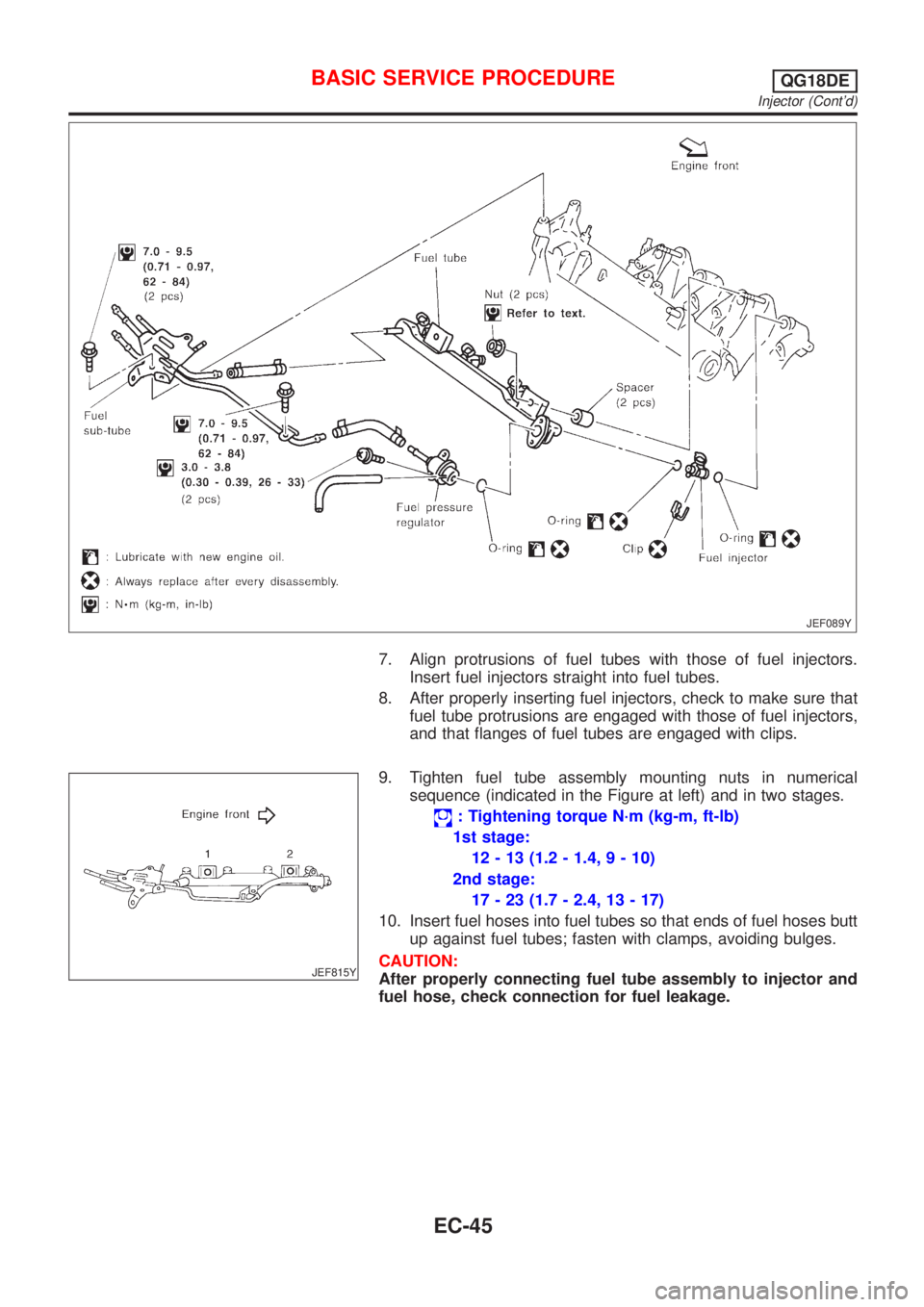

NISSAN ALMERA TINO 2001 Service Repair Manual JEF089Y 7. Align protrusions of fuel tubes with those of fuel injectors. Insert fuel injectors straight into fuel tubes. 8. After properly inserting fuel injectors, check to make sure that fuel tube p

Page 471 of 3051

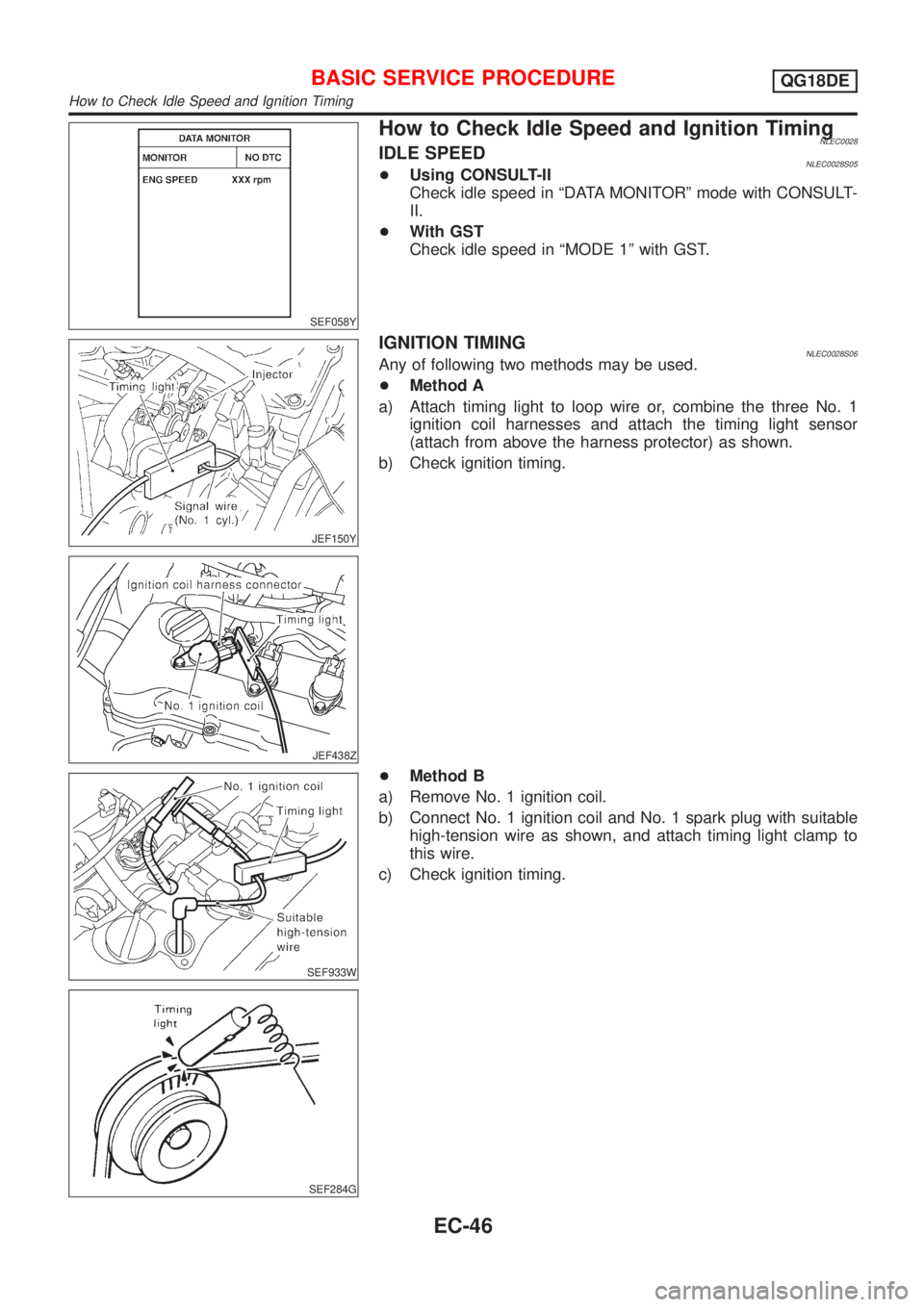

NISSAN ALMERA TINO 2001 Service Repair Manual SEF058Y How to Check Idle Speed and Ignition TimingNLEC0028IDLE SPEEDNLEC0028S05+Using CONSULT-II Check idle speed in ªDATA MONITORº mode with CONSULT- II. +With GST Check idle speed in ªMODE 1º w

Page 472 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF166Y PreparationNLEC0592+Make sure that the following parts are in good order. a)Battery b)Ignition system c)Engine oil and coolant levels d)Fuses e)ECM harness connector f)Vacuum hoses g)Air intak
