Page 153 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT250K SAT812HA SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0269S05After the repair, perform the following procedure to confirm the malfunction is eliminated. With CONSULT-IINLAT0269S05011) Start e

Page 154 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð LPSNLAT0270MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0270S01 YAT183 LINE PRESSURE SENSOREXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð LPS AT-153

Page 155 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLAT0270S02 YAT218 LINE PRESSURE SENSOREXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð LPS (Contd) AT-154

Page 156 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLAT0271 1 CHECK PRESSURE SENSOR Refer to ªComponent Inspectionº, AT-156. OK or NG OK (With CONSULT-II)©GO TO 2. OK (Without CONSULT- II)©GO TO 3. NG©Repair or replace pressur

Page 157 of 3051

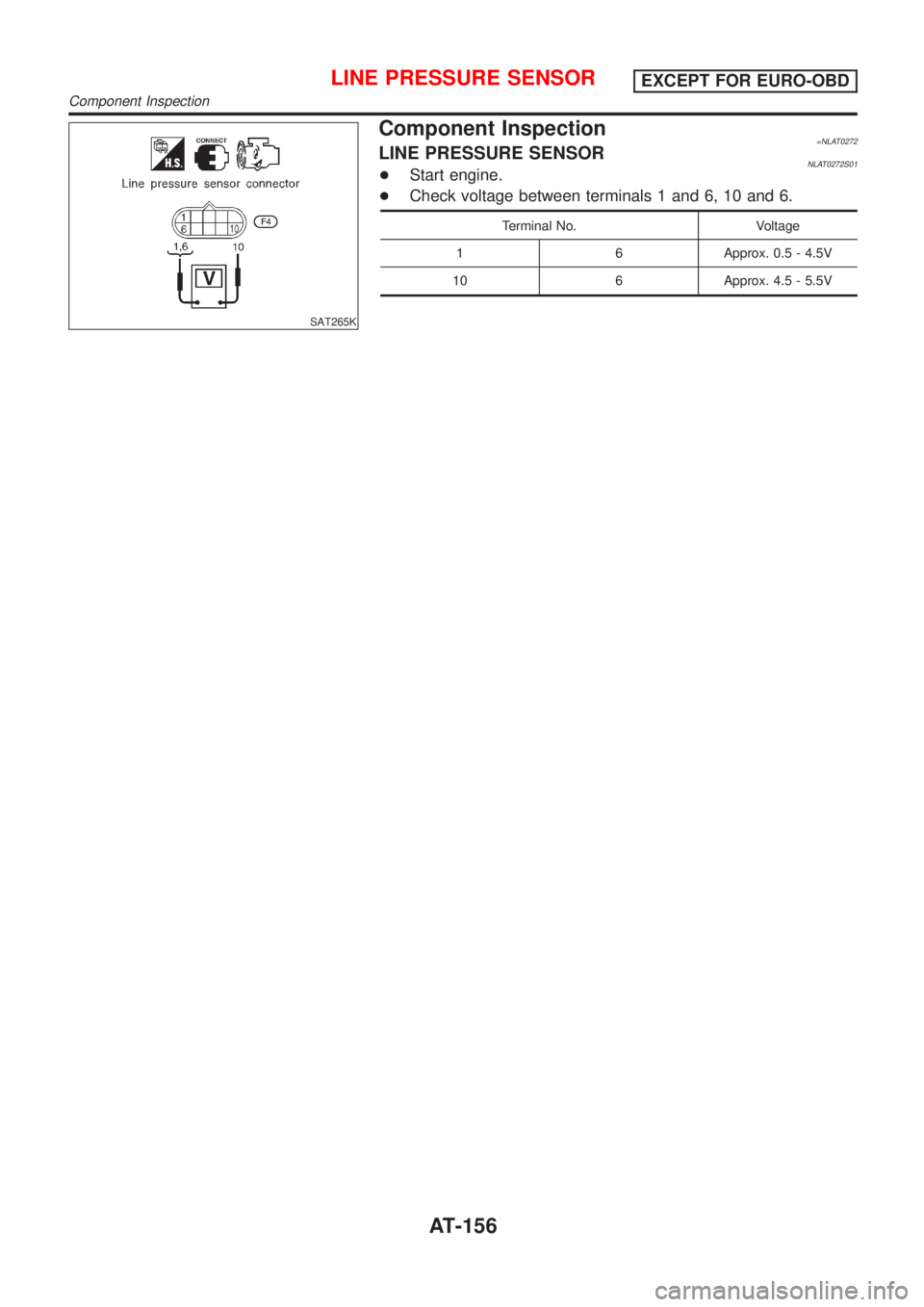

NISSAN ALMERA TINO 2001 Service Repair Manual SAT265K Component Inspection=NLAT0272LINE PRESSURE SENSORNLAT0272S01+Start engine. +Check voltage between terminals 1 and 6, 10 and 6. Terminal No. Voltage 1 6 Approx. 0.5 - 4.5V 10 6 Approx. 4.5 - 5.

Page 158 of 3051

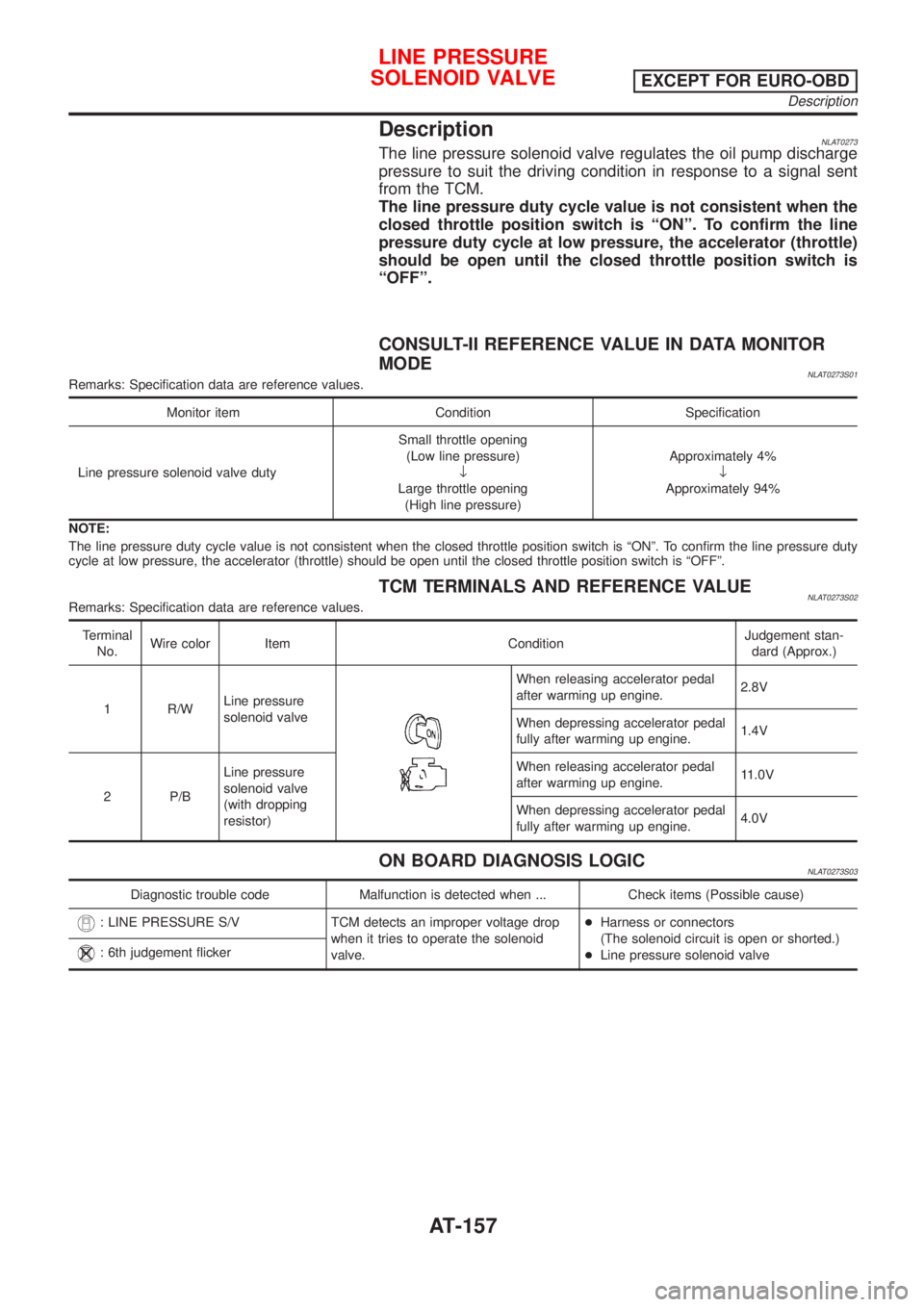

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0273The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM. The line pressure duty cycle valu

Page 159 of 3051

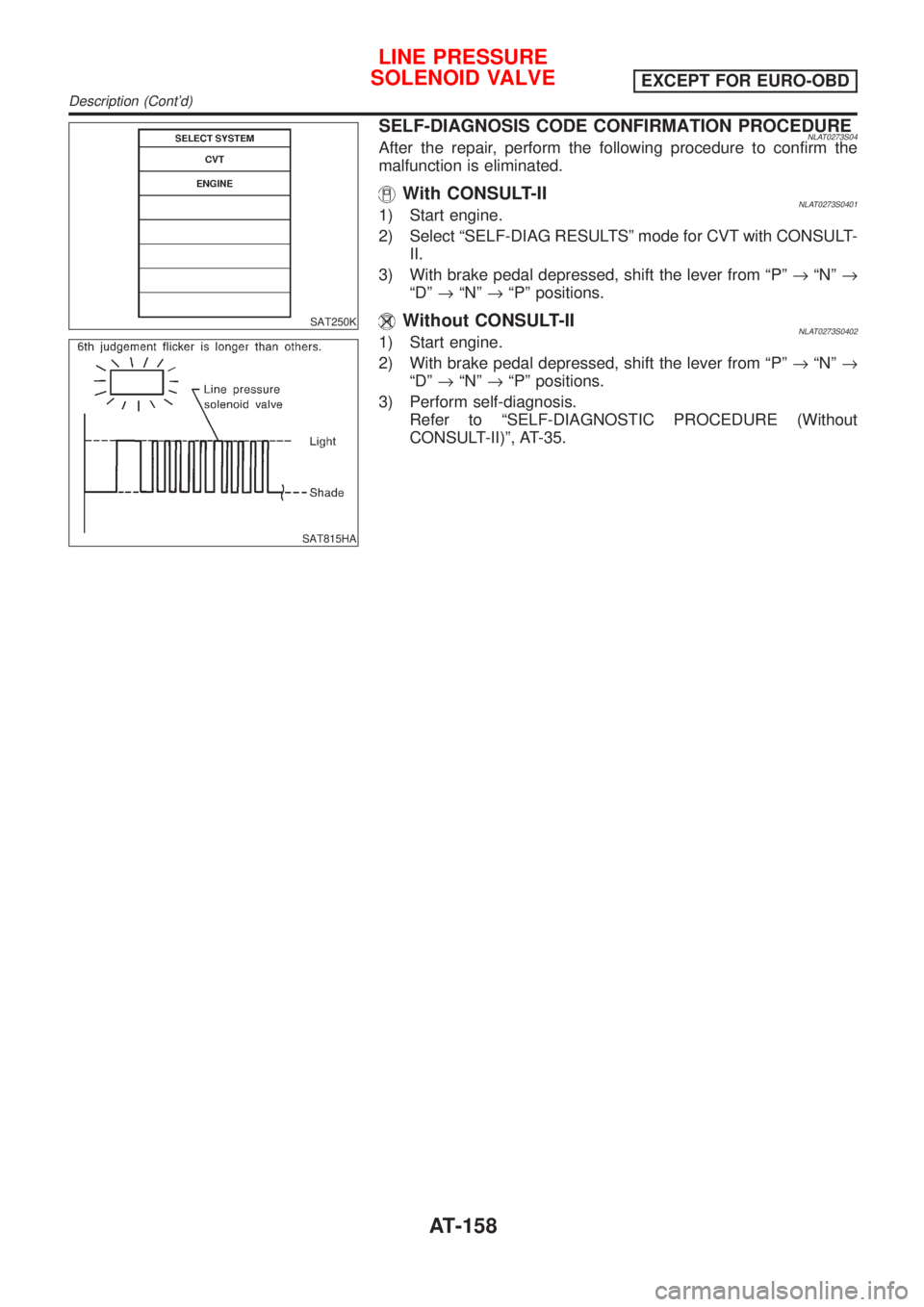

NISSAN ALMERA TINO 2001 Service Repair Manual SAT250K SAT815HA SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0273S04After the repair, perform the following procedure to confirm the malfunction is eliminated. With CONSULT-IINLAT0273S04011) Start e

Page 160 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð LPSVNLAT0274 YAT180 LINE PRESSURE SOLENOID VALVE EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð LPSV AT-159
