Page 2321 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual General SpecificationsNLEM0028 EngineQG18DE ClassificationGasoline Cylinder arrangement4, in-line Displacement cm 3(cu in)1,769 (107.94) Bore´stroke mm (in)80.0´88.0 (3.150´3.465) Valve arrangement

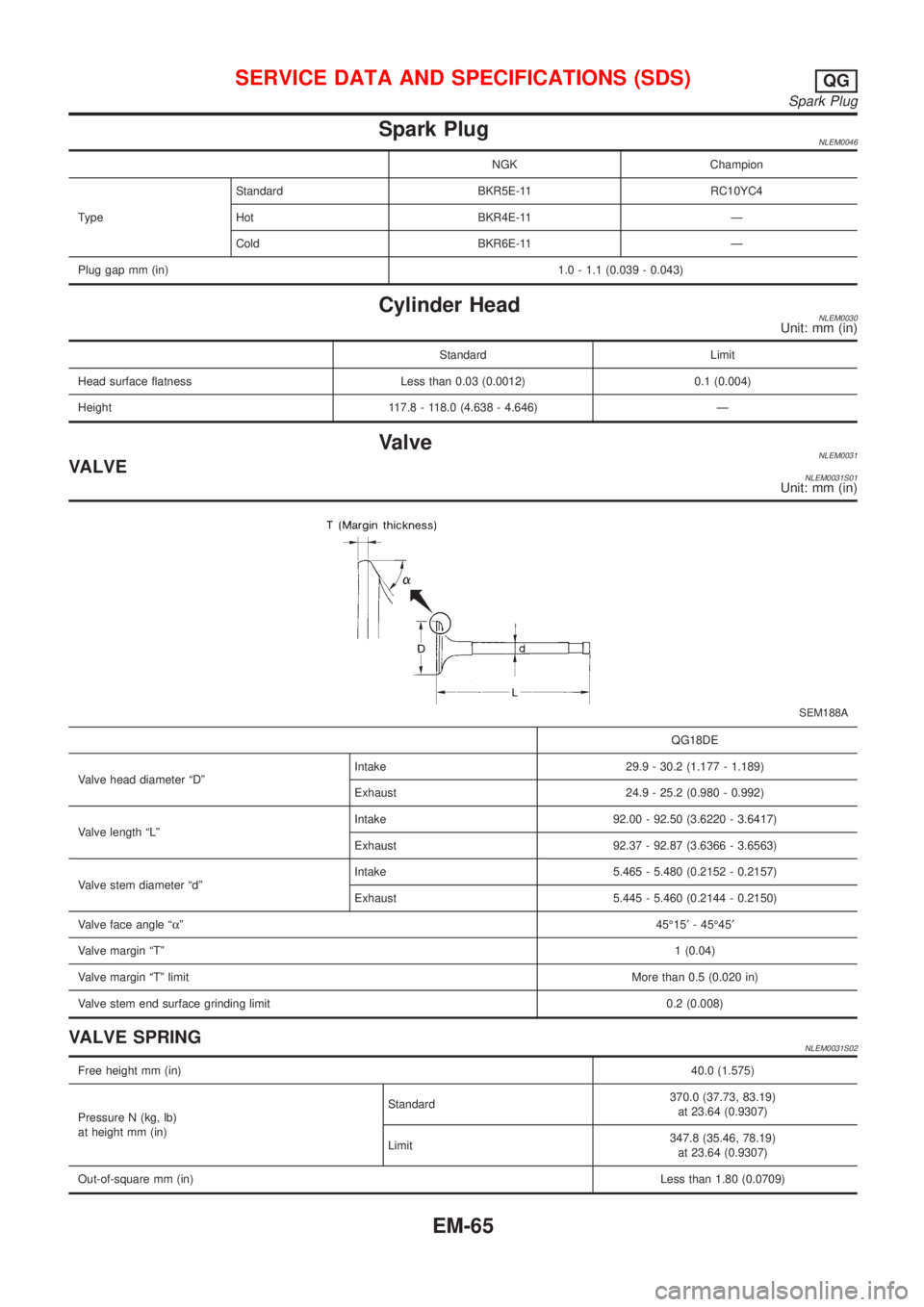

Page 2322 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Spark PlugNLEM0046 NGK Champion TypeStandard BKR5E-11 RC10YC4 Hot BKR4E-11 Ð Cold BKR6E-11 Ð Plug gap mm (in)1.0 - 1.1 (0.039 - 0.043) Cylinder HeadNLEM0030Unit: mm (in) Standard Limit Head surface

Page 2323 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual VALVE LIFTERNLEM0031S10Unit: mm (in) Valve lifter outside diameter 29.960 - 29.975 (1.1795 - 1.1801) Lifter guide inside diameter 30.000 - 30.021 (1.1811 - 1.1819) Clearance between valve lifter and v

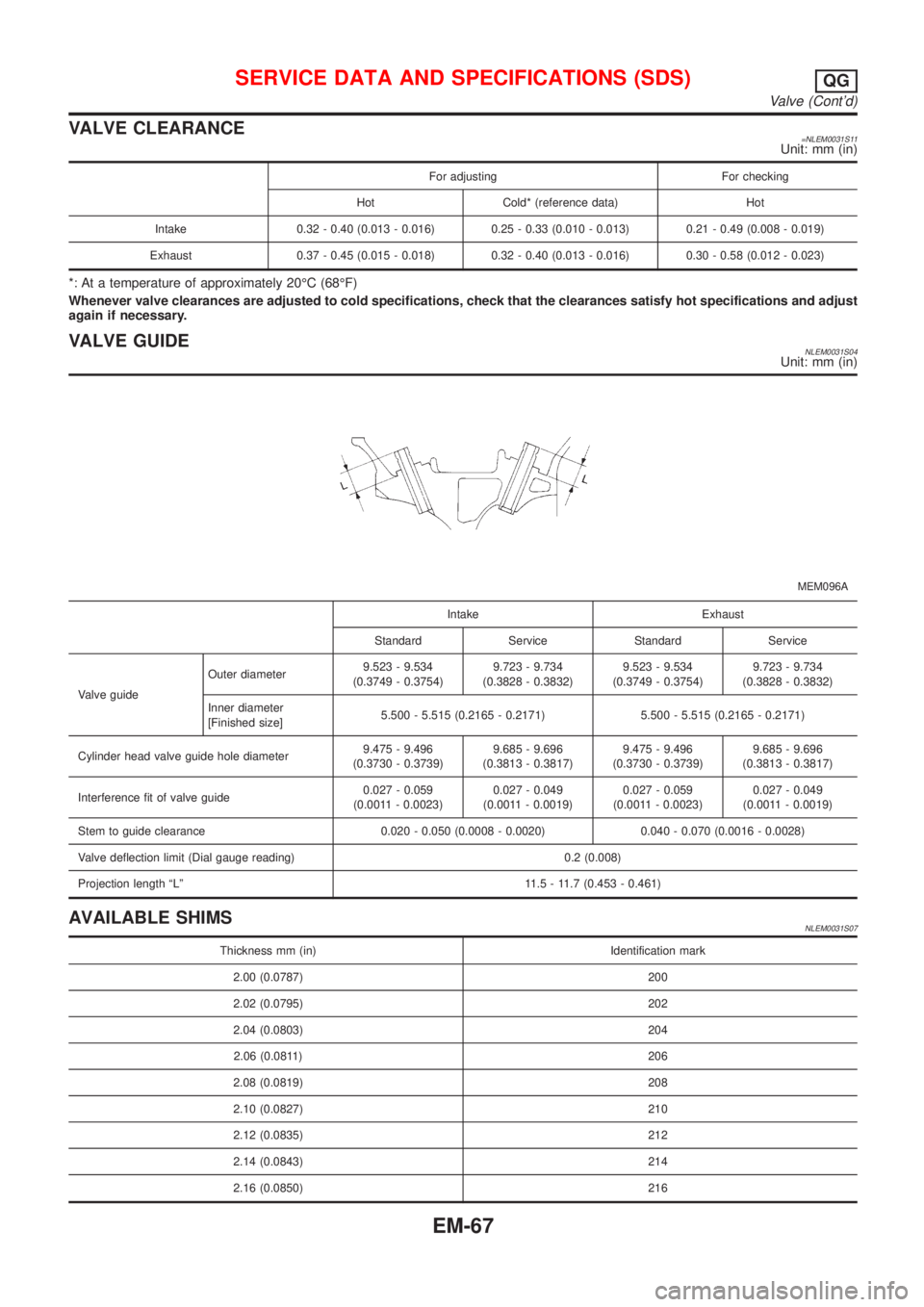

Page 2324 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual VALVE CLEARANCE=NLEM0031S11Unit: mm (in) For adjusting For checking Hot Cold* (reference data) Hot Intake 0.32 - 0.40 (0.013 - 0.016) 0.25 - 0.33 (0.010 - 0.013) 0.21 - 0.49 (0.008 - 0.019) Exhaust 0.

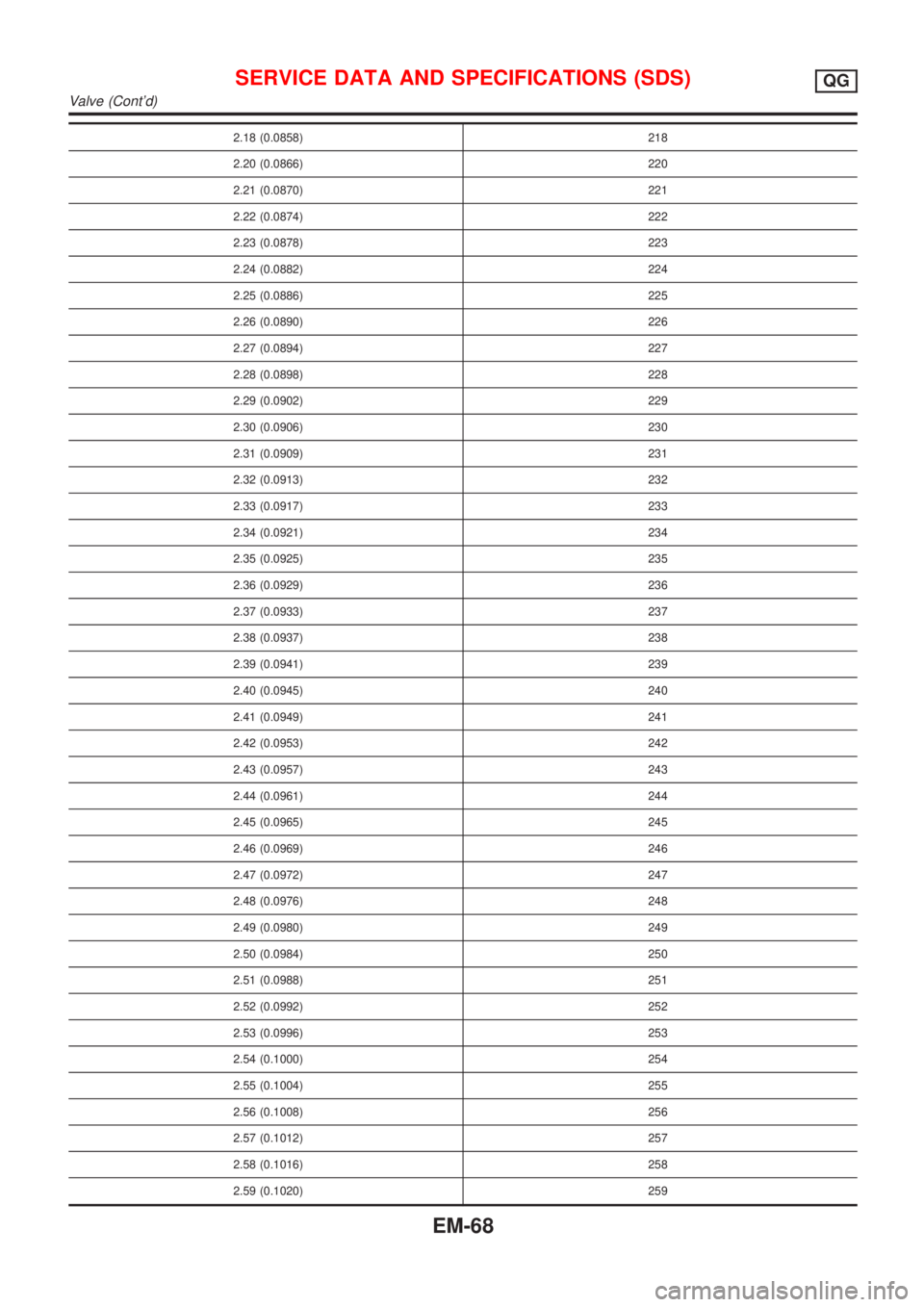

Page 2325 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2.18 (0.0858) 218 2.20 (0.0866) 220 2.21 (0.0870) 221 2.22 (0.0874) 222 2.23 (0.0878) 223 2.24 (0.0882) 224 2.25 (0.0886) 225 2.26 (0.0890) 226 2.27 (0.0894) 227 2.28 (0.0898) 228 2.29 (0.0902) 229 2.

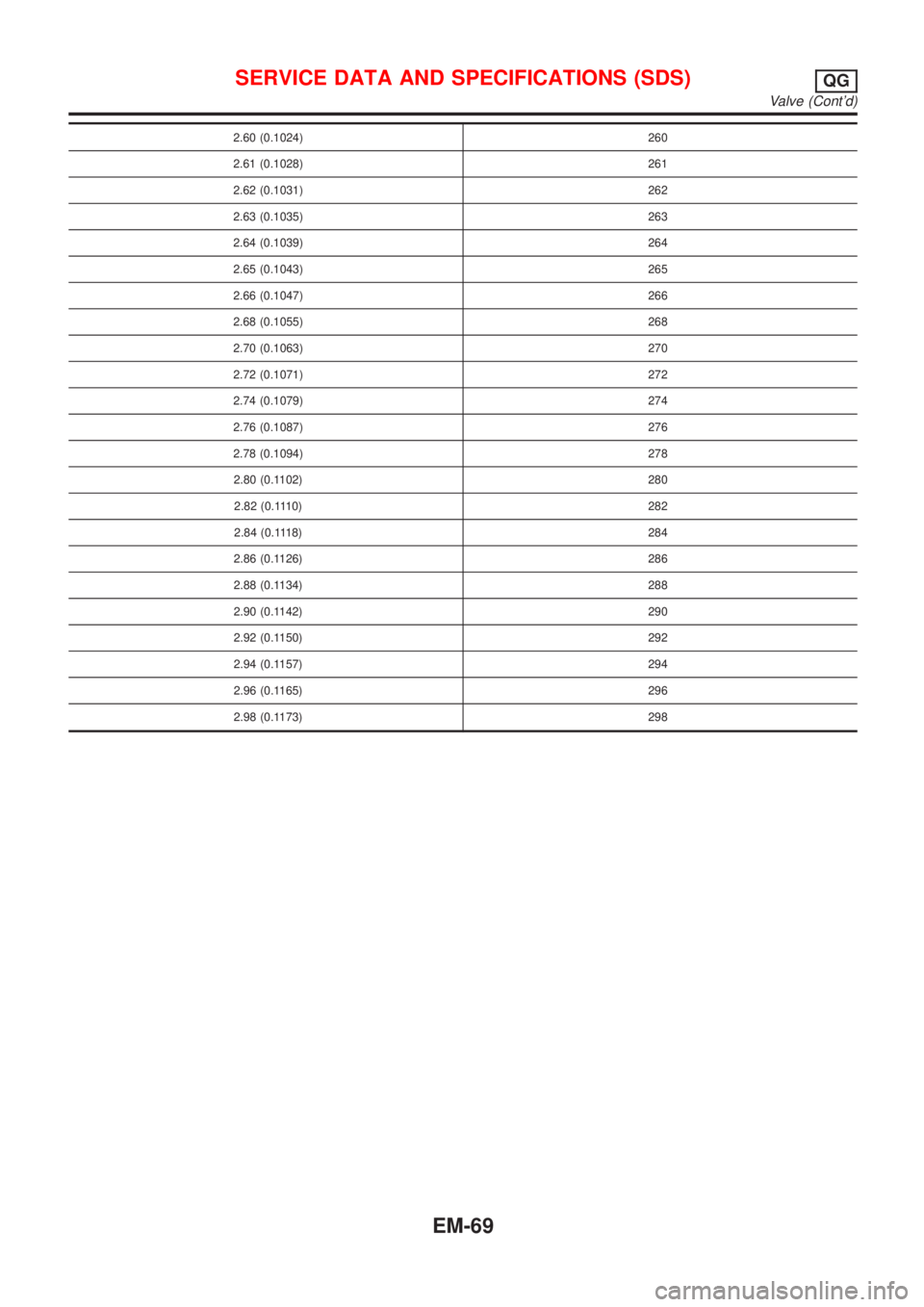

Page 2326 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2.60 (0.1024) 260 2.61 (0.1028) 261 2.62 (0.1031) 262 2.63 (0.1035) 263 2.64 (0.1039) 264 2.65 (0.1043) 265 2.66 (0.1047) 266 2.68 (0.1055) 268 2.70 (0.1063) 270 2.72 (0.1071) 272 2.74 (0.1079) 274 2.

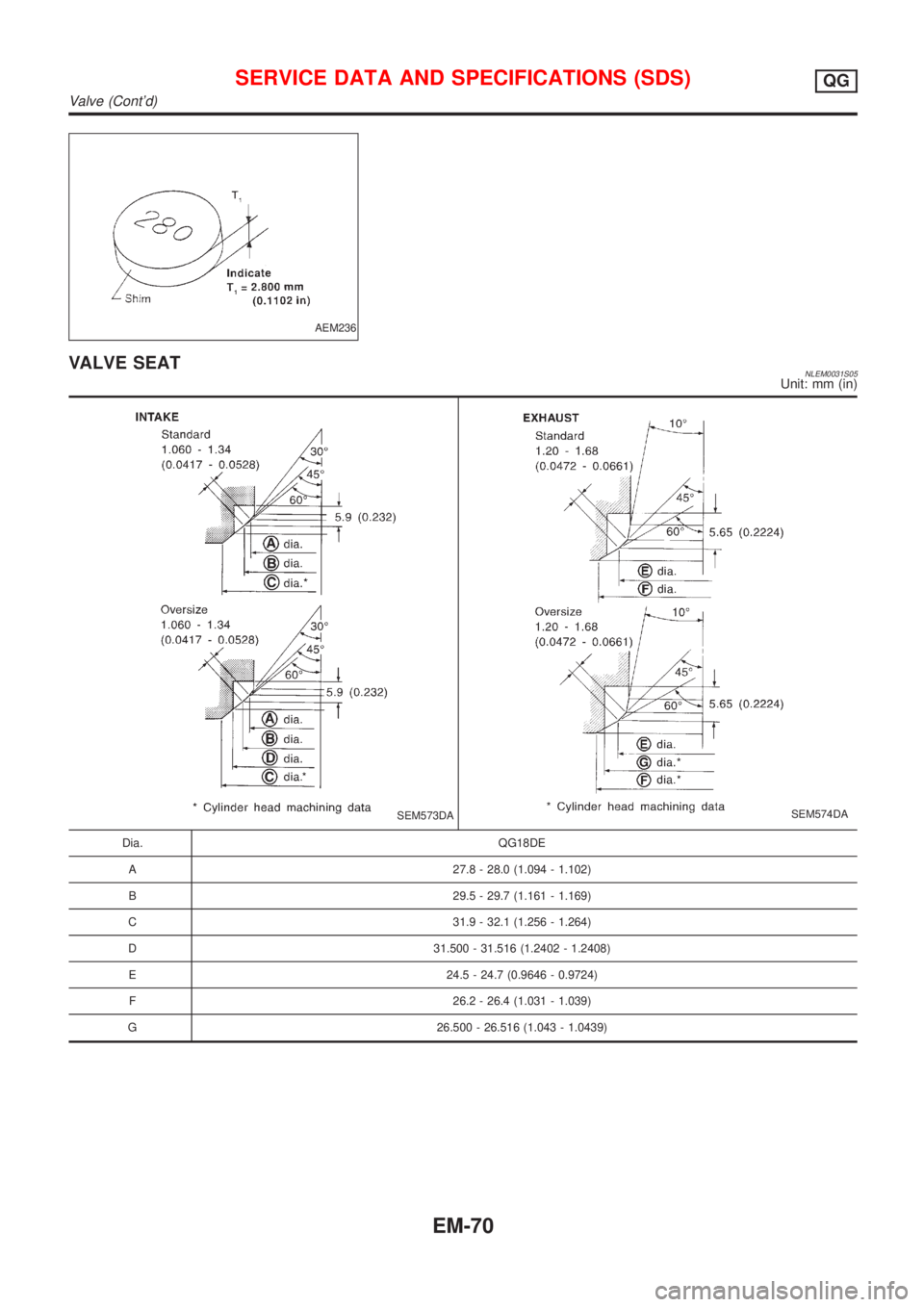

Page 2327 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual AEM236 VALVE SEATNLEM0031S05Unit: mm (in) SEM573DASEM574DA Dia. QG18DE A 27.8 - 28.0 (1.094 - 1.102) B 29.5 - 29.7 (1.161 - 1.169) C 31.9 - 32.1 (1.256 - 1.264) D 31.500 - 31.516 (1.2402 - 1.2408) E 2

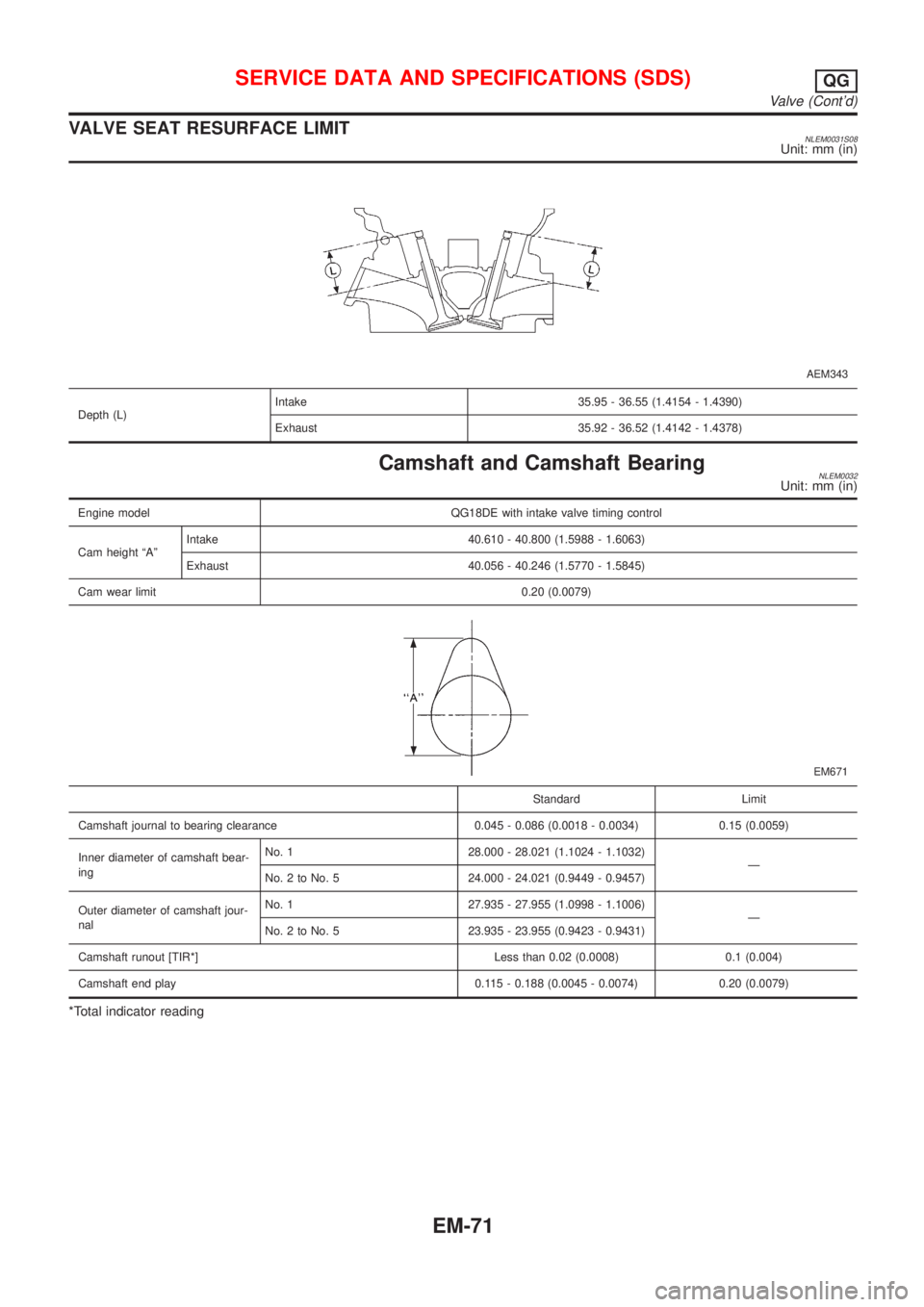

Page 2328 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual VALVE SEAT RESURFACE LIMITNLEM0031S08Unit: mm (in) AEM343 Depth (L)Intake 35.95 - 36.55 (1.4154 - 1.4390) Exhaust 35.92 - 36.52 (1.4142 - 1.4378) Camshaft and Camshaft BearingNLEM0032Unit: mm (in) Eng
