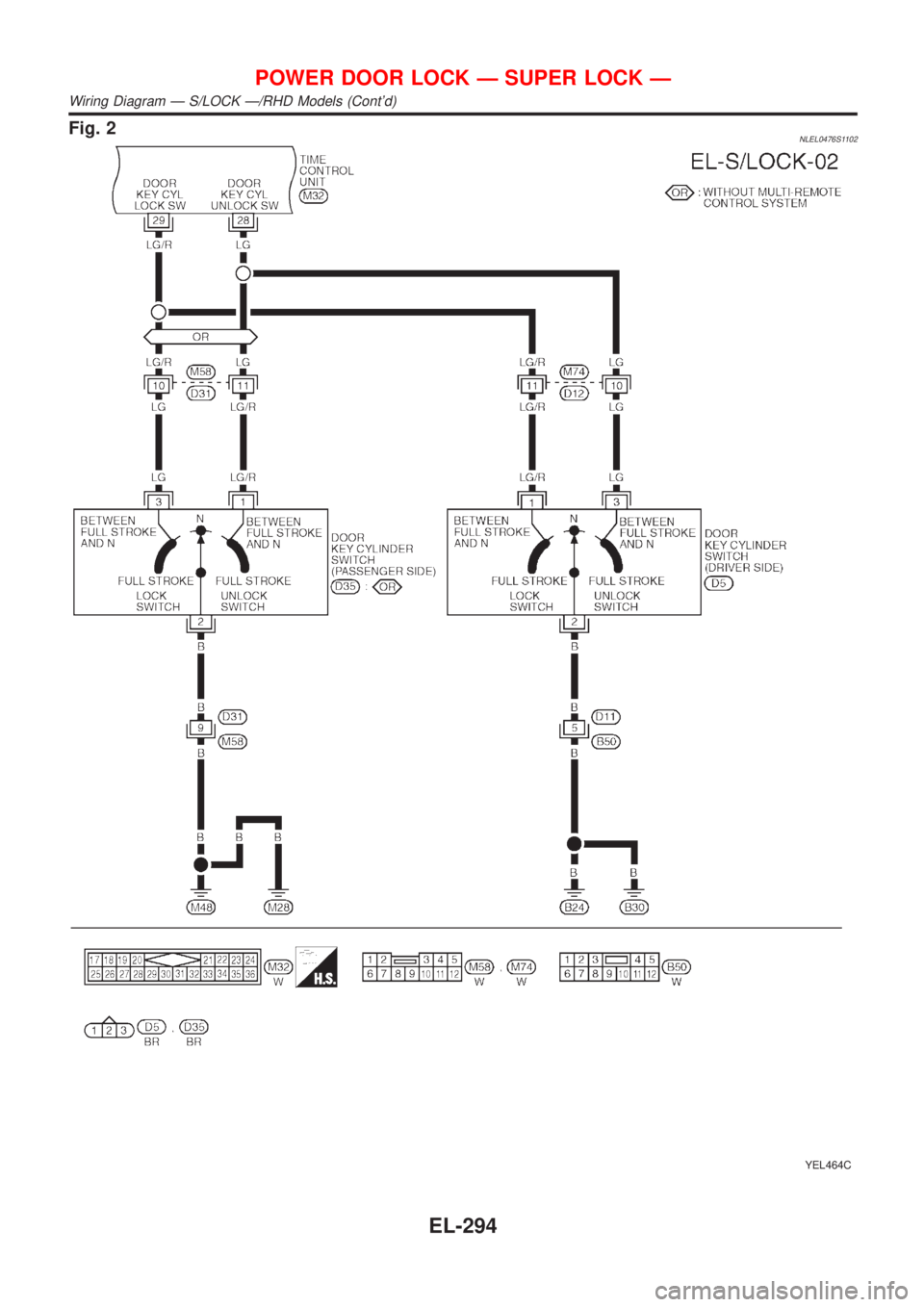

Page 2025 of 3051
Fig. 2NLEL0476S1102
YEL464C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models (Cont'd)
EL-294
Page 2026 of 3051
Fig. 3NLEL0476S1103
YEL465C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models (Cont'd)
EL-295

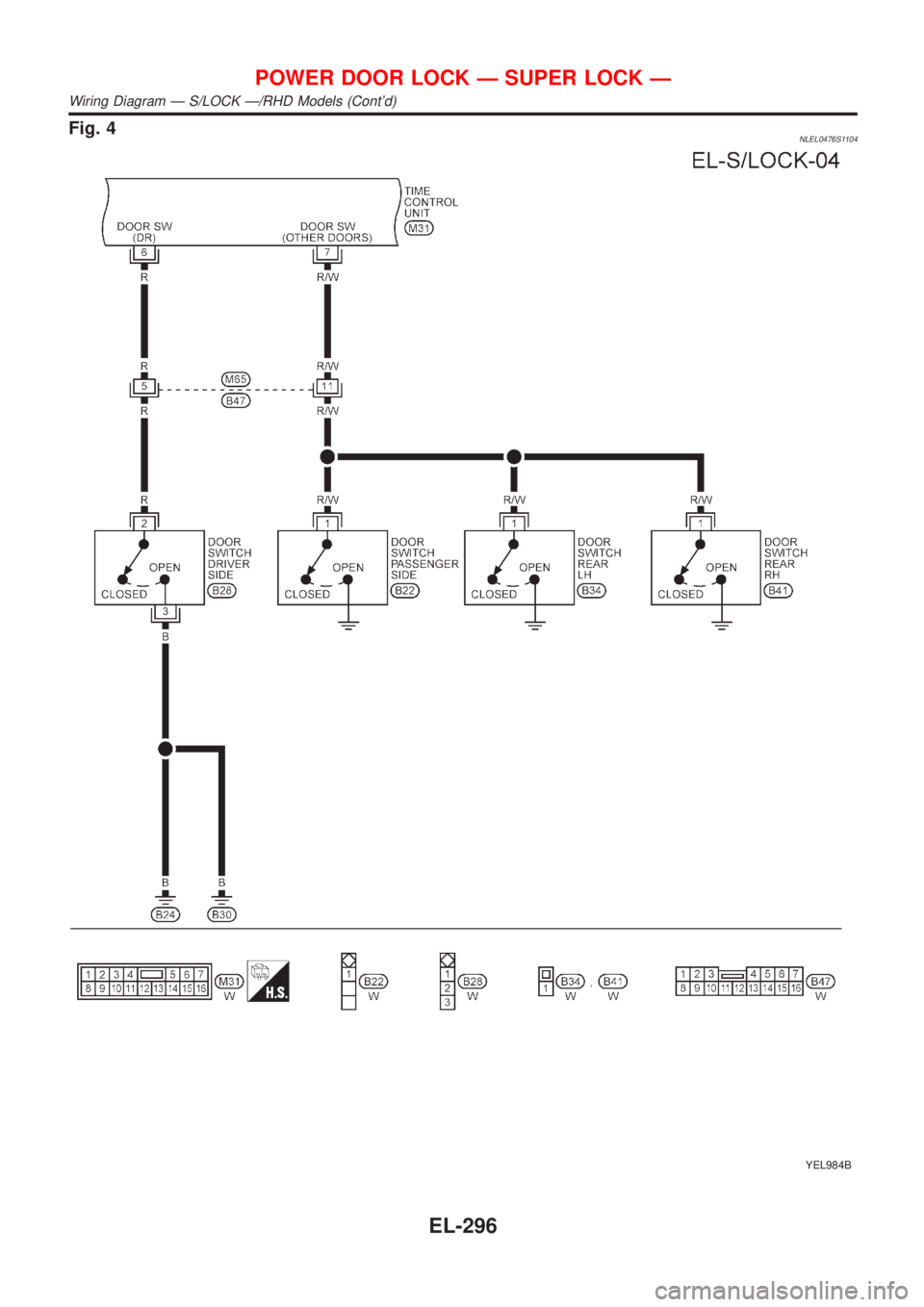

Page 2027 of 3051
Fig. 4NLEL0476S1104
YEL984B
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models (Cont'd)
EL-296

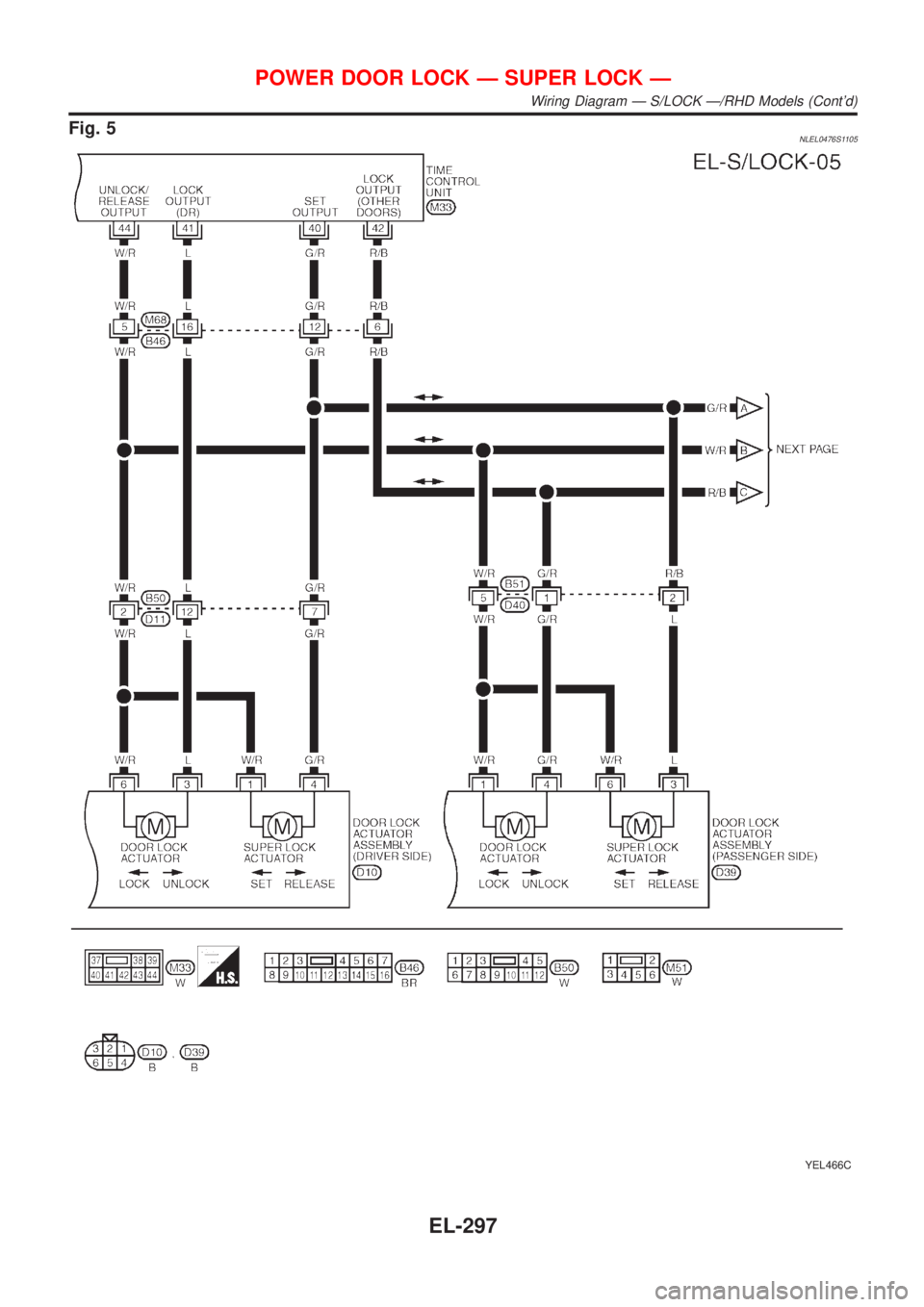

Page 2028 of 3051
Fig. 5NLEL0476S1105
YEL466C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models (Cont'd)
EL-297

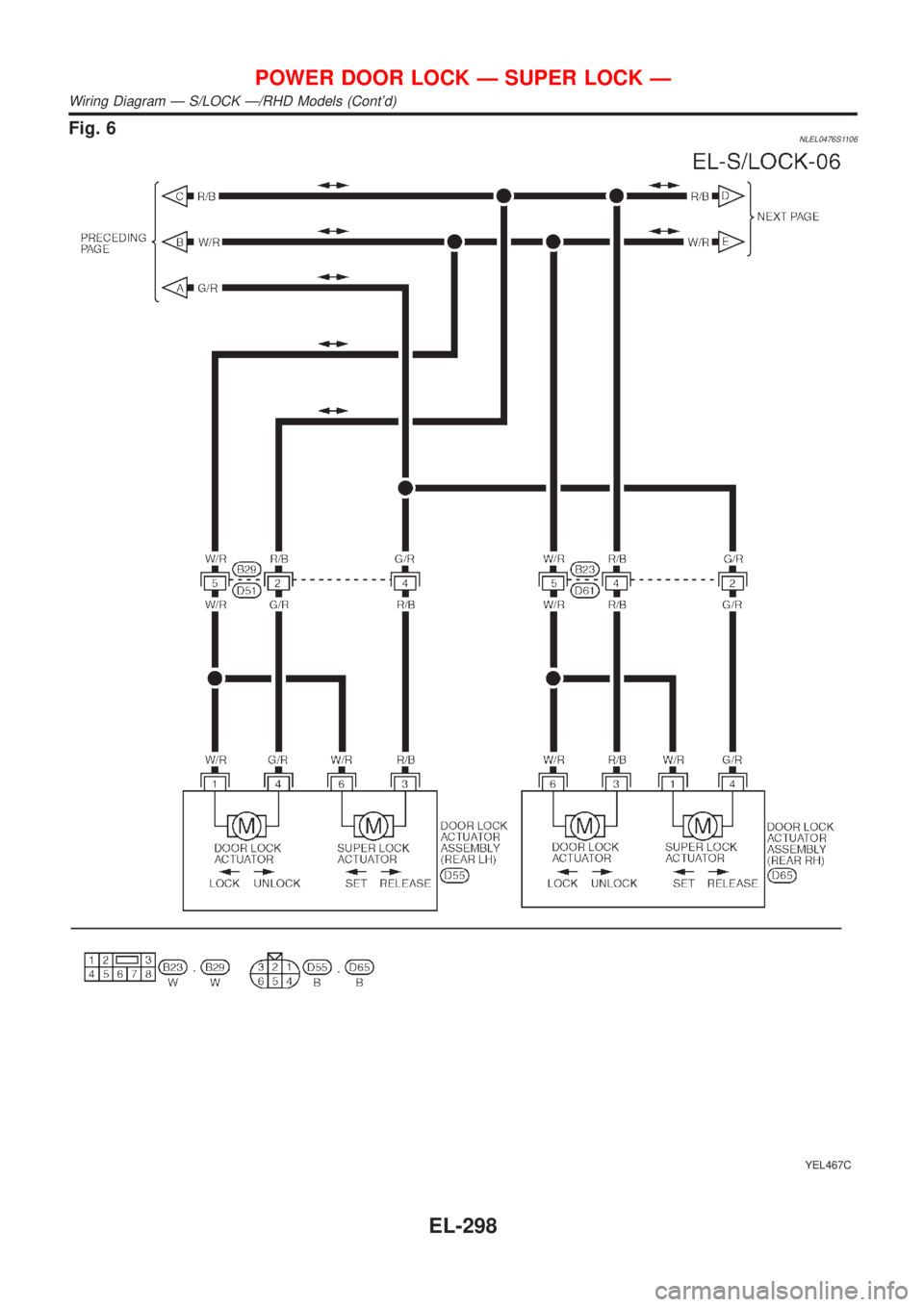

Page 2029 of 3051
Fig. 6NLEL0476S1106
YEL467C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models (Cont'd)
EL-298

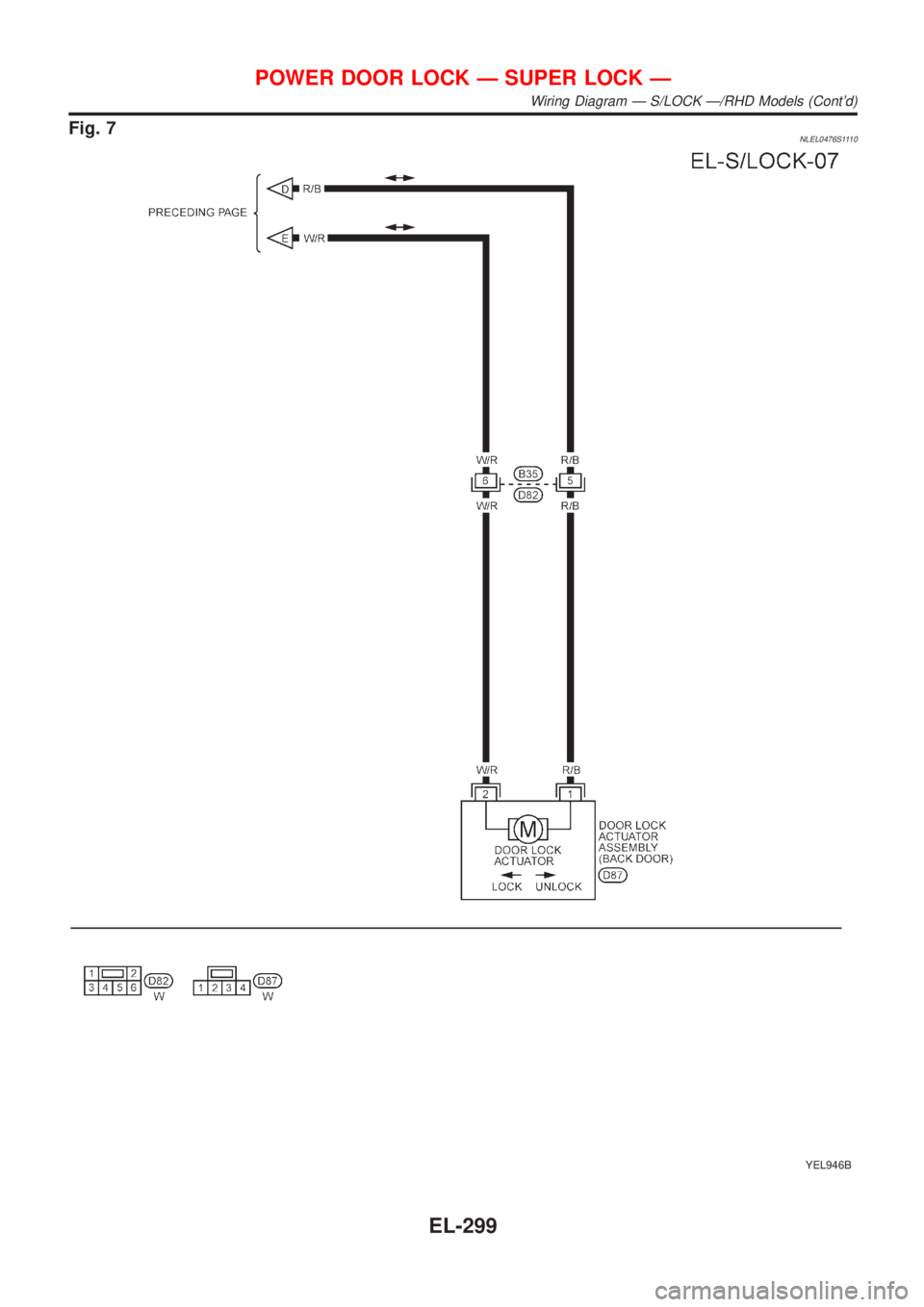

Page 2030 of 3051
Fig. 7NLEL0476S1110
YEL946B
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð/RHD Models (Cont'd)
EL-299

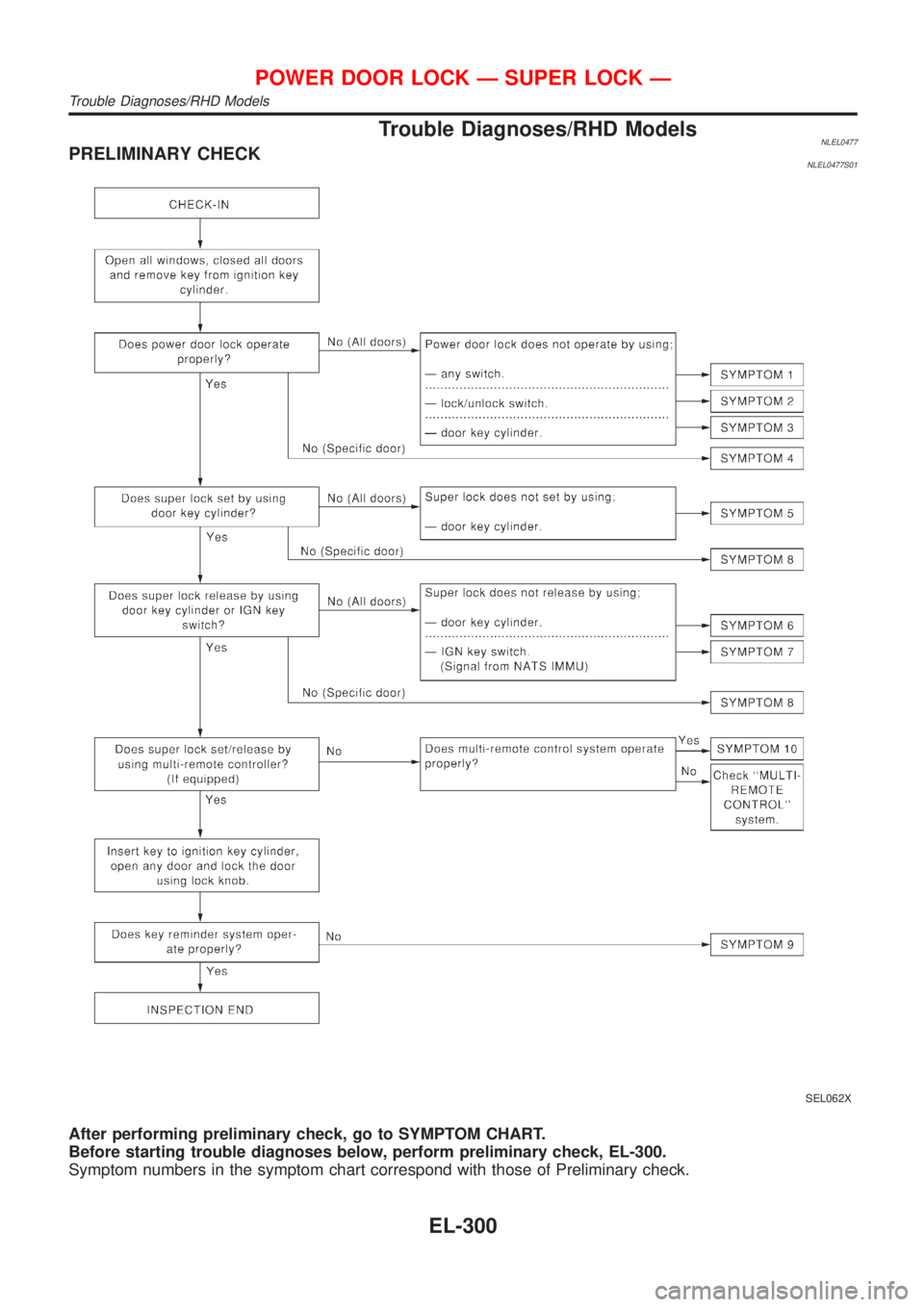

Page 2031 of 3051
Trouble Diagnoses/RHD ModelsNLEL0477PRELIMINARY CHECKNLEL0477S01
SEL062X
After performing preliminary check, go to SYMPTOM CHART.
Before starting trouble diagnoses below, perform preliminary check, EL-300.
Symptom numbers in the symptom chart correspond with those of Preliminary check.
POWER DOOR LOCK Ð SUPER LOCK Ð
Trouble Diagnoses/RHD Models
EL-300
Page 2032 of 3051

SYMPTOM CHARTNLEL0477S02
REFERENCE PAGE (EL- ) 302 303 304 305 307 309 310 311 312 313 313
SYMPTOM
Main power supply and ground circuit check
Door lock/unlock switch check
Door key cylinder switch check
Door lock actuator check
Super lock actuator check
Door switch check
Door unlock sensor check
NATS release signal check
Key switch check
Ignition switch ªONº circuit check
Remote controller signal check
1Power door lock does not operate
using any switch.XX
2Power door lock does not operate
with lock/unlock switch.X
3Power door lock does not operate
with door key cylinder switch.X
4Specific door lock actuator does
not operate.X
5Super lock cannot be set by door
key cylinder.XX XX
6*Super lock cannot be released
by door key cylinder.XX
7*Super lock cannot be released
by ignition key switch. (Signal
from NATS IMMU)XXX
8Specific super lock actuator does
not operate.X
9*Key reminder system does not
operate.XX X
10Super lock cannot be set/released
by using multi-remote controller.X
X: Applicable
*: Make sure the power door lock system operates properly.
POWER DOOR LOCK Ð SUPER LOCK Ð
Trouble Diagnoses/RHD Models (Cont'd)
EL-301
