SELF-DIAGNOSTIC RESULTS MODE=NLBR0093S02
Diagnostic item Diagnostic item is detected when ...Reference
Page
FR RH SENSOR
[OPEN]*1+Circuit for front right wheel sensor is open.
(An abnormally high input voltage is entered.)BR-71
FR LH SENSOR
[OPEN]*1+Circuit for front left wheel sensor is open.
(An abnormally high input voltage is entered.)BR-71
RR RH SENSOR
[OPEN]*1+Circuit for rear right sensor is open.
(An abnormally high input voltage is entered.)BR-71
RR LH SENSOR
[OPEN]*1+Circuit for rear left sensor is open.
(An abnormally high input voltage is entered.)BR-71
FR RH SENSOR
[SHORT]*1+Circuit for front right wheel sensor is shorted.
(An abnormally low input voltage is entered.)BR-71
FR LH SENSOR
[SHORT]*1+Circuit for front left wheel sensor is shorted.
(An abnormally low input voltage is entered.)BR-71
RR RH SENSOR
[SHORT]*1+Circuit for rear right sensor is shorted.
(An abnormally low input voltage is entered.)BR-71
RR LH SENSOR
[SHORT]*1+Circuit for rear left sensor is shorted.
(An abnormally low input voltage is entered.)BR-71
ABS SENSOR
[ABNORMAL SIGNAL]+Teeth damage on sensor rotor or improper installation of wheel sensor.
(Abnormal wheel sensor signal is entered.)BR-71
FR RH IN ABS SOL
[OPEN]+Circuit for front right inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
FR LH IN ABS SOL
[OPEN]+Circuit for front left inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
RR RH IN ABS SOL
[OPEN]+Circuit for rear right inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
RR LH IN ABS SOL
[OPEN]+Circuit for rear left inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
FR RH IN ABS SOL
[SHORT]+Circuit for front right inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
FR LH IN ABS SOL
[SHORT]+Circuit for front left inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
RR RH IN ABS SOL
[SHORT]+Circuit for rear right inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
RR LH IN ABS SOL
[SHORT]+Circuit for rear left inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
FR RH OUT ABS SOL
[OPEN]+Circuit for front right outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
FR LH OUT ABS SOL
[OPEN]+Circuit for front left outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
RR RH OUT ABS SOL
[OPEN]+Circuit for rear right outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
RR LH OUT ABS SOL
[OPEN]+Circuit for rear left outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-74
FR RH OUT ABS SOL
[SHORT]+Circuit for front right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
FR LH OUT ABS SOL
[SHORT]+Circuit for front left outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont’d)
BR-60
Page 298 of 3051
![NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic item Diagnostic item is detected when ...Reference
Page
RR RH OUT ABS SOL
[SHORT]+Circuit for rear right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR- NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic item Diagnostic item is detected when ...Reference
Page
RR RH OUT ABS SOL
[SHORT]+Circuit for rear right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-](/manual-img/5/57352/w960_57352-297.png)
Diagnostic item Diagnostic item is detected when ...Reference
Page
RR RH OUT ABS SOL
[SHORT]+Circuit for rear right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
RR LH OUT ABS SOL
[SHORT]+Circuit for rear left outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-74
ABS ACTUATOR RELAY
[ABNORMAL]+Actuator solenoid valve relay is ON, even control unit sends off signal.
+Actuator solenoid valve relay is OFF, even control unit sends on signal.BR-74
ABS MOTOR RELAY
[ABNORMAL]+Circuit for actuator motor is open or shorted.
+Actuator motor relay is stuck.BR-77
BATTERY VOLT
[ABNORMAL]+Power source voltage supplied to ABS control unit is abnormally low. BR-79
CONTROL UNIT+Function of calculation in ABS control unit has failed. BR-81
*1: Be sure to confirm the ABS warning lamp illuminates when the ignition switch is turned ON after repairing the shorted sensor circuit,
but the lamp goes out when driving the vehicle over 30 km/h (19 MPH) for one minute in accordance with SELF-DIAGNOSIS
PROCEDURE.
PBR455D
DATA MONITOR PROCEDURENLBR0093S031. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.
4. Touch“START”on CONSULT-II screen.
C2SSE01
5. Touch“ABS”.
C2SDM01
6. Touch“DATA MONITOR”.
7. Touch“SETTING”on“SELECT MONITOR ITEM”screen.
8. Touch“LONG TIME”on“SET RECORDING COND”screen.
9. Touch“START”on“SELECT MONITOR ITEM”.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont’d)
BR-61
Page 299 of 3051
PBR455D
ACTIVE TEST PROCEDURENLBR0093S04+When conducting Active test, vehicle must be stationary.
+When ABS warning lamp stays on, never conduct Active test.
1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
3. Start engine.
4. Touch“START”on CONSULT-II screen.
C2SSE01
5. Touch“ABS”.
C2SDM01
6. Touch“ACTIVE TEST”.
PBR976C
7. Select active test item by touching screen.
PBR934C
8. Touch“START”.
9. Carry out the active test by touching screen key.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont’d)
BR-62
Page 300 of 3051

DATA MONITOR MODENLBR0093S05
MONITOR ITEM CONDITION SPECIFICATION
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSORDrive vehicle.
(Each wheel is rotating.)Displays computed vehicle speed from wheel sensor signal.
Almost the same speed as speedometer.
STOP LAMP SWTurn ignition switch ON and
depress brake pedal.Depress the pedal: ON
Release the pedal: OFF
FR RH IN SOL
FR RH OUT SOL
FR LH IN SOL
FR LH OUT SOL
RR IN SOL
RR OUT SOL
RL IN SOL
RL OUT SOLIgnition switch is turned ON or
engine is running.Operating conditions for each solenoid valve are indicated.
ABS is not operating: OFF
ACTUATOR RELAY
Ignition switch is turned ON or
engine is running.Displays ON/OFF condition of ABS actuator relay.
When turning ignition switch ON, ABS actuator relay is oper-
ated.
MOTOR RELAYABS is not operating: OFF
ABS is operating: ON
WARNING LAMPWarning lamp is turned on: ON
Warning lamp is turned off: OFF
BATTERY VOLT Power supply voltage for control unit
ACTIVE TEST MODENLBR0093S06
TEST ITEM CONDITION JUDGEMENT
FR RH SOLENOID
FR LH SOLENOID
RR RH SOLENOID
RR LH SOLENOID
Ignition switch is turned ON.Brake fluid pressure control operation
IN SOL OUT SOL
UP (Increase): OFF OFF
KEEP (Hold): ON OFF
DOWN (Decrease): ON ON
ABS MOTORABS actuator motor
ON: Motor runs
OFF: Motor stops
NOTE:
Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont’d)
BR-63
Page 301 of 3051

SEF233G
SEF234G
How to Perform Trouble Diagnoses for Quick
and Accurate Repair
NLBR0094INTRODUCTIONNLBR0094S01The ABS system has an electronic control unit to control major
functions. The control unit accepts input signals from sensors and
instantly drives actuator. It is essential that both kinds of signals are
proper and stable. It is also important to check for conventional
problems: such as air leaks in the booster or lines, lack of brake
fluid, or other problems with the brake system.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or faulty wiring. In this case,
careful checking of suspicious circuits may help prevent the
replacement of good parts.
A visual check only may not find the cause of the problems, so a
road test should be performed.
Before undertaking actual checks, take just a few minutes to talk
with a customer who approaches with a ABS complaint. The cus-
tomer is a very good source of information on such problems;
especially intermittent ones. Through the talks with the customer,
find out what symptoms are present and under what conditions
they occur.
Start your diagnosis by looking for“conventional”problems first.
This is one of the best ways to troubleshoot brake problems on an
ABS controlled vehicle. Also check related Service Bulletins for
information.
TROUBLE DIAGNOSIS—INTRODUCTIONABS
How to Perform Trouble Diagnoses for Quick and Accurate Repair
BR-64
Page 302 of 3051
Preliminary CheckNLBR0095
1 CHECK BRAKE FLUID LEVEL
Check brake fluid level in reservoir tank.
Low fluid level may indicate brake pad wear or leakage from brake line.
NBR376
Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?
Ye s©GO TO 2.
No©Repair. GO TO 2.
2 CHECK BRAKE LINE
Check brake line for leakage.
SBR389C
Is leakage present at or around brake lines, tubes or hoses or are any of these parts cracked or damaged?
Ye s©GO TO 3.
No©Repair. GO TO 3.
TROUBLE DIAGNOSIS—BASIC INSPECTIONABS
Preliminary Check
BR-65
Page 303 of 3051

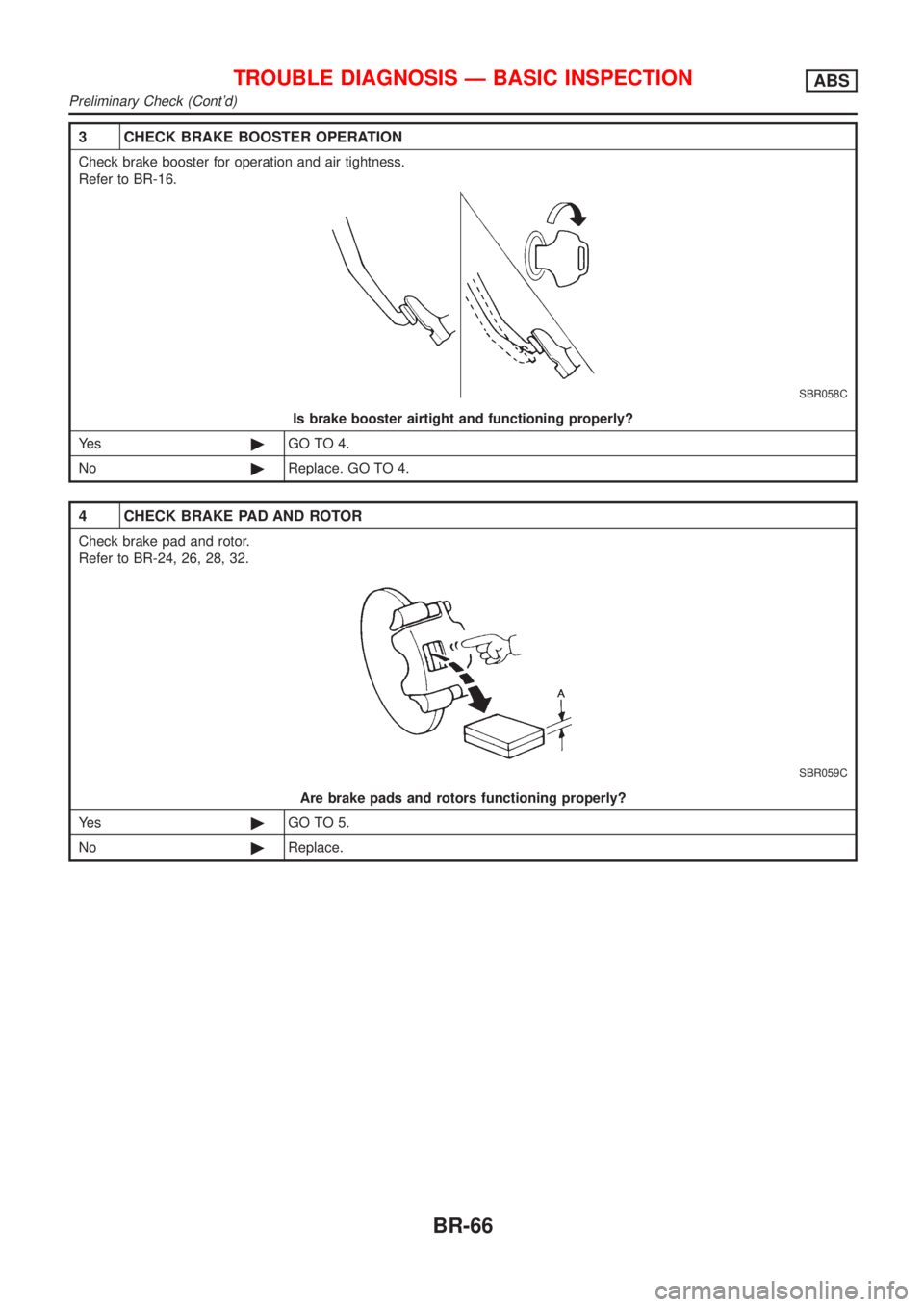

3 CHECK BRAKE BOOSTER OPERATION
Check brake booster for operation and air tightness.
Refer to BR-16.
SBR058C
Is brake booster airtight and functioning properly?
Ye s©GO TO 4.
No©Replace. GO TO 4.
4 CHECK BRAKE PAD AND ROTOR
Check brake pad and rotor.
Refer to BR-24, 26, 28, 32.
SBR059C
Are brake pads and rotors functioning properly?
Ye s©GO TO 5.
No©Replace.
TROUBLE DIAGNOSIS Ð BASIC INSPECTIONABS
Preliminary Check (Cont'd)
BR-66
Page 304 of 3051
5 RECHECK BRAKE FLUID LEVEL
Check brake fluid level in reservoir tank again.
NBR376
Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?
Ye s©GO TO 6.
No©Fill up brake fluid.
6 CHECK WARNING LAMP ACTIVATION
Check warning lamp activation.
SBR759E
Does warning lamp turn on when ignition switch is turned“ON”?
Ye s©GO TO 7.
No©Check fuse, warning lamp bulb and warning lamp circuit.
7 CHECK WARNING LAMP DEACTIVATION
Check warning lamp for deactivation after engine is started.
Does warning lamp turn off when engine is started?
Ye s©GO TO 8.
No©Go to Self-diagnosis. Refer to BR-56, 58.
8 DRIVE VEHICLE
Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.
Does warning lamp remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?
Ye s©END
No©Go to Self-diagnosis. Refer to BR-56, 58.
TROUBLE DIAGNOSIS—BASIC INSPECTIONABS
Preliminary Check (Cont’d)
