Page 2033 of 3051

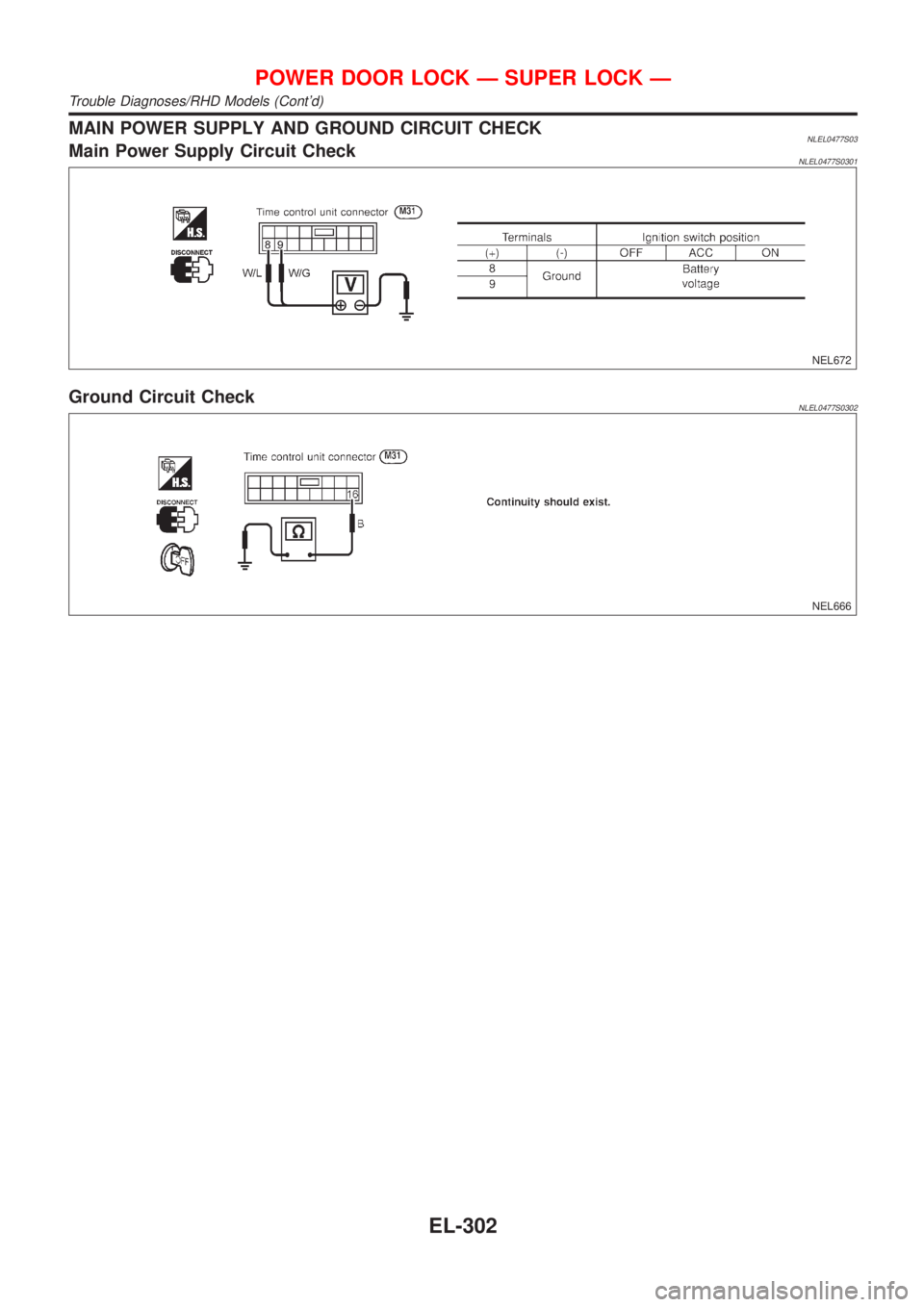

NISSAN ALMERA TINO 2001 Service Repair Manual MAIN POWER SUPPLY AND GROUND CIRCUIT CHECKNLEL0477S03Main Power Supply Circuit CheckNLEL0477S0301 NEL672 Ground Circuit CheckNLEL0477S0302 NEL666 POWER DOOR LOCK Ð SUPER LOCK Ð Trouble Diagnoses/RHD

Page 2034 of 3051

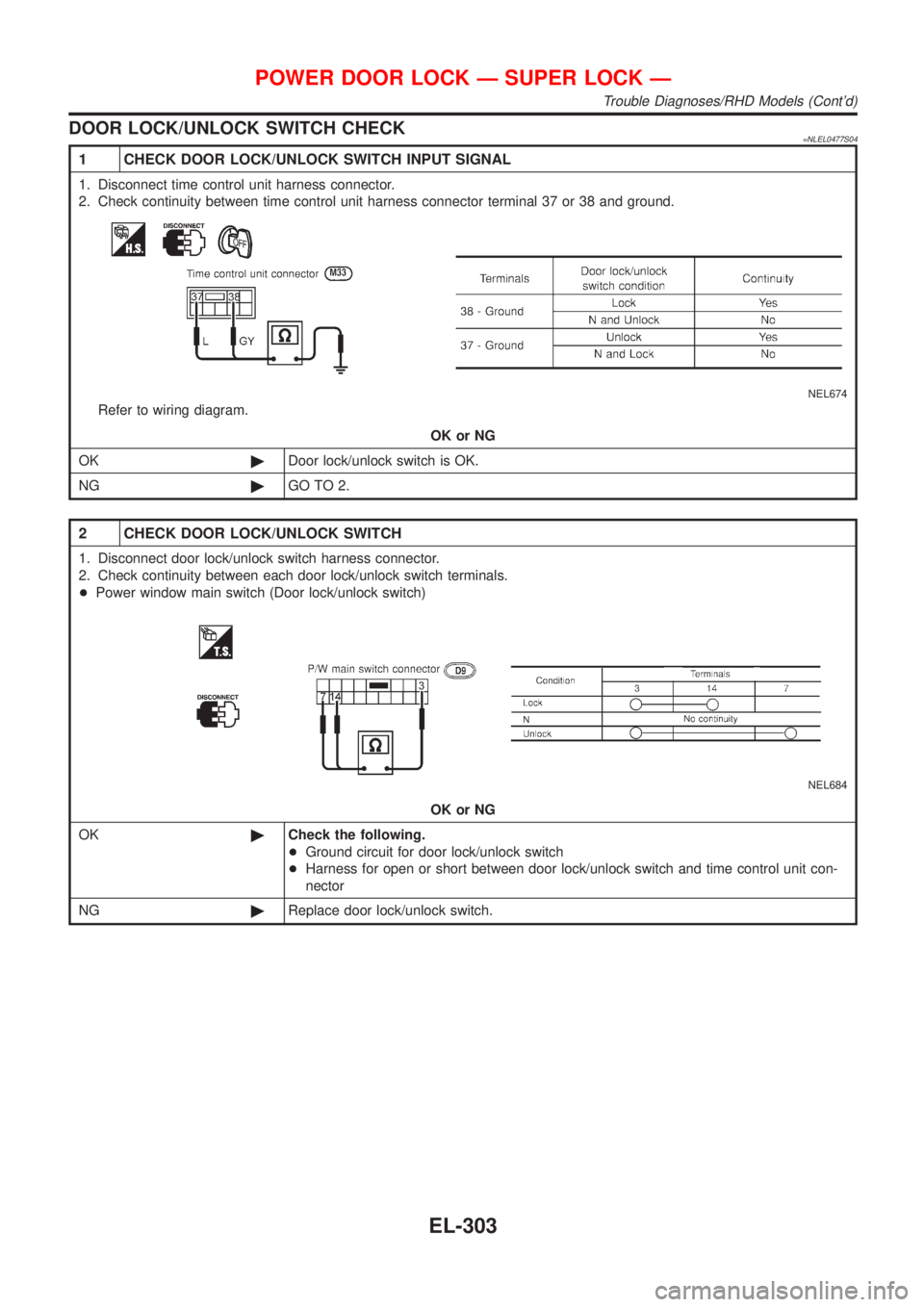

NISSAN ALMERA TINO 2001 Service Repair Manual DOOR LOCK/UNLOCK SWITCH CHECK=NLEL0477S04 1 CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL 1. Disconnect time control unit harness connector. 2. Check continuity between time control unit harness connecto

Page 2035 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DOOR KEY CYLINDER SWITCH CHECKNLEL0477S05 1 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL) Check voltage between time control unit harness connector terminals 28 or 29 and ground. NE

Page 2036 of 3051

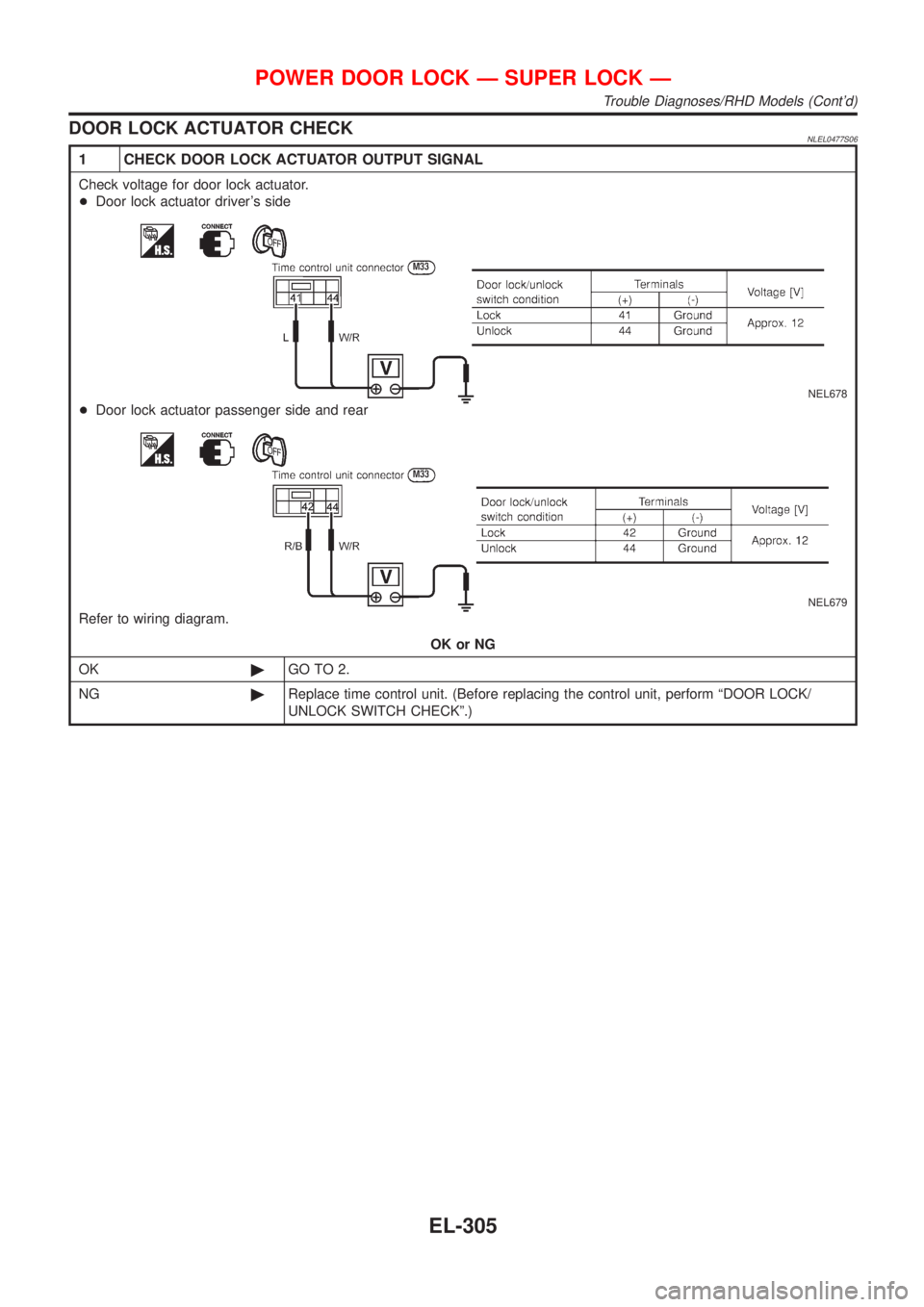

NISSAN ALMERA TINO 2001 Service Repair Manual DOOR LOCK ACTUATOR CHECKNLEL0477S06 1 CHECK DOOR LOCK ACTUATOR OUTPUT SIGNAL Check voltage for door lock actuator. +Door lock actuator drivers side NEL678 +Door lock actuator passenger side and rear

Page 2037 of 3051

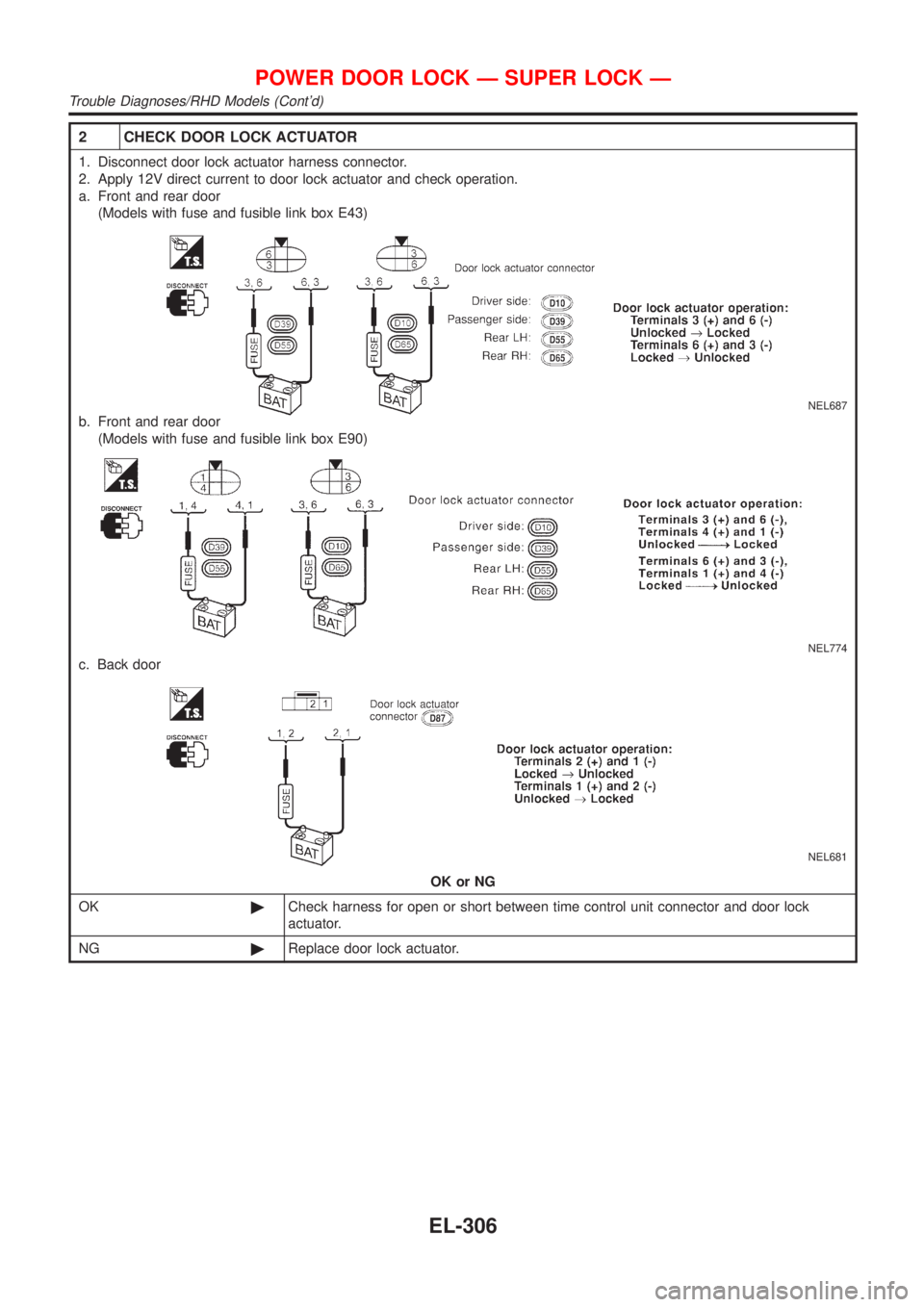

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK DOOR LOCK ACTUATOR 1. Disconnect door lock actuator harness connector. 2. Apply 12V direct current to door lock actuator and check operation. a. Front and rear door (Models with fuse and fusib

Page 2038 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SUPER LOCK ACTUATOR CHECKNLEL0477S07 1 CHECK OUTPUT SIGNAL FOR SUPER LOCK ACTUATOR Check voltage for super lock actuator. NEL688 Refer to wiring diagram. OK or NG OK©GO TO 2. NG©Replace time control

Page 2039 of 3051

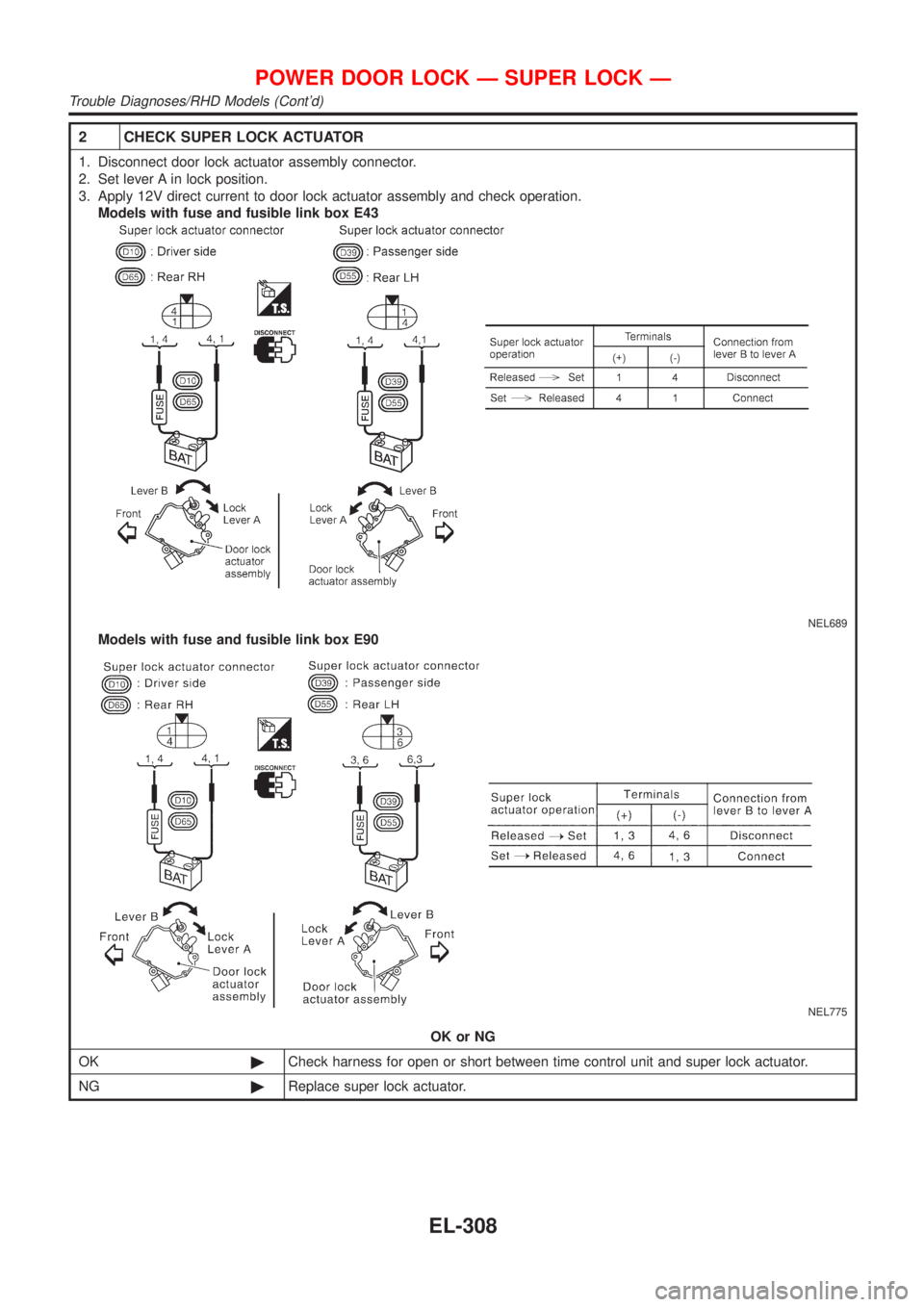

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK SUPER LOCK ACTUATOR 1. Disconnect door lock actuator assembly connector. 2. Set lever A in lock position. 3. Apply 12V direct current to door lock actuator assembly and check operation. Models

Page 2040 of 3051

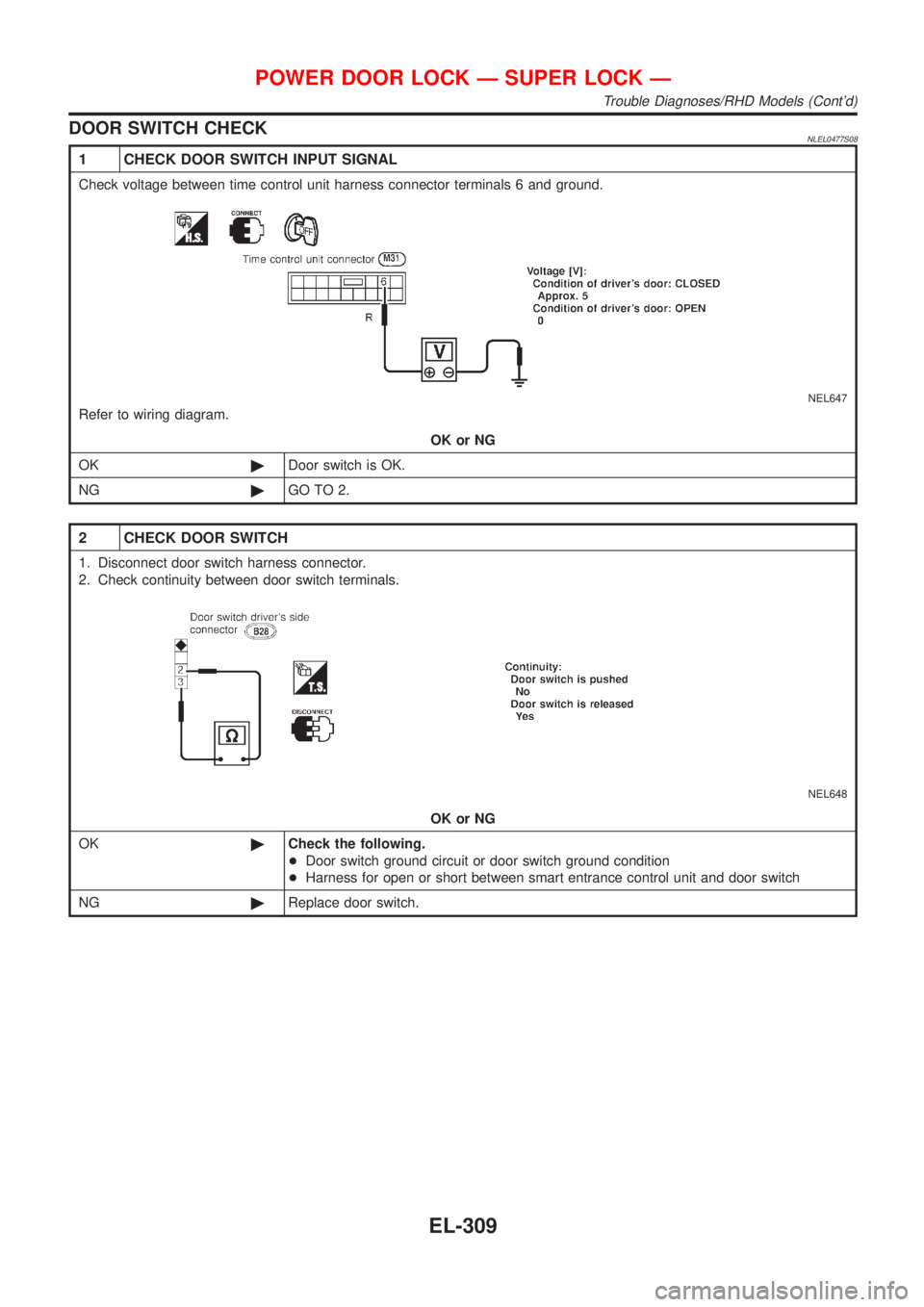

NISSAN ALMERA TINO 2001 Service Repair Manual DOOR SWITCH CHECKNLEL0477S08 1 CHECK DOOR SWITCH INPUT SIGNAL Check voltage between time control unit harness connector terminals 6 and ground. NEL647 Refer to wiring diagram. OK or NG OK©Door switch
