Page 905 of 3051

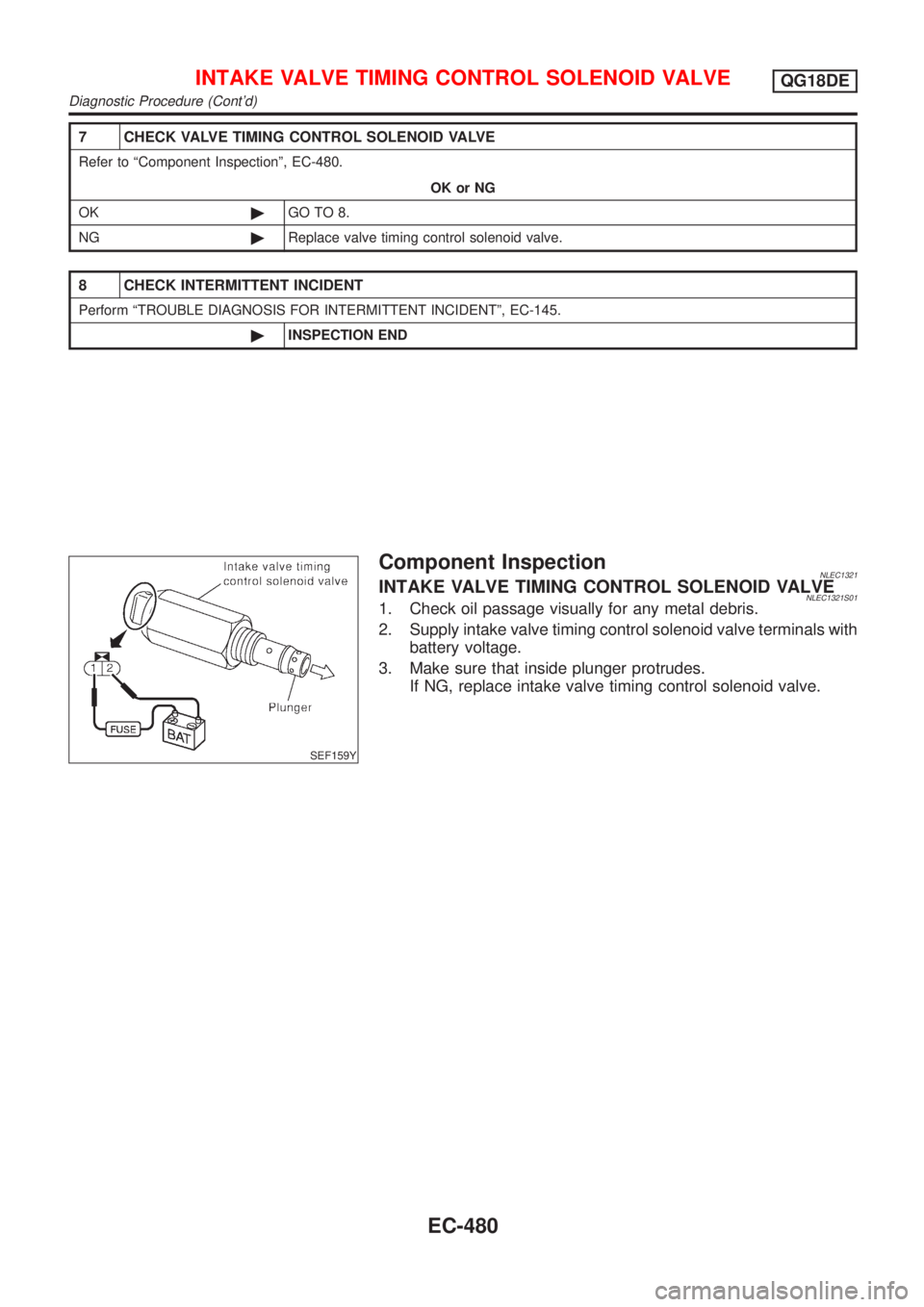

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK VALVE TIMING CONTROL SOLENOID VALVE Refer to ªComponent Inspectionº, EC-480. OK or NG OK©GO TO 8. NG©Replace valve timing control solenoid valve. 8 CHECK INTERMITTENT INCIDENT Perform ªTR

Page 906 of 3051

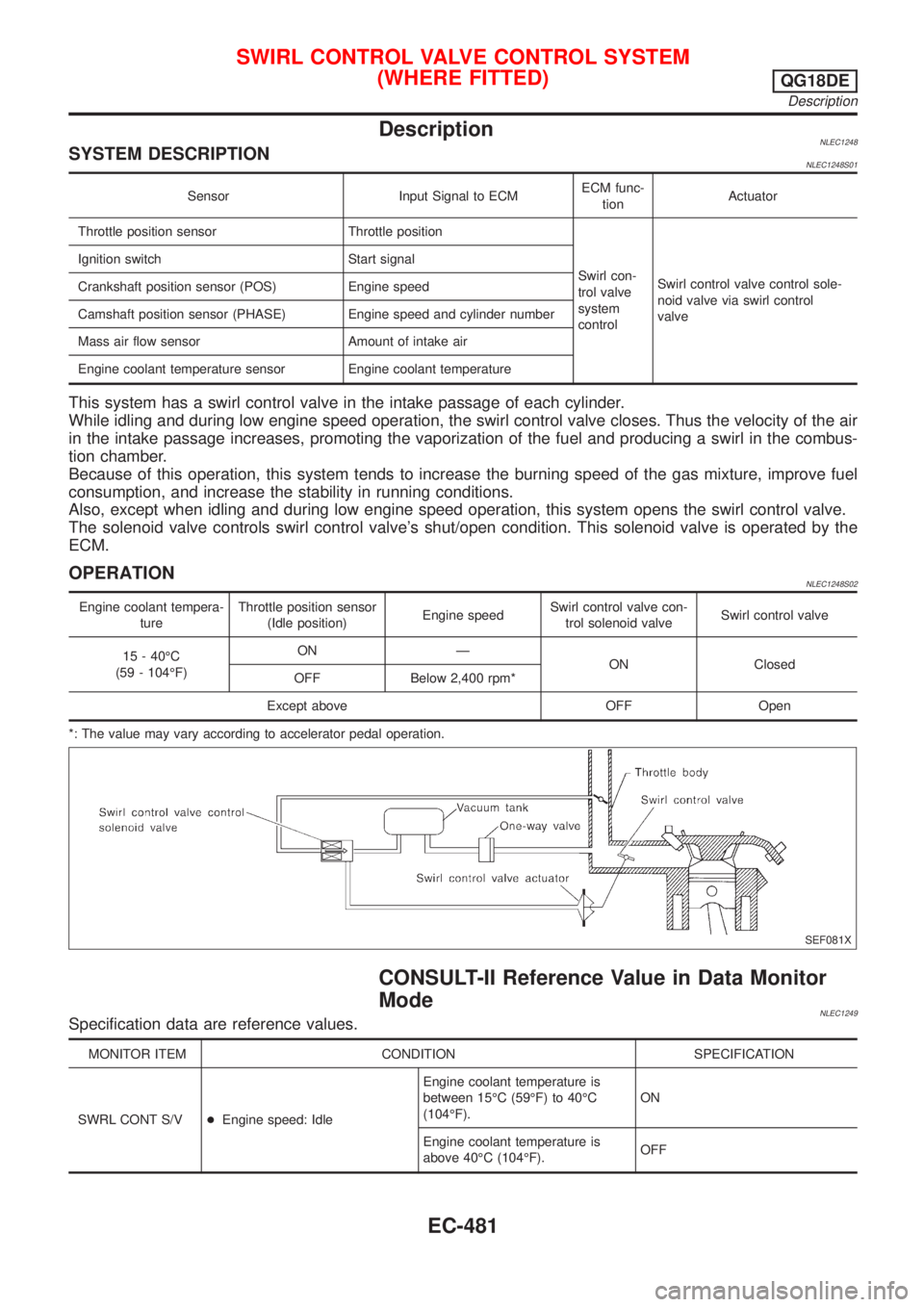

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC1248SYSTEM DESCRIPTIONNLEC1248S01 Sensor Input Signal to ECMECM func- tionActuator Throttle position sensor Throttle position Swirl con- trol valve system controlSwirl control valve con

Page 907 of 3051

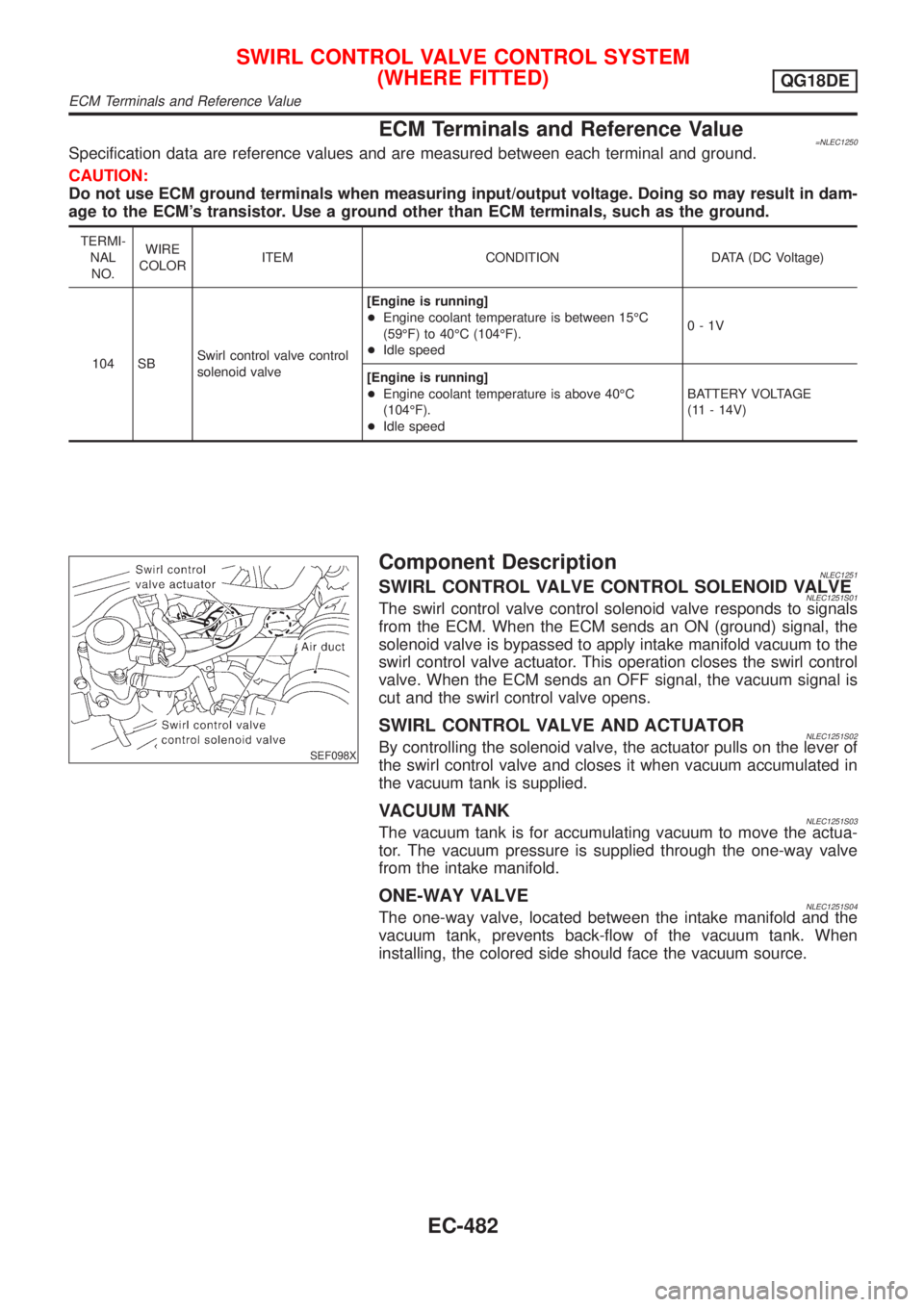

NISSAN ALMERA TINO 2001 Service Repair Manual ECM Terminals and Reference Value=NLEC1250Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outpu

Page 908 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1254 YEC661 SWIRL CONTROL VALVE CONTROL SYSTEM (WHERE FITTED) QG18DE Wiring Diagram EC-483

Page 909 of 3051

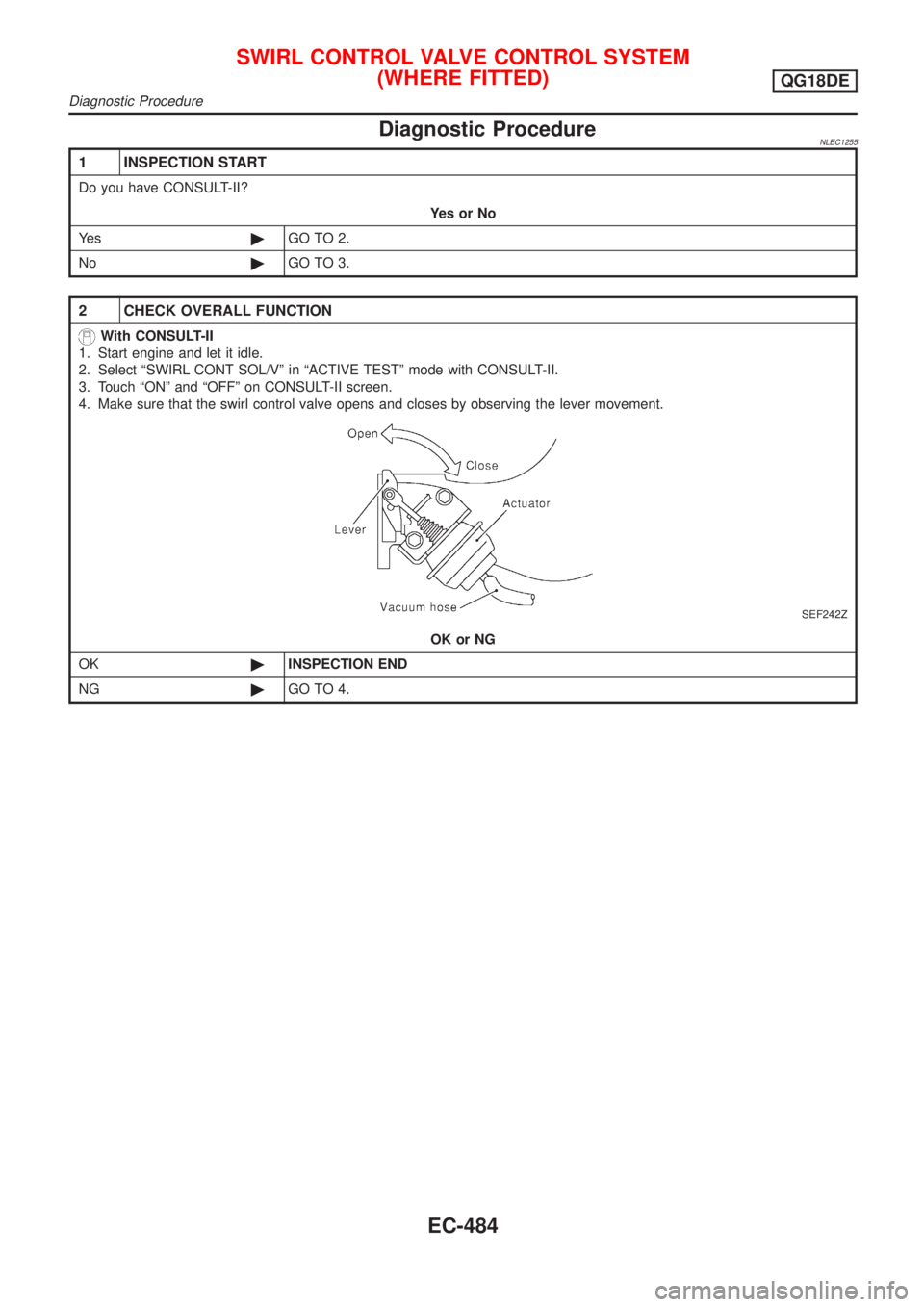

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1255 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine and let it idle. 2. Select ªSWIRL

Page 910 of 3051

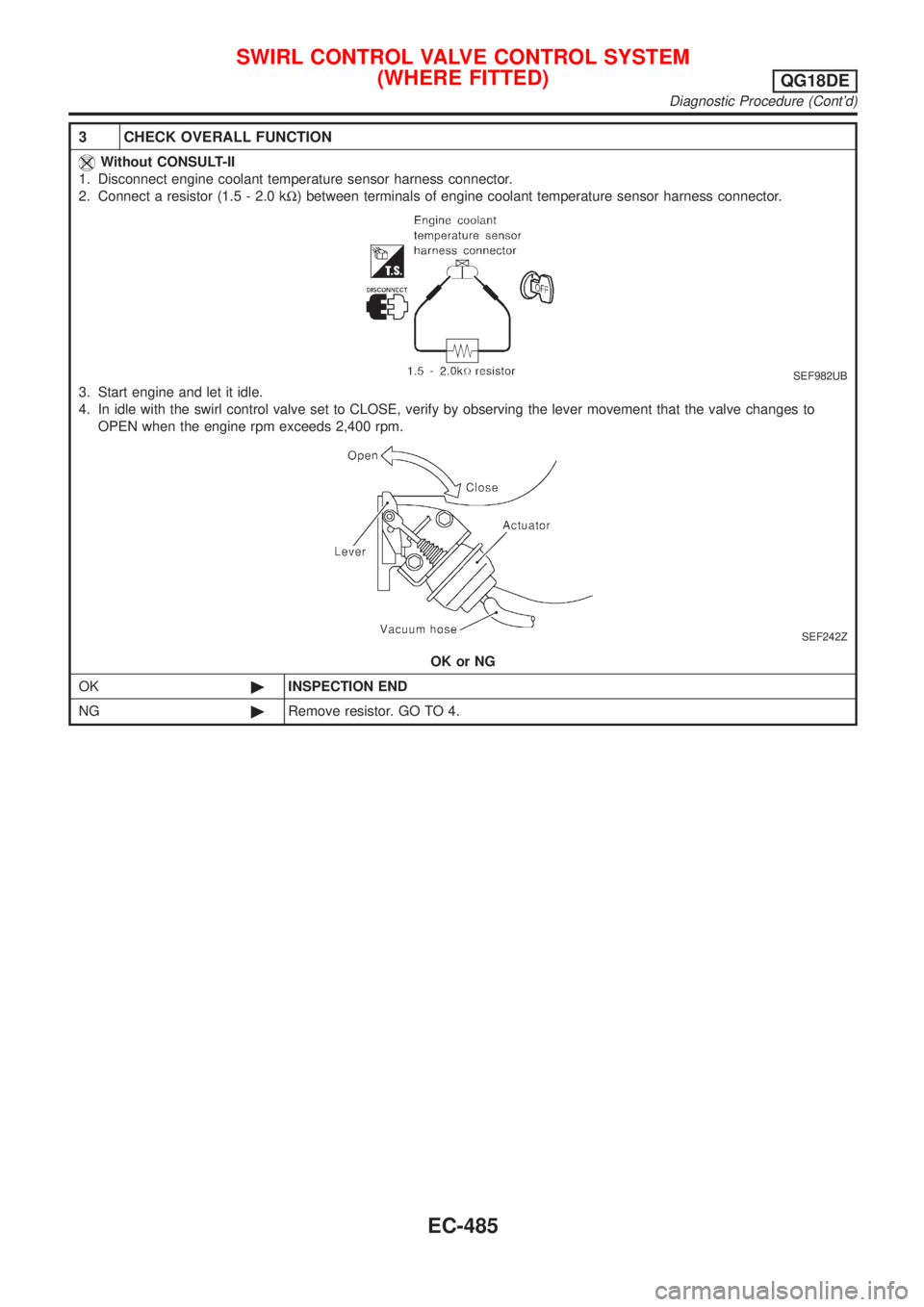

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK OVERALL FUNCTION Without CONSULT-II 1. Disconnect engine coolant temperature sensor harness connector. 2. Connect a resistor (1.5 - 2.0 kW) between terminals of engine coolant temperature sens

Page 911 of 3051

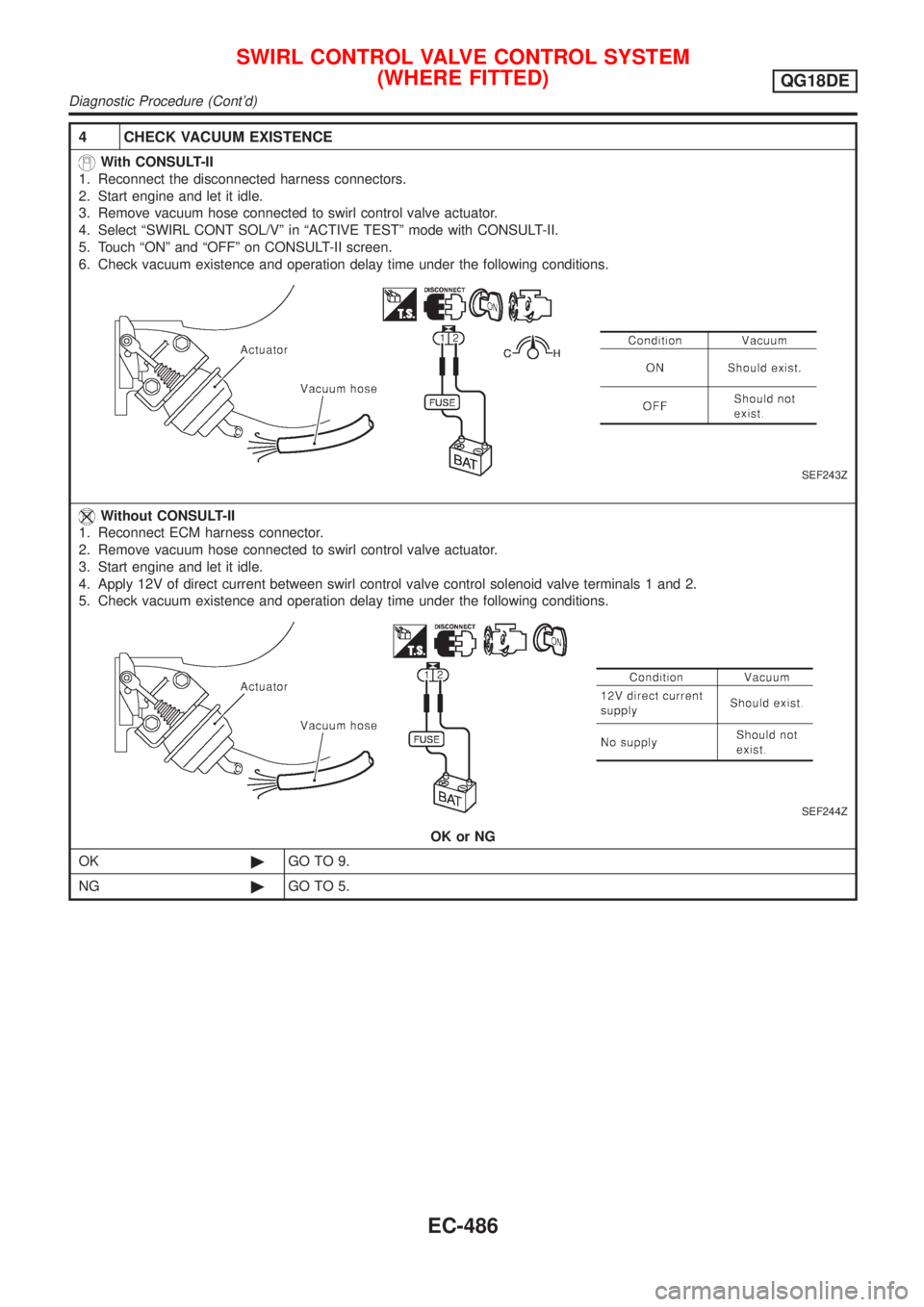

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK VACUUM EXISTENCE With CONSULT-II 1. Reconnect the disconnected harness connectors. 2. Start engine and let it idle. 3. Remove vacuum hose connected to swirl control valve actuator. 4. Select

Page 912 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK POWER SUPPLY 1. Disconnect swirl control valve control solenoid valve harness connector. 2. Turn ignition switch ªONº. 3. Check voltage between terminal 2 and ground with CONSULT-II or teste
