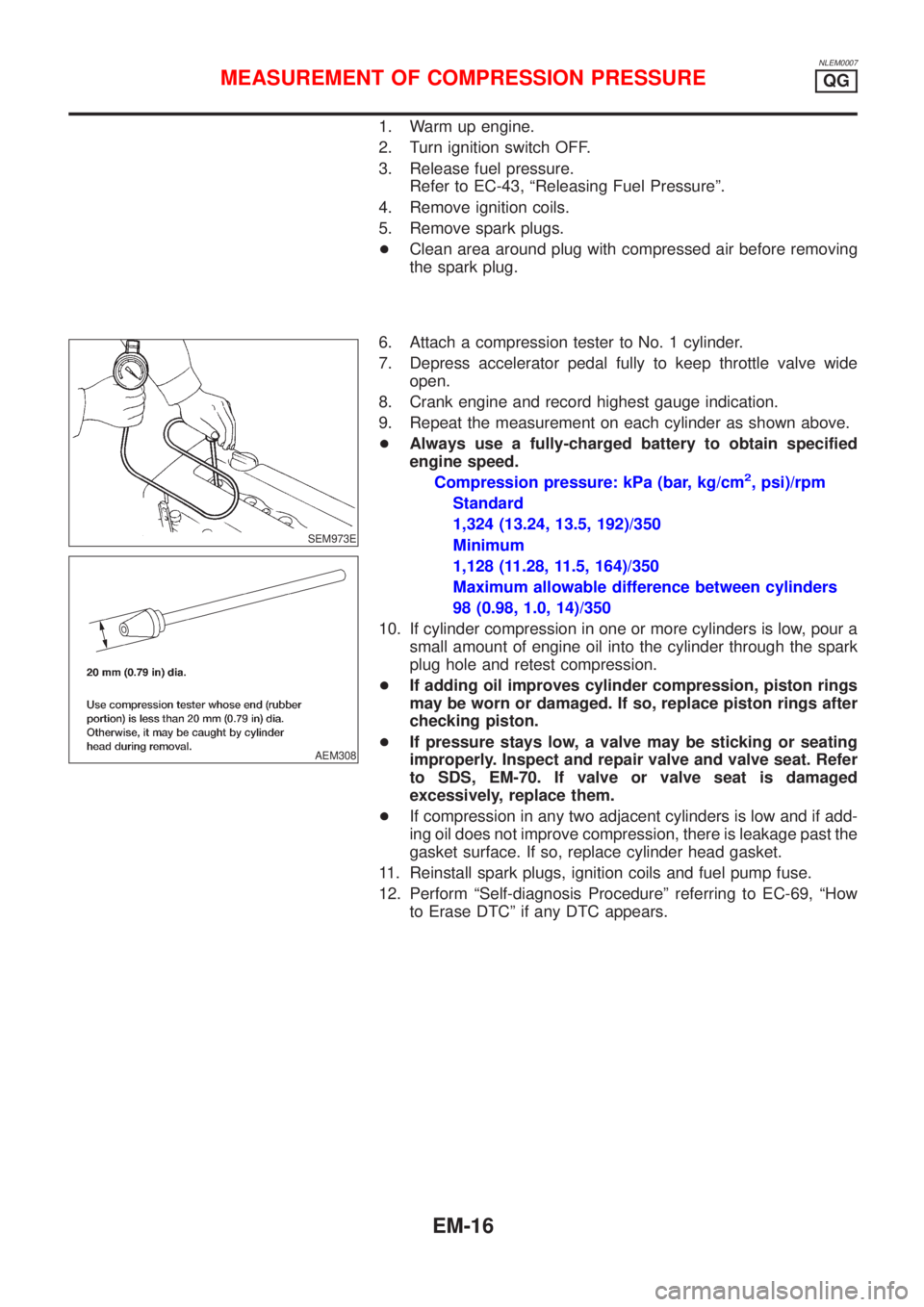

Page 2273 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NLEM0007 1. Warm up engine. 2. Turn ignition switch OFF. 3. Release fuel pressure. Refer to EC-43, ªReleasing Fuel Pressureº. 4. Remove ignition coils. 5. Remove spark plugs. +Clean area around plug

Page 2274 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CheckingNLEM0042 SEM100G 1. Inspect for cracks, fraying, wear or oil adhesion. If necessary, replace with a new one. +When replacing belt, make sure the new belt has the same number of ribs as the old

Page 2275 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SMA373C Changing Air Cleaner FilterNLEM0043VISCOUS PAPER TYPENLEM0043S01The viscous paper type filter does not need cleaning between renewals. AIR CLEANERQG Changing Air Cleaner Filter EM-18

Page 2276 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM870F Checking and ChangingNLEM00441. Disconnect ignition coil harness connectors. 2. Remove ignition coils. SMA294A 3. Remove spark plugs with spark plug wrench. 4. Clean plugs in sand blast cleane

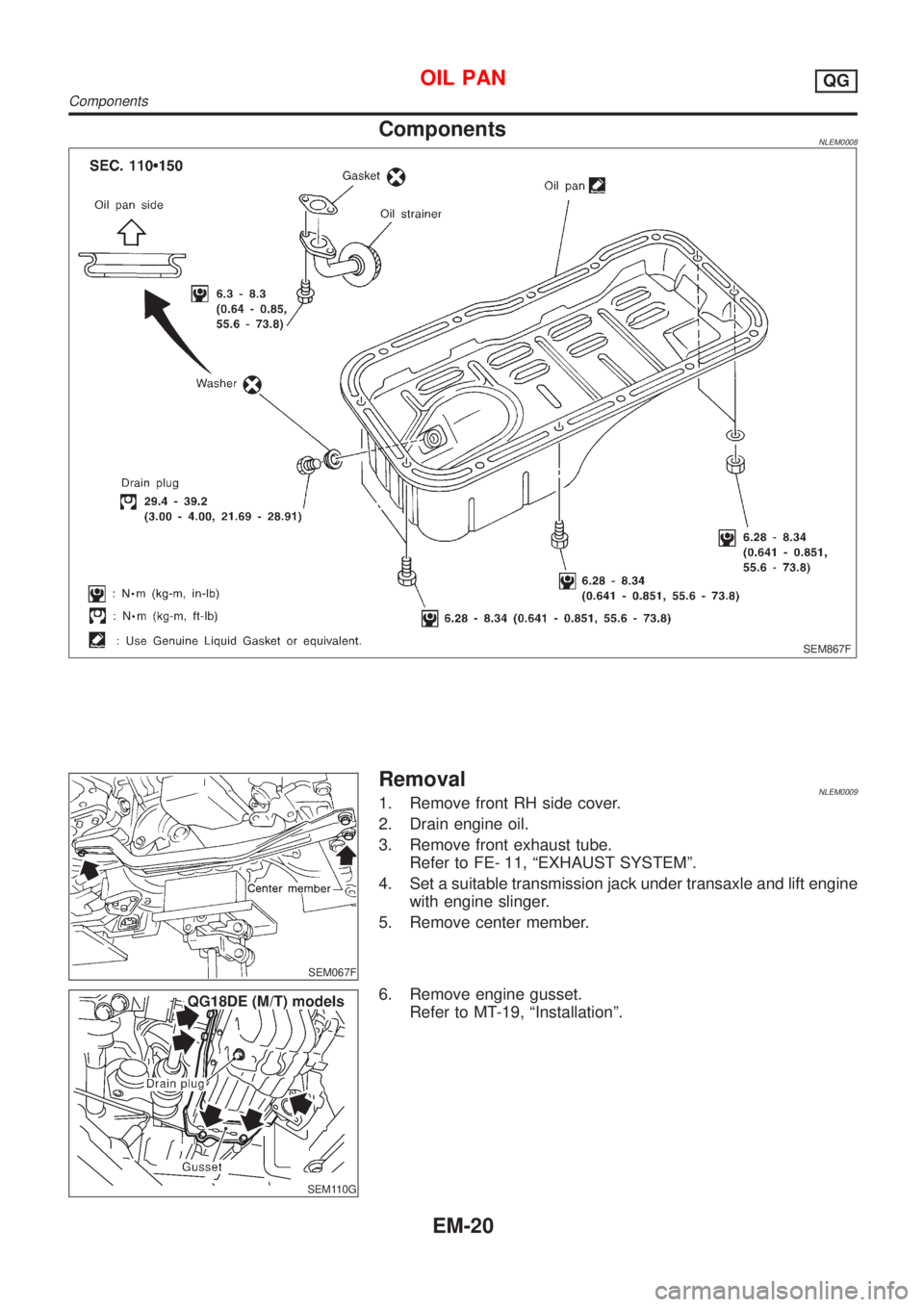

Page 2277 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Components SEM867F SEM067F SEM110G Components

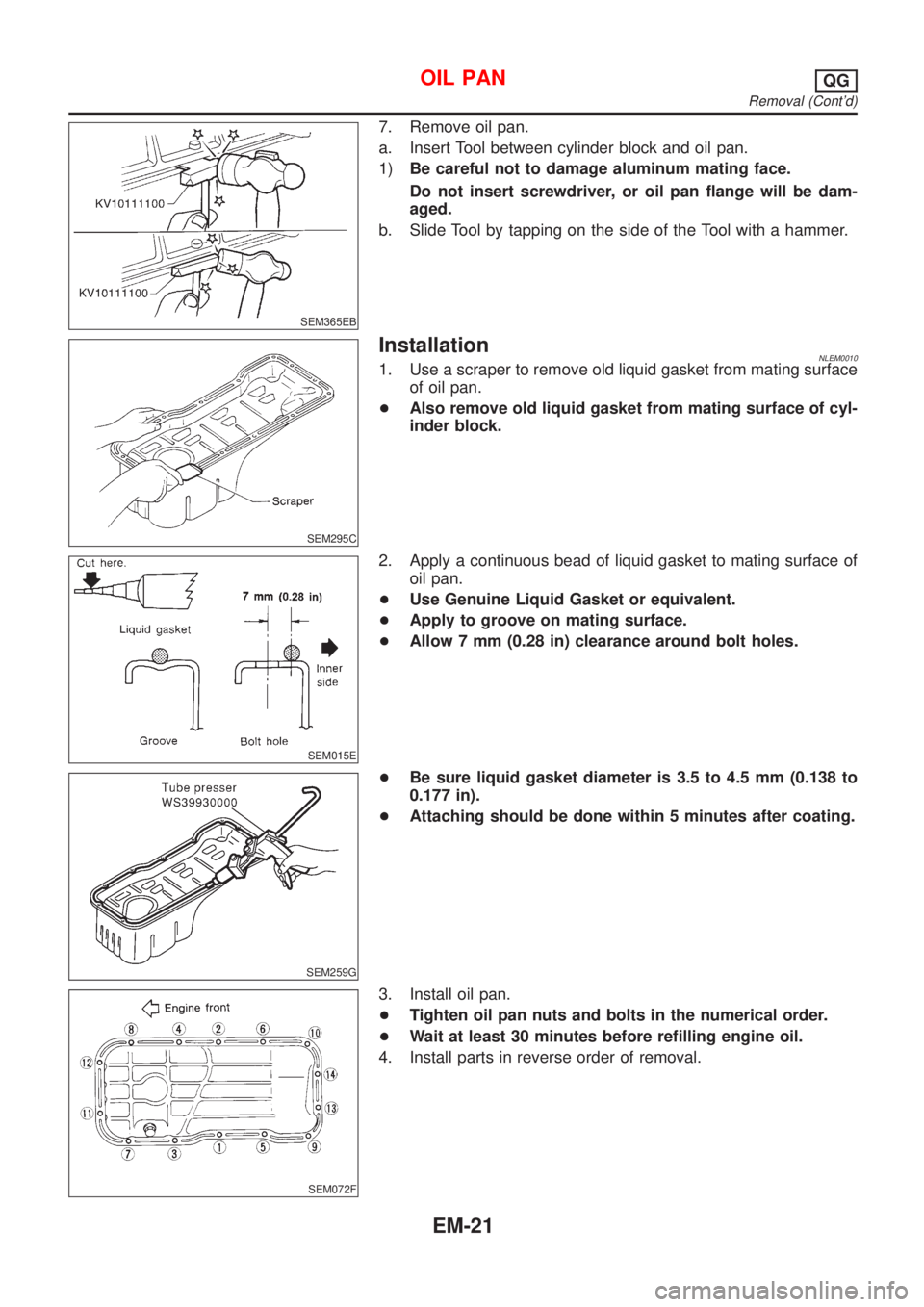

Page 2278 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM365EB 7. Remove oil pan. a. Insert Tool between cylinder block and oil pan. 1)Be careful not to damage aluminum mating face. Do not insert screwdriver, or oil pan flange will be dam- aged. b. Slide

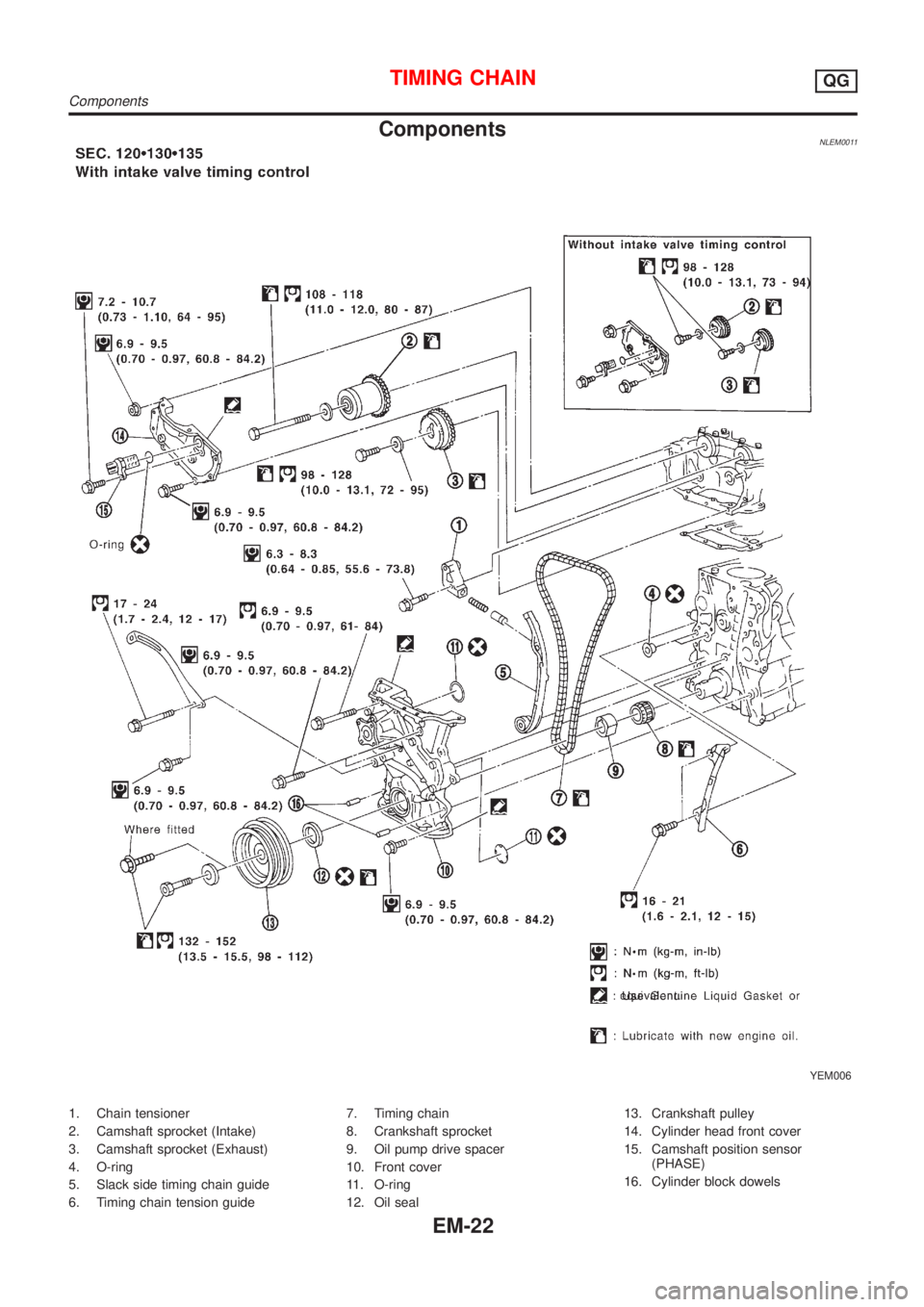

Page 2279 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual ComponentsNLEM0011 YEM006 1. Chain tensioner 2. Camshaft sprocket (Intake) 3. Camshaft sprocket (Exhaust) 4. O-ring 5. Slack side timing chain guide 6. Timing chain tension guide7. Timing chain 8. Cra

Page 2280 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CAUTION: +After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads. +When installing chain tensioner, oil seals, or other sliding parts, lubricat
