DIAGNOSTIC PROCEDURE 4NLEL0455S06
1 CHECK IGNITION ON SIGNAL
Check voltage between time control unit terminal 1 or 9 and ground.
NEL665
OK or NG
OK©GO TO 2.
NG©Check the following.
+10A fuse [No. 10, located in fuse block (J/B)]
+15A fuse [No. 5, located in the fuse block (J/B)]
+Harness for open or short between time control unit and fuse
2 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit terminal 6 and ground.
NEL647
OK or NG
OK©System is OK.
NG©Check voltage between time control unit terminal 6 and body ground with disconnecting
front door switch (driver side).
If approx. 5V is supplied, GO TO 3.
If approx. 5V is not supplied, replace time control unit.
WARNING CHIME
Trouble Diagnoses (Cont'd)
EL-174
Page 1906 of 3051
3 CHECK DRIVER SIDE DOOR SWITCH
Check continuity between terminals 2 and 3.
NEL648
OK or NG
OK©Check the following.
+Driver side door switch ground circuit and condition
+Harness for open or short between time control unit and driver side door switch
NG©Replace driver side door switch.
WARNING CHIME
Trouble Diagnoses (Cont'd)
EL-175
Page 1907 of 3051

System DescriptionNLEL0456WIPER OPERATIONNLEL0456S01The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:
+LO speed
+HI speed
+INT (Intermittent)
Power is supplied at all time
+through 30A fuse
+to front wiper relay-1 terminal 5, and
+through 40A fusible link
+through ignition switch terminal 1 and 3 when the switch is in the ON or START position
+to front wiper relay-1 terminal 1.
Ground is supplied
+to front wiper relay-1 terminal 2
+through body grounds E24 and E73
With power and ground supplied, the front wiper relay-1 is energized.
Low and High Speed Wiper OperationNLEL0456S0101Ground is supplied to wiper and washer switch terminal 17 through body grounds E30 and E73.
When the wiper switch is placed in the LO position, ground is supplied
+through terminal 14 of the front wiper and washer switch
+to front wiper motor terminal 4.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied
+through terminal 16 of the front wiper and washer switch
+to wiper motor terminal 5.
With power and ground supplied, the wiper motor operates at high speed.
Auto Stop OperationNLEL0456S0102With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided
+from terminal 14 of the front wiper and washer switch
+to front wiper motor terminal 4, in order to continue wiper motor operation at low speed.
Ground is also supplied
+through terminal 13 of the front wiper and washer switch
+to front wiper relay-2 terminal 3
+through terminal 4 of the front wiper relay-2.
+to front wiper motor terminal 2
+through terminal 3 of front wiper motor
+through body grounds E24 and E73.
When wiper arms reach base of windshield, front wiper motor terminals 2 and 3 are connected instead of ter-
minals 2 and 1. Wiper motor will then stop wiper arms at the STOP position.
Intermittent OperationNLEL0456S0103The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to
13 seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier (WIPER SW INT)
and (ACC).
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied
+from body grounds E24 and E73
+through terminal 5 of front wiper relay-2,
+through terminal 3 of front wiper relay-2,
FRONT WIPER AND WASHER
System Description
EL-176
Page 1908 of 3051

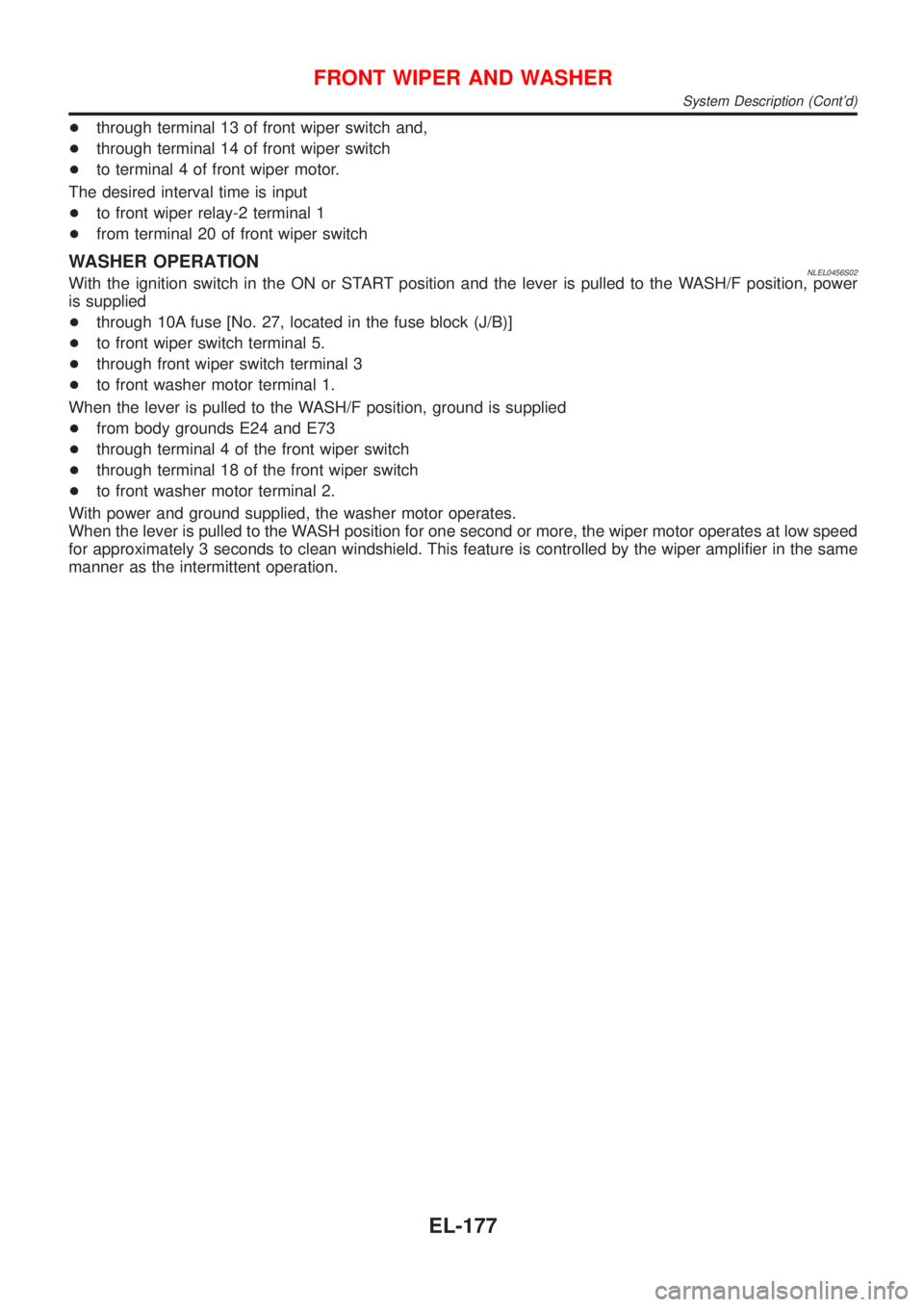

+through terminal 13 of front wiper switch and,
+through terminal 14 of front wiper switch
+to terminal 4 of front wiper motor.
The desired interval time is input
+to front wiper relay-2 terminal 1
+from terminal 20 of front wiper switch
WASHER OPERATIONNLEL0456S02With the ignition switch in the ON or START position and the lever is pulled to the WASH/F position, power
is supplied
+through 10A fuse [No. 27, located in the fuse block (J/B)]
+to front wiper switch terminal 5.
+through front wiper switch terminal 3
+to front washer motor terminal 1.
When the lever is pulled to the WASH/F position, ground is supplied
+from body grounds E24 and E73
+through terminal 4 of the front wiper switch
+through terminal 18 of the front wiper switch
+to front washer motor terminal 2.
With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.
FRONT WIPER AND WASHER
System Description (Cont'd)
EL-177
Page 1909 of 3051

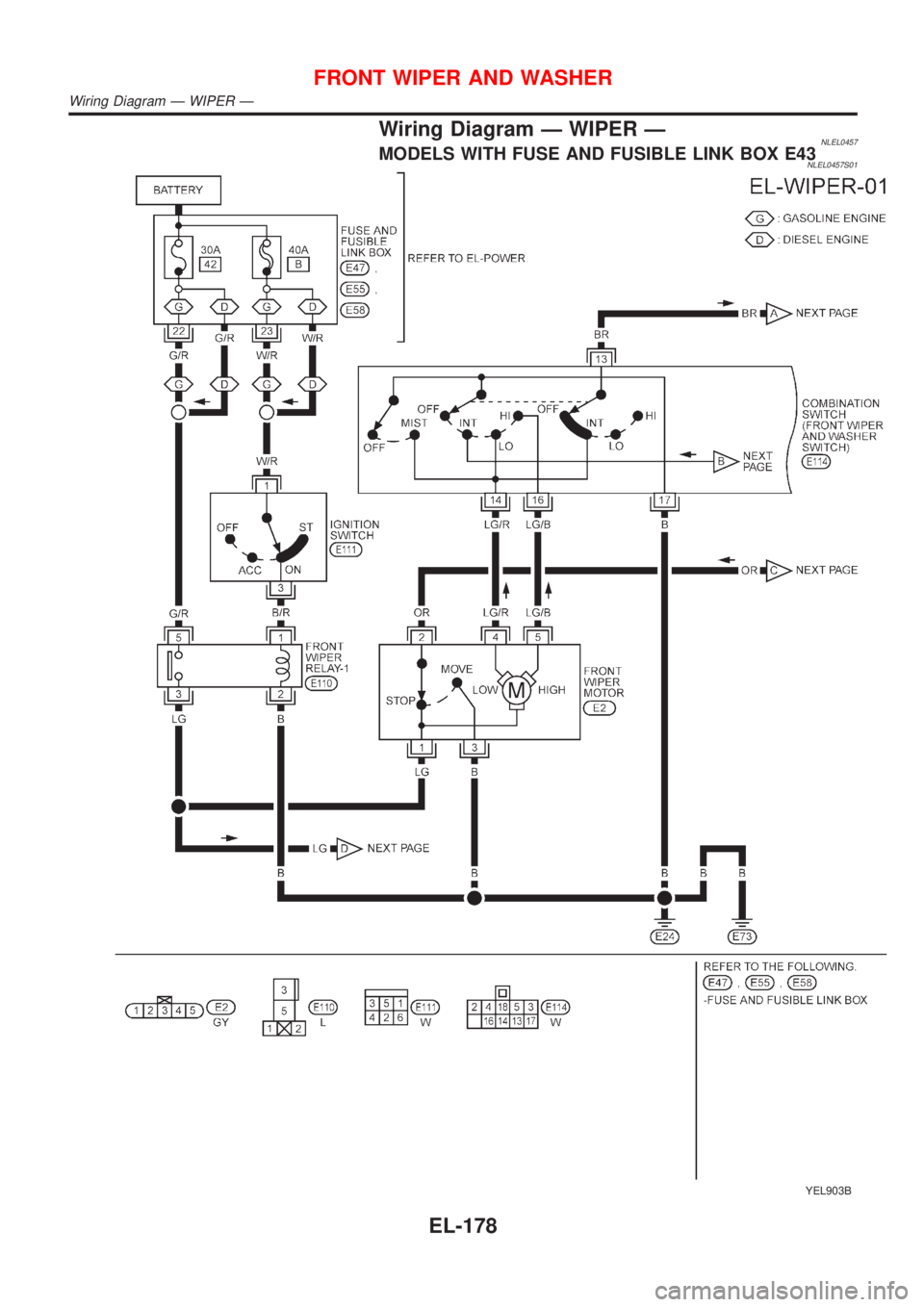

Wiring Diagram Ð WIPER ÐNLEL0457MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0457S01
YEL903B
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð
EL-178

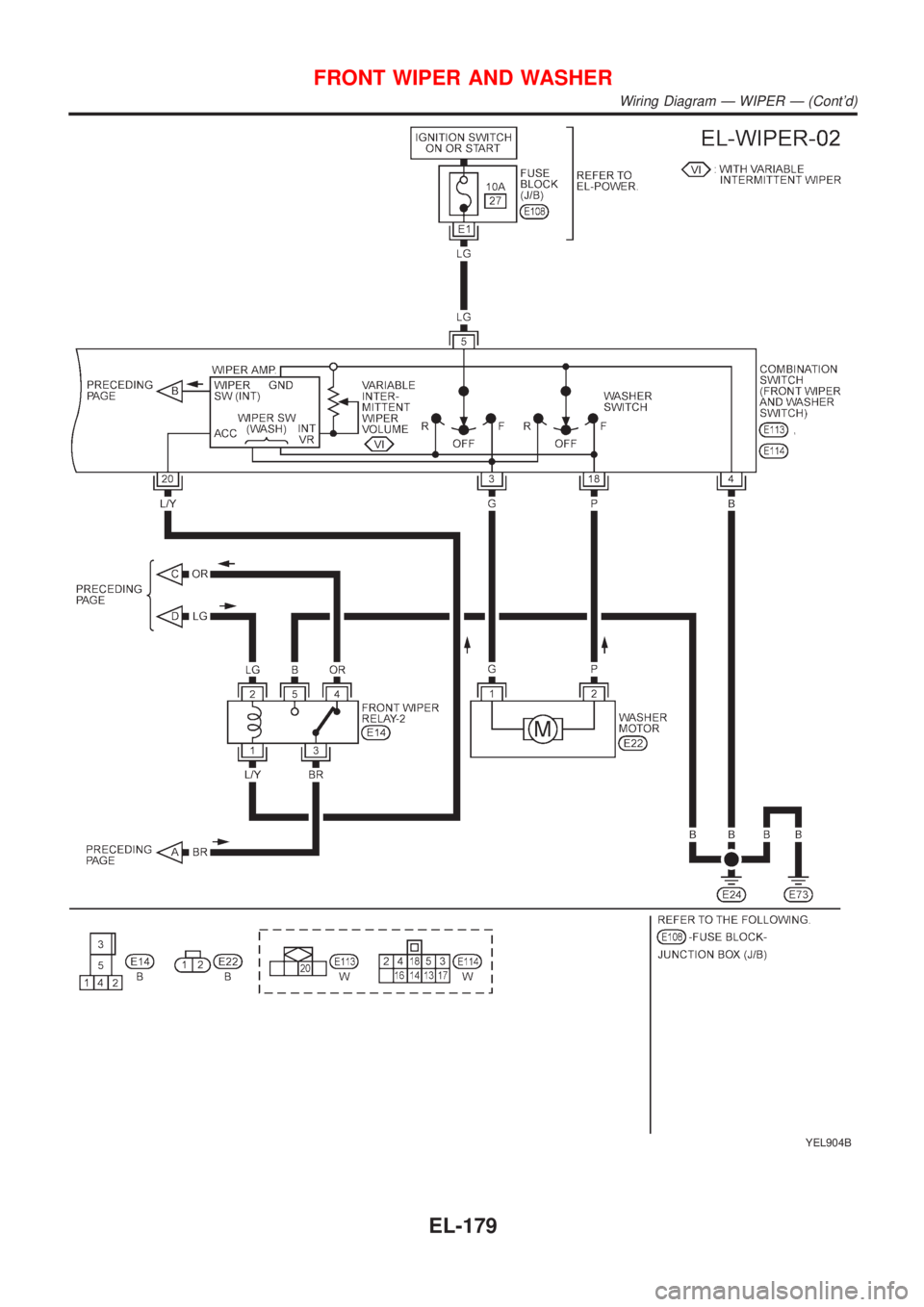

Page 1910 of 3051
YEL904B
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð (Cont'd)
EL-179
Page 1911 of 3051

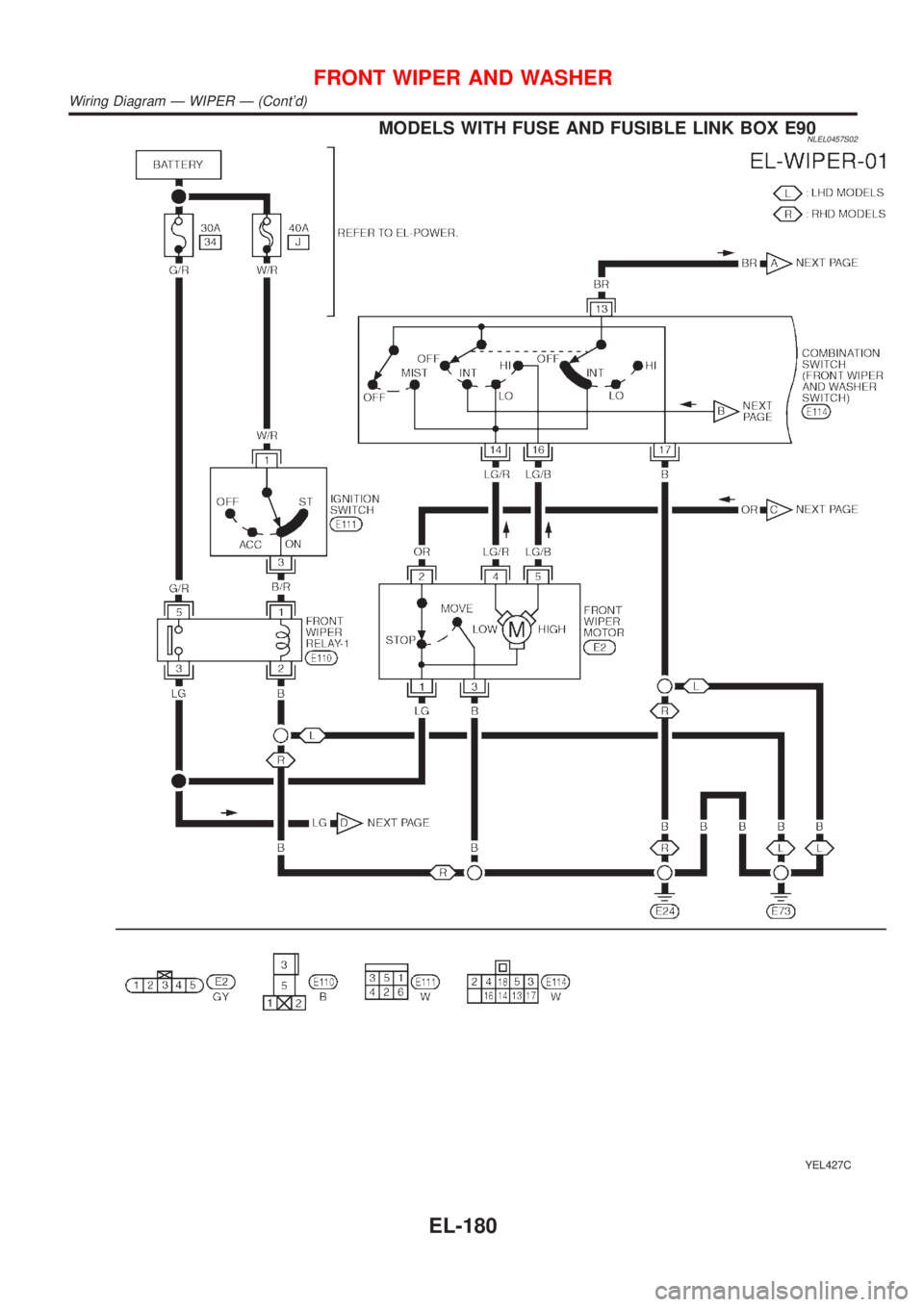

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0457S02
YEL427C
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð (Cont'd)
EL-180

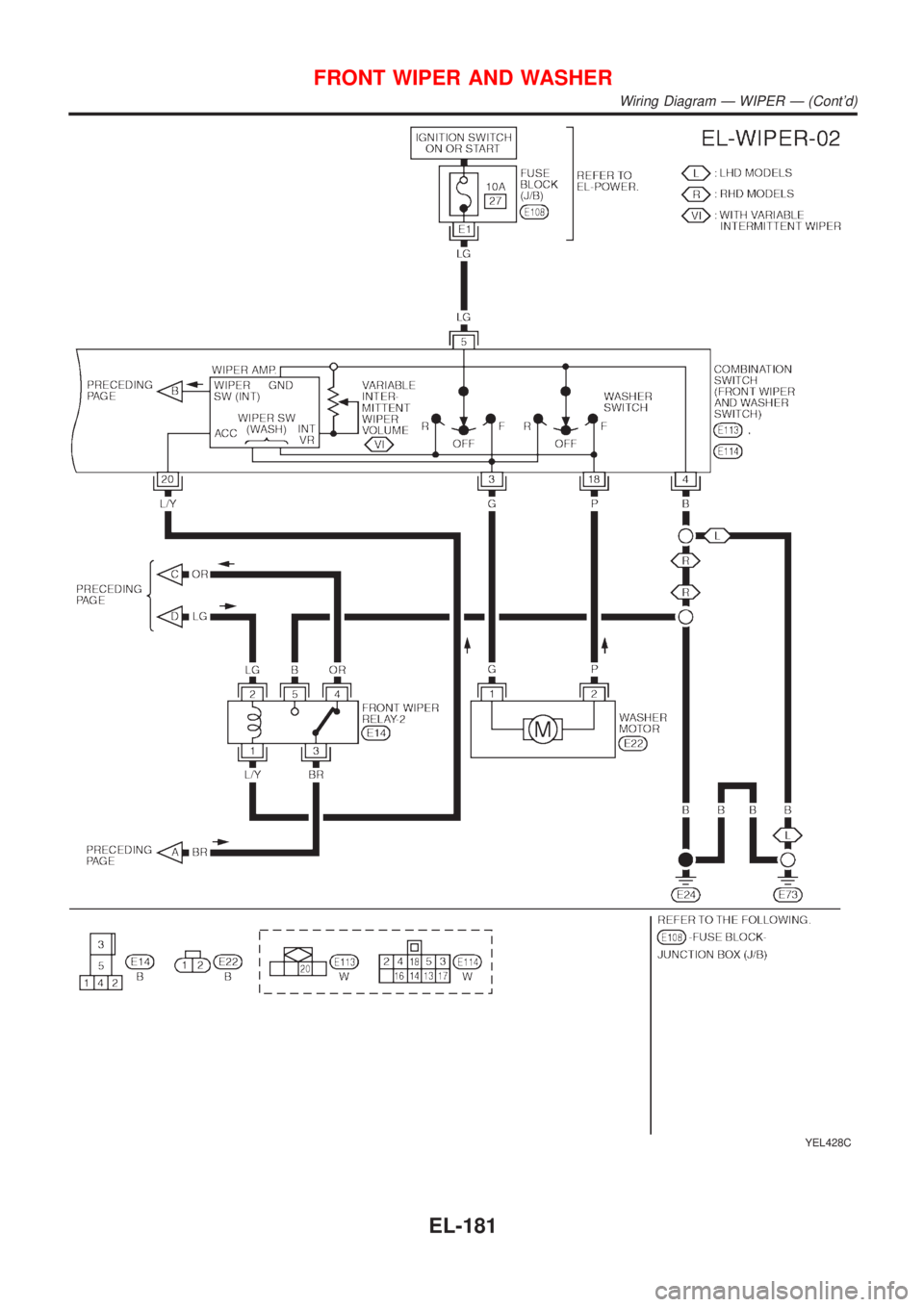

Page 1912 of 3051
YEL428C
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð (Cont'd)
EL-181
