Page 2489 of 3051

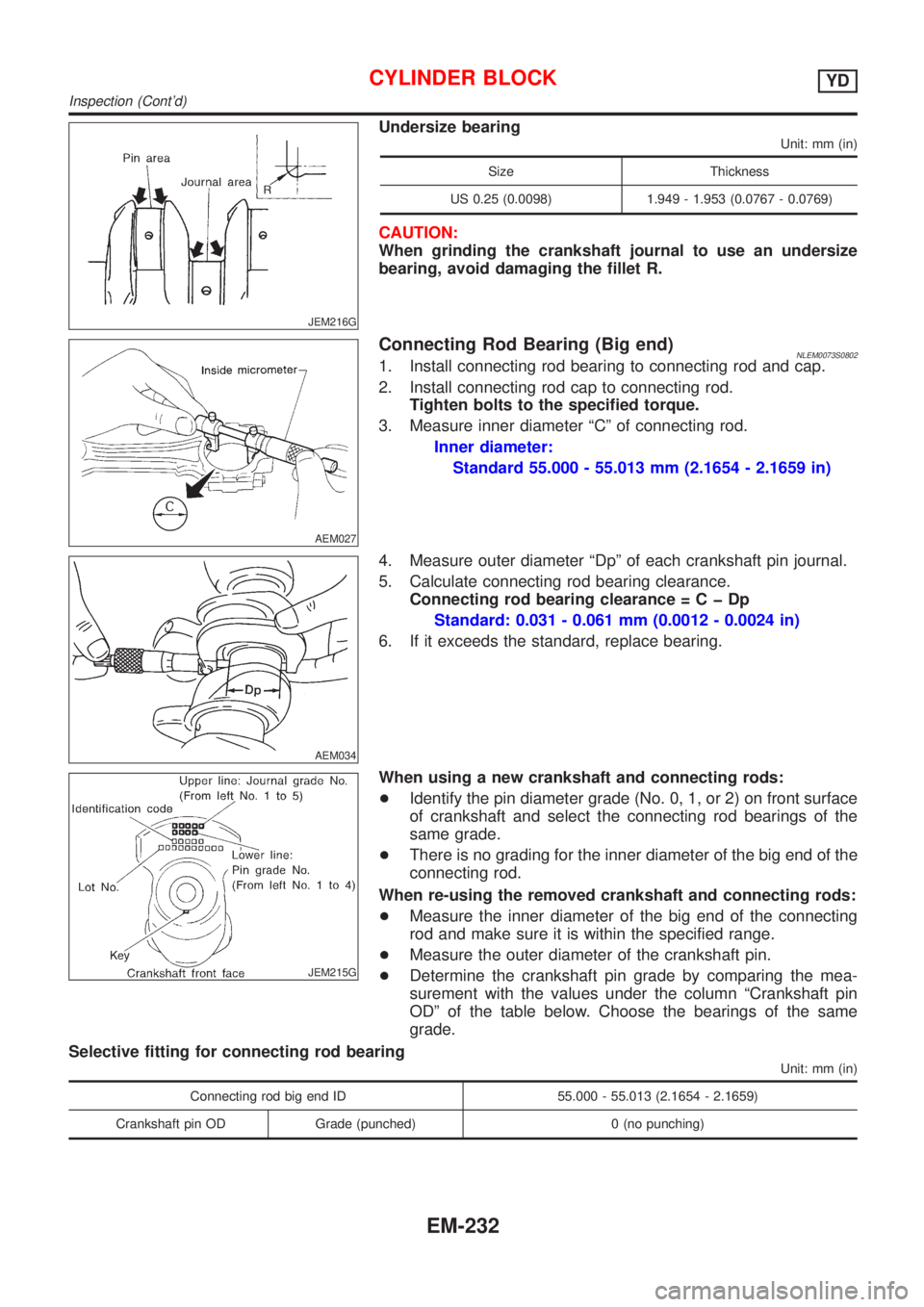

NISSAN ALMERA TINO 2001 Service Repair Manual JEM216G Undersize bearing Unit: mm (in) Size Thickness US 0.25 (0.0098) 1.949 - 1.953 (0.0767 - 0.0769) CAUTION: When grinding the crankshaft journal to use an undersize bearing, avoid damaging the fi

Page 2490 of 3051

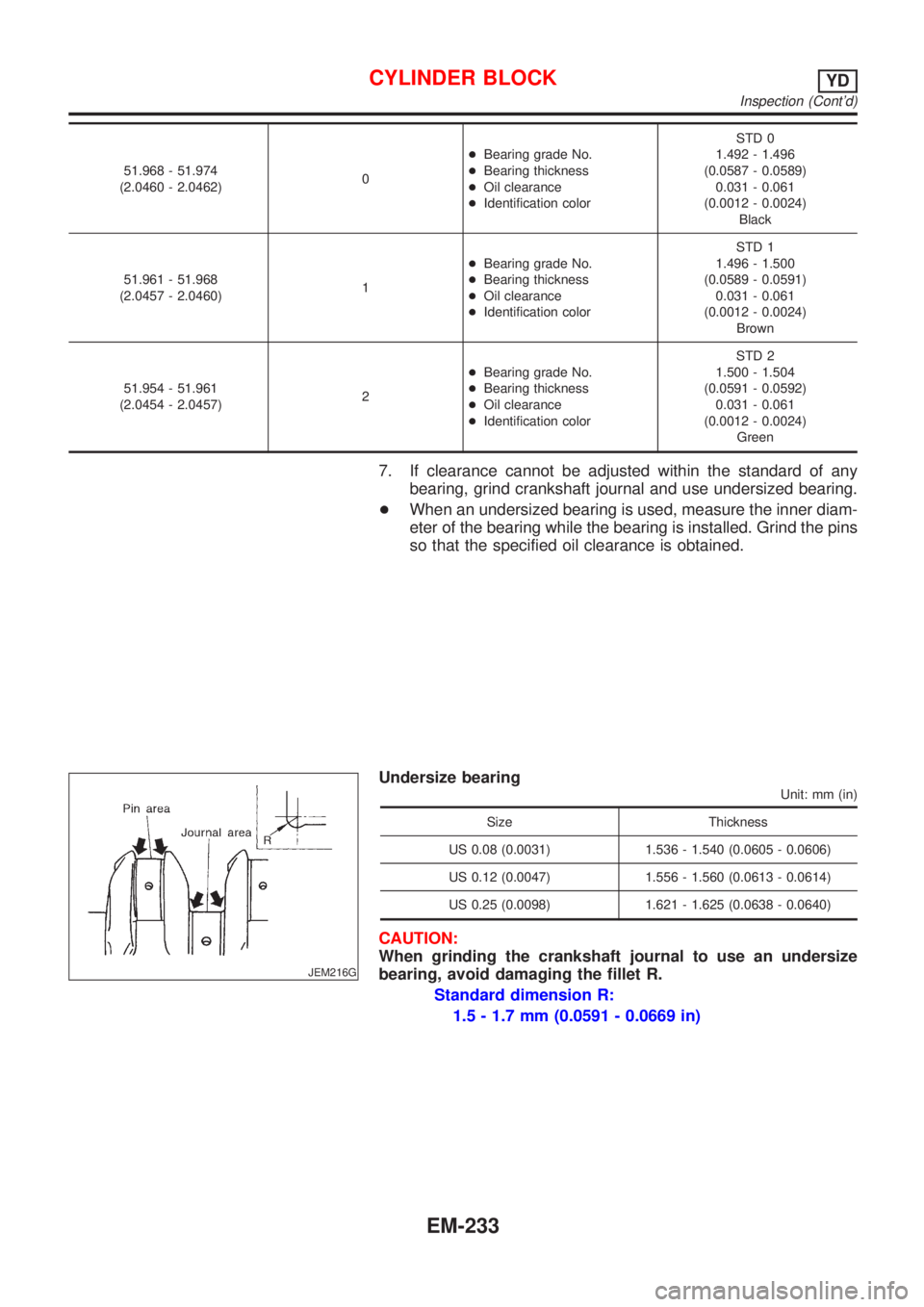

NISSAN ALMERA TINO 2001 Service Repair Manual 51.968 - 51.974 (2.0460 - 2.0462)0+Bearing grade No. +Bearing thickness +Oil clearance +Identification colorSTD 0 1.492 - 1.496 (0.0587 - 0.0589) 0.031 - 0.061 (0.0012 - 0.0024) Black 51.961 - 51.968

Page 2491 of 3051

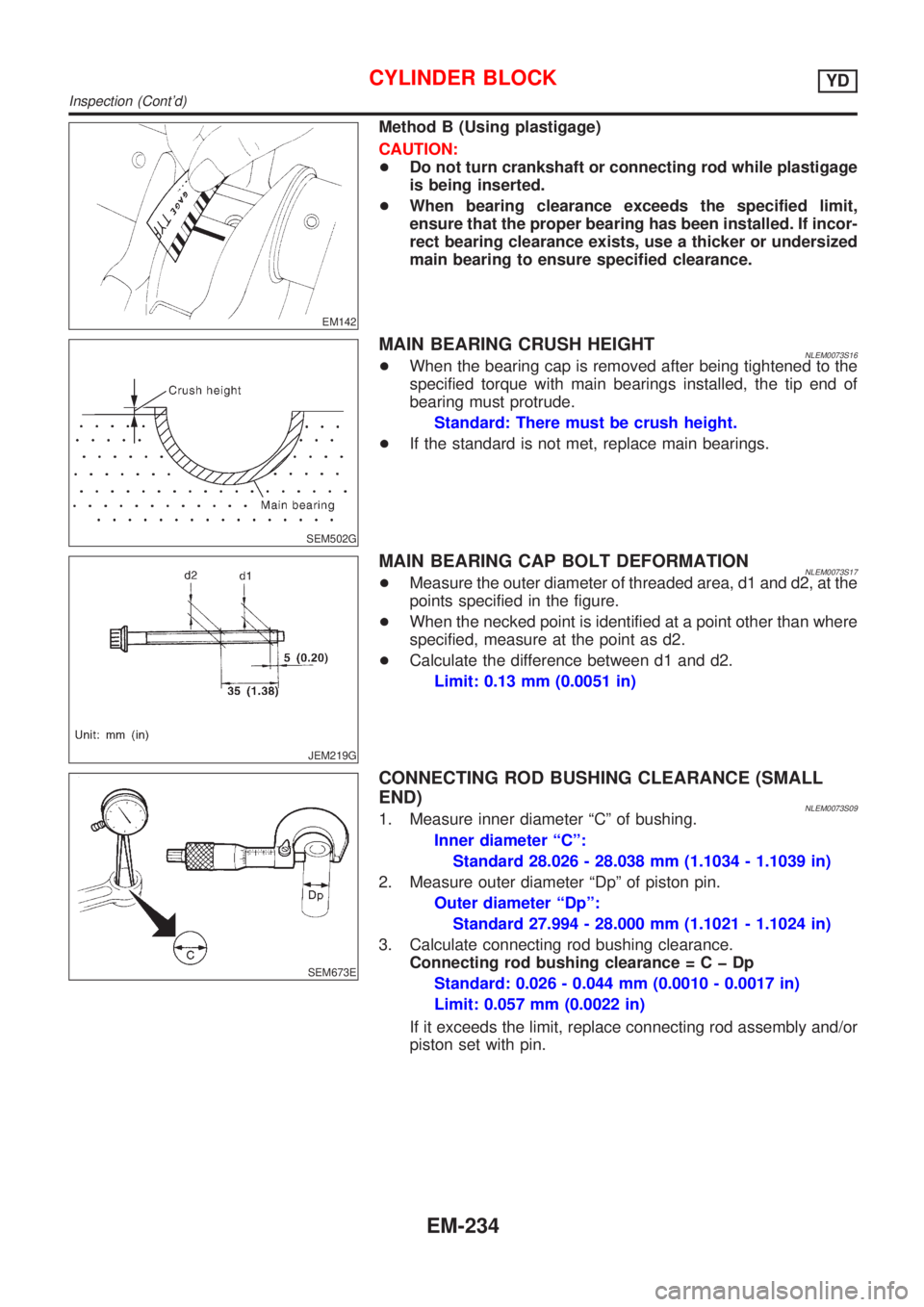

NISSAN ALMERA TINO 2001 Service Repair Manual EM142 Method B (Using plastigage) CAUTION: +Do not turn crankshaft or connecting rod while plastigage is being inserted. +When bearing clearance exceeds the specified limit, ensure that the proper bea

Page 2492 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual JEM220G CONNECTING ROD BOLT DEFORMATIONNLEM0073S18+Install nuts to connecting rod bolts. Check that the nut can be screwed smoothly on bolt threads by hand to the last thread on the bolt. +If the nut

Page 2493 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual AssemblyNLEM0074PISTONNLEM0074S011. With using snap ring pliers, install snap rings to grooves at the rear side of the piston. +Install securely to fully fit into the groove. 2. Install piston to the

Page 2494 of 3051

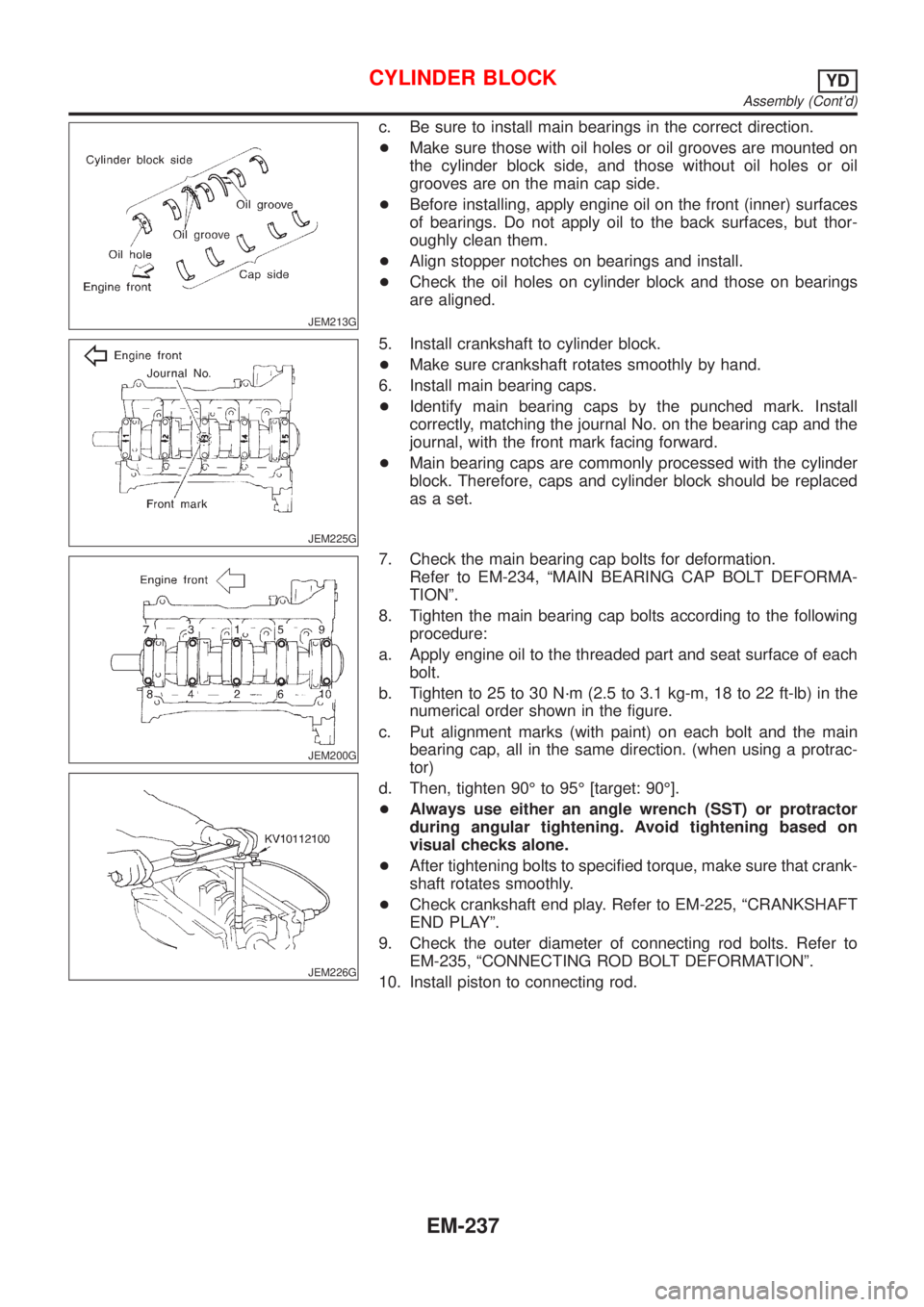

NISSAN ALMERA TINO 2001 Service Repair Manual JEM213G c. Be sure to install main bearings in the correct direction. +Make sure those with oil holes or oil grooves are mounted on the cylinder block side, and those without oil holes or oil grooves

Page 2495 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual JEM229G 11. Install connecting rod bearing to connecting rod and connect- ing rod cap. +Before installing, apply engine oil on the front (inner) surface of bearing. Do not apply oil to the back surfac

Page 2496 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual JEM233G 16. Install rear oil seal retainer. +Apply a continuous bead of specified liquid gasket (Refer to EM-158, ªLiquid Gasket Application Procedureº.) on locations shown in the figure. JEM234G 17
