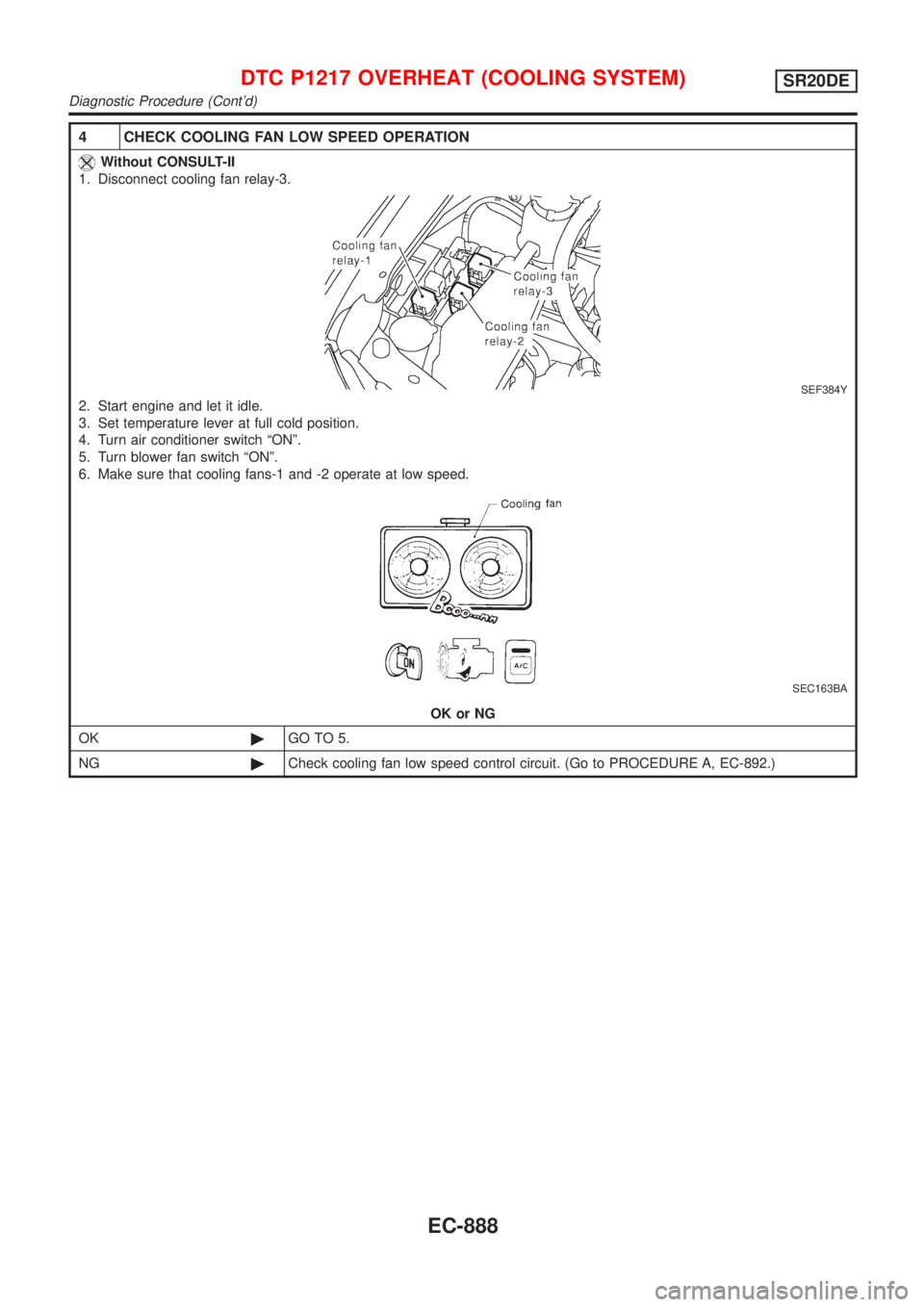

Page 1313 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK COOLING FAN LOW SPEED OPERATION Without CONSULT-II 1. Disconnect cooling fan relay-3. SEF384Y 2. Start engine and let it idle. 3. Set temperature lever at full cold position. 4. Turn air condi

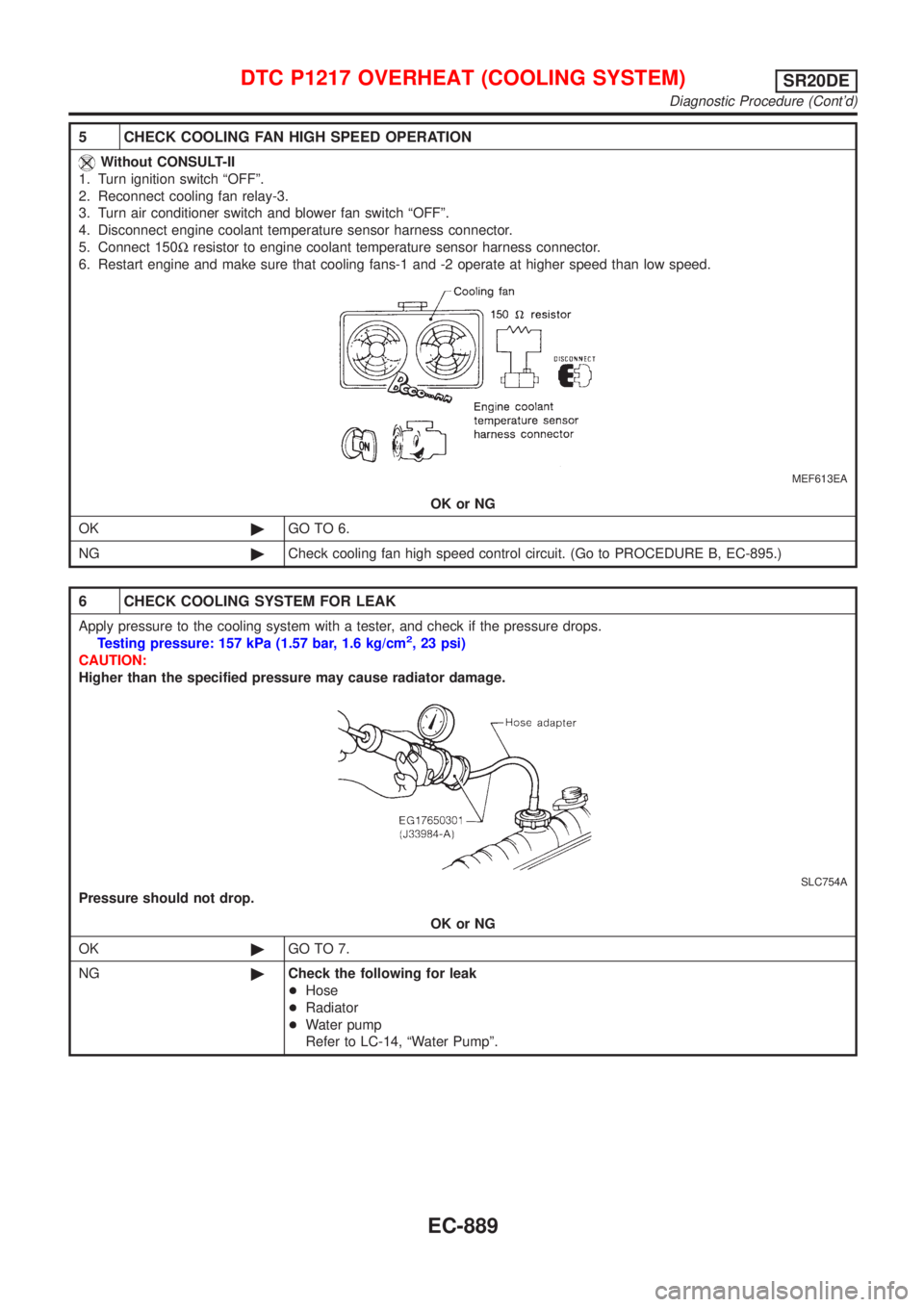

Page 1314 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK COOLING FAN HIGH SPEED OPERATION Without CONSULT-II 1. Turn ignition switch ªOFFº. 2. Reconnect cooling fan relay-3. 3. Turn air conditioner switch and blower fan switch ªOFFº. 4. Disconne

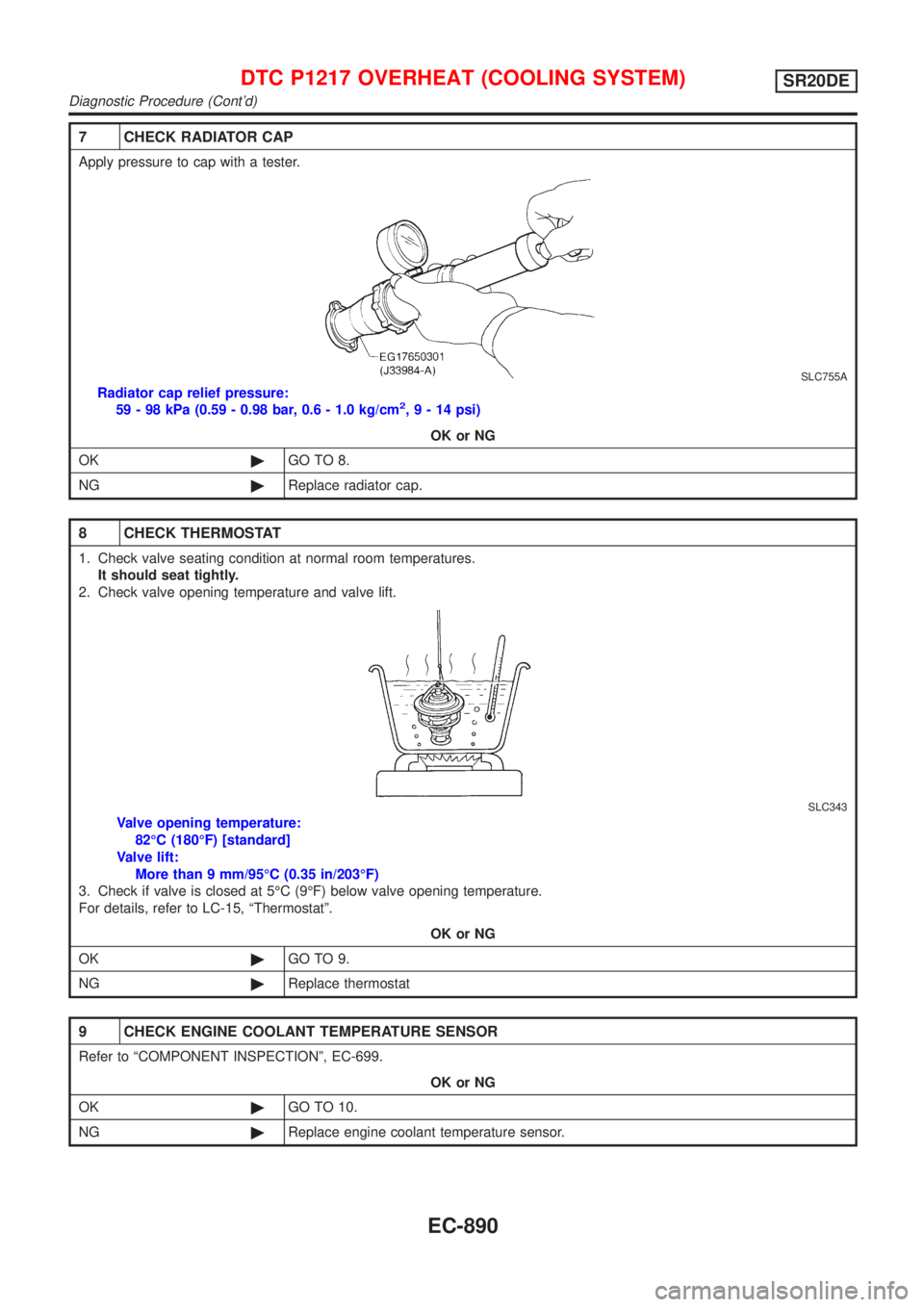

Page 1315 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK RADIATOR CAP Apply pressure to cap with a tester. SLC755A Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar, 0.6 - 1.0 kg/cm2,9-14psi) OK or NG OK©GO TO 8. NG©Replace radiator cap.

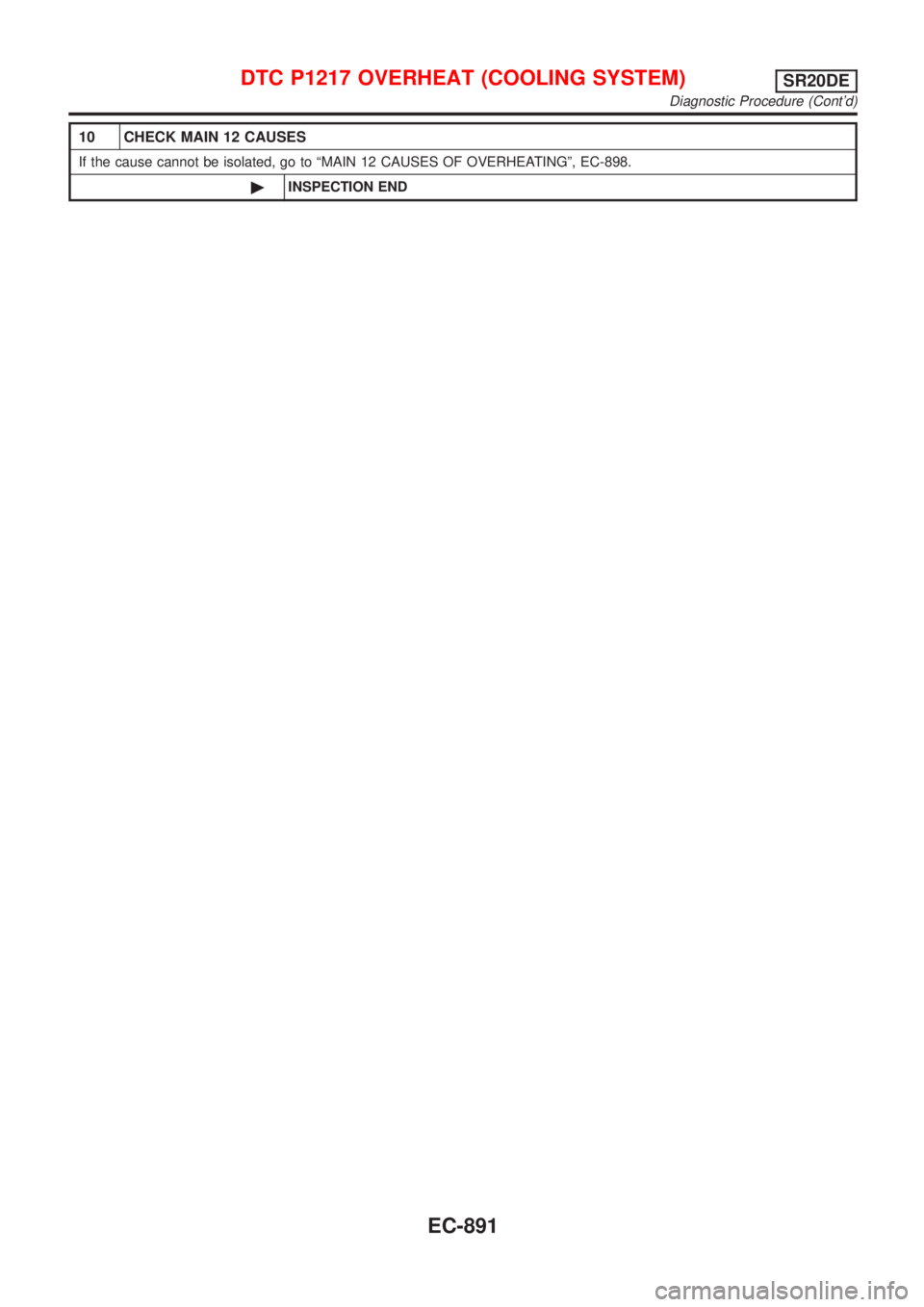

Page 1316 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 10 CHECK MAIN 12 CAUSES If the cause cannot be isolated, go to ªMAIN 12 CAUSES OF OVERHEATINGº, EC-898. ©INSPECTION END DTC P1217 OVERHEAT (COOLING SYSTEM)SR20DE Diagnostic Procedure (Contd) EC-89

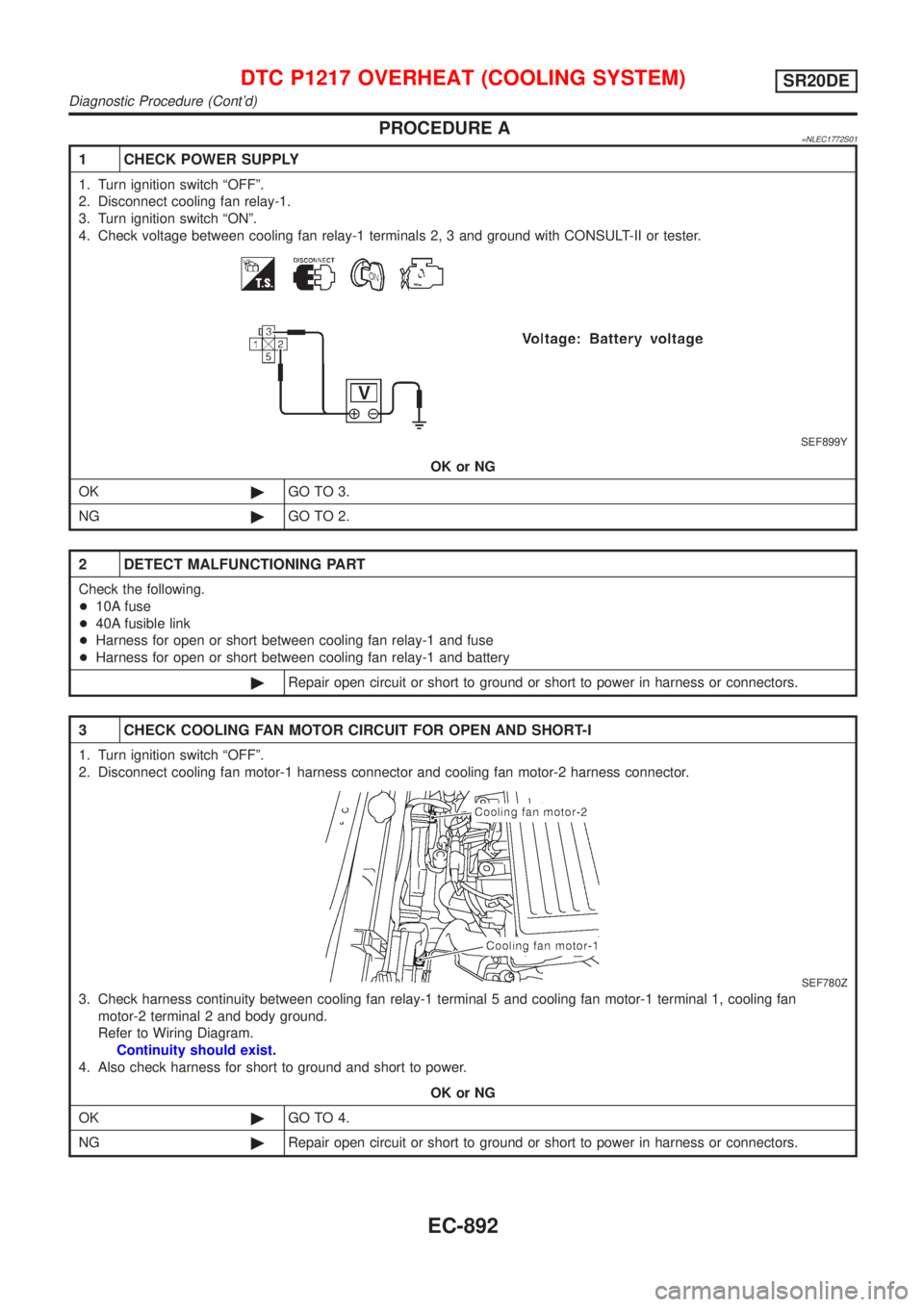

Page 1317 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual PROCEDURE A=NLEC1772S01 1 CHECK POWER SUPPLY 1. Turn ignition switch ªOFFº. 2. Disconnect cooling fan relay-1. 3. Turn ignition switch ªONº. 4. Check voltage between cooling fan relay-1 terminals

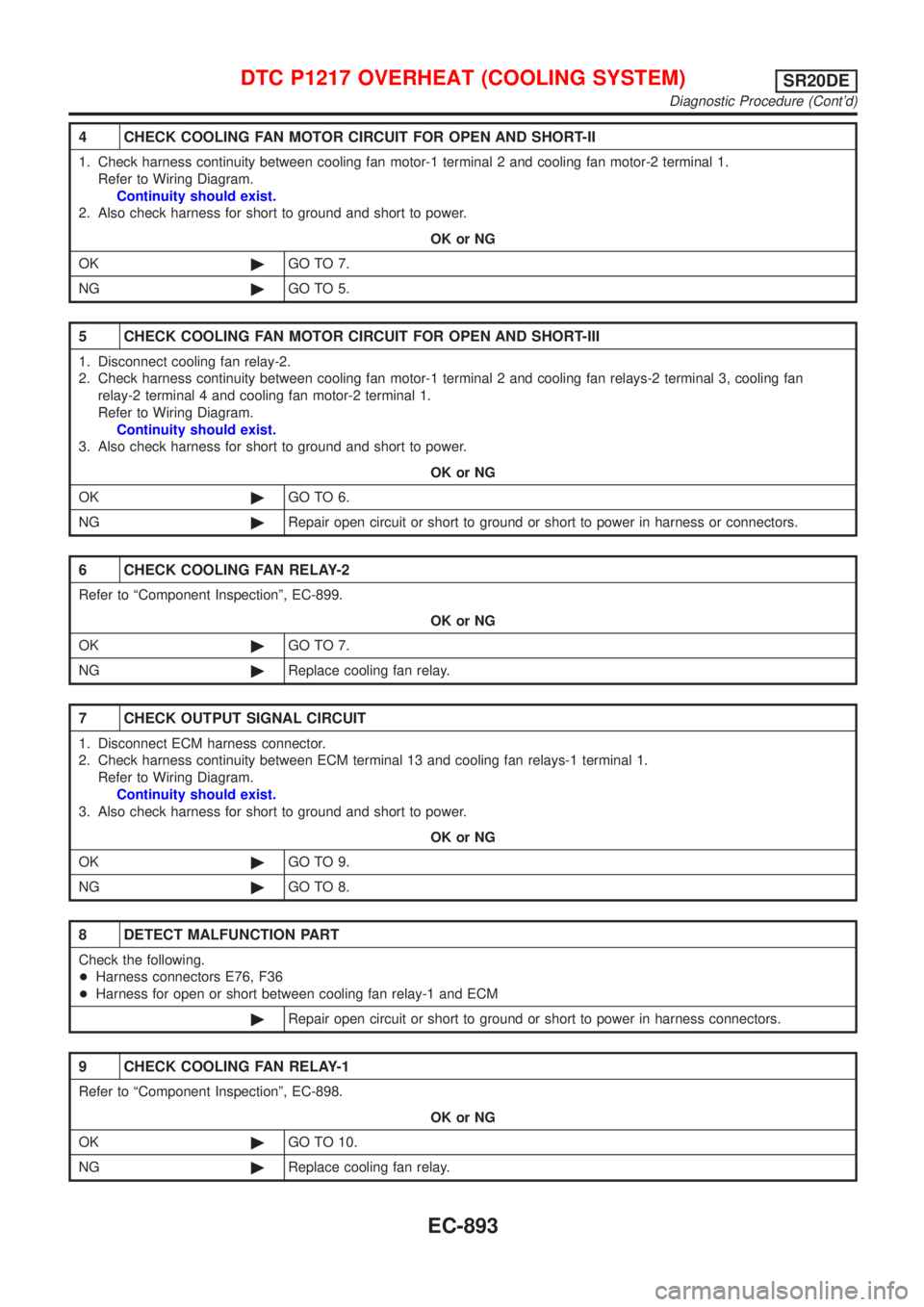

Page 1318 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN AND SHORT-II 1. Check harness continuity between cooling fan motor-1 terminal 2 and cooling fan motor-2 terminal 1. Refer to Wiring Diagram. Continuity shoul

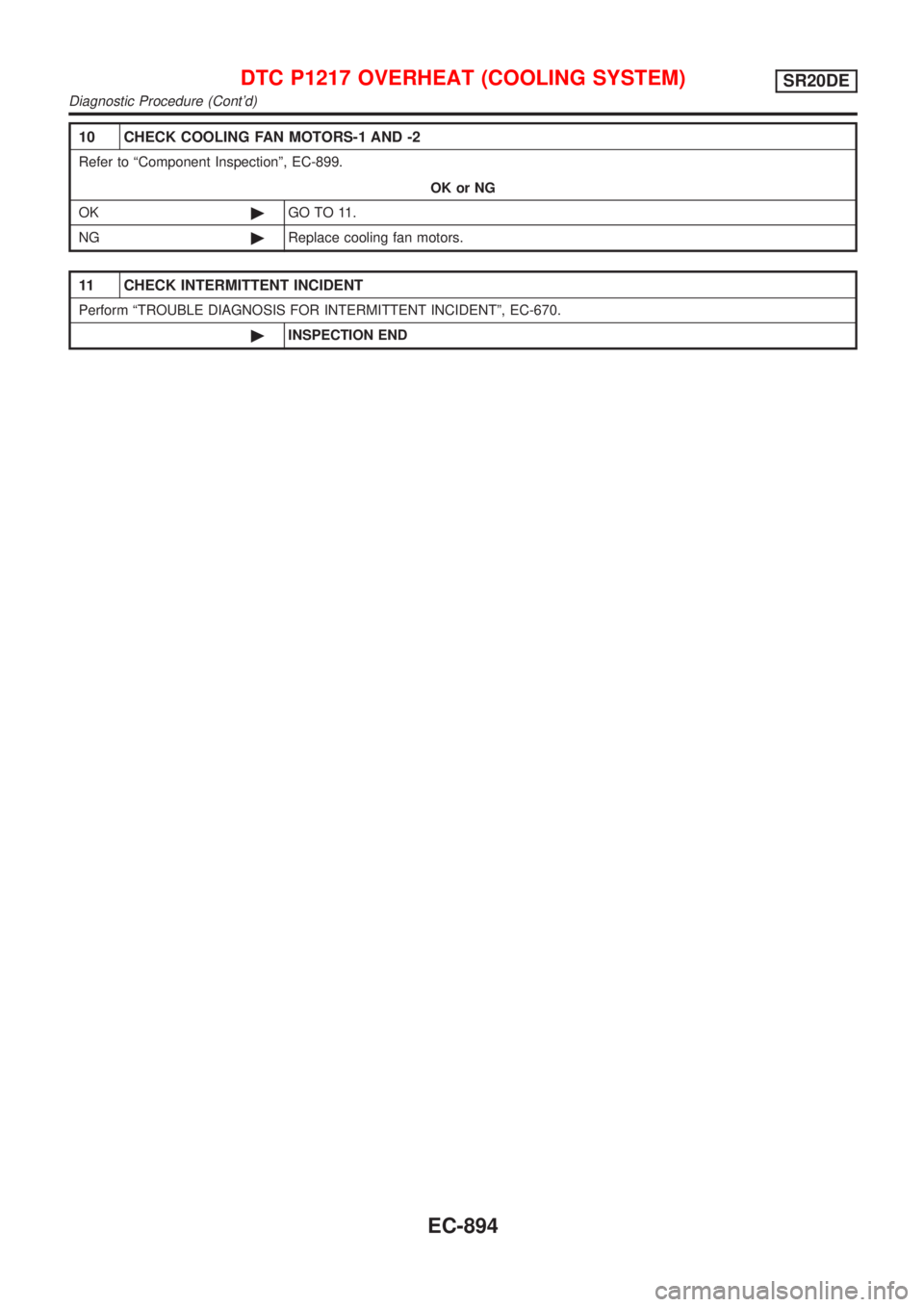

Page 1319 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 10 CHECK COOLING FAN MOTORS-1 AND -2 Refer to ªComponent Inspectionº, EC-899. OK or NG OK©GO TO 11. NG©Replace cooling fan motors. 11 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR IN

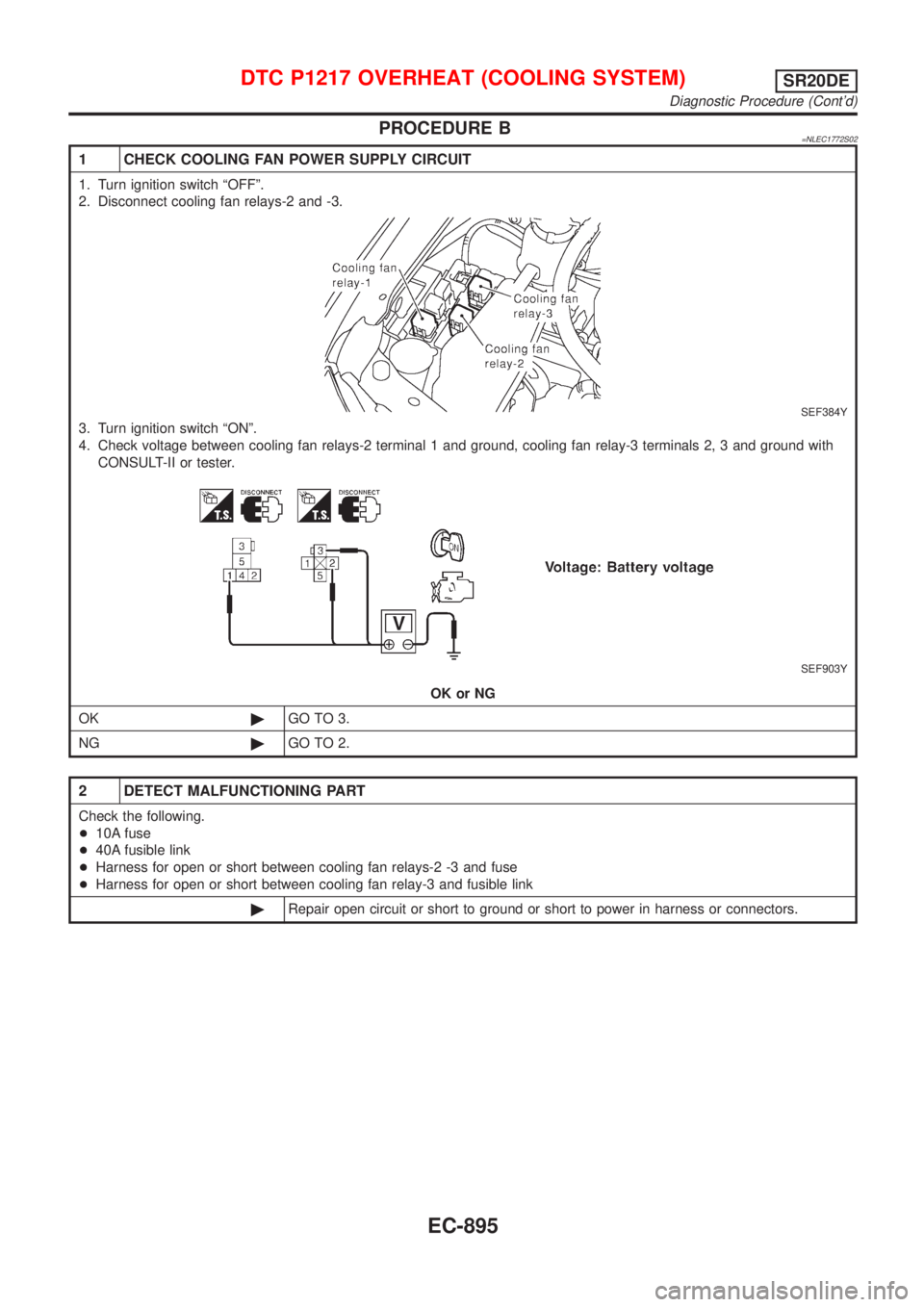

Page 1320 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual PROCEDURE B=NLEC1772S02 1 CHECK COOLING FAN POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect cooling fan relays-2 and -3. SEF384Y 3. Turn ignition switch ªONº. 4. Check voltage be
