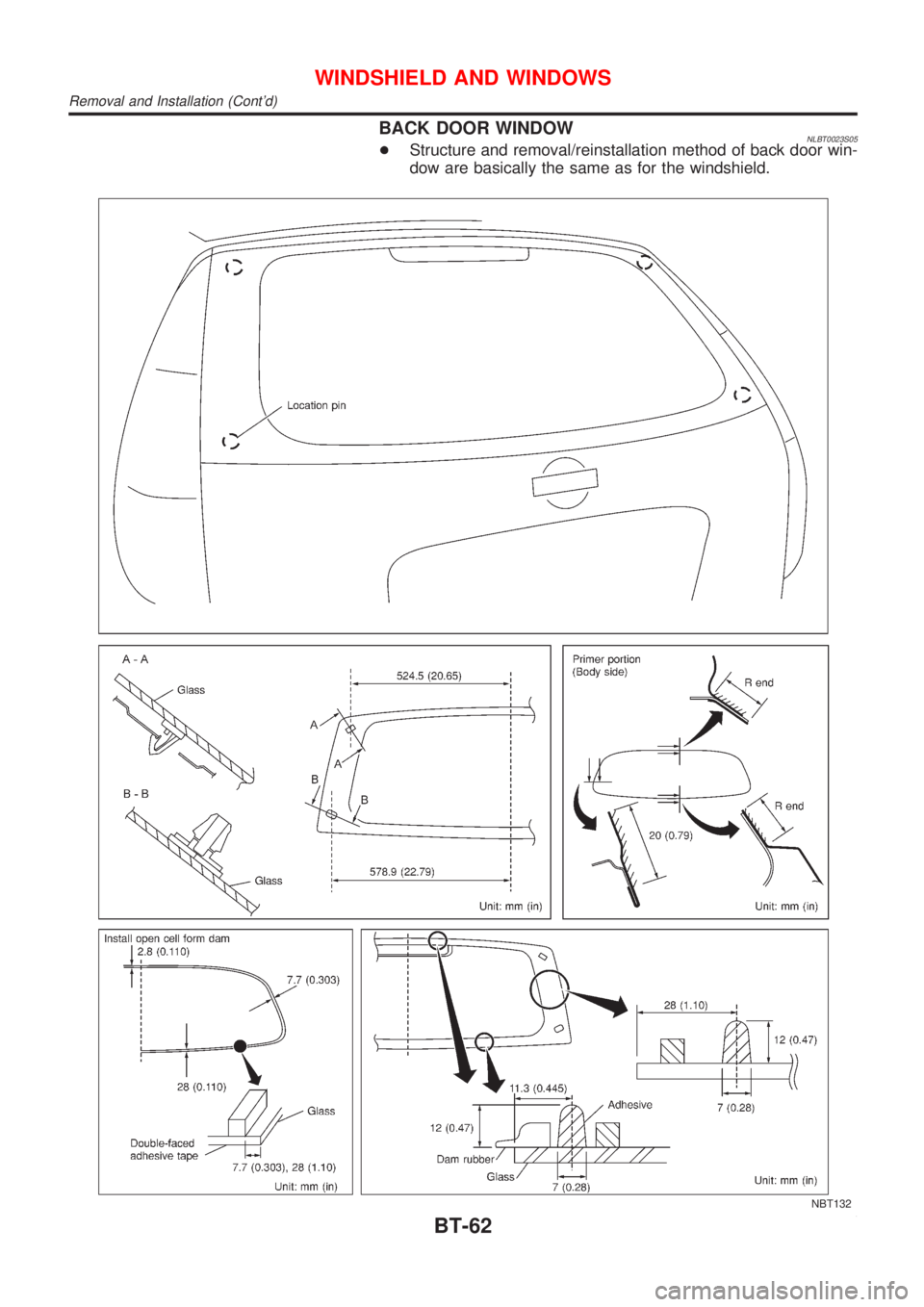

BACK DOOR WINDOWNLBT0023S05+Structure and removal/reinstallation method of back door win-
dow are basically the same as for the windshield.
NBT132
WINDSHIELD AND WINDOWS
Removal and Installation (Cont'd)
BT-62
Page 394 of 3051
Removal and InstallationNLBT0024CAUTION:
Be careful not to scratch door rearview mirror body.
HFor Wiring Diagram, refer to EL-241, ªDOOR MIRRORº for details.
1. Remove front corner of door inner cover.
2. Disconnect door mirror harness connector.
3. Remove bolts securing door mirror assembly.
4. Remove the mirror glass. Do not insert flat-bladed screwdriver too far.
NBT131
DOOR MIRROR
Removal and Installation
BT-63
Page 395 of 3051
Removal and InstallationNLBT0025REMOVALNLBT0025S01
NBT059
NBT157
INSTALLATIONNLBT0025S021. Install mirror base as follows:
a. Determine mirror base position on windshield by measuring
from top of windshield to top of mirror base as shown in the
figure.
b. Mark location on outside of windshield with wax pencil or
equivalent.
c. Clean attaching point on inside of windshield with an alcohol-
saturated panel towel.
d. Sand bonding surface of mirror base with sandpaper (No. 320
or No. 360).
e. Clean bonding surface of mirror base with an alcohol-saturated
paper towel.
f. Apply Loctite Adhesive 11067-2 or equivalent to bonding sur-
face of mirror base.
g. Install mirror base at premarked position and press mirror base
against glass for 30 to 60 seconds.
h. After five minutes, wipe off excess adhesive with an alcohol-
moistened paper towel.
2. Install rearview mirror.
REAR VIEW MIRROR
Removal and Installation
BT-64
Page 396 of 3051

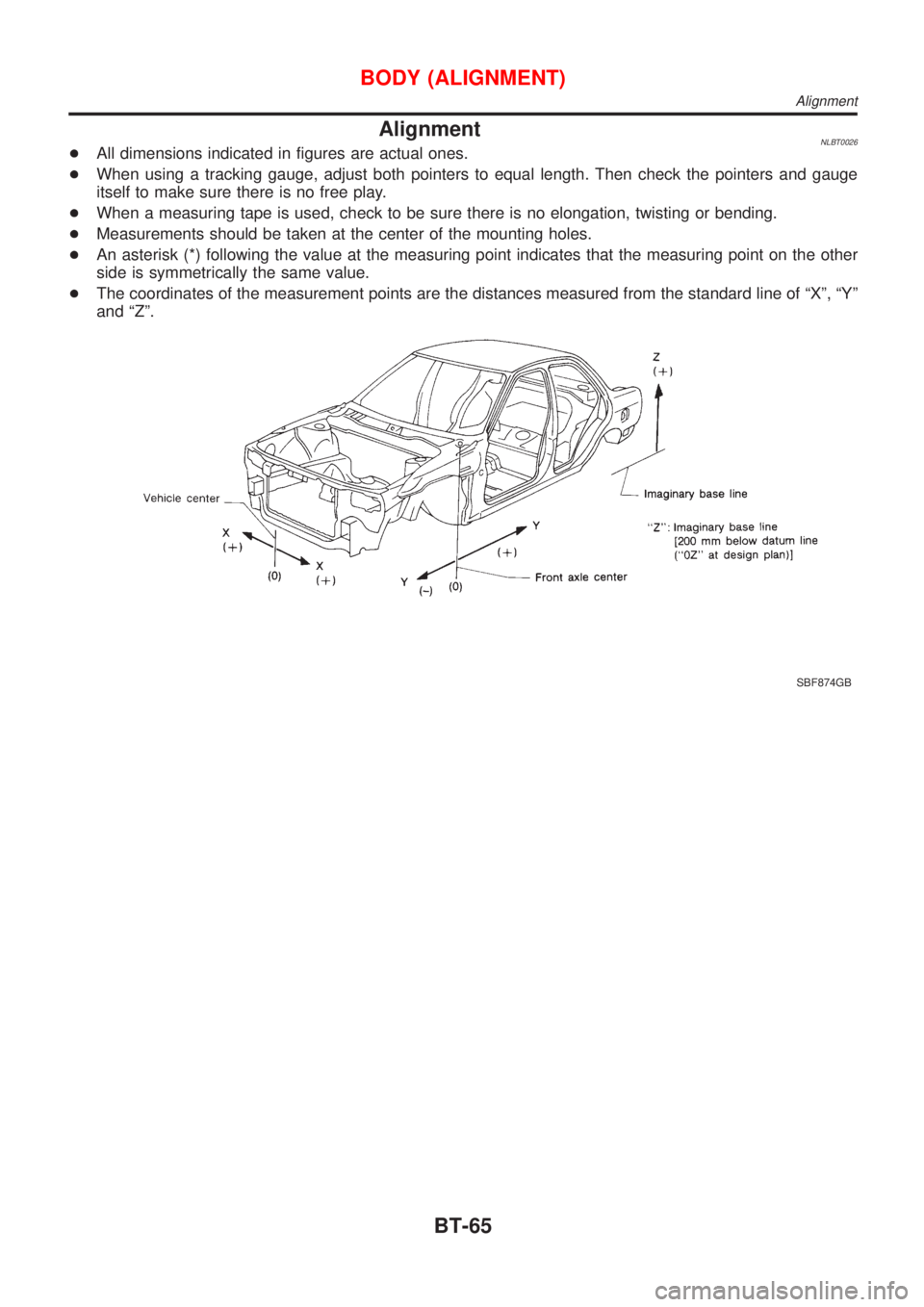

AlignmentNLBT0026+All dimensions indicated in figures are actual ones.
+When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
+When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
+Measurements should be taken at the center of the mounting holes.
+An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
+The coordinates of the measurement points are the distances measured from the standard line of ªXº, ªYº
and ªZº.
SBF874GB
BODY (ALIGNMENT)
Alignment
BT-65
Page 397 of 3051

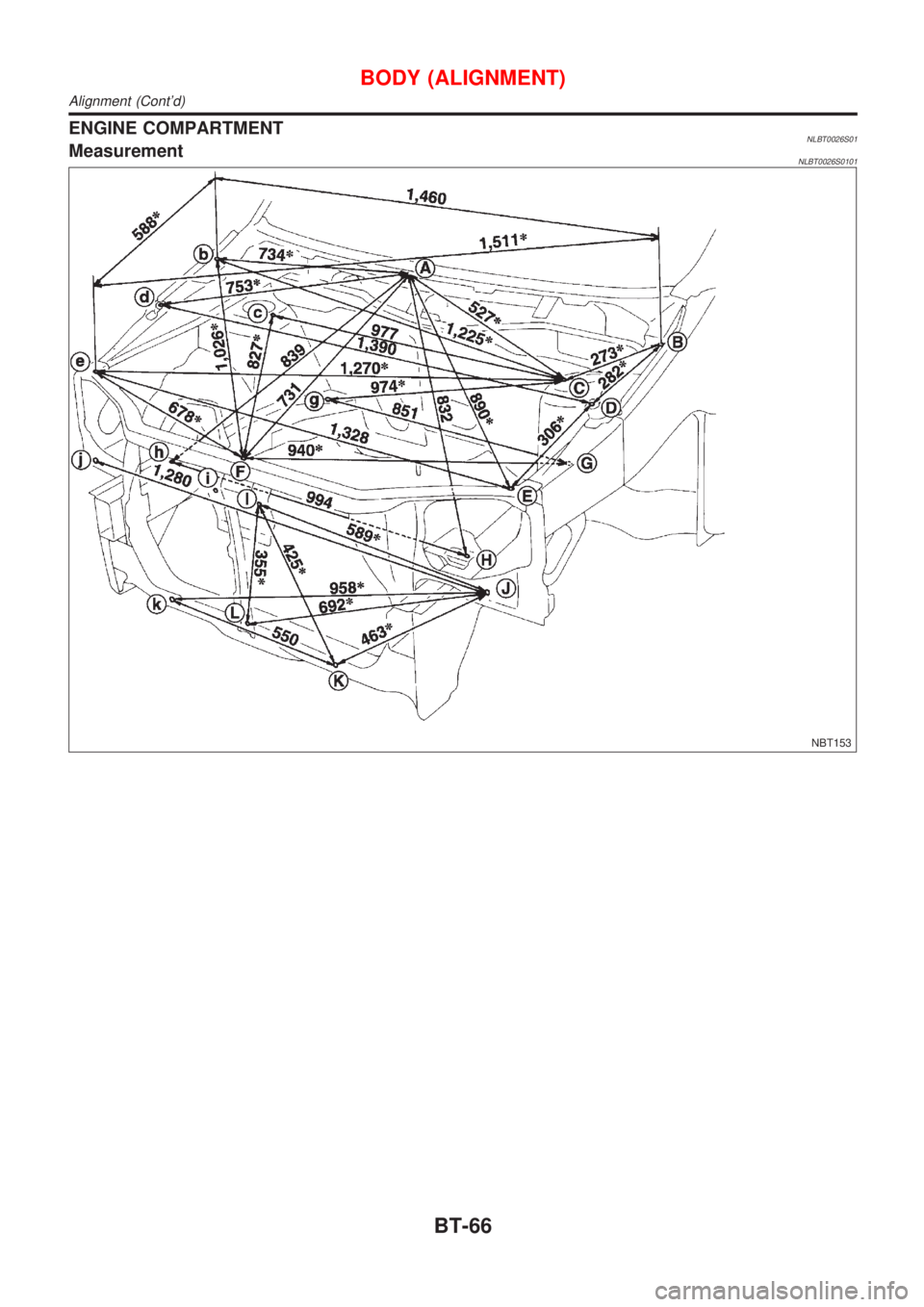

ENGINE COMPARTMENTNLBT0026S01MeasurementNLBT0026S0101
NBT153
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-66
Page 398 of 3051

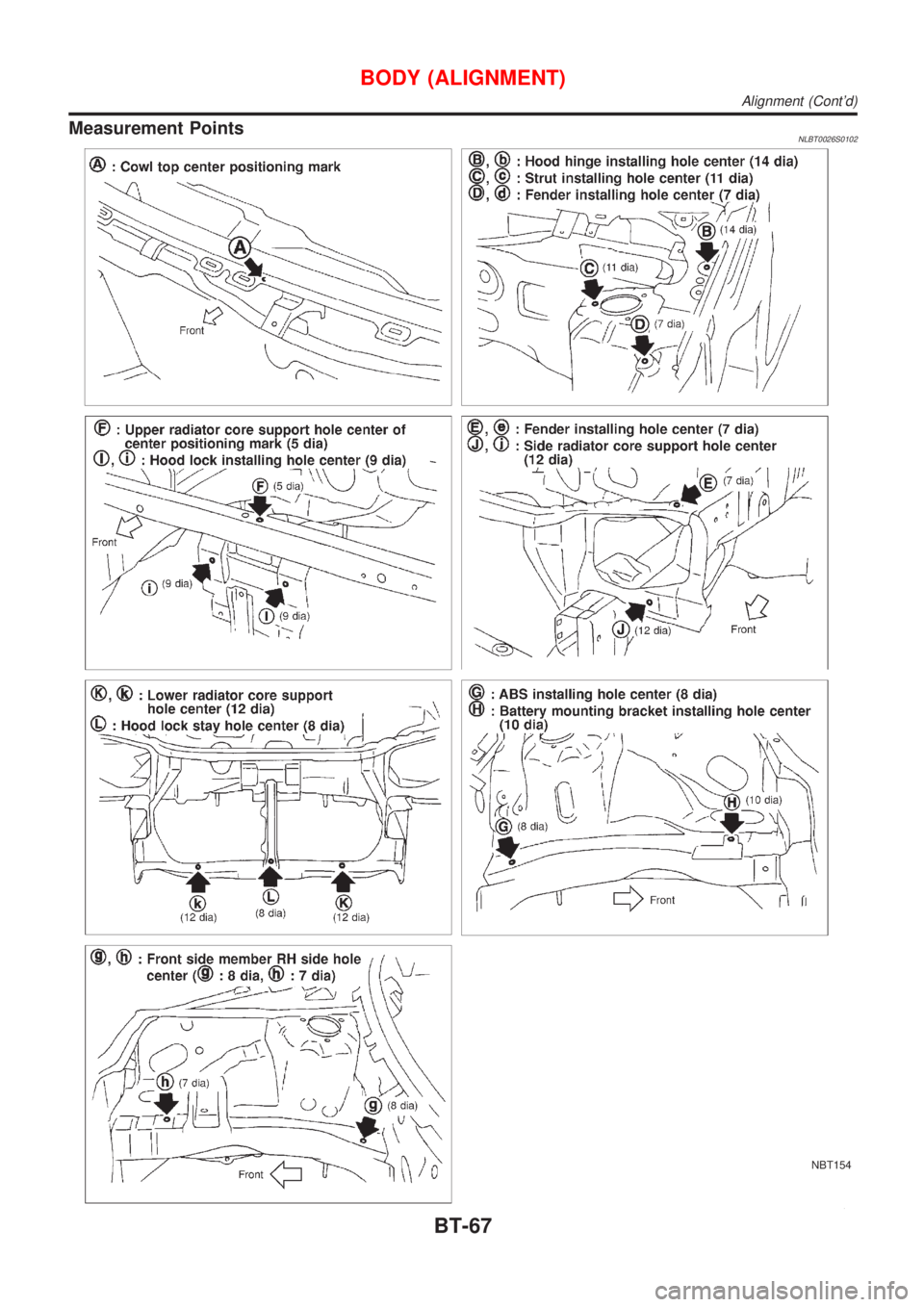

Measurement PointsNLBT0026S0102
NBT154
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-67
Page 399 of 3051

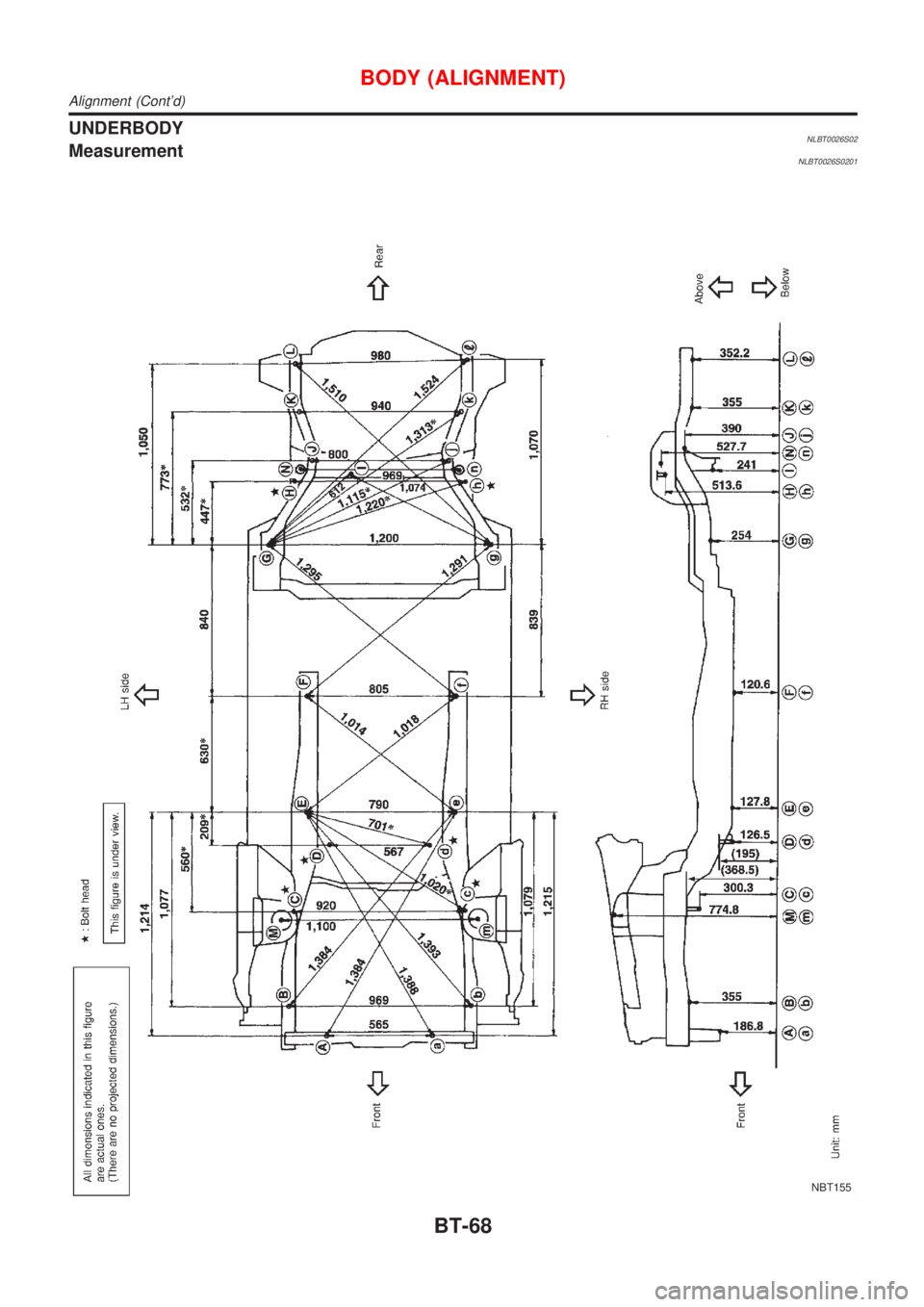

UNDERBODYNLBT0026S02MeasurementNLBT0026S0201
NBT155
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-68
Page 400 of 3051

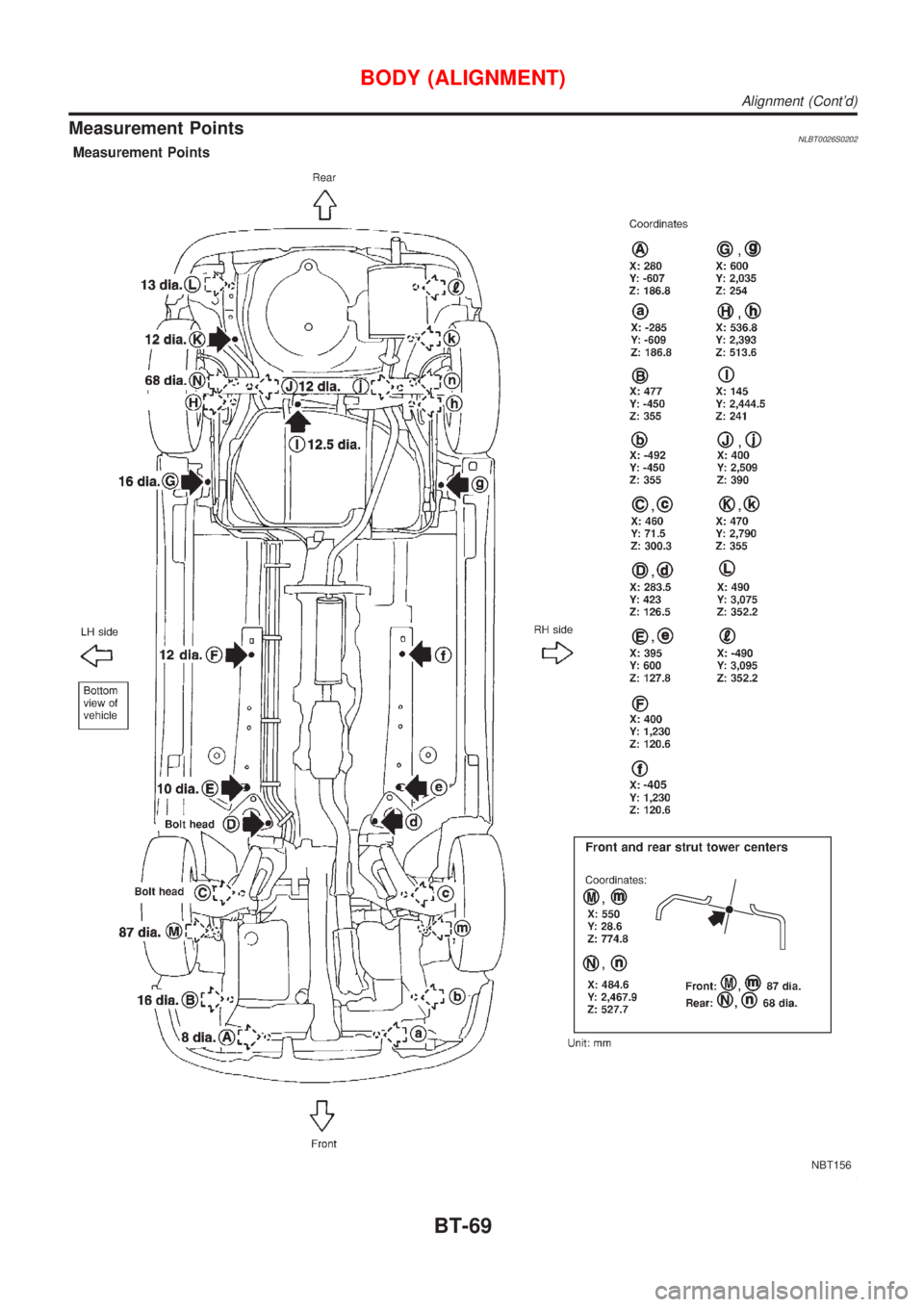

Measurement PointsNLBT0026S0202
NBT156
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-69
