Page 1833 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð TURN ÐNLEL0431MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0431S01 YEL884B TURN SIGNAL AND HAZARD WARNING LAMPS Wiring Diagram Ð TURN Ð EL-102

Page 1834 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL885B TURN SIGNAL AND HAZARD WARNING LAMPS Wiring Diagram Ð TURN Ð (Contd) EL-103

Page 1835 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0431S02 YEL410C TURN SIGNAL AND HAZARD WARNING LAMPS Wiring Diagram Ð TURN Ð (Contd) EL-104

Page 1836 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL411C TURN SIGNAL AND HAZARD WARNING LAMPS Wiring Diagram Ð TURN Ð (Contd) EL-105

Page 1837 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Trouble DiagnosesNLEL0432 Symptom Possible cause Repair order Turn signal and hazard warning lamps do not operate.1. Time control unit 2. Time control unit circuit1. Check power door lock operation. 2

Page 1838 of 3051

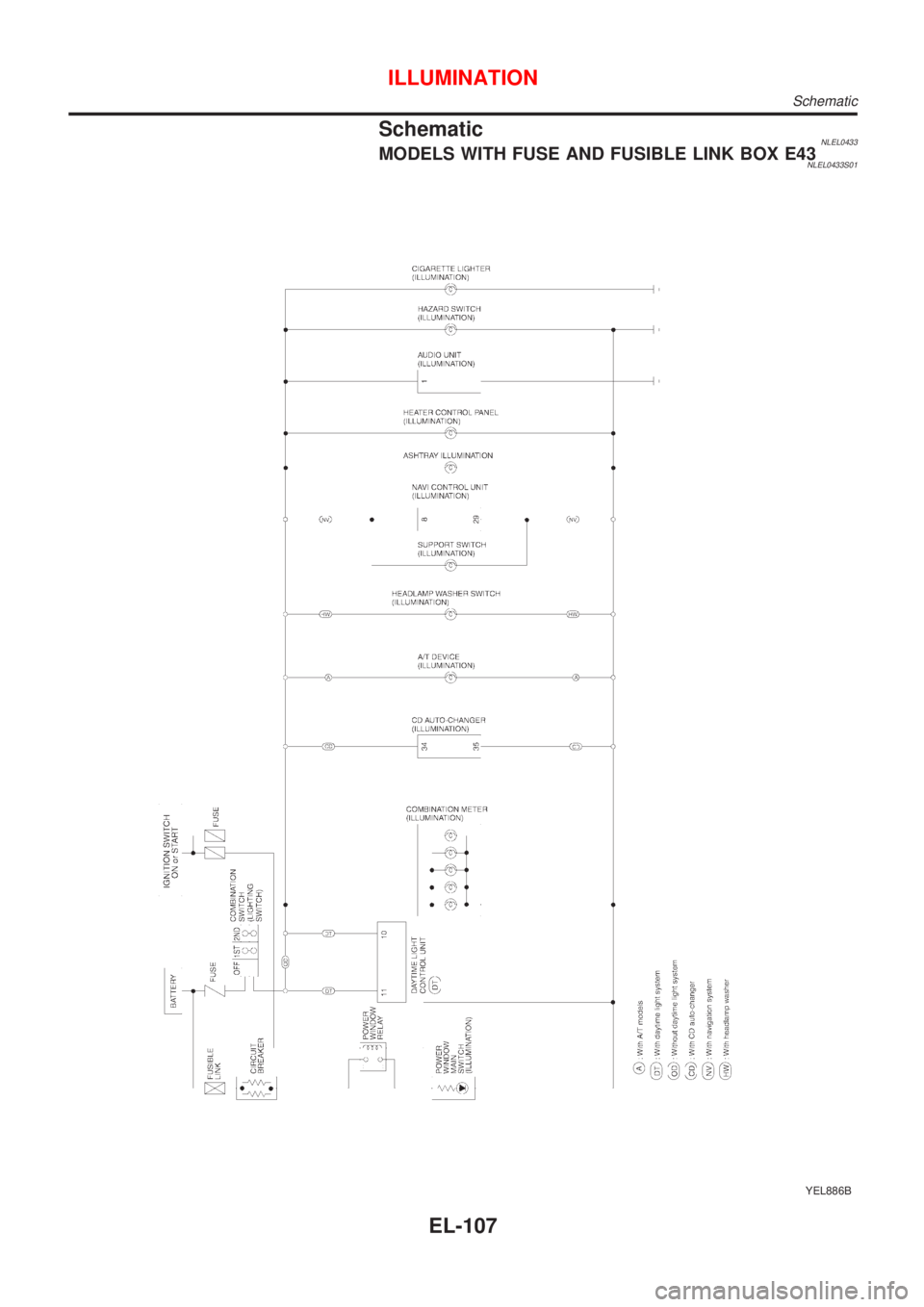

NISSAN ALMERA TINO 2001 Service Repair Manual SchematicNLEL0433MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0433S01 YEL886B ILLUMINATION Schematic EL-107

Page 1839 of 3051

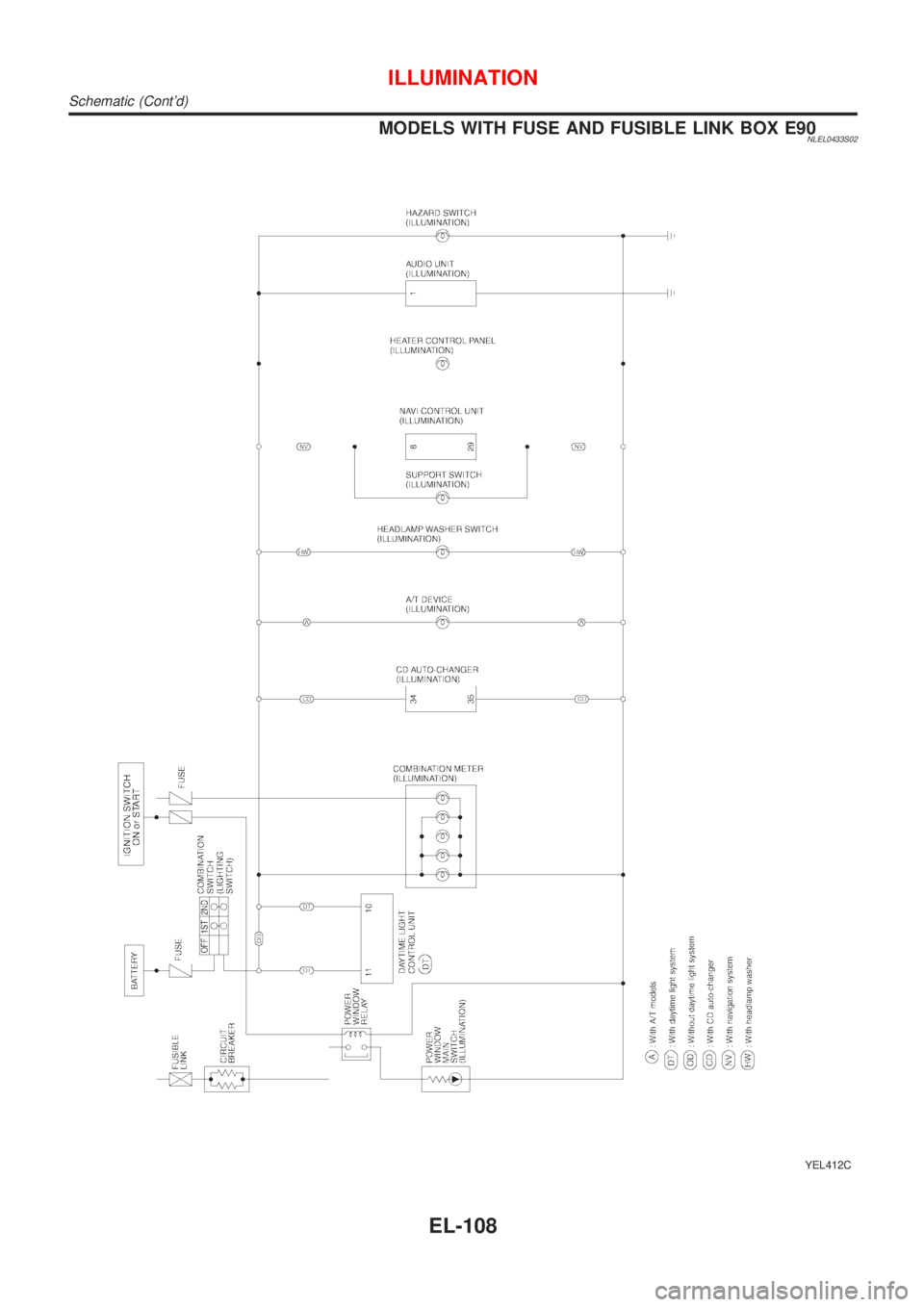

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0433S02 YEL412C ILLUMINATION Schematic (Contd) EL-108

Page 1840 of 3051

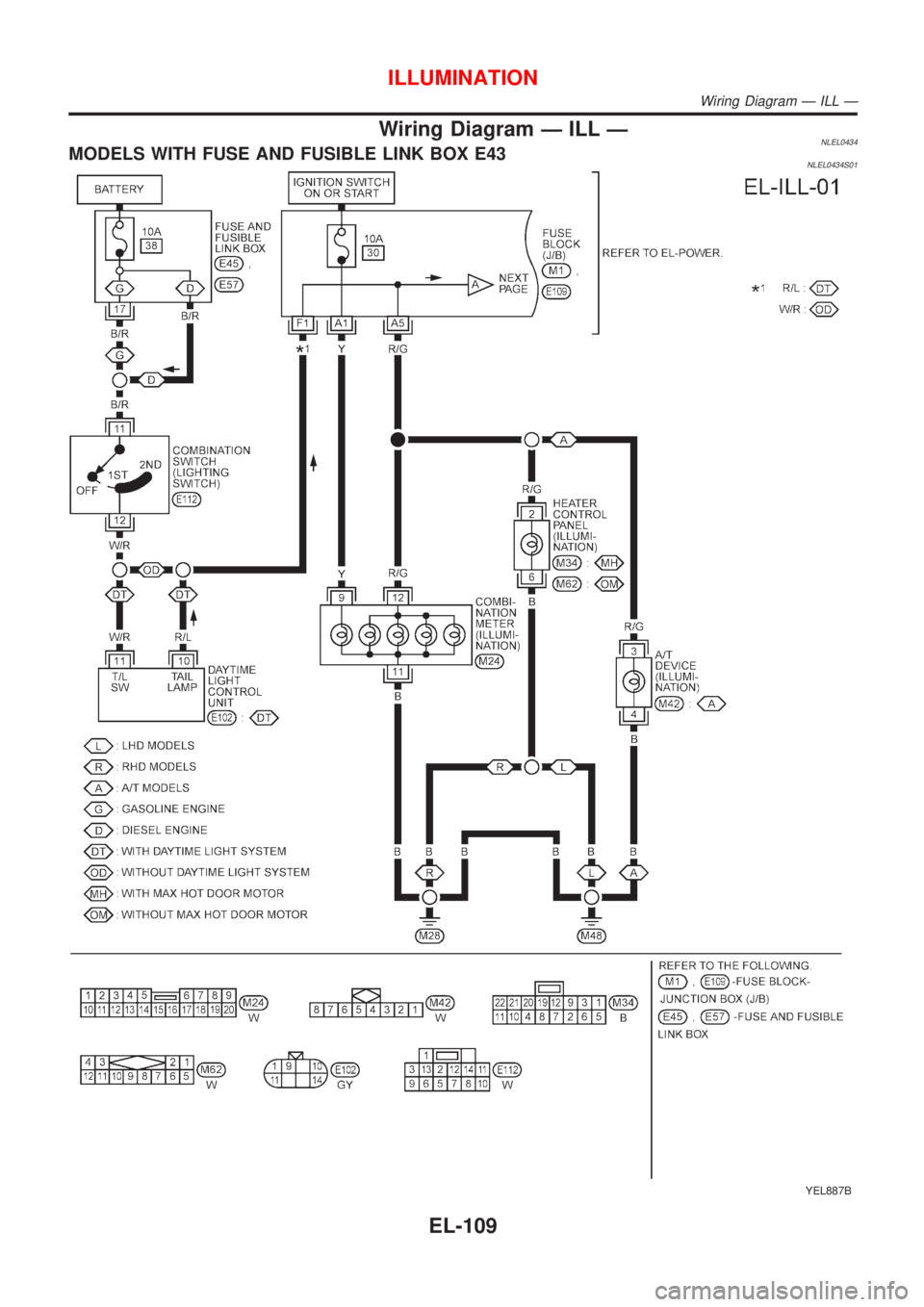

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð ILL ÐNLEL0434MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0434S01 YEL887B ILLUMINATION Wiring Diagram Ð ILL Ð EL-109
