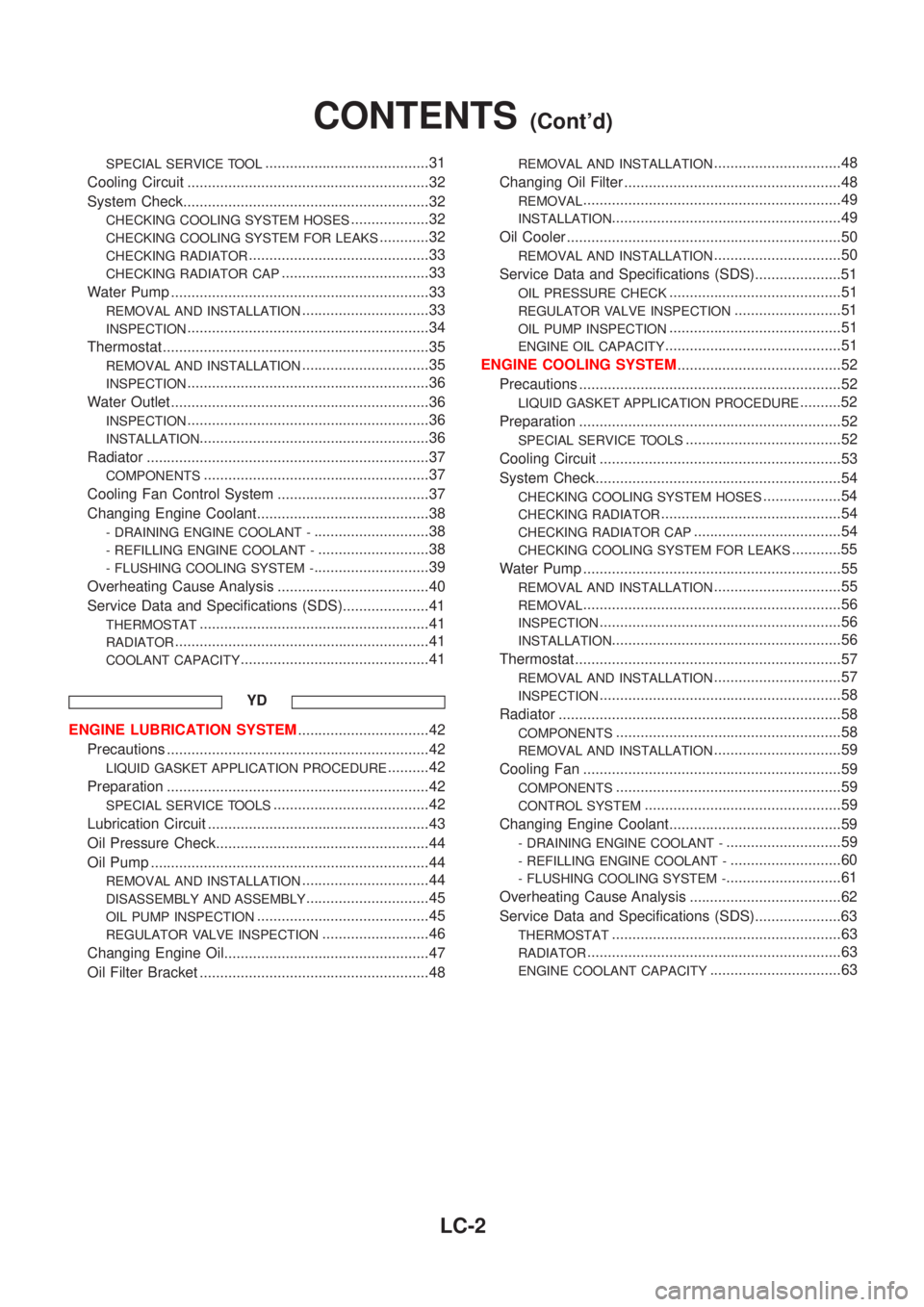

NISSAN ALMERA TINO 2001 Service Repair Manual SPECIAL SERVICE TOOL........................................31
Cooling Circuit ...........................................................32
System Check...............................................

SPECIAL SERVICE TOOL........................................31
Cooling Circuit ...........................................................32
System Check............................................................32
CHECKING COOLING SYSTEM HOSES...................32
CHECKING COOLING SYSTEM FOR LEAKS............32
CHECKING RADIATOR............................................33
CHECKING RADIATOR CAP....................................33
Water Pump ...............................................................33
REMOVAL AND INSTALLATION...............................33
INSPECTION...........................................................34
Thermostat .................................................................35
REMOVAL AND INSTALLATION...............................35
INSPECTION...........................................................36
Water Outlet ...............................................................36
INSPECTION...........................................................36
INSTALLATION........................................................36
Radiator .....................................................................37
COMPONENTS.......................................................37
Cooling Fan Control System .....................................37
Changing Engine Coolant..........................................38
- DRAINING ENGINE COOLANT -............................38
- REFILLING ENGINE COOLANT -...........................38
- FLUSHING COOLING SYSTEM -............................39
Overheating Cause Analysis .....................................40
Service Data and Specifications (SDS).....................41
THERMOSTAT........................................................41
RADIATOR..............................................................41
COOLANT CAPACITY..............................................41
YD
ENGINE LUBRICATION SYSTEM................................42
Precautions ................................................................42
LIQUID GASKET APPLICATION PROCEDURE..........42
Preparation ................................................................42
SPECIAL SERVICE TOOLS......................................42
Lubrication Circuit ......................................................43
Oil Pressure Check....................................................44
Oil Pump ....................................................................44
REMOVAL AND INSTALLATION...............................44
DISASSEMBLY AND ASSEMBLY..............................45
OIL PUMP INSPECTION..........................................45
REGULATOR VALVE INSPECTION..........................46
Changing Engine Oil..................................................47
Oil Filter Bracket ........................................................48
REMOVAL AND INSTALLATION...............................48
Changing Oil Filter .....................................................48
REMOVAL...............................................................49
INSTALLATION........................................................49
Oil Cooler ...................................................................50
REMOVAL AND INSTALLATION...............................50
Service Data and Specifications (SDS).....................51
OIL PRESSURE CHECK..........................................51
REGULATOR VALVE INSPECTION..........................51
OIL PUMP INSPECTION..........................................51
ENGINE OIL CAPACITY...........................................51
ENGINE COOLING SYSTEM........................................52
Precautions ................................................................52
LIQUID GASKET APPLICATION PROCEDURE..........52
Preparation ................................................................52
SPECIAL SERVICE TOOLS......................................52
Cooling Circuit ...........................................................53
System Check............................................................54
CHECKING COOLING SYSTEM HOSES...................54
CHECKING RADIATOR............................................54
CHECKING RADIATOR CAP....................................54
CHECKING COOLING SYSTEM FOR LEAKS............55
Water Pump ...............................................................55
REMOVAL AND INSTALLATION...............................55
REMOVAL...............................................................56
INSPECTION...........................................................56
INSTALLATION........................................................56
Thermostat .................................................................57
REMOVAL AND INSTALLATION...............................57
INSPECTION...........................................................58
Radiator .....................................................................58
COMPONENTS.......................................................58
REMOVAL AND INSTALLATION...............................59
Cooling Fan ...............................................................59
COMPONENTS.......................................................59
CONTROL SYSTEM................................................59
Changing Engine Coolant..........................................59
- DRAINING ENGINE COOLANT -............................59
- REFILLING ENGINE COOLANT -...........................60
- FLUSHING COOLING SYSTEM -............................61
Overheating Cause Analysis .....................................62
Service Data and Specifications (SDS).....................63
THERMOSTAT........................................................63
RADIATOR..............................................................63
ENGINE COOLANT CAPACITY................................63
CONTENTS(Cont'd)
LC-2

Page 2706 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM164F
AEM080
Precautions

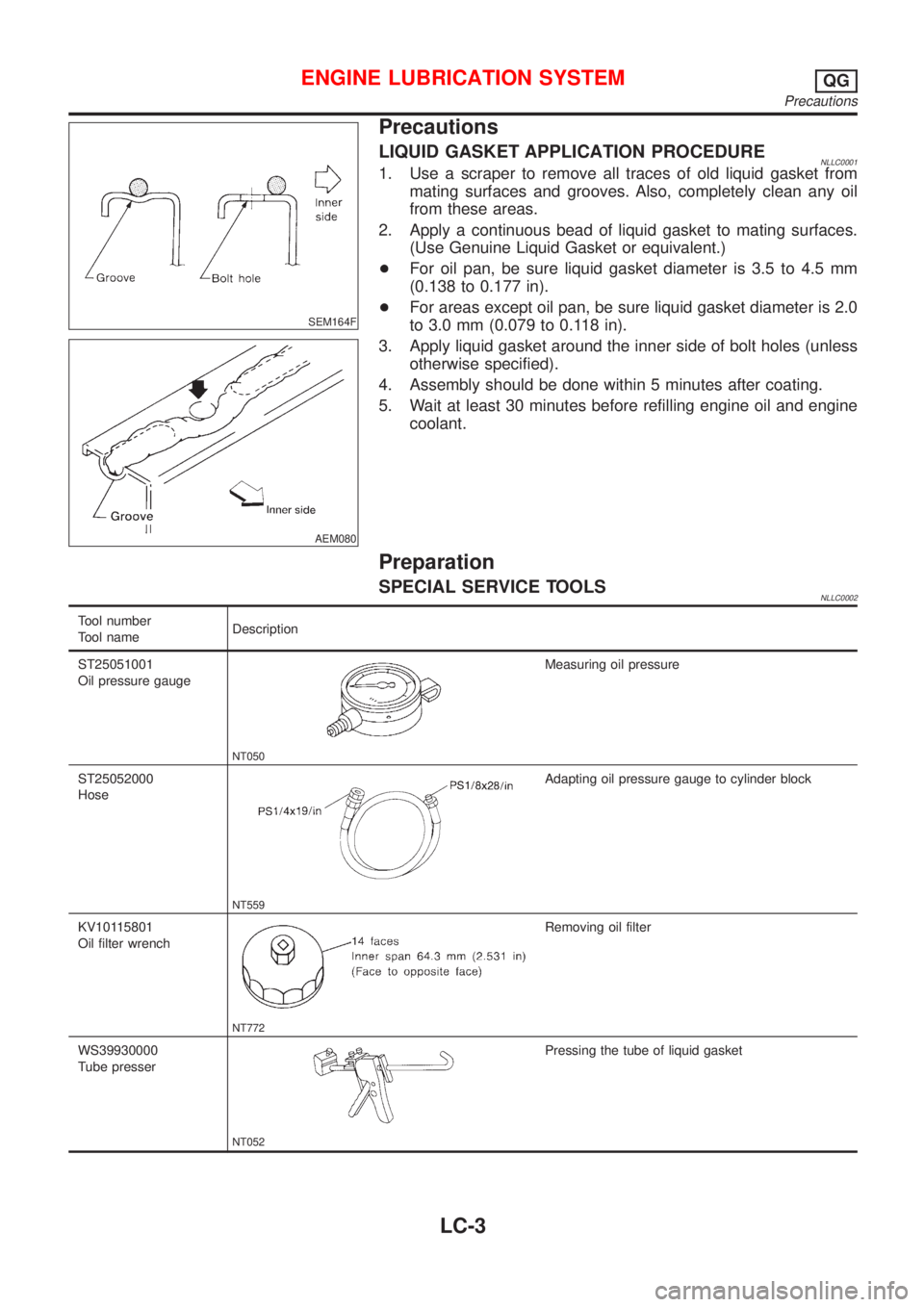

LIQUID GASKET APPLICATION PROCEDURENLLC00011. Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from t

Page 2707 of 3051

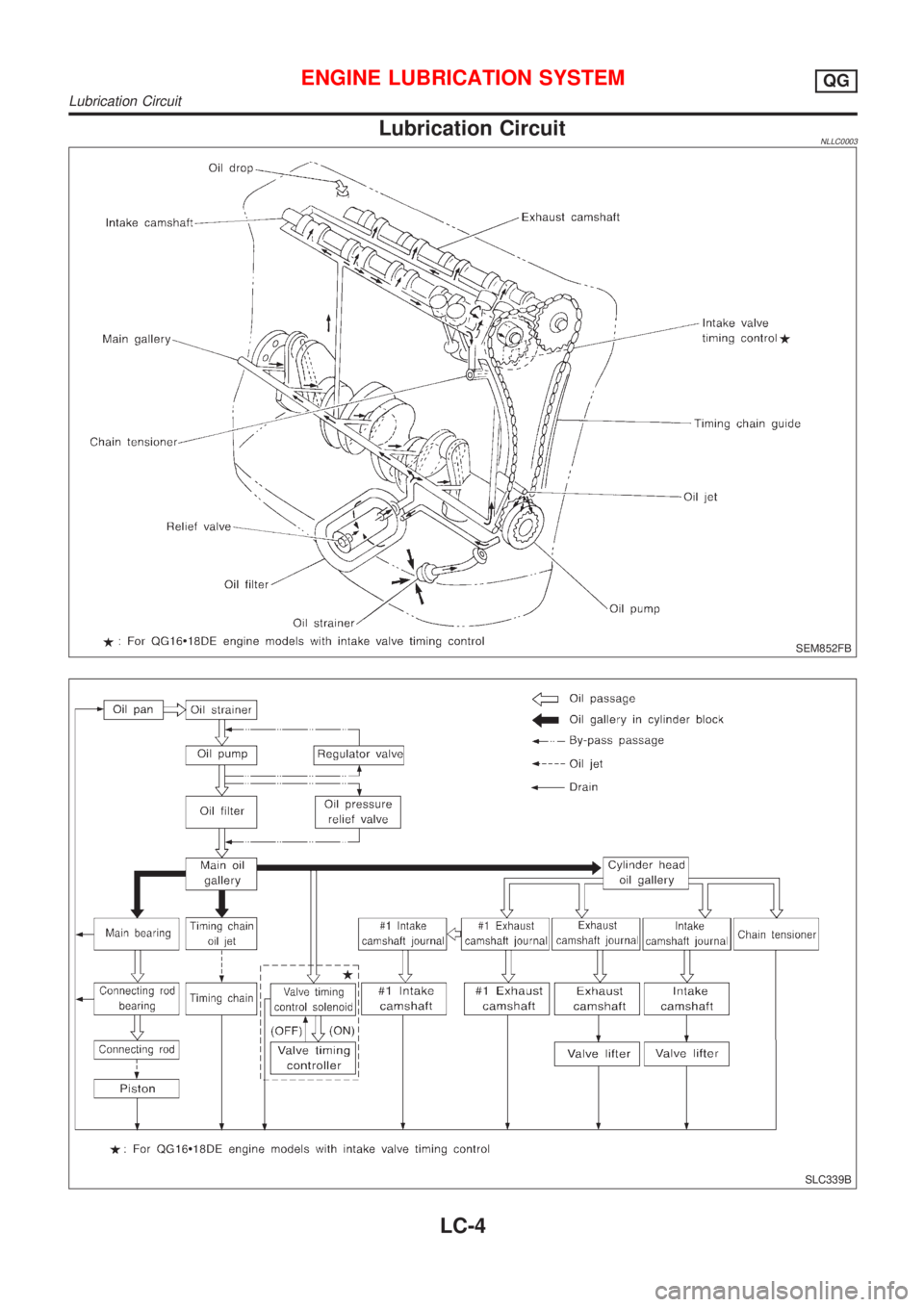

NISSAN ALMERA TINO 2001 Service Repair Manual Lubrication CircuitNLLC0003
SEM852FB
SLC339B
ENGINE LUBRICATION SYSTEMQG
Lubrication Circuit
LC-4

Page 2708 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM853F
Oil Pressure CheckNLLC0004WARNING:
+Be careful not to burn yourself, as the engine and oil may
be hot.
+For M/T models, put gearshift lever in Neutral ªNº posi-
tion.
1. Check oil level.
2.

Page 2709 of 3051

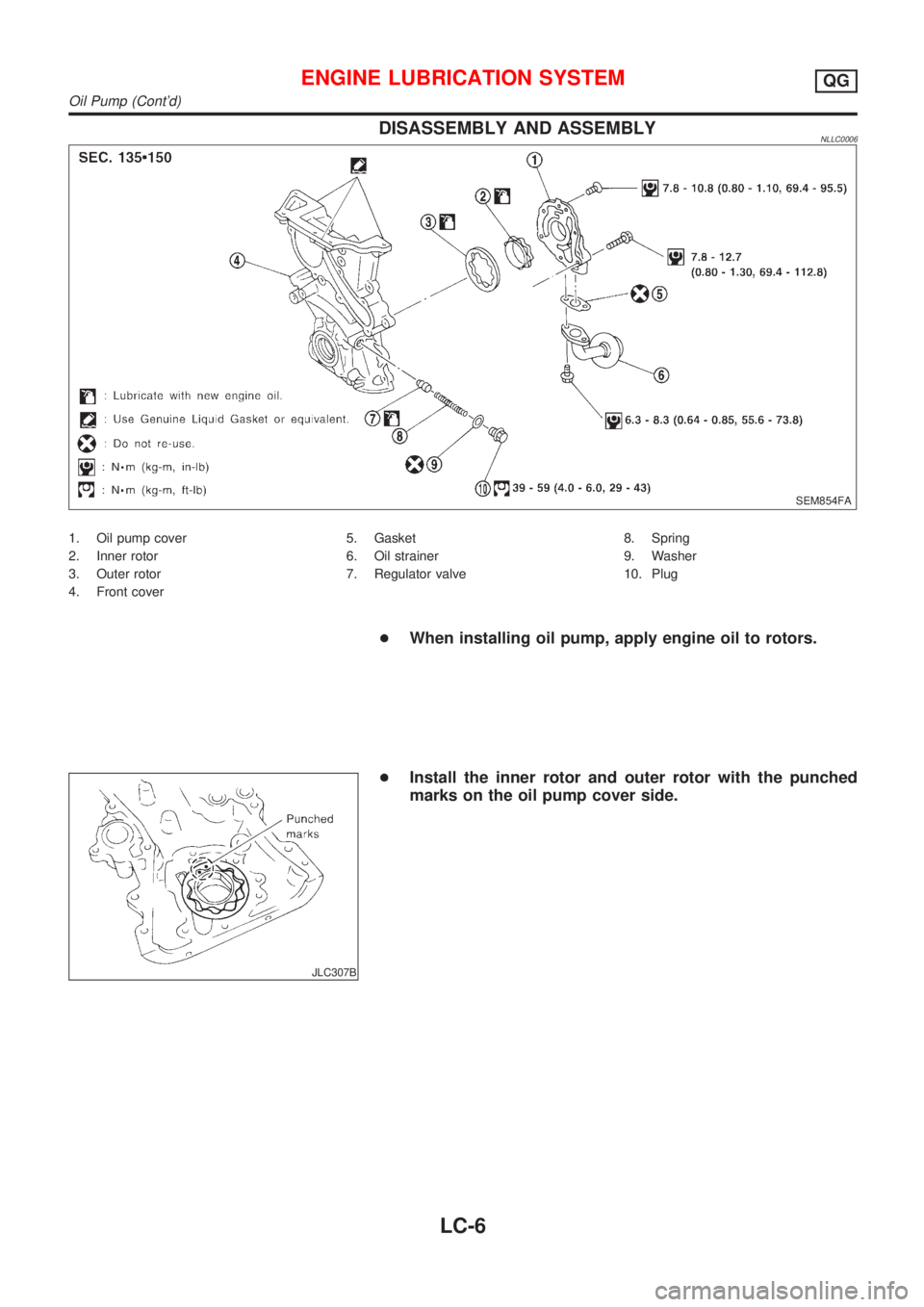

NISSAN ALMERA TINO 2001 Service Repair Manual DISASSEMBLY AND ASSEMBLYNLLC0006
SEM854FA
1. Oil pump cover
2. Inner rotor
3. Outer rotor
4. Front cover5. Gasket
6. Oil strainer
7. Regulator valve8. Spring
9. Washer
10. Plug
+When installing oil pu

Page 2710 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM855F
SEM856F

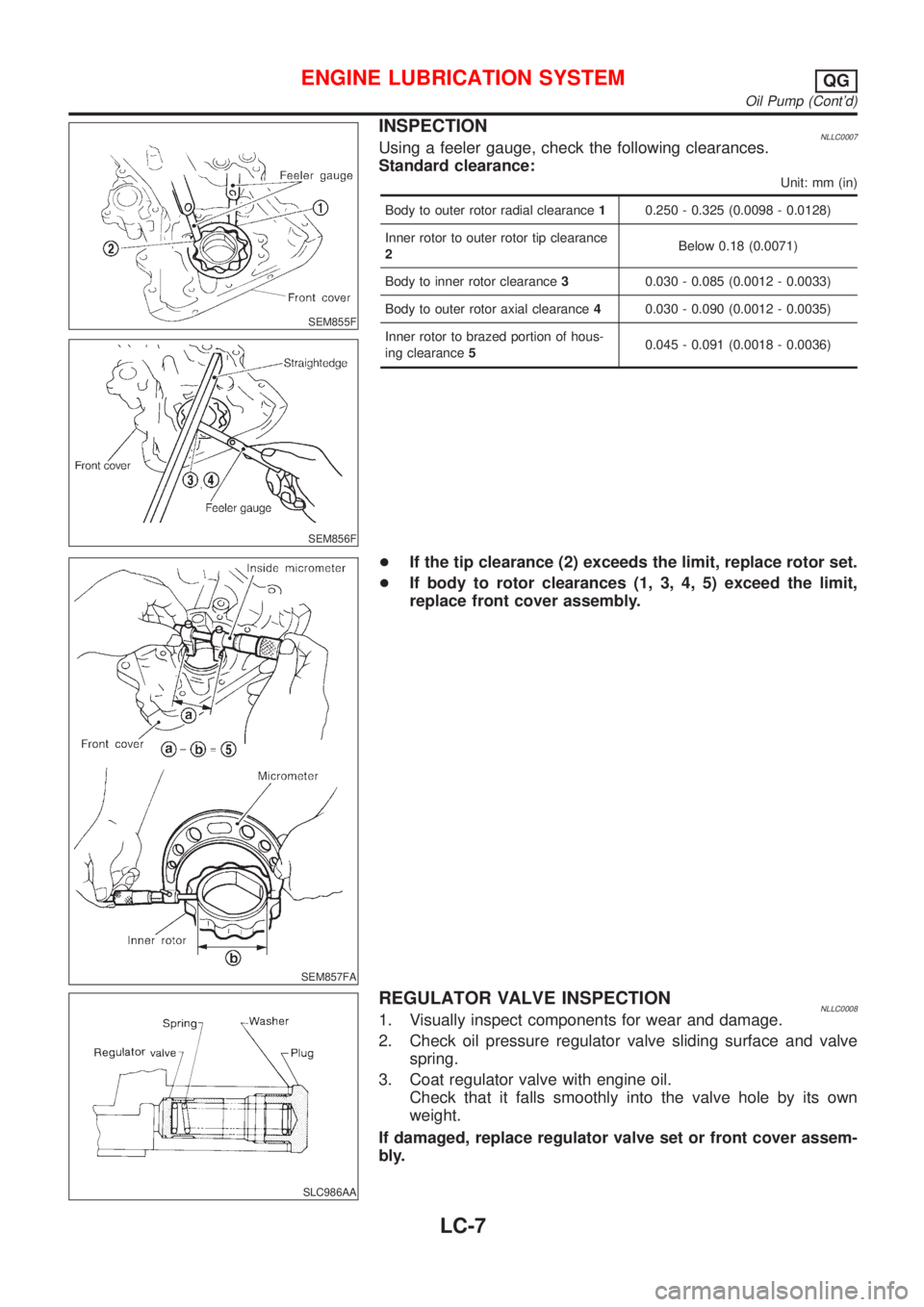

INSPECTIONNLLC0007Using a feeler gauge, check the following clearances.
Standard clearance:
Unit: mm (in)
Body to outer rotor radial clearance10.250 - 0.325 (0.0098 - 0.0128)
Inner rot

Page 2711 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SLC101B
4. Check regulator valve to front cover clearance.
Clearance 6:
0.052 - 0.088 mm (0.0020 - 0.0035 in)
If it exceeds the limit, replace front cover assembly.
SMA915C
Changing Engine OilNLLC0035

Page 2712 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SMA390C
5. Check oil level.
6. Start engine and check area around drain plug and oil filter for
oil leakage.
7. Run engine for a few minutes, then turn it off. After several
minutes, check oil level.
