NISSAN ALMERA TINO 2001 Service Repair Manual SYMPTOM MATRIX CHART 1NLEL0411S02(Self-diagnosis related item) SYMPTOMDisplayed ªSELF-DIAG RESULTSº on CON- SULT-II screen.DIAGNOSTIC PROCE- DURE (Reference page)SYSTEM (Malfunctioning part or mode)

Page 2082 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SYMPTOM MATRIX CHART 2NLEL0411S03(Non self-diagnosis related item) SYMPTOMDIAGNOSTIC PROCEDURE (Reference page)SYSTEM (Malfunctioning part or mode)REFERENCE PART NO. OF ILLUSTRATION ON SYSTEM DIAGRAM

Page 2083 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEL152X DIAGNOSTIC PROCEDURE 1NLEL0411S05Self-diagnostic results: ªECM INT CIRC-IMMUº displayed on CONSULT-II screen 1. Confirm SELF-DIAGNOSTIC RESULTS ªECM INT CIRC- IMMUº displayed on CONSULT-II

Page 2084 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 2=NLEL0411S06Self-diagnostic results: ªCHAIN OF ECM-IMMUº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªCHAIN OF ECM-IMMUº

Page 2085 of 3051

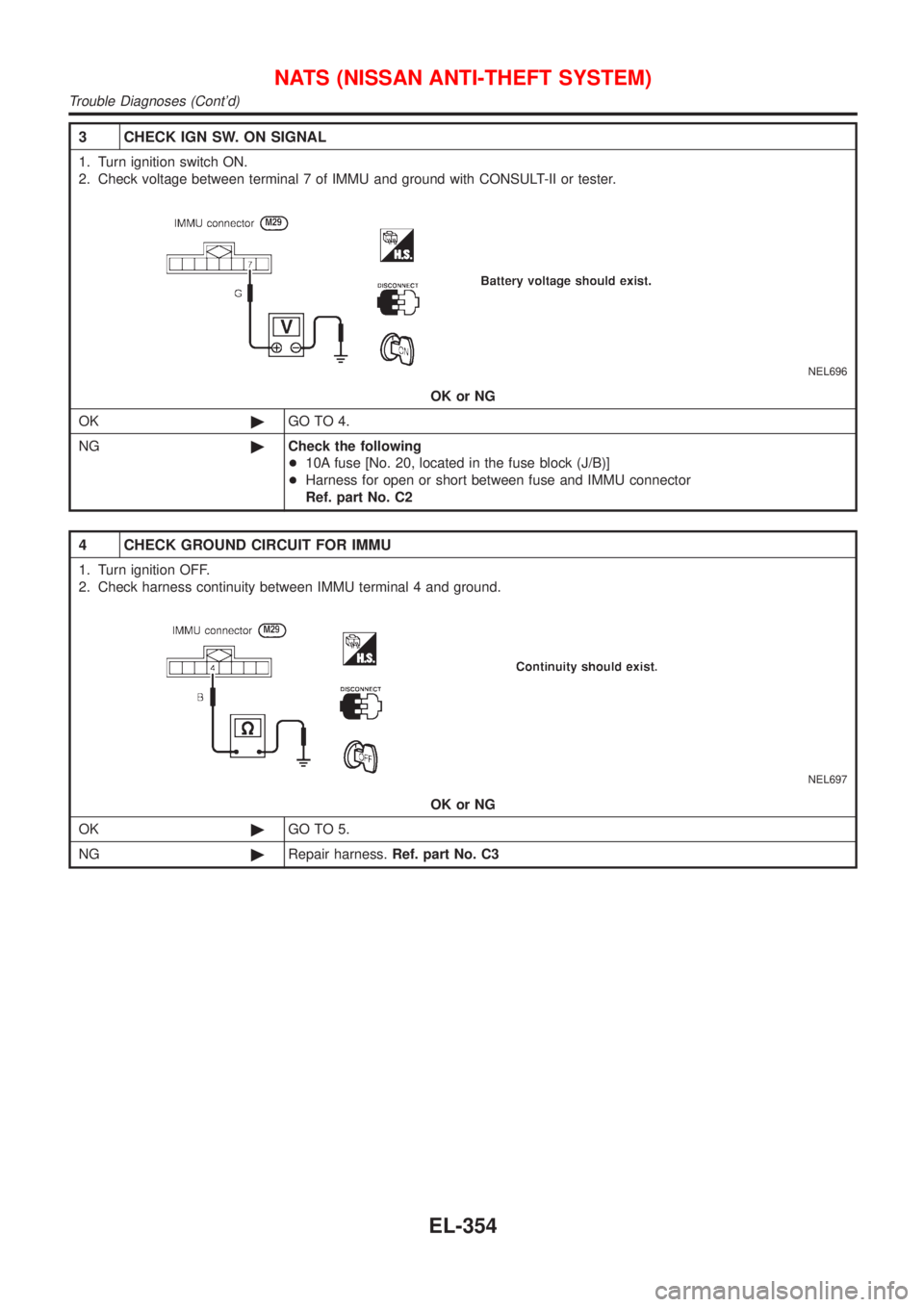

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK IGN SW. ON SIGNAL 1. Turn ignition switch ON. 2. Check voltage between terminal 7 of IMMU and ground with CONSULT-II or tester. NEL696 OK or NG OK©GO TO 4. NG©Check the following +10A fuse [

Page 2086 of 3051

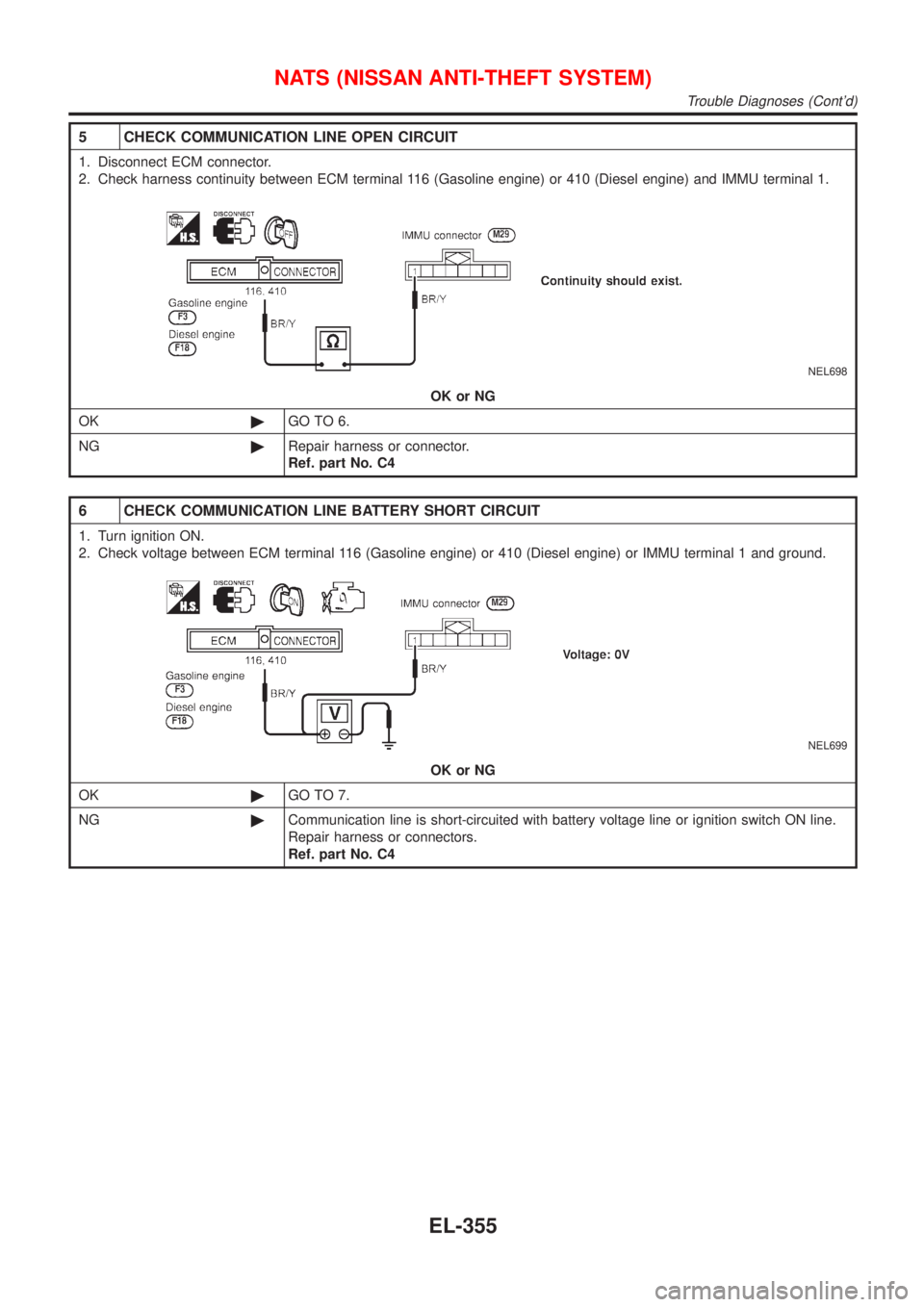

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK COMMUNICATION LINE OPEN CIRCUIT 1. Disconnect ECM connector. 2. Check harness continuity between ECM terminal 116 (Gasoline engine) or 410 (Diesel engine) and IMMU terminal 1. NEL698 OK or NG

Page 2087 of 3051

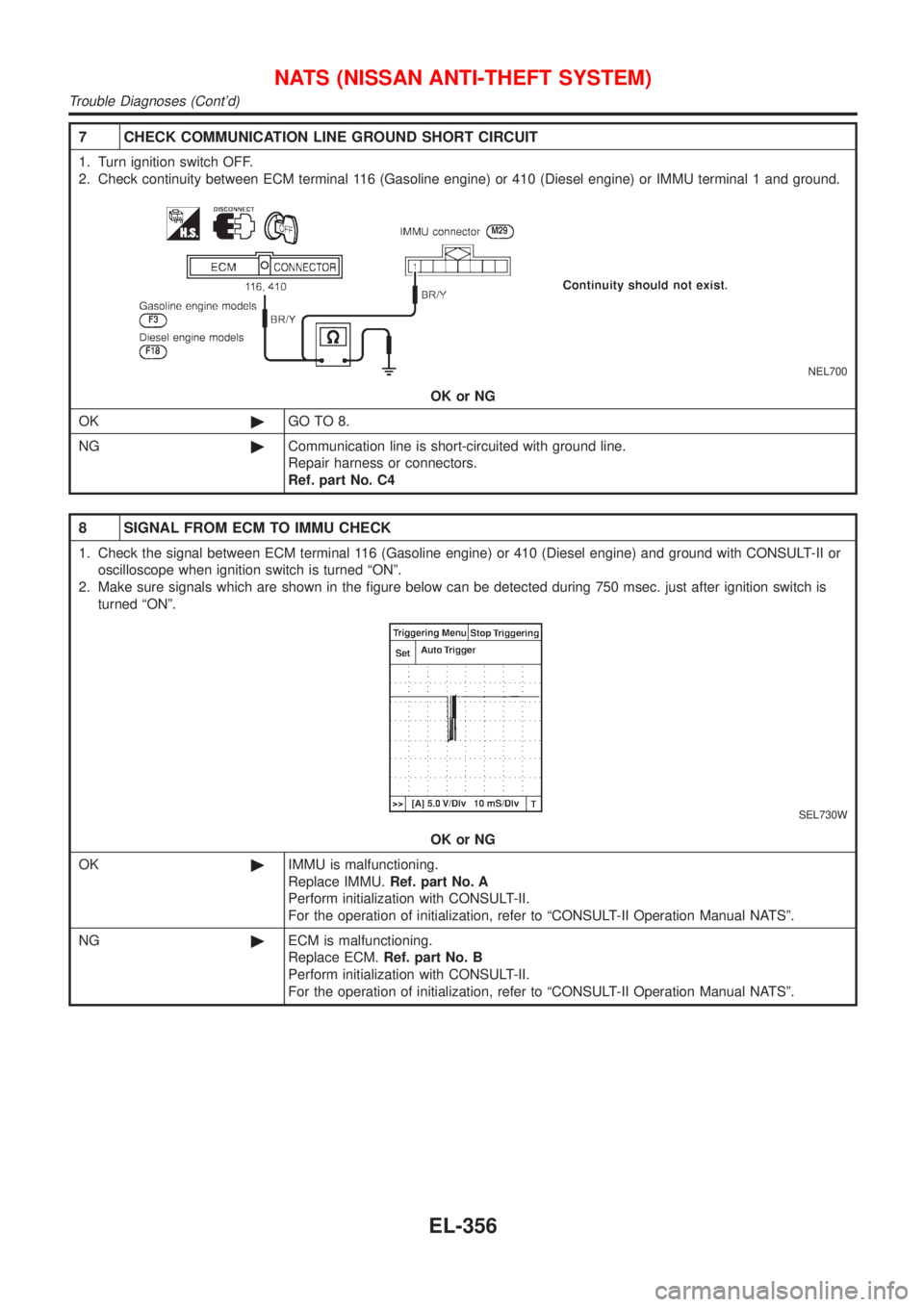

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK COMMUNICATION LINE GROUND SHORT CIRCUIT 1. Turn ignition switch OFF. 2. Check continuity between ECM terminal 116 (Gasoline engine) or 410 (Diesel engine) or IMMU terminal 1 and ground. NEL700

Page 2088 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 3=NLEL0411S07Self-diagnostic results: ªDIFFERENCE OF KEYº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªDIFFERENCE OF KEYº
