Page 1633 of 3051

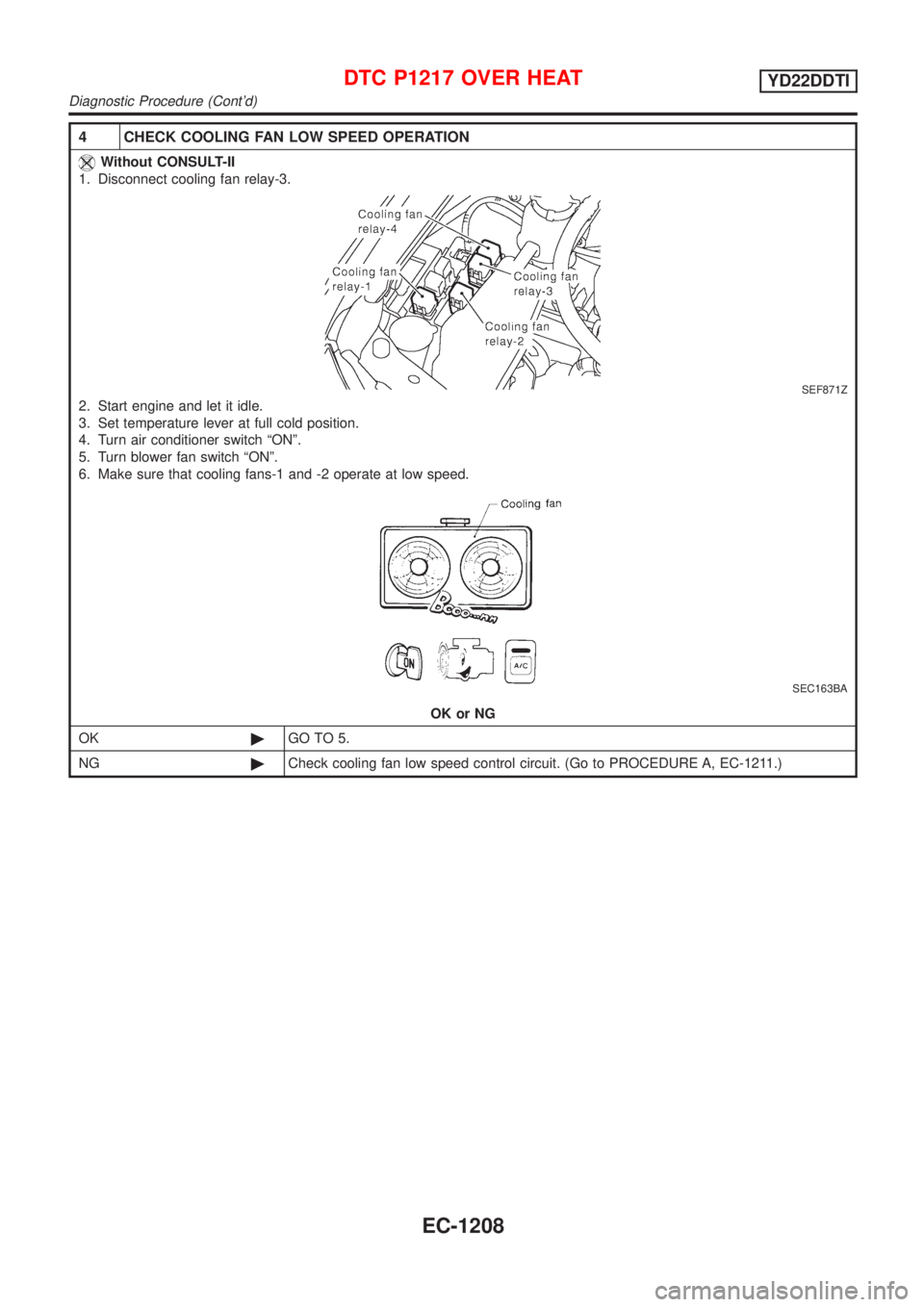

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK COOLING FAN LOW SPEED OPERATION Without CONSULT-II 1. Disconnect cooling fan relay-3. SEF871Z 2. Start engine and let it idle. 3. Set temperature lever at full cold position. 4. Turn air condi

Page 1634 of 3051

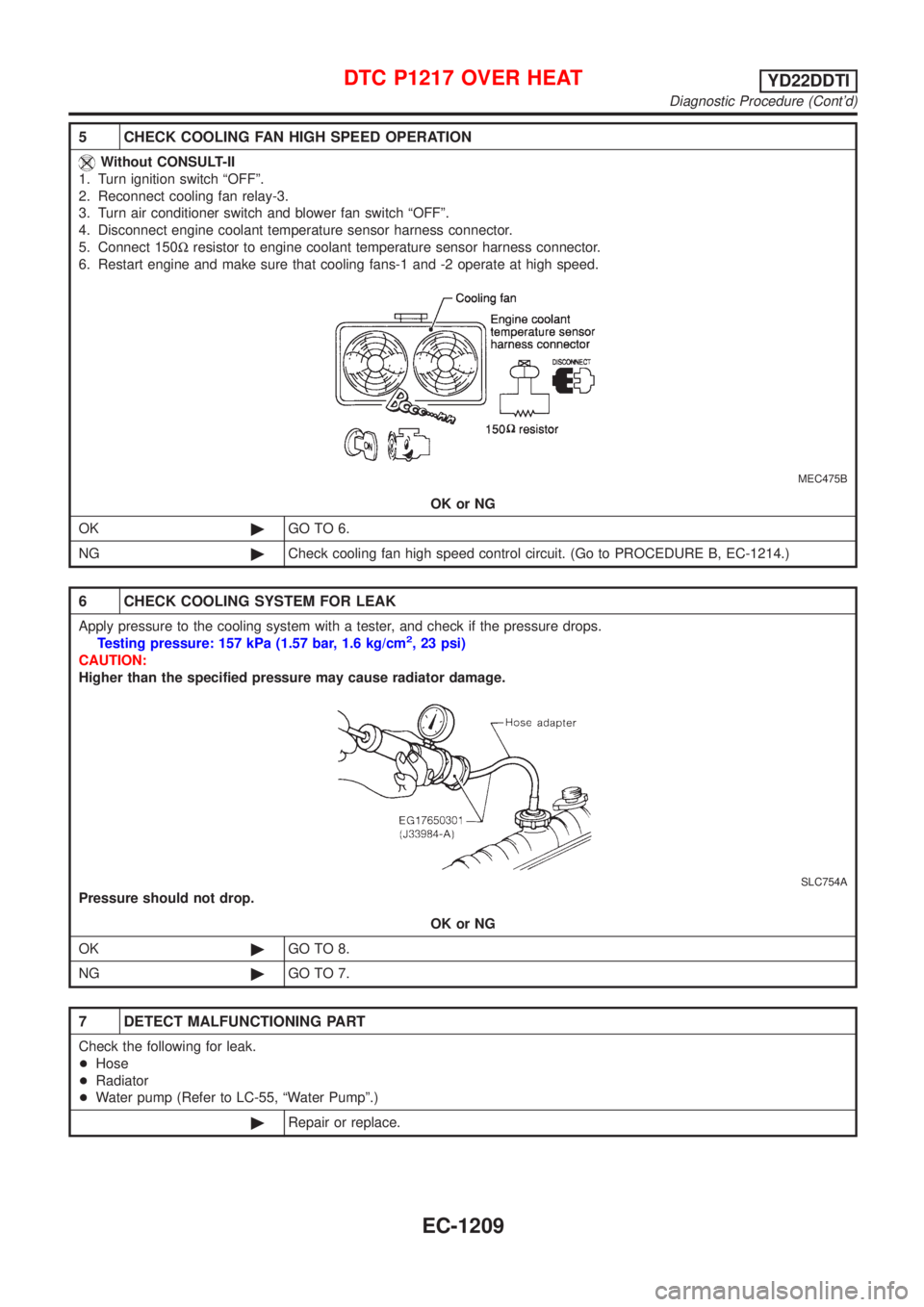

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK COOLING FAN HIGH SPEED OPERATION Without CONSULT-II 1. Turn ignition switch ªOFFº. 2. Reconnect cooling fan relay-3. 3. Turn air conditioner switch and blower fan switch ªOFFº. 4. Disconne

Page 1635 of 3051

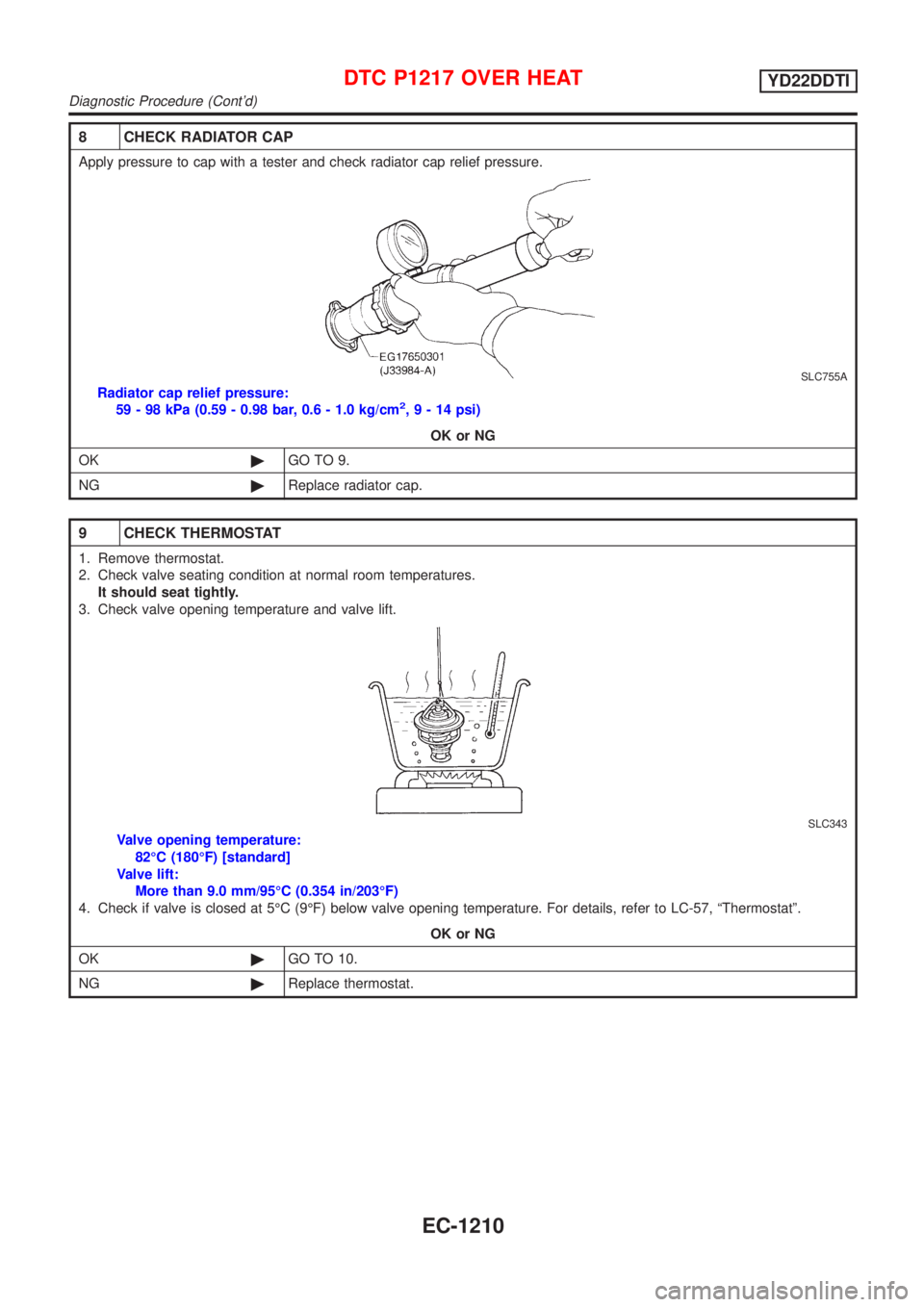

NISSAN ALMERA TINO 2001 Service Repair Manual 8 CHECK RADIATOR CAP Apply pressure to cap with a tester and check radiator cap relief pressure. SLC755A Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar, 0.6 - 1.0 kg/cm2,9-14psi) OK or NG

Page 1636 of 3051

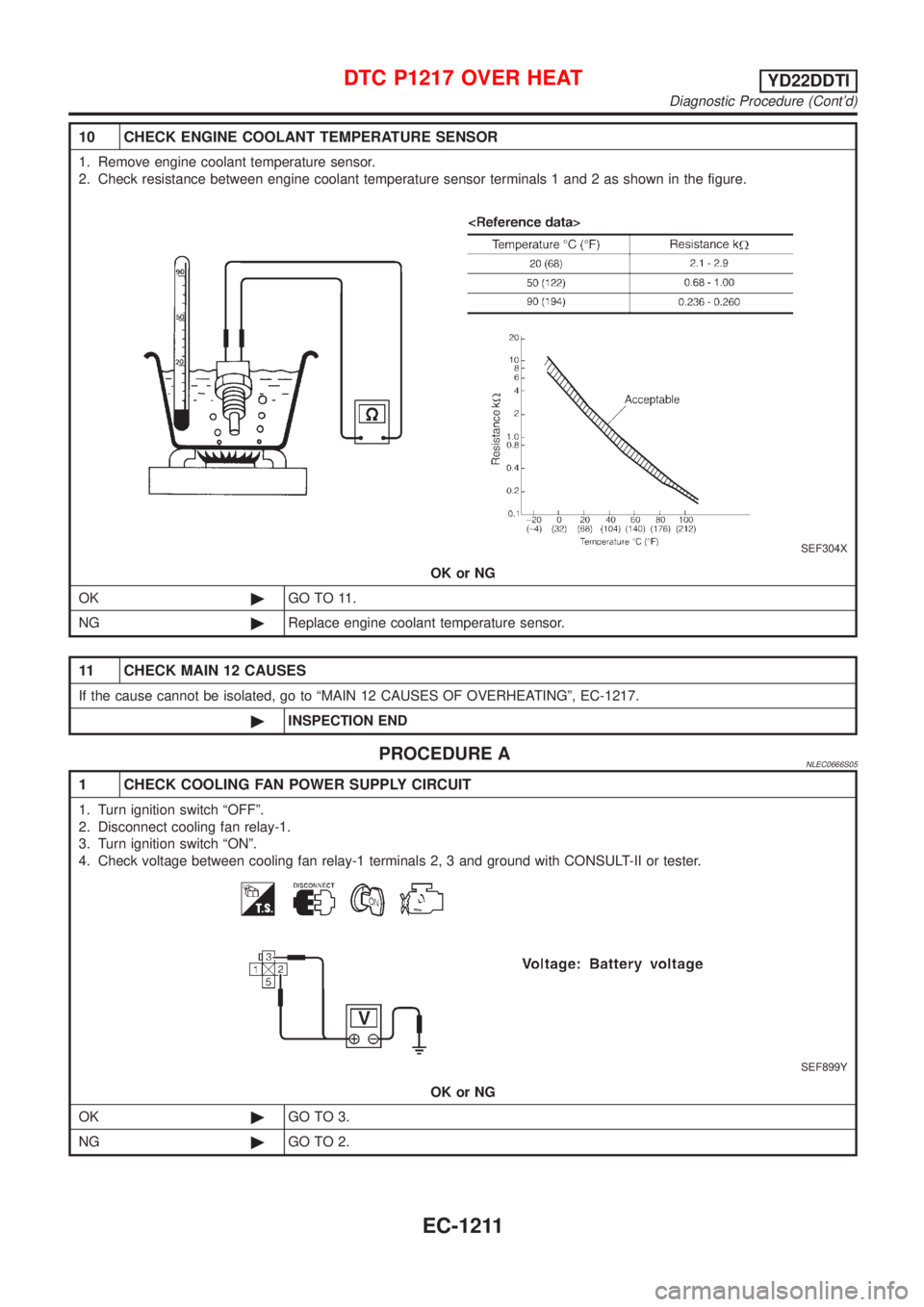

NISSAN ALMERA TINO 2001 Service Repair Manual 10 CHECK ENGINE COOLANT TEMPERATURE SENSOR 1. Remove engine coolant temperature sensor. 2. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure. SEF304X

Page 1637 of 3051

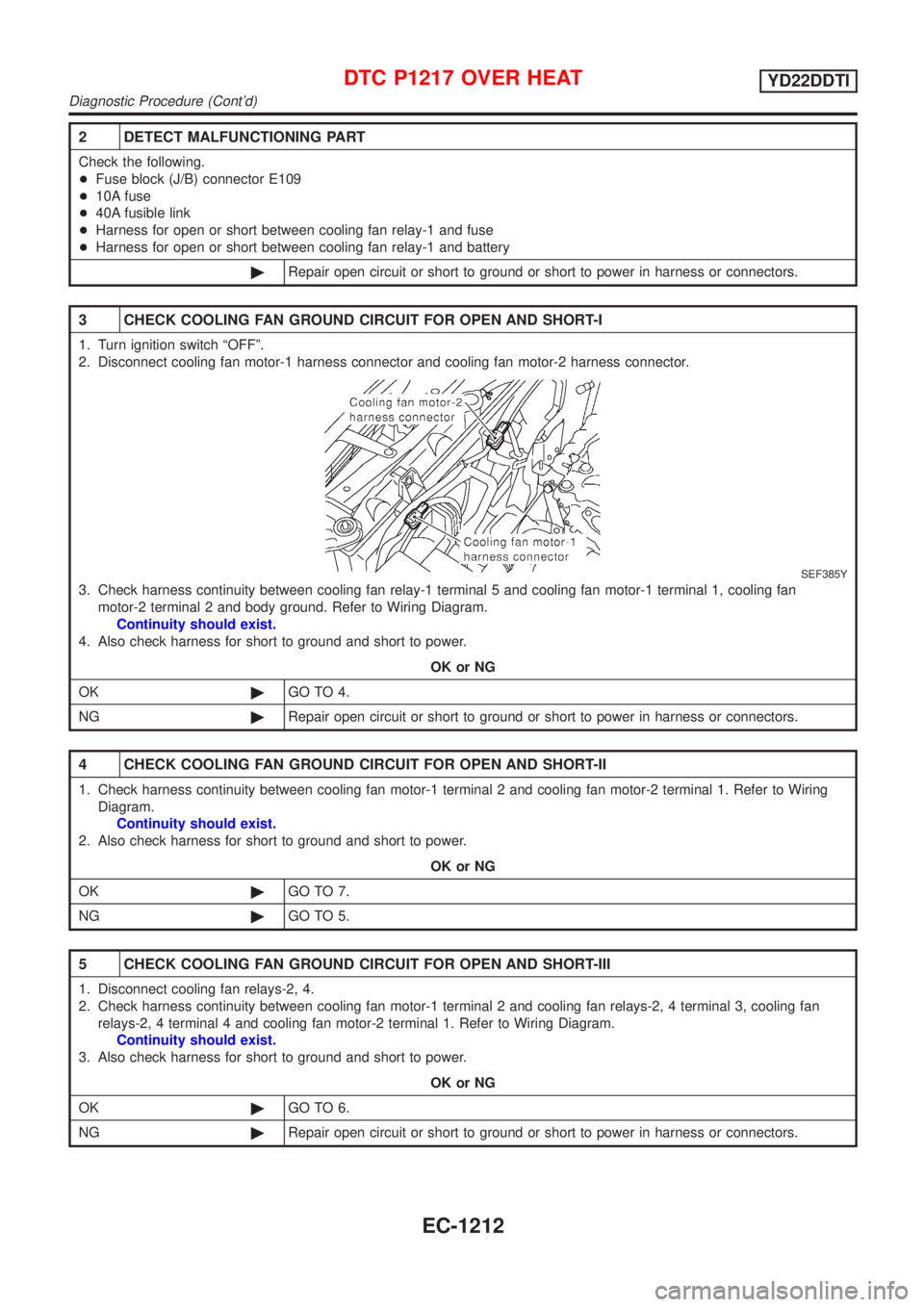

NISSAN ALMERA TINO 2001 Service Repair Manual 2 DETECT MALFUNCTIONING PART Check the following. +Fuse block (J/B) connector E109 +10A fuse +40A fusible link +Harness for open or short between cooling fan relay-1 and fuse +Harness for open or shor

Page 1638 of 3051

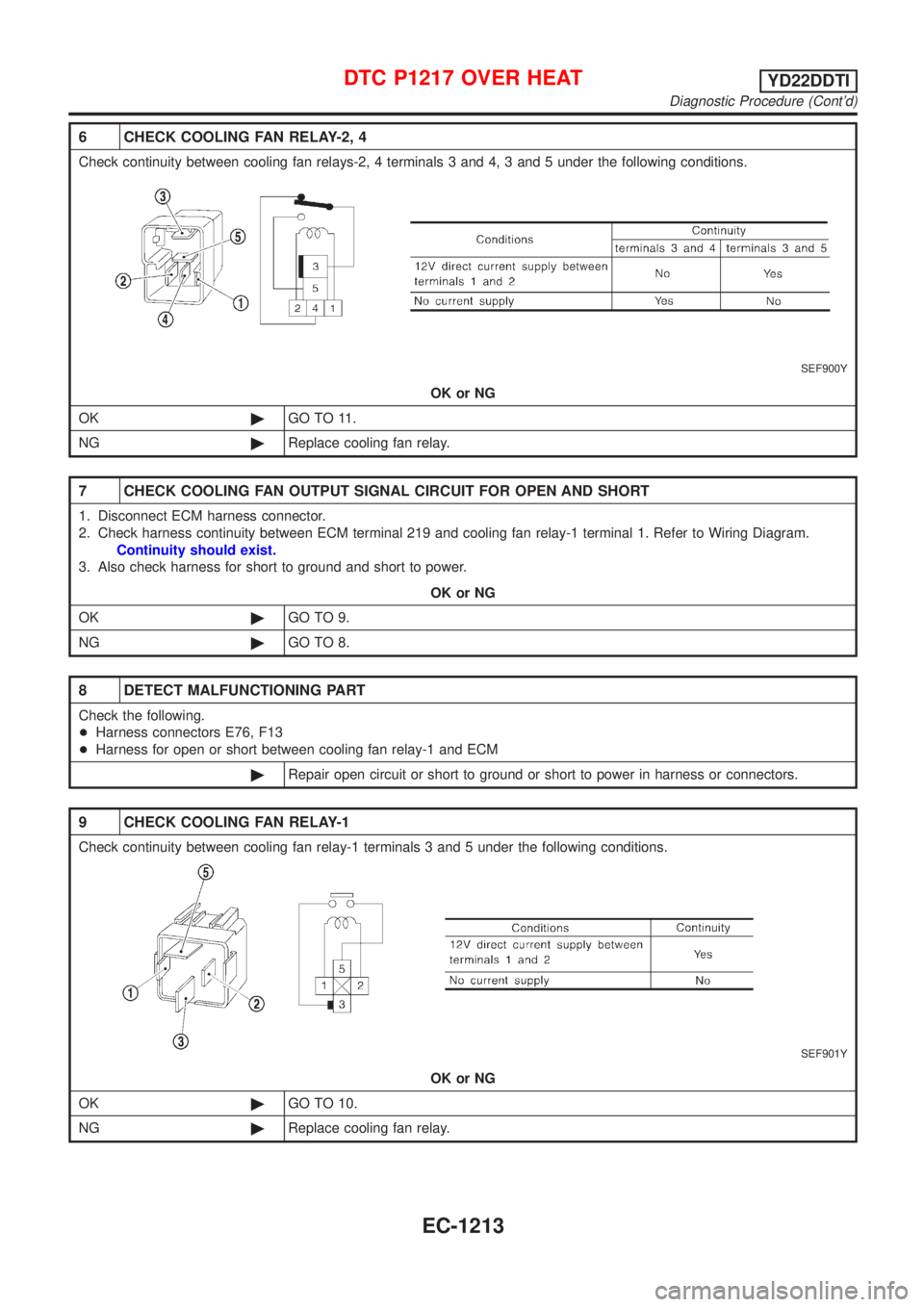

NISSAN ALMERA TINO 2001 Service Repair Manual 6 CHECK COOLING FAN RELAY-2, 4 Check continuity between cooling fan relays-2, 4 terminals 3 and 4, 3 and 5 under the following conditions. SEF900Y OK or NG OK©GO TO 11. NG©Replace cooling fan relay.

Page 1639 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 10 CHECK COOLING FAN MOTORS-1 AND -2 Supply battery voltage between the following terminals and check operation. SEF902YA OK or NG OK©GO TO 11. NG©Replace cooling fan motors. 11 CHECK INTERMITTENT I

Page 1640 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2 DETECT MALFUNCTIONING PART Check the following. +40A fusible link +Harness for open or short between cooling fan relays-2, 3, 4 and fuse +Harness for open or short between cooling fan relay-3 and fu
