Page 1977 of 3051

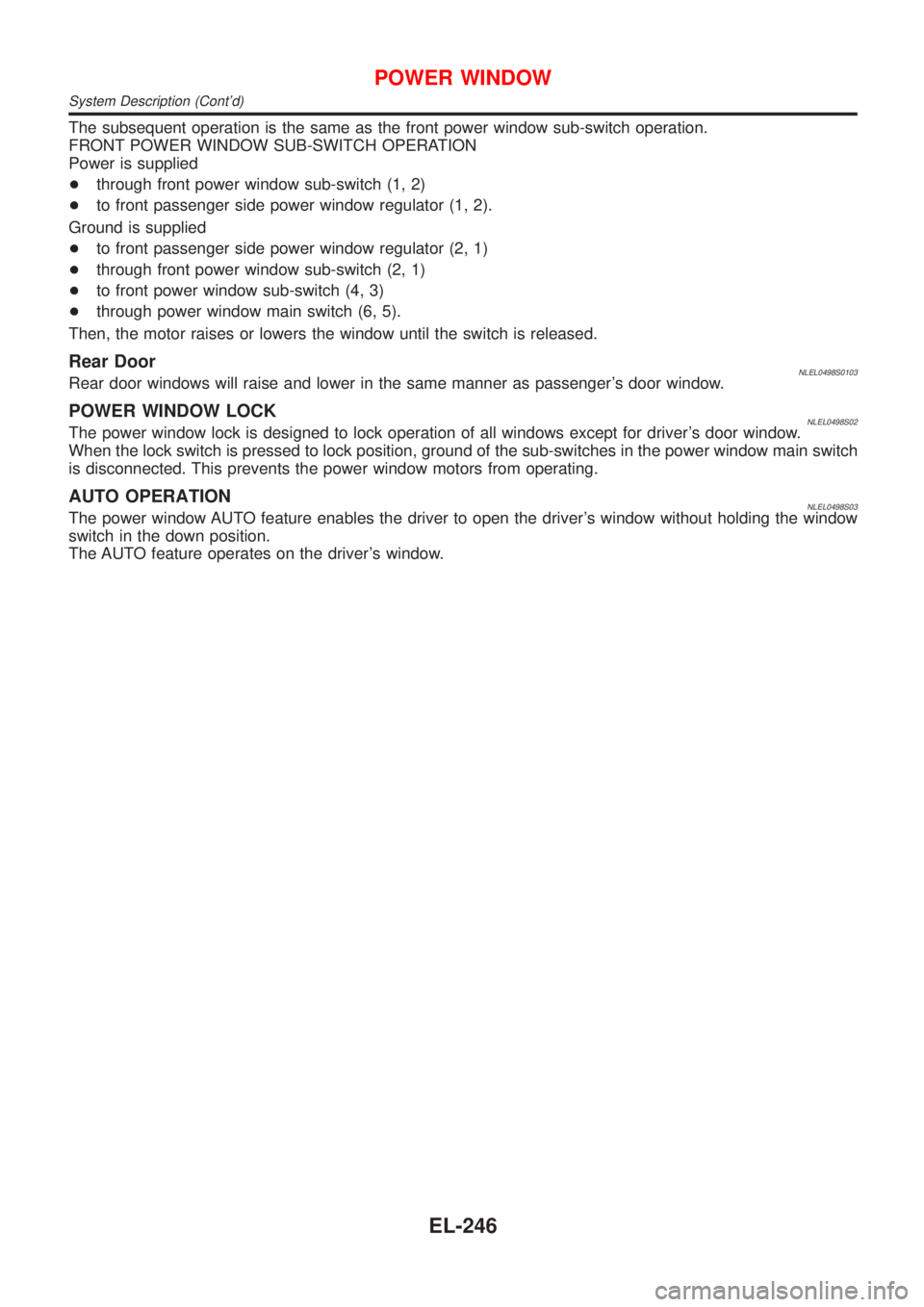

NISSAN ALMERA TINO 2001 Service Repair Manual The subsequent operation is the same as the front power window sub-switch operation. FRONT POWER WINDOW SUB-SWITCH OPERATION Power is supplied +through front power window sub-switch (1, 2) +to front p

Page 1978 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SchematicNLEL0499 MEL916L POWER WINDOW Schematic EL-247

Page 1979 of 3051

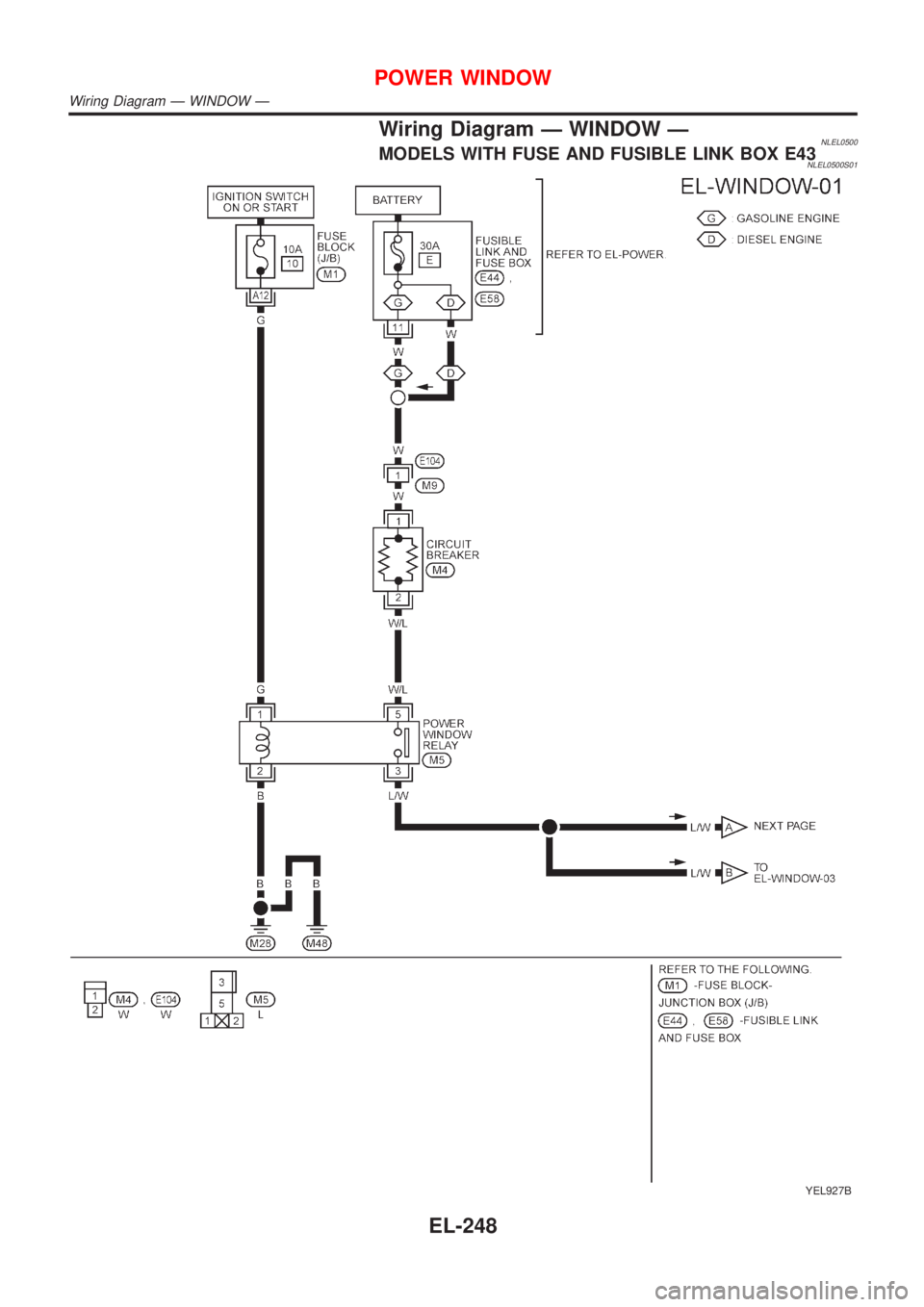

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð WINDOW ÐNLEL0500MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0500S01 YEL927B POWER WINDOW Wiring Diagram Ð WINDOW Ð EL-248

Page 1980 of 3051

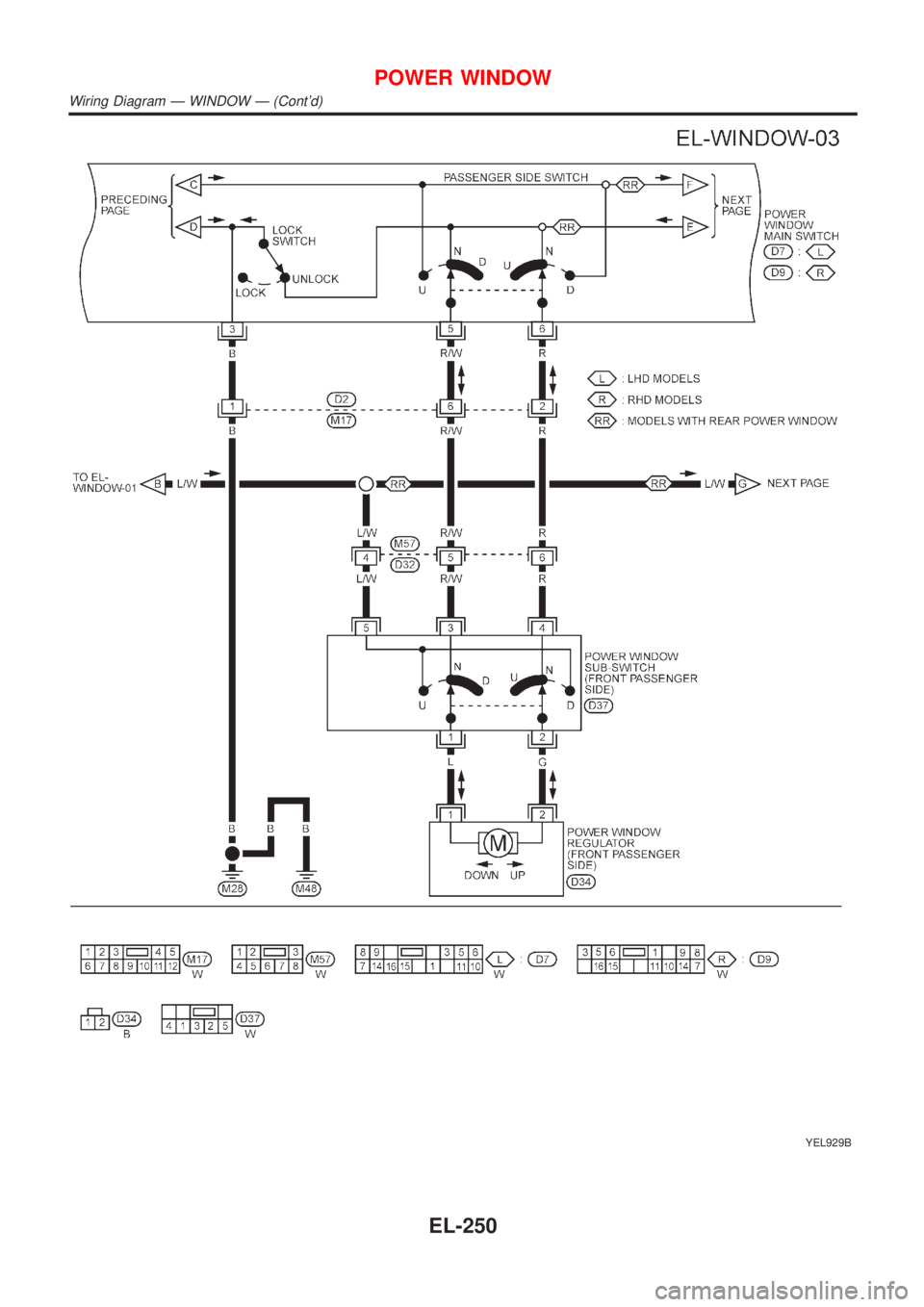

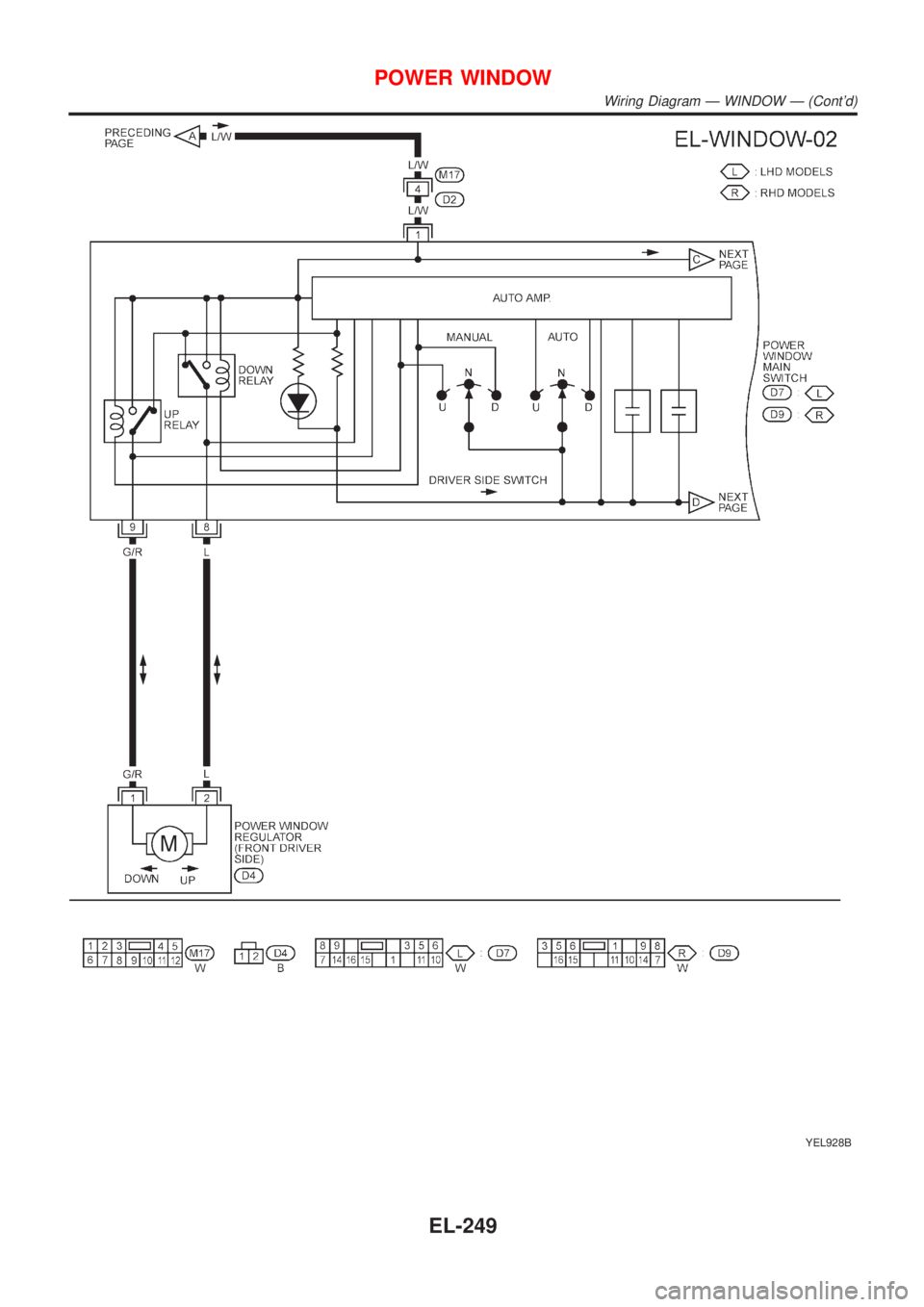

NISSAN ALMERA TINO 2001 Service Repair Manual YEL928B POWER WINDOW Wiring Diagram Ð WINDOW Ð (Contd) EL-249

Page 1981 of 3051

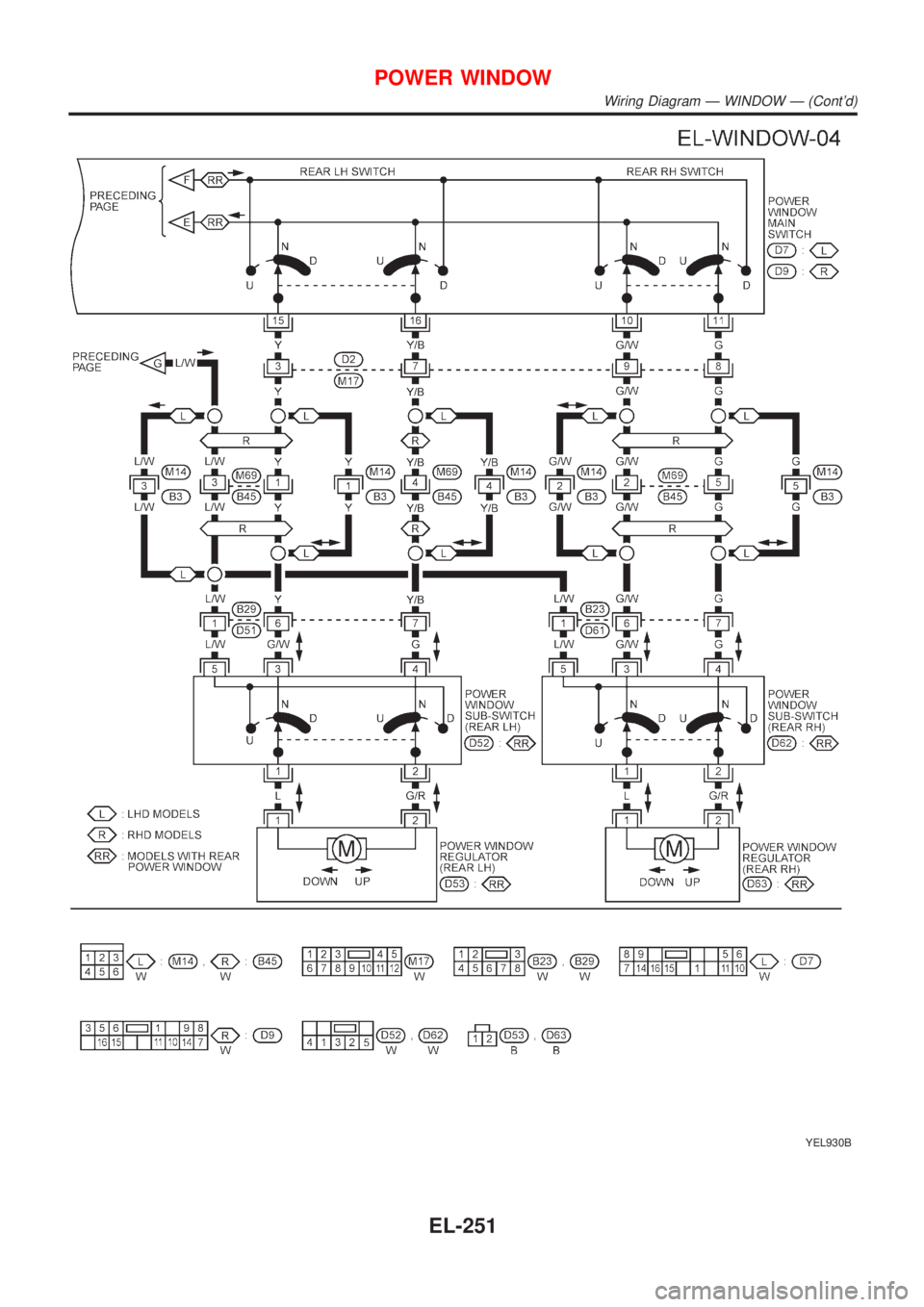

NISSAN ALMERA TINO 2001 Service Repair Manual YEL929B POWER WINDOW Wiring Diagram Ð WINDOW Ð (Contd) EL-250

Page 1982 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL930B POWER WINDOW Wiring Diagram Ð WINDOW Ð (Contd) EL-251

Page 1983 of 3051

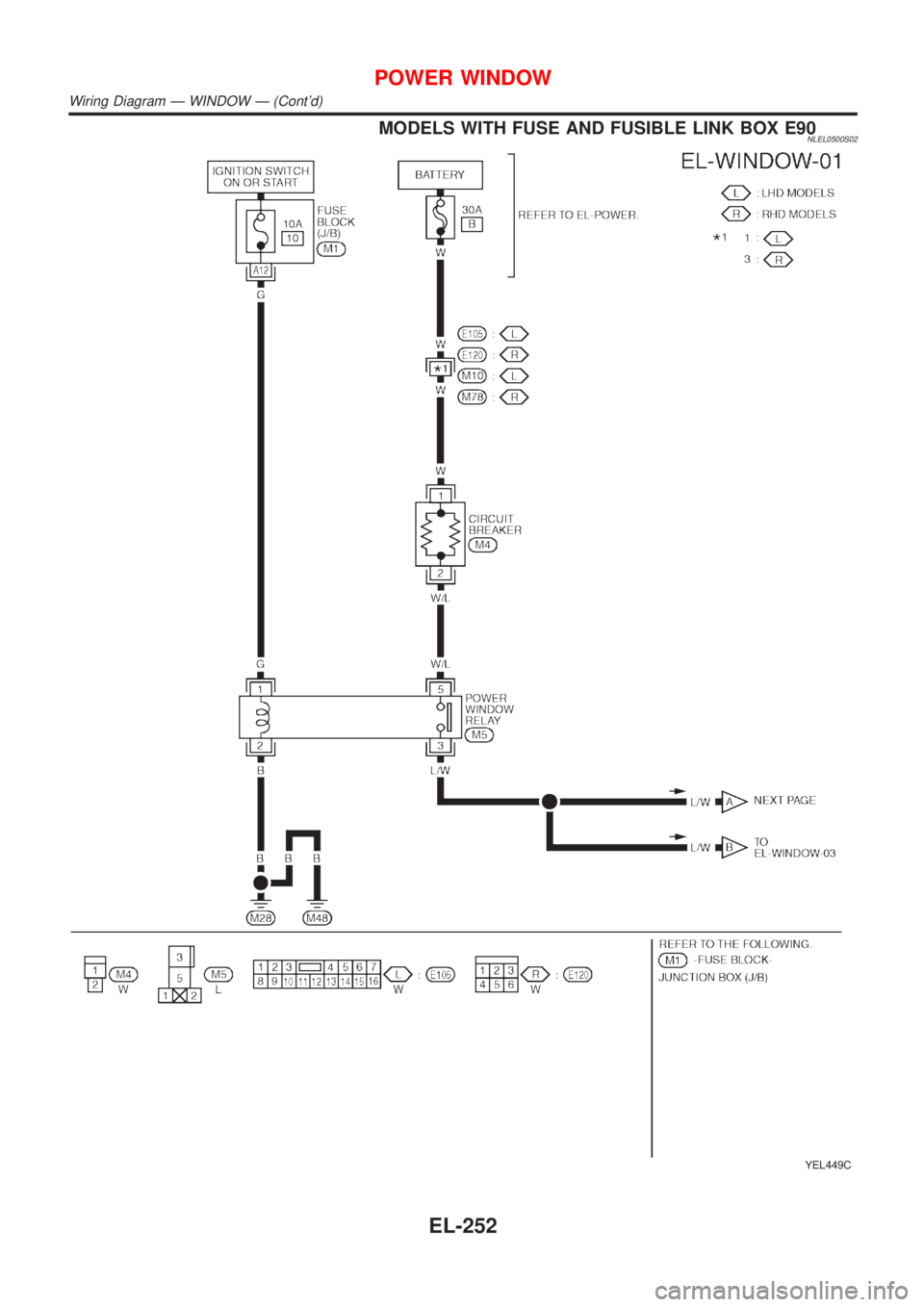

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0500S02 YEL449C POWER WINDOW Wiring Diagram Ð WINDOW Ð (Contd) EL-252

Page 1984 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL450C POWER WINDOW Wiring Diagram Ð WINDOW Ð (Contd) EL-253
