Page 2313 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM166D SEM929F PISTON-TO-BORE CLEARANCENLEM0026S061. Using a bore gauge, measure cylinder bore for wear, out-of- round and taper. Standard inner diameter: Refer to SDS, EM-72. Wear limit: 0.2 mm (0.0

Page 2314 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM316A CRANKSHAFTNLEM0026S071. Check crankshaft main and pin journals for score, wear or cracks. 2. With a micrometer, measure journals for taper and out-of- round. Out-of-round (X þ Y): Less than 0

Page 2315 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM588A When grinding crank pin and crank journal: +Grind until clearance is within specified standard bearing clearance. +Fillets should be finished as shown in the figure. R: 2.3 - 2.5 mm (0.091 - 0

Page 2316 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual AEM028 4. Measure outer diameter ªDpº of each crankshaft pin journal. 5. Calculate connecting rod bearing clearance. Connecting rod bearing clearance=CþDp Standard: 0.014 - 0.039 mm (0.0006 - 0.001

Page 2317 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM062A REPLACEMENT OF CONNECTING ROD BUSHING (SMALL END) NLEM0026S101. Drive in small end bushing until it is flush with end surface of rod. Be sure to align the oil holes. 2. Ream the bushing so tha

Page 2318 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM160B +Align piston rings so that end gaps are positioned as shown. SEM934F SEM366E SEM420C CRANKSHAFTNLEM0027S021. Install signal plate to crankshaft. 2. Set main bearings in their proper positions

Page 2319 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM116F 4. Measure crankshaft end play. Crankshaft end play: Standard 0.060 - 0.260 mm (0.0024 - 0.0102 in) Limit 0.3 mm (0.012 in) If beyond the limit, replace thrust bearing with new ones. SEM168D 5

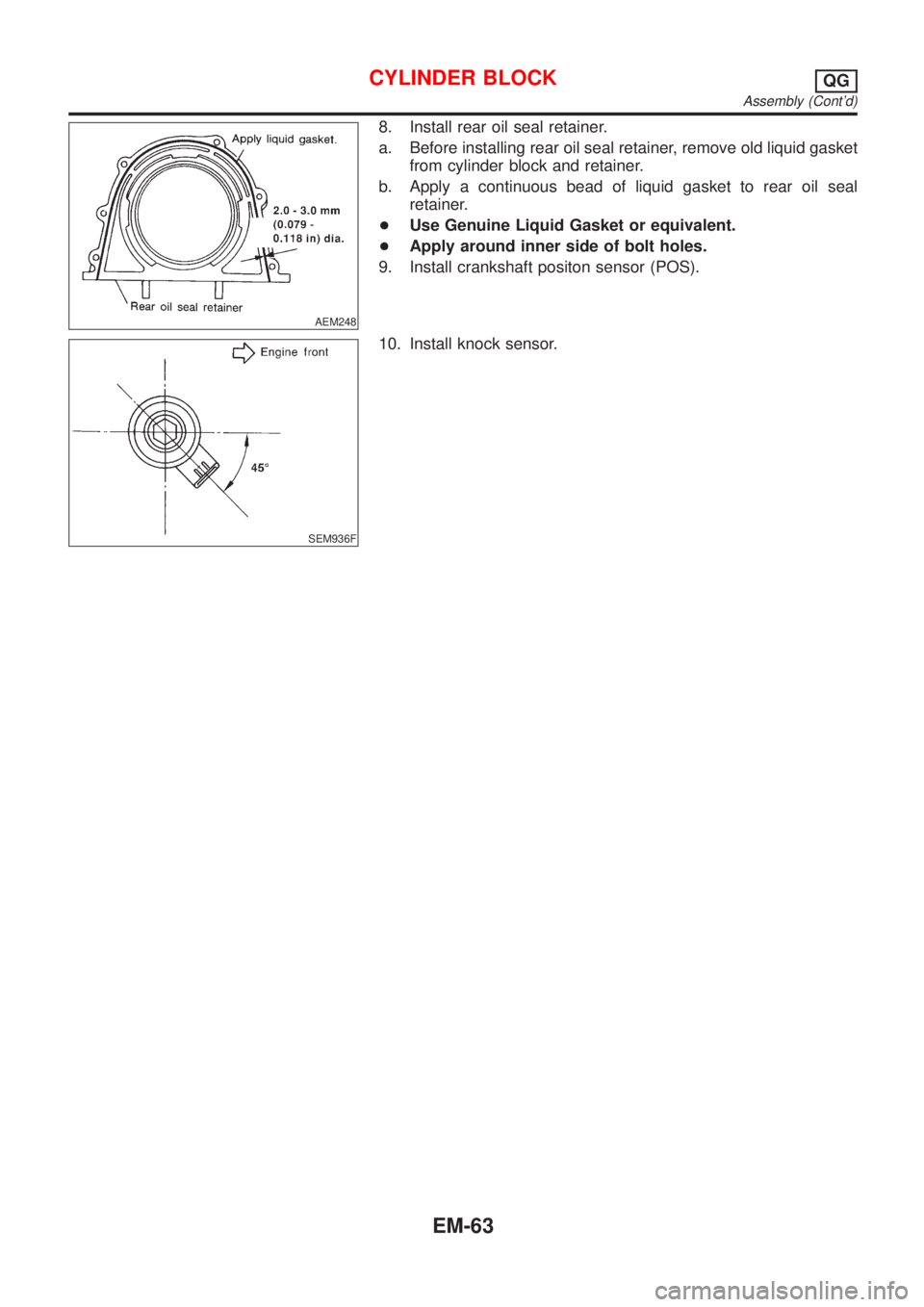

Page 2320 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual AEM248 8. Install rear oil seal retainer. a. Before installing rear oil seal retainer, remove old liquid gasket from cylinder block and retainer. b. Apply a continuous bead of liquid gasket to rear oi
