Page 2297 of 3051

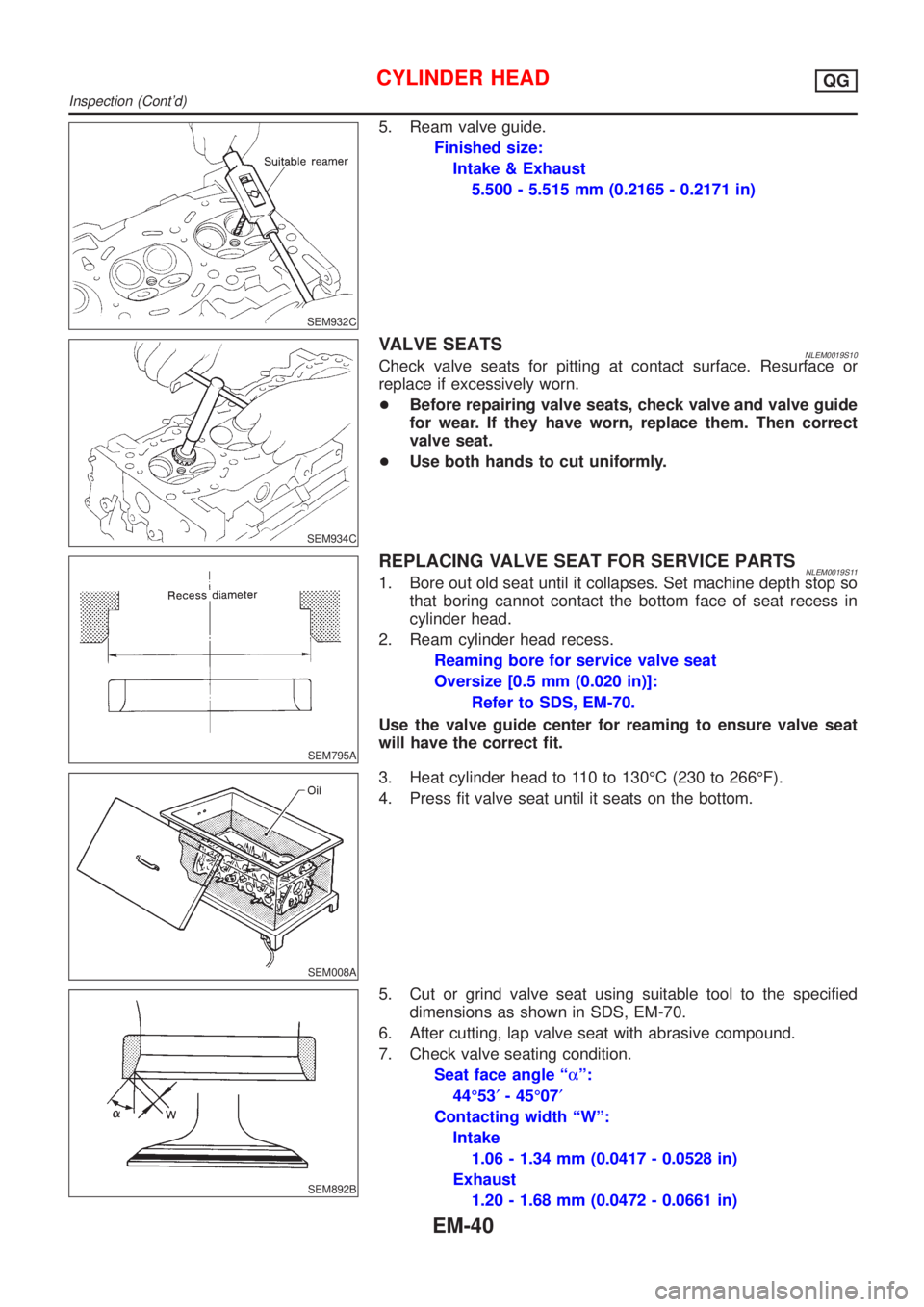

NISSAN ALMERA TINO 2001 Service Repair Manual SEM932C 5. Ream valve guide. Finished size: Intake & Exhaust 5.500 - 5.515 mm (0.2165 - 0.2171 in) SEM934C VALVE SEATSNLEM0019S10Check valve seats for pitting at contact surface. Resurface or replace

Page 2298 of 3051

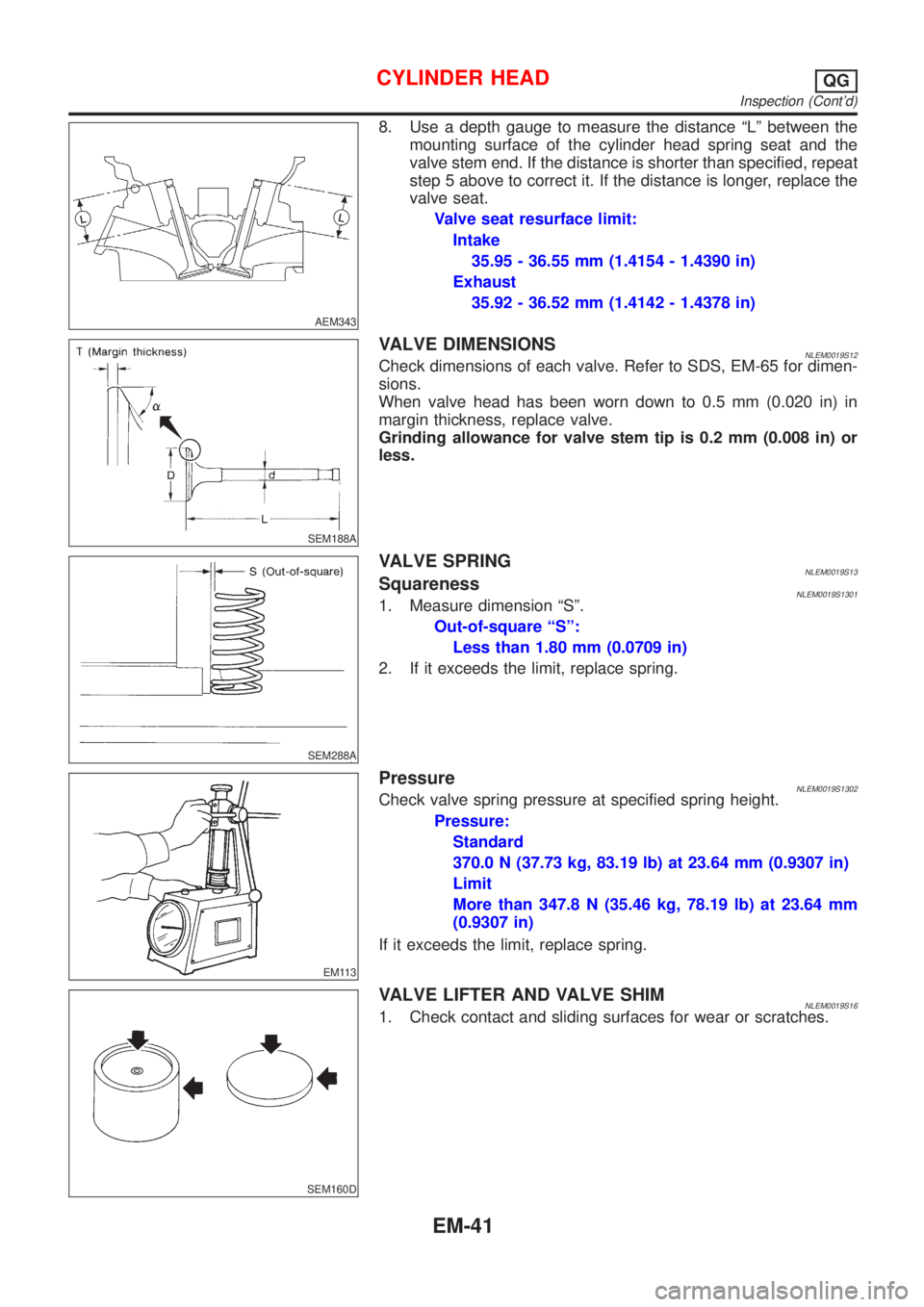

NISSAN ALMERA TINO 2001 Service Repair Manual AEM343 8. Use a depth gauge to measure the distance ªLº between the mounting surface of the cylinder head spring seat and the valve stem end. If the distance is shorter than specified, repeat step 5

Page 2299 of 3051

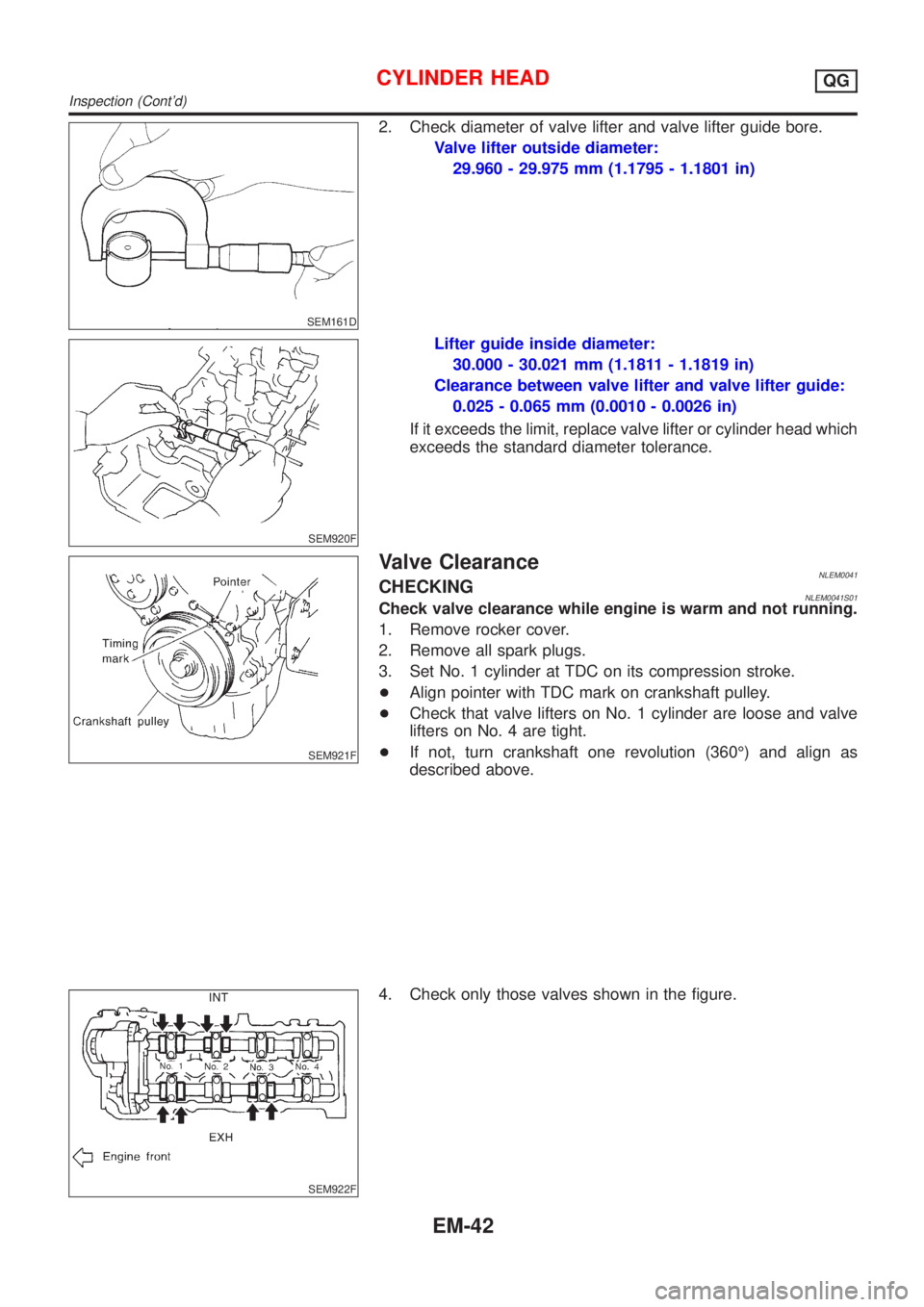

NISSAN ALMERA TINO 2001 Service Repair Manual SEM161D 2. Check diameter of valve lifter and valve lifter guide bore. Valve lifter outside diameter: 29.960 - 29.975 mm (1.1795 - 1.1801 in) SEM920F Lifter guide inside diameter: 30.000 - 30.021 mm (

Page 2300 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM139D +Using a feeler gauge, measure clearance between valve lifter and camshaft. +Record any valve clearance measurements which are out of specification. They will be used later to determine the re

Page 2301 of 3051

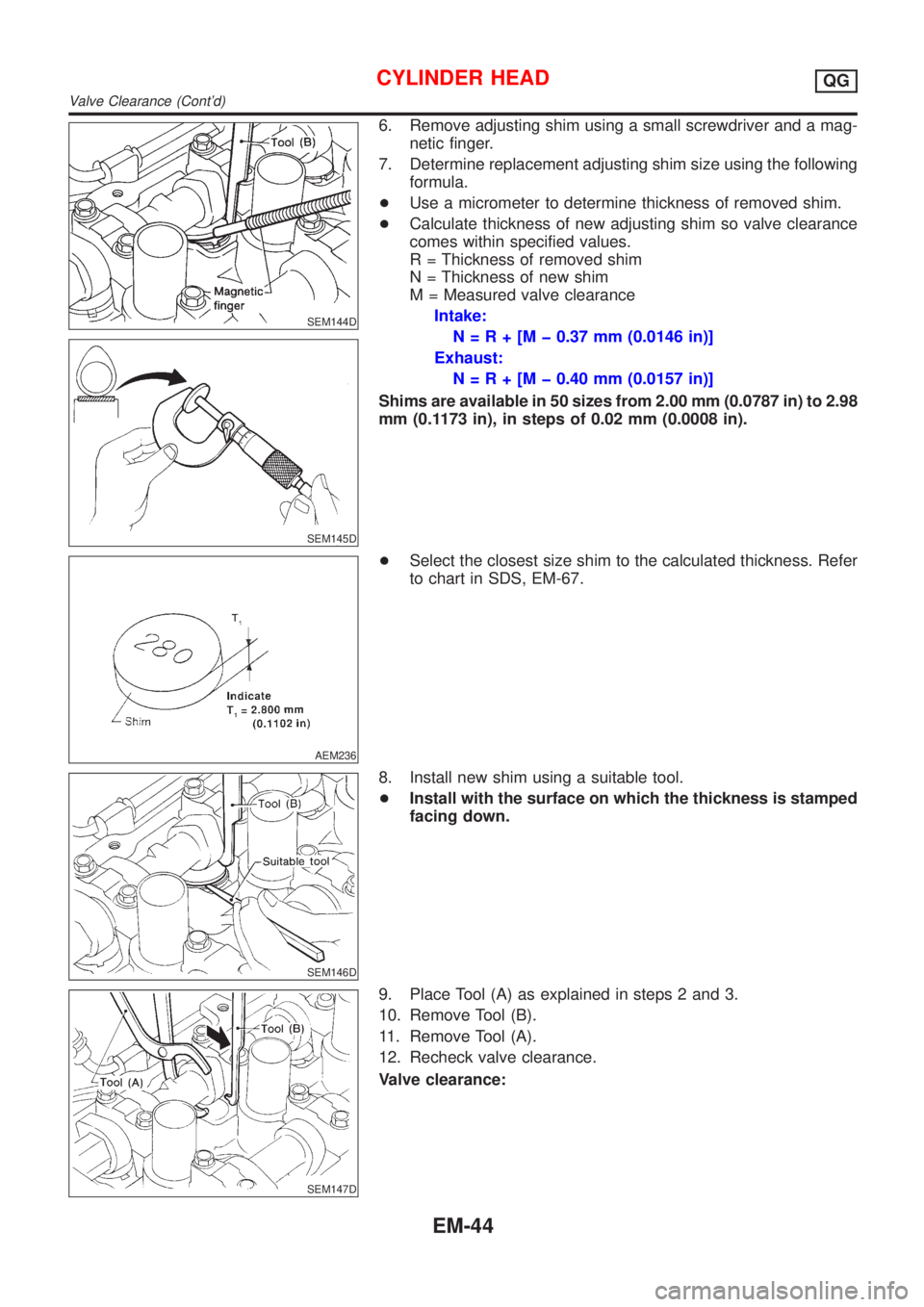

NISSAN ALMERA TINO 2001 Service Repair Manual SEM144D SEM145D 6. Remove adjusting shim using a small screwdriver and a mag- netic finger. 7. Determine replacement adjusting shim size using the following formula. +Use a micrometer to determine thi

Page 2302 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Unit: mm (in) For adjusting For checking HotCold* (reference data)Hot Intake0.32 - 0.40 (0.013 - 0.016)0.25 - 0.33 (0.010 - 0.013)0.21 - 0.49 (0.008 - 0.019) Exhaust0.37 - 0.45 (0.015 - 0.018)0.32 - 0

Page 2303 of 3051

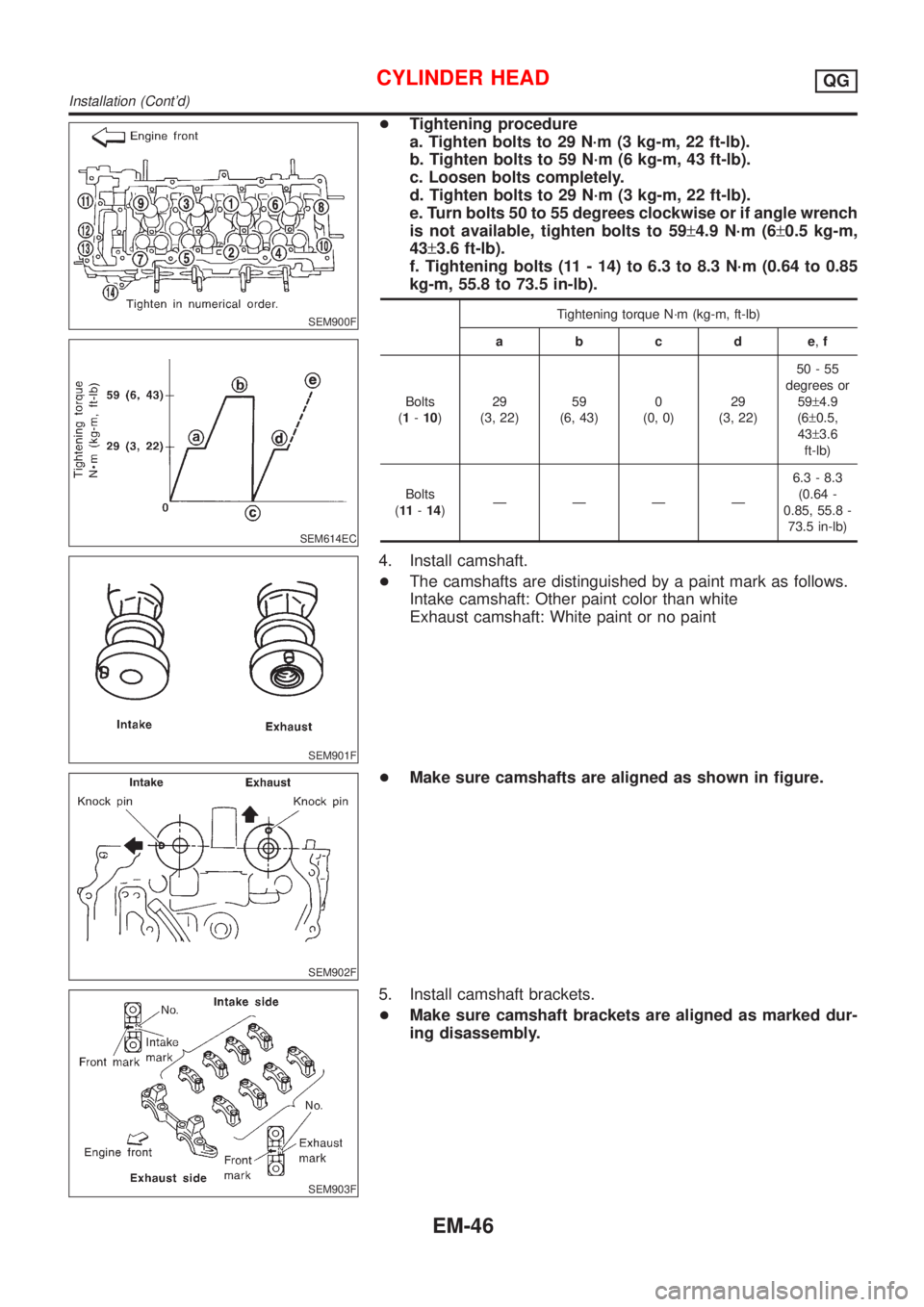

NISSAN ALMERA TINO 2001 Service Repair Manual SEM900F SEM614EC SEM901F +Tightening procedure a. Tighten bolts to 29 N´m (3 kg-m, 22 ft-lb). b. Tighten bolts to 59 N´m (6 kg-m, 43 ft-lb). c. Loosen bolts completely. d. Tighten bolts to 29 N´m (

Page 2304 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM904F +Apply new engine oil to bolt threads and seat surface. +Tighten camshaft bracket bolts in the following steps. a. Tighten bolts9-12,then1-8. 2.0 N´m (0.204 kg-m, 17.7 in-lb) b. Tighten bolts
