Page 2497 of 3051

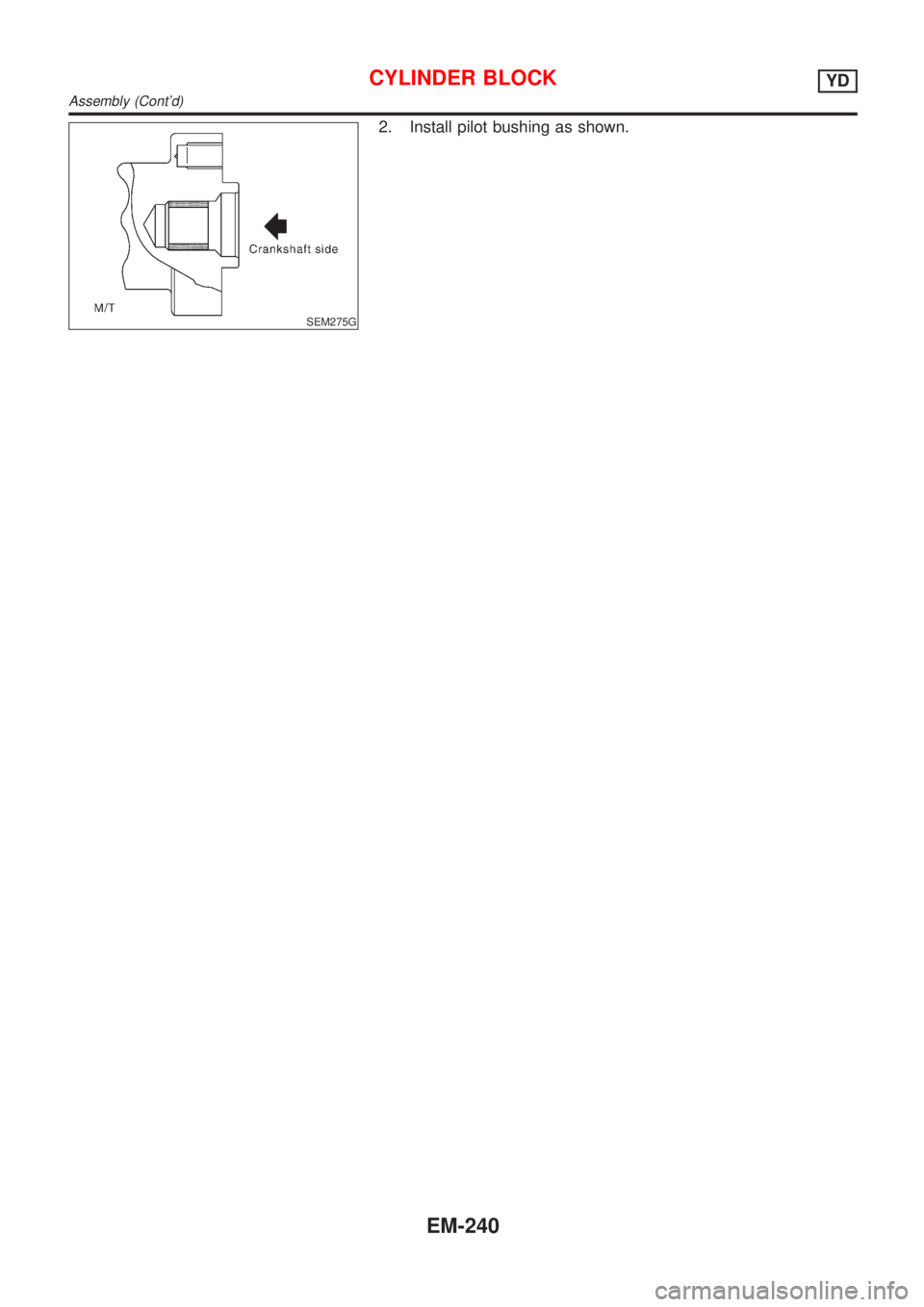

NISSAN ALMERA TINO 2001 Service Repair Manual SEM275G 2. Install pilot bushing as shown. CYLINDER BLOCKYD Assembly (Contd) EM-240

Page 2498 of 3051

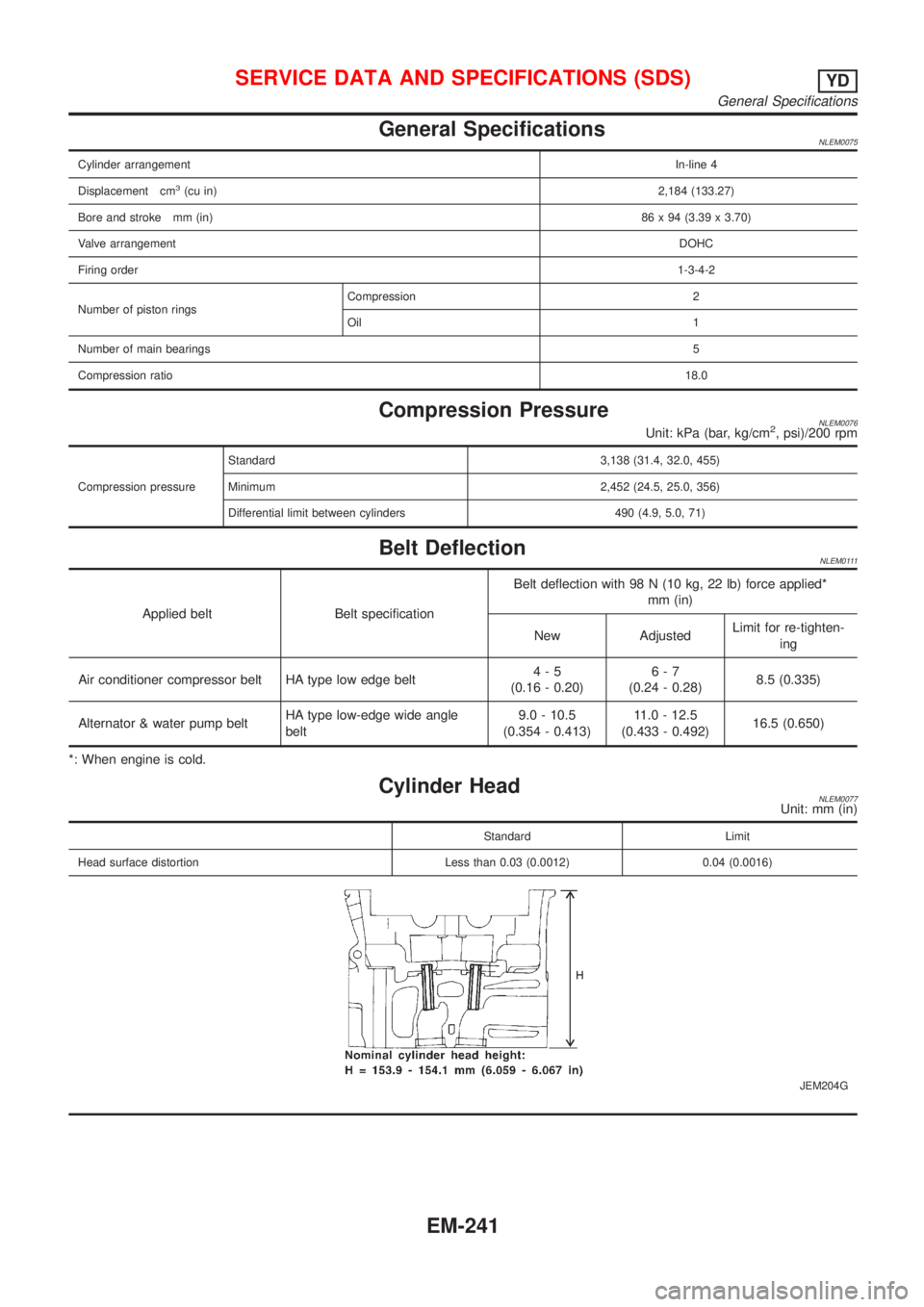

NISSAN ALMERA TINO 2001 Service Repair Manual General SpecificationsNLEM0075 Cylinder arrangementIn-line 4 Displacement cm 3(cu in)2,184 (133.27) Bore and stroke mm (in)86 x 94 (3.39 x 3.70) Valve arrangementDOHC Firing order1-3-4-2 Number of pis

Page 2499 of 3051

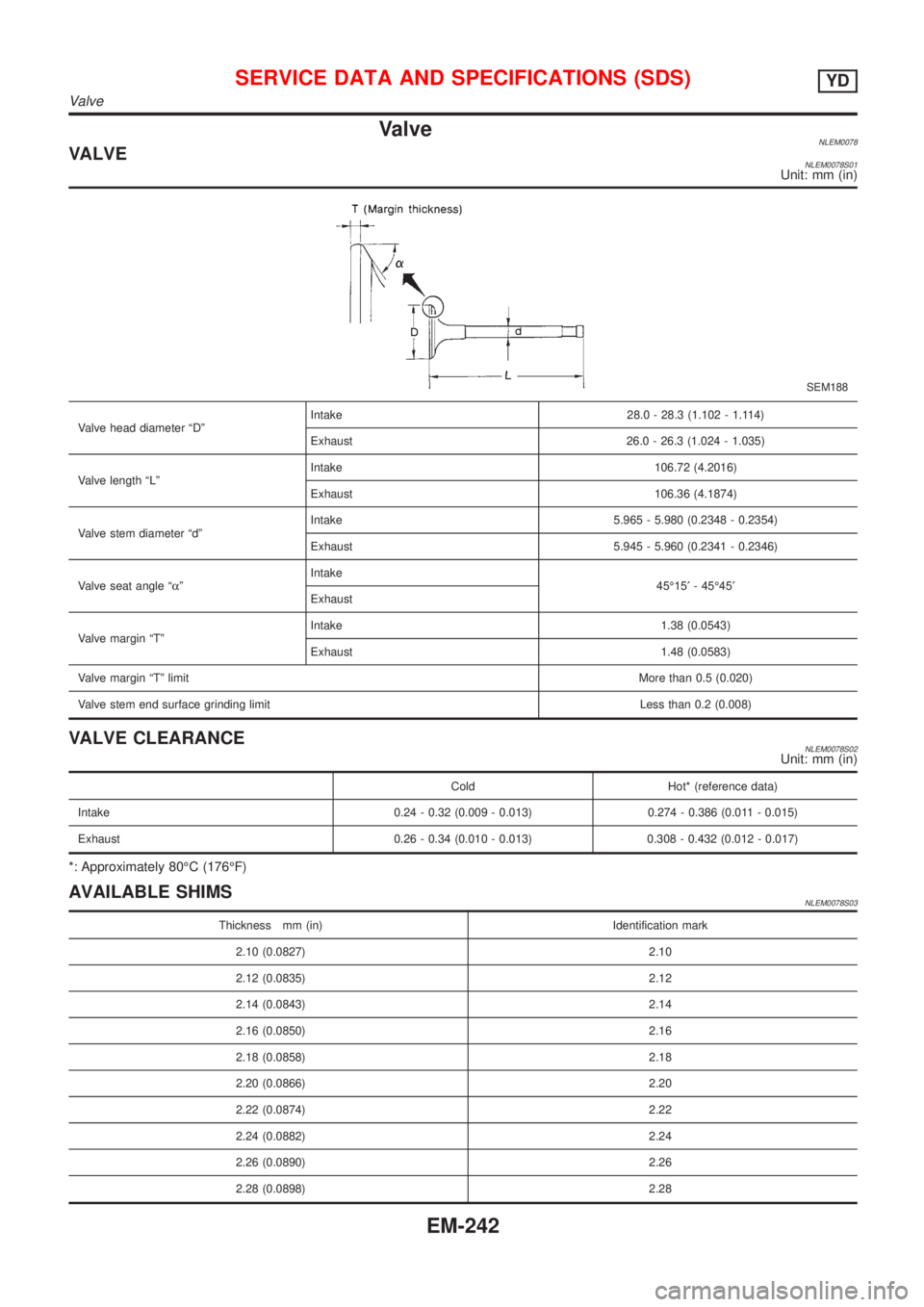

NISSAN ALMERA TINO 2001 Service Repair Manual ValveNLEM0078VALVENLEM0078S01Unit: mm (in) SEM188 Valve head diameter ªDºIntake 28.0 - 28.3 (1.102 - 1.114) Exhaust 26.0 - 26.3 (1.024 - 1.035) Valve length ªLºIntake 106.72 (4.2016) Exhaust 106.3

Page 2500 of 3051

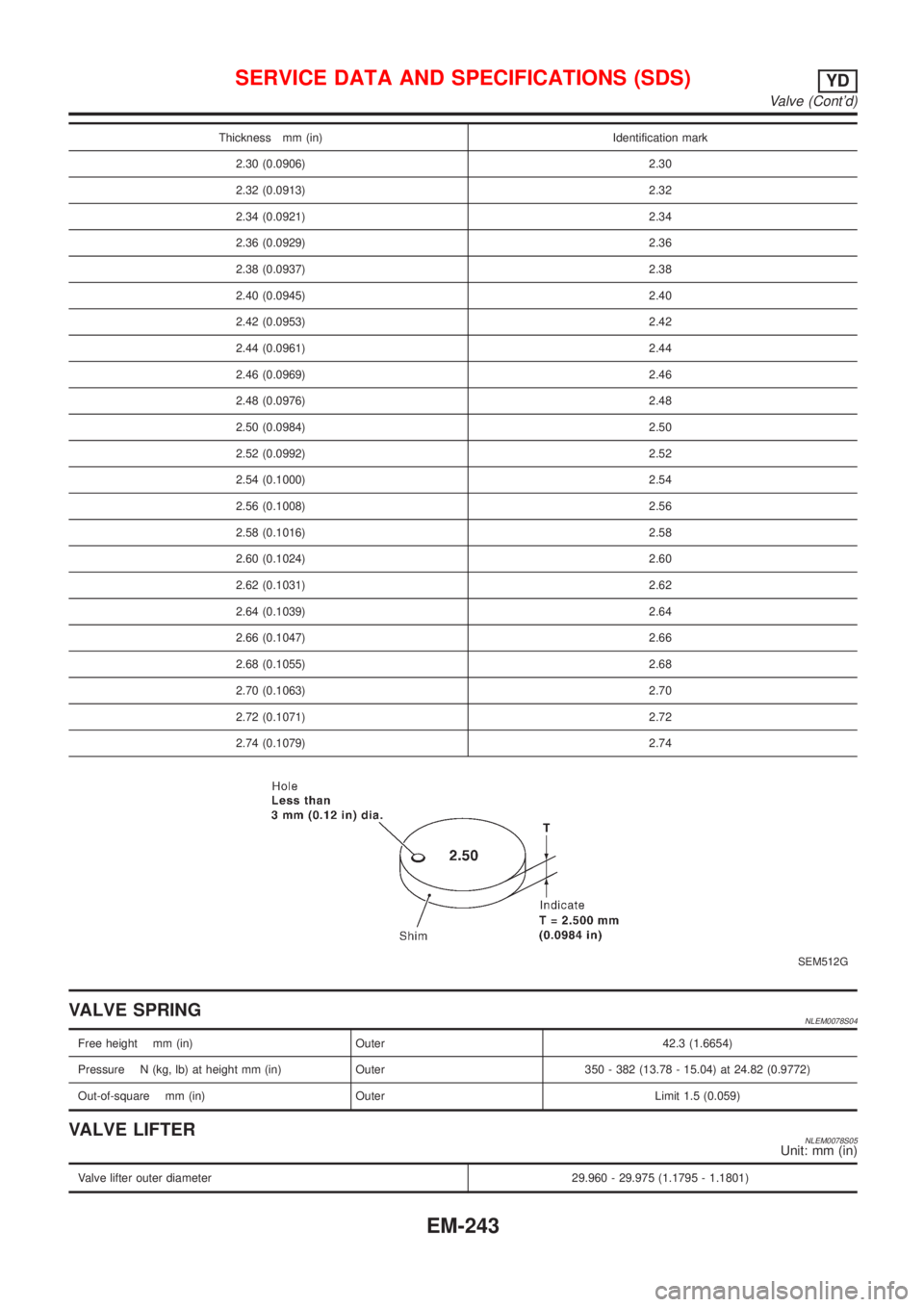

NISSAN ALMERA TINO 2001 Service Repair Manual Thickness mm (in) Identification mark 2.30 (0.0906) 2.30 2.32 (0.0913) 2.32 2.34 (0.0921) 2.34 2.36 (0.0929) 2.36 2.38 (0.0937) 2.38 2.40 (0.0945) 2.40 2.42 (0.0953) 2.42 2.44 (0.0961) 2.44 2.46 (0.09

Page 2501 of 3051

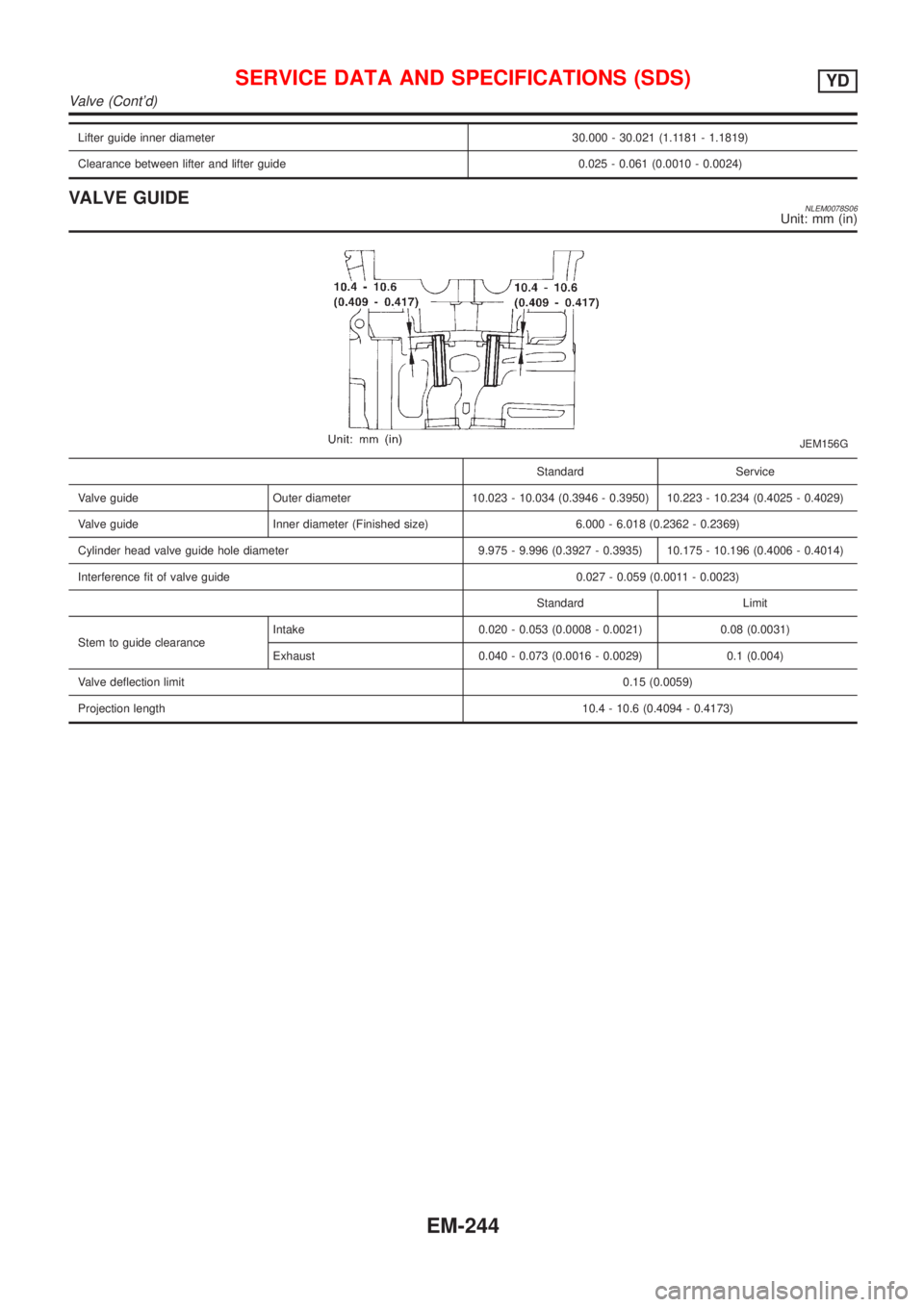

NISSAN ALMERA TINO 2001 Service Repair Manual Lifter guide inner diameter 30.000 - 30.021 (1.1181 - 1.1819) Clearance between lifter and lifter guide 0.025 - 0.061 (0.0010 - 0.0024) VALVE GUIDENLEM0078S06Unit: mm (in) JEM156G Standard Service Val

Page 2502 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Valve SeatNLEM0079Unit: mm (in) SEM546G JEM253G Standard Service Cylinder head seat recess diameter (D)Intake 30.000 - 30.016 (1.1181 - 1.1817) 30.500 - 30.516 (1.2008 - 1.2014) Exhaust 29.000 - 29.01

Page 2503 of 3051

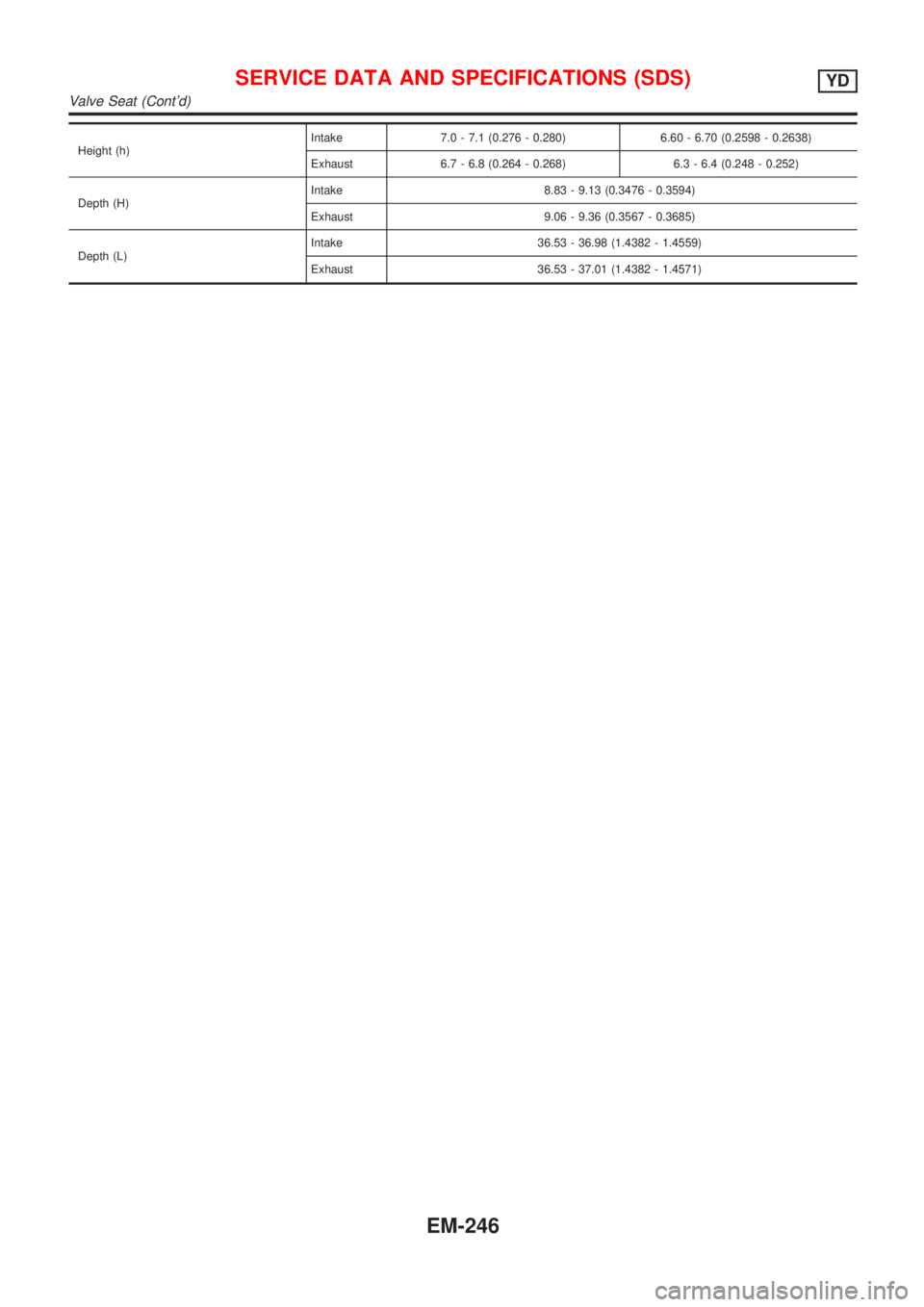

NISSAN ALMERA TINO 2001 Service Repair Manual Height (h)Intake 7.0 - 7.1 (0.276 - 0.280) 6.60 - 6.70 (0.2598 - 0.2638) Exhaust 6.7 - 6.8 (0.264 - 0.268) 6.3 - 6.4 (0.248 - 0.252) Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594) Exhaust 9.06 - 9.36 (

Page 2504 of 3051

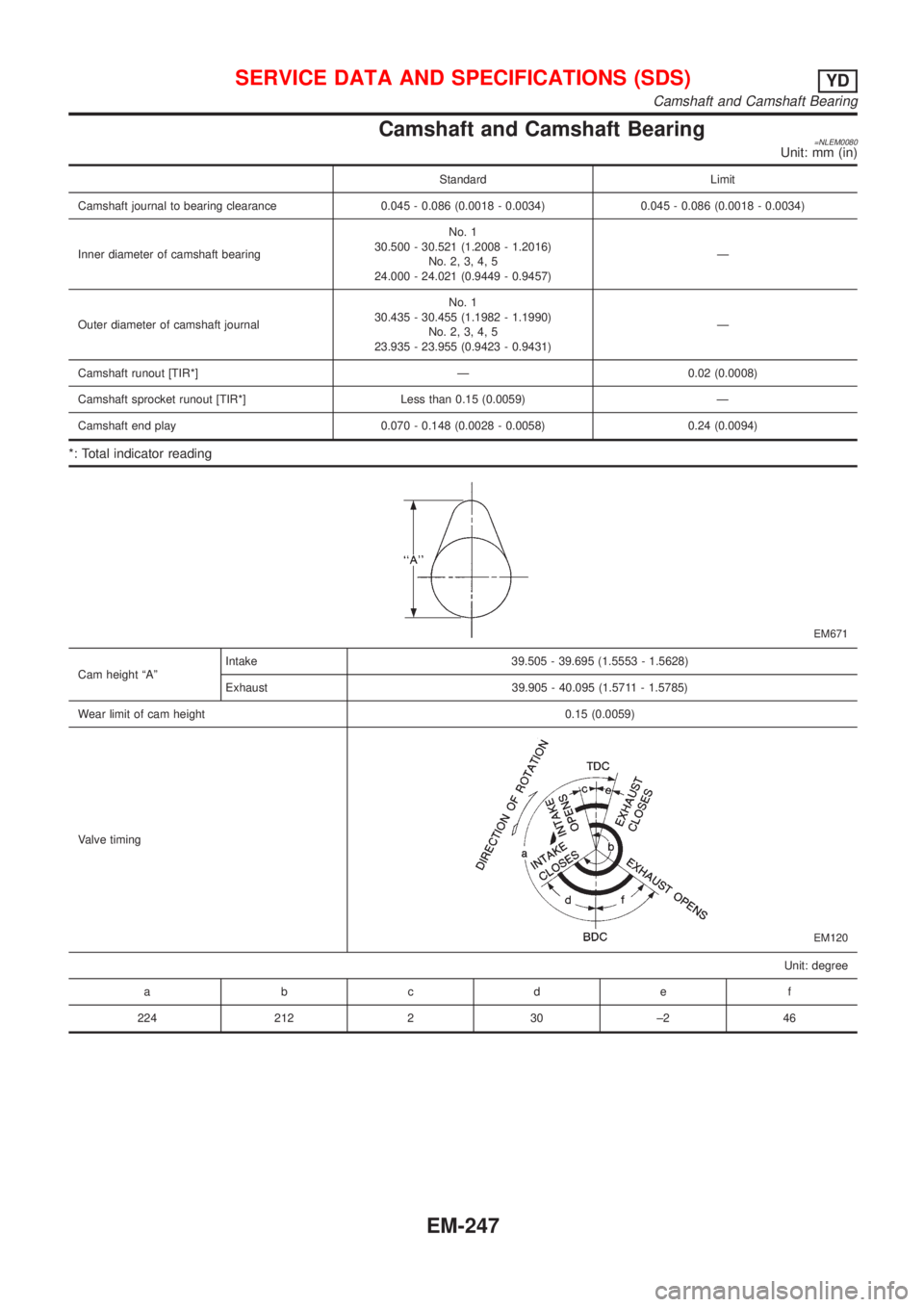

NISSAN ALMERA TINO 2001 Service Repair Manual Camshaft and Camshaft Bearing=NLEM0080Unit: mm (in) Standard Limit Camshaft journal to bearing clearance 0.045 - 0.086 (0.0018 - 0.0034) 0.045 - 0.086 (0.0018 - 0.0034) Inner diameter of camshaft bear
