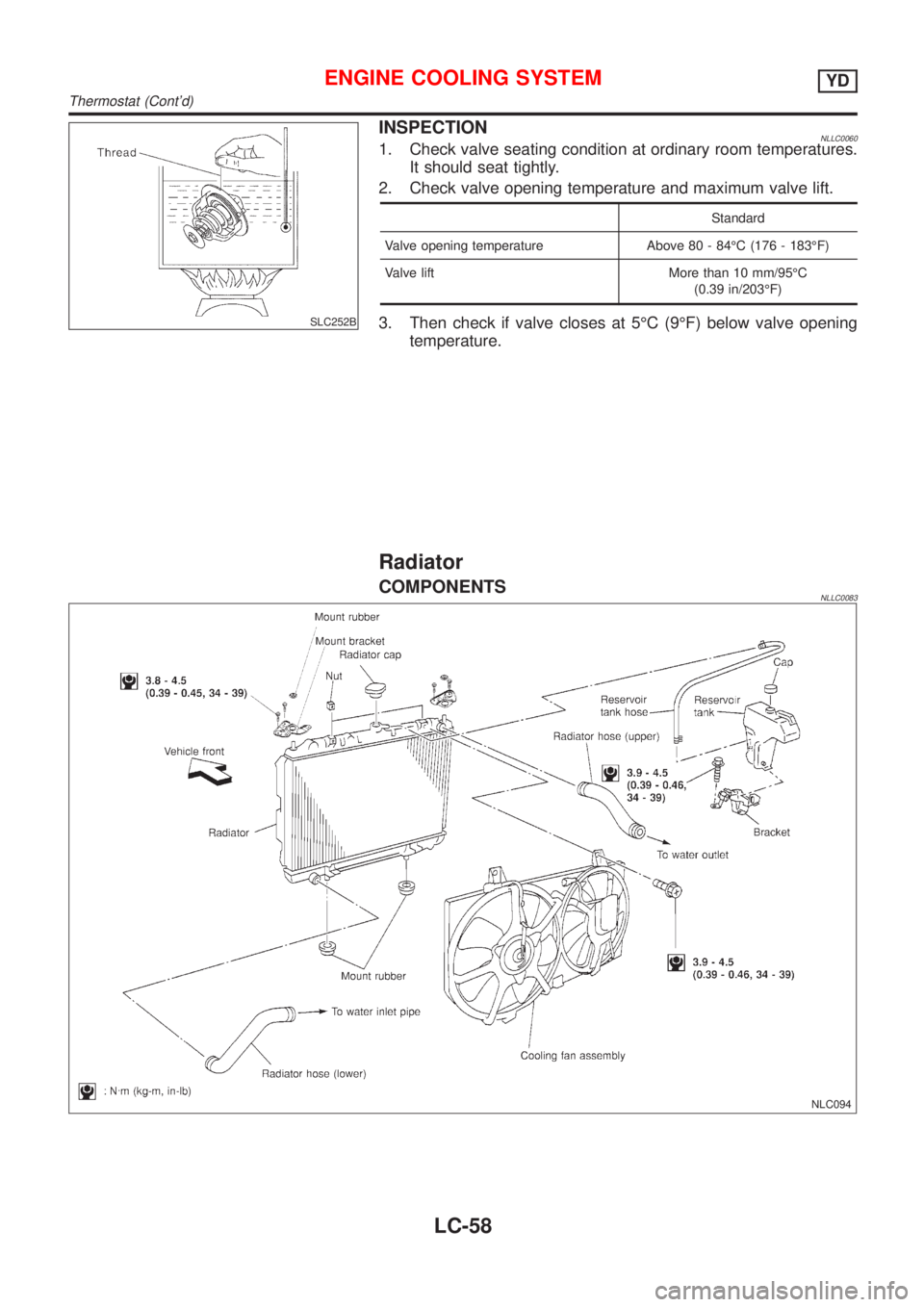

NISSAN ALMERA TINO 2001 Service Repair Manual SLC252B
INSPECTIONNLLC00601. Check valve seating condition at ordinary room temperatures.
It should seat tightly.
2. Check valve opening temperature and maximum valve lift.
Standard
Valve opening temp

Page 2762 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual REMOVAL AND INSTALLATIONNLLC00631. Remove under cover.
2. Drain coolant by removing lower radiator hose.
3. Disconnect radiator upper and lower hoses.
4. Remove radiator shroud.
5. Disconnect reservoi

Page 2763 of 3051

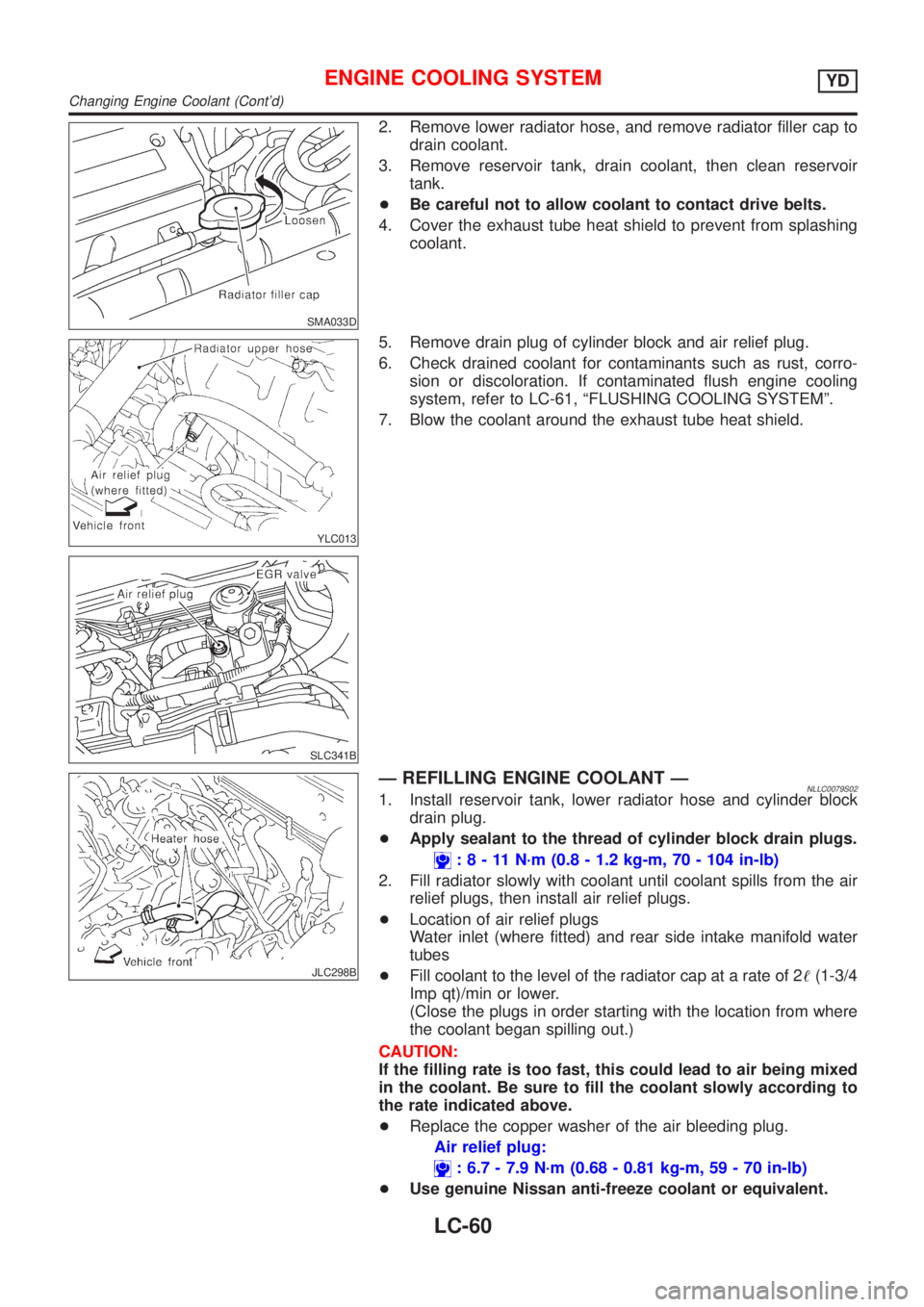

NISSAN ALMERA TINO 2001 Service Repair Manual SMA033D
2. Remove lower radiator hose, and remove radiator filler cap to
drain coolant.
3. Remove reservoir tank, drain coolant, then clean reservoir
tank.
+Be careful not to allow coolant to contact

Page 2764 of 3051

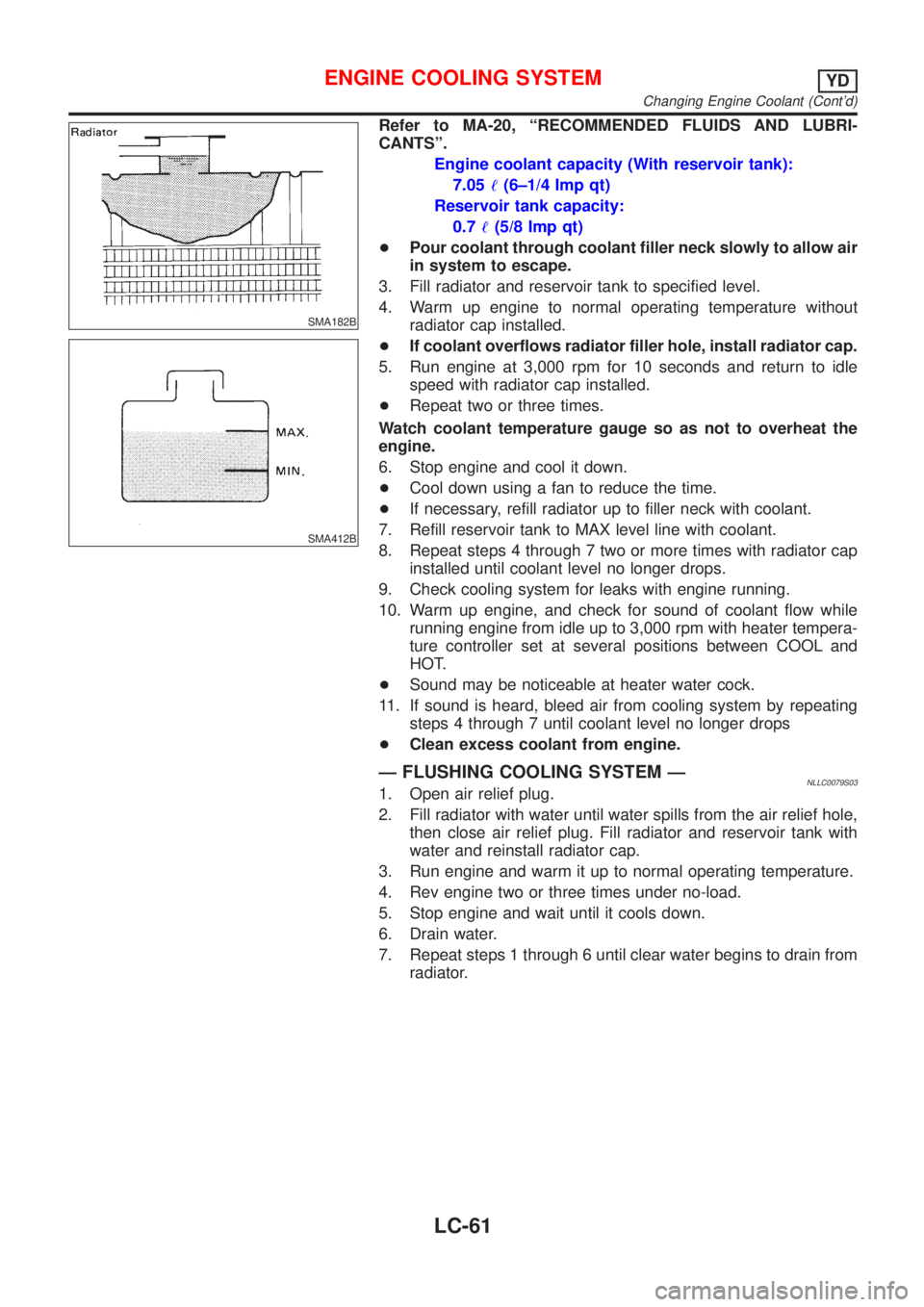

NISSAN ALMERA TINO 2001 Service Repair Manual SMA182B
SMA412B
Refer to MA-20, ªRECOMMENDED FLUIDS AND LUBRI-
CANTSº.
Engine coolant capacity (With reservoir tank):
7.05!(6±1/4 Imp qt)
Reservoir tank capacity:
0.7!(5/8 Imp qt)
+Pour coolant thr

Page 2765 of 3051

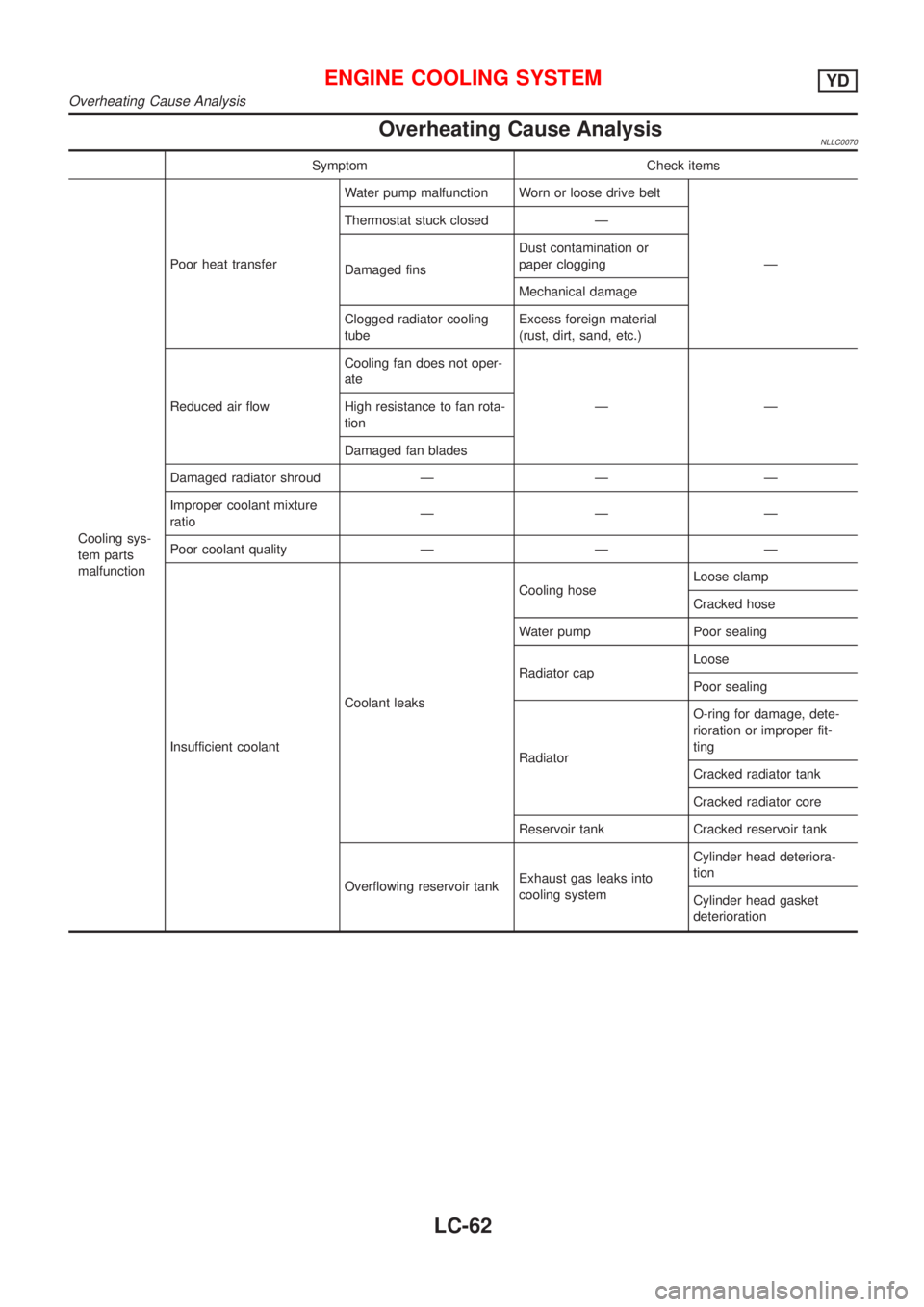

NISSAN ALMERA TINO 2001 Service Repair Manual Overheating Cause AnalysisNLLC0070
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
Ð Thermostat stuck closed Ð
Damaged finsDus

Page 2766 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Symptom Check items
Except cool-
ing system
parts mal-
functionÐ Overload on engineAbusive drivingHigh engine rpm under
no load
Driving in low gear for
extended time
Driving at extremely high
speed
P

Page 2767 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual ENGINE COOLING SYSTEM
Service Data and Specifications (SDS) (Contd)
LC-64

Page 2768 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MAINTENANCE
SECTION
MA
CONTENTS
PRE-DELIVERY INSPECTION ITEMS............................2
GENERAL MAINTENANCE............................................3
PERIODIC MAINTENANCE (EXCEPT FOR
EUROPE)....

MAINTENANCE
SECTION
MA
CONTENTS
PRE-DELIVERY INSPECTION ITEMS............................2
GENERAL MAINTENANCE............................................3
PERIODIC MAINTENANCE (EXCEPT FOR
EUROPE).........................................................................4
Engine and Emission Control Maintenance
(QG18DE/SR20DE engine) .........................................4
Engine Maintenance (YD22DDTi engine) ...................6
Chassis and Body Maintenance ..................................7
Maintenance Under Severe Driving Conditions ..........8
SEVERE DRIVING CONDITIONS................................8
PERIODIC MAINTENANCE............................................9
Maintenance Schedule for Petrol Engines
(Annual Mileage < 30,000 km/year) ............................9
QG18DE/SR20DE ENGINES......................................9
CHASSIS AND BODY MAINTENANCE......................10
Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year) .......................... 11
YD22DDTI ENGINE.................................................. 11
CHASSIS AND BODY MAINTENANCE......................12Maintenance Under Severe Driving Conditions
(Annual Driving Distance < 30,000 km/year) ............13
Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year) ..........................15
QG18DE/SR20DE ENGINES....................................15
CHASSIS AND BODY MAINTENANCE......................16
Maintenance Schedule for Diesel Engines
(Annual Mileage > 30,000 km/year) ..........................17
YD22DDTI ENGINE..................................................17
CHASSIS AND BODY MAINTENANCE......................18
Maintenance Under Severe Driving Conditions
(Annual Driving Distance > 30,000 km/year) ............19
RECOMMENDED FLUIDS AND LUBRICANTS...........20
Fluids and Lubricants ................................................20
SAE Viscosity Number ..............................................21
GASOLINE ENGINE.................................................21
DIESEL ENGINE......................................................21
Engine Coolant Mixture Ratio....................................22
