Page 537 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 26 CHECK IGNITION TIMING AGAIN Check ignition timing again. Refer to Test No. 24. OK or NG OK (With CONSULT-II)©GO TO 32. OK (Without CONSULT- II)©GO TO 35. NG©GO TO 27. 27 CHECK FOR INTAKE AIR LEA

Page 538 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 33 PERFORM IDLE AIR VOLUME LEARNING Refer to ªIdle Air Volume Learningº, EC-57. Which is the result CMPLT or INCMP? CMPLT or INCMP CMPLT©GO TO 34. INCMP©Follow the construction of ªIdle Air Volum

Page 539 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITHOUT THROTTLE POSITION SWITCH AND THROTTLE OPENER NLEC0564S02Precaution: Perform Basic Inspection without electrical or mechanical loads applied; +Headlamp switch is OFF, On vehicle equipped

Page 540 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK THROTTLE VALVE OPERATION 1. Remove intake air ducts. 2. Check throttle valve operation when moving throttle drum by hand. OK or NG OK©Retighten the throttle drum fixing nuts. NG©Clean the th

Page 541 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 7 RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY With CONSULT-II NOTE: Always warm up engine to normal operating temperature. If engine is cool, the throttle position sensor idle posi- tion memor

Page 542 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 8 CHECK CLOSED THROTTLE POSITION SWITCH IDLE POSITION Without CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Stop engine. 3. Turn ignition switch ªONº. 4. Check voltag

Page 543 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 10 RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY Without CONSULT-II NOTE: Always warm up engine to normal operating temperature. If engine is cool, the throttle position sensor idle posi- tion m

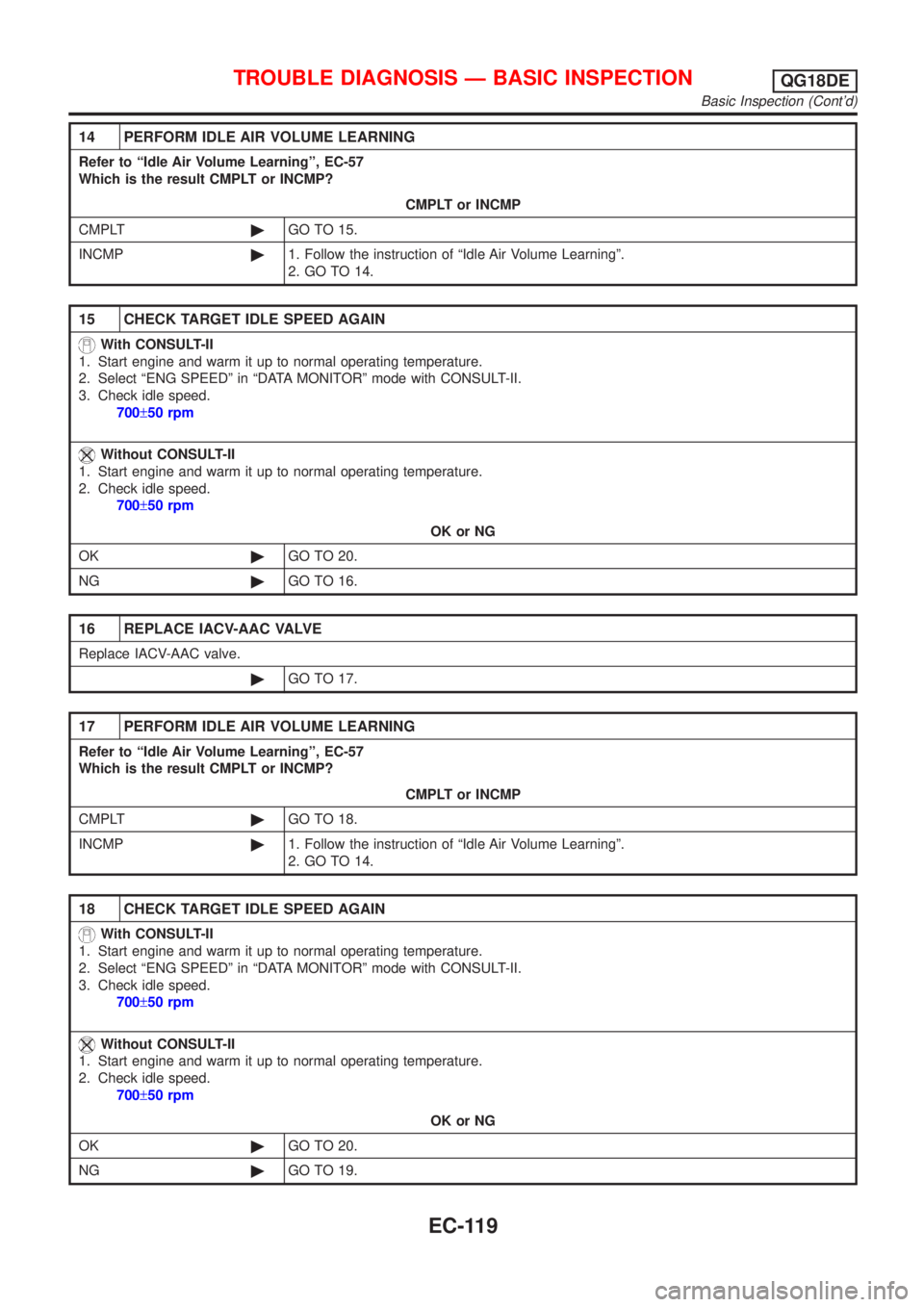

Page 544 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 14 PERFORM IDLE AIR VOLUME LEARNING Refer to ªIdle Air Volume Learningº, EC-57 Which is the result CMPLT or INCMP? CMPLT or INCMP CMPLT©GO TO 15. INCMP©1. Follow the instruction of ªIdle Air Volu
