Page 2153 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEL557X
ªCLEAR MEMORYº MODE=NLEL0517S141. Start the engine.
2. Push ªOPEN/CLOSEº switch and then open the display.
3. Push ªSETTINGº switch.
4. Select ªSystem Settingº.
5. Select ªClear Memor

Page 2154 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Guide Volume Setting=NLEL0518DESCRIPTIONNLEL0518S01Following voice guidance setting can be changed.
+Voice guidance activation/deactivation
+Voice volume of the guidance
SEL563X
ACTIVATION/DEACTIVATIO

Page 2155 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Anti-theft System=NLEL0519RHD MODELSNLEL0519S01Description
By integrating the Navigation System in the vehicles interior and linking it to the vehicles immobilizer system,
the possibility of the Nav

Page 2156 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF094Y
CONSULT-II=NLEL0520CONSULT-II INSPECTION PROCEDURENLEL0520S011. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
PBR455D
3. Insert NVIS (NATS) program card into CONSULT-

Page 2157 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Trouble Diagnoses=NLEL0521SYMPTOM CHARTNLEL0521S01
Symptom Diagnoses/service procedureReference
page
Any function of the system
does not operate.Check power supply and ground circuit for NAVI control

Trouble Diagnoses=NLEL0521SYMPTOM CHARTNLEL0521S01
Symptom Diagnoses/service procedureReference
page
Any function of the system
does not operate.Check power supply and ground circuit for NAVI control unit. EL-429
Strange screen color or
unusual screen brightness.1. Check ªDisplay Settingº MODE. EL-419
2. Check display in ªDiagnose the Displayº MODE. EL-410
The display is not dimmed
when turning lighting switch
to ON.1. Check ªDisplay Settingº MODE. EL-419
2. Check lighting switch signal input to NAVI control unit correctly in ªDiagnosis for
the signals from the carº MODE.EL-408
No navigation guide voice
are heard from front driver
side speaker.1. Check ªGuide Volume Settingº. EL-423
2. Check speaker relay. EL-430
Beep does not sound when
the system guides route.Check ªBeep On/Offº MODE. EL-421
Position marker does not
trace along the route being
traveled.Go to ªWORK FLOW FOR NAVIGATION INSPECTIONº. EL-427
Position marker does not
indicate forward or backward
movement.Check reverse signal input to NAVI control unit correctly by ªDiagnosis for the sig-
nals from the carº MODE.EL-408
Radio wave of GPS cannot
be received. (GPS marker
on the display does not
become green color.)1. Is there anything obstructing the GPS antenna on the rear parcel finisher?
(GPS antenna located under the rear parcel finisher.)Ð
2. Check GPS radio wave receive condition in ªGPS Information MODEº. EL-417
3. Check GPS antenna in ªSelf Diagnosisº MODE. EL-402
Heading direction of position
marker does not match
vehicle direction.1. Perform ªAdjust Current Locationº MODE. EL-421
2. Go to ªWORK FLOW FOR NAVIGATION INSPECTIONº. EL-427
Stored location in the
address book and other
memory functions are lost
when battery is disconnected
or becomes discharged.Stored location in the address book and other memory functions may be lost if the
battery is disconnected or becomes discharged. If this should occur, charge or
replace the battery as necessary and re-enter the information.Ð
Map appears grey and can-
not be scrolled.The current location in the memory is out of the map data area. Perform ªInitialize
Locationº.EL-414
NAVIGATION SYSTEM
Trouble Diagnoses
EL-426

Page 2158 of 3051

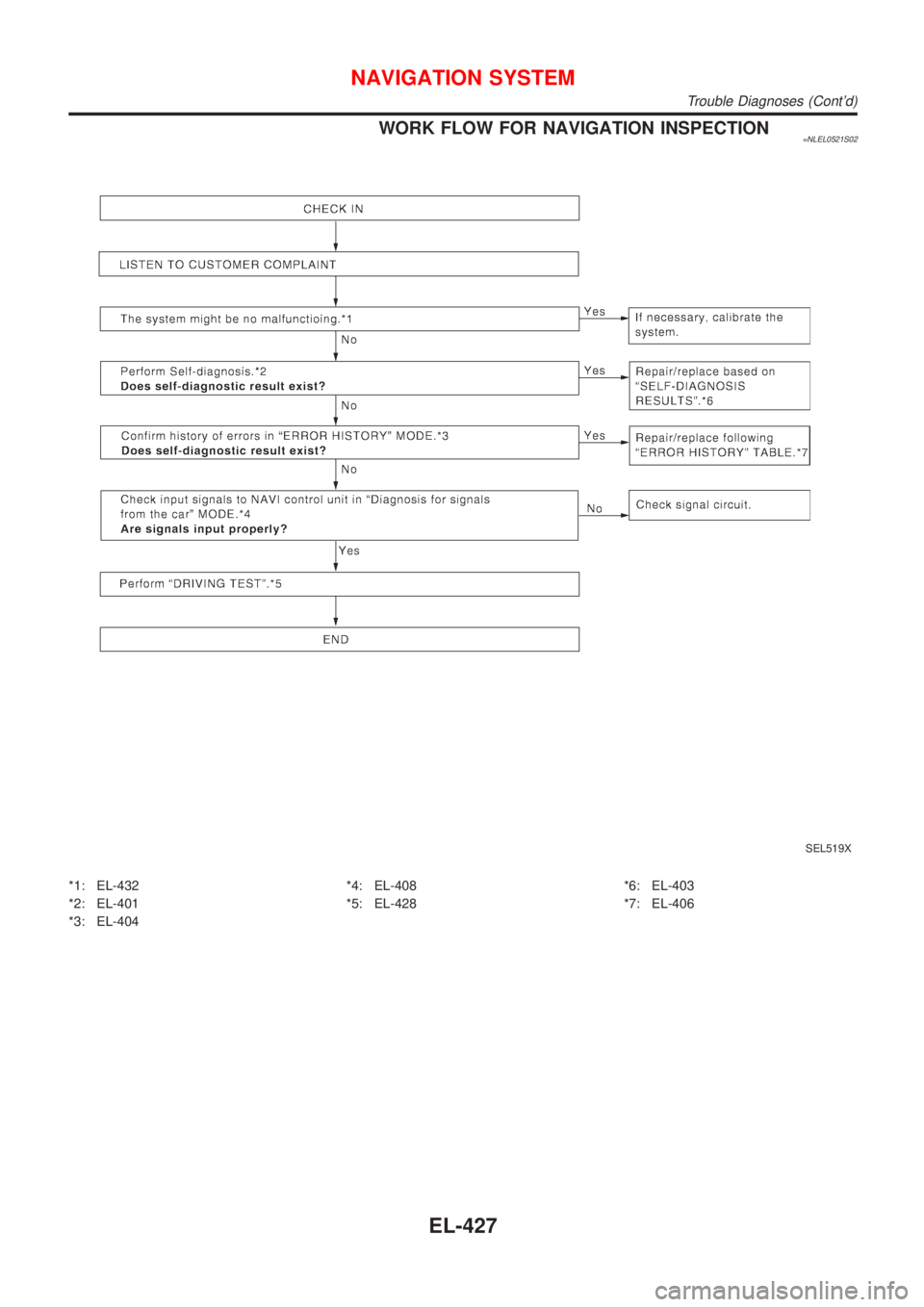

NISSAN ALMERA TINO 2001 Service Repair Manual WORK FLOW FOR NAVIGATION INSPECTION=NLEL0521S02
SEL519X
*1: EL-432
*2: EL-401
*3: EL-404*4: EL-408
*5: EL-428*6: EL-403
*7: EL-406
NAVIGATION SYSTEM
Trouble Diagnoses (Contd)
EL-427

Page 2159 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DRIVING TEST=NLEL0521S03During the driving test, diagnose the system by checking the dif-
ference of symptoms with each sensor ON or OFF.
Test Pattern 1NLEL0521S0301Test method in which current positi

Page 2160 of 3051

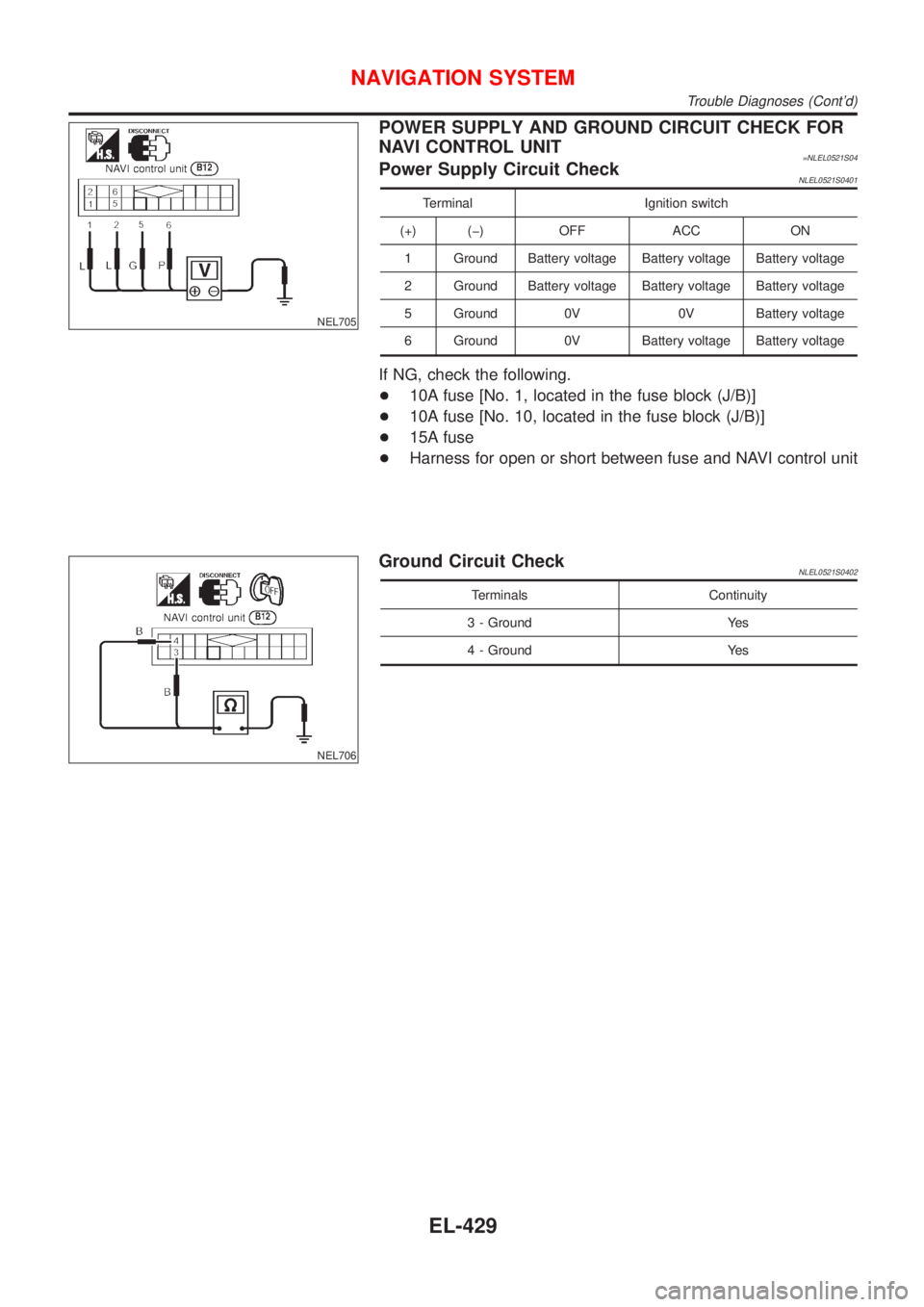

NISSAN ALMERA TINO 2001 Service Repair Manual NEL705
POWER SUPPLY AND GROUND CIRCUIT CHECK FOR
NAVI CONTROL UNIT
=NLEL0521S04Power Supply Circuit CheckNLEL0521S0401
Terminal Ignition switch
(+) (þ) OFF ACC ON
1 Ground Battery voltage Battery vol
