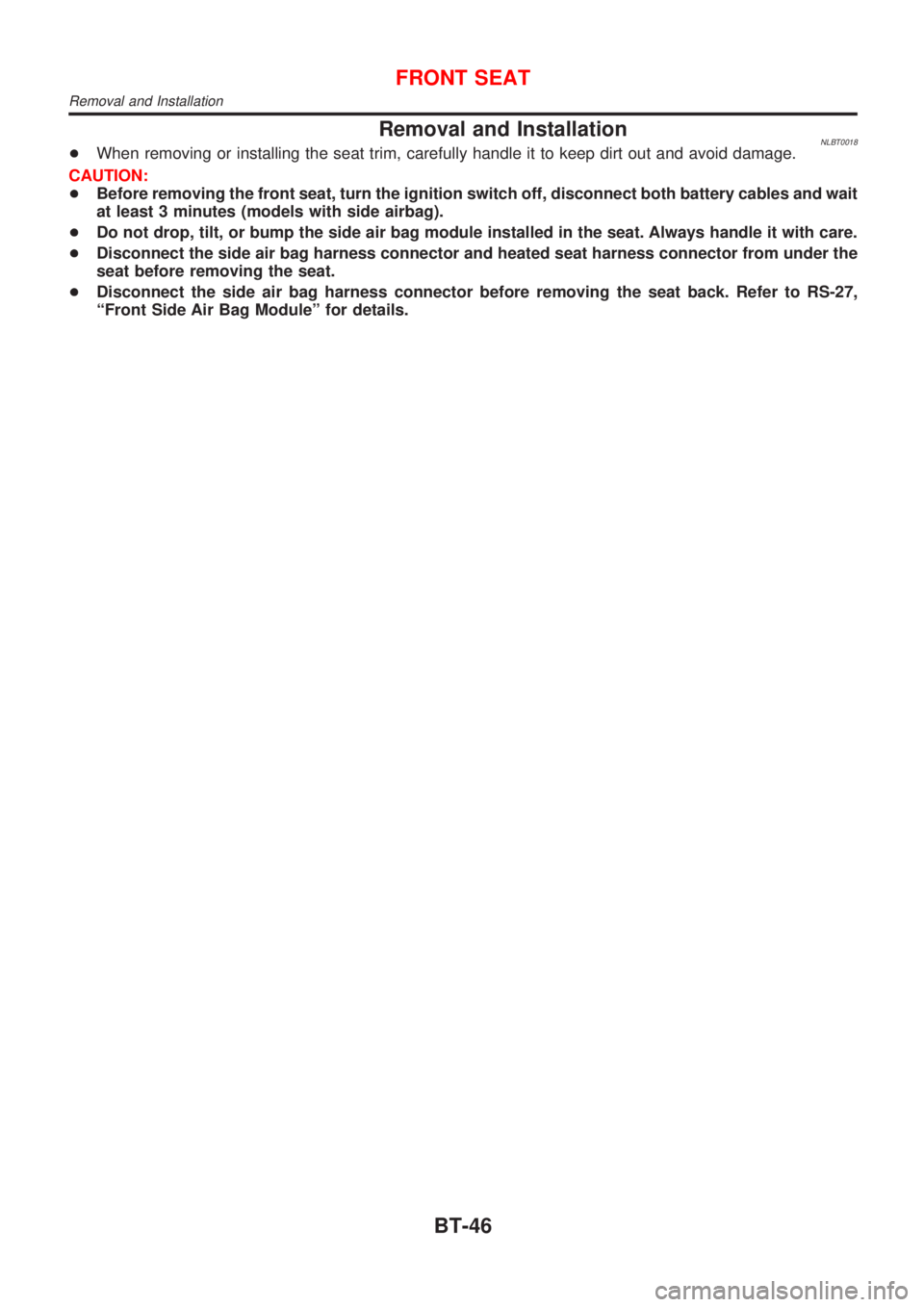

Removal and InstallationNLBT0018+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
CAUTION:
+Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes (models with side airbag).
+Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
+Disconnect the side air bag harness connector and heated seat harness connector from under the
seat before removing the seat.
+Disconnect the side air bag harness connector before removing the seat back. Refer to RS-27,
ªFront Side Air Bag Moduleº for details.
FRONT SEAT
Removal and Installation
BT-46
Page 378 of 3051
MANUAL SEATNLBT0018S07
NBT177
FRONT SEAT
Removal and Installation (Cont'd)
BT-47
Page 379 of 3051
Heated SeatNLBT0036HFor Wiring Diagram, refer to EL-234, ªHEATED SEATº for details.
SBT014A
Active Head RestraintNLBT0032The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant's head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.
SBT888
OPERATION OUTLINENLBT0032S01When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.
FRONT SEAT
Heated Seat
BT-48
Page 380 of 3051

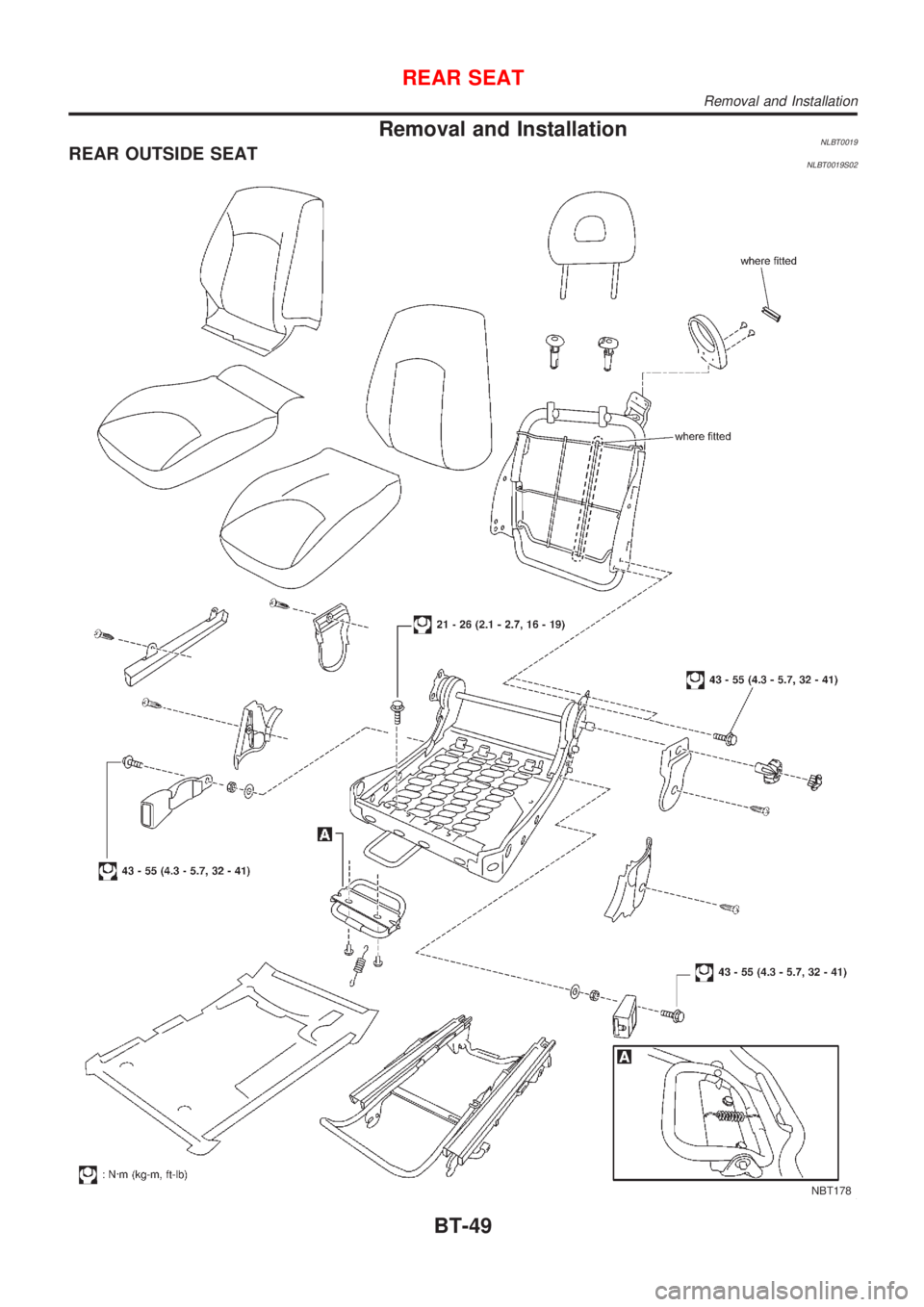

Removal and InstallationNLBT0019REAR OUTSIDE SEATNLBT0019S02
NBT178
REAR SEAT
Removal and Installation
BT-49
Page 381 of 3051

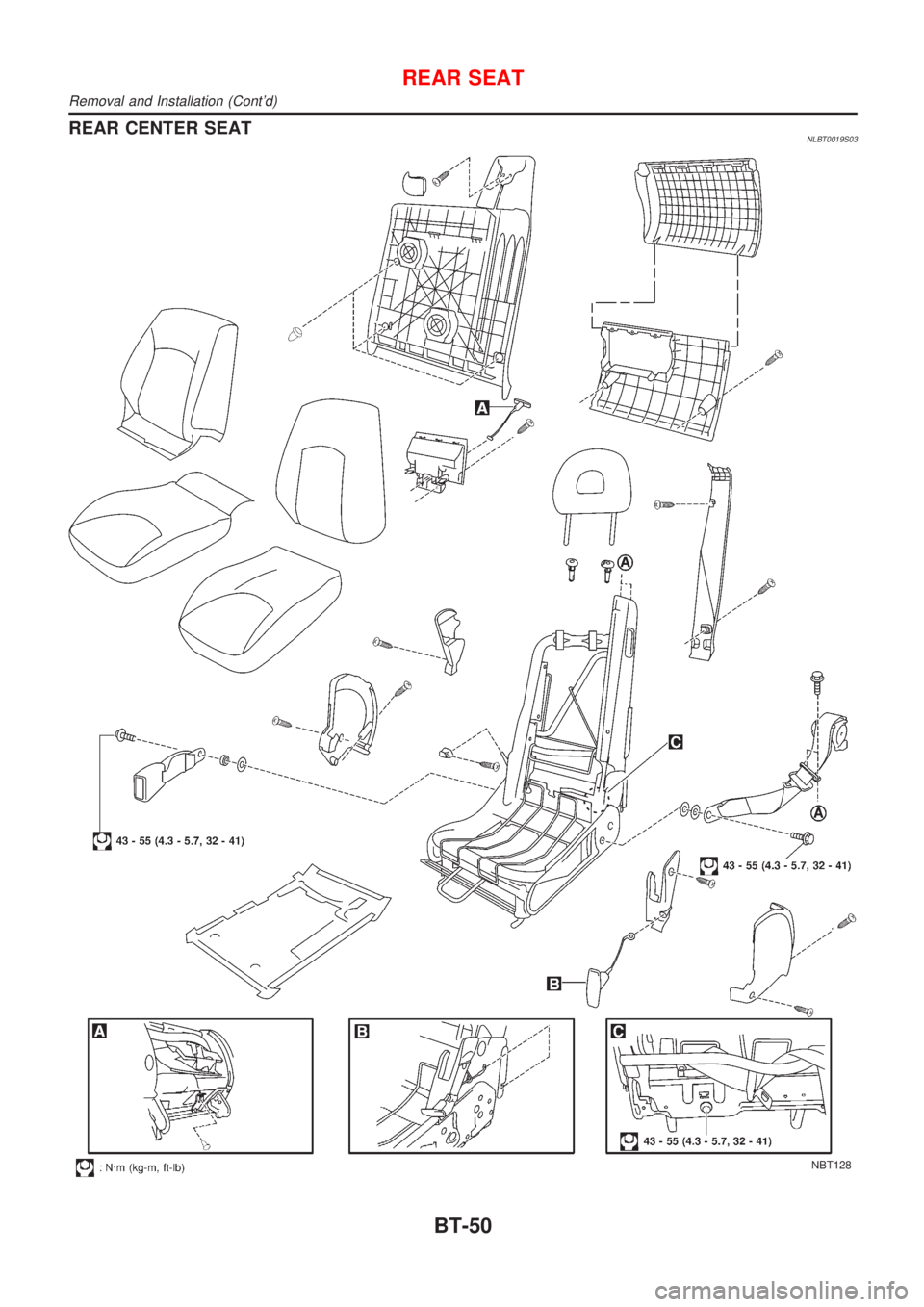

REAR CENTER SEATNLBT0019S03
NBT128
REAR SEAT
Removal and Installation (Cont'd)
BT-50
Page 382 of 3051

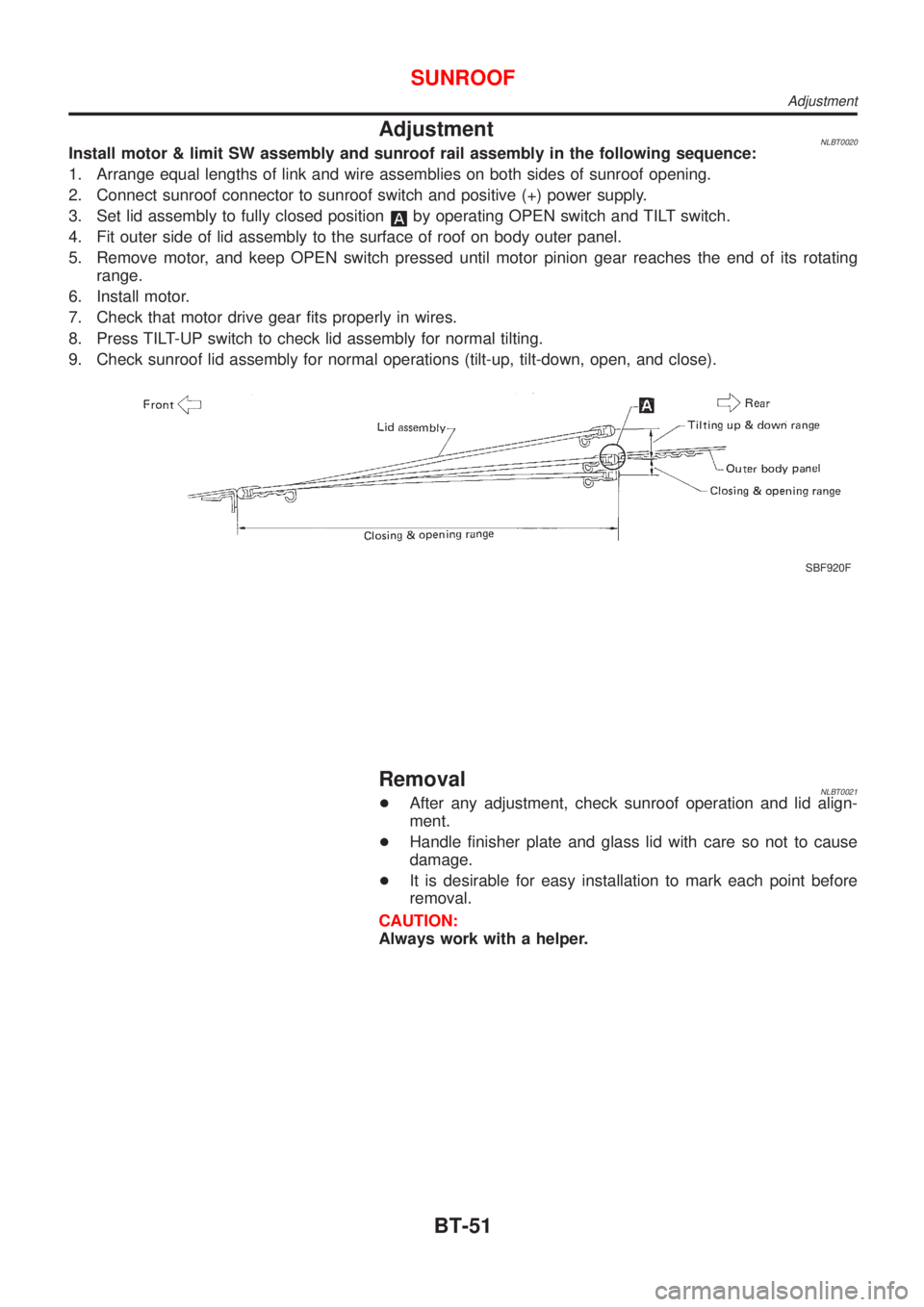

AdjustmentNLBT0020Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunroof connector to sunroof switch and positive (+) power supply.
3. Set lid assembly to fully closed position
by operating OPEN switch and TILT switch.
4. Fit outer side of lid assembly to the surface of roof on body outer panel.
5. Remove motor, and keep OPEN switch pressed until motor pinion gear reaches the end of its rotating
range.
6. Install motor.
7. Check that motor drive gear fits properly in wires.
8. Press TILT-UP switch to check lid assembly for normal tilting.
9. Check sunroof lid assembly for normal operations (tilt-up, tilt-down, open, and close).
SBF920F
RemovalNLBT0021+After any adjustment, check sunroof operation and lid align-
ment.
+Handle finisher plate and glass lid with care so not to cause
damage.
+It is desirable for easy installation to mark each point before
removal.
CAUTION:
Always work with a helper.
SUNROOF
Adjustment
BT-51
Page 383 of 3051
NBT179
*1 BT-35 *2 EL-238

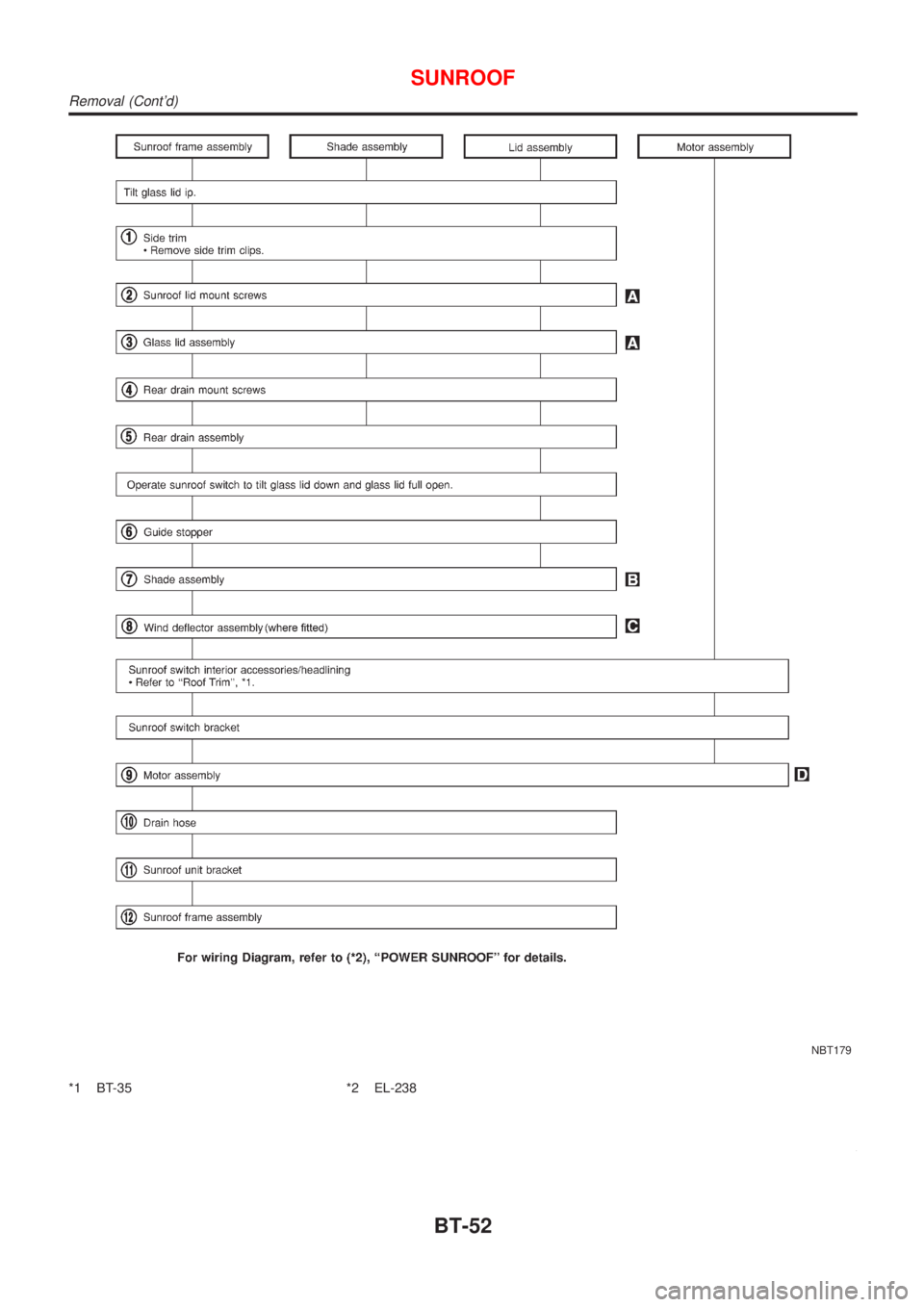

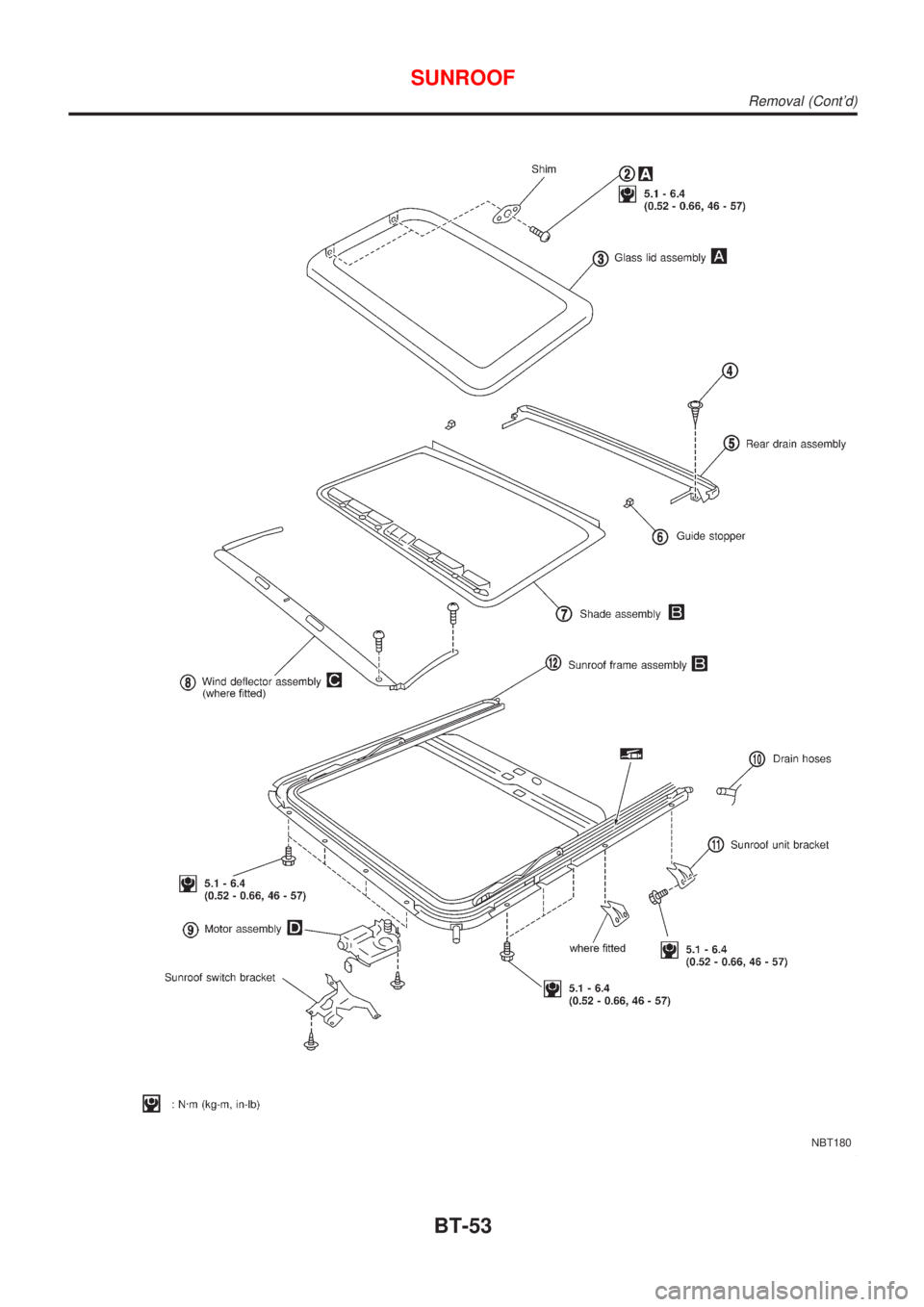

SUNROOF
