Page 1369 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF463R SEF288D Component DescriptionNLEC1780The heated oxygen sensor 1 (front) is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas com- pared to the outside air. T

Page 1370 of 3051

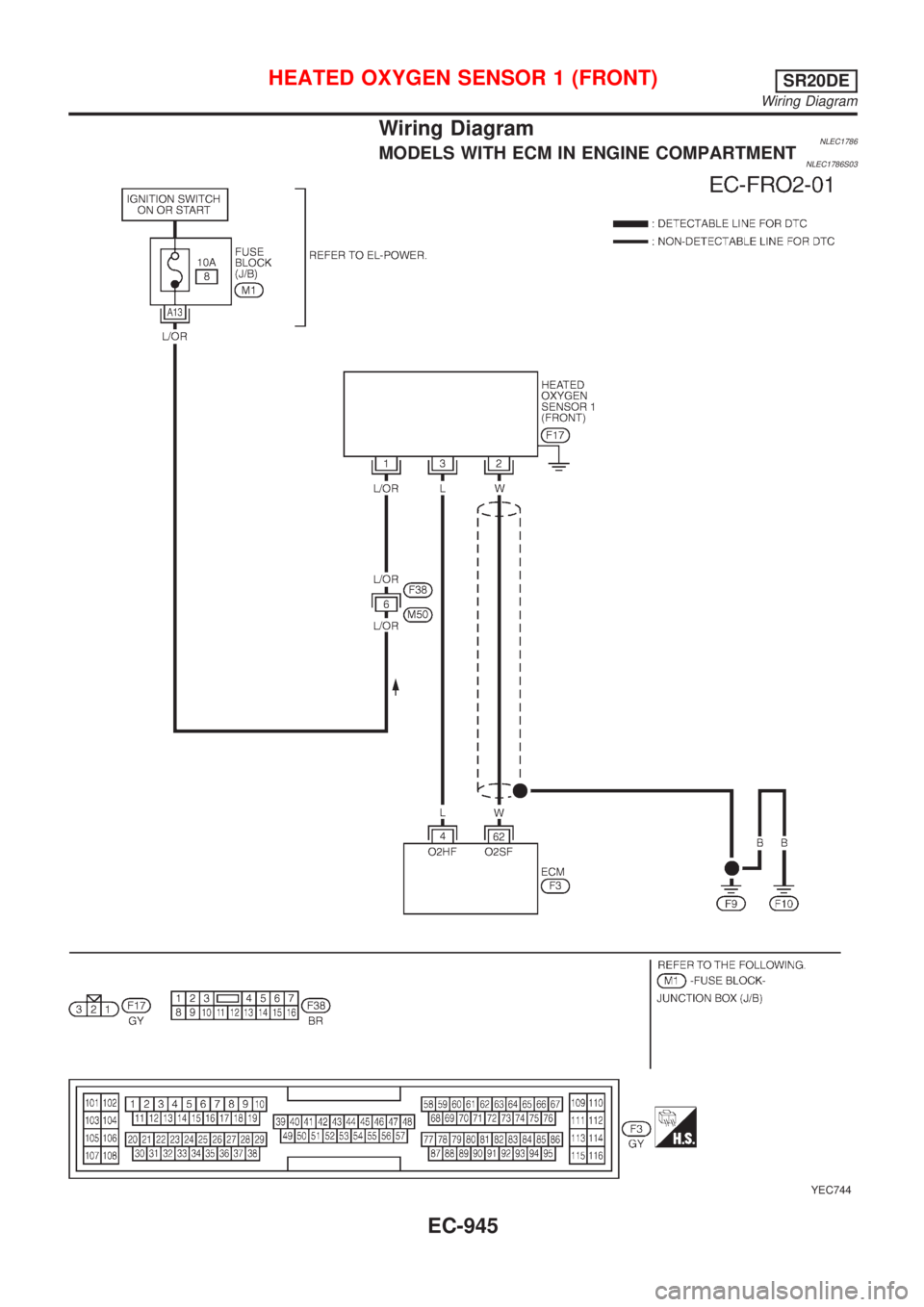

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1786MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1786S03 YEC744 HEATED OXYGEN SENSOR 1 (FRONT)SR20DE Wiring Diagram EC-945

Page 1371 of 3051

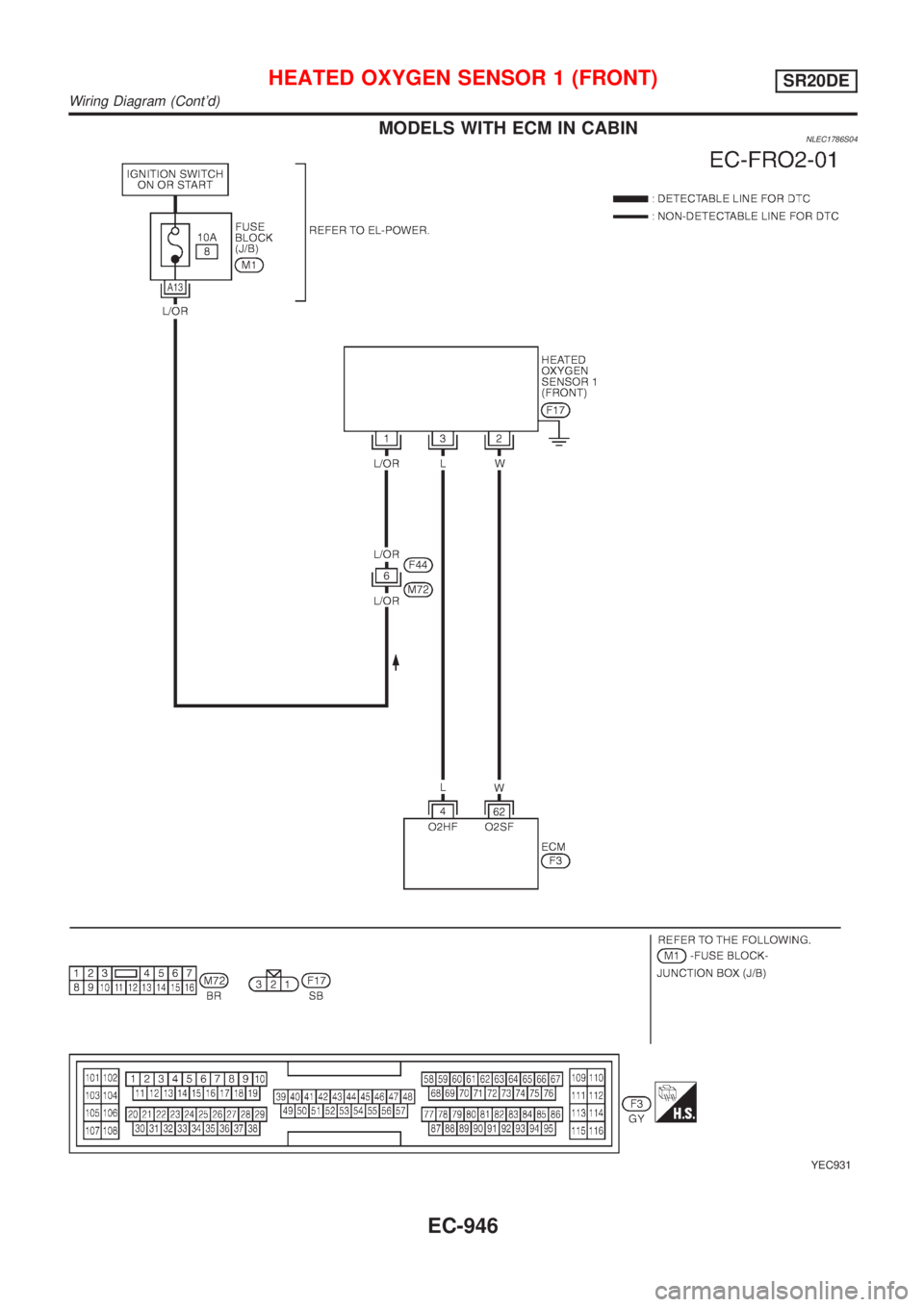

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1786S04 YEC931 HEATED OXYGEN SENSOR 1 (FRONT)SR20DE Wiring Diagram (Contd) EC-946

Page 1372 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1789 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine and warm it up to normal operating

Page 1373 of 3051

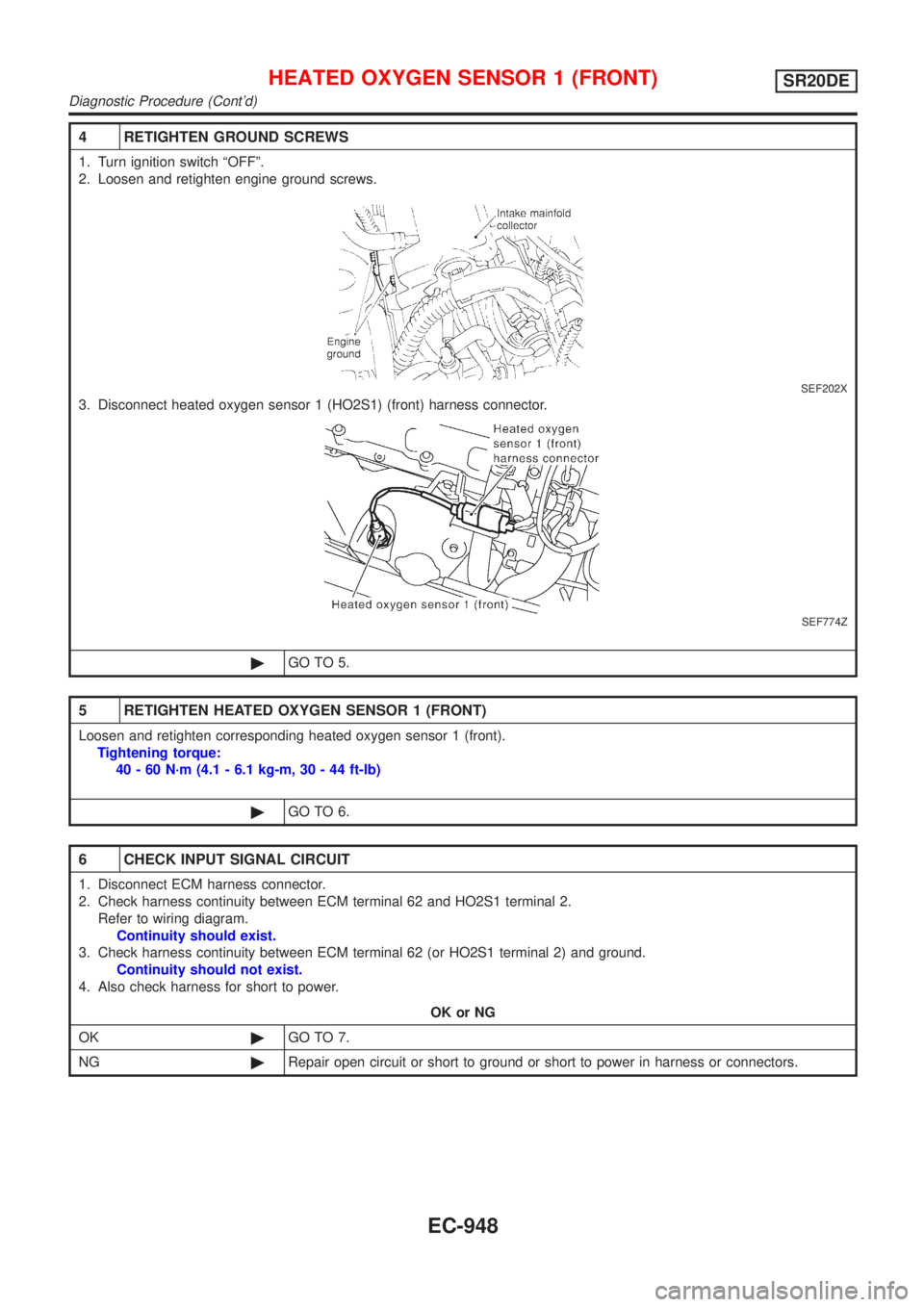

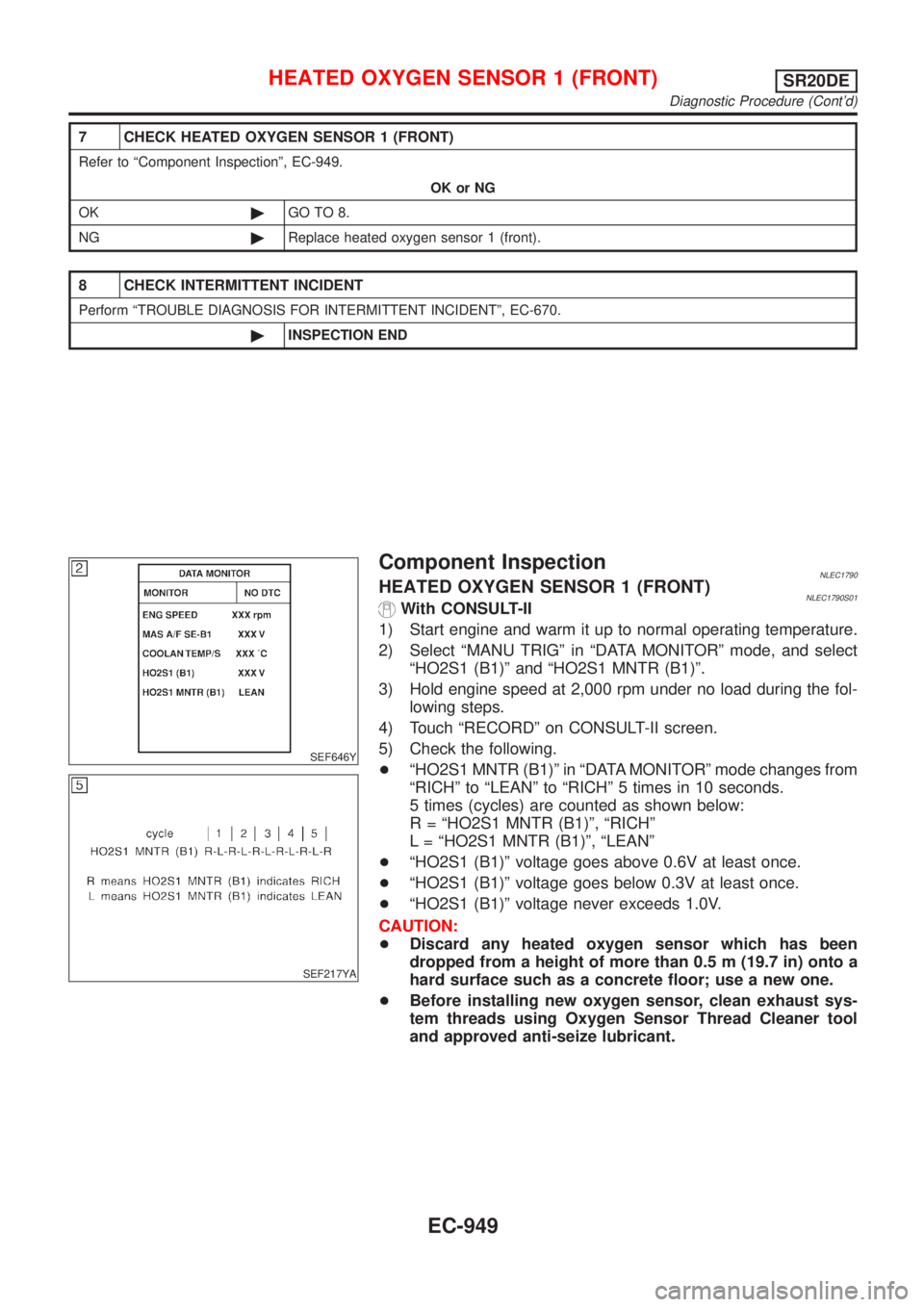

NISSAN ALMERA TINO 2001 Service Repair Manual 4 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF202X 3. Disconnect heated oxygen sensor 1 (HO2S1) (front) harness connector. SEF774Z ©GO TO

Page 1374 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK HEATED OXYGEN SENSOR 1 (FRONT) Refer to ªComponent Inspectionº, EC-949. OK or NG OK©GO TO 8. NG©Replace heated oxygen sensor 1 (front). 8 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAG

Page 1375 of 3051

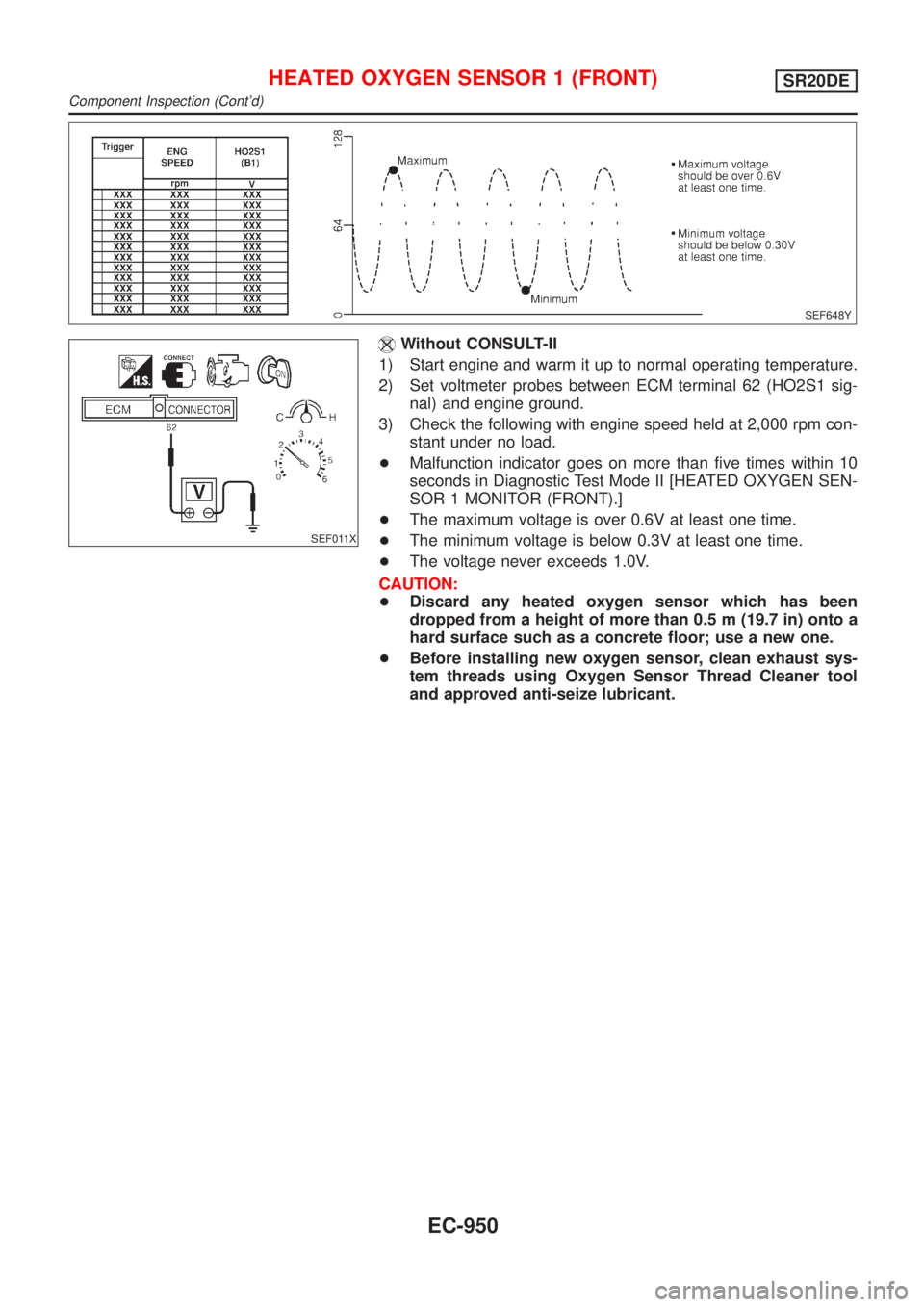

NISSAN ALMERA TINO 2001 Service Repair Manual SEF648Y SEF011X Without CONSULT-II 1) Start engine and warm it up to normal operating temperature. 2) Set voltmeter probes between ECM terminal 62 (HO2S1 sig- nal) and engine ground. 3) Check the foll

Page 1376 of 3051

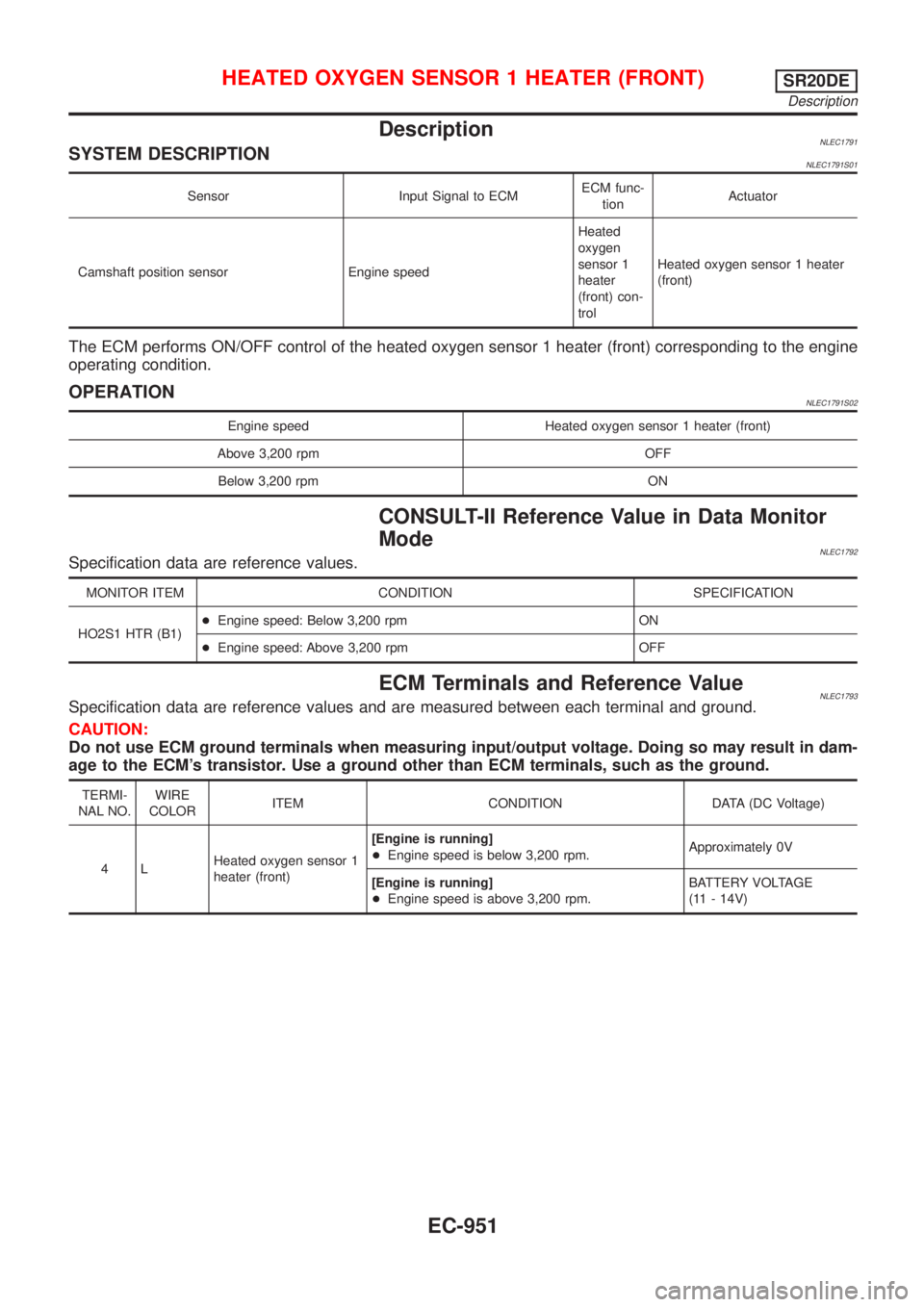

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC1791SYSTEM DESCRIPTIONNLEC1791S01 Sensor Input Signal to ECMECM func- tionActuator Camshaft position sensor Engine speedHeated oxygen sensor 1 heater (front) con- trolHeated oxygen sens
