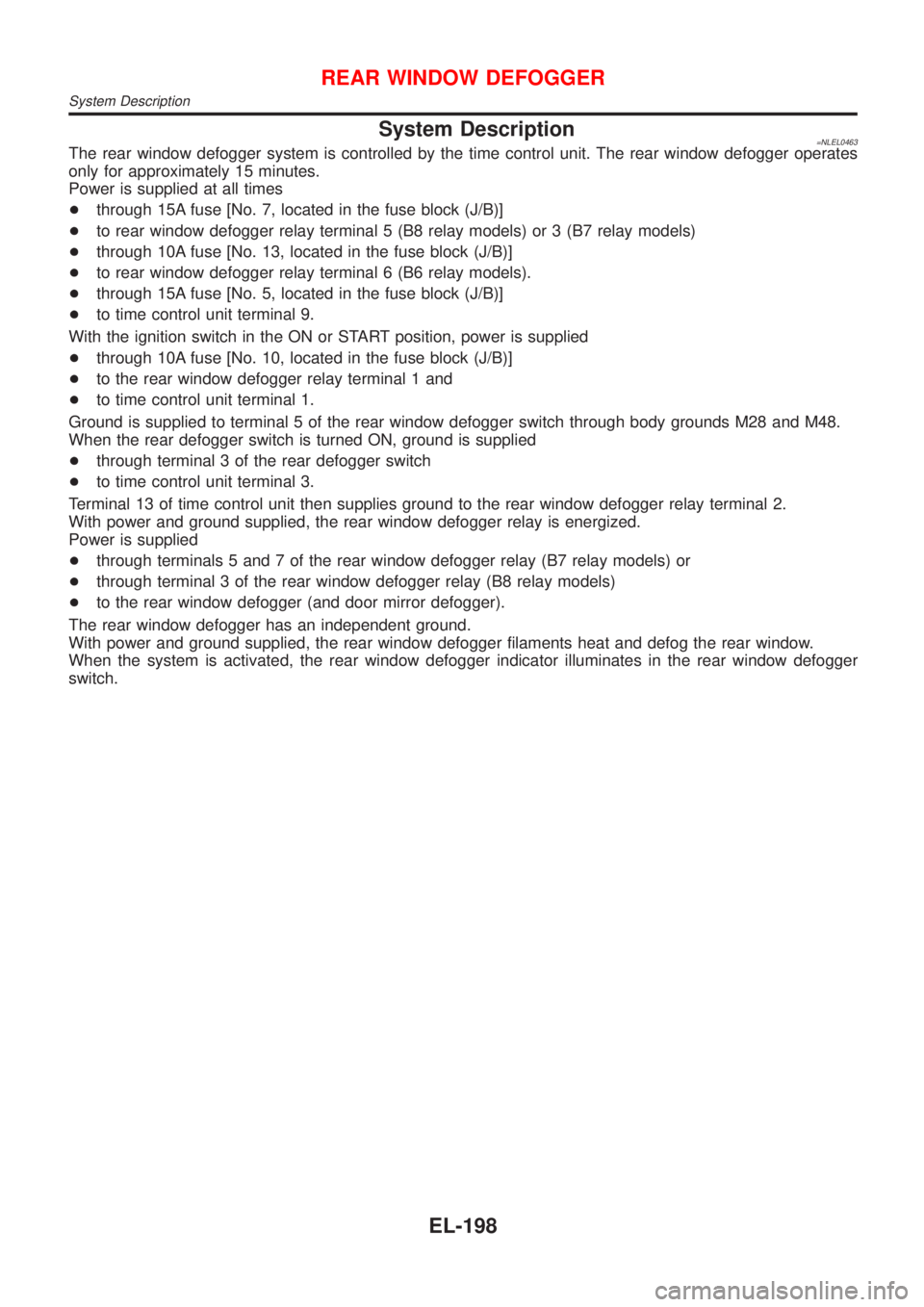

System Description=NLEL0463The rear window defogger system is controlled by the time control unit. The rear window defogger operates
only for approximately 15 minutes.
Power is supplied at all times
+through 15A fuse [No. 7, located in the fuse block (J/B)]
+to rear window defogger relay terminal 5 (B8 relay models) or 3 (B7 relay models)
+through 10A fuse [No. 13, located in the fuse block (J/B)]
+to rear window defogger relay terminal 6 (B6 relay models).
+through 15A fuse [No. 5, located in the fuse block (J/B)]
+to time control unit terminal 9.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to the rear window defogger relay terminal 1 and
+to time control unit terminal 1.
Ground is supplied to terminal 5 of the rear window defogger switch through body grounds M28 and M48.
When the rear defogger switch is turned ON, ground is supplied
+through terminal 3 of the rear defogger switch
+to time control unit terminal 3.
Terminal 13 of time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied
+through terminals 5 and 7 of the rear window defogger relay (B7 relay models) or
+through terminal 3 of the rear window defogger relay (B8 relay models)
+to the rear window defogger (and door mirror defogger).
The rear window defogger has an independent ground.
With power and ground supplied, the rear window defogger filaments heat and defog the rear window.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
REAR WINDOW DEFOGGER
System Description
EL-198
Page 1930 of 3051

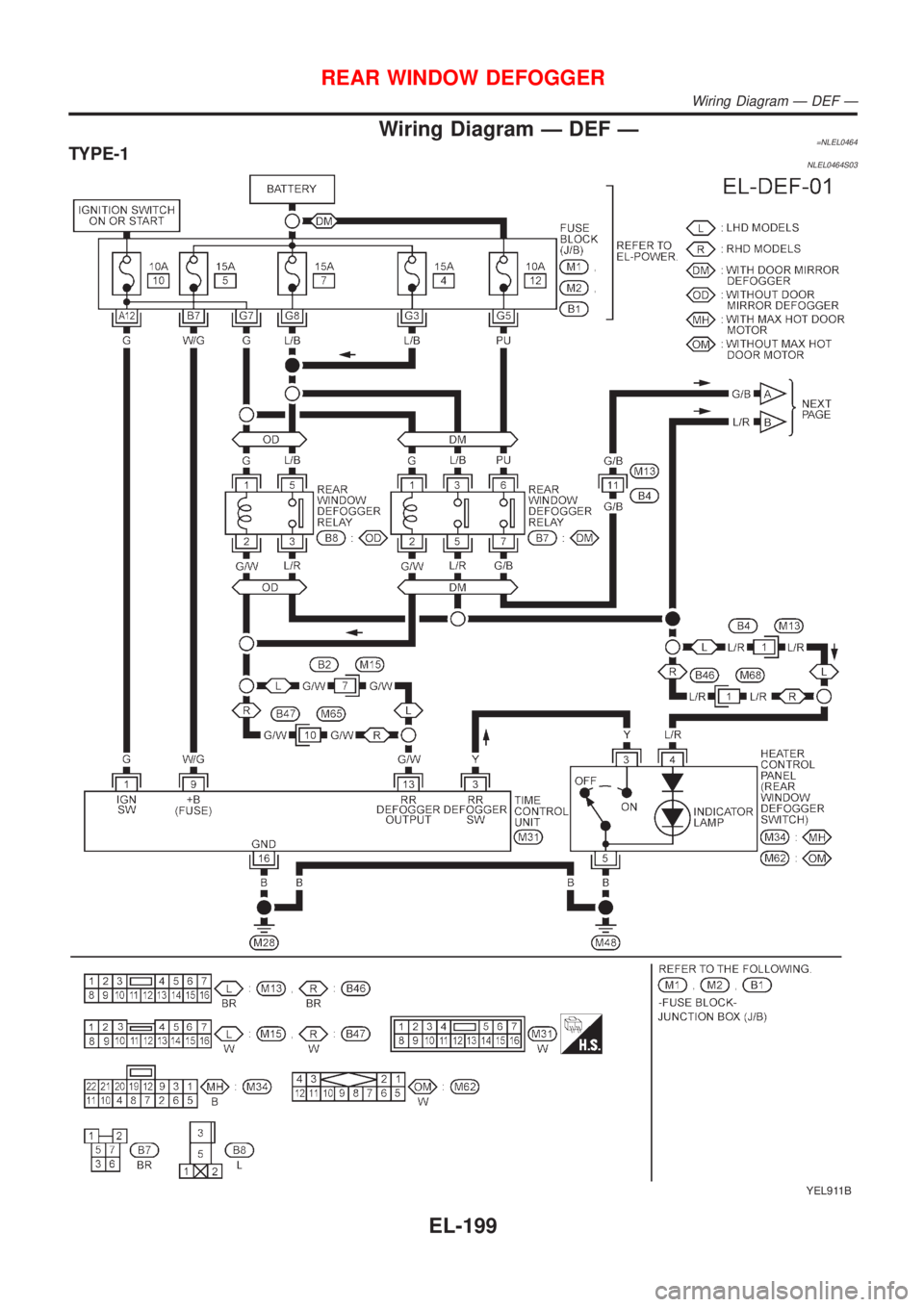

Wiring Diagram Ð DEF Ð=NLEL0464TYPE-1NLEL0464S03
YEL911B
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð
EL-199
Page 1931 of 3051

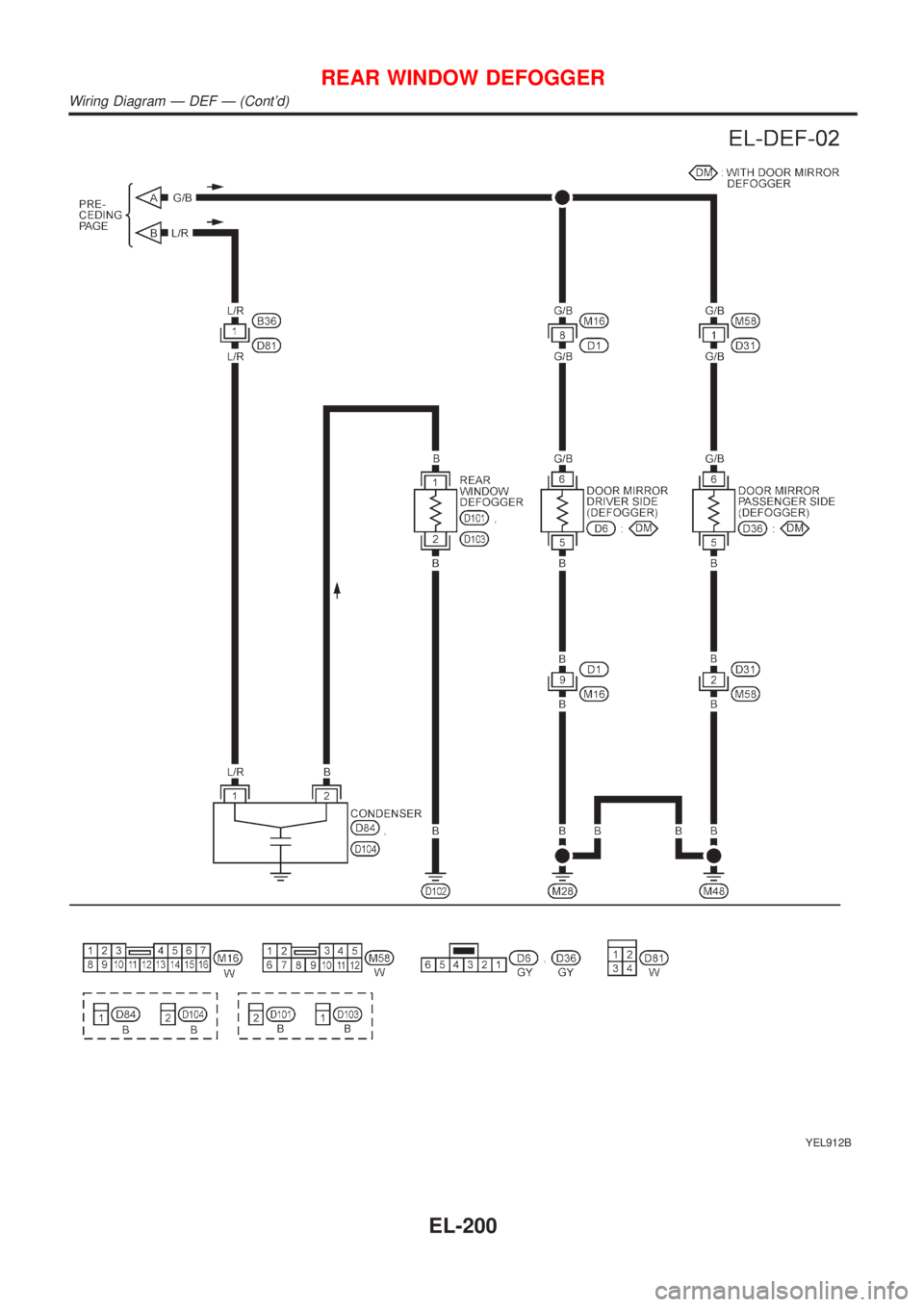

YEL912B
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð (Cont'd)
EL-200
Page 1932 of 3051

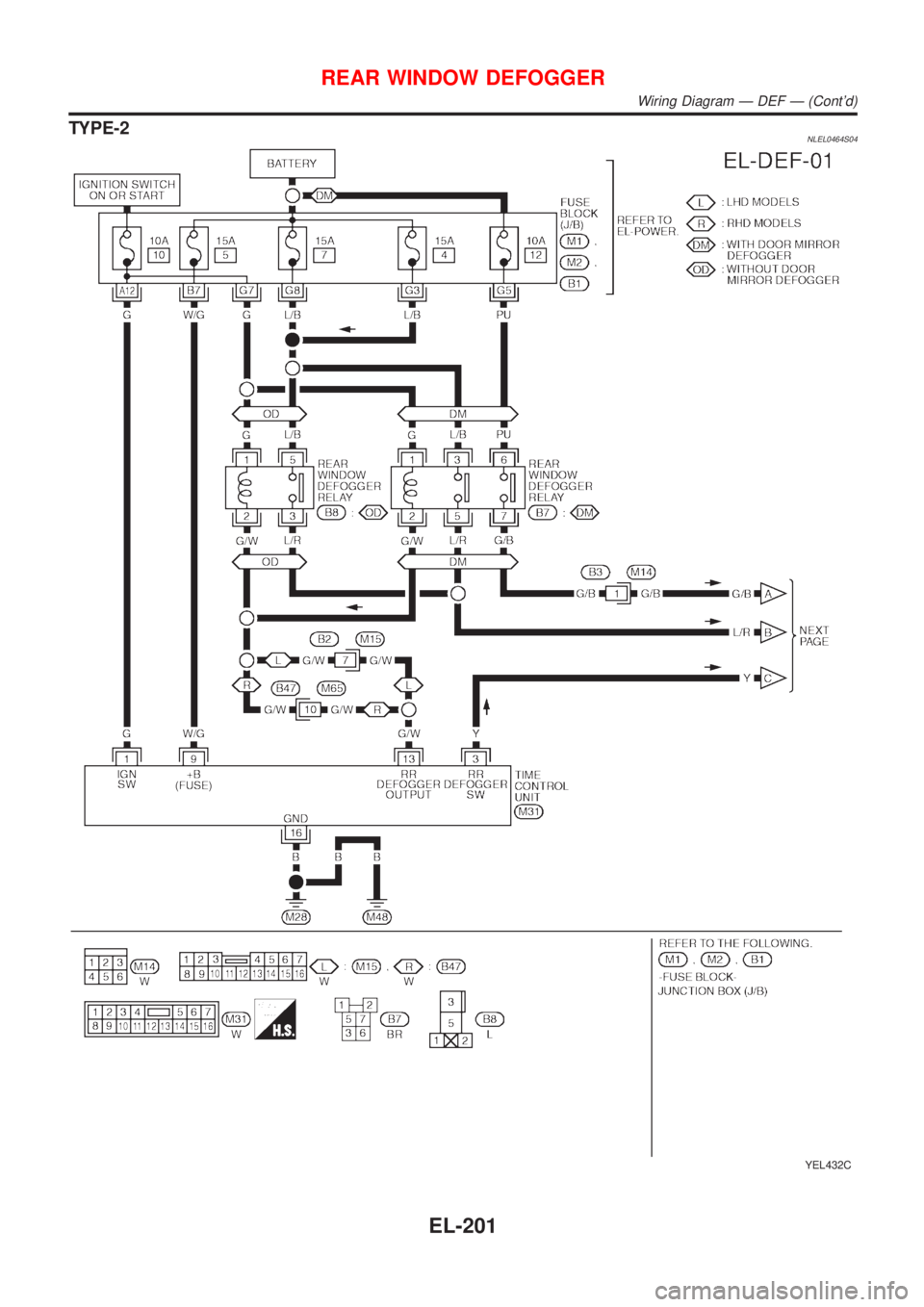

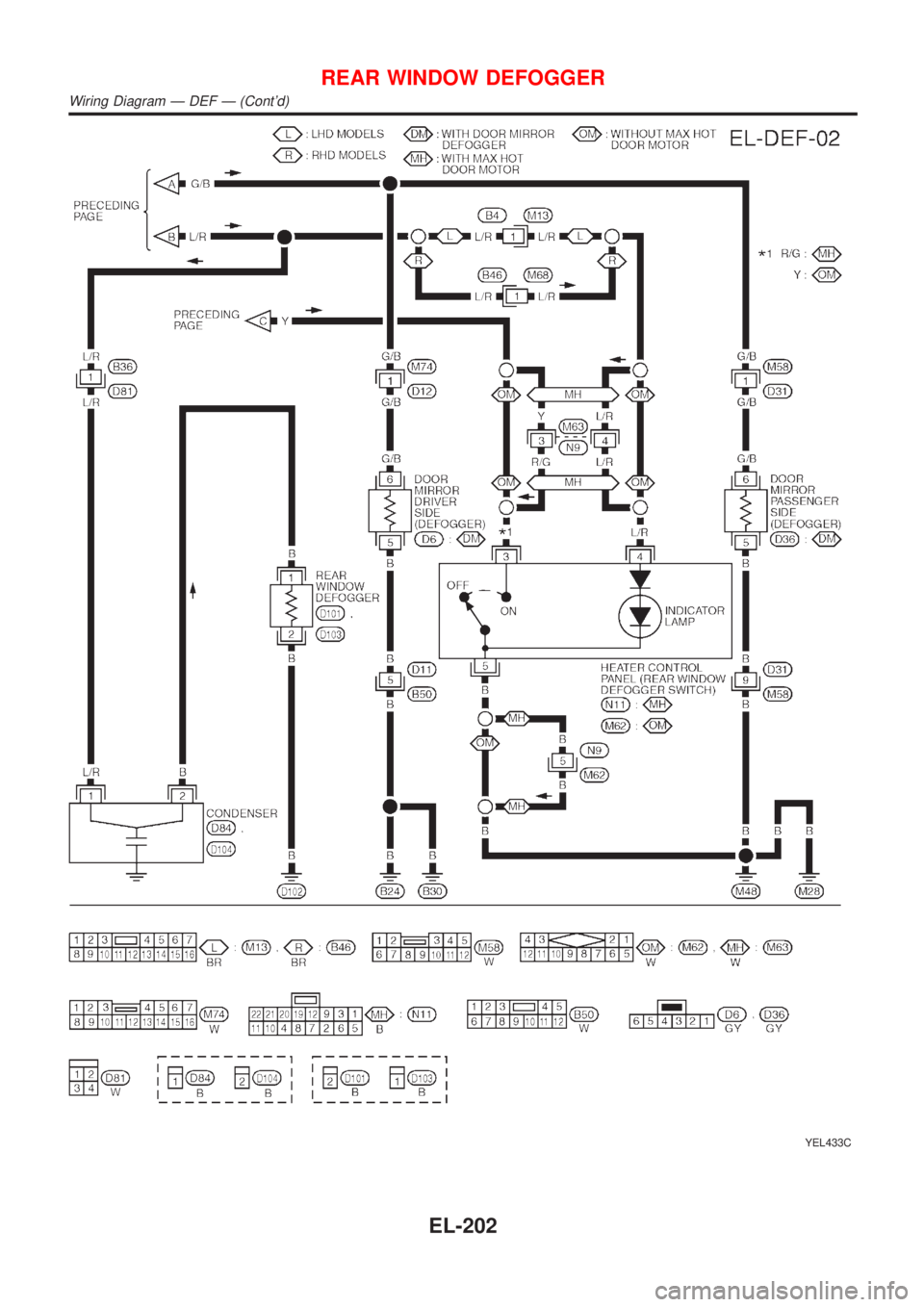

TYPE-2NLEL0464S04
YEL432C
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð (Cont'd)
EL-201
Page 1933 of 3051
YEL433C
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð (Cont'd)
EL-202
Page 1934 of 3051

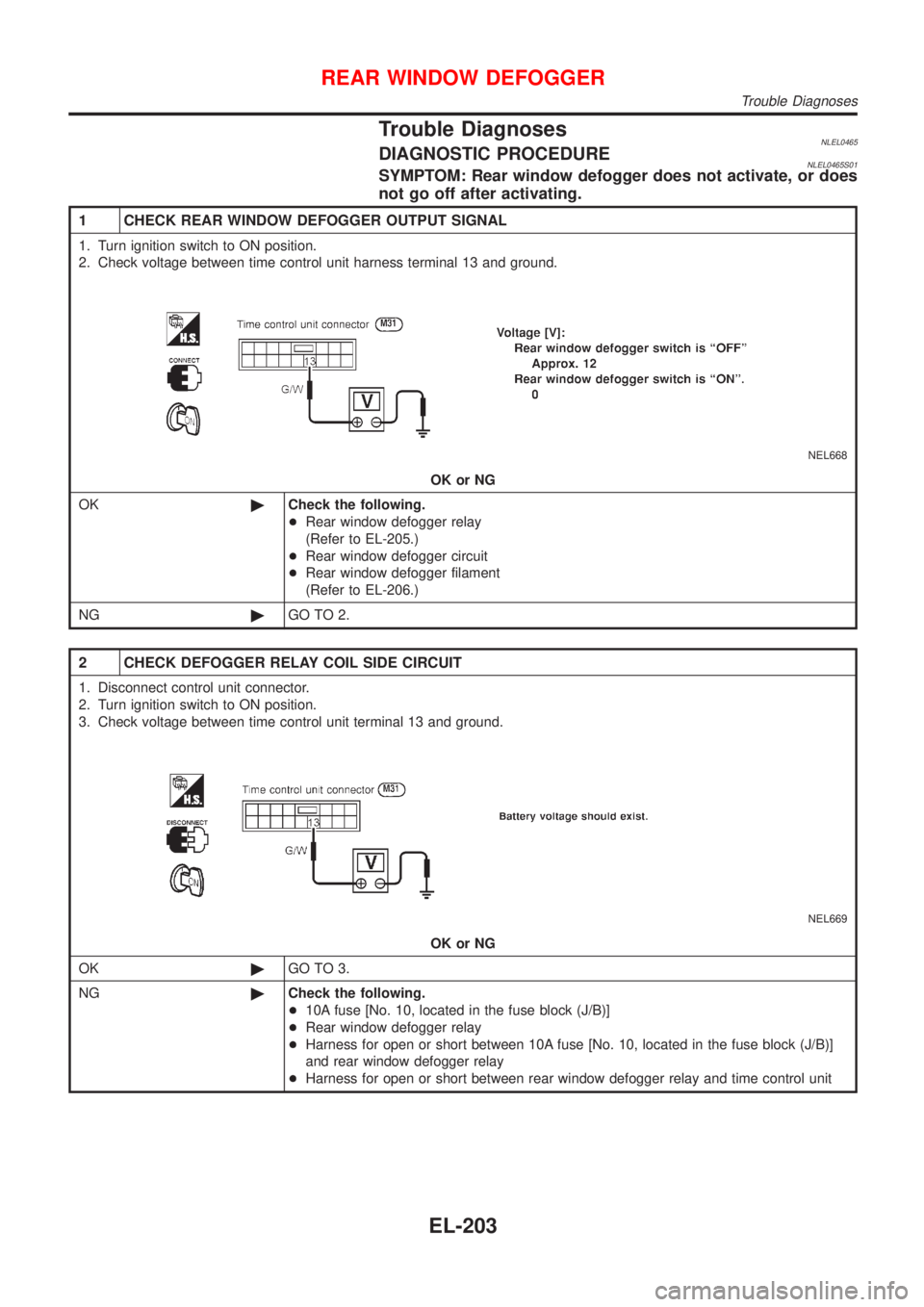

Trouble DiagnosesNLEL0465DIAGNOSTIC PROCEDURENLEL0465S01SYMPTOM: Rear window defogger does not activate, or does
not go off after activating.
1 CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL
1. Turn ignition switch to ON position.
2. Check voltage between time control unit harness terminal 13 and ground.
NEL668
OK or NG
OK©Check the following.
+Rear window defogger relay
(Refer to EL-205.)
+Rear window defogger circuit
+Rear window defogger filament
(Refer to EL-206.)
NG©GO TO 2.
2 CHECK DEFOGGER RELAY COIL SIDE CIRCUIT
1. Disconnect control unit connector.
2. Turn ignition switch to ON position.
3. Check voltage between time control unit terminal 13 and ground.
NEL669
OK or NG
OK©GO TO 3.
NG©Check the following.
+10A fuse [No. 10, located in the fuse block (J/B)]
+Rear window defogger relay
+Harness for open or short between 10A fuse [No. 10, located in the fuse block (J/B)]
and rear window defogger relay
+Harness for open or short between rear window defogger relay and time control unit
REAR WINDOW DEFOGGER
Trouble Diagnoses
EL-203
Page 1935 of 3051

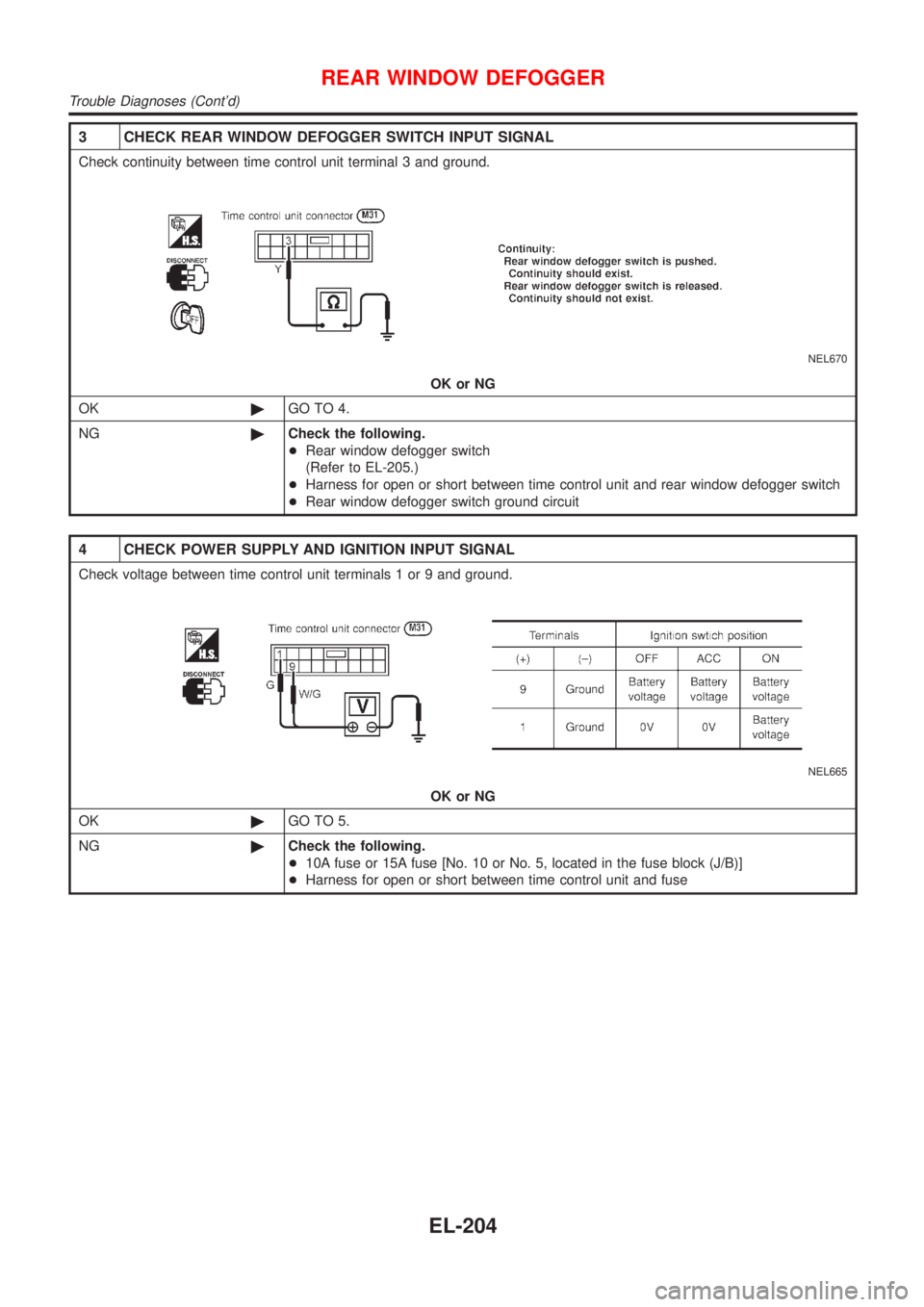

3 CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL
Check continuity between time control unit terminal 3 and ground.
NEL670
OK or NG
OK©GO TO 4.
NG©Check the following.
+Rear window defogger switch
(Refer to EL-205.)
+Harness for open or short between time control unit and rear window defogger switch
+Rear window defogger switch ground circuit
4 CHECK POWER SUPPLY AND IGNITION INPUT SIGNAL
Check voltage between time control unit terminals 1 or 9 and ground.
NEL665
OK or NG
OK©GO TO 5.
NG©Check the following.
+10A fuse or 15A fuse [No. 10 or No. 5, located in the fuse block (J/B)]
+Harness for open or short between time control unit and fuse
REAR WINDOW DEFOGGER
Trouble Diagnoses (Cont'd)
EL-204
Page 1936 of 3051

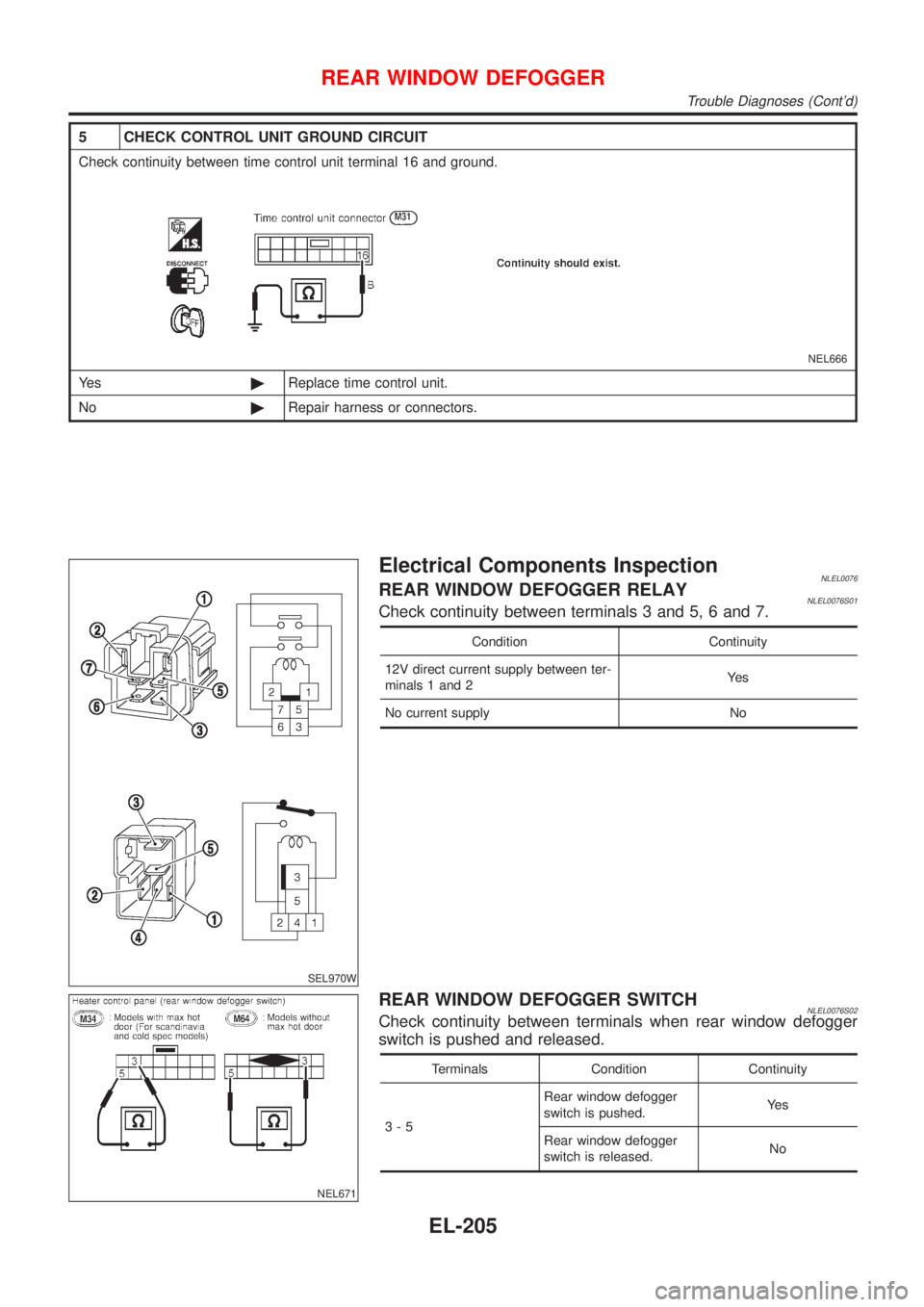

5 CHECK CONTROL UNIT GROUND CIRCUIT
Check continuity between time control unit terminal 16 and ground.
NEL666
Ye s©Replace time control unit.
No©Repair harness or connectors.
SEL970W
Electrical Components InspectionNLEL0076REAR WINDOW DEFOGGER RELAYNLEL0076S01Check continuity between terminals 3 and 5, 6 and 7.
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
No current supply No
NEL671
REAR WINDOW DEFOGGER SWITCHNLEL0076S02Check continuity between terminals when rear window defogger
switch is pushed and released.
Terminals Condition Continuity
3-5Rear window defogger
switch is pushed.Ye s
Rear window defogger
switch is released.No
REAR WINDOW DEFOGGER
Trouble Diagnoses (Cont'd)
