Page 449 of 3051

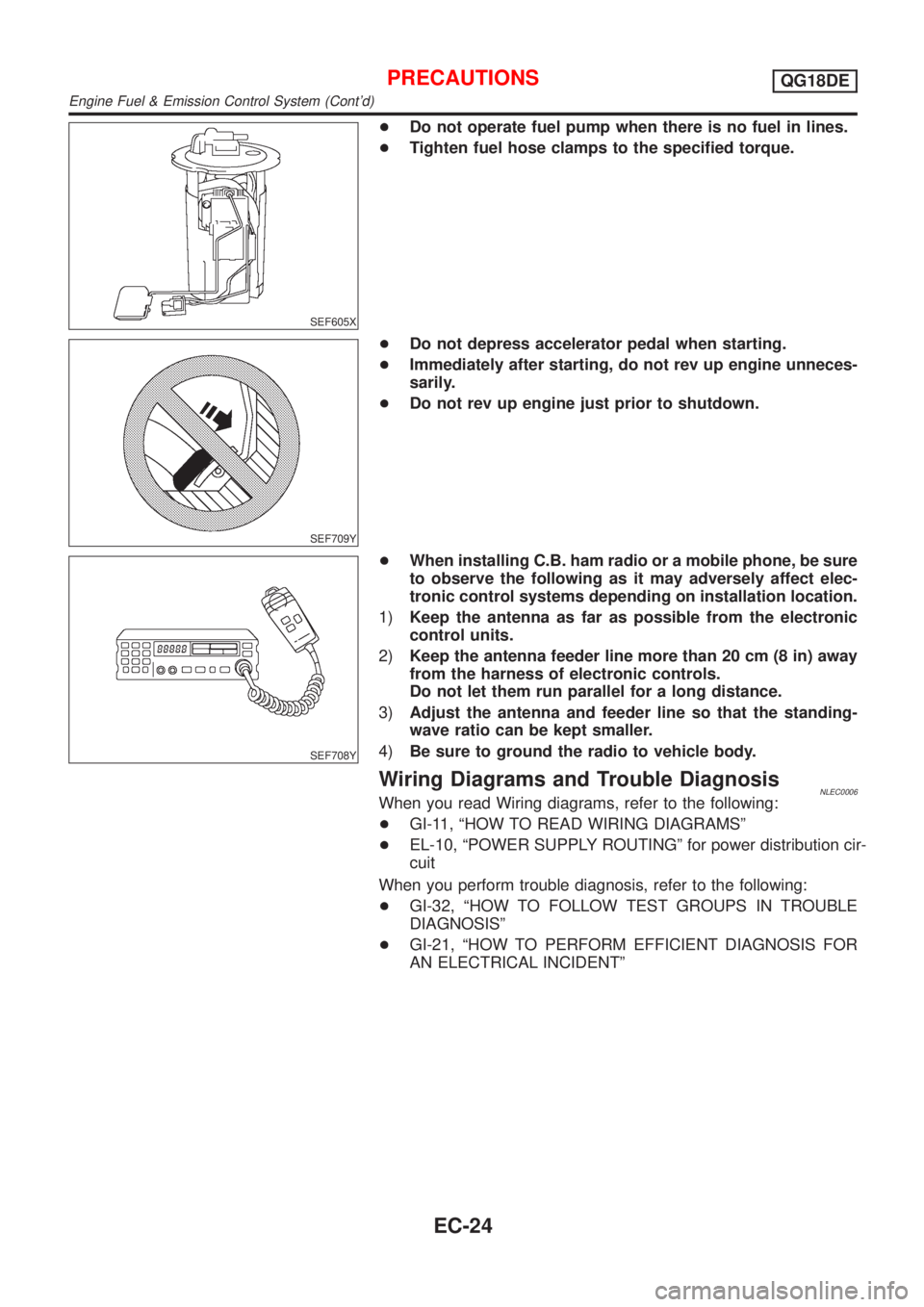

NISSAN ALMERA TINO 2001 Service Repair Manual SEF605X SEF709Y SEF708Y Engine Fuel & Emission Control System (Contd)

Page 450 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Special Service ToolsNLEC0007 Tool number Tool nameDescription KV10117100 Heated oxygen sensor wrench NT379 Loosening or tightening heated oxygen sensor 1 (front) with 22 mm hexagon nut KV10114400 Hea

Page 451 of 3051

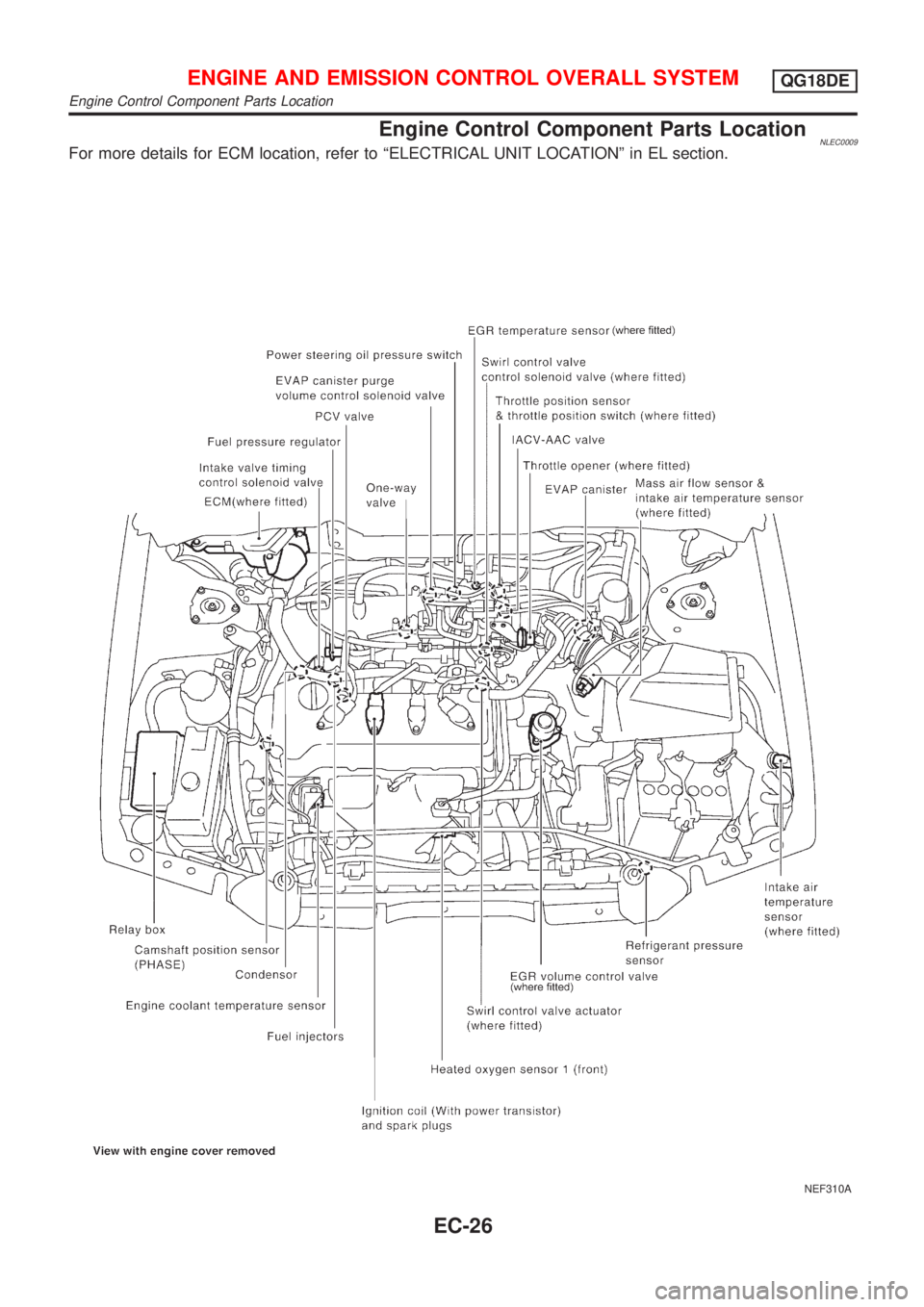

NISSAN ALMERA TINO 2001 Service Repair Manual Engine Control Component Parts LocationNLEC0009For more details for ECM location, refer to ªELECTRICAL UNIT LOCATIONº in EL section. NEF310A ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG18DE Engine C

Page 452 of 3051

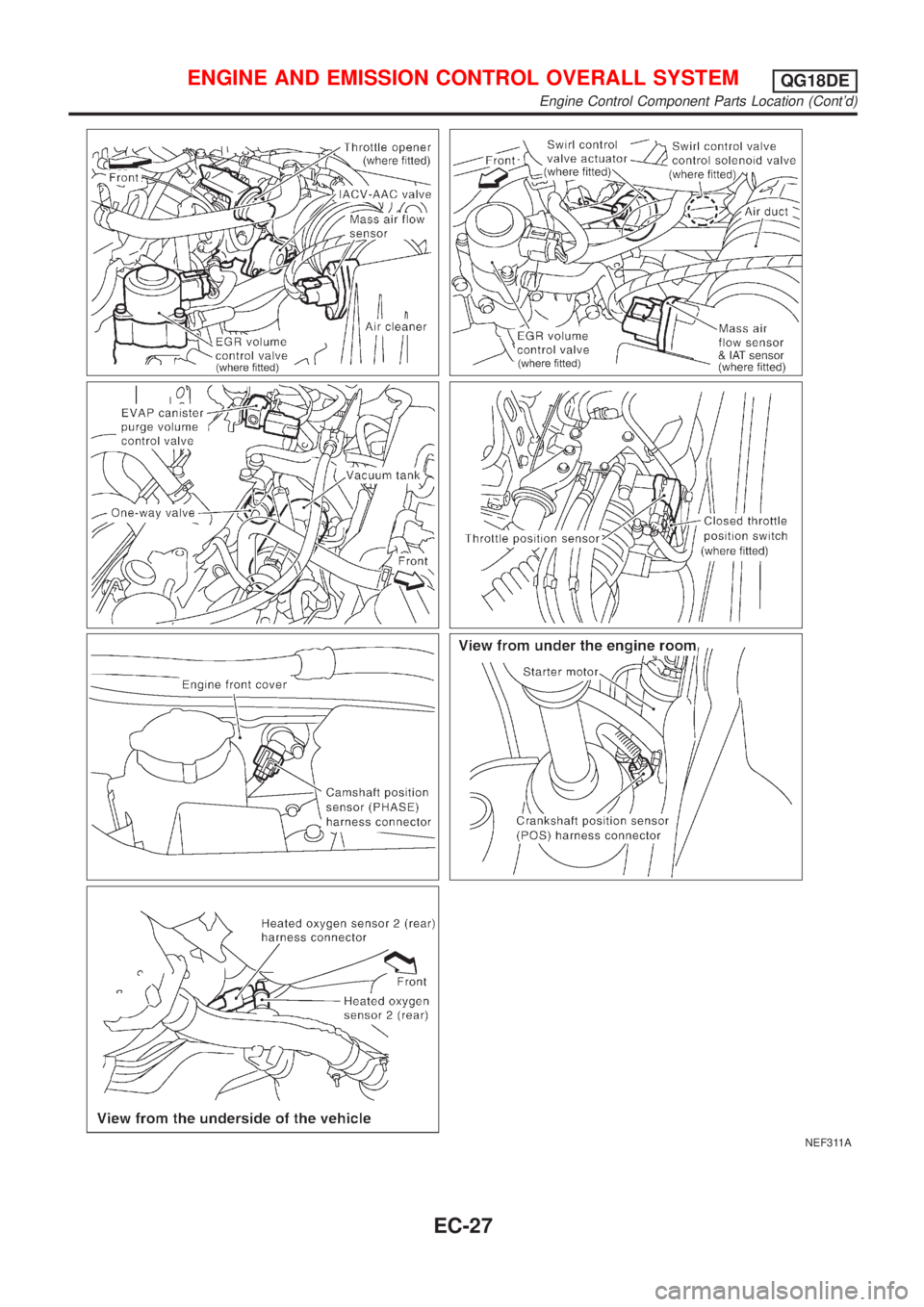

NISSAN ALMERA TINO 2001 Service Repair Manual NEF311A ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG18DE Engine Control Component Parts Location (Contd) EC-27

Page 453 of 3051

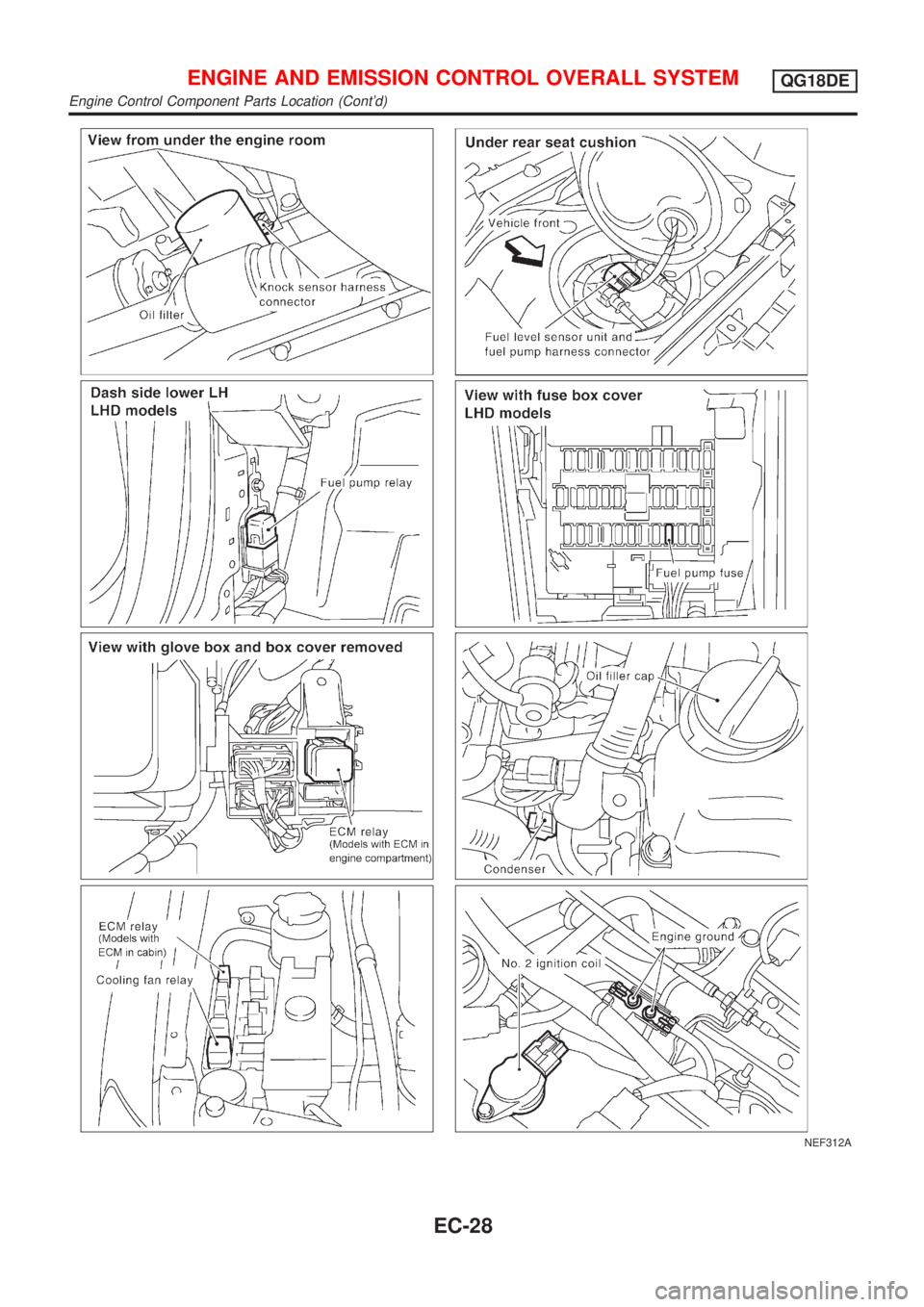

NISSAN ALMERA TINO 2001 Service Repair Manual NEF312A ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG18DE Engine Control Component Parts Location (Contd) EC-28

Page 454 of 3051

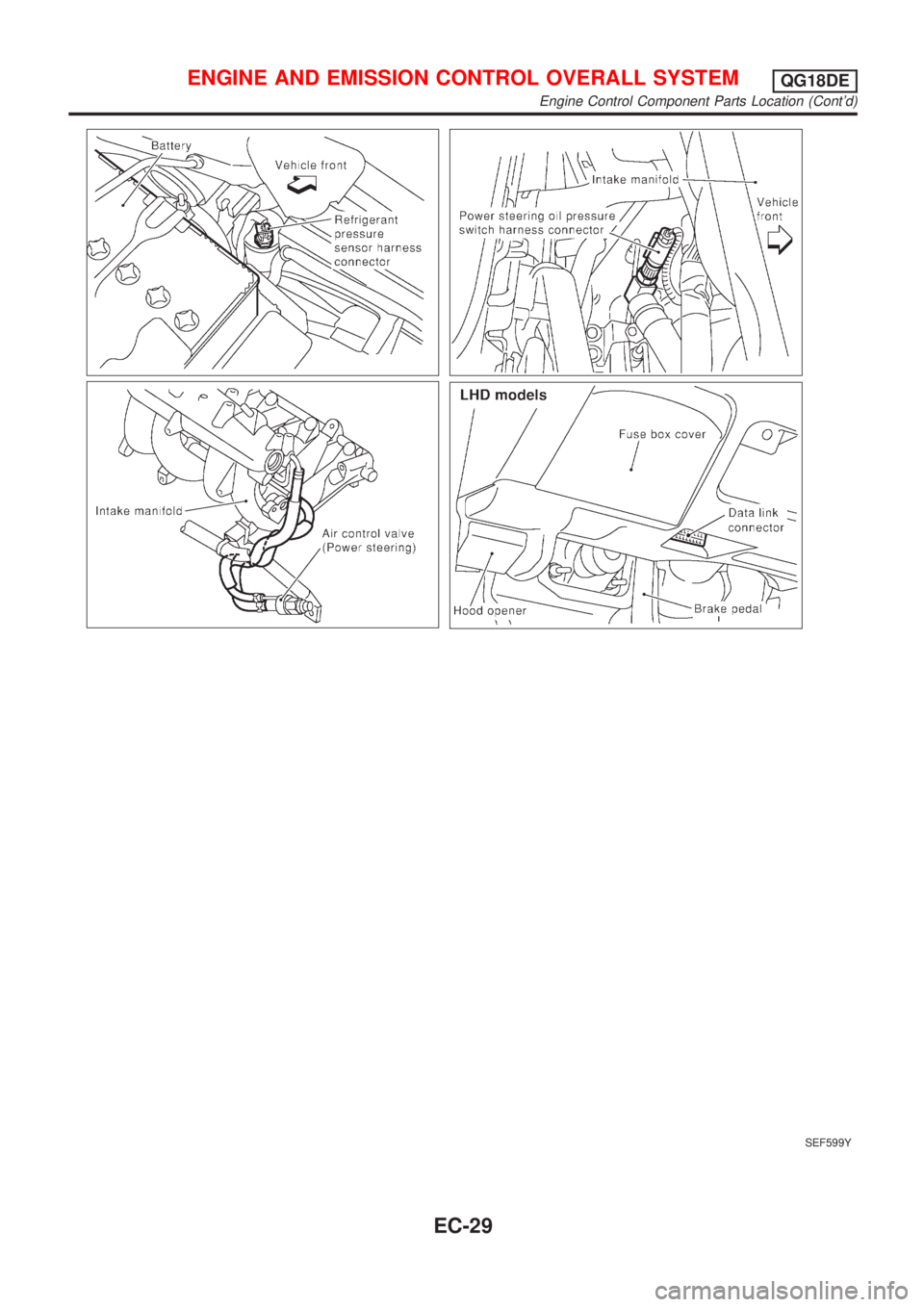

NISSAN ALMERA TINO 2001 Service Repair Manual SEF599Y ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG18DE Engine Control Component Parts Location (Contd) EC-29

Page 455 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Circuit DiagramNLEC0010MODELS WITH THROTTLE POSITION SWITCH AND SWIRL CONTROL VALVENLEC0010S01 YEC649 ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG18DE Circuit Diagram EC-30

Page 456 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITHOUT THROTTLE POSITION SWITCH AND SWIRL CONTROL VALVENLEC0010S02 YEC871 ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG18DE Circuit Diagram (Contd) EC-31
