Page 2457 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual ComponentsNLEM0062 SEM504G CYLINDER HEADYD Components EM-200

Page 2458 of 3051

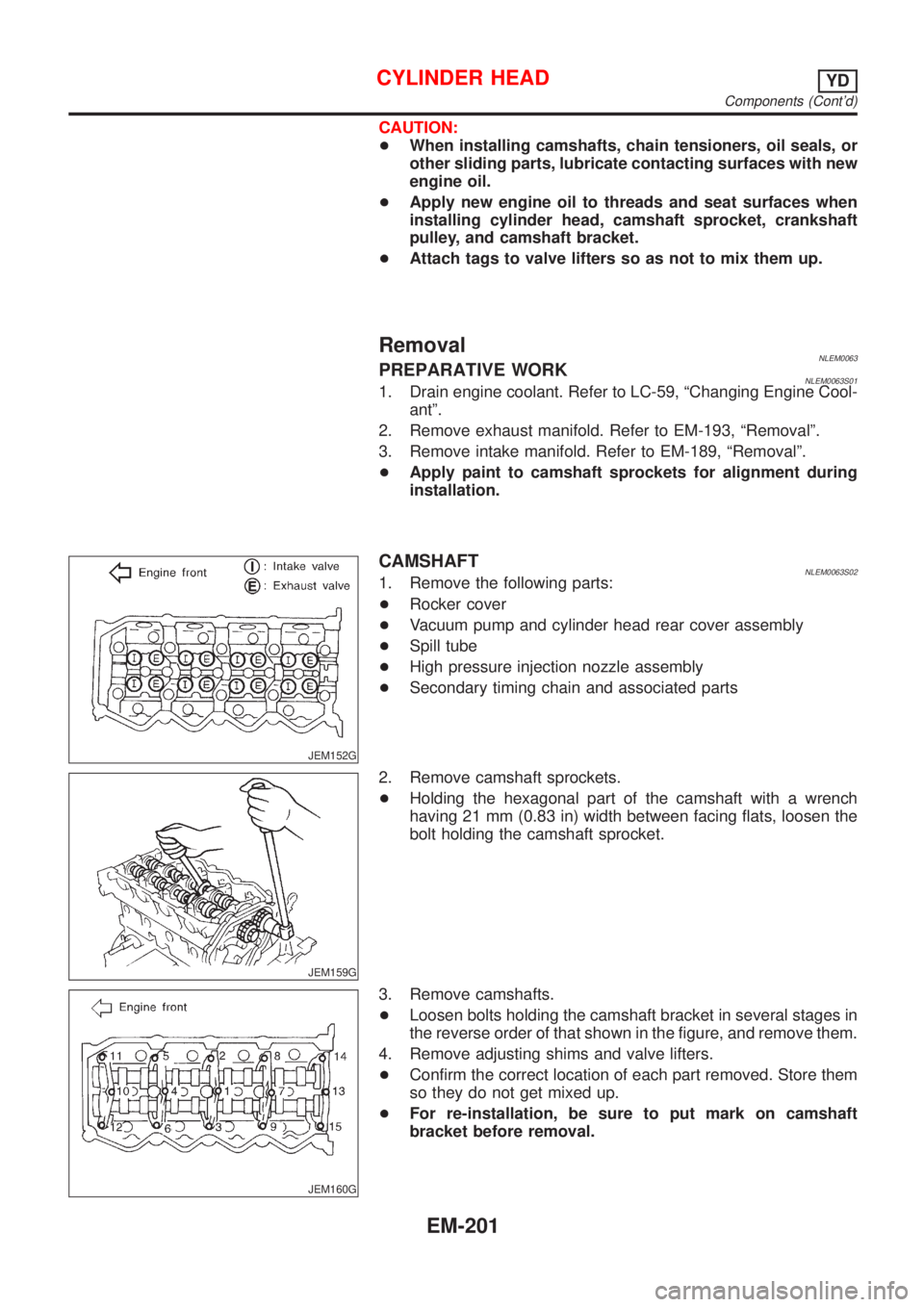

NISSAN ALMERA TINO 2001 Service Repair Manual CAUTION: +When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil. +Apply new engine oil to threads and seat surfaces when ins

Page 2459 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual JEM149G CYLINDER HEADNLEM0063S03+Loosen bolts in the reverse order of that shown in the figure and remove them. +Be careful not to damage the tips of glow plugs project- ing out of the bottom surface

Page 2460 of 3051

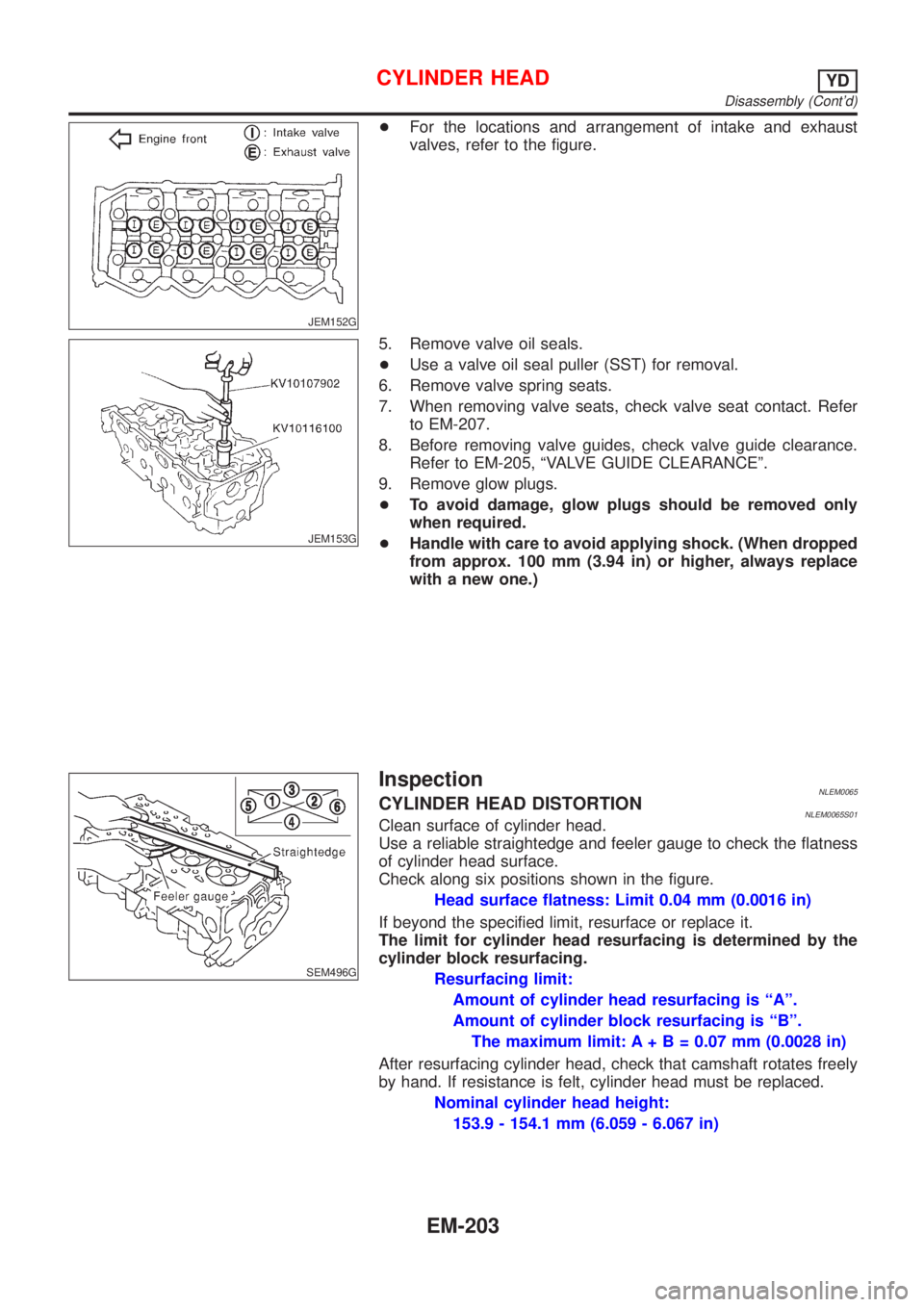

NISSAN ALMERA TINO 2001 Service Repair Manual JEM152G +For the locations and arrangement of intake and exhaust valves, refer to the figure. JEM153G 5. Remove valve oil seals. +Use a valve oil seal puller (SST) for removal. 6. Remove valve spring

Page 2461 of 3051

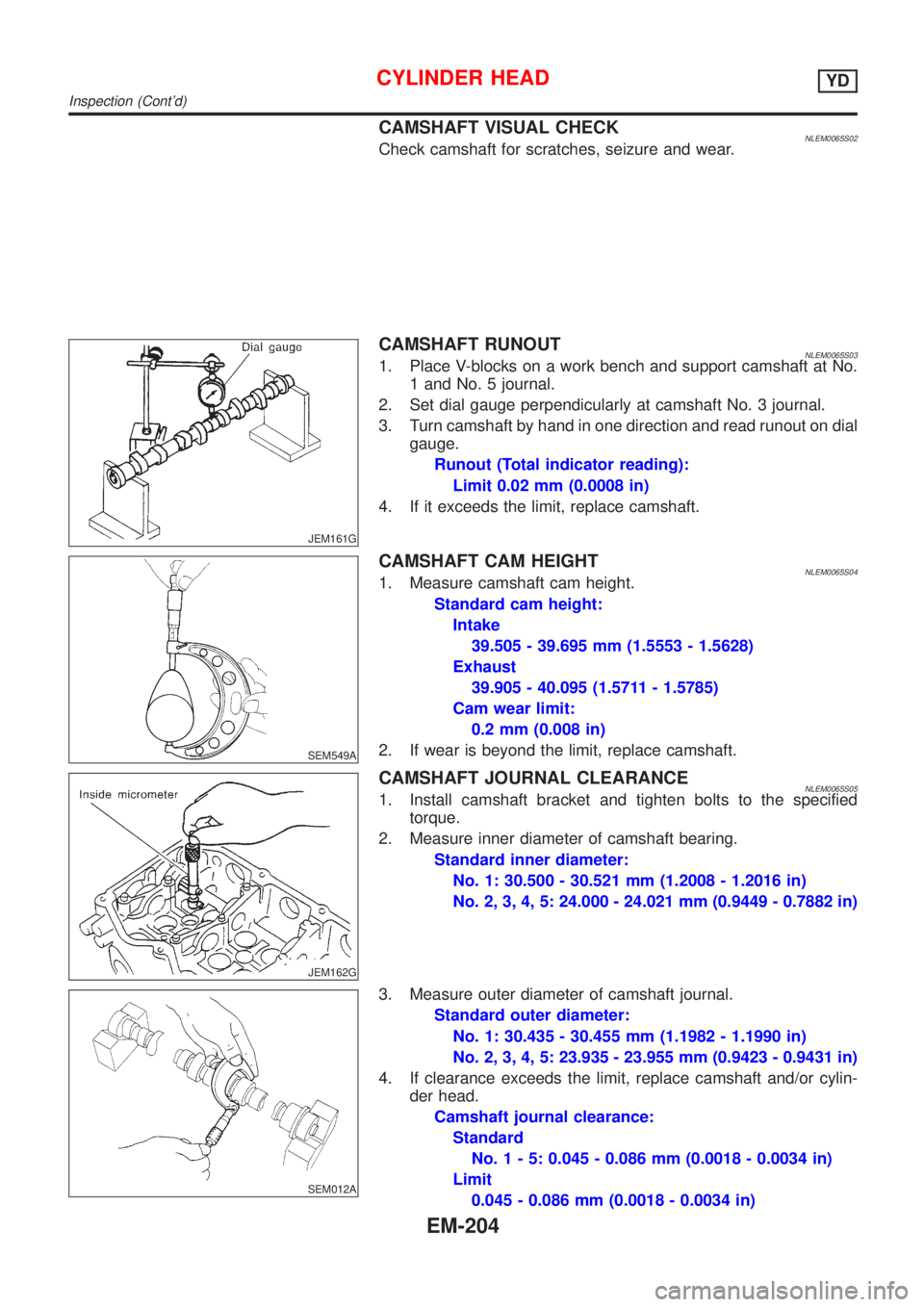

NISSAN ALMERA TINO 2001 Service Repair Manual CAMSHAFT VISUAL CHECKNLEM0065S02Check camshaft for scratches, seizure and wear. JEM161G CAMSHAFT RUNOUTNLEM0065S031. Place V-blocks on a work bench and support camshaft at No. 1 and No. 5 journal. 2.

Page 2462 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual JEM163G CAMSHAFT END PLAYNLEM0065S061. Install camshaft in cylinder head. 2. Measure camshaft end play. Camshaft end play: Standard 0.070 - 0.148 mm (0.0028 - 0.0058 in) Limit 0.24 mm (0.0094 in) +If

Page 2463 of 3051

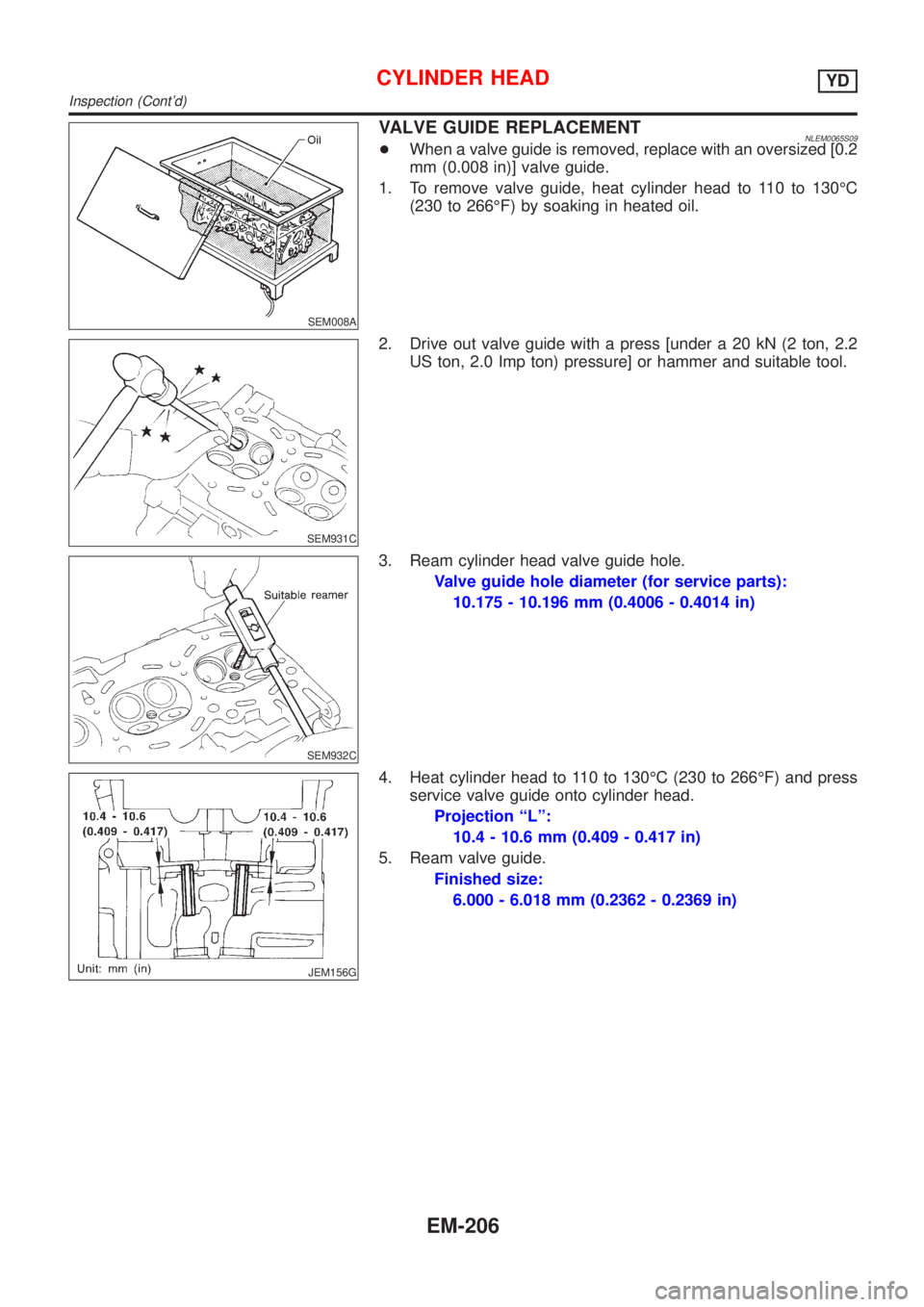

NISSAN ALMERA TINO 2001 Service Repair Manual SEM008A VALVE GUIDE REPLACEMENTNLEM0065S09+When a valve guide is removed, replace with an oversized [0.2 mm (0.008 in)] valve guide. 1. To remove valve guide, heat cylinder head to 110 to 130ÉC (230

Page 2464 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM934C JEM157G VALVE SEATSNLEM0065S10+Before starting this check, confirm that the dimensions of valve guides and valves are as specified. +Apply red lead primer on contacting surfaces of valve seat
