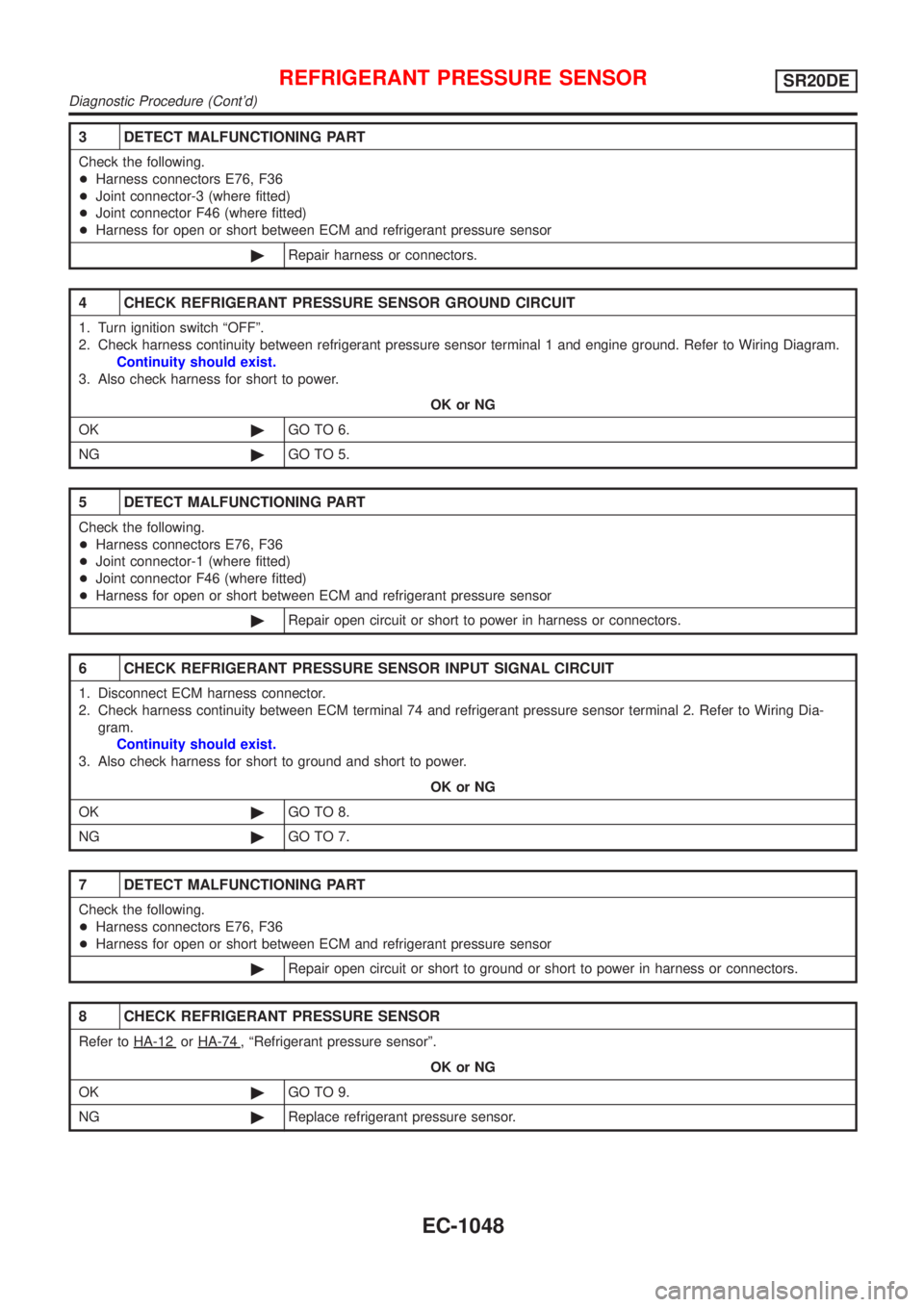

Page 1473 of 3051
3 DETEC TMALFUNCTIONIN GPART
4 CHEC KREFRIGERAN TPRESSUR ESENSO RGROUN DCIRCUIT
5 DETEC TMALFUNCTIONIN GPART
6 CHEC KREFRIGERAN TPRESSUR ESENSO RINPU TSIGNA LCIRCUIT
7 DETEC TMALFUNCTIONIN GPART
8 CHEC KREFRIGERAN TPRESSUR ESENSOR
or HA-74,ªRefrigeran tpressur esensorº.
Diagnostic Procedure (Cont'd)
Page 1474 of 3051

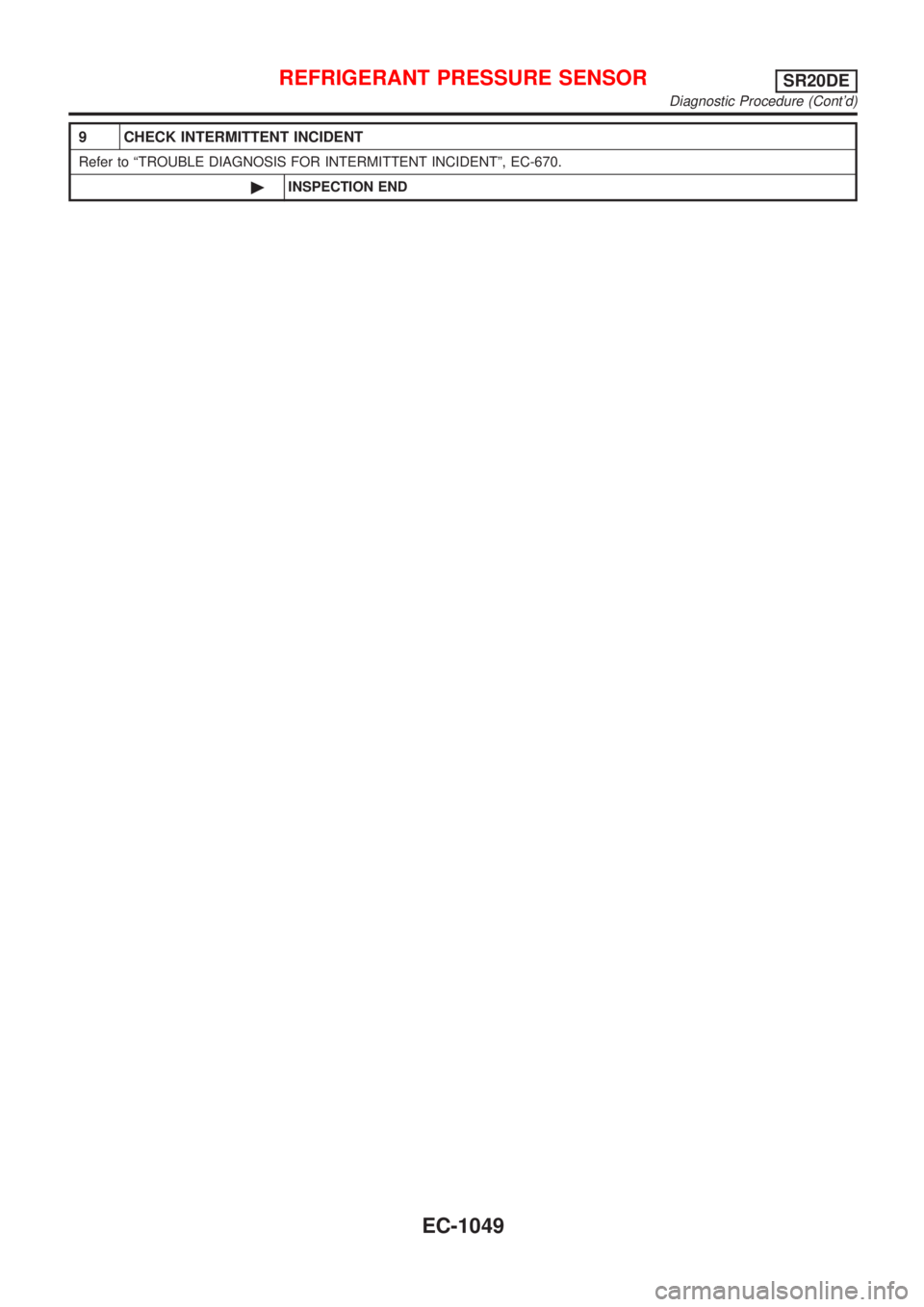

9 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-670.
©INSPECTION END
REFRIGERANT PRESSURE SENSORSR20DE
Diagnostic Procedure (Cont'd)
EC-1049
Page 1475 of 3051

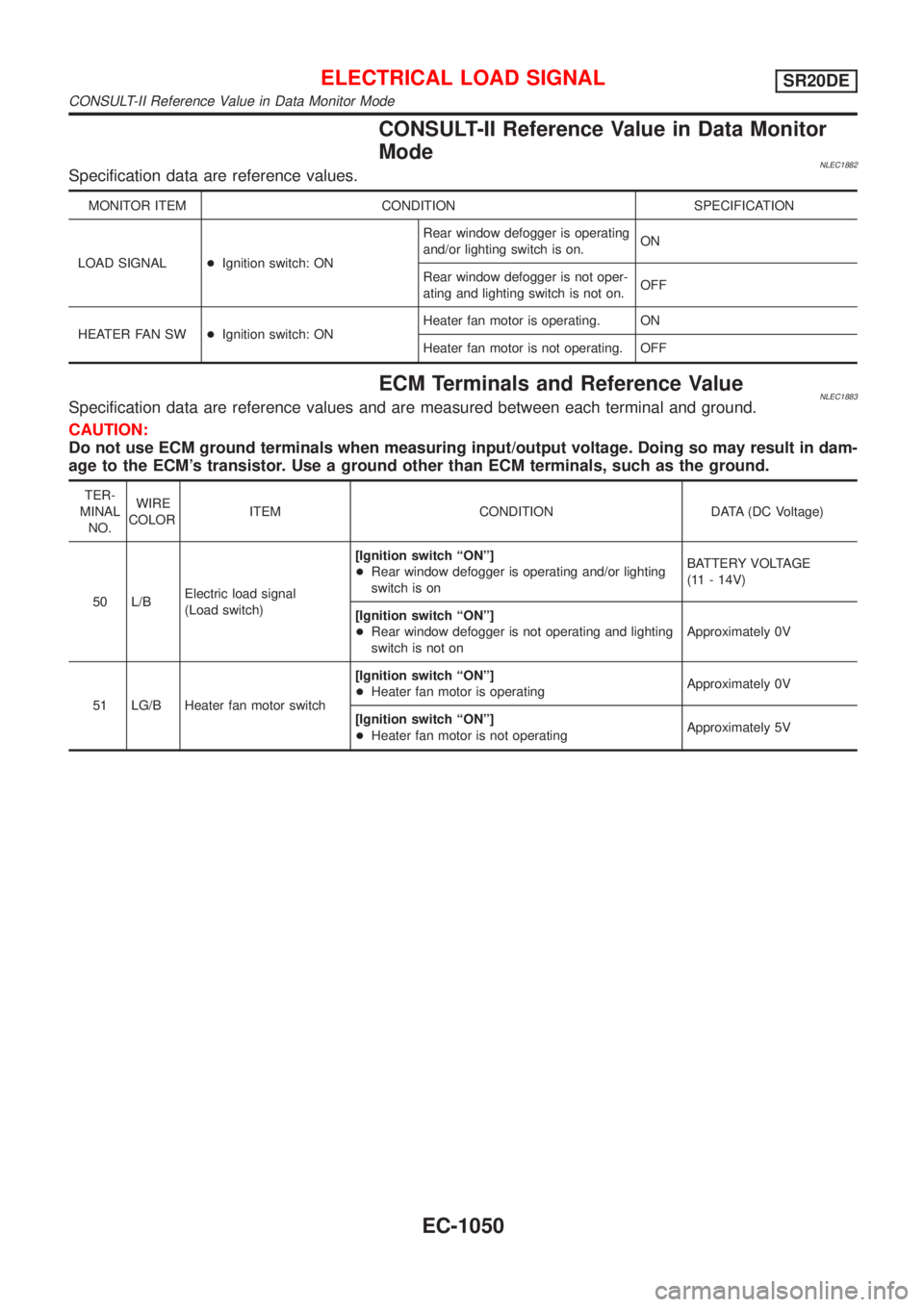

CONSULT-II Reference Value in Data Monitor
Mode
NLEC1882Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL+Ignition switch: ONRear window defogger is operating
and/or lighting switch is on.ON
Rear window defogger is not oper-
ating and lighting switch is not on.OFF
HEATER FAN SW+Ignition switch: ONHeater fan motor is operating. ON
Heater fan motor is not operating. OFF
ECM Terminals and Reference ValueNLEC1883Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
50 L/BElectric load signal
(Load switch)[Ignition switch ªONº]
+Rear window defogger is operating and/or lighting
switch is onBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ªONº]
+Rear window defogger is not operating and lighting
switch is not onApproximately 0V
51 LG/B Heater fan motor switch[Ignition switch ªONº]
+Heater fan motor is operatingApproximately 0V
[Ignition switch ªONº]
+Heater fan motor is not operatingApproximately 5V
ELECTRICAL LOAD SIGNALSR20DE
CONSULT-II Reference Value in Data Monitor Mode
EC-1050
Page 1476 of 3051

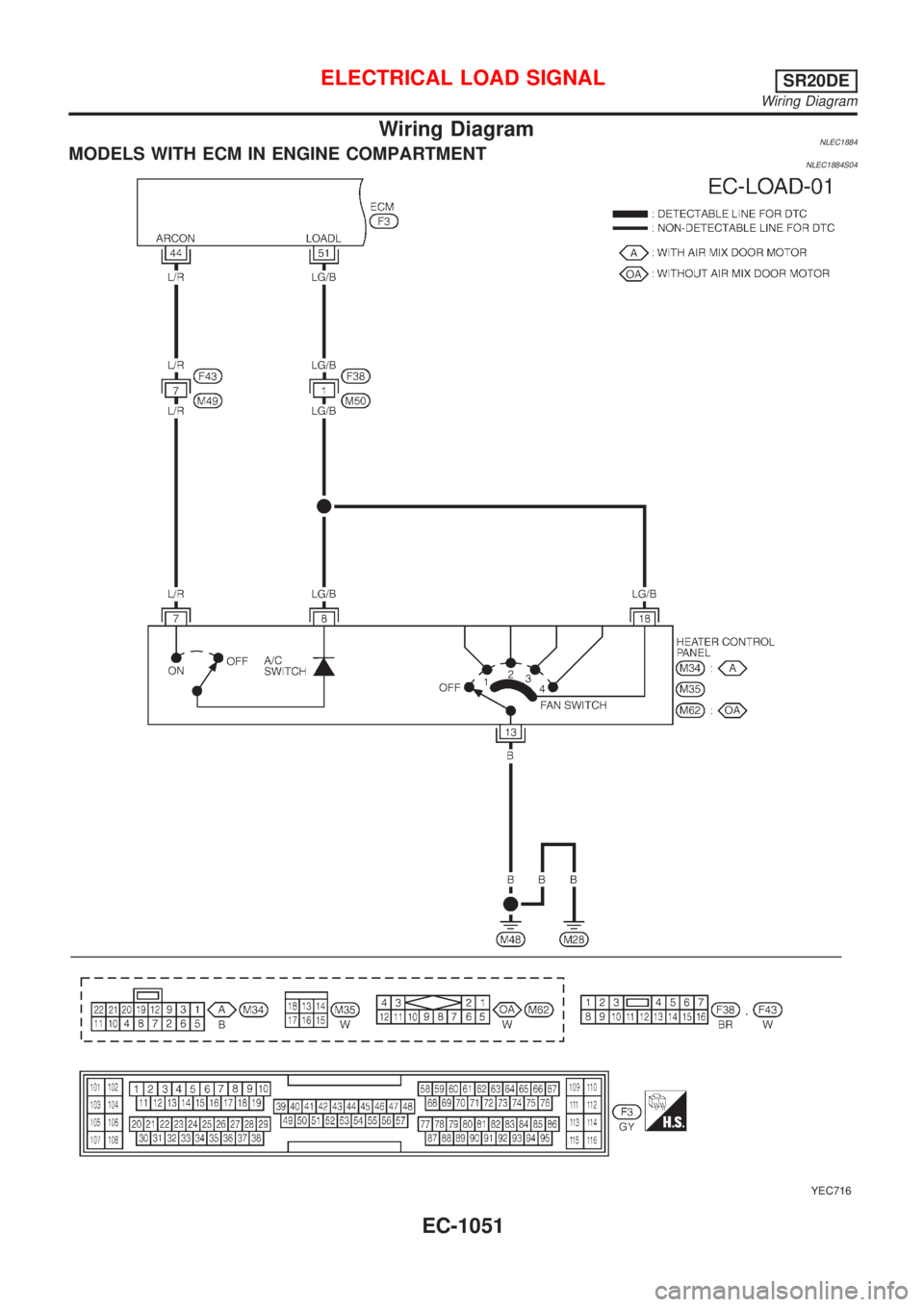

Wiring DiagramNLEC1884MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1884S04
YEC716
ELECTRICAL LOAD SIGNALSR20DE
Wiring Diagram
EC-1051

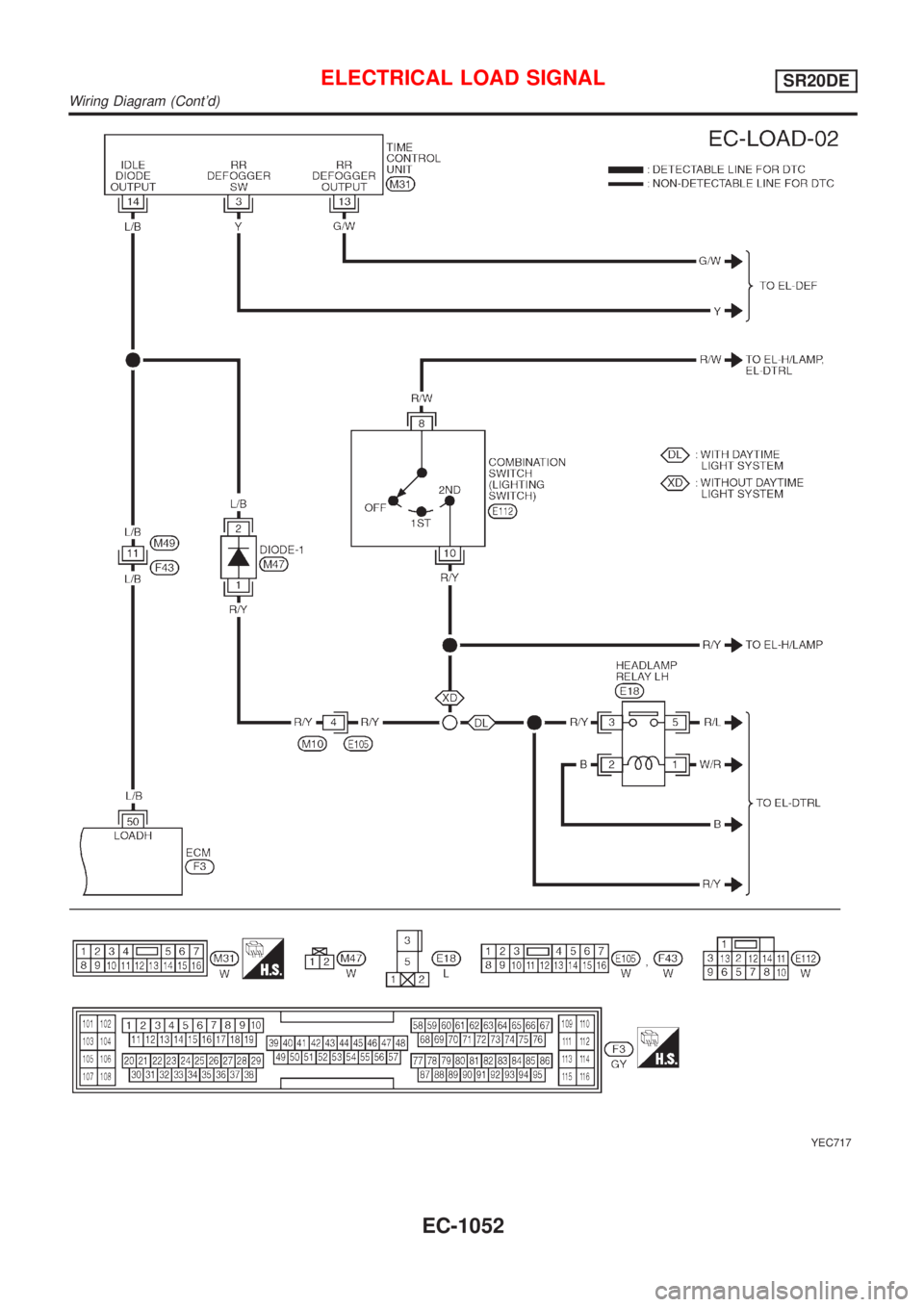

Page 1477 of 3051
YEC717
ELECTRICAL LOAD SIGNALSR20DE
Wiring Diagram (Cont'd)
EC-1052
Page 1478 of 3051

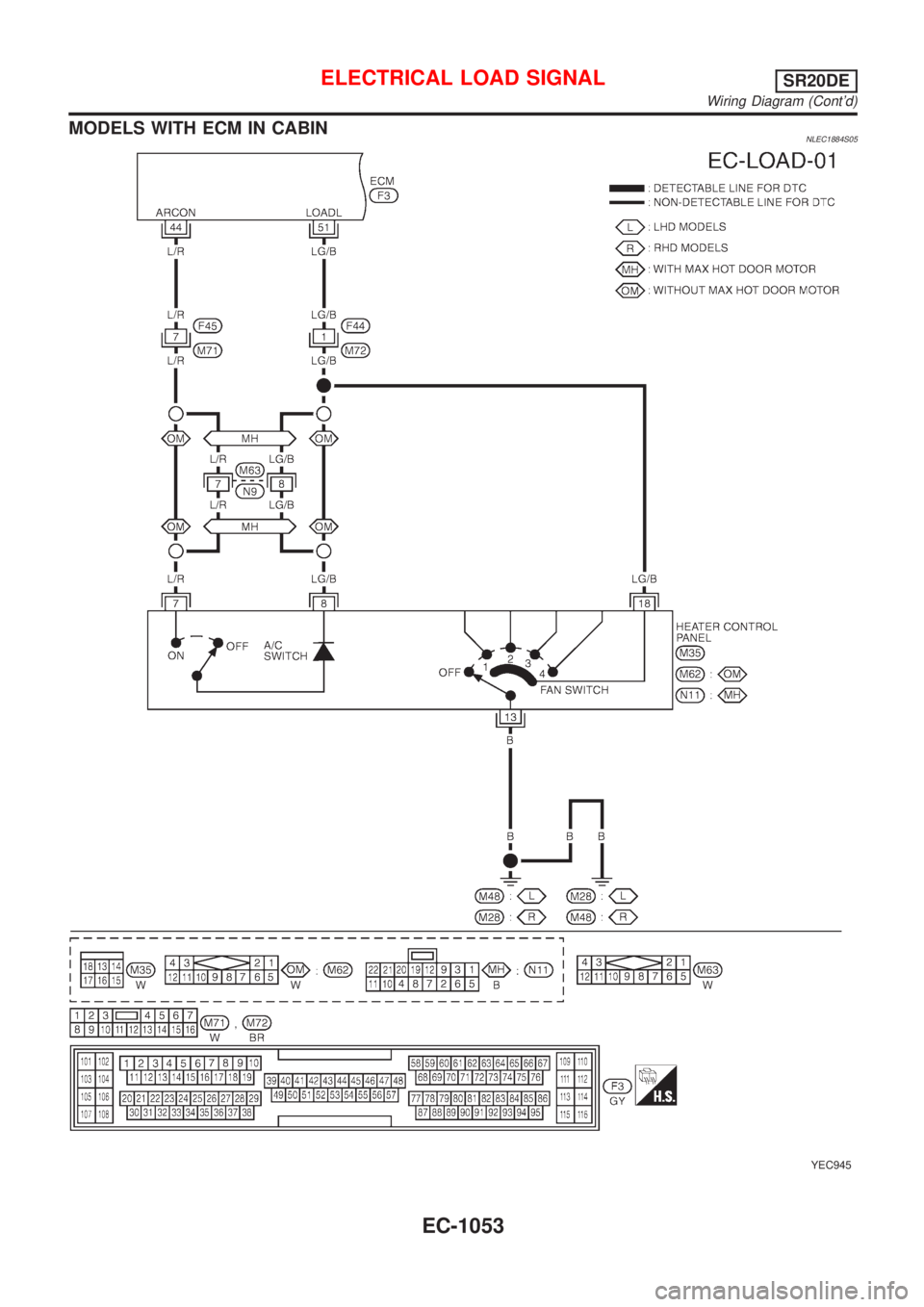

MODELS WITH ECM IN CABINNLEC1884S05
YEC945
ELECTRICAL LOAD SIGNALSR20DE
Wiring Diagram (Cont'd)
EC-1053

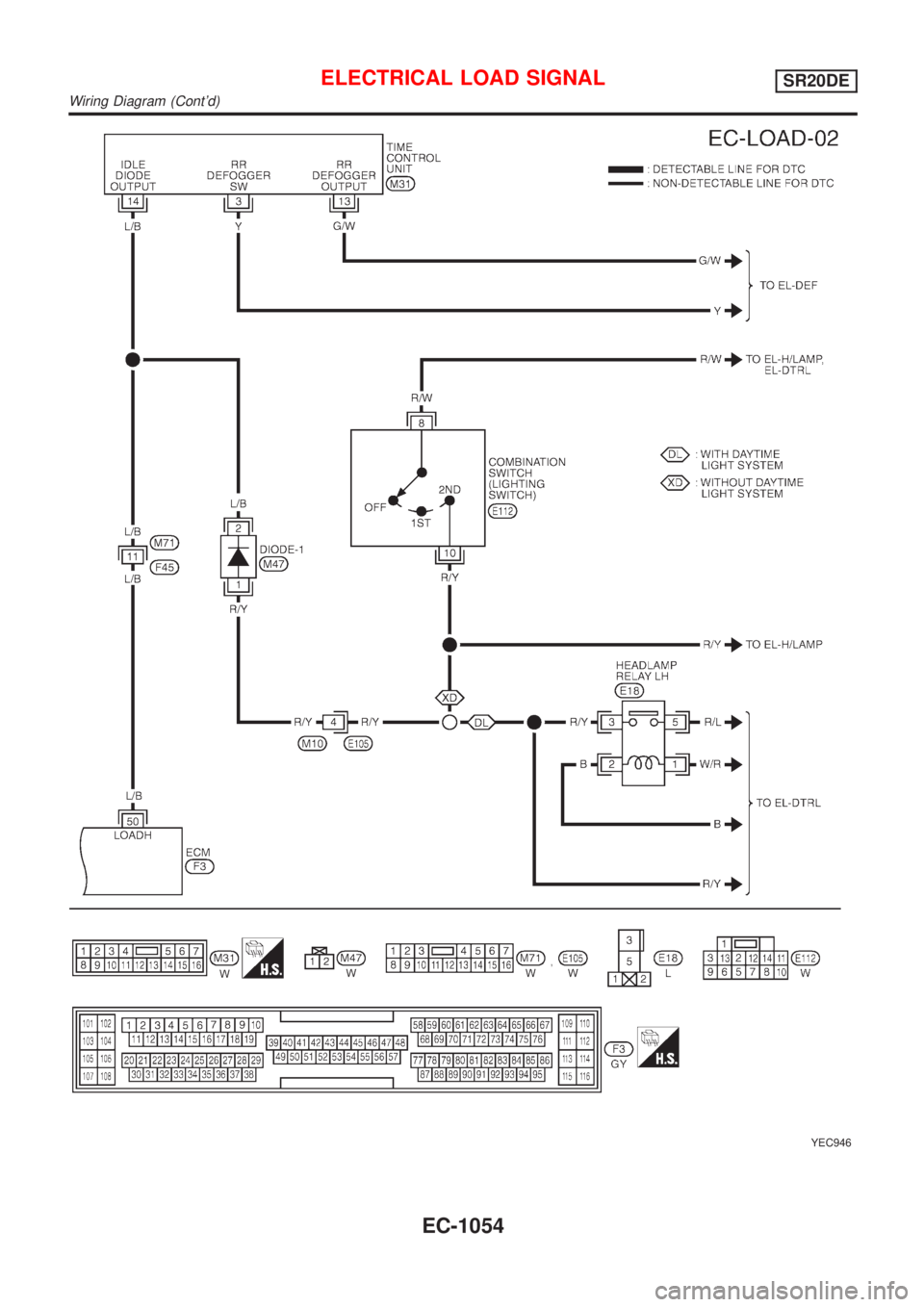

Page 1479 of 3051
YEC946
ELECTRICAL LOAD SIGNALSR20DE
Wiring Diagram (Cont'd)
EC-1054
Page 1480 of 3051

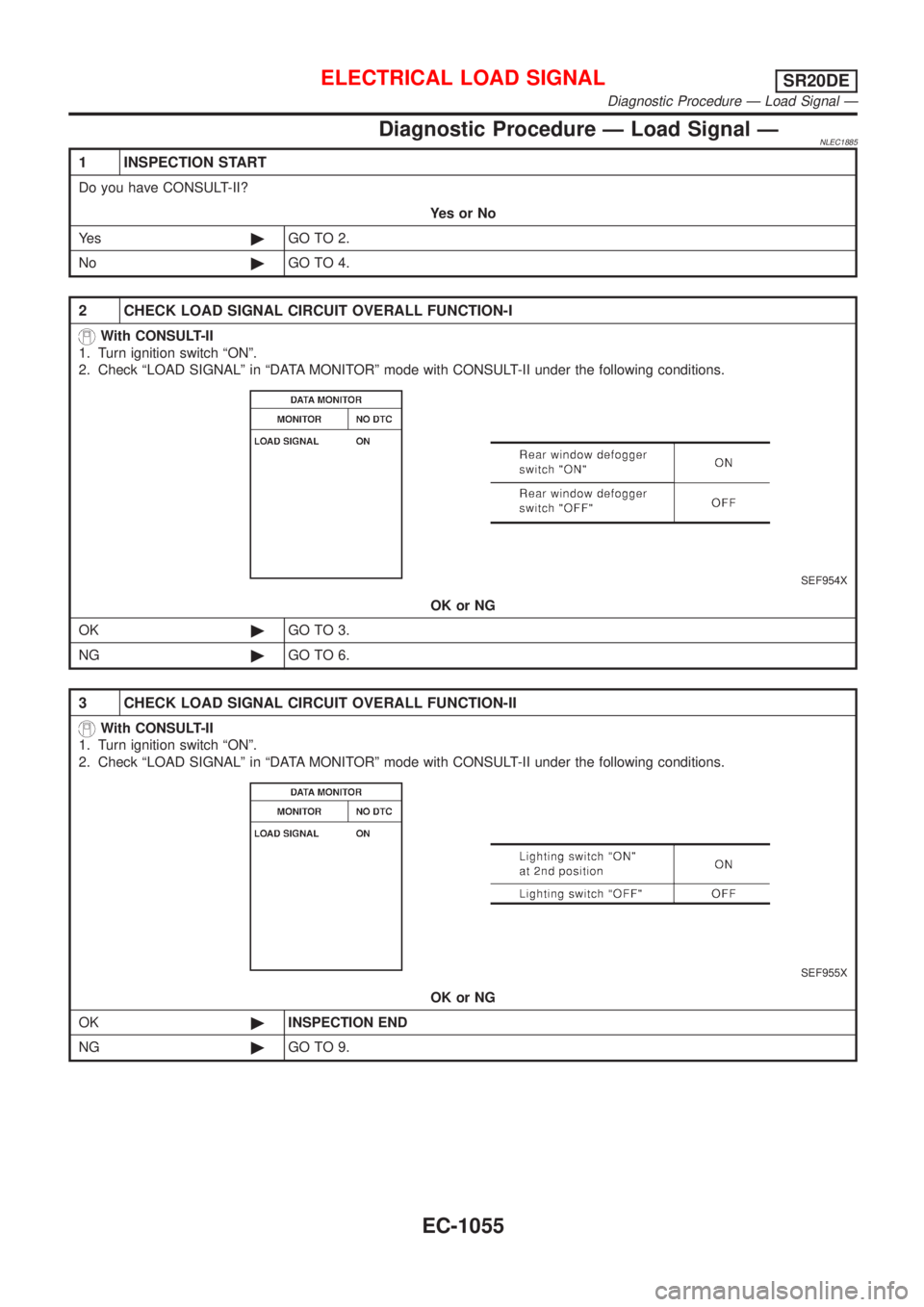

Diagnostic Procedure Ð Load Signal ÐNLEC1885
1 INSPECTION START
Do you have CONSULT-II?
YesorNo
Ye s©GO TO 2.
No©GO TO 4.
2 CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ªONº.
2. Check ªLOAD SIGNALº in ªDATA MONITORº mode with CONSULT-II under the following conditions.
SEF954X
OK or NG
OK©GO TO 3.
NG©GO TO 6.
3 CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
With CONSULT-II
1. Turn ignition switch ªONº.
2. Check ªLOAD SIGNALº in ªDATA MONITORº mode with CONSULT-II under the following conditions.
SEF955X
OK or NG
OK©INSPECTION END
NG©GO TO 9.
ELECTRICAL LOAD SIGNALSR20DE
Diagnostic Procedure Ð Load Signal Ð
EC-1055
