NISSAN ALMERA TINO 2001  Service Repair Manual RHD MODELS (MODELS WITH ECM IN CABIN)NLEL0347S05
YEL513C
HARNESS LAYOUT
Main Harness (Contd)
EL-462

Page 2194 of 3051

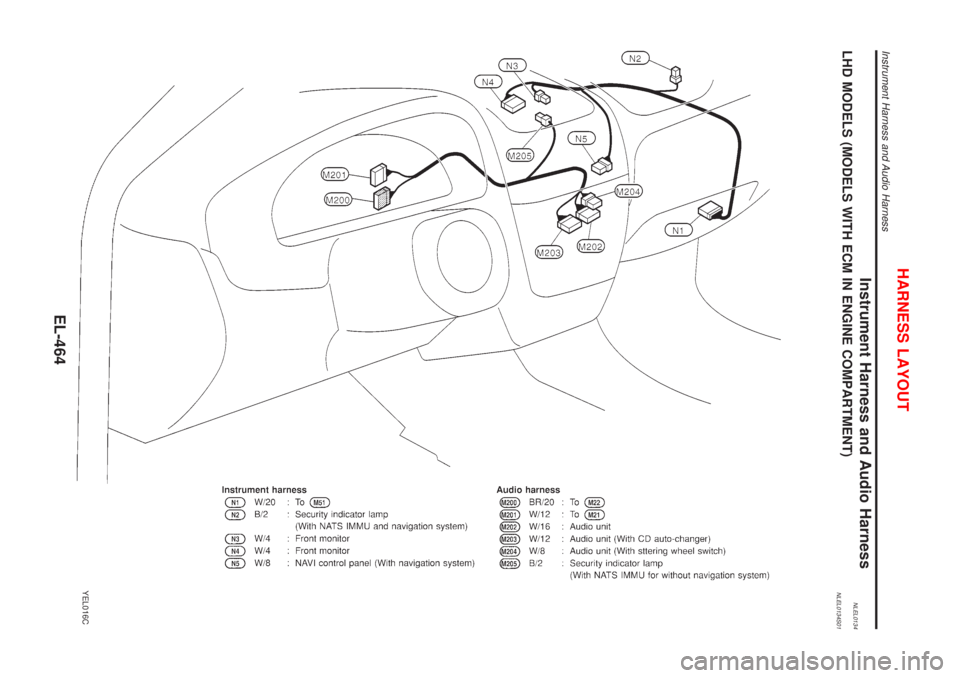

NISSAN ALMERA TINO 2001  Service Repair Manual YEL514C
HARNESS LAYOUT
Main Harness (Contd)
EL-463

Page 2195 of 3051

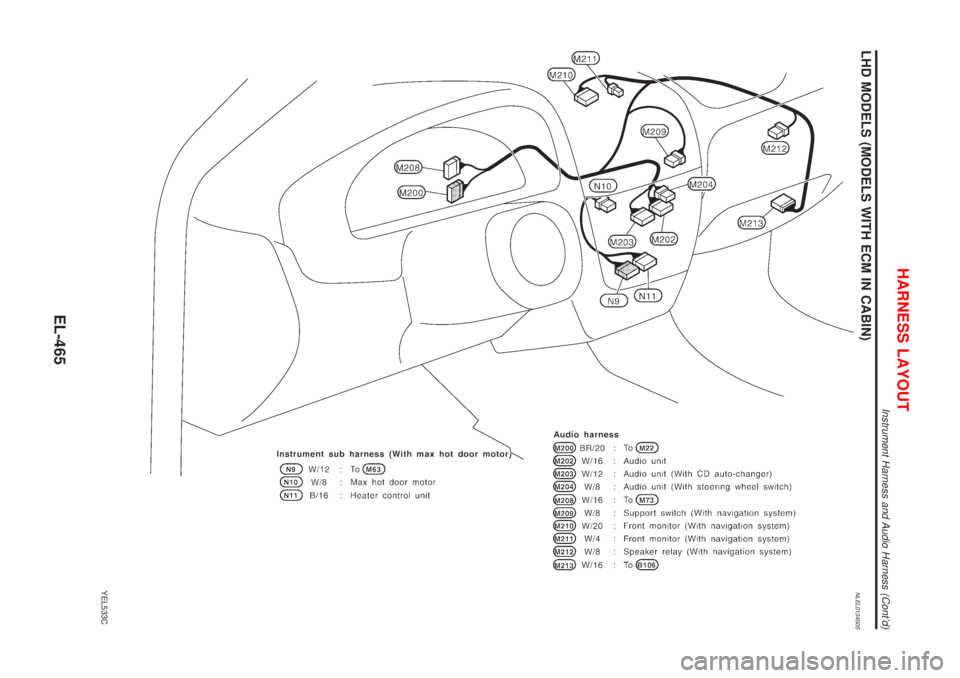

NISSAN ALMERA TINO 2001  Service Repair Manual Instrument Harness and Audio HarnessNLEL0134LHD MODELS (MODELS WITH ECM IN ENGINE COMPARTMENT)NLEL0134S01
YEL016C
HARNESS LAYOUT
Instrument Harness and Audio Harness
EL-464

Page 2196 of 3051

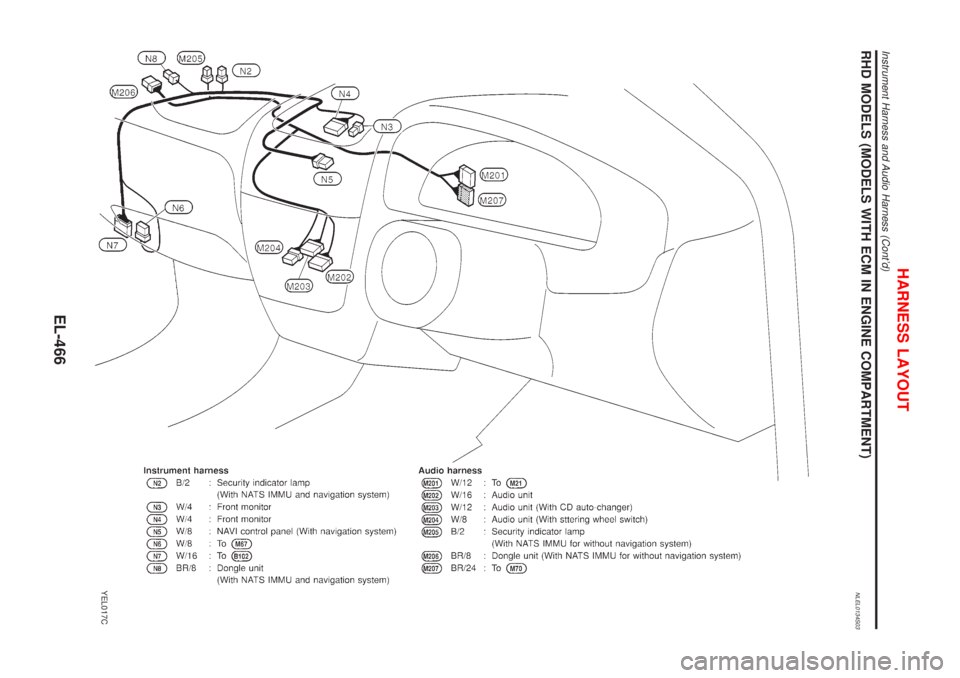

NISSAN ALMERA TINO 2001  Service Repair Manual LHD MODELS (MODELS WITH ECM IN CABIN)NLEL0134S05
YEL533C
HARNESS LAYOUT
Instrument Harness and Audio Harness (Contd)
EL-465

Page 2197 of 3051

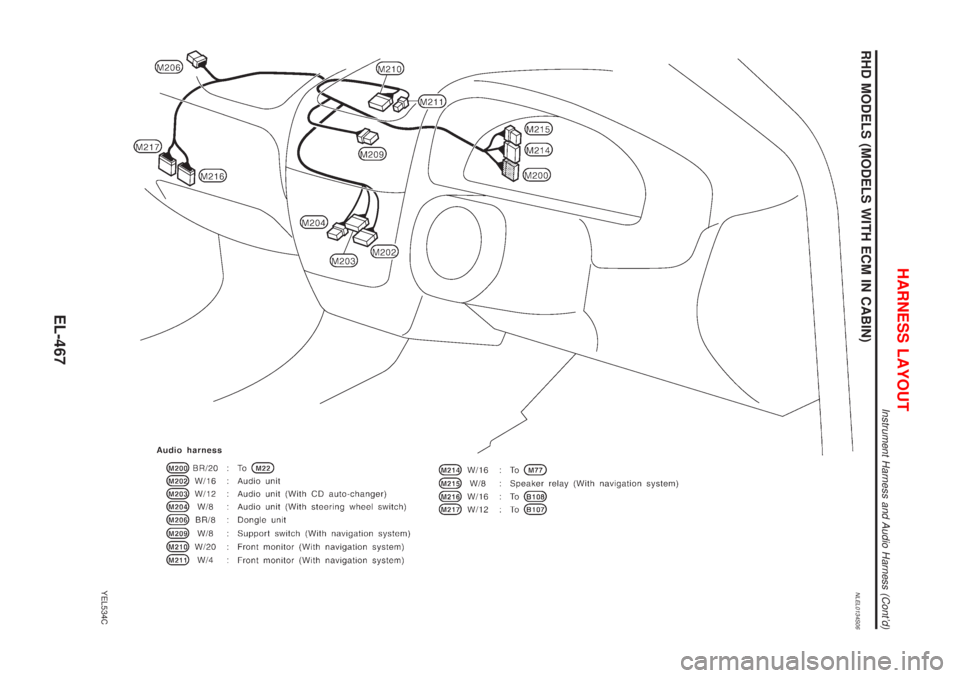

NISSAN ALMERA TINO 2001  Service Repair Manual RHD MODELS (MODELS WITH ECM IN ENGINE COMPARTMENT)NLEL0134S03
YEL017C
HARNESS LAYOUT
Instrument Harness and Audio Harness (Contd)
EL-466

Page 2198 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual RHD MODELS (MODELS WITH ECM IN CABIN)NLEL0134S06
YEL534C
HARNESS LAYOUT
Instrument Harness and Audio Harness (Contd)
EL-467

Page 2199 of 3051

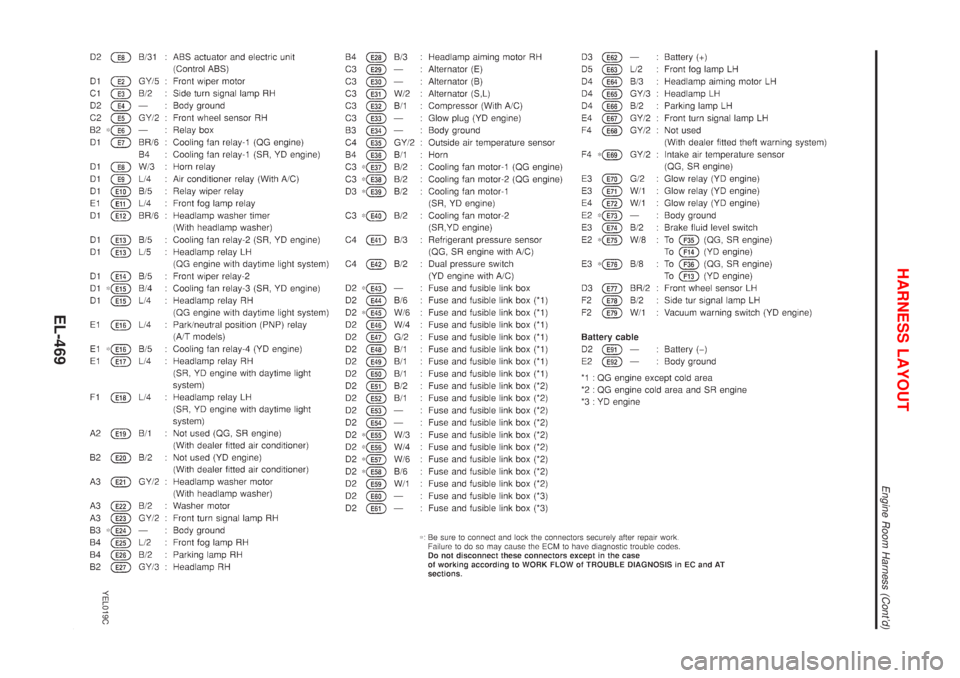

NISSAN ALMERA TINO 2001  Service Repair Manual Engine Room HarnessNLEL0342ENGINE COMPARTMENT Ð LHD MODELS (MODELS WITH ECM IN ENGINE
COMPARTMENT)
NLEL0342S01
YEL018C
HARNESS LAYOUT
Engine Room Harness
EL-468

Page 2200 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual YEL019C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-469
