Page 1393 of 3051

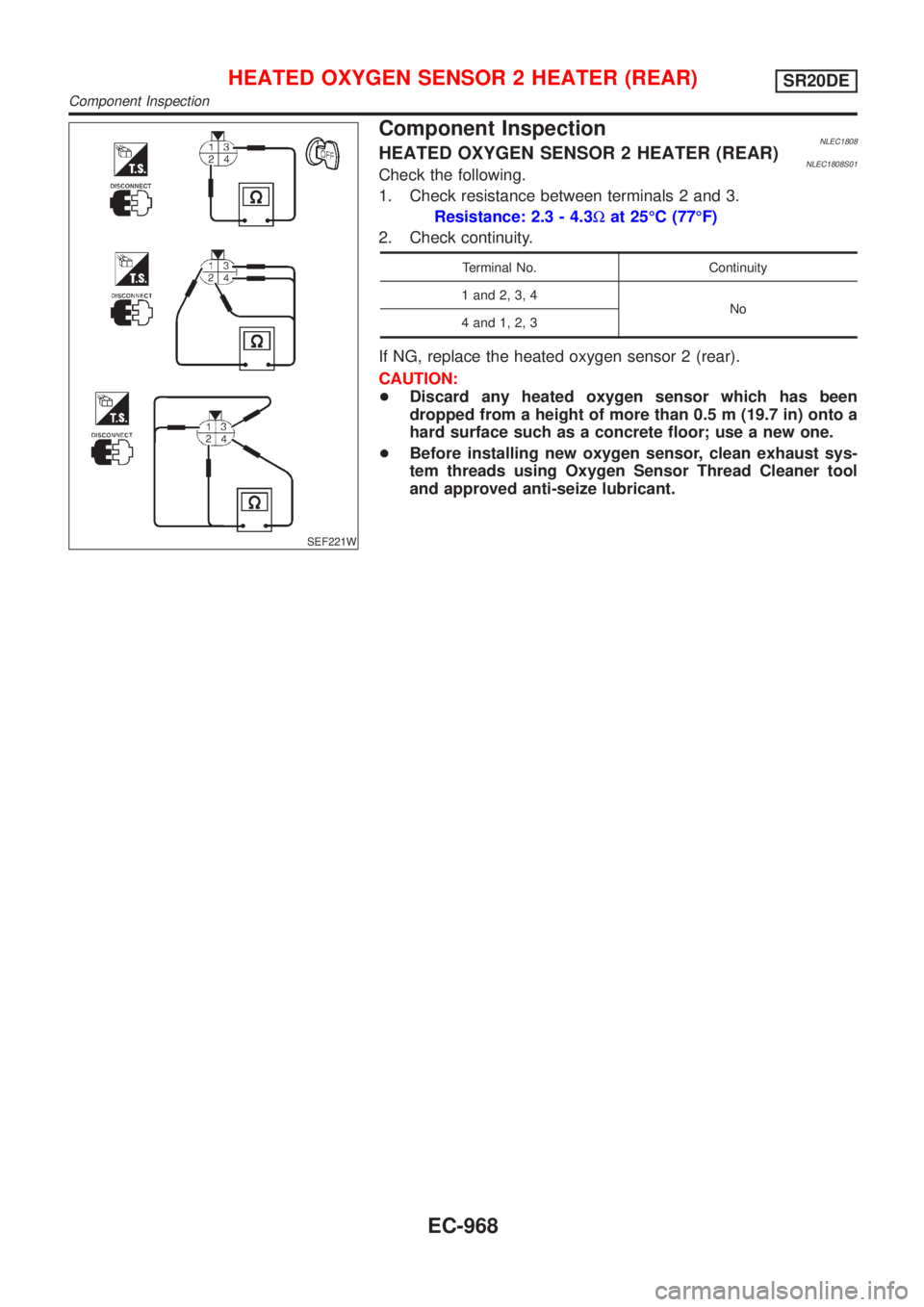

NISSAN ALMERA TINO 2001 Service Repair Manual SEF221W Component InspectionNLEC1808HEATED OXYGEN SENSOR 2 HEATER (REAR)NLEC1808S01Check the following. 1. Check resistance between terminals 2 and 3. Resistance: 2.3 - 4.3Wat 25ÉC (77ÉF) 2. Check c

Page 1394 of 3051

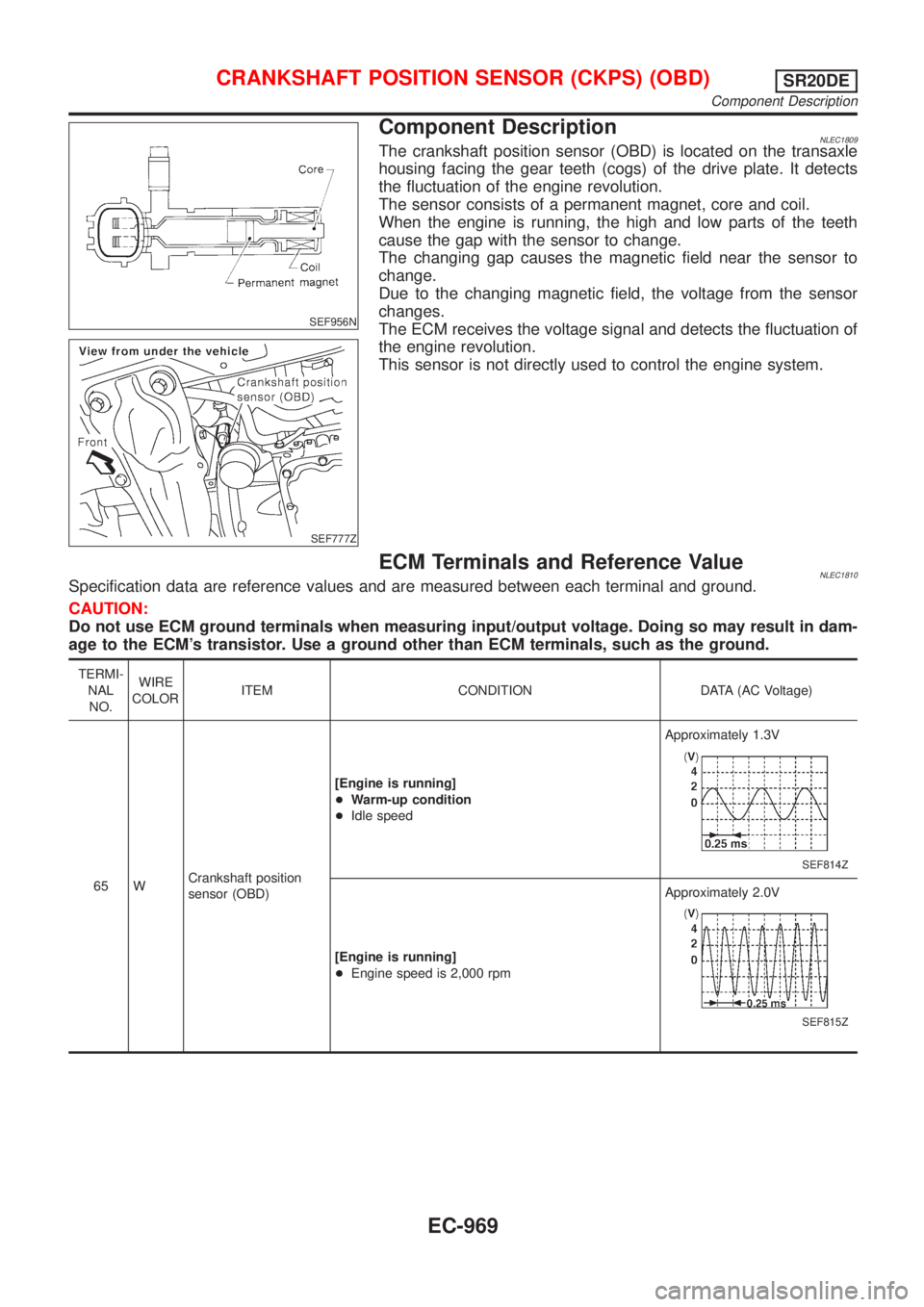

NISSAN ALMERA TINO 2001 Service Repair Manual SEF956N SEF777Z Component DescriptionNLEC1809The crankshaft position sensor (OBD) is located on the transaxle housing facing the gear teeth (cogs) of the drive plate. It detects the fluctuation of the

Page 1395 of 3051

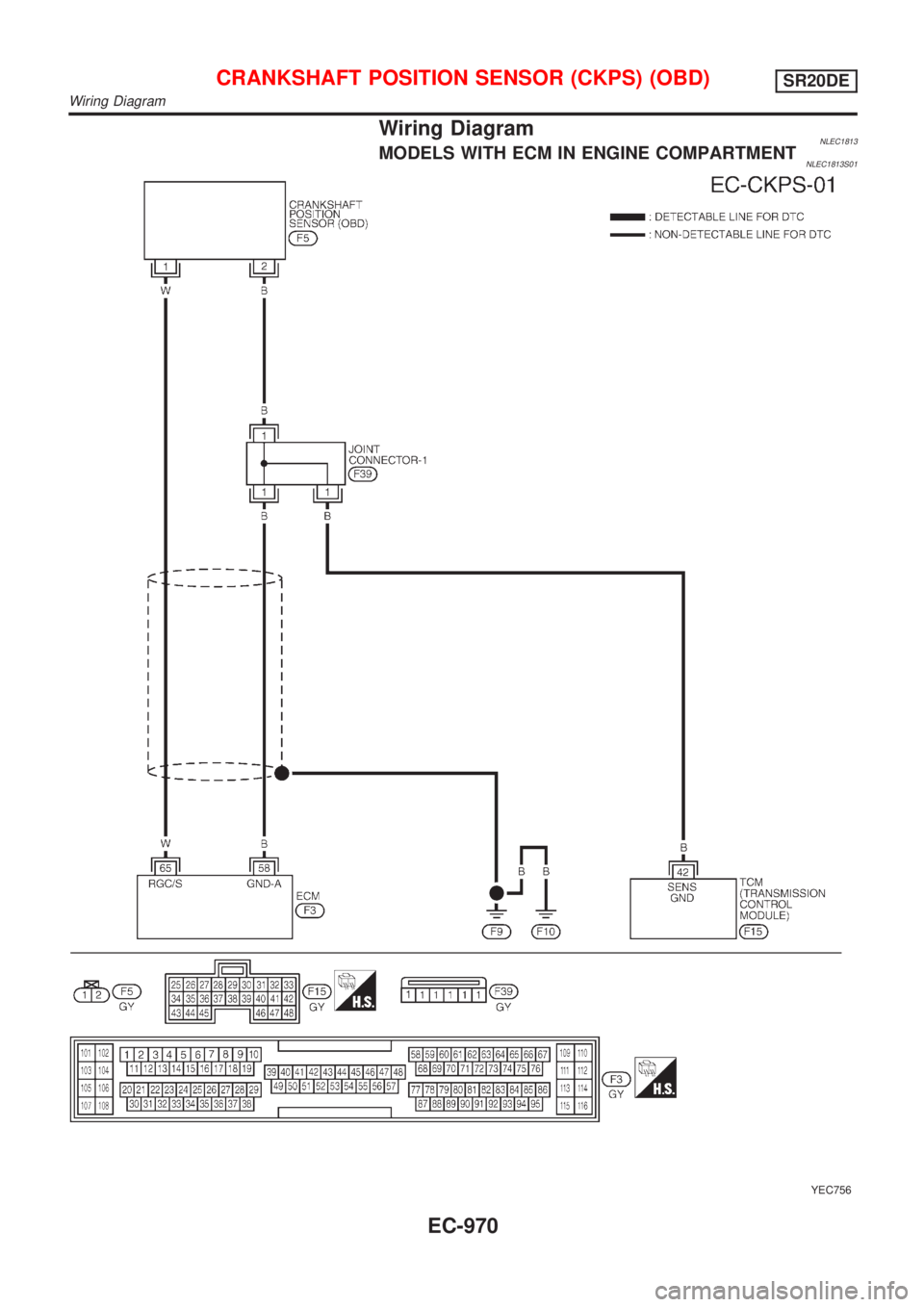

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1813MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1813S01 YEC756 CRANKSHAFT POSITION SENSOR (CKPS) (OBD)SR20DE Wiring Diagram EC-970

Page 1396 of 3051

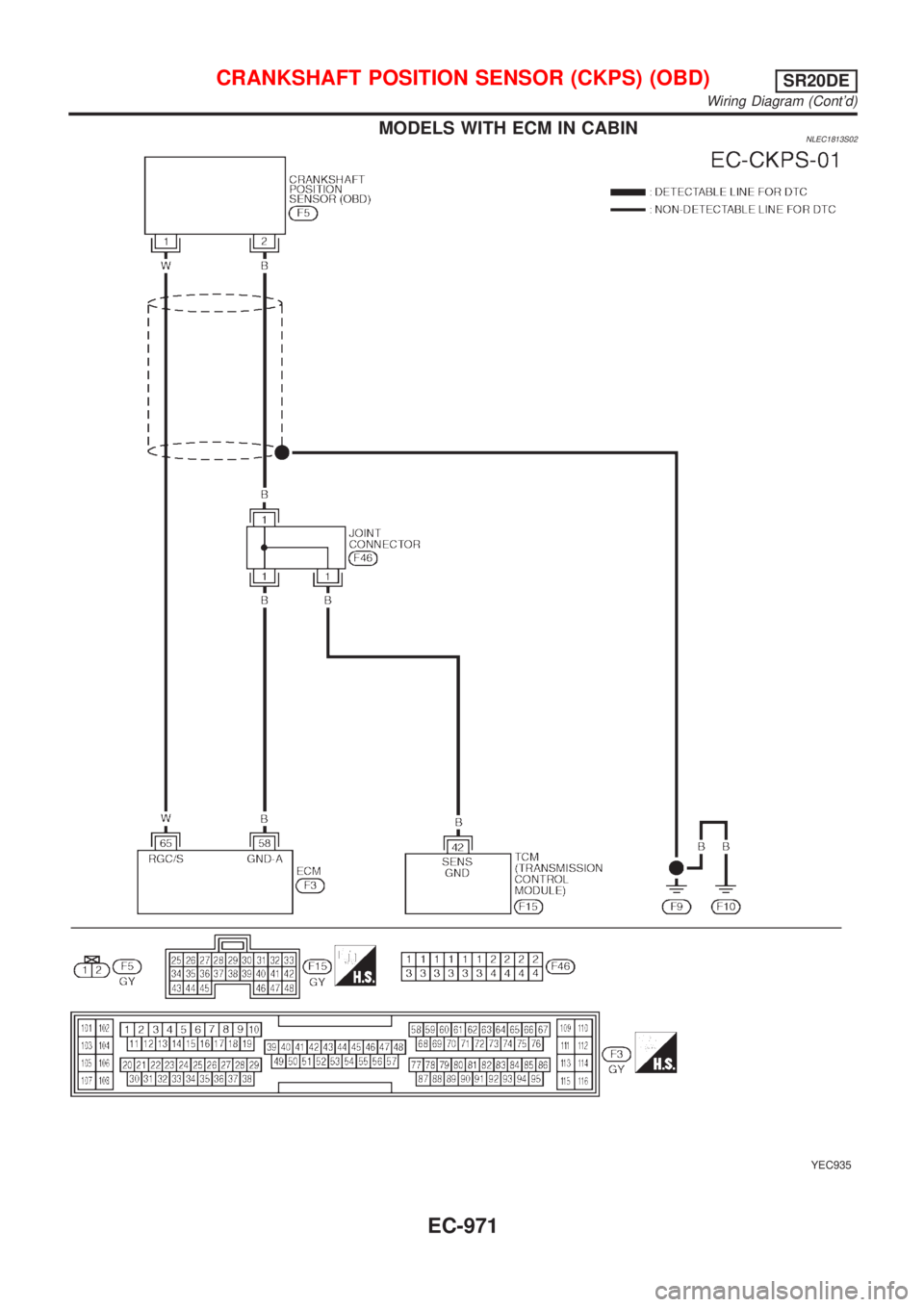

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1813S02 YEC935 CRANKSHAFT POSITION SENSOR (CKPS) (OBD)SR20DE Wiring Diagram (Contd) EC-971

Page 1397 of 3051

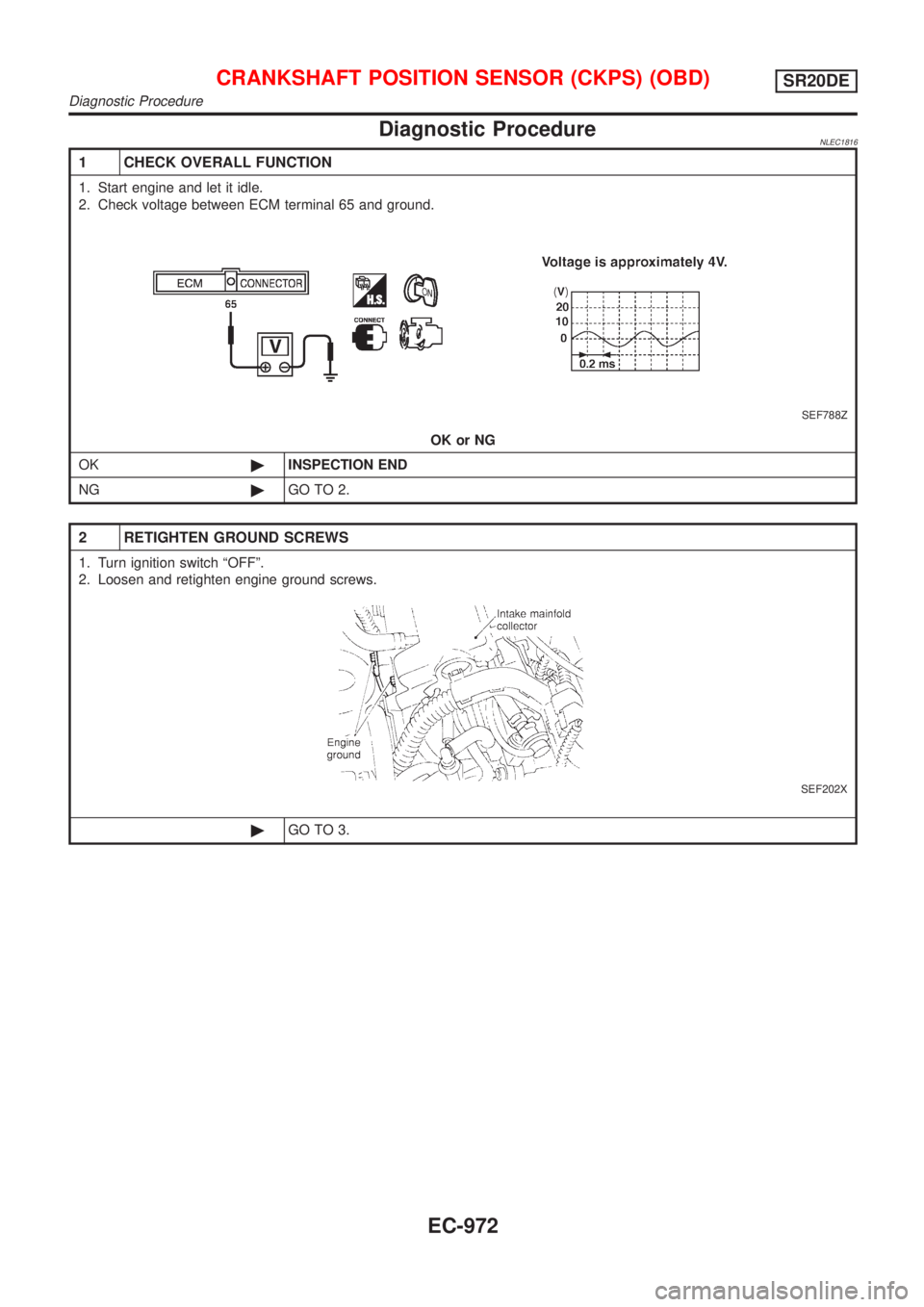

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1816 1 CHECK OVERALL FUNCTION 1. Start engine and let it idle. 2. Check voltage between ECM terminal 65 and ground. SEF788Z OK or NG OK©INSPECTION END NG©GO TO 2. 2 RETIGHTEN

Page 1398 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK INPUT SIGNAL CIRCUIT 1. Disconnect crankshaft position sensor (OBD) and ECM harness connectors. SEF777Z 2. Check continuity between ECM terminal 65 and CKPS (OBD) terminal 1. Refer to Wiring D

Page 1399 of 3051

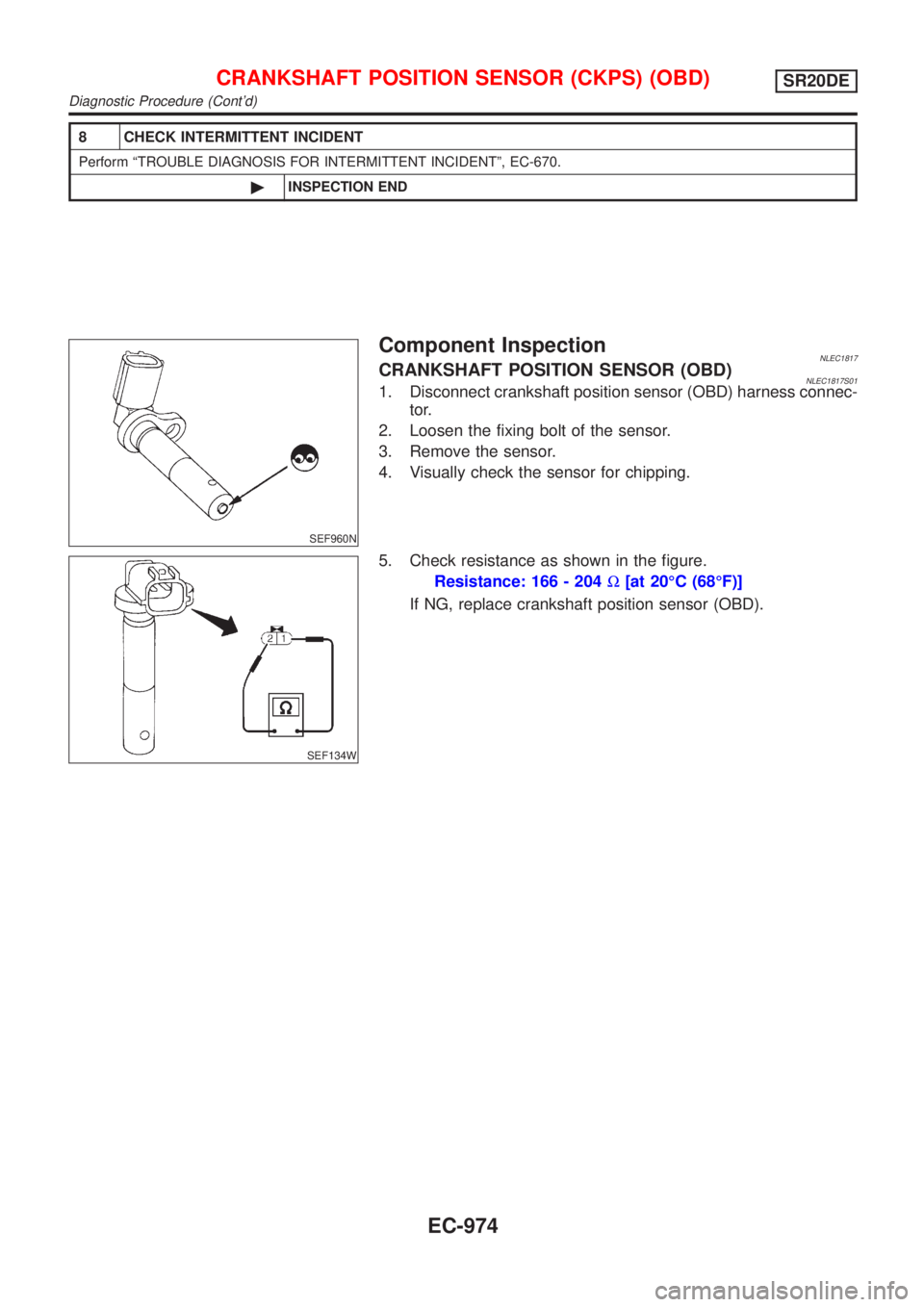

NISSAN ALMERA TINO 2001 Service Repair Manual 8 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-670. ©INSPECTION END SEF960N Component InspectionNLEC1817CRANKSHAFT POSITION SENSOR (OBD)NLEC1817S011. Discon

Page 1400 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC1818SYSTEM DESCRIPTIONNLEC1818S01 Sensor Input Signal to ECMECM func- tionActuator Camshaft position sensor Engine speed EGR vol- ume controlEGR volume control valve Mass air flow senso
